USER MANUAL UR18DA HiKOKI

Designed for operating in USA & Canada only. When this product is used in areas other than the USA & Canada, we cannot guarantee the product quality and performance. Model Modèle Modelo UR 18DA Cordless Radio Radio de chantier sans fi l Radio Inalámbrico

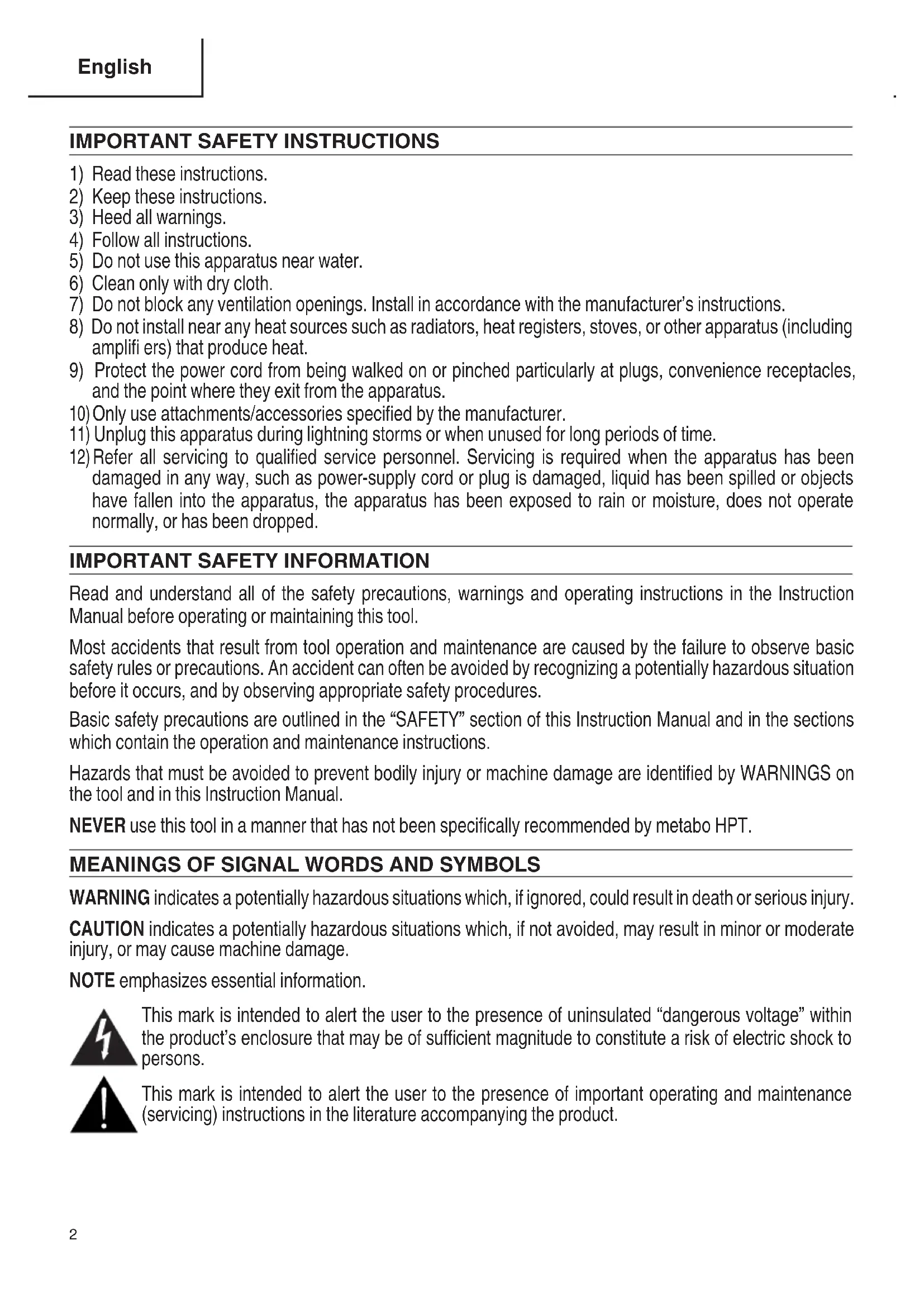

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifi ers) that produce heat.

9) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus. 10) Only use attachments/accessories specifi ed by the manufacturer. 11) Unplug this apparatus during lightning storms or when unused for long periods of time. 12) Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this tool. Most accidents that result from tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by WARNINGS on the tool and in this Instruction Manual. NEVER use this tool in a manner that has not been specifi cally recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS AND SYMBOLS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. This mark is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to persons. This mark is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. 000BookUR18DANA.indb2000BookUR18DANA.indb2 2021/09/2116:34:322021/09/2116:34:32English

SAFETY When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS

APPLIANCE) WARNING To reduce the risk of fi re, electric shock, or injury:

1. Use indoors only.

2. Use only the specifi ed power supply voltage.

3. Do not allow to be used as a toy. Close

attention is necessary when used by or near children.

4. Use only as described in this manual.

5. Use only manufacturer’s recommended

6. Do not handle appliance with wet hands.

8. Do not use the radio in the bathroom or

9. To reduce the risk of fi re or electric shock, do

not expose this radio to rain or moisture.

Radio shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be placed on radio.

Do not operate radio in explosive atmospheres, such as in the presence of fl ammable or combustible liquids, gasses or dust.

Do not put any object into openings.

Avoid damaging the AC adapter cord. Do not modify, forcibly bend, twist or pull the cord, place heavy objects on it or place it near heating appliances.

When not in use, remove the power plug (AC adapter) from the electric socket and from the radio. Failure to do so may lead to electric shock or fi re.

Remove the AC adapter from the outlet during thunderstorms.

Do not touch the FM antenna during thunderstorms.

Do not disassemble or modify the radio. Inspections and repairs should be performed by the store where purchased or by a metabo HPT power tool service center.

Insert the power plug (AC adapter) securely as far as it will go. Dust or dirt between the power plug and the electric socket may lead to fi re. Remove the power plug periodically and wipe off any dust or dirt with a dry cloth.

Do not let any unspecifi ed objects or water get inside the radio body. With the exception of the AC adapter and the rechargeable battery, if any metal or fl ammable object or water gets inside the back door, it may lead to electric shock or fi re. Take care to prevent iron powder from the bass refl ex speakers, dust or water getting into the radio.

Do not place the radio on an unstable surface or in a high place.

When no slide battery is loaded, attach the slide terminal cover to the terminal to prevent cuts and other injuries that may result from touching the terminal area.

If is displayed when you turn the power on with the rechargeable battery inserted, the battery power is low. Power the radio from the AC adapter or insert a charged battery. 000BookUR18DANA.indb3000BookUR18DANA.indb3 2021/09/2116:34:322021/09/2116:34:32English

SAVE THESE INSTRUCTIONS

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate radio in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.

2) Electrical safety

a) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. b) Do not expose radio to wet conditions. Water entering a radio will increase the risk of electric shock.

3) Battery powered radio use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use radio only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re. c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. d) Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your radio serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the radio is maintained. b) If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

SPECIFIC SAFETY RULES

1. Do not use in locations where infl ammable

materials such as lacquer, paint, benzene, thinner or gasoline are present. Explosion or fi res might result.

2. If you notice the unit is operating poorly

or making abnormal noises, immediately stop using and shut off the power switch. Request an inspection and repair from the dealer where you purchased the unit or a metabo HPT Authorized Service Center. Continuing to use while operating abnormally might cause injuries.

3. If the unit is mistakenly dropped or strikes

another object, make a thorough check of the unit for cracks, breakage or deformation, etc. Injuries might occur if the unit has cracks, breakage or deformation.

4. Do not use near objects generating high heat

Operate the radio according to the instructions provided herein. Do not drop or throw the radio.

6. Keep all screws, bolts and covers tightly in

place. Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

7. NEVER use a radio which is defective or

operating abnormally. If the radio appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

8. Carefully handle radio.

Should a radio be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged. 000BookUR18DANA.indb4000BookUR18DANA.indb4 2021/09/2116:34:322021/09/2116:34:32English

WARNING Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and

operating instructions for battery charger Model UC18YFSL.

2. Before using battery charger, read all instructions

and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge metabo HPT

rechargeable battery model BSL36B18. Other models of batteries may burst causing personal injury and damage.

4. Use of an attachment not recommended or sold

by the battery charger manufacturer may result in a risk of fi re, electric shock, or injury to persons.

5. To reduce risk of damage to electric plug and

cord, pull by plug when disconnecting battery charger.

6. Make sure cord is located so that it will not be

stepped on, tripped over, or otherwise subjected to damage or stress.

7. An extension cord should not be used unless

absolutely necessary. Use of improper extension cord could result in a risk of fi re and electric shock. If extension cord must be used make sure: a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger: b. That extension cord is properly wired and in good electrical condition; and c. That wire size is large enough for AC ampere rating of battery charger as specifi ed in Table 1. Table 1

AC Input Rating Amperes* AWG Size of Cord Equal to or greater than but less than Length of Cord, Feet (Meter) 25 (7.5) 50 (15) 100 (30) 150 (45)

If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating–for example: 1,250 watts = 10 amperes 125 volts

8. Do not operate battery charger with damaged

cord or plug-replace them immediately.

9. Do not operate battery charger if it has received a

sharp blow, been dropped, or otherwise damaged in any way; take it to a qualifi ed serviceman.

10. Do not disassemble battery charger; take it to a

qualifi ed serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fi re.

11. To reduce risk of electric shock, unplug

charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk. 000BookUR18DANA.indb5000BookUR18DANA.indb5 2021/09/2116:34:322021/09/2116:34:32English

BATTERY CHARGER You must charge the battery before you can use the radio. Before using the model UC18YFSL, be sure to read all instructions and cautionary statements on it, the battery and in this manual. CAUTION USE ONLY metabo HPT BATTERY MODEL

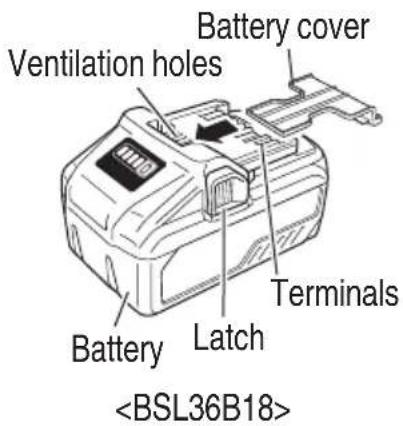

BSL36B18. OTHER MODELS OF BATTERIES

MAY BURST AND CAUSE INJURY! Follow these instructions to avoid the risk of injury: WARNING Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.

2. NEVER incinerate the battery, even if it is

damaged or is completely worn out. The battery can explode in a fi re.

3. NEVER short-circuit the battery.

4. NEVER insert any objects into the battery

charger’s air vents. Electric shock or damage to the battery charger may result.

5. NEVER charge outdoors. Keep the battery away

from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below

32°F (0°C) or above 104°F (40°C).

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the

battery or the battery charger.

9. NEVER use a booster transformer when charging.

10. NEVER use DC power to charge.

11. NEVER store the battery or battery charger in

places where the temperature may reach or exceed 104°F (40°C) such as inside metal box or car.

12. NEVER expose the battery or battery charger to

rain or wet conditions.

13. ALWAYS operate charger on standard household

electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

14. ALWAYS wait at least 15 minutes between

charges to avoid overheating the charger.

15. ALWAYS disconnect the power cord from its

receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the

radio stops. In such case, charge it up immediately.

2. If the tool is overloaded, the radio may stop. In

this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work,

the battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on

During work make sure that swarf and dust do not fall on the battery.

Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such

as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. WARNING If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fi re. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 3).

REGARDING LITHIUM-ION BATTERY

TRANSPORTATION When transporting a lithium-ion battery, please observe the following precautions. WARNING Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classifi cation of Dangerous Goods and will require special application procedures.

For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or

car cigarette lighter sockets.

6. Do not use the battery for a purpose other than

7. If the battery charging fails to complete even

when a specifi ed recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high

temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fi re immediately when leakage or

foul odor are detected.

10. Do not use in a location where strong static

electricity generates.

11. If there is battery leakage, foul odor, heat

generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

12. Do not immerse the battery or allow any fl uids

to fl ow inside. Conductive liquid ingress, such as water, can cause damage resulting in fi re or explosion. Store your battery in a cool, dry place, away from combustible and fl ammable items. Corrosive gas atmospheres must be avoided.

13. Caution-Risk of fi re and burns.

The battery used in this device may present a risk of fi re or chemical burn if mistreated. Do no disassemble, crush, heat above 104°F (40°C), or incinerate. Follow manufacturer’s instructions. Replace battery with metabo HPT battery model BSL36B18 only. Use of another battery may present a risk of fi re or explosion.

14. Dispose of used battery promptly.

Keep away from children. Do not crush disassemble and do not dispose of in fi re. CAUTION

1. If liquid leaking from the battery gets into your

eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye- problems.

2. If liquid leaks onto your skin or clothes, wash well

with clean water such as tap water immediately. There is a possibility that this can cause skin irritation. 000BookUR18DANA.indb7000BookUR18DANA.indb7 2021/09/2116:34:322021/09/2116:34:32English

Continuous exposure to loud noise may result in permanent hearing loss. The louder the volume, the shorter the time in which hearing loss may occur. If you listen to large volume sound over a long period of time, your ears will become accustomed to it. This creates the illusion that the volume level is appropriate, despite the fact that it may be damaging your hearing. Observe the following to prevent hearing loss. CAUTION

1. Make sure you give your ears a rest by taking

regular breaks and not listening for long periods of time. Even when set at safe volume levels, listening continuously over long periods of time may cause hearing loss.

2. Be careful not to increase the volume as your

hearing adapts to the sound output. Beware of being accustomed to a certain volume level. Adjust the volume to a safe level before your ears become accustomed to loud volumes.

3. If your ears begin to ring, if you feel any

discomfort, or if conversation seems faint or indistinct, discontinue listening to music and have your ears examined by a doctor.

Unexpected problems may result in the loss or corruption of data stored in smartphones and other peripheral equipment connected to the radio. With this possibility in mind, a backup of the data should always be made in advance. Note that metabo HPT cannot be held responsible for the corruption or loss of data stored within smartphones and other peripheral equipment connected to the radio, nor any damage to the equipment itself.

DISPOSAL OF THE EXHAUSTED

BATTERY WARNING Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it’s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offi cials for details in your area for recycling options or proper disposal. REGULATORY GUIDELINES ― For the USA ―

FEDERAL COMMUNICATIONS COMMISSION

WARNING Changes or modifi cations to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver. 000BookUR18DANA.indb8000BookUR18DANA.indb8 2021/09/2116:34:322021/09/2116:34:32English

SAVE THESE INSTRUCTIONS

AND OWNERS OF THIS RADIO!

Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected.

FUNCTIONAL DESCRIPTION NOTE The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the radio. NEVER operate, or attempt any maintenance on the radio unless you have fi rst read and understood all safety instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own radio.

Antenna Display Speaker Handle AC adapter port Name plate Battery (Sold separately) Operation panel Equalizer buttonVolume buttonPower button Mode button Channel selection button Button to save radio station

(optional accessories…sold separately)

Model UR18DA Frequency band FM: 87.5 to 107.9 MHz AM: 530 to 1710 KHz Antenna FM: Rubber antenna AM: Ferrite bar antenna (built-in) Speaker 8 W × 1 Maximum available output AC adapter: 7 W 18 V: 7 W Power supply Slide battery: DC 18 V Household power supply: AC 120 V (using provided AC adapter) Bluetooth Bluetooth Ver. 4.2 BR/EDR Profi le: A2DP (Advanced Audio Distribution Profi le) AVRCP (AV Remoto Control Profi le) Send/receive Sensitivity: Class 2 Exterior dimensions Length × width × height (with antenna retracted) 9-29/64" × 6-59/64" × 7-9/32" (240 mm × 176 mm × 185 mm) Battery (Optional accessories) Type Li-ion battery Model BSL36B18 Voltage DC 18 V Weight (Battery and standard accessories not included)

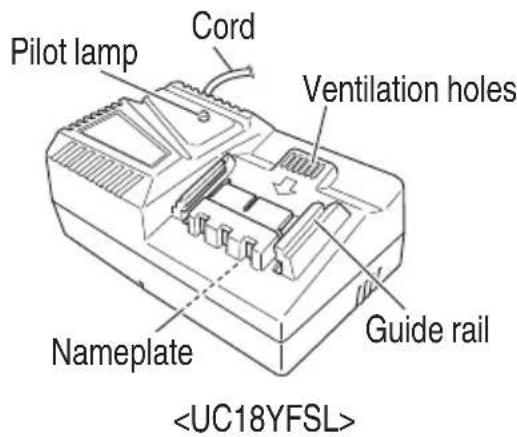

Model UC18YFSL Input power source Single phase: AC 120 V 60 Hz Charging time (At a temperature of 68°F (20°C)) BSL36B18: Approx. 120 min Charging voltage DC 18 V Charging current DC 3.5 A Weight

Playback of Bluetooth devices

Save (Memory) (9 AM + 9 FM stations)

Compatibility with metabo HPT power tool rechargeable battery and AC adapter

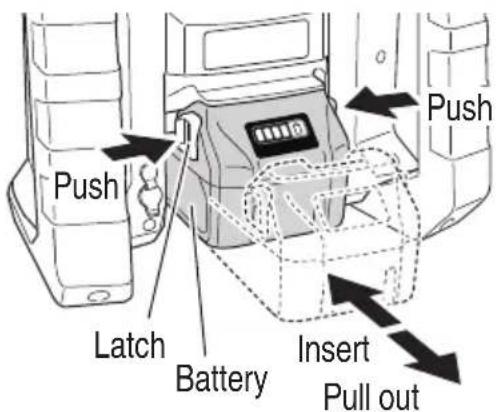

REMOVAL AND INSTALLATION

How to install the battery. Align the battery with the groove in tool and slip it into place. Always insert it all the way until it locks in place with a little click, If not, it may accidentally fall out of the tool, causing injury to you or someone around you (Fig. 5).

How to remove the battery. Withdraw battery from the tool while pressing the latch (2 pcs) of the battery (Fig. 5). Latch Battery Pull out Push Push Insert Fig. 5

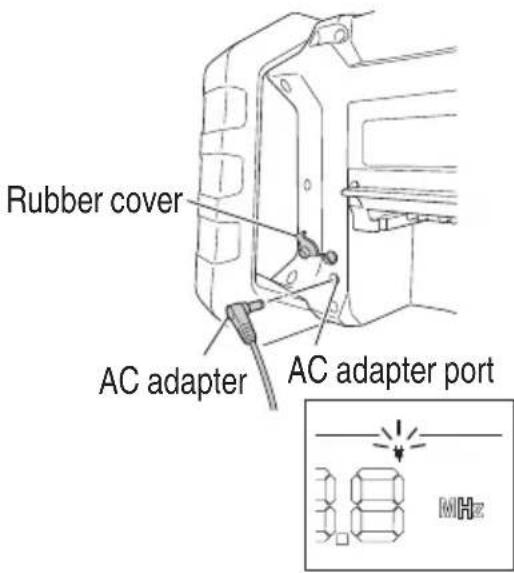

AC ADAPTER INSTALLATION

Power can be supplied by plugging the AC adapter (included) into a standard household outlet. Pull back the rubber cover and connect the AC adapter to the AC adapter port. (Fig. 6) Next, plug the AC adapter into an electrical outlet. AC adapter Rubber cover AC adapter port Fig. 6 NOTE

When used together with the batteries, the AC adapter is the main power source and no battery power is consumed.

When inserting the battery, do not use unnecessary force. If the battery does not go in easily, it is not being inserted correctly. Check that the battery is correctly oriented and that no foreign object has been trapped. 000BookUR18DANA.indb12000BookUR18DANA.indb12 2021/09/2116:34:332021/09/2116:34:33English

The radio has no charging function. Using the AC adapter and rechargeable battery simultaneously will not charge the battery. If is displayed when you turn the power on with the rechargeable battery inserted, the battery power is low. Power the radio from the AC adapter or insert a charged battery. CHARGING METHOD NOTE Before plugging into the receptacle, make sure the following points.

The power source voltage is stated on the nameplate.

The cord is not damaged. WARNING Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn out.

1. Connect the charger’s power cord to a receptacle.

When the power cord is connected, the charge indicator lamp will blink in red. (At 1-second intervals) WARNING Do not use the electrical cord if damaged. Have it repaired immediately.

2. Insert the battery to the battery charger.

Firmly Insert the battery into the battery charger as shown in Fig. 7. Battery Guide rail Pilot lamp Fig. 7

When inserting a battery in the charger, the pilot lamp will light up continuously in red. When the battery becomes fully recharged, the pilot lamp will blink in red. (At 1- second intervals.) (See Table 2) (1) Lamp indication The indications of the pilot lamp will be as shown in Table 2, according to the condition of the battery charger or the battery. 000BookUR18DANA.indb13000BookUR18DANA.indb13 2021/09/2116:34:342021/09/2116:34:34English

Table 2 Indications of the pilot lamp Pilot lamp (red) Before charging Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) While charging Lights Lights continuously Charging complete Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Overheat standby Blinks Lights for 1 second. Does not light for

0.5 seconds. (off for 0.5 seconds)

Battery overheated. Unable to charge. (Charging will commence when battery cools) Charging impossible Flickers Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds) Malfunction in the battery or the charger (2) Regarding the temperature of the rechargeable battery. The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged. Table 3 Rechargeable batteries Temperatures at which the battery can be recharged BSL36B18 32°F–122°F (0°C–50°C) (3) Regarding recharging time (At 68°F (20°C)) Table 4 Charging time Charger Battery UC18YFSL BSL36B18 Approx. 120 min NOTE The recharging time may vary according to the ambient temperature.

4. Disconnect battery charger from the receptacle.

CAUTION Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger. NOTE Be sure to pull out the battery from the battery charger after use, and then keep it. Regarding electric discharge in case of new batteries, etc. As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the fi rst and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times. 000BookUR18DANA.indb14000BookUR18DANA.indb14 2021/09/2116:34:342021/09/2116:34:34English

How to make the batteries perform longer (1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter. (2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while. CAUTION

When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds). The battery will not be recharged. In such a case, let the battery cool before charging.

When the pilot lamp fl ickers (at 0.2-second intervals), check for and take out any foreign objects in the charger’s battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center. USE

1. Switching On and Off

To switch on: Press button. To switch off : Press button again.

2. Adjusting the volume

Increase volume: press “+” button. Decrease volume: press “–” button.

3. Change between FM (ultra shortwave),

AM (medium wave) and Bluetooth (BT) The set mode is shown in the display (FM / AM / BT). To change between FM (ultra shortwave / UKW), AM (medium wave) and BT (Bluetooth), press the “MODE” button several times.

4. Searching for radio stations

Press “│<<” button or “>>│” button to change the frequency. The current frequency is shown on the display. To search the next radio station with high signal strength, press the “│<<” button or press the “>>│” button and keep pressed briefl y. The frequency of the radio station found is shown on the display.

5. Store set radio station

(1) Set the desired memory number by pressing buttons “│<<” or “>>│”. (2) Press the “STATION” button for a long time. The selected memory number blinks on the display. NOTE The radio station can only be stored as long as the number is blinking. (3) Press the “STATION” button briefl y (store radio station).

6. Listening to stored radio stations

Press “STATION” button briefl y until the desired stored radio station is shown on the display and played.

7. Bluetooth (depending on confi guration)

(1) To change to BT (Bluetooth), press the “MODE” button several times, until BT shows on the display. (2) Activate Bluetooth on your smart phone (or another mobile device such as a tablet). (3) If your smart phone has detected the radio, it will be shown with the device name “UR18DA”. (4) On your smart phone establish the connnection to the device “UR18DA”. The successful connection is shown on the display by pressing the symbol. (5) Start replay e.g. of a song on your smart phone. 000BookUR18DANA.indb15000BookUR18DANA.indb15 2021/09/2116:34:342021/09/2116:34:34English

8. Setting treble and bass

To change between treble and bass, press the “EQ” button several times. The active mode is shown on the display: “TREBLE” and “BASS”. The set value is shown in the display. To change the setting, press the “–” button or the “+” button.

9. Battery pack, displaying the battery pack

charge level Over 75% The battery symbol on the display shows the charge level of the battery pack. Recharge an empty battery pack in a suitable Metabo charger. 50 to 75% 25 to 50% Under 25%

MAINTENANCE AND INSPECTION

WARNING : When not in use or during inspection and maintenance, be sure to remove the AC plug and rechargeable battery.

1. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

2. Cleaning on the outside

When the radio is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

Dust may be removed with a soft cloth or a cloth dampened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

4. Inspection of terminals (tool and battery)

Check to make sure that swarf and dust have not collected on the terminals. On occasion check prior, during and after operation. CAUTION Remove any swarf or dust which may have collected on the terminals. Failure to do so may result in malfunction.

5. Disposal of the exhausted battery

WARNING Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The battery is recyclable. At the end of it’s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offi cials for details in your area for recycling options or proper disposal.

Do not store the radio in the following places.

Within reach of or easily accessible to children

In high temperature such as inside a car or exposed to direct sunlight

In extremely cold places or directly exposed to cold draughts

Where the temperature changes drastically

Where it is exposed to smoke or steam such as near a cooking appliance or humidifi er The ideal storage temperature is between 10°C and 40°C. 000BookUR18DANA.indb16000BookUR18DANA.indb16 2021/09/2116:34:342021/09/2116:34:34English

NOTE Storing lithium-ion batteries Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

7. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Important notice on the batteries for the metabo HPT cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts). 000BookUR18DANA.indb17000BookUR18DANA.indb17 2021/09/2116:34:342021/09/2116:34:34English

ACCESSORIES WARNING : ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE: Accessories are subject to change without any obligation on the part of the metabo HPT. STANDARD ACCESSOIRES
