Product Type	Rotary hammer (hammer drill)
Brand	Kress
Model	KUX35P
Power Supply	230-240 V ~ 50 Hz
Rated Power	1200 W
Impact Rate	3500 bpm
Impact Energy	14 J
Weight	5.8 kg
Protection Class	II (double insulation)
Sound Pressure Level (LpA)	87.9 dB(A)
Sound Power Level (LwA)	101.9 dB(A)
Chuck Type	Quick-release chuck for chisels
Auxiliary Handle	Yes, adjustable
Anti-vibration Handle	Yes
Chisel adjustment ring	Yes, for angular positioning
Self-locking switch	Yes, for continuous operation
Lubrication	Manual greasing every 100 hours (approx. 10 g of grease 1#)
Included Accessories	Auxiliary handle, wrench, pointed chisel
Environmental Protection	WEEE recycling, do not dispose with household waste
Intended Use	Chipping on concrete, brick, stone, asphalt; screwing and compacting with suitable accessories

Frequently Asked Questions - KUX35P KRESS

How to replace the chisel on the Kress KUX35P?

Pull the chuck (2) back, insert the chisel, then release the chuck to lock. Make sure it is secure by pulling on it. To remove, pull down the chuck and remove the chisel.

What oil or grease to use for lubricating the gearbox?

Use about 10 grams of grease 1# (gear lubricant) every 100 operating hours. Open the oil cap (3) with the provided wrench to add grease.

Can the KUX35P hammer be used for drilling metal or wood?

No, this tool is designed for chipping and hammering on concrete, brick, stone and asphalt. For drilling, use an appropriate chuck and drill bits, but the machine is primarily a rotary hammer.

How to adjust the chisel position?

After securing the chisel, push the chisel adjustment ring (9) towards the chuck (2) and turn it to adjust the angle. Release the ring and check that the chisel is locked in the slot. Never perform this adjustment while the tool is running.

What to do if the tool overheats?

If the machine gets very hot, run it idle for 2 to 3 minutes to cool the motor. Check that the air vents are not blocked and that the tool is not used continuously beyond its capacity.

What safety equipment is recommended?

Always wear ear protection, safety glasses, and a dust mask. Use the auxiliary handle and hold the tool by insulated surfaces to avoid electric shock.

Can I use a standard chisel with this drill?

Yes, the machine comes with a pointed chisel. You can use other chisels compatible with the quick chuck system. Make sure they are sharpened for best performance.

How to clean the tool after use?

Wipe the machine with a dry cloth. Never use water or chemical detergents. Keep air vents clean and unobstructed. If the machine is very dusty, use a dry air blower.

What do the symbols on the label mean?

Symbols include: read the manual, wear ear protection, eye protection, dust mask, and protection class II (double insulation). The WEEE symbol indicates separate recycling.

Is the warranty valid if I lubricate the gearbox myself?

Yes, lubrication is normal maintenance recommended by the manufacturer. Follow the instructions to avoid damaging the tool. If in doubt, contact an authorized service center.

USER MANUAL KUX35P KRESS

Technical line drawing of a Kressi drill press with attached mechanical components (no text or symbols)

Technical line drawing of a Krossp electric drill with blade and grip (no text or symbols)

Top-down schematic of a mechanical device with a central circular component and handle (no text or symbols)

Technical line drawing of a Kressin electric drill press tool (no text or symbols on the device itself)

ORIGINAL INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings

and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions

will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

HAMMER SAFETY WARNINGS

1. Wear ear protectors. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ADDITIONAL SAFETY RULES FOR HAMMER

1. Always wear a dust mask.

SYMBOL

	To reduce the risk of injury, user must read instruction manual
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Double insulation
	Warning
	Waste electrical products must not be disposed of with household waste.Please recycle where facilities exist.Check with your local authorities or retailer for recycling advice.

COMPONENT LIST

1.	DUST-PROOF COVER
2.	CHUCK
3.	GREASE BOX COVER
4.	ANTI-VIBRATION HANDLE
5.	SELF-LOCKING BUTTON
6.	START-STOP SWITCH
7.	MAIN HANDLE
8.	AUXILIARY HANDLE
9.	CHISEL ADJUSTMENT RING

Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type Designation: KUX35P(X35P-designation of machinery, representative of hammer

Rated voltage 230-240V~50Hz
Rated power input 1200W
Impact rate 3500bpm
Impact energy 14J
Protection class
Machine weight 5.8kg
Working system	30s / 90s

ACCESSORIES

Auxiliary handle 1
Spanner	1
Bull point chisel 1

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

NOISE INFORMATION

A weighted sound pressure L	_pA =87.9dB(A)
A weighted sound power L	_wA =101.9dB(A)
K_PA & K_WA 3dB(A) & 2.4dB(A)
Wear ear protection.

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:

Chiseling	Vibration emission value a_h,Cheq = 17.918m/s^2
	Uncertainty K= 1.5m/ s^2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) If the tool is to be used regularly then invest in anti vibration accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

OPERATION INSTRUCTIONS

NOTE: Please read the instructions carefully before use.

INTENDED USE

This machine is suitable for gouging on concrete, bricks, stone and asphalt. After appropriate accessories are installed, it can also be used for squeezing and tamping.

INSTALLATION

Warning: Be sure to unplug the power cord before any commissioning or repair on the machine.

1. AUXILIARY HANDLE (SEE FIGURE A)

You can change the position of the auxiliary handle (8) as needed to improve work safety and comfort. Tighten the auxiliary handle (8) in the counter-clockwise direction and loosen the auxiliary handle (8) in the clockwise direction.

Warning: The auxiliary handle must be used during operation.

2. CHISEL

With the chucks (2), the chisel can be easily replaced without other auxiliary tools.

The dust-proof cover (1) prevents the dusts from entering the chisel during operation. Be cautious when installing a chisel without damaging the dust-proof cover (1).

Warning: Replace the dust-proof cover once it is damaged. To avoid danger, it must be replaced by the special service center, or an professional person with equivalent qualifications.

1) INSTALLATION

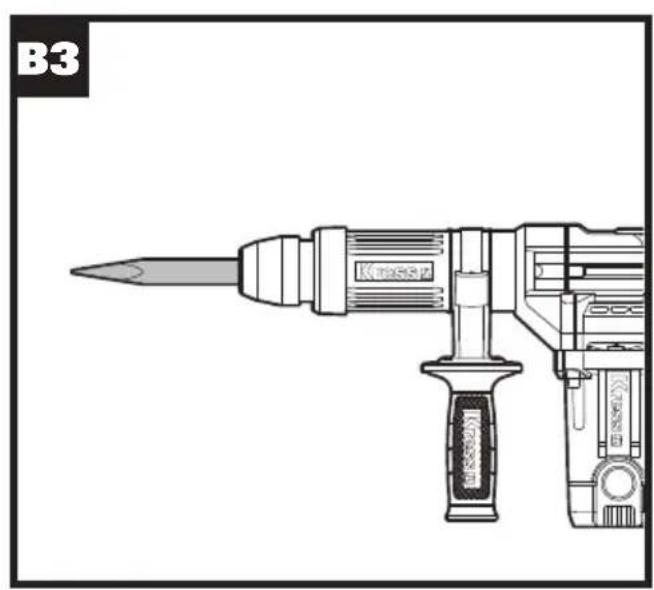

Pull down the chuck (2) and screw it into the chisel. Release the chuck (2) to lock the chisel. (See Figure B1-B3)

Pull the chisel to make sure it is locked.

2) DISASSEMBLY

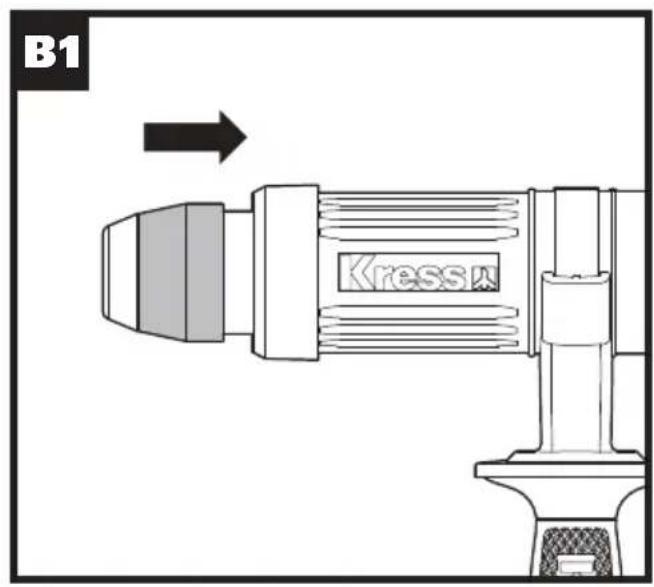

Pull down the chuck (2) and remove the chisel. (See Figure C)

NOTE: Use a sharp chisel to achieve good performance. It is important to grind the chisel in time to extend its service life and achieve better performance.

3) Regularly add lubricant to the gearbox

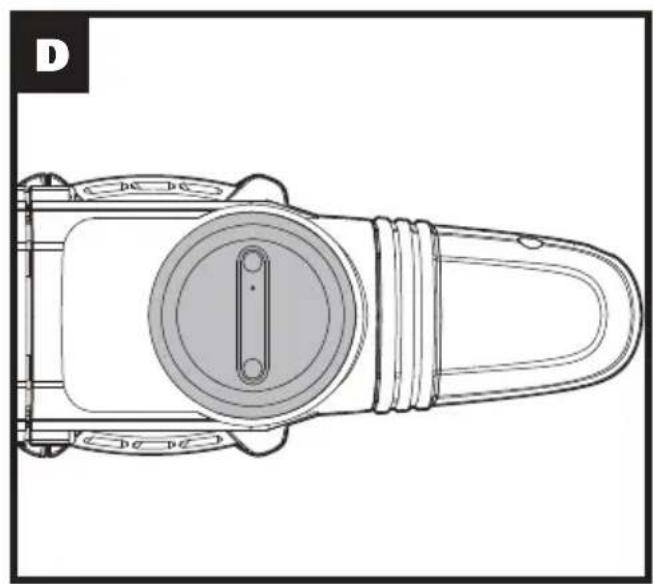

Open the oil cover (3) with the accompanying wrench, and add the appropriate amount of grease (see Figure D)

3. CHISEL POSITION ADJUSTMENT

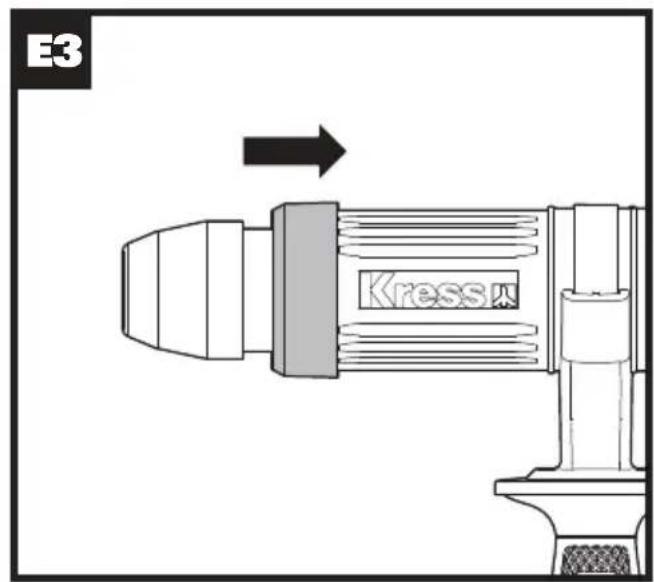

After attaching chisel, push chisel adjustment ring (9) toward the chuck (2) and rotate. Adjusting chisel's angle to make it at the proper position, then release the chisel adjustment ring and make sure chisel clips into the slot firmly. (See Figure E1, E2, E3)

ATTENTION: Do not adjust chisel when the tool is on operation

OPERATION

1. START/STOP

Press the start/stop switch to start the machine. Release the start/stop switch (6) to stop the machine.

2. CONTINUOUS OPERATION

Start: Press the start/stop switch (6) and lock the switch with the self-locking button (5) to keep it activated.

Off: Press the start/stop switch (6) and release it immediately.

Warning: If the machine is severely hot, make your machine run for 2-3 minutes without load to cool the motor.

MAINTENANCE

Be sure to unplug the power cord before any repair work on the machine.

It is required to add the lubricants for the power tool. Wipe the machine with a dry cloth in time after using. Do not clean the machine with water or chemical detergent to avoid affecting the performance of the casing or causing such accident as electric leakage. Always keep the air inlet clean and unobstructed to prevent debris from accumulating and affecting the cooling of the motor. Also, try not to use it in dusty environment.

Occasionally, there may sparkles at the air outlet, which is normal and will not cause damage to the machine. If the power cord is damaged, it must be replaced by the manufacturer, a special service center, or an professional person with equivalent qualifications to avoid a hazard.

Add approximately 10 grams of 1# lubricant (about 2-3 water bottle caps) to the gearbox every 100 operating hours.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities

or retailer for recycling advice.

PLUG REPLACEMENT(ONLY FOR REWIRABLE PLUG OF UK & IRELAND)

If you need to replace the fitted plug then follow the instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

BLUE = NEUTRAL BROWN = LIVE

As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L.

Warning!

Never connect live or neutral wires to the earth terminal of the plug. Only fit an approved 13ABS1363/A plug and the correct rated fuse.

Note: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

Description Electric hammer

Type KUX35P(X35P-designation of machinery, representative of hammer)

Function Hammering various materials

Complies with the following Directives:

2006/42/EC, 2011/65/EU&(EU)2015/863, 2014/30/EU

2000/14/EC amended by 2005/88/EC:

- Conformity Assessment Procedure as per Annex VI

- Measured Sound Power Level 101.9dB

- Declared Guaranteed Sound Power Level 105dB

The notified body involved

Address: BP 23 L-5201 Sandweiler

Standards conform to

EN 62841-1, EN IEC 62841-2-6, EN ISO 3744,

EN IEC 55014-1, EN IEC 55014-2,

EN IEC 61000-3-2, EN 61000-3-3

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

2022/10/21

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

NOTICE ORIGINALE AVERTISSEMENTS GÉNÉRAUX DE SÉCURITÉ POUR L'OUTIL

INFORMATIONS RELATIVES AU BRUIT

DÉCLARATION DE CONFORMITÉ

Nous,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ISTRUZIONI ORIGINALI AVVISI GENERALI PER LA SICUREZZA DEGLI UTENSILI A MOTORE

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

MANUAL ORIGINAL AVISOS GERAIS DE SEGURANÇA DE FERRAMENTAS ELÉCTRICAS

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OORSPRONKELIJKE GEBRUIKSAANWIJZING ALGEMENE VEILIGHEIDSWAARSCH UWINGEN VOOR VERMOGENSMACHINE

1. EXTRA HANDGREEP (ZIE AFBEELDING A)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Kress
