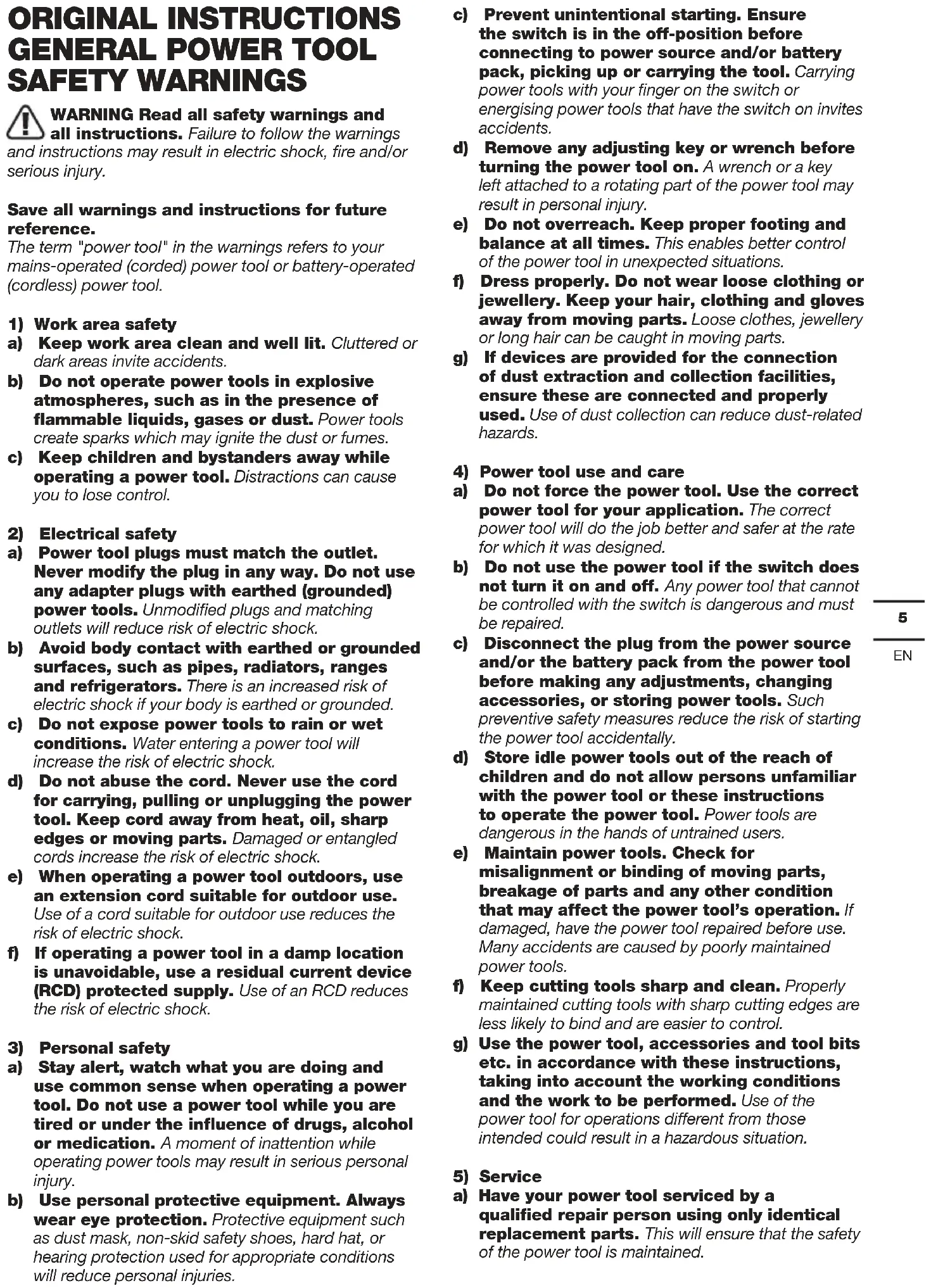

SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.6

1) Safety instructions for all operations

Wear ear protectors. Exposure to noise can cause hearing loss.

Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring or its own cord. Cutting accessory or fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

2) Safety instructions when using long drill

bits with rotary hammers a) Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. b) Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend, causing breakage or loss of control, resulting in personal injury. ADDITIONAL SAFETY

1. Always wear a dust mask.

SYMBOL To reduce the risk of injury, user must read instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Double insulation Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. Lock Unlock COMPONENT LIST

Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type Designation: KUX15P (X15P-designation of machinery, representative of hammer) Rated voltage 230-240V~50Hz Power input 1100W No-load speed 0-900/min Impact rate 4300bpm Impact energy 5.0J Chuck type SDS-Plus Drilling capacity Masonry 28mm Function hammer, chiseling Protection class /II Machine weight 4.5kg ACCESSORIES Auxiliary handle

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.7

NOISE INFORMATION A weighted sound pressure L

K = 1.5 m/s² The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING:The vibration emission value during

actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed

WARNING:To be accurate, an estimation of

exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may signicantly reduce the exposure level over the total working period. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) If the tool is to be used regularly then invest in anti vibration accessories. Plan your work schedule to spread any high vibration tool use across a number of days. OPERATION INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for hammer drilling in concrete, brick and stone as well as for light chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic.

WARNING: Remove the plug from

the socket before carrying out any adjustment, servicing or maintenance.

1. Inserting/Removing bits

Take care that the dust protection cap is not damaged when changing tools.

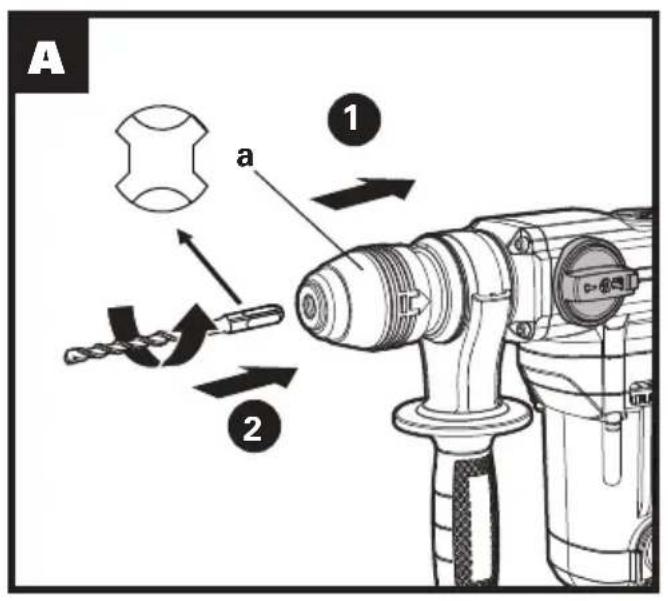

1) Inserting bits (See Fig. A)

Clean and lightly grease the bit with the oil provided before inserting. Retract back the bit holder locking sleeve (a) and insert the dust-free bit into the bit holder with a twisting motion until it latches. The bit locks itself. Check the locking by pulling on the tool.

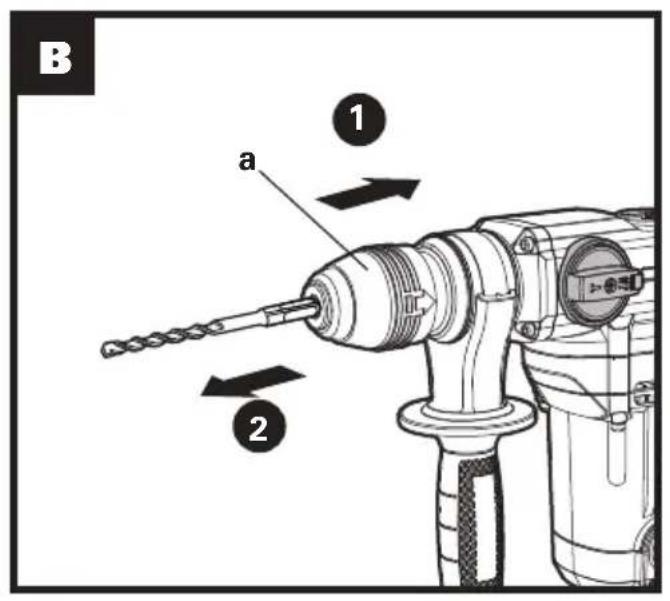

2) Removing bits (See Fig. B)

Retract back the bit holder locking sleeve (a) and pull out the bit. WARNING! Your new KRESS Rotary Hammer generates powerful forces to get your job done quickly and effectively. These forces may cause inferior quality SDS bits to break and jam in the chuck. We therefore recommend that only high quality SDS bits be used with this tool.

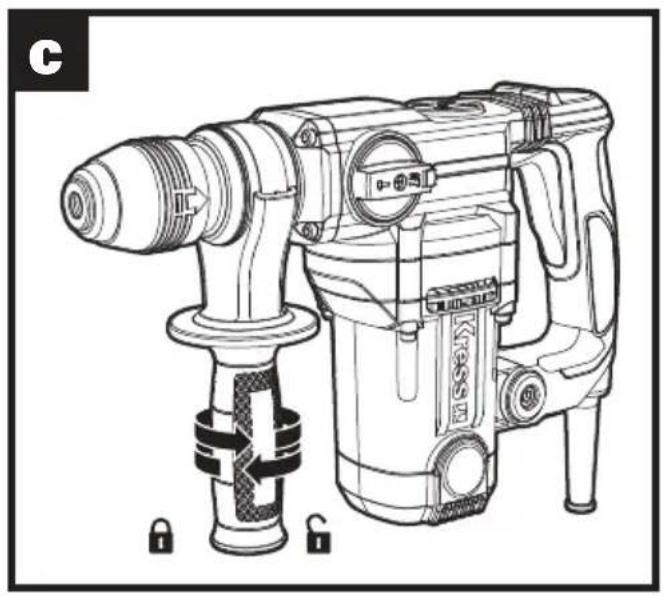

2. Adjusting the auxiliary handle (See Fig. C)

Loosen the depth gauge by rotating the handle counter- clockwise. Slide the depth gauge until the distance between the depth gauge end and the drill bit end is equal to the depth of hole/screw you wish to make. Then clamp the depth gauge by rotating the handle clockwise.

WARNING: Always use the auxiliary

3. Anti-vibration handle

The Anti-vibration handle reduces the vibration generated when operating the machine to ensure safe and comfortable operation.

4. Starting/Stopping

Depress the On/Off switch to start and release it to stop your tool.

5. Continuous operation

Starting: keep holding the On/Off switch to ensure continuous operation. Stopping: release the On/Off switch.

6. Function mode selection

The operation of the gearbox for each application is set with the function mode selection switch. To change between functions, depress the unlocking button and rotate the selector to the desired operating mode.8

For drilling of concrete or masonry For chiseling.

WARNING: The operating mode selector

switch may be actuated only at a standstill.

7. Replacing carbon brush (See Fig. D)

Check if the carbon brush is worn out when the machine has an unstable speed or the machine fails to operate after turning on. When this happens, please replace the carbon brush as follows:

1) Unplug the power cord.

2) Open the carbon brush cover (e) with a screwdriver

3) Replace the two carbon brushes at the same time.

8. OVERLOAD PROTECTION

When overloaded, the motor comes to a stop. Relieve the load on the machine immediately and allow cooling for approx. 30 seconds at the highest no-load speed. MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. Add approximately 10 grams of 1# lubricant (about 2-3 water bottle caps) to the gearbox every 100 operating hours. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. PLUG REPLACEMENT

PLUG OF UK & IRELAND) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: Blue = Neutral Brown = Live As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L. Warning! Never connect live or neutral wires to the earth terminal of the plug. Only fit an approved BS1363/A plug and the correct rated current fuse which is used in the plug. Note: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

neutral) Outer sleeve firmly clamped Cable grip Brown L (live) Fuse9

TROUBLE SHOOTING The following table gives checks and actions that you can perform if your machine does not operate correctly. If these do not identify/solve the problem, contact Kress Customer Service. I would add a comment here to again recommend that you apply grease to the shank of every drill bit used. Symptom Possible Cause Remedy Machine fails to operate No power supply to machine. Use another socket. The brushes are worn out. Have a qualied person to check them, and replace them if necessary. The power and hammer efciency of the machine is low. Machine may be cold. Warm up the machine for 1-2 minutes until it reaches a proper working temperature. The connecting rod is broken (lacking of grease oil or the gearbox is dirty). Have a qualied person to replace it if necessary and add grease oil. There is no enough grease oil in the gearbox. Have a qualified person to add some grease oil (about 2 or 3 bottle caps). Your bit does not slide freely in the chuck. Clean the dust and debris inside the chuck; Grease the shank of the bit if necessary. Your drill bit will not t into the chuck easily The chuck is dirty with dust and debris. Clean the dust and debris from inside the chuck. The shank of the bit is damaged or distorted. Change a new bit. A drill bit has broken and the shank has remained in the chuck. Have a qualied person to check and replace it if necessary. You cannot remove your drill bit from the chuck The shank of the bit is damaged or distorted; The chuck is dirty with dust and debris. Have a qualied person to check and replace it if necessary. DECLARATION OF CONFORMITY We, Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany Declare that the product Description Electric hammer Type KUX15P (X15P-designation of machinery, representative of hammer) Function Hammering various materials Complies with the following Directives, 2006/42/EC 2011/65/EU & (EU)2015/863 2014/30/EU Standards conform to: EN 62841-1

EN 61000-3-3 The person authorized to compile the technical le, Name Marcel Filz Address Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany 2022/10/21 Allen Ding Deputy Chief Engineer, Testing & Certication Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China10
