KU120 - Drill KRESS - Free user manual and instructions

Product Type	Corded Drill
Model	KU120
Brand	Kress
Power Input	600 W
Rated Voltage	230 V ~ 50 Hz
No-Load Speed	0 - 2800 rpm
Chuck Capacity	1.5 - 13 mm
Drilling Capacity (Steel)	13 mm
Drilling Capacity (Wood)	30 mm
Weight	1.2 kg
Dimensions (L x H x W)	250 x 180 x 70 mm
Protection Class	II (Double Insulated)
Main Features	Variable speed trigger, forward/reverse rotation, keyless chuck, ergonomic grip
Cleaning and Maintenance	Keep ventilation slots clean; wipe with dry cloth; check brushes periodically
Safety Features	Lock-on button for continuous use, safety switch, double insulation
Spare Parts Availability	Carbon brushes, chuck, switch, cord
Repairability	User-replaceable carbon brushes; other repairs by qualified personnel
Included Accessories	1 drill bit, side handle, depth stop

Frequently Asked Questions - KU120 KRESS

What is the power rating of the Kress KU120 drill?

The Kress KU120 has a power input of 600 W at 230 V.

Is the Kress KU120 a corded or cordless drill?

It is a corded drill designed for continuous operation.

What is the maximum drilling capacity in steel?

It can drill holes up to 13 mm in steel.

Does the KU120 have a variable speed trigger?

Yes, it features a variable speed trigger for precise speed control.

How do I change the chuck on the Kress KU120?

The drill has a keyless chuck. Rotate the chuck sleeve to tighten or loosen the bit.

What maintenance is required for this drill?

Regularly clean ventilation slots, check carbon brushes, and lubricate chuck occasionally.

Can I use the drill in reverse?

Yes, there is a forward/reverse switch for drilling and screwdriving.

What safety features does the KU120 have?

It has double insulation, a lock-on button, and a safety switch to prevent accidental start.

Where can I find spare parts for the Kress KU120?

Spare parts like carbon brushes, chuck, and switch are available from Kress service centers.

What is the weight of the drill?

The drill weighs approximately 1.2 kg, making it lightweight and easy to handle.

USER MANUAL KU120 KRESS

Line drawing of a Kress electric drill with no text or symbols on the device itself

Hand Drill	EN
مُنْقَاب	AR
KU120 KU120.1

Line drawing of a K-85S electric drill with power outlet, no text or symbols present

PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard

hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the

working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

DRILL SAFETY WARNINGS

1) Safety instructions for all operations
a) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring or its own cord.

Cutting accessory or fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

2) Safety instructions when using long drill bits
a) Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
b) Always start drilling at low speed and with the bit tip in contact with the workpiece.

At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

c) Apply pressure only in direct line with the bit and do not apply excessive pressure.

Bits can bend causing breakage or loss of control, resulting in personal injury.

SYMBOL

	To reduce the risk of injury, user must read instruction manual
	Warning
	Wear ear protection
	Wear eye protection

Wear dust mask

Wear protective gloves

Before any work on the machine itself, pull the mains plug from the socket outlet.

Double insulation

COMPONENT LIST

1.	KEY CHUCK
2.	FORWARD AND REVERSE ROTATION CONTROL
3.	LOCK ON BUTTON
4.	ON/OFF SWITCH

Not all the accessories illustrated or described are included in standard delivery

TECHNICAL DATA

Voltage 220-240V~50/60Hz
Power input 650W
No load speed 0~3000/min
Chuck capacity 13mm
Drilling capacity	Steel 13mm
	Aluminum 13mm
	Wood 30mm
Machine Weight 1.7kg
Protection class	☐/II

ACCESSORIES

	KU120 KU	120.1
Chuck key 1 1
Drill bit / 1

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

ASSEMBLY AND OPERATION

ACTION FIGURE

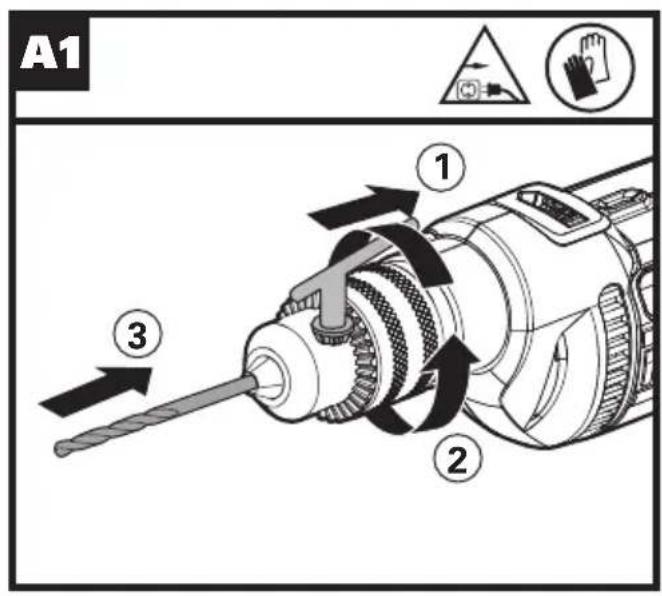

Inserting bits into chuck See Fig. A1, A2
Plugging in the power See Fig. B
On/off switch and lock-on button See Fig. C
Forward and reverse rotation controlNOTE: Never move the forward/reverse switch whilst the drill in operation or the on/off switch is locked as this will damage the drill.	See Fig. D

WORKING HINTS FOR YOUR DRILL

If your power tool becomes over heated, set the speed to maximum and run no load for 2-3 minutes to cool the motor. When drilling in metal, only use HSS drill bits in good condition. Always use a magnetic bit holder when using short screwdriver bits. Where possible use a pilot hole before drilling a large diameter hole.

MAINTENANCE

Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

TROUBLESHOOTING

1. If your power tool does not start, check the plug on the power supply first.
2. If the drill doesn't work properly, check the drill bit for sharpness, replace drill bit if worn. Check that the drill is set to forward rotation for normal use.
3. If a fault cannot be rectified, return the tool to an authorized dealer for repair.

ENVIRONMENTAL PROTECTION

Disposal

The machine, its accessories and packaging materials should be sorted for environmentally friendly recycling. The plastic components are labeled for categorized recycling.

الصيانة
