KUX12P - Drill KRESS - Free user manual and instructions

Product Type	Hammer Drill (Electric Hammer)
Brand	Kress
Model	KUX12P
Rated Voltage	230-240 V ~50 Hz
Rated Power	850 W
No-Load Speed	1300/min
Rated Impact Rate	5500 bpm
Impact Energy	3.0 J
Max. Drilling Capacity (Concrete)	26 mm
Max. Drilling Capacity (Steel)	13 mm
Max. Drilling Capacity (Wood)	30 mm
Weight	2.8 kg
Double Insulation	Yes
Operating Modes	Rotary drilling, hammer drilling, chiseling
Forward/Reverse Rotation	Yes, with variable speed control
Auxiliary Handle	Included, adjustable
Depth Gauge	Included, adjustable
Tool Holder	SDS+ Chuck (machine-specific type)
Sound Pressure Level (LpA)	89.9 dB(A)
Sound Power Level (LWA)	101.9 dB(A)
Vibration (Hammer Drilling)	7.685 m/s² (uncertainty K=1.5 m/s²)
Vibration (Chiseling)	14.236 m/s² (uncertainty K=1.5 m/s²)
Maintenance	Clean with a dry cloth; lubricate gearbox every 100 h
Safety	Hearing, eye, and dust mask protection recommended
Included Accessories	Auxiliary handle, depth gauge

Frequently Asked Questions - KUX12P KRESS

How to change the rotation direction of the Kress KUX12P drill?

To change the rotation direction, use the forward/reverse lever (3) located near the switch. Push it to the left ← for forward rotation (drilling) and to the right → for reverse rotation (unscrewing). Ensure the tool is completely stopped before changing direction.

What are the available operating modes and how to select them?

The KUX12P drill offers three modes: rotary drilling (for steel, wood, plastic), hammer drilling (concrete, masonry), and chiseling (chipping, demolition). To select a mode, press the unlock button (9) and turn the selector (4) to the desired position. Only change mode when the tool is switched off.

How to adjust the drilling depth?

Use the depth gauge (6) provided. Loosen the auxiliary handle by turning it counterclockwise, slide the gauge until the distance between its end and the drill bit tip matches the desired depth, then tighten the handle by turning clockwise.

What is the power and drilling capacity of the Kress KUX12P?

The drill has a power of 850 W. It can drill up to 26 mm in concrete, 13 mm in steel, and 30 mm in wood. No-load speed is 1300 rpm with an impact rate of 5500 bpm and impact energy of 3.0 J.

How to maintain the drill to ensure its longevity?

Always unplug the tool before maintenance. Clean it with a dry cloth; never use water or chemicals. Every 100 hours of operation, add about 10 g of 1# lubricant to the gearbox (about 2-3 bottle caps). Keep ventilation slots clean.

Is the drill equipped with double insulation?

Yes, the Kress KUX12P has double insulation, meaning it does not require grounding. This provides additional protection against electric shocks. However, use extension cords suitable for outdoor use if necessary.

What protective equipment is recommended when using the drill?

Always wear hearing protection (noise can reach 101.9 dB(A)), safety glasses, and a dust mask. Use the auxiliary handle for better control. For prolonged work, take breaks to reduce vibration exposure.

What to do if the drill does not start?

Check that the plug is properly connected and the outlet works. Ensure the switch lock button (2) is not engaged: if so, press and release the switch to unlock. If the problem persists, contact a qualified repair service.

How to use the switch lock for continuous operation?

Press the trigger switch (1), then press the lock button (2). Release the trigger first, then the lock button. The tool runs continuously. To stop, press and release the trigger. Never lock the switch if the tool could cause a hazard.

What accessories are included with the KUX12P drill?

The standard package contains an auxiliary handle and a depth gauge. Drill bits and chisels are not included; we recommend purchasing quality accessories from the dealer. Check the accessory packaging for compatibility information.

USER MANUAL KUX12P KRESS

Technical line drawing of a Kress electric drill (no text or symbols on the diagram itself)

Rotary hammer EN P05

Bohrhammer DE P10

Marteau perforateur FR P15

Martello rotativo IT P20

Martillo rotatorio ES P25

Martelo rotativo PT P30

Boorhamer NL P35

Перфоратор RU P40

Młot obrotowy PL P45

Technical line drawing of a drill bit with lock and padlock assembly (no text or labels)

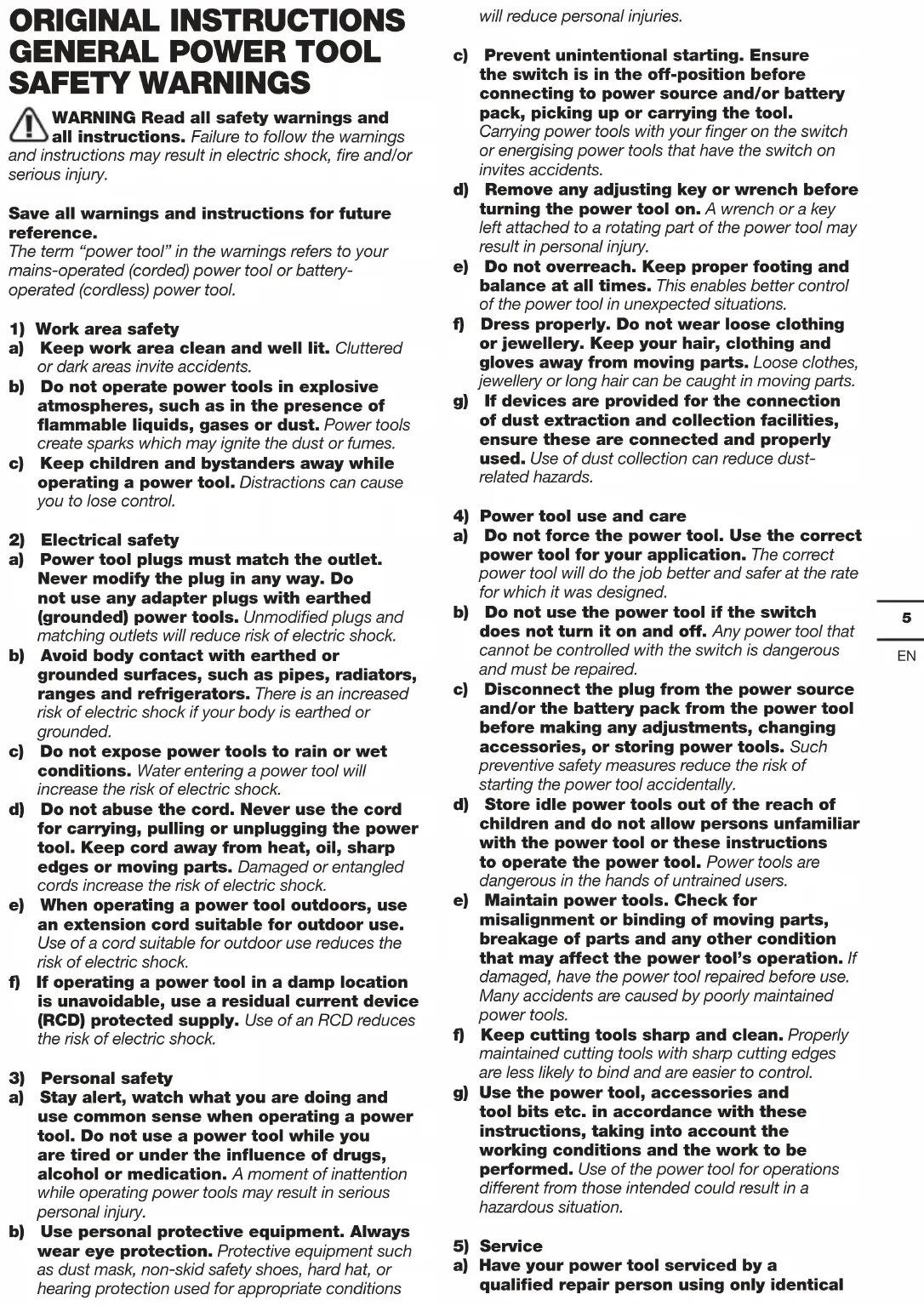

ORIGINAL INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings

and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions

will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

HAMMER SAFETY WARNINGS

1) Safety instructions for all operations

a) Wear ear protectors. Exposure to noise can cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
c) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring or its own cord.

Cutting accessory or fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

2) Safety instructions when using long drill bits with rotary hammers
a) Always start drilling at low speed and with the bit tip in contact with the workpiece.

At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

b) Apply pressure only in direct line with the bit and do not apply excessive pressure.

Bits can bend, causing breakage or loss of control, resulting in personal injury.

ADDITIONAL SAFETY RULES FOR HAMMER

1. Always wear a dust mask.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Double insulation

	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
	Warning

COMPONENT LIST

1.	ON/OFF SWITCH WITH VARIABLE SPEED CONTROL
2.	SWITCH LOCK-ON BUTTON
3.	FORWARD AND REVERSE ROTATION CONTROL
4.	FUNCTION MODE SELECTION SWITCH
5.	AUXILIARY HANDLE
6.	ADJUSTABLE DEPTH GAUGE
7.	DUST PROTECTION CAP
8.	TOOL HOLDER LOCKING SLEEVE
9.	RELEASE BUTTON FOR FUNCTION MODE SELECTION SWITCH (See Fig. C)

Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type Designation: KUX12P (X12P-designation of machinery, representative of hammer)

Voltage 230-240V~50Hz
Power input 850W
No-load speed 1300/min
Impact rate 5500bpm
Impact energy 3.0J
Drilling capacity max	Masonry 26mm
	Steel	13mm
	Wood	30mm
Protection class		☐/II
Machine weight		2.8kg

NOISE INFORMATION

A weighted sound pressure L	_pA :89.9dB(A)
A weighted sound power L	_pA :101.9dB(A)
K_PA & K_WA 3.0dB(A)
Wear ear protection.

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:

Mode description	Vibration emission value	Uncertainty K
Hammer drilling into concrete	a_h,HD=7,685m/s^2	K=1.5 m/s^2
chiseling a	_h,Cheq=14,236m/s^2	K=1.5 m/s^2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the

declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)

If the tool is to be used regularly then invest in anti vibration accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

Auxiliary handle 1
Depth gauge 1

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATING NSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

1. ON/OFF SWITCH WITH VARIABLE SPEED CONTROL

Depress to start and release to stop your tool. This tool has a variable speed switch (1) that delivers higher speeds with increased trigger pressure - speed is controlled by varying the pressure applied to the switch. (See Fig. A)

2. SWITCH LOCK-ON BUTTON

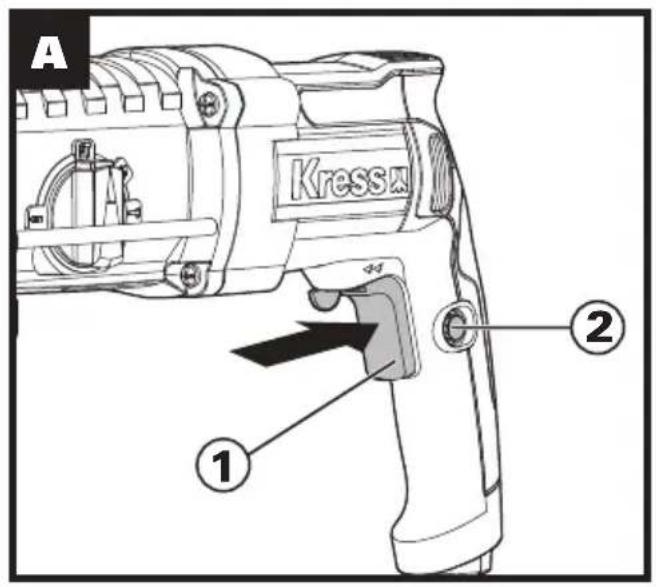

Depress the on/off switch (1) then the lock on button (2) (See Fig. A) release the on/off switch first and the lock-on button second. Your switch is now locked on for continuous use. To switch off your tool just depress and release the on/off switch.

3. AUXILIARY HANDLE

Slide the handle onto the drill and rotate to the desired working position. To clamp the auxiliary handle rotates the handle clockwise. To loosen the auxiliary handle, rotate the handle anti-clockwise. (See Fig. B)

WARNING: Always use the auxiliary handle.

4. FORWARD AND REVERSE ROTATION CONTROL

With the drill pointing away from you, push the forward/ reverse-lever (3) to the left " for forward rotation.

Push the forward/reverse-lever (3) to the right for reverse rotation “→”

WARNING: Never change the direction of rotation while the tool is rotating, wait until it has bed.

5. ADJUSTABLE DEPTH GAUGE

Fit the drill bit into the chuck. Loosen the depth stop by rotating the handle anti-clockwise. Slide the depth gauge until the distance between the depth gauge end and the drill bit end is equal to the depth of hole/screw you wish to make. Then clamp the depth gauge by rotating the handle clockwise.

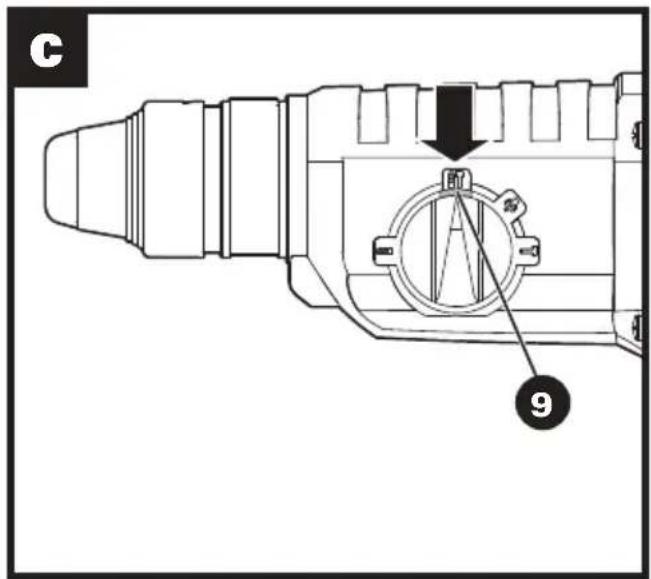

6. FUNCTION MODE SELECTION (See Fig. C)

The operation of the gearbox for each application is set with the function mode selection switch (4), to change between functions, depress the release button (9) and rotate the selector to the desired operating mode.

For simultaneous drilling and impacting of concrete or masonry, choose the Hammer drilling position.
For drilling into steel, wood and plastics choose the Rotary drilling position.
For impacting only - for light chipping, chiseling and demolition applications choose the Hammer position.
For adjustment of the chiseling position choose the bit angle position

WARNING: The operating mode selector switch may be actuated only at a standstill.

WARNING: Prolonged use will cause the aluminum housing to become hot, do not touch.

MAINTENANCE

Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Add approximately 10 grams of 1# lubricant (about 2-3 water bottle caps) to the gearbox every 100 operating hours.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK & IRELAND)

If you need to replace the fitted plug then follow the instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

Blue = Neutral

Brown = Live

As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L.

Warning!

Never connect live or neutral wires to the earth terminal of the plug. Only fit an approved BS1363/A plug and the correct rated current fuse which is used in the plug.

Note: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

Declare that the product,

Description Electric hammer

Type KUX12P (X12P-designation of machinery, representative of hammer)

Function Hammering various materials

Complies with the following Directives,

2006/42/EC

2011/65/EU & (EU)2015/863

2014/30/EU

Standards conform to:

EN 62841-1

EN IEC 62841-2-6

EN IEC 55014-1

EN IEC 55014-2

EN IEC 61000-3-2

EN 61000-3-3

The person authorized to compile the technical file,

Name Marcel Filz

02 16, 50796 Cologne, Germany

2022/10/21

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

02 16, 50796 Cologne, Germany

2022/10/21

Allen Ding

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

NOTICE ORIGINALE AVERTISSEMENTS GÉNÉRAUX DE SÉCURITÉ POUR L'OUTIL

DÉCLARATION DE CONFORMITÉ

Nous,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ISTRUZIONI ORIGINALI AVVISI GENERALI PER LA SICUREZZA DEGLI UTENSILI A MOTORE

02 16, 50796 Cologne, Germany

2022/10/21

Allen Ding

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P.R. China

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

MANUAL ORIGINAL AVISOS GERAIS DE SEGURANÇA DE FERRAMENTAS ELÉCTRICAS

02 16, 50796 Cologne, Germany

2022/10/21

Allen Ding

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

OORSPRONKELIJKE GEBRUIKSAANWIJZING ALGEMENE VEILIGHEIDSWAARSCH UWINGEN VOOR VERMOGENSMACHINE

WAARSCHUWING: Raak de aluminium

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P.R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Kress
