NL25B - Lamp ANSMANN - Free user manual and instructions

Brand	ANSMANN
Model	NL25B
Category	LED bedside lamp
Product type	Orientation light and night light with motion detector and twilight sensor
Dimensions	90 x 50 x 32 mm
Weight	76 g
Power supply	3 AAA Micro 1.5 V batteries
Battery type	Non-rechargeable batteries
Light source	LED COB 2W (orientation) + 5mm yellow LED (night light)
Luminous flux	Max. 25 lm
Color temperature	Approx. 2700 K
Battery life (orientation light)	Approx. 6 hours continuous
Battery life (night light)	Approx. 200 hours continuous
Functions	Orientation light (high/low power, off), night light, motion detector, twilight sensor
Detection range (motion)	3 to 5 m, 120°
Protection class	III (very low voltage)
Operating temperature	0 °C to 25 °C
Usage	Indoor, dry rooms
Maintenance	Clean with a dry, lint-free cloth
Safety	Do not open, do not immerse, keep out of reach of children
Spare parts / Repairability	LED non-replaceable, replace the entire lamp at end of life

Frequently Asked Questions - NL25B ANSMANN

How to insert the batteries into the ANSMANN NL25B lamp?

Open the battery compartment, insert 3 AAA 1.5 V batteries respecting polarity (+/-). Turn off the device before replacing batteries.

What is the battery life of the lamp in orientation light mode?

In orientation light mode (high power), the battery life is approximately 6 hours of continuous operation.

How to activate the night light mode?

Press the button for 5 seconds while orientation light mode is activated. The night light then turns on at low brightness and remains continuously lit as long as it is dark.

Does the motion detector work in full light?

No, the motion detector is coupled with the twilight sensor. It only activates in darkness (when the sensor detects a low light level).

What to do in case of battery leakage?

Do not touch the liquid. Immediately wash the affected area with water. In case of contact with eyes or skin, consult a doctor. Remove used batteries and clean the compartment.

Is the lamp suitable for outdoor use?

No, the lamp is designed only for indoor use in dry rooms. Do not expose it to moisture or rain.

How to clean the ANSMANN NL25B lamp?

Allow the lamp to cool completely, then clean it with a dry, lint-free cloth. Do not use abrasive cleaners or solvents.

Can the LED be replaced?

No, the LED light source is not replaceable. At end of life, replace the entire lamp.

What is the range of the motion detector?

The motion detector has a range of 3 to 5 meters with a detection angle of 120°.

What to do if the lamp does not turn on?

Check that the batteries are inserted correctly (polarity) and that they are not depleted. Make sure the lamp is not in off mode. If the problem persists, contact the manufacturer.

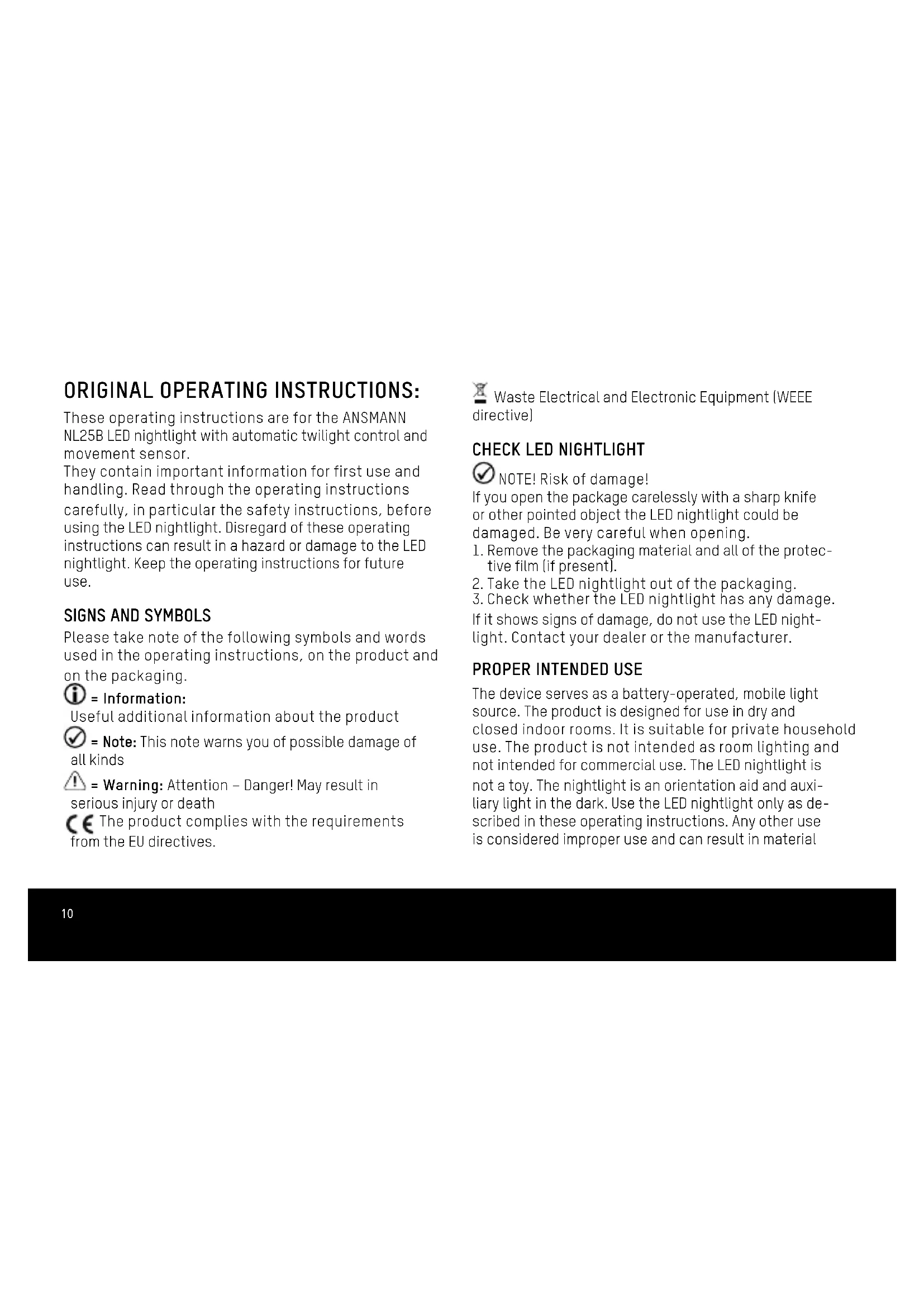

USER MANUAL NL25B ANSMANN

These operating instructions are for the ANSMANN NL25B LED nightlight with automatic twilight control and movement sensor.

They contain important information for first use and handling. Read through the operating instructions carefully, in particular the safety instructions, before using the LED nightlight. Disregard of these operating instructions can result in a hazard or damage to the LED nightlight. Keep the operating instructions for future use.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

i = Information:

Useful additional information about the product

√ = Note: This note warns you of possible damage of all kinds

⚠ = Warning: Attention – Danger! May result in serious injury or death

CE The product complies with the requirements from the EU directives.

Waste Electrical and Electronic Equipment (WEEE directive)

CHECK LED NIGHTLIGHT

NOTE! Risk of damage!

If you open the package carelessly with a sharp knife or other pointed object the LED nightlight could be damaged. Be very careful when opening.

1. Remove the packaging material and all of the protective film (if present).

2. Take the LED nightlight out of the packaging.

3. Check whether the LED nightlight has any damage. If it shows signs of damage, do not use the LED nightlight. Contact your dealer or the manufacturer.

PROPER INTENDED USE

The device serves as a battery-operated, mobile light source. The product is designed for use in dry and closed indoor rooms. It is suitable for private household use. The product is not intended as room lighting and not intended for commercial use. The LED nightlight is not a toy. The nightlight is an orientation aid and auxiliary light in the dark. Use the LED nightlight only as described in these operating instructions. Any other use is considered improper use and can result in material

damage. The manufacturer or dealer accepts no liability for damage arising from improper use or misuse.

SAFETY INSTRUCTIONS

■Do not open or modify the product!
■Never cover the LED night-light when it is operating.
■Never submerge the product in water or other liquids.
Avoid dripping water. Always keep the product dry.
■Use the LED nightlight only indoors. Never operate it in damp rooms or in the rain.
■If you are not using the LED nightlight or if a fault arises, always switch off the LED

nightlight and disconnect it from the power source.

■The LED light source cannot be replaced. When the LED comes to the end of its service life, the complete lamp must be replaced.

■Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device!

■This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who

do not have adequate ex- perience and knowledge in handling this product.

• Keep the product and the packaging away from children.
  ■Do not allow children to play with the packaging film. They could become caught in it while playing and suffocate.
  ■Risk of damage!
  ■Improper handling of the LED nightlight can result in damage.
  ■Do not continue to use the LED nightlight if the plas-

tic components of the LED nightlight are cracked, torn or deformed.

■Do not expose the LED nightlight to extreme temperatures or severe mechanical loads. Otherwise, this can result in deformation of the LED nightlight.

Note:

■This product contains batteries. Do not throw the product into a fire
■Improperly inserted batteries could leak and/or cause a fire/explosion

■Always change all of the batteries at the same time as a complete set and always use equivalent batteries

- Keep batteries away from children: Risk of choking or suffocating

■Never try to open, crush or heat a battery or set it on fire

■Do not use the batteries if the product appears to be damaged

■Batteries are not rechargeable

■Always dispose of used

batteries & rechargeable batteries in accordance with the local regulations and requirements.

■In the event of battery leakage, do not touch. If you come into contact with battery fluid, wash the affected area thoroughly and immediately with plenty of water

■If the battery fluid has caused a skin reaction or has come into contact with your eyes, contact a medical professional immediately

■Do not short-circuit the

batteries!

■The use of rechargeable batteries and high-current batteries is not permitted due to other electrical characteristics.
■Remove used or empty batteries from the lamp immediately
■If the lamp is no longer to be used, the batteries must be removed from the lamp before it is disposed of

Dimensions of light: 90 x 50 x 32mm
i TECHNICAL DATA

Orientation light functions:	1. High power2. Low power3. Off
Sleep/nightlight functions:	Activation by pressing the button for 5s whilst switched on Orientation light mode
Power supply:	3x AAA 1.5V batteries
Illuminant:	Orientation light: 2W COB LEDSleep/nightlight: 5mm yellow standard LED
Luminous flux:	max. 25lm
Battery life:	Orientation light: ca. 6h (continuous operation)Sleep/nightlight: ca. 200h (continuous operation)
Colour temperature: ca. 2700K
Sensor:	Movement sensor (PIR) and twilight sensor (CDS)
Movement sensor range:	3-5 m / 120°
Protection class:	III
Operating temperature:	0°C to 25°C
Weight: 76g

INSERTING THE BATTERIES

When inserting batteries, ensure that the batteries are inserted with the correct polarity. Switch the product off before changing the batteries.

USE

The nightlight has an orientation light and sleep/nightlight as well as a movement sensor and a twilight sensor.

The following functions are available in orientation light mode:

1. High power
2. Low power
3. Off

As soon as the light is switched on, the movement sensor and the twilight sensor are activated. When dark, the movement sensor detects movements within a range of 3–5m and activates the orientation

light. If no further movement is detected, the orientation light will switch off again automatically after ca. 30 seconds.

The sleep/nightlight is a very gentle and pleasant light, which is excellent for falling asleep and due to its low lighting power can easily be used in continuous operation throughout the night.

This function can be activated/deactivated by pressing the button for 5 seconds. Please note that this function is only available when orientation lighting mode is switched on.

Thanks to the twilight sensor, the LED nightlight switches on automatically when darkness falls and switches off automatically during daylight, if the sleep/nightlight mode is activated.

CLEANING AND CARE

CLEANING

• Let the LED nightlight cool down completely before cleaning.
  ■ Use only a dry, lint-free cloth for cleaning.
• Do not use scratching, hard objects or cleaning utensils such as wire brushes or sponges for cleaning.
• Do not use abrasive agents or solvents for cleaning.

CARE

If the product is not going to be used, remove the batteries and store separately in order to preserve service life.

DISPOSAL

Dispose of packaging after sorting by material type. Cardboard and cardboard to the waste paper, film to the recycling collection.

Dispose of the device in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the dealer from whom you purchased the product. In this way you will fulfil your legal obligations and contribute to environmental protection. Dispose of unserviceable lamps in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste.

LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though

improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

WARRANTY INFORMATION

You can find our warranty terms online at www.ansmann.de. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this.

Subject to technical changes. We assume no liability for printing errors.

Kundenservice | Customer service:

ANSMANN AG

Industriestrasse 10

97959 Assamstadt

Germany

Hotline: [phone]

E-Mail: [e-mail]

MA-1600-0405/V1/07-2020
