HS5R - Lamp ANSMANN - Free user manual and instructions

Product type	Rechargeable flashlight with wall mount
Brand	ANSMANN
Model	HS5R
Dimensions (flashlight only)	214 x 104 x 81 mm
Dimensions (with wall mount)	238 x 126 x 91 mm
Weight	542 g
Power supply	USB 5 V ≈ 1000 mA
Battery type	Lithium-ion 3.7 V / 2600 mAh
Runtime	2 h (100%), 9.5 h (25%)
Luminous flux	420 lm (100%), 105 lm (25%)
Charging time	Approximately 4 hours
Protection rating	IP20 (indoor charging only)
Operating temperature	-10 to 25 °C
Storage temperature	-10 to 45 °C
Charging temperature	0 to 25 °C
Included USB cable length	Approximately 1.5 m
Functions	3 modes (100%, 25%, flashing), foldable up to 90°, built-in magnet, removable color filter
Package contents	1 flashlight, 1 wall mount, 1 USB cable, 1 color filter, 2 screws, 2 wall plugs
Protection class	III (very low voltage)
Light source	CREE 5 W LED, non-replaceable
Cleaning and maintenance	Soft dry or slightly damp cloth; recharge the battery every 6 months if unused
Safety	Do not look directly into the beam; do not open; do not expose to moisture; use a USB source of at least 1 A
Warranty	3 years (excluding improper use)
Country of origin	Not specified (German brand)

Frequently Asked Questions - HS5R ANSMANN

How to recharge the HS5R flashlight?

You can recharge the battery in two ways: by placing the flashlight on the connected wall mount, or by connecting the USB cable directly to the micro USB port of the lamp (open the rubber cap). Use a USB source of at least 1 A. Charging takes approximately 4 hours.

What do the LED indicators mean during charging?

During charging, the 3 LEDs indicate the battery level: 3 LEDs steady = ~100%, 3 blinking = 60–99%, 2 blinking = 30–59%, 1 blinking = 0–30%.

Can I use the lamp while charging?

Yes, but the brightness will be reduced: 100% becomes about 20%, and 25% becomes about 15%.

How to change the lighting modes?

Use the function button to switch between 100%, 25% and flashing mode. The on/off button turns the lamp on or off.

Can the lamp be mounted on the wall?

Yes, the supplied wall mount is fixed with 2 screws and wall plugs. Drill the holes using the mount as a template, then screw it. Connect the USB cable to the mount and a power source. The flashlight is then placed on the mount for charging.

How to use the color filter?

The color filter (supplied) is simply placed in front of the flashlight lens to change the light color. It is removable as needed.

What to do if the lamp no longer turns on?

First check the battery charge level (LED indicator while operating). If the battery is empty, recharge it. If the problem persists, make sure you are using a USB source of at least 1 A. The LED light source is not replaceable; if defective, the lamp must be replaced.

Is the lamp waterproof?

No, the protection rating is IP20, which means it is protected against solid objects larger than 12 mm but not against water. Only charge indoors in a dry place and keep the lamp dry.

How to maintain the lamp?

Clean with a soft, dry or slightly damp cloth (no abrasive products or solvents). If you do not use it for more than 6 months, recharge the battery to preserve its life.

Where to dispose of the lamp at the end of its life?

Do not throw the lamp in household waste. It contains a lithium-ion battery and electronic components. Take it to a recycling center or a specialized collection point (store or recycling center) for recycling.

USER MANUAL HS5R ANSMANN

Two black metal flashlights shown from different angles (front and side), no text or symbols visible.

1600-0222

HANDSCHEINWERFER

TORCH

BEDIENUNGSANLEITUNG

MANUAL

1234 567

8 9 8 10 11 12 13 14 15

3D mechanical part diagram with dimension lines and labeled feature '1.' (no text or symbols beyond labels)

Scope of delivery ....10

Intended use 10

Safety information....11

Product description....12

Assembly 12

Charging 13

Operation 14

Maintenance and care....15

Technical data 15

Disposal....16

Disclaimer....16

Warranty information....16

SCOPE OF DELIVERY

1x Portable spotlight

1x Wall mount

1x USB charging cable

1x Color filter

2x screws

2x dowels

First unpack all parts and check them for completeness and damages. Do not operate the product if it is damaged. Contact your retailer should you find any damage to the product.

INTENDED USE

The product is intended to be used as a mobile light source. It features a built-in rechargeable battery that can be charged via a Micro USB connection. The wall mount with charging function serves as a safe storage system with quick-remove action.

The product is designed exclusively for household use; it is not suitable for commercial purposes.

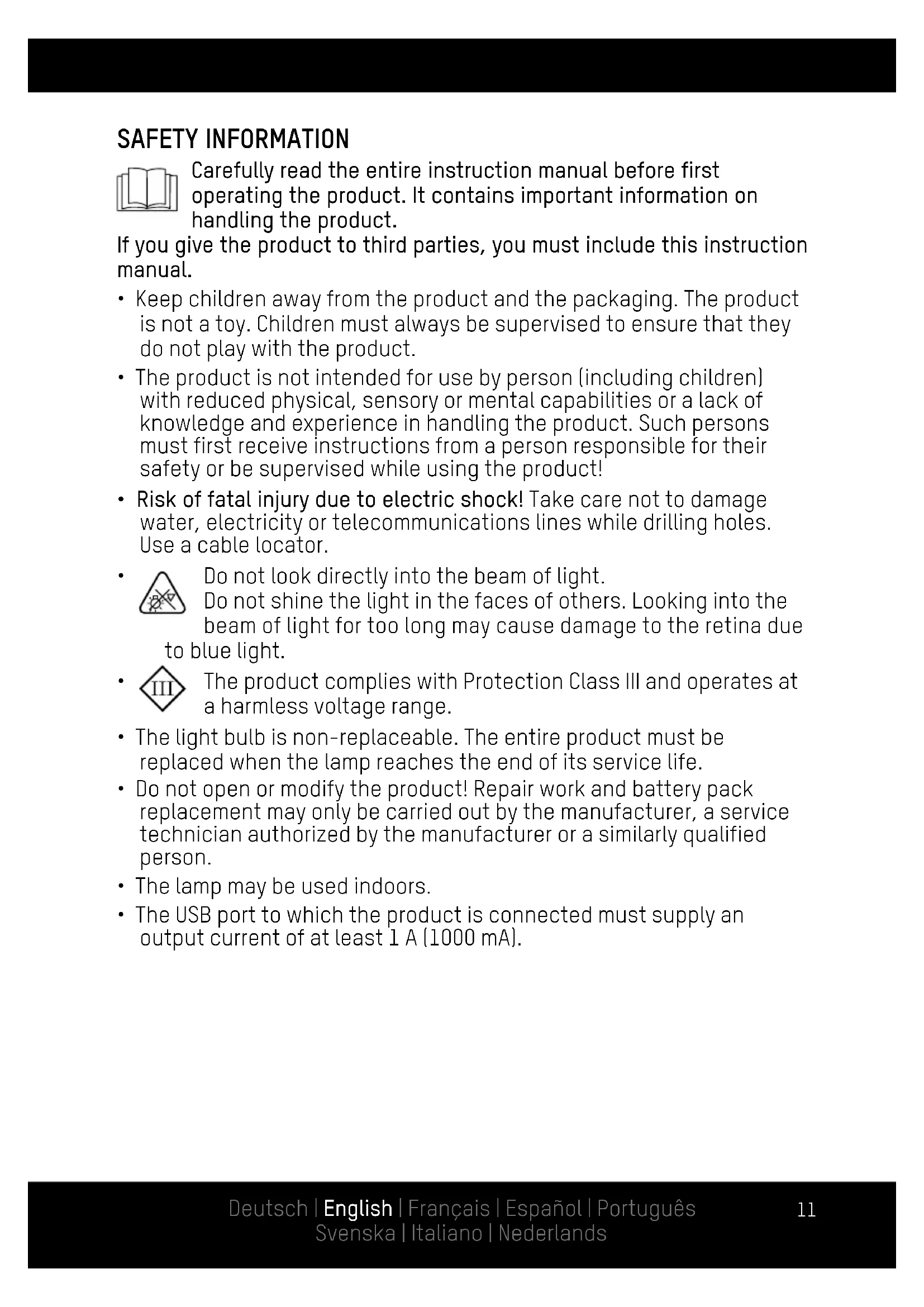

SAFETY INFORMATION

Carefully read the entire instruction manual before first operating the product. It contains important information on handling the product.

If you give the product to third parties, you must include this instruction manual.

• Keep children away from the product and the packaging. The product is not a toy. Children must always be supervised to ensure that they do not play with the product.
• The product is not intended for use by person (including children) with reduced physical, sensory or mental capabilities or a lack of knowledge and experience in handling the product. Such persons must first receive instructions from a person responsible for their safety or be supervised while using the product!
• Risk of fatal injury due to electric shock! Take care not to damage water, electricity or telecommunications lines while drilling holes. Use a cable locator.
• Do not look directly into the beam of light. Do not shine the light in the faces of others. Looking into the beam of light for too long may cause damage to the retina due to blue light.
  • III The product complies with Protection Class III and operates at a harmless voltage range.
• The light bulb is non-replaceable. The entire product must be replaced when the lamp reaches the end of its service life.
• Do not open or modify the product! Repair work and battery pack replacement may only be carried out by the manufacturer, a service technician authorized by the manufacturer or a similarly qualified person.
• The lamp may be used indoors.

• The USB port to which the product is connected must supply an output current of at least 1 A (1000 mA).

• Always read the safety and operating instructions of any other devices which are connected to the product.

• Keep the product dry at all times.

• Caution:

• The product contains a non-replaceable lithium-ion rechargeable battery. Do not throw the product into open flames.

• Always charge the product in a spacious, empty area, removed from flammable materials and liquids. Failure to comply may lead to fire and burn injuries.
• Never attempt to open, crush, heat or set fire to the rechargeable battery.
• Do not use or charge the rechargeable battery if the product appears to be damaged.
• Dispose of used (rechargeable) batteries in keeping with local laws and requirements.

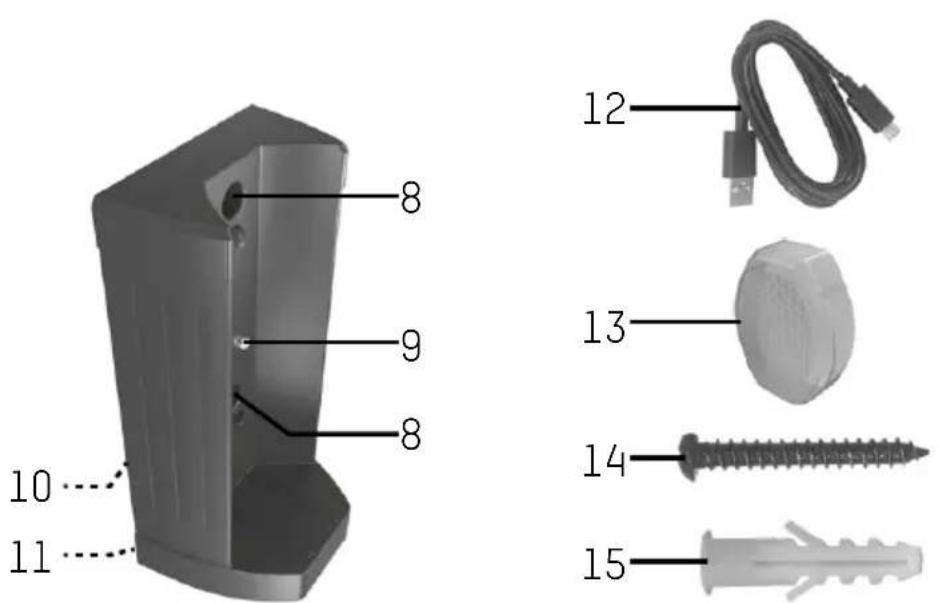

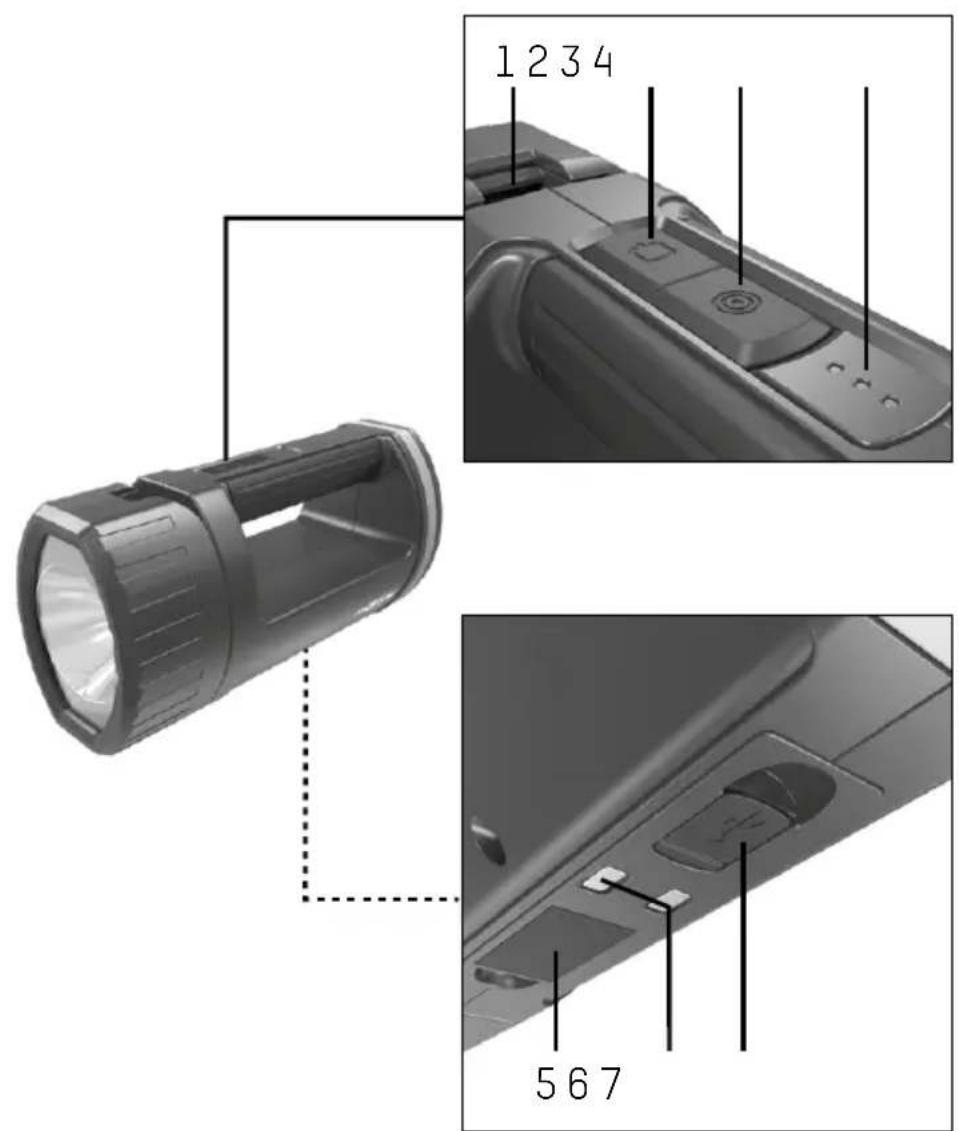

PRODUCT DESCRIPTION (SEE PAGE 2)

1 Joint
2 On/off button
3 Mode button
4 LED indicator
5 Holding magnet
6 Charging contacts
7 Micro USB connection with rubber cap

8 Mounting hole
9 Charging contacts
10 Micro USB connection
11 Strain relief
12 USB cable
13 Color filter
14 Screws
15 Dowels

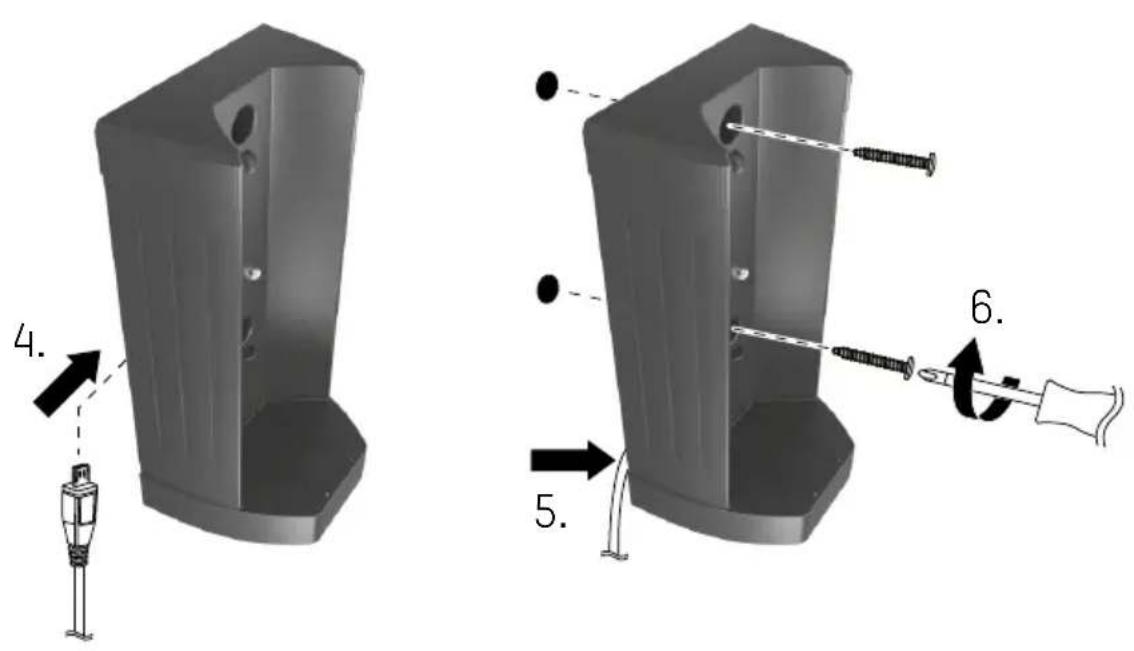

ASSEMBLY

Caution: Mount the product in dry indoor areas only.

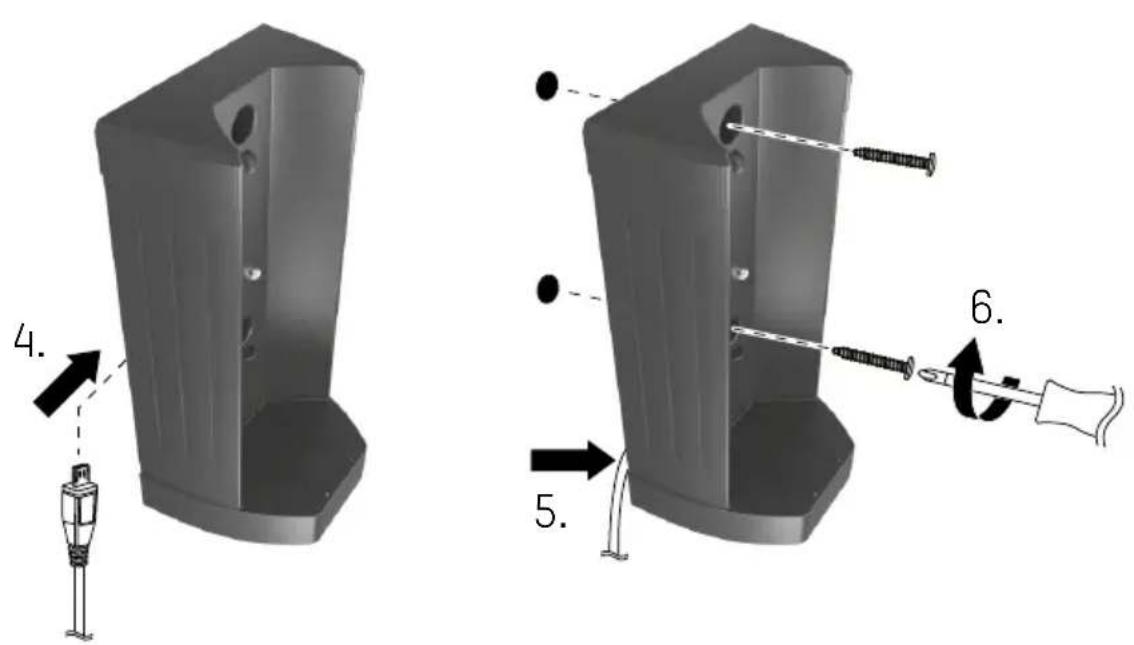

1 Mark the positions for the drill holes through the mounting holes.
2 Drill the holes.
3 Insert the dowels.

3D mechanical part diagram with labeled features and dimension lines (no readable text or symbols)

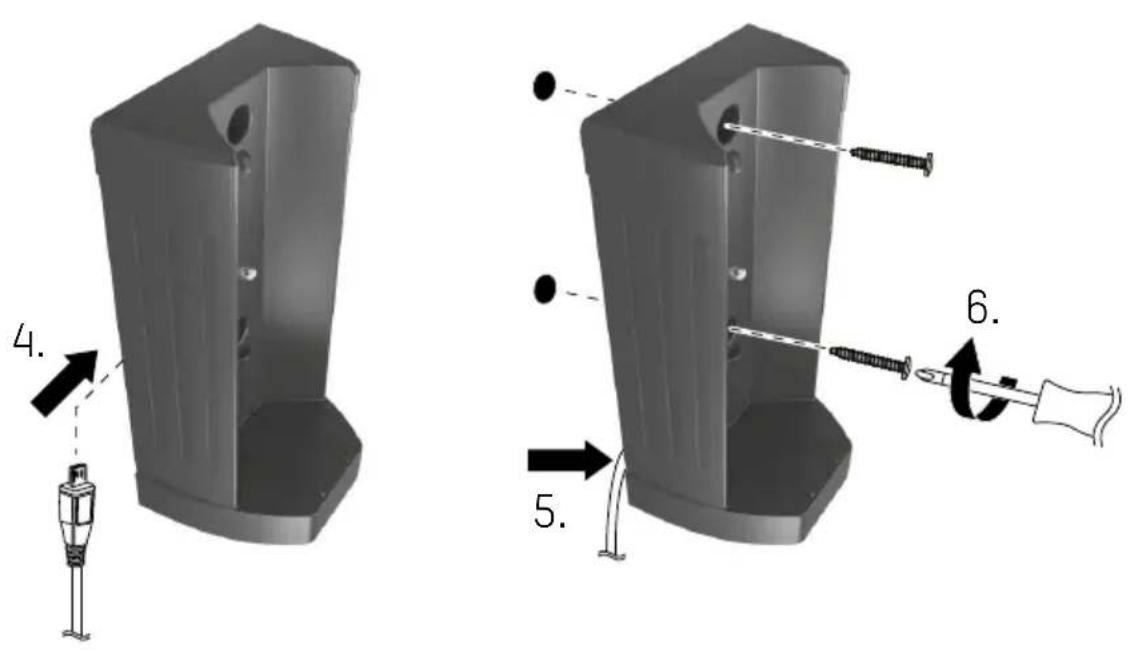

4 Connect the USB cable to the Micro USB connection on the wall mount.
5 Firmly press the USB cable into the strain relief.
6 Screw on the wall mount.
7 Connect the USB cable to a USB voltage source with at least 1 A output current.

CHARGING

Option A: Place the product in the wall mount.

Option B: Charge the product via the built-in Micro USB connection.

1 Open the rubber cap on the Micro USB connection.
2 Use a suitable cable to connect a USB voltage source with at least 1 A output current.
3 After charging, unplug the USB cable and close the rubber cap.

Power failure system

• Begin charging while the product is turned on.
• As soon as the product is supplied with power, it turns itself off.
• If the power supply is interrupted, the product turns on automatically with approx. 20 % luminosity.
• The product turns off again automatically when the power supply is reconnected.

LED indicator (charging)

Indicator Battery charge status

3 LEDs (permanent) approx. 100 %

3 LEDs (flashing) approx. 60-99 %

2 LEDs (flashing) approx. 30-59 %

1 LED (flashing) approx. 0-30 %

Note: If you turn the product on during charging, the luminosity is reduced in 100 % mode to approx. 20 % and in 25 % mode to approx. 15 %.

OPERATION

Button Function
On/off button	Turn on/off
Mode button	Switch mode100 % | 25 % | flashing

• The spotlight unfolds 90^ thanks to the joint.
• The magnet holder allows the product to be fastened to most magnetizable surfaces.
• The color filter can be attached to the front of the spotlight if required.

LED indicator (light-ON mode)

Indicator Battery charge status

3 LEDs (permanent) approx. 100-67%

2 LEDs (permanent) approx. 66-34%

1 LEDs (permanent) approx. 33-11%

1 LED (flashing) approx. 10-0%

Note: Shortly before the rechargeable battery is depleted, the spotlight flashes 3 times once every 15 seconds. From this point, there are only 2 minutes left of light-ON operation.

MAINTENANCE AND CARE

Cleaning

• Always disconnect the power supply before cleaning the product.
- Use only a soft, dry or slightly damp cloth (where necessary with a little mild dishwashing detergent) to clean the product. Never use any abrasive cleaners or solvents to clean the product.

Maintenance

If the product has not been used for 6 months, the rechargeable battery should be charged to maintain its service life.

TECHNICAL DATA

Light bulb....5 W CREE LED

Risk group....2

Power supply....USB, 5V=, 1000 mA

Protection class......III

Rechargeable battery......Li-ion, 3.7V, 2600mAh

Charging time....4h

Light current 420 lm (100 %)

105 lm (25 %)

Light-ON time 2 h (100 %)

9,5 h (25 %)

Protection type IP20 (charge in indoor spaces only)

Storage temperature....-10 to 45 °C

Operating temperature......-10 to 25 °C

Storage temperature....0 to 25 °C

USB cable length....approx. 1.5 m

Weight (lamp) 542 g

Dimensions (lamp) (H x W x D) .....214 x 104 x 81 mm

Dimensions (lamp with wall

mount) (H x W x D) ......238 x 126 x 91 mm

DISPOSAL

At the end of its service life, dispose of the lamp in keeping with all legal requirements. The dustbin symbol indicates that waste electrical and electronic equipment may not be disposed of with normal household waste within the EU. Please use local recycling and collection points or contact the retailer where you purchased the product.

Return the used device to a collection point for used devices. Do not dispose of the device with household waste as it contains a (rechargeable) battery.

You thus fulfill your statutory obligations and contribute to protection of the environment.

DISCLAIMER

The information contained in this instruction manual is subject to change without prior notice. ANSMANN assumes no liability for direct, indirect, accidental or other types of damage or consequential damage that result from improper handling of the product or failure to comply with the information contained in this instruction manual. We assume no liability and grant no warranty claims in cases of improper use of the product.

WARRANTY INFORMATION

We offer a three-years warranty on the device. Damages to the device due to failure to observe the instruction manual will void the warranty. This does not affect your legal warranty right.

The product meets the conditions of the European Union.
