Product Type	LED headlamp with gesture sensor
Brand	Ansmann
Model	HD280RS
Reference	1600-0338
Dimensions (L x W x H)	78.4 x 47.4 x 45.9 mm
Weight	110 g (with battery)
Light source	LED COB 3 W
Luminous flux	100%: 280 lm / 30%: 100 lm
Battery life	100%: 2.5 h / 30%: 6.5 h
Range	Approx. 21 m
Power supply	Lithium-ion battery 3.7 V / 1500 mAh / 5.55 Wh
Input voltage (charging)	5 V DC, max. 500 mA
Charging time	Approx. 2.5 h
Protection rating	IP65 (dust and water jets) / IK07 (impact resistance)
Protection class	III (very low voltage)
Operating temperature	-10 °C to 40 °C
Storage temperature	-20 °C to 60 °C
Replaceable batteries/rechargeable batteries	No (integrated non-replaceable battery)
Replaceable light source	No (integrated LED)
Repairability	Repair only by manufacturer or authorized technician
Maintenance	Clean with a slightly damp cloth, do not immerse
Warranty	2 years

Frequently Asked Questions - HD280RS ANSMANN

How to turn the lamp on and off?

Use the on/off button: 1 press = 30% brightness, 2 presses = 100%, 3 presses = off.

How to use the sensor function?

Activate sensor mode by pressing the sensor switch. Then you can turn the lamp on or off with a hand gesture at about 10 cm from the sensor.

What is the battery life?

At full power (100%), the battery life is approximately 2.5 hours. In economy mode (30%), it reaches 6.5 hours.

How long does it take to fully charge the lamp?

Full charging time is approximately 2.5 hours with a standard USB charger (5 V / 500 mA).

How to know if the battery is charged?

During charging, the indicator LED is red. When the battery is fully charged, it turns green.

Can I replace the battery or the LED?

No, the lithium-ion battery and LED are integrated and not replaceable. At the end of its life, the lamp must be replaced.

Is the lamp waterproof?

The lamp has a protection rating IP65: it is protected against dust and water jets, but should not be immersed.

What to do in case of malfunction?

Do not attempt to repair the lamp yourself. Contact the manufacturer or an authorized technician. The warranty is 2 years.

How to clean the lamp?

Use a slightly damp cloth and wipe carefully. Never immerse the lamp in water and do not use sharp objects.

What are the important safety precautions?

Never look directly into the light beam. Do not let children play with the lamp. Do not use in explosive atmospheres or in the rain. Do not open or modify the product.

USER MANUAL HD280RS ANSMANN

Technical line drawing of a mechanical component with symmetrical structural elements (no text or symbols)

1600-0338

Deutsch | English | Français | Español | Português | Svenska Italiano | Nederlands | Dansk | Suomalainen | Norsk

Warning symbol with geometric symbols including sun, cross, and triangle

Safety instructions 10

Signs and symbols 10

Observe safety instructions! 10

First use 12

Sensor function 12

Charging 12

LED charge level indicator: 12

Cleaning/Maintenance 13

Technical data for lamp 13

Environmental information | Disposal 14

Liability disclaimer 14

Guarantee information 14

PRODUCT DESCRIPTION

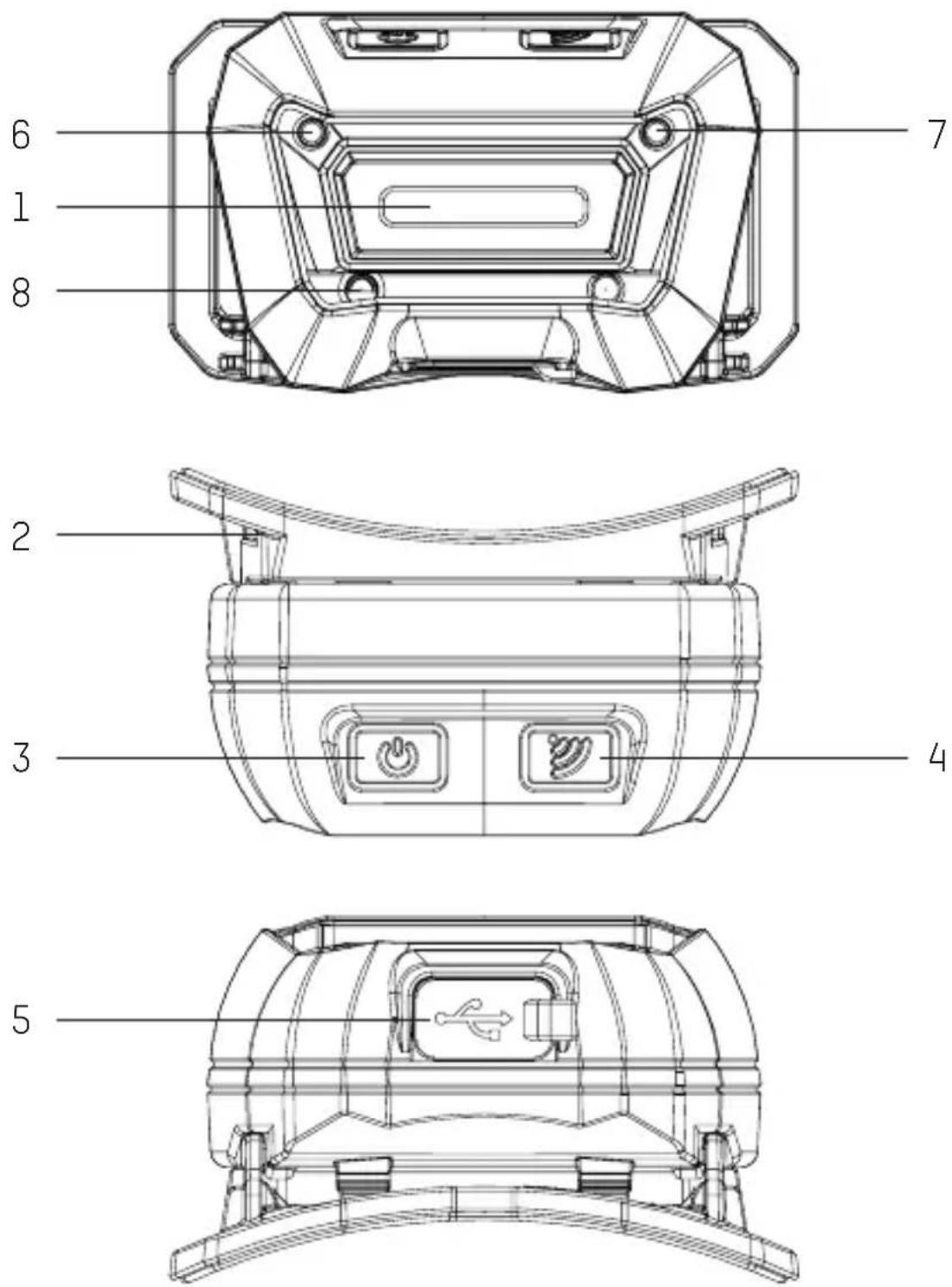

1. Main light
2. Head band holder with adjustable tilt angle
3. On/off button
4. Switch sensor
5. Micro-USB charge socket
6. LED charge display
7. Sensor
8. Sensor mode indicator

DELIVERY INCLUDES

1. Lamp
2. USB to Micro-USB cable

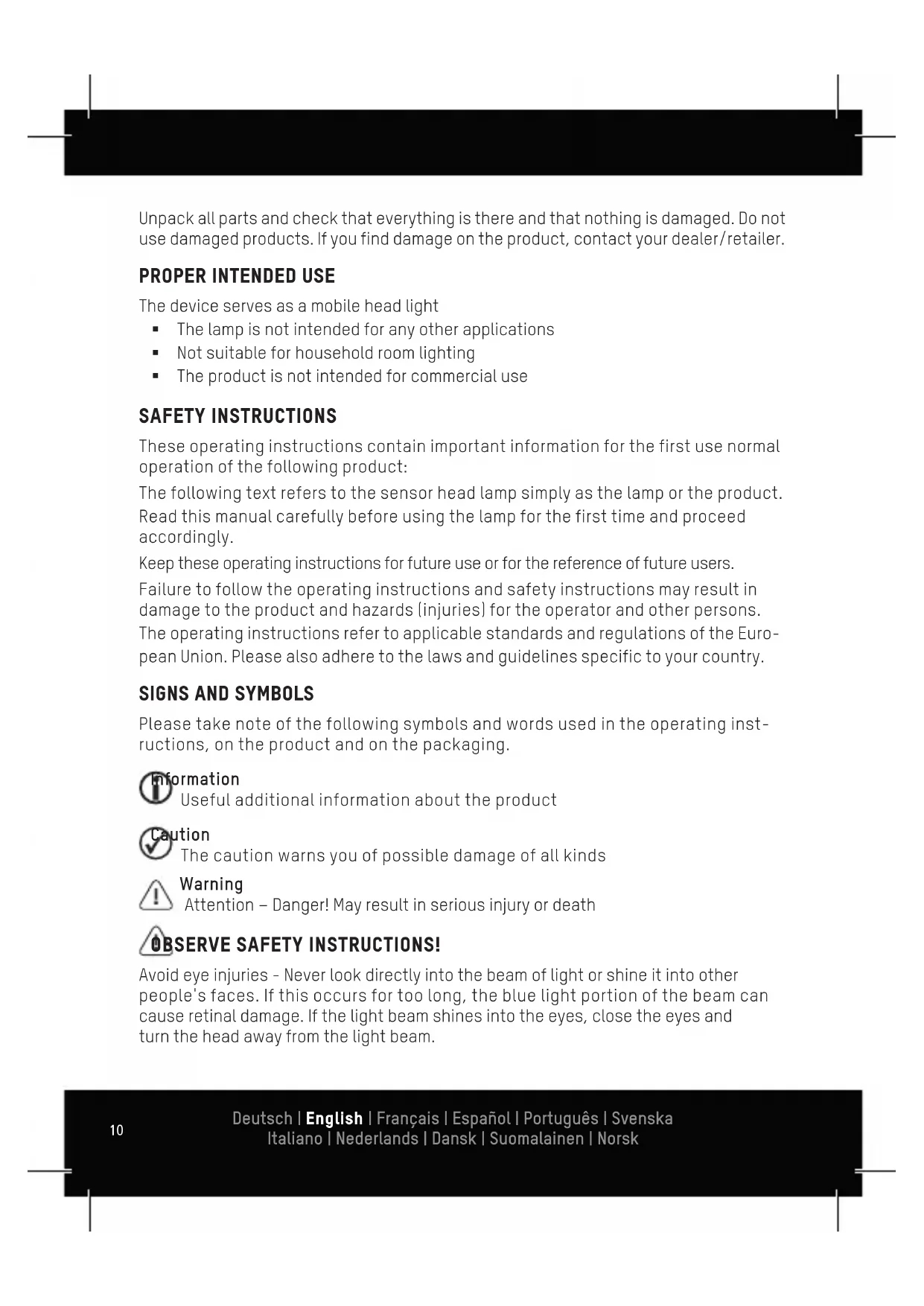

Unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer/retailer.

PROPER INTENDED USE

The device serves as a mobile head light

■ The lamp is not intended for any other applications
■ Not suitable for household room lighting
■ The product is not intended for commercial use

SAFETY INSTRUCTIONS

These operating instructions contain important information for the first use normal operation of the following product:

The following text refers to the sensor head lamp simply as the lamp or the product. Read this manual carefully before using the lamp for the first time and proceed accordingly.

Keep these operating instructions for future use or for the reference of future users.

Failure to follow the operating instructions and safety instructions may result in damage to the product and hazards (injuries) for the operator and other persons.

The operating instructions refer to applicable standards and regulations of the European Union. Please also adhere to the laws and guidelines specific to your country.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

formation

Useful additional information about the product

ution

The caution warns you of possible damage of all kinds

Warning

Attention – Danger! May result in serious injury or death

SERVE SAFETY INSTRUCTIONS!

Avoid eye injuries - Never look directly into the beam of light or shine it into other people's faces. If this occurs for too long, the blue light portion of the beam can cause retinal damage. If the light beam shines into the eyes, close the eyes and turn the head away from the light beam.

This lamp exceeds the conditions for risk-free use. The risk when using it depends on how the user handles the lamp.

RISK GROUP 2

Warning symbol with geometric symbols including sun, triangle, and crosshairs

Exposure Hazard Value (EHV) ^[1] : 8

Risc group Hazard Distance (HD) (2)
20m - 0,47m
10,47m - 4,7m
Free group >4,7m

[1] This value indicates the factor by which the risk group limit value to the next lowest group has been exceeded. The limit value is 1.
^[2] Distance from eyes to the lamp at which the respective risk group is applicable.

• Do not open or modify the product! Repair work and replacement of the rechargeable battery pack shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.
• Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product.
• This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the product!
• The LED light source cannot be replaced. When the LED comes to the end of its service life, the complete lamp must be replaced

■ All illuminated objects must be at least 10cm away from the light!
■ The lamp may only be used in accordance with the intended use.
■ This product is not a toy to be played with.
- Keep out of the reach of children!
- Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device!

• The operating instructions for devices to which the USB connection will be connected must also be read
  ■ Always keep the product dry

ATTENTION

■ Do not throw the product into a fire!
- The product may only be charged in closed, dry and spacious rooms, away from combustible materials and liquids. Disregard can result in burns and fires.
■ Never open, crush or heat a rechargeable battery or set it on fire.
- Do not use the product in potentially explosive areas or in the rain and do not expose it to excessive heat.
■ Do not use the product if it appears to be damaged

RST USE

The lamp is switched on/off with the on/off switch.

Press 1x: LED 30%

Press 2x: LED 100%

Press 3x: OFF

SENSOR FUNCTION

The sensor mode is activated by the sensor button.

Then the LED can be switched on and off with gesture control (distance ca. 10cm).

ARGING

Charge the lamp fully before first use. Likewise, when storing over an extended period of time, charge beforehand and charge at least 2x per year during storage in order to prevent the rechargeable battery pack deep-discharging.

To charge the lamp unscrew the sealing cap. Connect the Micro-USB cable with the lamp and then with a USB charger.

CHARGE LEVEL INDICATOR

The lamp has a professional LED charge level indicator

If the rechargeable battery is charging, the indicator LED illuminates red. If the rechargeable battery is fully charged, the indicator LED illuminates green.

CLEANING/MAINTENANCE

■ Clean only with a slightly damp cloth, then rub it dry.
■ Never submerge the product in water or other liquids.
■ Do not allow fluids to enter the housing.
- Do not use hard brushes or sharp objects for cleaning.

Proper usage of the lamp may result in it being damaged

• Do not throw or drop
  ■ Use only in original condition
  ■ Do not use while still in packaging
  ■ Turn off after use

TECHNICAL DATA FOR LAMP

Article no.: 1600-0338

Illuminant: 3W COB LED

Input voltage: 5V DC

Input current: Max. 500mA

Rechargeable battery: Rechargeable battery pack 3.7V 1500mAh | 5.55Wh

Luminous flux: Main light 100% 280lm | 30% 100lm

Battery life: Main light 100% 2.5h | 30% 6.5h

Light range: ca. 21m

Charge time: ca. 2.5h

Protection type: IP65 / IK07

Protection class: III

Storage temperature: -20°C to 60°C

Operating temperature: -10^ to 40^

Weight of light incl. battery pack: 110g

Length of USB cable: 150cm

Dimensions of light: 78.4 x 47.4 x 45.9mm

Class 3 equipment

Conforms to the European directive

Do not look into the lamp

Waste Electrical and Electronic Equipment (WEEE Directive)

Read the operating instructions carefully before use!

ENVIRONMENTAL INFORMATION | DISPOSAL

The product should not be discarded in the normal household waste under any circumstances. Dispose of the product via an authorised disposal centre or your municipal waste disposal facility. Observe the current applicable regulations. Contact your waste disposal facility in the event of any doubt. Dispose of all packaging materials via an environmentally friendly disposal facility. Used batteries and rechargeable batteries are special waste and must be disposed of in accordance with national regulations and not with the normal household waste.

ABILITY DISCLAIMER

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the light.

ARANTEE INFORMATION

The product has a two-year guarantee. You can find our warranty terms online at www.ansmann.de

Subject to technical changes. We assume no liability for printing errors.

MA-1600-0338/V1/01-2019
