Product type	Wall spot with motion sensor
Brand	Ansmann
Model	WFL800S
Usage	Indoor and outdoor (IP54)
Power supply	220-240 V~, 50/60 Hz
Power	10 W
Type of light source	Non-replaceable LED
Color temperature	5000 K (daylight)
Luminous flux	900 lm
Color rendering index (CRI)	>80 Ra
Sensor detection angle	Horizontal: 100°, Vertical: +10° to -80°
Sensor range	12 m max
Adjustable lighting duration	10 s to 5 min
Adjustable brightness threshold	0-2000 lx (day/night)
Protection rating	IP54 (protected against water splashes)
Protection class	I (requires protective conductor)
Maximum mounting height	3 m
Dimensions with bracket (L x H x D)	147 x 166 x 42 mm
Weight	0.51 kg
Operating temperature	-20 to +50 °C
Impact resistance rating	IK05
Glass material	Non-replaceable safety glass
Warranty	10 years
Package contents	Wall spot, instruction manual

Frequently Asked Questions - WFL800S ANSMANN

How to install the WFL800S spot?

Turn off the power supply at the main distribution board. Choose a suitable location, drill holes (5 mm diameter) and fix the bracket with appropriate screws and wall plugs (not supplied). Connect the wires: L (live, brown), N (neutral, blue), earth (yellow/green). Restore power.

How to adjust the lighting duration?

Turn the sensor cover to access the adjustment knob. The duration can be adjusted from 10 seconds (short setting) to 5 minutes (long setting). Each new detection extends the set duration.

How to adjust the sensor brightness threshold?

Turn the adjustment knob clockwise to the stop. Wait until the desired lighting conditions are reached, then have a person walk past the sensor. Slowly turn the knob counterclockwise until the spot turns on.

Can this spot be used indoors and outdoors?

Yes, the protection rating IP54 makes it resistant to water splashes and dust. It is suitable for outdoor installation but must not be submerged.

What to do if the safety glass is broken?

The safety glass is not replaceable. If the glass is damaged, the product must be disposed of in accordance with local regulations.

How to clean the spot?

Turn off the power before cleaning. Use a soft, dry or slightly damp cloth with mild dish soap. Never use abrasive cleaners or solvents.

Is the light source replaceable?

No, the integrated LED is not replaceable. When it reaches the end of its life, the entire spot must be replaced.

What is the detection range of the sensor?

The sensor detects movement up to 12 meters with a horizontal angle of 100° and vertical angle of +10° to -80°. It is more sensitive to transverse movements.

How to dispose of the product at end of life?

Do not dispose of the device with household waste. Use municipal collection systems or return it to the retailer in accordance with the WEEE directive.

What is the warranty for this product?

Ansmann offers a 10-year warranty on the product. The warranty is void if the instructions are not followed. Statutory rights remain unaffected.

USER MANUAL WFL800S ANSMANN

WFL800S | WFL1600S | WFL2400S

INHALTSVERZEICHNIS

WALL FLOODLIGHT WITH SENSOR

WFL800S | WFL1600S | WFL2400S

CONTENTS

Scope of delivery. 14

Signs and symbols 15

Intended use 15

Safety instructions 15

Product description 17

Installation 17

Connection 19

Setting the floodlight 20

Setting the sensor 20

Detection range 22

Cleaning 22

Technical data. 23

Disposal 24

DISCLAIMERS 24

WARRANTY INFORMATION 24

SCOPE OF DELIVERY

1x Wall floodlight with sensor

1x Instruction manual

First unpack the product and check it for completeness and damages. Do not operate the product if it is damaged. Contact your retailer should you find any damage to the product.

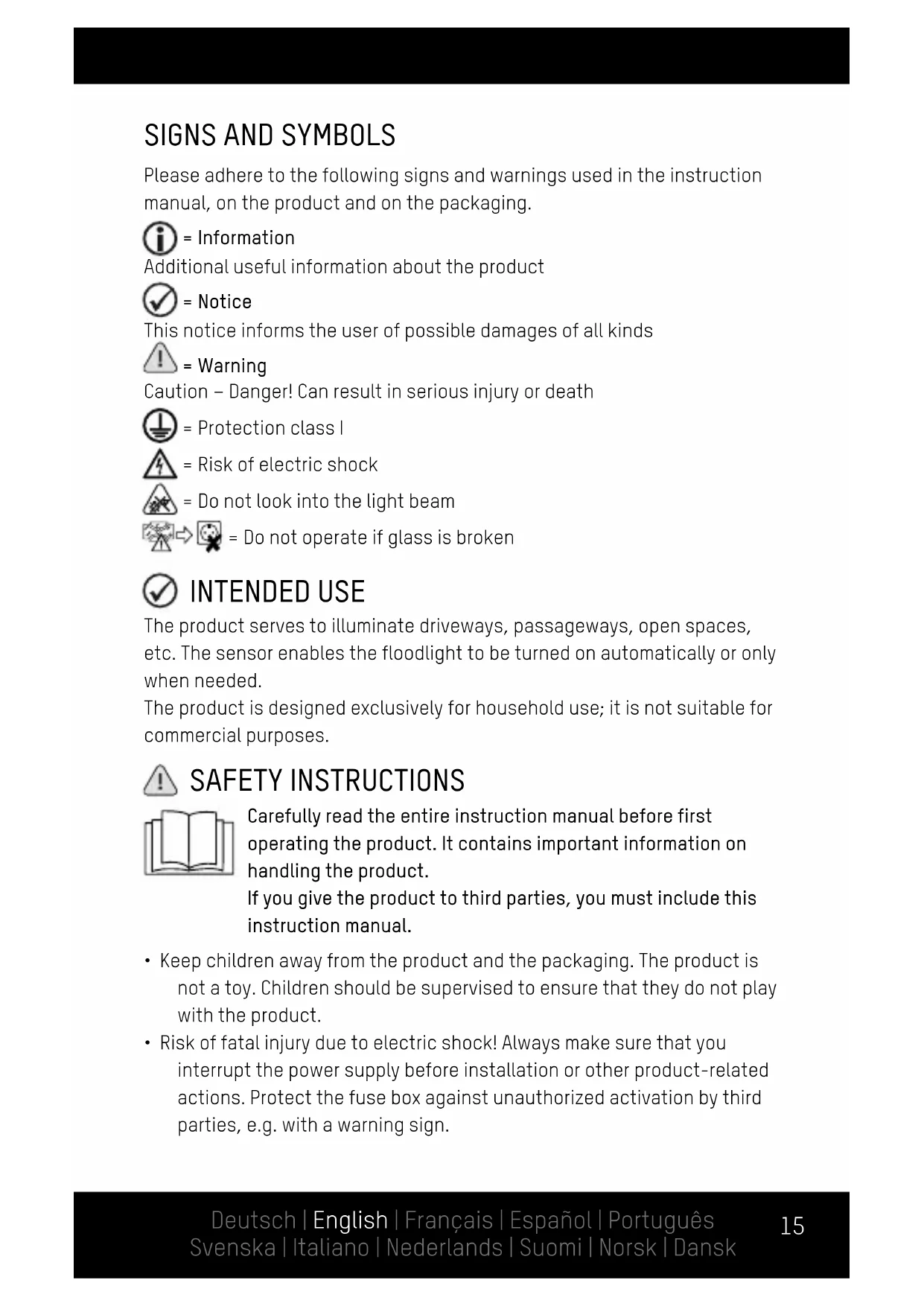

SIGNS AND SYMBOLS

Please adhere to the following signs and warnings used in the instruction manual, on the product and on the packaging.

i = Information

Additional useful information about the product

= Notice

This notice informs the user of possible damages of all kinds

= Warning

Caution - Danger! Can result in serious injury or death

= Protection class I

= Risk of electric shock

= Do not look into the light beam

= Do not operate if glass is broken

INTENDED USE

The product serves to illuminate driveways, passageways, open spaces, etc. The sensor enables the floodlight to be turned on automatically or only when needed.

The product is designed exclusively for household use; it is not suitable for commercial purposes.

SAFETYINSTRUCTIONS

Carefully read the entire instruction manual before first operating the product. It contains important information on handling the product.

If you give the product to third parties, you must include this instruction manual.

• Keep children away from the product and the packaging. The product is not a toy. Children should be supervised to ensure that they do not play with the product.

• Risk of fatal injury due to electric shock! Always make sure that you interrupt the power supply before installation or other product-related actions. Protect the fuse box against unauthorized activation by third parties, e.g. with a warning sign.

• Before connecting the product with the power supply, always make sure that the supply voltage complies with the information on the rating plate.

• The mounting surface and materials must be able to securely hold the product. In case of doubt, consult an expert.
• Warning: Risk of fatal injury due to electric shock! Take care not to damage water, electricity or telecommunications lines while drilling holes. Use a cable locator.
• This product complies with protection class IP54: Protected against the ingress of dust into hazardous and sensitive components. Splashproof. Do not immerse the product in water. The IP protection class is only ensured when the product is correctly installed.
• Never touch the product with wet or damp hands.
• Always ensure that the power cord is not taut nor comes into contact with sharp objects, chemicals or solvents.
• Regularly check the power cord and power plug for damages.
• To avoid hazards, the flexible exterior cord of this floodlight, if damaged, may only be replaced by the manufacturer, its service representative or a comparable professional.

This product complies with protection class I and must therefore be connected to the protective earth conductor.

Risk of fatal injury due to electric shock! Improper use, operation or installation poses a risk of potentially fatal electric shock. The product may be connected by a professional electrician only!

Do not look directly into the beam of light.
Do not shine the light in the faces of others. Looking into the beam of light for too long may cause damage to the retina due to blue light.

The safety glass is non-replaceable. If the safety glass is damaged, dispose of the product.

• Safe operation cannot be guaranteed if the product shows any kind of damage. If the product is damaged, it must be disposed of or repaired.

• Do not repair the product yourself! Have repairs carried out by a professional electrician.

• The luminary is non-replaceable. The entire product must be replaced when the luminary reaches the end of its service life.
• Caution! Use a H05RN-F 3G 1 mm ^2 or higher category connection cable for connection only.

PRODUCT DESCRIPTION

(see page 2)

1 LEDs

4 Mounting bracket

2 Sets screws

5 Sensor

3 Power cord

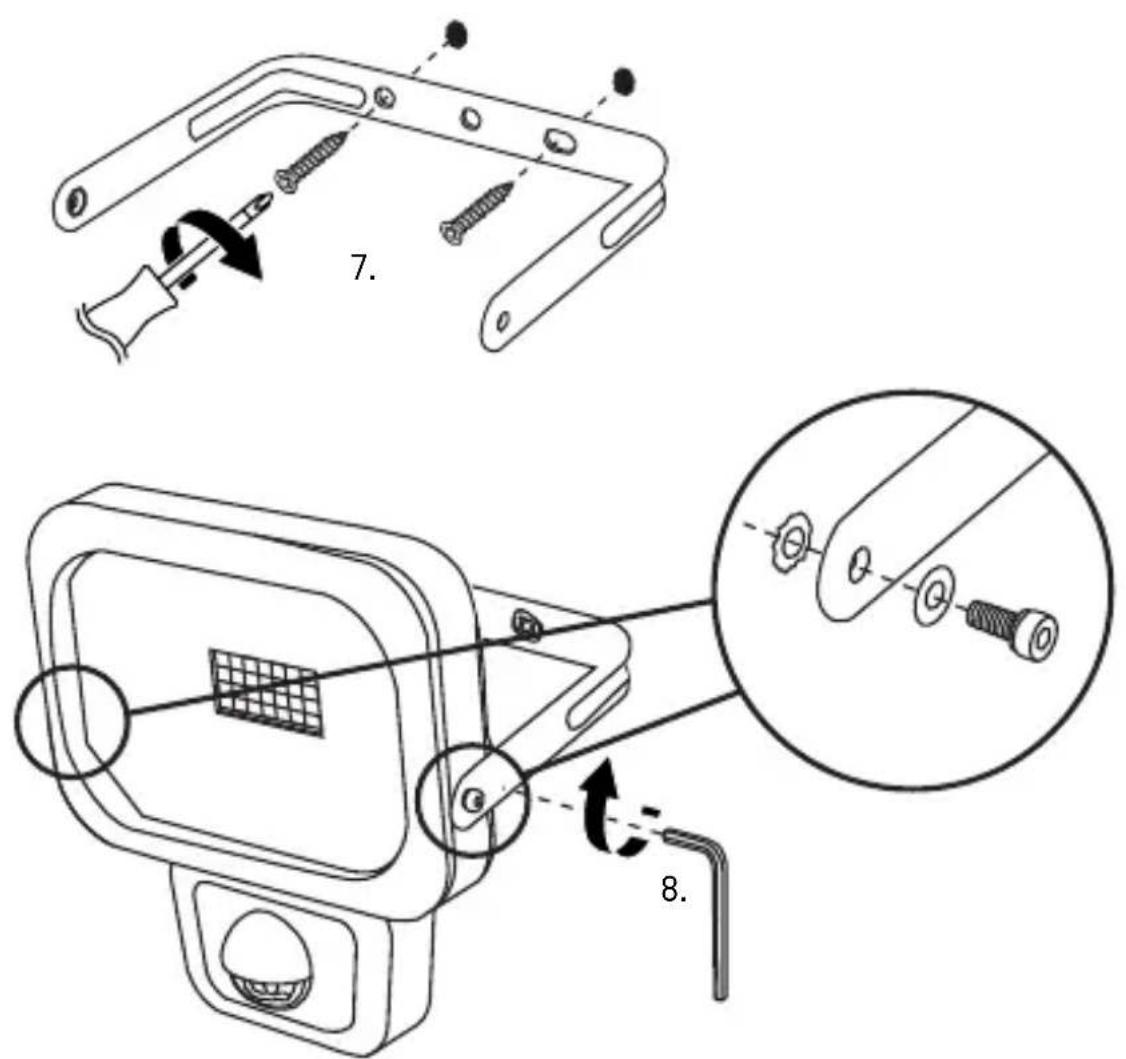

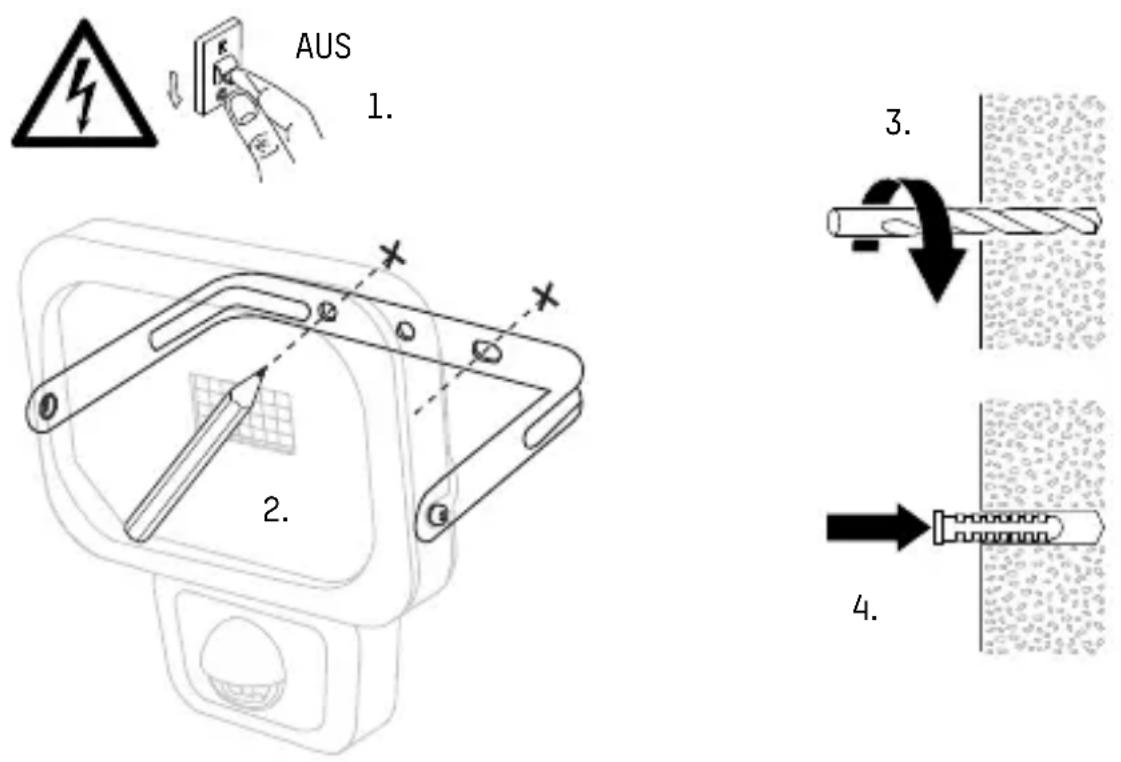

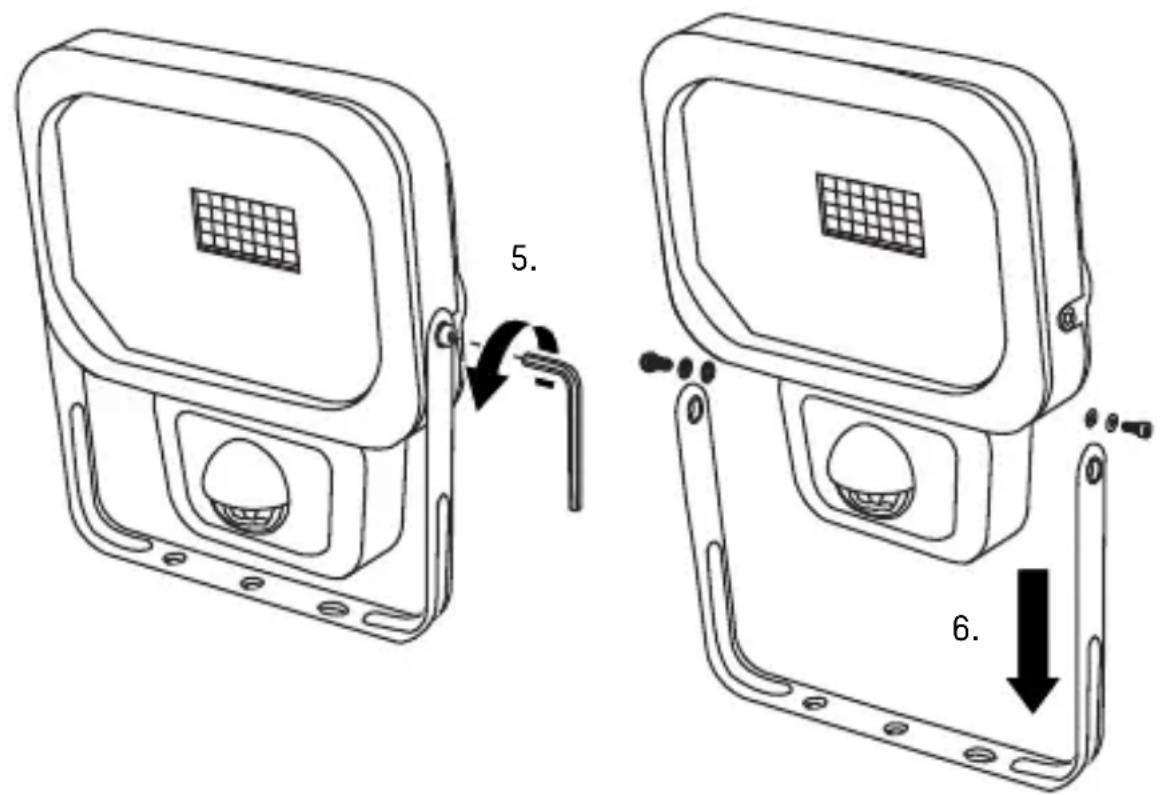

① INSTALLATION

• Interrupt the power supply to the cable at the fuse box and secure it against reconnection by third parties.
• Select a suitable location for product installation.

Please note:

Other light sources (e.g. lanterns) may impair the sensor's functionality. Do not install the product in areas directly influenced by other sources of light.

The mounting holes in the bracket have a diameter of 5mm . Select suitable mounting materials.

Mounting materials are not included. This manual shows by way of example installation using 2 screws and 2 wall anchors. If necessary, you can use other mounting materials.

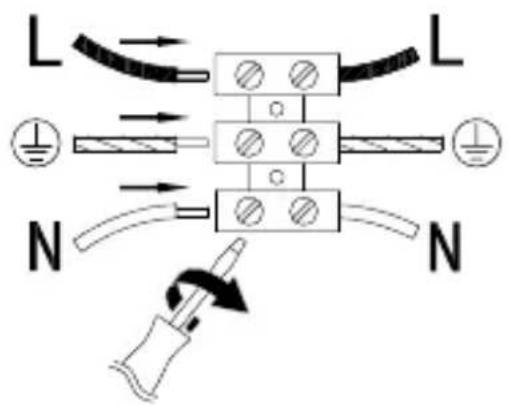

① CONNECTION

• Connect the wires according to the markings:

L Phase (brown)

Grounding (yellow-green)

N Neutral (blue)

• Turn back on the power supply.

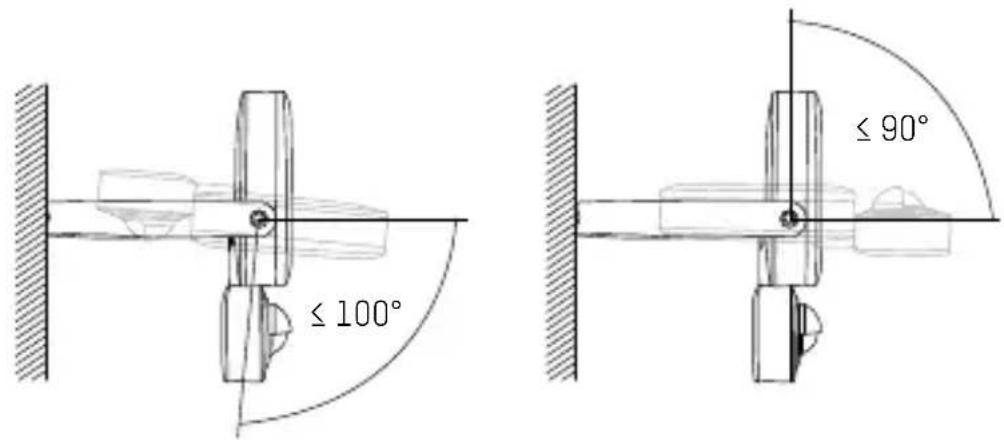

SETTING THE FLOODLIGHT

• Loosen the set screws.

• Set the desired angle of the floodlight (-100^ to +90^)

• Tighten the set screws with a hex key.

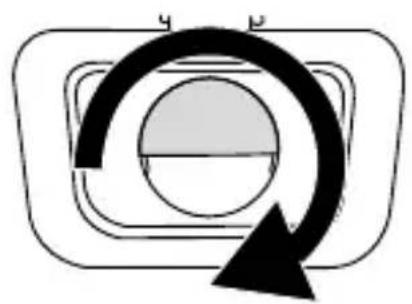

SETTING THE SENSOR

• Turn the sensor cover 180^ .

Light ON time after activation: 10 ± 5 seconds to 5 ± 1 minutes

Longer light ON time

Shorter light ON time

Please note: Each time the sensor is tripped, the light ON time is extended by the set duration.

• Lighting conditions in which the sensor is activated (0 to 2000 lx).

Activated day and night

Only activated at night

• Turn the knob clockwise until it stops.
• Wait until the onset of the lighting conditions in which the sensor should be activated.
• While another person is moving in front of the sensor, slowly turn the knob counter-clockwise until the product turns on.
• Turn the sensor cover 180^ to the upper position.
• If necessary, align the product to the left or right.

DETECTION RANGE

Please note: The sensor reacts with greater sensitivity to movements across its sensor field.

CLEANING

• Always disconnect the power supply at the fuse box before cleaning the product. Secure the product against unintended reactivation by placing a warning sign on the fuse box.
• Use only a soft, dry or slightly damp cloth (where necessary with a little mild dishwashing detergent) to clean the product. Never use any abrasive cleaners or solvents to clean the product.

TECHNICAL DATA

Model	1600-0283: WFL800S	1600-0284: WFL1600S	1600-0285: WFL2400S
Supply voltage 220-240 V~, 50/60 Hz
Power output in watts 10 W 20 W 30 W
IP protection class IP54 (splashproof)
IK protection class IK05
Protection class I
Luminary type LED
Colour temperature 5000 K
Colour rendering index (CRI) >80 Ra
Nominal luminous flux 900 lm 1800 lm 2700 lm
Max. projection area 250 cm²	420 cm²	585 cm²
Installation site Indoors and outdoors
Installation height max. 3 m
Sensor range max. 12 m
Sensor detection angle Horizontal: 100° Vertical: +10° to -80°
Operating temperature -20 to +50 °C
Glass dimensions (W x H x D) – approx.	124 x 90 x 4 mm	177 x 127 x 4 mm	201 x 146 x 4 mm
Dimensions with bracket (W x H x D) – approx.	147 x 166 x 42 mm	202 x 205 x 34 mm	231 x 252 x 41 mm
Weight – approx.	0.51 kg 0.88 kg	1.31 kg

DISPOSAL

At the end of its service life, dispose of the light in keeping with all legal requirements. The dustbin symbol indicates that waste electrical and electronic equipment may not be disposed of with normal household waste within the EU. Please use local recycling and collection points or contact the retailer where you purchased the product.

You thus fulfill your statutory obligations and contribute to protection of the environment.

DISCLAIMERS

The information contained in this instruction manual is subject to change without prior notice. ANSMANN assumes no liability for direct, indirect, accidental or other types of damage or consequential damage that result from improper handling of the product or failure to comply with the information contained in this instruction manual. We assume no liability and grant no warranty claims in cases of improper use of the product.

WARRANTY INFORMATION

We offer a ten-year warranty on the product. Damages to the product due to failure to observe the instruction manual will void the warranty. This does not affect your legal warranty right.

You can find our warranty terms online at www.ansmann.de

1600-0283

1600-0284

The product meets the conditions of the European Union.

1600-0285

TRADUCTION DE LA NOTICE ORIGINALE

SPOT MURAL AVEC CAPTEUR

WFL800S | WFL1600S | WFL2400S

TABLE DES MATIÈRES

WFL800S | WFL1600S | WFL2400S

ÍNDCIDE DE CONTENIDO

WFL800S | WFL1600S | WFL2400S

INDICE

WFL800S | WFL1600S | WFL2400S

INNEHÄLLSFORTECKNING

WFL800S | WFL1600S | WFL2400S

INDICE

WFL800S | WFL1600S | WFL2400S

INHOUDSOPGAVE

WFL800S | WFL1600S | WFL2400S

SISÄLLYS

WFL800S | WFL1600S | WFL2400S

INNHOLDSFORTEGNELSE

Leveranseinnhold 102
Tegnforklaring 103
Tiltenktbruk 103
Sikkerhetsmerknader 103
Produktbeskrivelse 105
Montering. 105
Tilkobling 107
Justere lyskaster 108
Justere sensor 108
Sensoromrade 110
Rengjøring 110
Tekniske data 111
Avhending. 112
ANSVARSFRASKRIVELSE 112
GARANTIMERKNADER 112

LEVERANSEINNHOLD

1x Veggmontert flombelysning med sensor

1x Bruksanvisning

WFL800S | WFL1600S | WFL2400S

INDHOLDSFORTEGNELSE

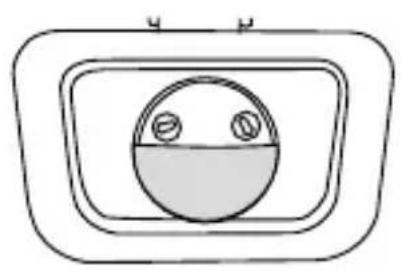

INDSTILLING AF SENSOR
