Product Type	Electric Stapler / Nailer
Brand	PowerPlus
Model	POWX13700
Power Supply	230-240 V ~ 50 Hz
Rated Power	45 W
Fastening Rate	20 strokes/min
Compatible Staple Type	Staples 8 to 14 mm
Compatible Nail Type	Nails 16 mm
Magazine Capacity	Up to 200 staples or 100 nails
Protection Class	II (double insulation)
Sound Pressure Level LpA	82 dB(A)
Sound Power Level LwA	93 dB(A)
Vibration Level	9.5 m/s²
Intended Use	Fastening on wood or similar materials
Warranty	36 months
Weight (estimated)	1.5 kg
Dimensions (estimated)	250 x 200 x 60 mm

Frequently Asked Questions - POWX13700 PowerPlus

What types of staples and nails can I use with the PowerPlus POWX13700?

The stapler accepts staples from 8 to 14 mm and nails of 16 mm. Use only compatible fasteners recommended in the manual.

How do I load the stapler magazine?

Unplug the tool. Hold it upside down, press the magazine tabs on each side and remove it. Insert a strip of staples or nails into the opening behind the nose, then replace the magazine until it clicks into place.

Can I use this stapler on concrete or metal?

No, the tool is not designed for concrete, masonry, bricks or metal. It is intended for fastening on wood or similar materials.

How do I turn on the stapler?

Plug the power cord into a mains socket. Push the on/off switch to the 'I' position to turn on, and to 'O' to turn off.

What to do if a staple gets jammed in the nose?

Immediately unplug the tool. Do not pull the trigger. Open the magazine and carefully remove the stuck fastener using pliers if necessary.

What protective equipment is recommended?

Always wear safety glasses and gloves. Use ear muffs as the sound level can reach 93 dB(A).

How to maintain the PowerPlus POWX13700 stapler?

Clean the tool regularly, especially the ventilation slots and the magazine area, to remove wood dust and chips. No special maintenance is required other than cleaning.

Can I use the stapler to fasten electrical cables?

No, the tool is not designed for installing electrical cables. This could damage the sheath and cause electric shock or fire.

What is the warranty period?

The legal warranty is 36 months from the date of purchase by the first user. It covers material and manufacturing defects, but not normal wear or damage due to incorrect use.

Where can I find the full manual?

The full manual is available for free download in PDF format on the website notice-facile.com for the model PowerPlus POWX13700.

USER MANUAL POWX13700 PowerPlus

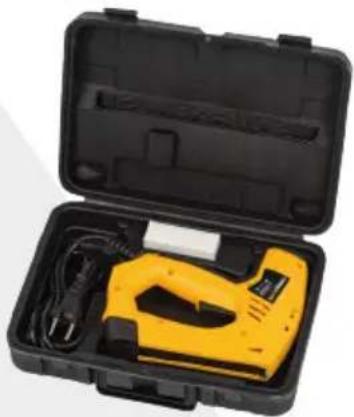

Yellow power tool with black handle and label (no visible text on device body)

i

NL	NEDERLANDS	VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING
FR	FRANÇAIS	TRADUCTION DU MODE D'EMPLOI D'ORIGINE
EN	ENGLISH	ORIGINAL INSTRUCTION MANUAL
DE	DEUTSCH	ÜBERSETZUNG DER ORIGINALBETRIEBSANLEITUNG
ES	ESPAÑOL	TRADUCCIÓN DEL MANUAL DE INSTRUCCIONES ORIGINAL
IT	ITALIANO	TRADUZIONE DEL MANUALE DI ISTRUZIONI ORIGINALE
PT	PORTUGUÊS	TRADUÇÃO DO MANUAL DE INSTRUÇÕES ORIGINAL
NO	NORSK	OVERSETTELSE AV ORIGINAL BRUKERVEILEDNING
DA	DANSK	OVERSÆTTELSE AF DEN ORIGINALE BRUGSVEJLEDNING
SV	SVENSKA	ÖVERSÄTTNING AV DEN URSPRUNGLIGA BRUKSANVISNINGEN
FI	SUOMI	ALKUPERÄISEN OHJEKIRJAN KÄÄNNÖS
EL	Ελληνικά	Μετάφραση του πρωτότυπου εγχειριδίου οδηγιών
HR	HRVATSKI	PRIJEVOD ORIGINALNOG PRIRUČNIKA S UPUTAMA ZA RAD
SR	SRPSKI	PREVOD ORIGINALNOG UPUTSTVA ZA UPOTREBU
CS	ČESKY	PŘEKLAD ORIGINÁLNÍHO NÁVODU K POUŽITÍ
SK	SLOVENČINA	PREKLAD NÁVODU NA POUŽÍVANIE Z ORIGINÁLU
RO	ROMÂNÃ	TRADUCEREA MANUALULUI DE INSTRUCTIUNI ORIGINALE
PL	POLSKI	TŁUMACZENIE ORYGINALNEJ INSTRUKCJI OBSŁUGI
HU	MAGYAR	AZ EREDETI KEZELÉSI UTASÍTÁS FORDÍTÁSA
RU	РУССКИЙ	ОРИГИНАЛЬНАЯ ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
BG	БЪЛГАРСКИ	ПРЕВОД НА ОРИГИНАЛНОТО РЪКОВОДСТВО

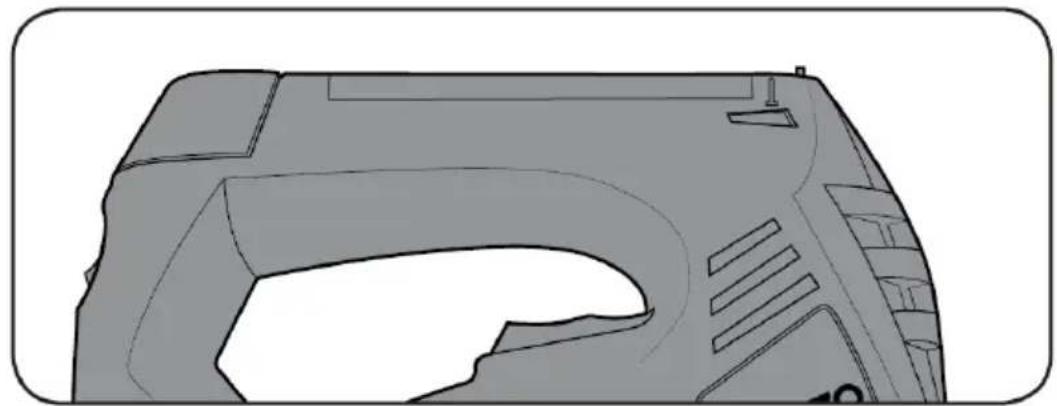

Technical line drawing of a mechanical component or housing (no text or symbols)

a b

Diagram showing a container with red arrows pointing to a surface and a small tank, no text or symbols present.

Diagram showing a road barrier with a traffic sign and directional arrows, likely illustrating a traffic flow or pavement safety concept.

Diagram showing a gray rectangular object with a red arrow indicating direction, no text or symbols present

Fig. 1

Simple diagram of a switch with a red upward arrow indicating direction (no text or symbols)

Diagram showing a switch with an 'I' and 'O' symbol, indicating downward movement, enclosed in a rounded square frame.

Fig. 2

Diagram of a car's side profile showing a red arrow pointing to the lower side of the vehicle (no text or symbols present)

Fig. 3

Diagram showing a curved road with a shaded area and a red arrow indicating direction (no text or symbols)

1 BEOOGD GEBRUIK 2
2 BESCHRIJVING (FIG. A)....2
3 INHOUD VAN DE VERPAKKING....2
4 TOELICHTING VAN DE SYMBOLEN 2
5 ALGEMENE VEILIGHEIDSVOORSCHRIFTEN .... 3
5.1 Werkplaats....3
5.2 Elektrische veiligheid....3
5.3 Veiligheid van personen....3
5.4 Zorgvuldige omgang met en gebruik van elektrisch gereedschap....4
5.5 Service....4
6 SPECIFIEKE VEILIGHEIDSVOORSCHRIFTEN VOOR NIET/NAGELAPPARATEN 4
7 MONTAGE 5
8 GEBRUIK 5
8.1 In- en uitschakelen (Fig. 2)....5
8.2 Een niet of nagel schieten (Fig. 3)....5
9 TECHNISCHE GEGEVENS....6
10 GELUID 6
11 ONDERHOUD 6
12 GARANTIE....7
13 MILIEU....7
14 CONFORMITEITSVERKLARING....8

NAGEL-/NIETPISTOOL POWX13700

1 BEOOGD GEBRUIK

2 BESCHRIJVING (FIG. A)

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

1 INTENDED USE 2
2 DESCRIPTION (FIG. A) 2
3 PACKAGE CONTENT LIST....2
4 SYMBOLS 3
5 GENERAL POWER TOOL SAFETY WARNINGS .... 3
5.1 Working area....3
5.2 Electrical safety....3
5.3 Personal safety .... 3
5.4 Power tool use and care....4
5.5 Service....4
6 SPECIAL SAFETY INSTRUCTIONS FOR ELECTRIC STAPLERS 4
7 ASSEMBLY 5
7.1 Loading staples/nails (Fig. 1)....5
8 OPERATION....5
8.1 Switching on/off (Fig. 2)....5
8.2 Firing a staple or nail (Fig. 3)....5
9 TECHNICAL DATA 5
10 NOISE....6
11 MAINTENANCE 6
12 WARRANTY....6
13 ENVIRONMENT 7
14 DECLARATION OF CONFORMITY 7

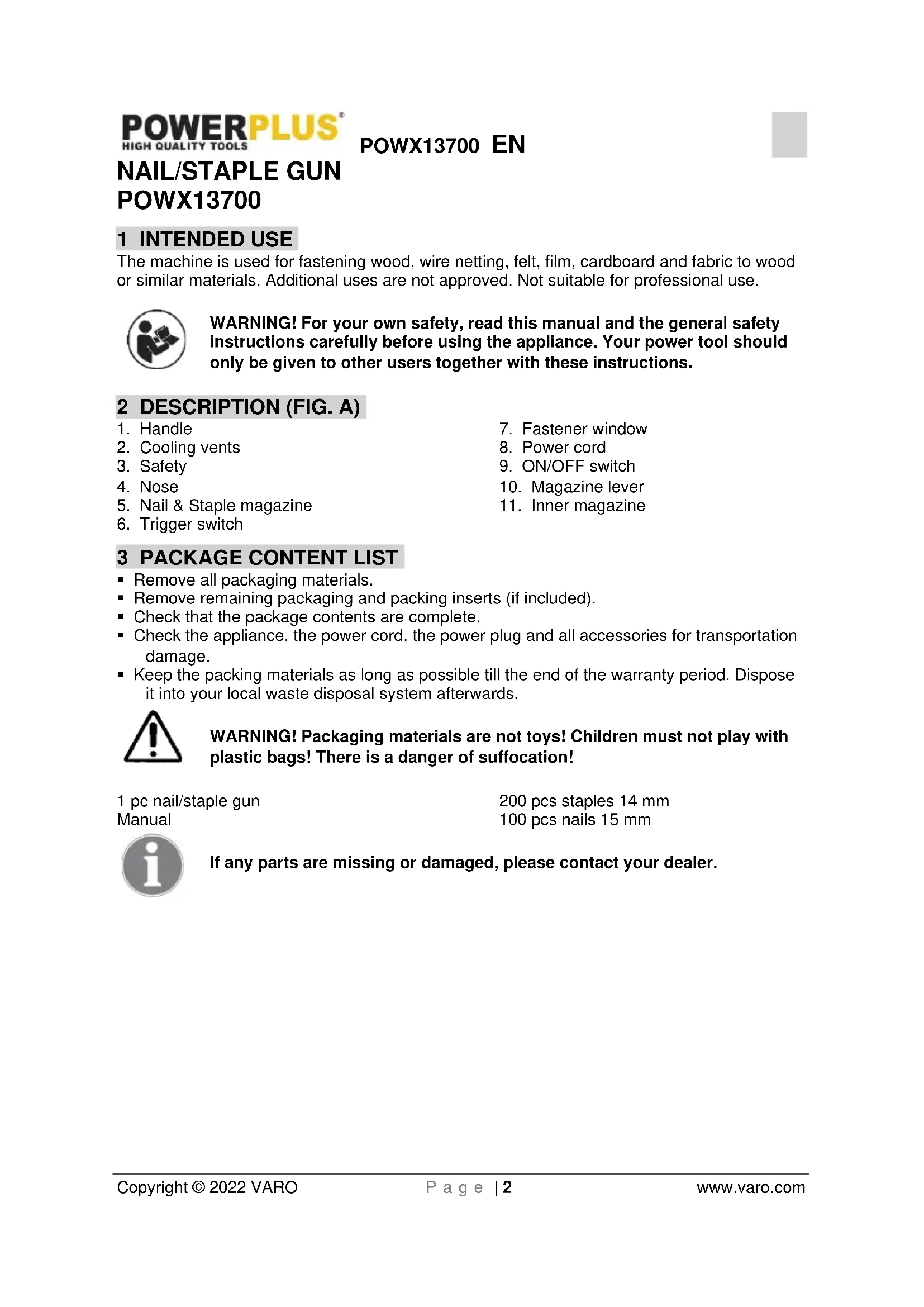

NAIL/STAPLE GUN POWX13700

1 INTENDED USE

The machine is used for fastening wood, wire netting, felt, film, cardboard and fabric to wood or similar materials. Additional uses are not approved. Not suitable for professional use.

WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.

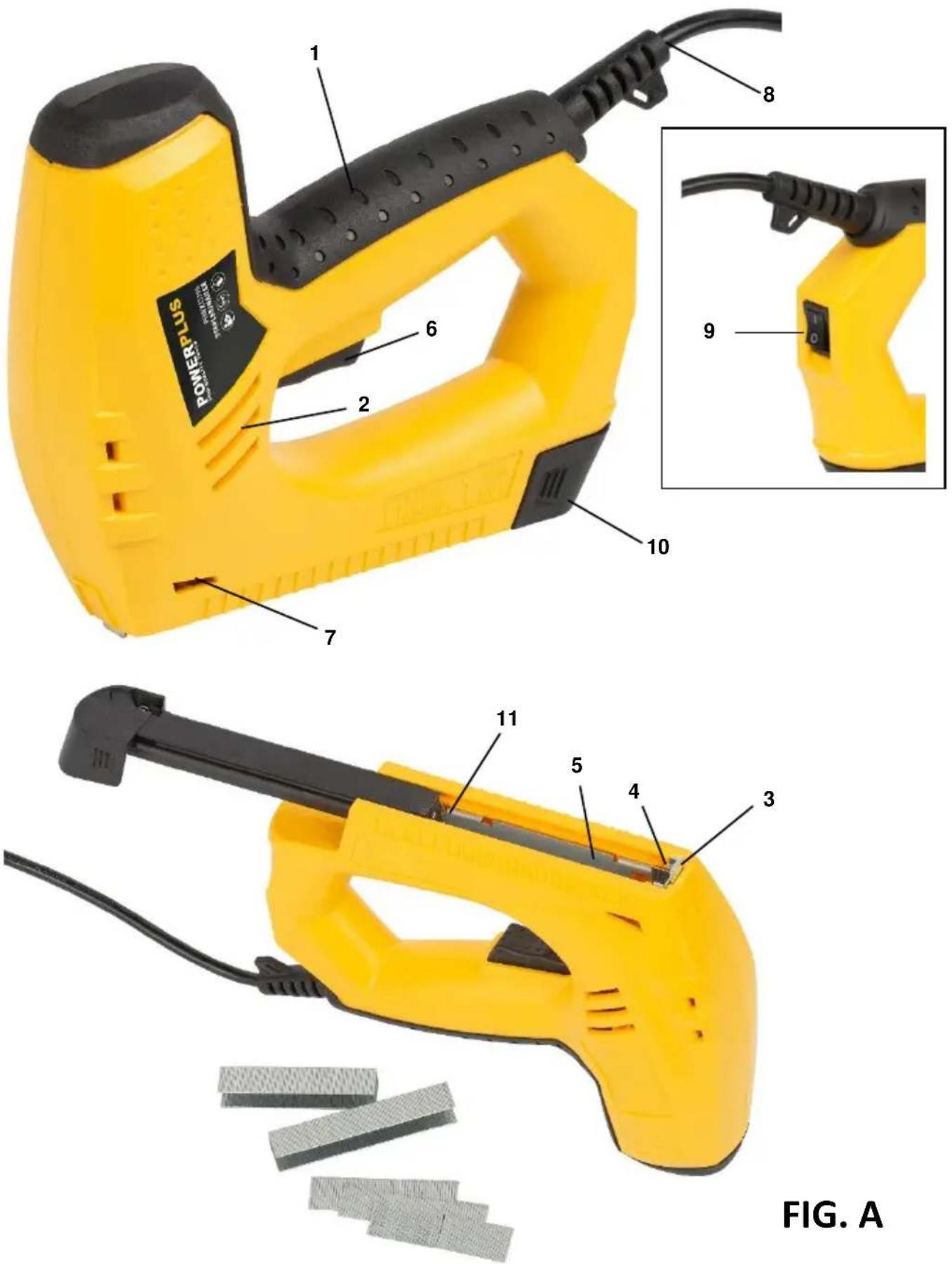

2 DESCRIPTION (FIG. A)

1. Handle
2. Cooling vents
3. Safety
4. Nose
5. Nail & Staple magazine

6. Trigger switch

7. Fastener window

8. Power cord
9. ON/OFF switch
10. Magazine lever
11. Inner magazine

3 PACKAGE CONTENT LIST

■ Remove all packaging materials.
- Remove remaining packaging and packing inserts (if included).
- Check that the package contents are complete.
- Check the appliance, the power cord, the power plug and all accessories for transportation damage.
- Keep the packing materials as long as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING! Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation!

1 pc nail/staple gun Manual

200 pcs staples 14 mm 100 pcs nails 15 mm

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

The following symbols are used in this manual and/or on the machine:

	Denotes risk of personal injury or damage to the tool.		Read manual before use.
	In accordance with essential safety standards of applicable European directives.		Class II - The machine is double insulated; Earthing wire is therefore not necessary.
	Mandatory use of eye protection.		Wear gloves

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.
- Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.
- Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of a lethal electric shock.
- Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.
- When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.
- If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

5.3 Personal safety

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or

medication. A moment of inattention when operating a power tool may result in serious personal injury.

• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.
• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
• Maintenance. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 SPECIAL SAFETY INSTRUCTIONS FOR ELECTRIC STAPLERS

• Before inserting staples or nails the power plug should always be removed from the socket.
  ■ Never point the machine at persons or animals.
• Only use staples or nails which are suitable for the machine.
  ■ Before using the machine, ensure that the safety device is operating properly.
  ■ Never block the safety device.
• Switch the machine off when you take a break and when the work is completed.

• Wear ear protectors.

• Do not activate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.

• Do not use the tacker for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazard.

7 ASSEMBLY

Warning: This nailer/stapler is NOT suited for nailing or stapling into concrete, masonry, bricks or metal.

Warning: Do not fire if brad nails or staples are jammed in the nose (4) section.

Warning! Disconnect the nailer from the power outlet whenever loading it.

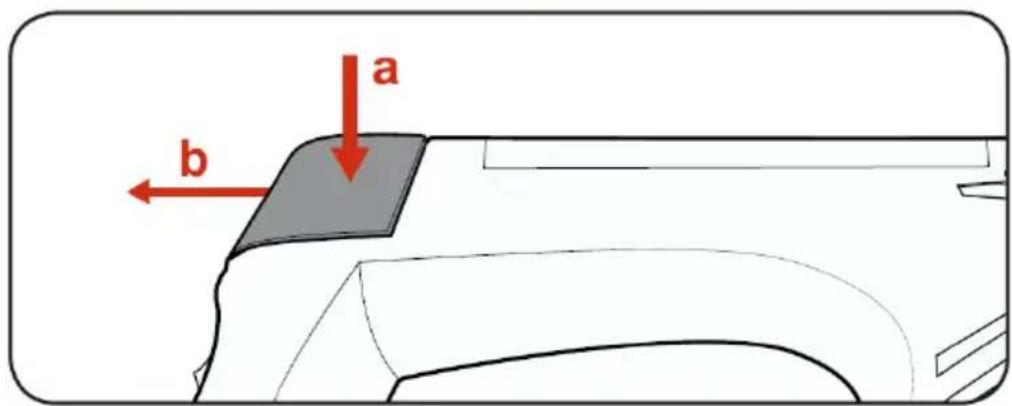

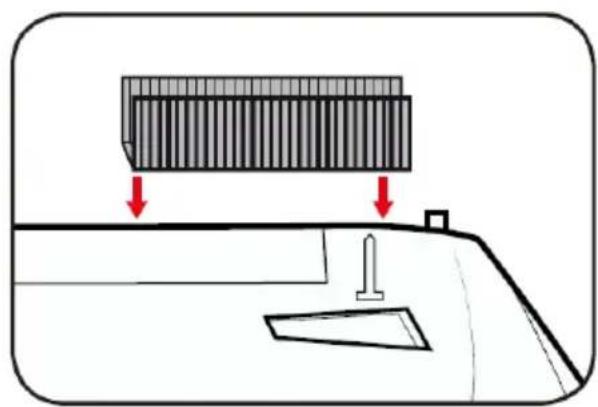

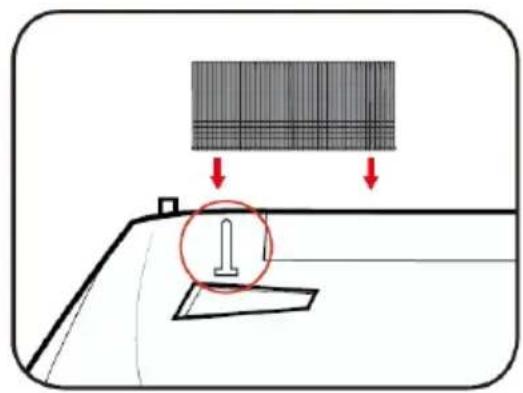

7.1 Loading staples/nails (Fig. 1)

• Hold the tool upside down
• Insert a row of staples/nails into the opening behind the nose piece
• Push the loaded magazine back into the unit. It clips into place.

- Squeeze the magazine latches on either side of the tool and pull the magazine out of the tool, following the order a to b

8 OPERATION

When the unit is loaded with fasteners and you are ready to begin, plug the nailer/stapler power cord (8) into a power outlet.

Note: each time you fire the nailer / stapler, the safety (3) must be pressed firmly against the workpiece.

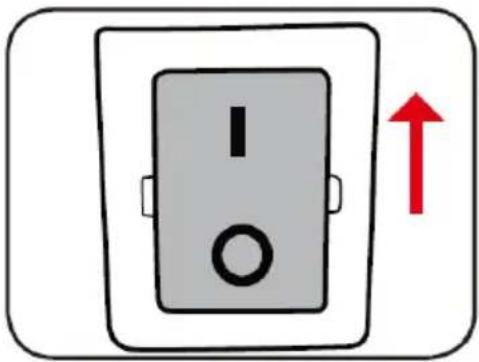

8.1 Switching on/off (Fig. 2)

• To supply the tool with power, push the power switch to the "I" position.
• To turn off, push the power switch to the "O" position.

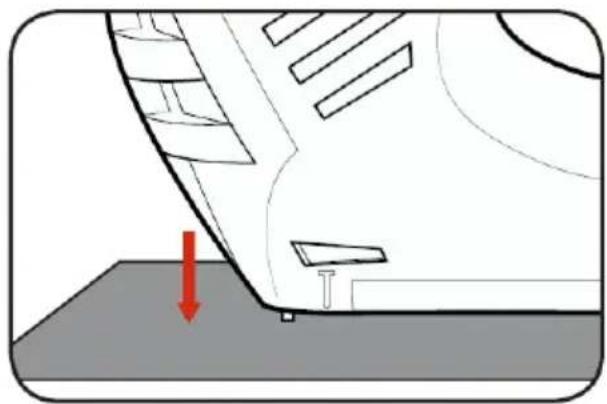

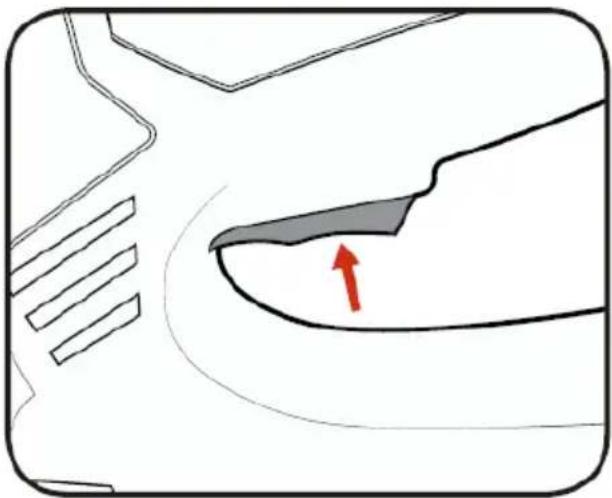

8.2 Firing a staple or nail (Fig. 3)

• Switch the on/off switch into the on position.
• Place the tacker against the workpiece so that the nose piece of the tacker is where you want the staple/nail to be located. Push the safety striker pin and nose piece down onto the surface to the fastened.
  ■ To fire the tacker squeeze the trigger.

9 TECHNICAL DATA

Rated voltage	230-240V / 50 Hz
Strike rate	20 / min
Rated Power	45W
Staple/nail size	8-14 mm / 16 mm
Protection class	II

10 NOISE

Noise emission values measured according to relevant standard. (K=3)

Acoustic pressure level LpA 82 dB(A)

Acoustic power level LwA 93 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration):

9,5 m/s²

K = 1.5 ~m / s^2

11 MAINTENANCE

Apart from regular cleaning, the machine is essentially maintenance free. It should be kept free of wood dust and chips. This applies particularly to the ventilation slots and the magazine area.

12 WARRANTY

• This product is warranted as provided by law for a 36-month period effective from the date of purchase by the first user.
• This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

13 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Please dispose of used motor oil in a manner that protects the environment. We suggest you take it in a sealed container to your local service station for recycling. Do not throw it into the refuse or pour it on the ground

14 DECLARATION OF CONFORMITY

varo

VARO N.V. - Vic. Van Rompuy N.V.- Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product: Nail/staple gun trade mark: POWERplus model: POWX13700

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature); 2011/65/EU 2006/42/EC 2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60745-1 : 2009 EN60745-2-16 : 2010 EN IEC 55014-1 : 2021 EN IEC 55014-2 : 2021 EN IEC 61000-3-2 : 2019 EN IEC 61000-3-11 : 2019

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Philippe Vankerkhove Regulatory Affairs – Compliance Manager 25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

Regulatory Affairs – Compliance Manager

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

1 TILTENKT BRUK 2
2 BESKRIVELSE (FIG. A) 2
3 PAKKENS INNHOLD 2
4 SYMBOLFORKLARING 2
5 GENERELLE SIKKERHETSADVARSLER 3
5.1 Arbeidsplassen 3
5.2 Elektrisk sikkerhet 3
5.3 Personsikkerhet....3
5.4 Vær nøyaktig og omhyggelig når du omgås elektroverktøy 4
5.5 Service....4

6 SPESIELLE SIKKERHETSREGLER FOR SPIKER-/KRAMPEPISTOLER 4

7 MONTERING....5
7.1 Lasting av spiker/nagler (Fig. 1)....5
8 BRUK....5
8.1 Slå på/av (Fig. 2)....5
8.2 Skyte ut spiker eller nagler (Fig. 3)....5
9 TEKNISKE DATA....5
10 ST∅Y 6
11 VEDLIKEHOLD 6
12 GARANTI....6
13 MILJ∅ 6
14 SAMSVARSERKLÆRING....7

SPIKER-/KRAMPEPISTOL POWX13700

1 TILTENKT BRUK

25/04/2022, Lier - Belgium

1 TILSIGTET BRUG....2
2 BESKRIVELSE (FIG. A) 2
3 MEDF∅LGENDE INDHOLD 2
4 SYMBOLER....2
5 ALMINDELIGE SIKKERHEDSANVISNINGER FOR EL-VÆRKT∅J 3
5.1 Arbejdsområde....3
5.2 Elektrisk sikkerhed 3
5.3 Personlig sikkerhed....3
5.4 Omhyggelig håndtering og anvendelse af el-værktøjer 4
5.5 Service....4
6 SÄERLIGE SIKKERHEDSHENVISNINGER FOR EL- S∅MPISTOLER....4
7 SAMLING 5
7.1 Ladning af klammer/søm (Fig. 1)....5
8 BETJENING 5
8.1 Tænding/slukning (Fig. 2)....5
8.2 Affyring af klammer eller som (Fig. 3)....5
9 TEKNISKE DATA....5
10 ST∅J....5
11 VEDLIGEHOLDELSE 6
12 GARANTI....6
13 MILJ∅....6
14 KONFORMITETSERKLÆRING....7

S∅M-/KLAMMEPISTOL POWX13700

1 TILSIGTET BRUG

3 FÖRPACKNINGSINNEHÅLL

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

1 NAMJENA 2
2 OPIS (SLIKA A)....2
3 POPIS SADRŽAJA PAKETA 2
4 SIMBOLI 2
5 OPĆA UPOZORENJA O SIGURNOSTI RUKOVANJA ELEKTRIČNIM ALATIMA....3
5.1 Radno mjesto....3
5.2 Električna sigurnost....3
5.3 Osobna sigurnost .... 3
5.4 Uporaba i održavanje električnog alata ....4
5.5 Servis....4
6 POSEBNE SIGURNOSNE UPUTE ZA PRIBIJAČ ČAVALA/SPOJNICA 4
7 SKLAPANJE I 5
7.1 Umetanje čavala / spojnica (slika 1)......5
8 RAD 5
8.1 Uključivanje i isključivanje (slika 2)....5
8.2 Ispaljivanje spojnice ili čavla (slika 3)....5
9 TEHNIČKI PODACI 5
10 BUKA....6
11 ODRŽAVANJE 6
12 JAMSTVO....6
13 OKOLIŠ 7
14 IZJAVA O SUKLADNOSTI 7

PRIBIJAČ ČAVALA/SPOJNICA POWX13700

1 NAMJENA

Stroj se koristi za pričvršćenje drveta, žičane mreže, pusta, folije, kartona i tkanine na drvo te za slične materijale. Druge primjene nisu dozvoljene. Nije prikladno za profesionalnu uporabu.

UPOZORENJE! Prije uporabe alata, a radi vaše vlastite sigurnosti pažljivo pročitajte ovaj priručnik i opće upute o sigurnosti. Ove upute čine sastavni dio opreme električnog alata, pa i u slučaju prodaje drugom vlasniku.

2 OPIS (SLIKA A)

1. Ručka
2. Otvori za hlađenje
3. Sigurnost
4. Nos uređaja
5. Spremnik čavala i spojnica
6. Sklopka okidača
7. Prozor pribora za učvršćivanje
8. Kabel za napajanje
9. Sklopka za uključivanje/isključivanje
10. Ručica spremnika
11. Unutarnji spremnik

3 POPIS SADRŽAJA PAKETA

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

1 ZAMÝŠL'ANÉ POUŽITIE....2
2 POPIS (OBR. A)....2
3 OBSAH BALENIA 2
4 SYMBOLY 3

5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE....3

25/04/2022, Lier - Belgium

1 PREDVIDENA UPORABA 2
2 OPIS (SLIKA A)....2
3 VSEBINA ŠKATLE....2
4 SIMBOLI 2
5 SPLOŠNA VARNOSTNA OPOZORILA ZA ELEKTRIČNO ORODJE....3
5.1 Delovno mesto 3
5.2 Električna varnost....3
5.3 Osebna varnost....3
5.4 Uporaba in nega električnega orodja....4
5.5 Servisiranje ....4
6 DODATNA VARNOSTNA NAVODILA ZA ELEKTRIČNE ZABIJALNE STROJE ....4
7 SESTAVLJANJE....5
7.1 Vstavljanje sponk/žebljev 5
8 UPORABA....5
8.1 Vklop/izklop....5
8.2 Izmet sponke ali žeblja....5
9 TEHNIČNI PODATKI....6
10 HRUP....6
11 VZDRŽEVANJE....6
12 GARANCIJA....6
13 OKOLJE 7
14 IZJAVA O SKLADNOSTI....7

ZABIJALNI STROJ ZA ŽEBLJE/SPONKE POWX13700

1 PREDVIDENA UPORABA

Stroj je namenjen zabijanju lesa, pletene žice, filca, folij, kartona in blaga na les ali podobne materiale. Drugi načini uporabe niso odobreni. Ni primerno za profesionalno uporabo.

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

Simple hand-drawn sketch of a rounded rectangular shape with a small protrusion (no text or symbols)

Philippe Vankerkhove

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

25/04/2022, Lier - Belgium

Open black plastic case containing a yellow handheld device with cables and a small paper clip (no visible text or symbols)

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM
