USER MANUAL LPMGCM01EU LA PAVONI

Instructions for use of models GRAN CAFFÈ Dear Customer, Thank you for having purchased one of our products, which has been manufactured using the latest technological innovations. By carefully following some simple instructions regarding the correct use of our product in compliance with the essential safety instructions indicated in this manual, you will be able to obtain the best performance and enjoy the remarkable reliability of this product over the years. In case of faults, please contact one of our Service Centres that are at your disposal from now on.

SYMBOLS USED IN THIS MANUAL

Important information is indicated by these symbols. It is imperative that you comply with these instructions. Please read the instructions manual carefully before using the appliance. Caution! Particularly important and / or dangerous operations. Information (useful for using the appliance). Advice. Operations that can be carried out by the user. Operations that should only be carried out by a qualied technician.19

5–1. CLEANING THE OUTSIDE OF THE MACHINE 27

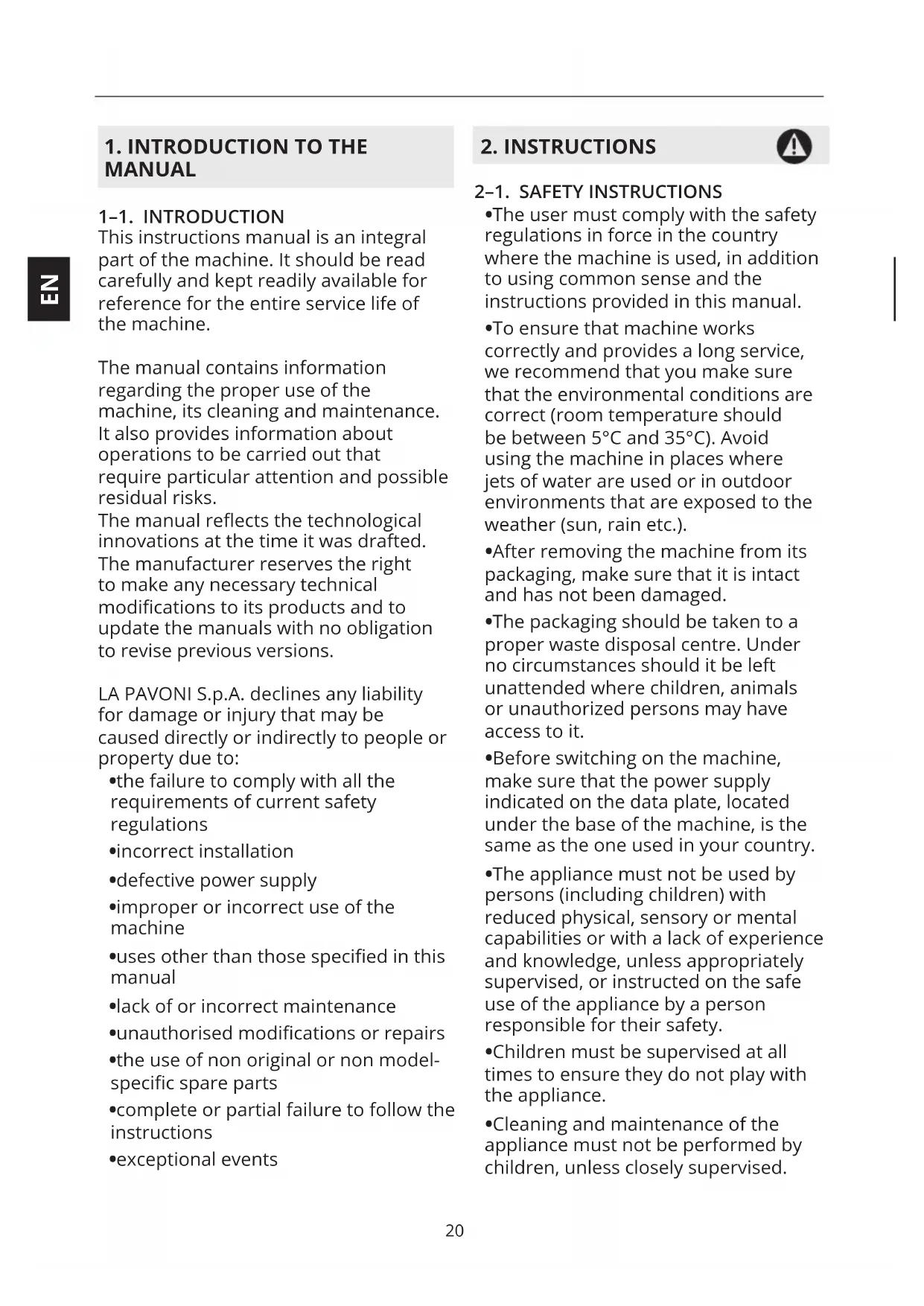

MANUAL 1–1. INTRODUCTION This instructions manual is an integral part of the machine. It should be read carefully and kept readily available for reference for the entire service life of the machine. The manual contains information regarding the proper use of the machine, its cleaning and maintenance. It also provides information about operations to be carried out that require particular attention and possible residual risks. The manual reects the technological innovations at the time it was drafted. The manufacturer reserves the right to make any necessary technical modications to its products and to update the manuals with no obligation to revise previous versions. LA PAVONI S.p.A. declines any liability for damage or injury that may be caused directly or indirectly to people or property due to:

• the failure to comply with all the requirements of current safety regulations

• incorrect installation

• defective power supply

• improper or incorrect use of the machine

• uses other than those specied in this manual

• lack of or incorrect maintenance

• unauthorised modications or repairs

• the use of non original or non model- specic spare parts

• complete or partial failure to follow the instructions

2–1. SAFETY INSTRUCTIONS

• The user must comply with the safety regulations in force in the country where the machine is used, in addition to using common sense and the instructions provided in this manual.

• To ensure that machine works correctly and provides a long service, we recommend that you make sure that the environmental conditions are correct (room temperature should be between 5°C and 35°C). Avoid using the machine in places where jets of water are used or in outdoor environments that are exposed to the weather (sun, rain etc.).

• After removing the machine from its packaging, make sure that it is intact and has not been damaged.

• The packaging should be taken to a proper waste disposal centre. Under no circumstances should it be left unattended where children, animals or unauthorized persons may have access to it.

• Before switching on the machine, make sure that the power supply indicated on the data plate, located under the base of the machine, is the same as the one used in your country.

• The appliance must not be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge, unless appropriately supervised, or instructed on the safe use of the appliance by a person responsible for their safety.

• Children must be supervised at all times to ensure they do not play with the appliance.

• Cleaning and maintenance of the appliance must not be performed by children, unless closely supervised.21

• Never submerge the appliance in water.

• If the power cord is damaged, contact technical support to arrange

• for it to be replaced in order to avoid any possible hazards.

• This appliance may be used by children from the age of 8 provided they are supervised or instructed on the safe use of the appliance and they understand the associated risks.

• Cleaning and maintenance may be performed by children from the age of 8 as long as they are appropriately supervised.

• Keep the appliance and its cord out of reach of children under the age of 8 years.

• Children must never play with the appliance.

• The appliance may be used by persons with reduced physical,

• sensory or mental capabilities or with a lack of experience and knowledge, if they are supervised or instructed on the safe use of the appliance and if they understand the hazards involved.

• Disconnect the appliance from the power socket before

• assembly, disassembly and cleaning. For this appliance:

• Read this user manual carefully before using the appliance.

• Switch o the appliance immediately after use.

• Do not leave the coee machine unattended during use.

• Always disconnect the coee machine from the power socket if it is left unattended and before assembly/ disassembly of components or cleaning.

• Before connecting or disconnecting the machine, make sure that the ON/ OFF switch is in the OFF position.

• Unplug the coee machine before cleaning it and if you notice any fault.

• Let the coee machine cool down before cleaning.

• Do not use the coee machine without the tank tted or if there is no water in the tank.

• Leave at least 3 cm of space between the coee machine and any walls to the rear or side, and 15 cm clearance above the coee machine.

• Danger of burns! The coee machine generates heat and produces hot water and steam during its operation.

• Danger of burns! Do not touch the cup warmer shelf while the appliance is running.

• The surfaces of the appliance remain very hot after use due to residual heat. Do not touch the hot surfaces in order to avoid burns.

• Do not use the coee machine with parts or accessories of other manufacturers.

• Only use original spare parts. The use of spare parts not approved by the manufacturer could lead to res, electric shocks or personal injury.

• Only place the coee machine on level and dry surfaces.

• Avoid getting the coee machine wet and do not spray liquids onto it. In the event of contact with liquid, immediately switch o the power at the socket or main breaker and dry the appliance thoroughly: Electric shock hazard!

• Do not use harsh detergents or sharp objects to clean the coee machine.

• Do not make any modications to the appliance.

• Never try to put out a re or ames22

with water: turn o the appliance and remove the plug from the socket, and smother the ames with a re blanket or other appropriate cover.

• Prevent the power cord from coming into contact with sharp edges.

• Never position the appliance above or near gas or electric hob burners when they are hot or in use, inside an oven or near other heat sources.

• Do not position the appliance near sinks or taps.

• Do not use the machine if it is not working properly or if the power cable or plug is damaged. Contact an authorised service centre to have the machine repaired / replaced.

2–2. INTENDED USE OF THE MACHINE

• This machine has been designed for the home preparation of espresso coee using coee blends, the production of hot water and/or steam.

• In order to use the machine properly, the user must carefully read and understand the instructions provided in this manual. This appliance is intended for household use. Moreover, it cannot be used: - in kitchen areas provided for employees in shops, oces or other work environments - in farms/farm accommodation - by guests in hotels, motels and other types of residential accommodation - in bed and breakfast accommodation Any improper use of the machine will void the warranty and relieve the manufacturer of all liability for damage to property and / or injury to persons. Improper use includes: any use other than the one specied in the instructions manual - any intervention carried out on the appliance that does not comply with the instructions given in this manual - any use following unauthorized modications to components or safety devices - use of the appliance outdoors. 2–3. DISPOSAL Electrical appliances must not be disposed of together with household waste. Devices marked with this symbol are subject to European Directive 2012/19/ EU All waste electrical and electronic appliances must be disposed of separately from domestic waste and taken to authorised waste disposal facilities. Disposing of the used appliance correctly, will help to safeguard the environment and human health. For further information regarding the disposal of used appliances, please contact your local authority waste disposal department or the shop where the appliance was purchased.

4. Hot water / steam knob

6. Steam / hot water supply nozzle

7. Removable cup holder tray

*Standard only on some models

4–1. STARTING THE APPLIANCE

• Open the cover and ll the tank (1) with fresh clean water, taking care not to exceed the maximum level of the tank.

• Turn on the machine by placing the on / o switch (9) to position "I". The lamp (9a) lights up to indicate that the machine is powered.

• Insert the lter holder into the group head.

• Open the steam / hot water knob (4).

• Move the coee / hot water switch lever (10) to position “I”. When water starts to come out of the turbo steam nozzle (6), move the hot water / coee dispensing switch lever (10) to position “0” and close the knob (4). After having done this, rinse the internal circuits:

• Insert the lter holder (12-13) into the group head (5).

• Place a container under the coee dispensing spouts and press the coee / hot water dispensing button (10).

• Repeat this process 5 times.

• After rinsing, wait for the machine to reach operating temperature. The light (10a) comes on to indicate that the temperature has been reached.

• After having done this, rinse the internal circuits: To avoid having to repeat this procedure, we recommend that you check the level of water in the tank (1) to prevent emptying the machine's water circuit. If this does happen, repeat the above procedure. Take care not to pour water onto the connector when lling the tank. The operating temperature light (11a) will continue to switch on and o automatically during heating. After having switched on the machine, wait about 6 minutes for it to heat up before making the rst coee.

4–2. PREPARING ESPRESSO COFFEE

Make sure that you have carried out all the operations indicated in section 4.1 “starting the appliance”. PRE-HEATING

• Make sure there is enough water in the tank (1).

• Insert the lter holder (12) into the group head, without a lter.

• Turn on the main switch (9), the power on light (9a) will come on to indicate that the machine is in operation.

• Wait until machine reaches the operating temperature in order to dispense a coee. The light (10a) comes on to conrm that the temperature has been reached.

• After pre-heating, remove the lter holder (12), select the 1-cup lter (14) if you wish to make one coee or the 2-cup lter (15) if you wish to make two coees and place it into the lter holder.24

• Fill the lter with one or two measures of ground coee (one measure per cup) according to the type of lter selected. Then level and press the coee rmly but not excessively with the coee tamper (16).

• Clean any coee residues from the edge of the lter and insert the lter- holder (12) into the group head (5), moving it towards the right in order to lock it in position.

• Place one or two pre-warmed cups on the drip tray grid (7) under the lter holder and turn on the coee / hot water switch (10). The pressure gauge (3) indicates the operating pressure.

• Once the required amount of coee has been dispensed, stop delivery by turning o the switch (10) but do not remove the lter holder.

• Turn the handle from right to left to remove the lter holder.

• Empty the coee grounds by leaving the lter inserted and tapping the lter holder while holding it upside down. The 1-cup lter is suitable for ESE pods.

• After having switched on the machine, wait about 6 minutes for it to heat up to the operating temperature before dispensing the rst coee

• To obtain a good cup of coee, it is important that you use a good quality, well roasted and correctly ground coee.

• The pump type espresso coee machine requires nely ground coee. If the coee is too coarsely ground, the coee will be light coloured and weak without froth and if the coee is too nely ground the espresso will be dark and strong and have little froth.

• We recommend that you grind the coee beans with a grinder immediately before making the coee since the coee quickly loses its aroma after it has been ground. We recommend that you dispense steam for a maximum of 30 seconds.

• Do not touch the hot surfaces (boiler, group head, lter holder, steam supply nozzle) to avoid burns.

• Do not remove the lter holder while coee is being dispensed to avoid possible burns.

• Under no circumstances place your hands under the group head or the steam supply nozzle as the liquids or steam delivered are hot and may cause burns. Do not remove the lter holder immediately after having dispensed coee, wait for a few seconds to allow any residual pressure to be released in order to avoid possible burns.

• The special pressurized lter holder allows you to make an excellent creamy espresso coee just like at the bar.

• Insert the lter holder (13) into the group head (5) and turn it from left to right until it locks in order to pre-heat it. Release the lter holder handle.

• The handle will now automatically move slightly back towards the left. This movement ensures that the lter holder will operate perfectly for a long time.25

• Make sure that there is enough water in the tank for the amount of coee required.

• Press the main switch (9).

• Wait for the light (14a) to turn on. The appliance has now reached the correct temperature for dispensing water.

• Remove the lter holder from the boiler unit (5) and place the large coee lter into the lter holder.

• Fill the lter with one or two measures of ground coee according to the number of cups to prepare (g A). 1 measure = 1 coee approx. 2 measures = 2 coees approx. The quantity of coee and the amount by which it is compacted directly aects the quality and avour of the espresso.

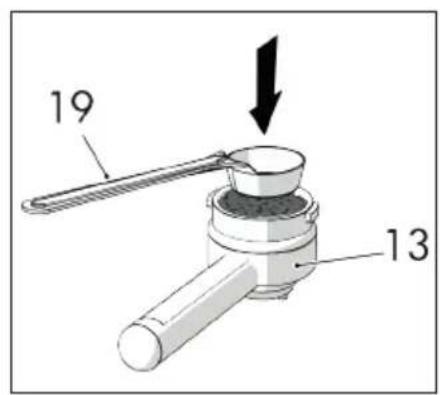

• Press the coee lightly using the scoop and then remove any coee residues from the edge of the lter holder (Fig. B).

• Insert the lter holder into the group head (5) and place one or two preheated cups under the lter holder.

• Press the coee switch (10). Once the required amount of coee has been dispensed, turn o the coee switch (10).

• After having made the coee, remove the lter holder, empty the coee grounds and rinse the lter holder under running water. 4–3. DISPENSING STEAM

• Steam can be used for frothing the milk for making cappuccinos or to warm up drinks. Caution! Danger of burns! Spurts of hot water may be ejected when you rst start to dispense steam. The nozzle can become extremely hot. Do not touch it directly with your hands. Using the turbo frothing nozzle (6):

• Prepare the espresso coee in large cups as indicated in the previous sections.

• When the machine has reached the operating temperature, direct the steam nozzle towards the drip tray grid (7) and open the “Hot water / steam knob” (4) for a few seconds in order to remove any residual water from the steam nozzle.

• When only steam starts to come out, close the steam / hot water knob (4).

• Move the steam switch (11) to position “I”.

• Place some cold milk in a tall, narrow container. Fill it with about 100 ml of milk for each cappuccino you want to prepare

• After about 15-20 seconds, when the temperature light (11a) switches o, place the container with cold milk under the frothing nozzle (6) and then immerse the frothing nozzle a few millimetres into the milk. For best results when making a cappuccino, the milk and the cup should be cold.

• Turn the steam knob (4) slowly anticlockwise to dispense the steam and slowly move the container up and down to obtain a creamier froth.

• Once the volume of milk has doubled, immerse the frothing nozzle completely and heat the milk to 60- 65°C.

• Once the milk has been frothed, turn the steam knob anticlockwise to stop dispensing steam and remove the milk container.

• Wipe the steam nozzle with a clean, dry cloth and then drain it into cloth to eliminate any milk residues from inside.26

• Move the steam lever switch (11) to position “0”.

• Pour the frothed milk into the cups containing the espresso. In order for the machine to operate correctly, do not dispense steam for more than 60 seconds. For reasons of hygiene, it is advisable to clean the frothing nozzle for cappuccino after use. The more you turn the knob, the greater will be the steam pressure.

(OPTIONAL) The turbo steam device (6) should be replaced with the Automatic Cappuccino maker before starting the machine. Proceed as follows:

• Loosen the upper locking ring (A) of the turbo steam nozzle (6) (Fig. D) by turning it anticlockwise

• Remove the turbo steam device (6) from the seam nozzle Fig. E by pulling it downwards.

• Insert the Automatic Cappuccino maker onto the steam nozzle by pushing it upwards until the nozzle rests against the tting and tighten the locking ring by turning it clockwise. Prepare the espresso coee in a cappuccino cup.

• Then, once the machine is ready to dispense steam, proceed as follows.

• Insert the suction tube (B) (Fig. E) of the Automatic Cappuccino maker into the container containing the cold milk.

• Place the cup containing the previously prepared coee under the nozzle of the Automatic Cappuccino maker and open the steam knob (4) by turning it anticlockwise. This will start to dispense hot milk, with abundant froth.

• To stop dispensing, close the steam knob (4) by turning it clockwise. You can regulate the froth by adjusting the pin (C) (Fig. E), of the Automatic Cappuccino maker to get the required consistency of the froth. Move the pin upwards to obtain a froth with a greater volume. In order for the machine to operate correctly, do not dispense steam for more than 60 seconds. 4–5. HOT WATER

• Make sure that you have carried out all operations in section 4.1

• Place a container under the frothing nozzle (6)

• Open the knob (4) and move the coee / hot water lever switch (10) to position “I”. This will dispense water immediately from the turbo steam nozzle (6).

• Once the required amount of water has been dispensed, move the coee / hot water lever back to position “0” and close the knob (4).

• After dispensing hot water, make sure that there is still water in the tank (1). The water is dispensed at a very high temperature. Be careful to avoid possible scalding.

5. CLEANING AND MAINTENANCE

Before carrying out any cleaning or maintenance, unplug the power cable from the power outlet without pulling the cable. Do not immerse the coee machine in water or other liquids.27

Let the coee machine cool down before cleaning.

5–1. CLEANING THE OUTSIDE OF THE

MACHINE To keep the outer surface of the coee machine in good condition, it should be cleaned regularly after use. Let the appliance cool down rst. Clean with a soft, damp cloth.

5–2. CLEANING THE COFFEE MACHINE

Clean the coee lters regularly under running water. If the holes are blocked, clean them with a pin or a brush.

CLEANING THE TURBO STEAM NOZZLE

• To avoid altering the taste of the drinks to be heated and to prevent the holes at the end of the turbo steam nozzle (6) from becoming clogged, after use, turn the steam knob to dispense a small amount of steam and remove any milk from the inside of the nozzle. Then clean thoroughly with a damp cloth.

• In addition to cleaning the steam nozzle immediately after each use, we recommend that every now and again you clean it more thoroughly (Fig. G).

• Remove the nozzle cover (E) by pulling it downwards.

• Turn the threaded locking ring (A) anticlockwise until the steam nozzle is released.

• Clean the injector (D) in warm water to remove any milk residues and, using a needle, clean the hole at the end of the steam nozzle that may have become blocked by hardened milk.

• After cleaning, reassemble as follows:

• Insert the threaded locking ring (A) and the grommets (B) and (C) onto the steam nozzle. Insert the injector (D) as far as it will go onto the steam nozzle and tighten the locking ring (A) clockwise as far as possible in order to secure the injector in place.

• Push the nozzle cover (E) upwards onto the injector.

• Place a full glass of water next to the machine in which to immerse the Suction tube.

• Proceed as if you were preparing a normal cappuccino, allowing the dirty water to drain into a suitable container.

• To replace the steam pipe (12), follow the instructions in section 4.9.

• In addition to cleaning the Automatic Cappuccino maker after each use, every now and again clean it more thoroughly.

• Turn the threaded locking ring (A) anticlockwise until the steam nozzle is released (Fig. G).

• Remove the cover (D), the pin (C) and the pipe (B) and wash them thoroughly under warm running water to eliminate residues or hardened lumps of milk. Then replace the components in the reverse order.

CLEANING THE GROUP HEAD

• It is recommended that you rinse the group head by turning on the coee / hot water dispensing button (10) without the lter holder inserted

CLEANING THE WATER TANK

• It is recommended that you periodically clean the water tank by carefully removing it from its housing by its handle and then putting back the water pipes.28

• We recommend that you descale the machine according to how often it is used and the water hardness, using specic, readily available descalers that can also be obtained from Authorised Service Centres.

• Dissolve the descaler in water (1.5 litres) and then pour the solution into the water tank (1).

• Make sure the lter holder is not inserted.

• Place a suitable container under the group head (5) and under the turbo steam nozzle (6).

• Turn on the coee / hot water switch (10) and allow the solution to ow out of the group head (5) for about 15 seconds. Then turn o the coee / hot water switch.

• Move the steam switch (11) and the coee / hot water switch (10) to the on position and slowly open the steam knob (4) to allow water to exit from the turbo steam nozzle (6) for a few seconds and then stop.

• Wait a few minutes and repeat the above steps until the tank is completely empty

• To eliminate any residues of the solution and scale, remove the water tank (1), rinse it thoroughly, rell it with clean water and put it back into the machine.

• Turn on the coee / hot water switch (10) and dispense water until the tank is completely empty.

• Repeat the two previous points again.29

The machine does not work and the light of the ON/OFF switch does not turn on

2. The machine is not

plugged in correctly

3. The power cable is

1. Switch the power back on.

2. Insert the plug correctly

into the power socket

3. Contact the SERVICE

CENTRE for replacement The light on the ON/OFF switch is lit and the water does not heat up

1. The safety thermostat

2. The heating element is

CENTRE No coffee is dispensed 1.No water in the tank

2. The coffee is too finely

3. There is too much coffee

4. The coffee has been

6. The circuit has not been

7. Shower screen clogged

8. Filter holder holes clogged

9. Scale build up in the

1. Put water in the tank

2. Replace with a coarser

3. Reduce the amount of

coffee in the filter basket

4. Tamp the coffee less

5. Turn off the steam switch

8. Clean the holes of the

filter holder 9.Descale as indicated in

Loud noise coming from the pump

1. No water in the tank

2. The pump is not primed

1. Put water in the tank.

The coffee is dispensed in drops

1. The coffee is too coarsely

2. There is not enough

3. The coffee has not been

4. The coffee is stale or

1. The coffee should be

2. Increase the amount of

3. Tamp the coffee more

No froth forms on the coffee 1. The coffee blend is not suitable for this type of machine

2. The grinding is unsuitable

3. There is not enough

1. Replace the coffee.

2. Adjust the coffee grind

3. Increase the amount

of coffee and compact it properly The coffee is too cold 1. The machine had not reached the correct temperature

2. The filter holder had not

3. The cups have not been

4. The thermostat is not

working within the required range

5. Scale build up in the

1. Follow the instructions in

2. The filter holder should

be heated at the same time as the water, see section

3. Heat the cups properly

on the cup warmer (2)

5. Descale as indicated in

The coffee is too hot 1. The thermostat is not working within the required range

1. Contact the SERVICE

CENTRE The machine does not dispense steam

1. The circuit has not been

2. The hole at the end of the

steam nozzle is clogged

3. No water in the tank

4. The turbo steam nozzle

has not been inserted properly

2. Clean the hole with a

nozzle properly The coffee leaks between the boiler unit and the filter holder

1. The filter holder is not

2. There is too much coffee

holder has not been cleaned.

2. Reduce the amount of

from the edge of the filter holder

1. INTRODUCTION AU MANUEL 34

1. INTRODUCTION AU MANUEL

4–3. STOOMAFGIFTE 67

4–5. AFGIFTE VAN HEET WATER 69

2–1. VEILIGHEIDSWAARSCHUWINGEN

2. Passieve kopjeswarmer

4–5. AFGIFTE VAN HEET WATER

INNEHÅLLSFÖRTECKNING

4–3. MATA UT ÅNGA 109

4–1. SETTE APPARATET I DRIFT 177

4–1. SETTE APPARATET I DRIFT
