Roomie Go - Baby bed Joie - Free user manual and instructions

Brand	Joie
Model	Roomie Go
Product type	Baby co-sleeping bed / travel crib
Usage	From birth to 9 kg (approximately 6 months)
Safety standards	EN 1930/2019/AC/2020, EN 16890/2017-A/2021
Mattress included	Yes, one mattress only (do not add a second one)
Adjustable heights	Yes, multiple positions, adjustable up to 5 notches
Co-sleeping mode	Yes, attaches to adult bed with straps
Wheels	Yes, with brakes
Carry bag	Included
Dimensions (assembled)	Approx. 95 × 60 × 70 cm (estimate)
Dimensions (folded)	Approx. 80 × 50 × 20 cm (estimate)
Weight	Approx. 8 kg (estimate)
Power supply	None (manual product)
Cover	Not removable; clean with sponge and soapy water
Maintenance	No bleach or organic solvents
Spare parts	Available from manufacturer or authorized dealer
Assembly	By an adult, no tools needed

Frequently Asked Questions - Roomie Go Joie

How to assemble the Roomie Go bed?

Assemble the bed by following the steps illustrated in the manual. Check that all parts are present before assembly. Assembly requires no tools. Make sure the retractable legs are extended forward (see figures 5-6).

Is the included mattress the only one allowed?

Yes, use only the mattress sold with this crib. Do not add a second mattress on top of it, as this would pose a suffocation risk.

How to use the co-sleeping mode?

Lower the mobile side to the central position using the button (Fig.15). Position the crib against the adult bed, attach the securing straps to the bed frame and tighten firmly. Ensure there is no gap between the adult mattress and the crib.

How to adjust the height and inclination of the crib?

Use the adjustment buttons on the legs. You can tilt the crib with a maximum difference of 4 positions between the two legs. The baby's head should always be placed on the higher side. In co-sleeping mode, both legs must be at the same height.

What are the essential safety precautions?

Do not place the crib near cords, curtains, heat sources. Always lock the wheels when in use. Never leave the child unattended. Regularly check the tightness of screws and that there is no gap in co-sleeping mode.

How to clean the bed?

The fabric cover is not removable. Clean it with a sponge and soapy water. Do not use undiluted detergents, bleach, or organic solvents. For the carry bag, machine wash in warm water and lay flat to dry.

How to fold and store the bed?

Refer to the folding diagrams (figures 30-35). Once folded, place it in the provided carry bag. Store it in the shade, out of reach of children, if not used for a long time.

Can I use the bed on a thick rug?

It is recommended to place the product on a horizontal floor. A thick rug could compromise stability. Ensure the crib is level.

Is the bed suitable for a round or waterbed adult bed?

No, use is only allowed with beds and mattresses with straight sides (slatted or box spring bases). Round beds or waterbeds are not compatible.

What to do if a part is missing or damaged?

Do not use the crib. Contact the manufacturer or an authorized dealer for replacement parts. Only use parts recommended by the manufacturer.

USER MANUAL Roomie Go Joie

Line drawing of a baby care basin with adjustable legs and feet, no text or symbols present

IMPORTANT, RETAIN FOR FUTURE REFERENCE. READ CAREFULLY

Parts List

Technical diagram of a printer with numbered parts and exploded view, likely for assembly or labeling purposes.

Bedside Sleeper Assembly

7 ×

Height Adjustment

Illustration of a baby crib with hand positioning and orange arrows indicating movement (no text or symbols)

Use Wheels

Illustration of a hand holding a small object with a pink ring, showing a curved arrow (no text or symbols)

Illustration of a hand holding a small object with a lock icon and arrow indicating rotation (no text or symbols)

Line drawing of a baby crib with measurement arrows indicating height (no text or symbols)

Simple line drawing of a chair with legs and feet, no text or symbols present

Use Bedside Sleeper

15 2 1 2

16

11 10 12 13 14 15 11 12 13 14 15

12 ■ 1 ■ 2 ■ 3 ■ 4 ■ 5 ■ 6 ■ 7 ■ 8 ■ 9 ■ 10 ■ 11 ■ 12 ■ 13 ■ 14 ■ 15

Line drawing of a medical device with a bed and scanner, no text or symbols present

18 2 1 2 1 2

19

22 No gap

23 max 2 cm

20

Line drawing of a chair with a handle and seat, marked with a red X (no text or symbols)

Line drawing of a chair with a handle and seat, marked with a red X (no text or symbols)

Line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hospital bed with a yellow circle and red X mark, no text or symbols present

272 X

28 Max. 15cm Max. 18cm Min. 30cm Max. 64cm Min. 50cm

Use Storage Bag

29 Max. 35cm Max. 8cm Min. 50cm Max. 64cm Min. 8cm

31 1 2 1 2

34 1 2 CLICK 2 CLICK 1

Simple line drawing of a shopping bag with handles and a dotted line, no text or symbols present

Line drawing of a closed toolbox with a yellow arrow indicating direction (no text or symbols)

Care and Maintenance

37

30 1 2 1 2

Line drawing of a baby seat with a numbered label '32' (no text or symbols on the diagram itself)

33 1 2 2 1

33 1 2 2 1

38

Simple line drawing of a rectangular object with an arrow pointing to it, no text or symbols present.

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your life with your little one. While using the Joie roomie ^TM go, your baby is enjoying a high quality, fully certified product, approved to European safety standards EN 1130-2019/AC:2020 and EN 16890:2017+A1.2021. This product is suitable for use with children weighing under 9kg (approximately 0-6 months). Please carefully read this manual and follow each step to ensure a comfortable sleeping and best protection for your child.

Please keep the Instruction Manual handy for future reference.

Visit us at Joiebaby.com to download manuals and see more exciting Joie products

For warranty information, please visit our website at joiebaby.com

! IMPORTANT

RETAIN FOR FUTURE REFERENCE. READ CAREFULLY.

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

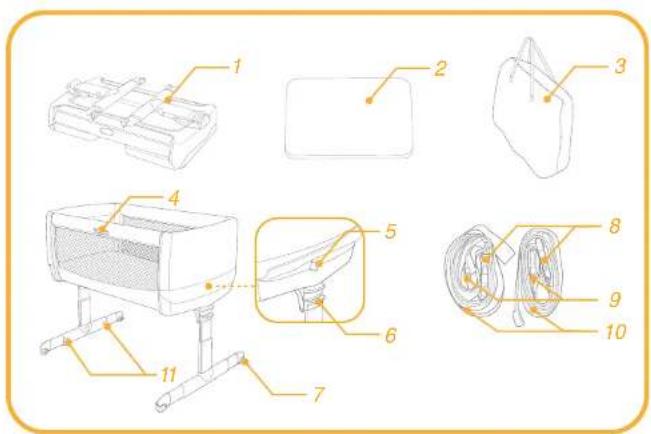

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1. Travel Cot

2 Mattrose

1. Saty Bad

2. Long Rail

Ling Chen

5 Buckle A

6 Button for height

adjustment

1. Wheel

2. Buckle B

9 Buckle C

10 Connecting webbing

1. Button for retractable feet

WARNING

! Adult assembly required.

! Do not use this product without reading the instructions for use first.

! Discontinue using product when child reaches 9kg (approximately 0-6 months) or is able to climb out.

! Stop using the product as soon as the child can sit or kneel or pull itself up.

! Do not use the product if any part is broken; torn or missing and use only spare parts approved by manufacturer.

! Placing additional items in the product may cause suffocation.

! Do not place the product close to another product, which could present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc.

! DO NOT USE the product in "Crib Configuration" and/or "Bedside sleeper Configuration" if any part is missing, damaged or broken. Contact joie for spare parts and user instructions if needed. DO NOT substitute parts.

! Be aware of the risk of burning cigarettes, open fires and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the crib.

! The crib should be locked in the fixed position when the child is left unattended.

When the product is being used, and above all in "Crib Configuration", the wheels must always be locked.

! Check the tightness of the attachment system before each use by pulling the bedside sleeper in a direction away from adult bed.

! The fixing straps are included in the packaging. Other fastening systems should not be used.

! There shall never be a gap between the lower side of the bedside sleeper and the mattress of the adult bed.

! If there are gaps between the lowest part of the Bedside sleeper crib and the parents' mattress, DO NOT use the product.

! Gaps should not be filled with pillows, blankets or other items.

! DANGER! -Always completely raise the drop side when not attached to the adult's bed.

! To avoid hazards from the child's neck being caught on the top rail on the side that is next to the adult bed, the top rail must not be higher than the adult bed mattress.
! To avoid the risk of your child being strangled the attachment system to the adult's bed shall always be kept away from and out of the crib.
! The product must always be placed on a horizontal surface.
! Young children should not be allowed to play unsupervised in the vicinity of the crib.
! Do not use the product without the frame.
! Keep the fixing straps out of reach of children.
! Do not use more than one mattress in the cot.
! Only use the mattress sold with this crib, do not add a second mattress on this one, suffocation hazards.
When not attached to the bed, the crib can be inclined by a maximum of 4 positions between one leg support and the other.
When in the "Bedside sleeper Configuration" (fastened to the bed), the crib must never be inclined.
! All assembly fittings should always be tightened properly and that care should be taken that no screws are loose, because a child could trap parts of the body or clothing (e.g., strings, necklaces, ribbons for babies' dummies, etc), which would pose a risk of strangulation.
! The mattress of the adult's bed shall be aligned to or above the height of the drop side in the middle position.
! To prevent a suffocation hazard from entrapment, the bedside sleeper shall be properly secured to the adult bed using the attachment system.

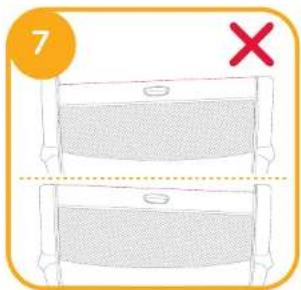

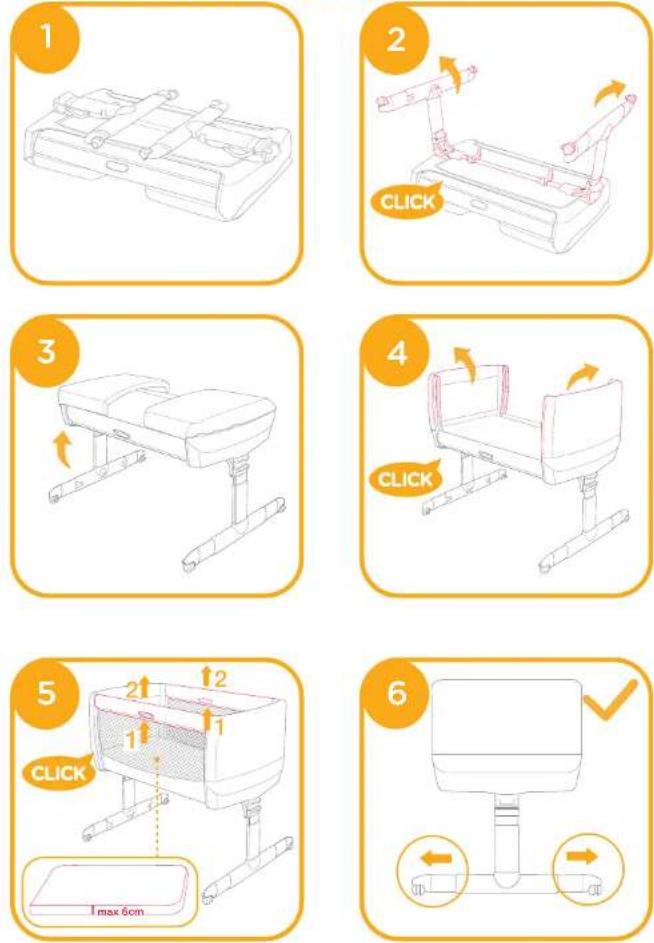

Bedside Sleeper Assembly

see images 1 - 7

Please read all the instructions in this manual before setting up and using this product.

Please make sure the retractable feet of crib extend forward when using the product, see fig b 6.

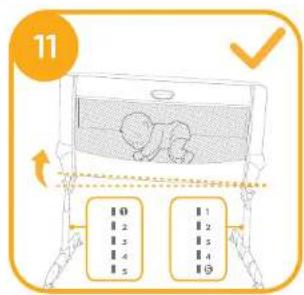

Height Adjustment

see images 6 - 12

The crib can be adjusted to different height positions.

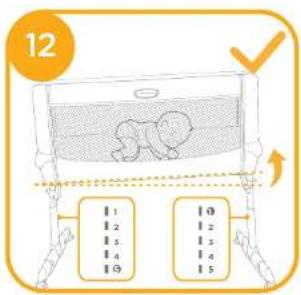

The crib can be inclined with a maximum variance of 4 positions between one leg and the other (for example: the right leg in position 5 and the left leg in position 1, see fig. ①-②).
The head of the child should always be positioned on the highest side. 11 12
It only be applicable to cradle state, but not to bedside sleeper state.

Use Wheels

see images © - 10

At this point the crib is ready to be used.

Do not use the crib with adjustable feet partially or totally retracted. The correct position for use is illustrated in figure. 5-8 In the case of accidental knocks against adjustable feet, return them to the correct position by lifting the crib slightly.

Use Bedside Sleeper

see images

1. Press the button 13 - 1 to drop the side down 15 - 2.

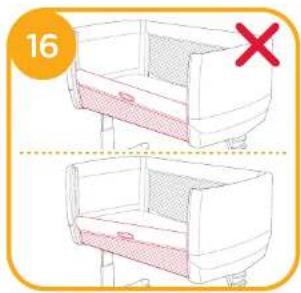

   When used in bedside sleeper configuration, only adjust the drop side near the bed to the middle position, the other drop side must be in the highest position.

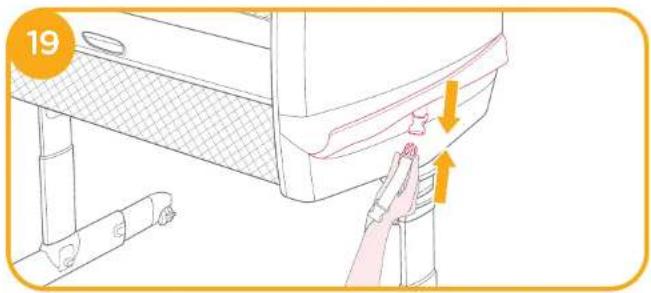

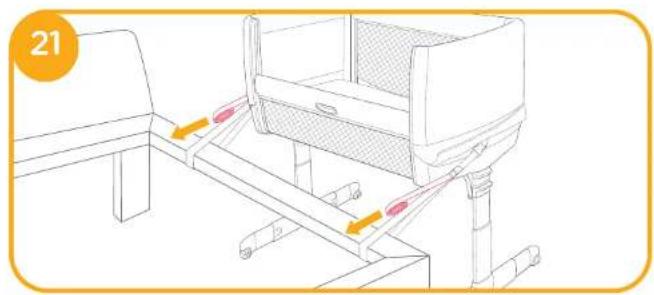

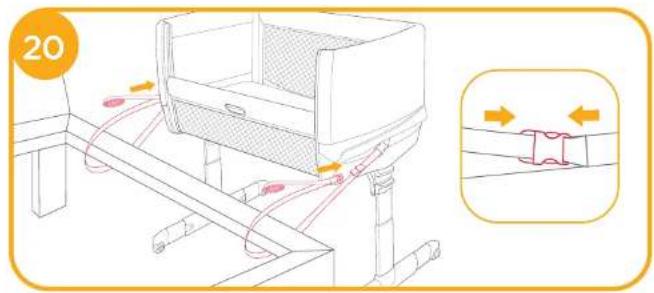

2. Position next to bed ⑰, Connect Buckle to roomie go ⑱ then loop strap around bed frame and connect to adjuster buckle ㉒, then pull straps tight ㉓.

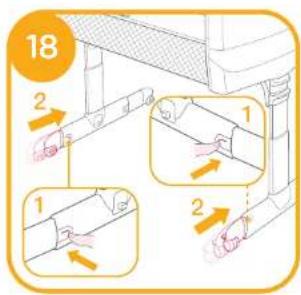

   During fixing the crib to the parent's bed, the feet of the crib can be retracted inward by pressing the folding button to closer the parent's bed. If you want the feet extend outward, only need to lift the feet off the parent's bed, they can extend outward automatically.

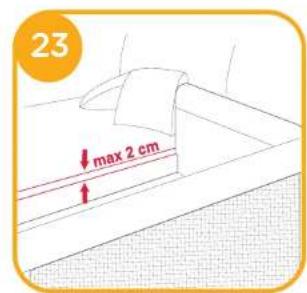

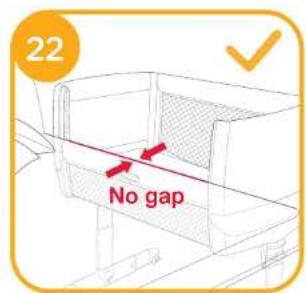

3. Ensure no gap between parent's mattress and roomie go. The maximum height difference between the parents' mattress and the drop side in the middle position is 2cm.
   ! See figs & & & & for incorrect installation.
4. The type of adult bed which can be used with bedside sleeper is slatted bed frame and box / divan bed frame, the dimensions of adult bed shown on fig. ② & ③
   Check to make sure that the crib in the bedside sleeper mode does not interfere with the parent's bed.
   ! During use, make sure that the parent's bed sheets, blankets etc. Do not enter and cover the interior of the crib.
   In the bedside sleeper mode the 2 legs of the crib should always be adjusted to the same height.
   Before every use always check to make sure that there is no space between the parent's mattress and the side of the crib. If there is, pull the belts firmly to tighten until there's no space and the permitted condition of use has been restored.

Use of the product is only permitted with beds and/or mattresses with straight sides. Use of the product with round beds and/or mattresses or water beds is not permitted.
When the product is used in the "bedside sleeper mode" (fixing to the bed), it should always be fitted to the long side of access to the bed. Do not fix the product to the head or bottom of the bed.

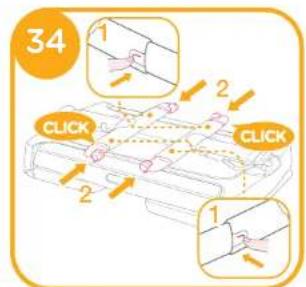

Use Storage Bag

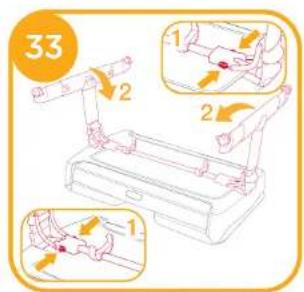

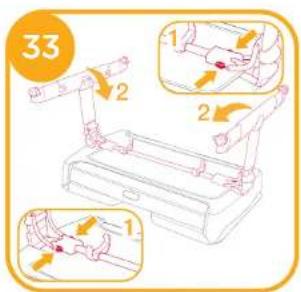

see images 30 - 35

! Refer to Bedside Sleeper Assembly and perform reverse operation to fold the unit, and use the bag for convenient transportation.

Care and Maintenance

see images 37 - 38

1. The fabric cover of crib is not removable.
2. Your product can be spot cleaned with a sponge and soapy water.
3. Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the product. It may cause damage to the product.
4. To wash carry bag, machine wash in lukewarm water and drip-dry. Do not use bleach.
5. At the beach or in the garden, clean sand and grit off your product. Sand in the long rail locks may cause damage.
6. From time to time, check your product for worn parts, torn material or stitching. Replace or repair the parts as needed.
7. If the product is not in use for a long period of time, please put it in the shade where your child cannot access it.

1. Business: Business is a business in the United States, which is an enterprise in the United Kingdom.

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Bourmanweg 178 C, 2352 JD Leiderdorp, The Netherlands
