USER MANUAL OMX 5220 M OK

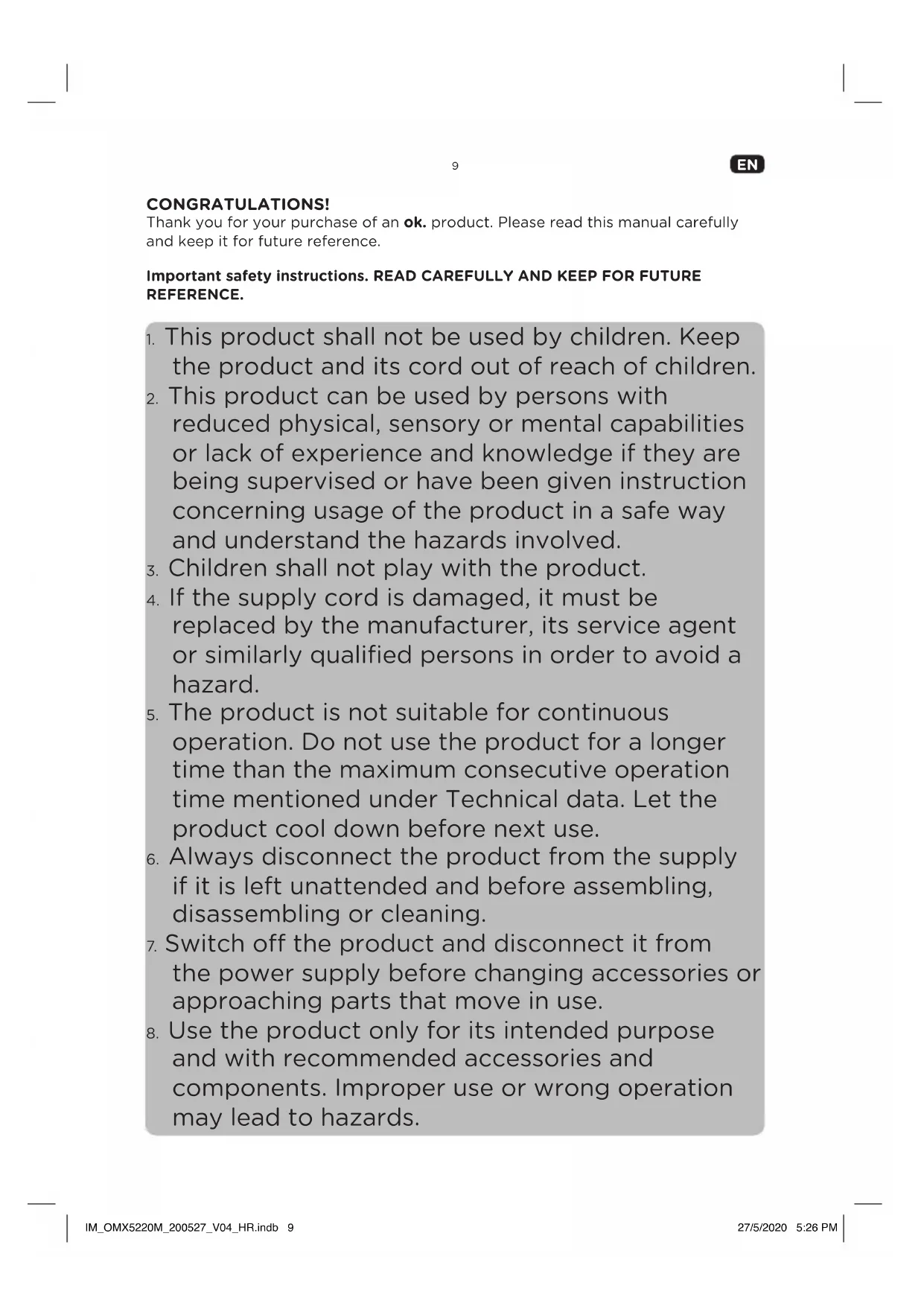

CONGRATULATIONS! Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference. Important safety instructions. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product shall not be used by children. Keep

the product and its cord out of reach of children.

2. This product can be used by persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instruction concerning usage of the product in a safe way and understand the hazards involved.

3. Children shall not play with the product.

4. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. The product is not suitable for continuous

operation. Do not use the product for a longer time than the maximum consecutive operation time mentioned under Technical data. Let the product cool down before next use.

6. Always disconnect the product from the supply

if it is left unattended and before assembling, disassembling or cleaning.

7. Switch o the product and disconnect it from

the power supply before changing accessories or approaching parts that move in use.

8. Use the product only for its intended purpose

and with recommended accessories and components. Improper use or wrong operation may lead to hazards. IM_OMX5220M_200527_V04_HR.indb 9IM_OMX5220M_200527_V04_HR.indb 9 27/5/2020 5:26 PM27/5/2020 5:26 PMSize = A5

cutting blades, emptying the bowl and during cleaning.

10. The product is designed for the preparation of

normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include sta kitchens in shops, oces, agricultural and other small businesses or for use by guests at bed-and- breakfast establishments, small hotels and similar residential facilities.

11. Never pour boiling liquids or hot food products

into the blender! Allow them to cool down to a lukewarm temperature.

12. Clean the product and all other accessories after

13. Follow the instructions in the chapter Cleaning

14. Observe all safety instructions to avoid damage through improper use!

15. Keep this instruction manual for future use. Should this product be passed on to

a third party, then this instruction manual must be included.

16. Before connecting the product to the power supply, make sure that the power

supply voltage and current rating corresponds with the power supply details shown on the product rating label.

17. Never use a damaged product! Disconnect the product from the electrical outlet

and contact your retailer if it is damaged.

18. To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges.

Keep it away from hot surfaces and open flames as well. Do not let rotating blades touch the power cord.

19. Lay out the cord in such a way that no unintentional pulling or tripping over it is

20. If an extension cord is used, its capacity needs to be suitable for the power

consumed by the product.

21. Do not operate the product with wet hands or while standing on a wet floor. Do

not touch the power plug with wet hands.

22. Do not open the product casing under any circumstances. Do not insert any

foreign objects into the inside of the casing.

23. Do not pull the power plug out of the electrical outlet by the power cord and do

24. Connect the power plug to an easily reachable electrical outlet so that in case of

an emergency the product can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch o the product. Use the power plug as the disconnection device.

25. Disconnect the power plug from the electrical outlet when the product is not in

use and before cleaning.

26. If the power cord should overheat, stop using the product and disconnect the

product from the electrical outlet.

27. Do not place the product on hot plates (gas, electric, coal cooking range, etc.).

Keep the product away from hot surfaces and open flames. Always operate the product on a level, stable, clean, heat-resistant and dry surface.

28. Never leave the product unattended during use.

29. Dry the product and all accessories before connecting it to the power supply

and prior to attaching accessories.

30. Do not hold on to the inside of the blender during operation. The blades are

31. Do not open the lid when the product is in operation. Otherwise food products

may fly o at high speed!

32. Never insert any cutlery or any other objects into the blender while the product

is in operation. There will be a considerable risk of injury if you touch the very fast rotating blades! IM_OMX5220M_200527_V04_HR.indb 11IM_OMX5220M_200527_V04_HR.indb 11 27/5/2020 5:26 PM27/5/2020 5:26 PMSize = A5

INTENDED USE This product is suitable for simple mixing of liquid and solid foods only. Any other use may result in damage to product or injuries. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer’s specified purpose.

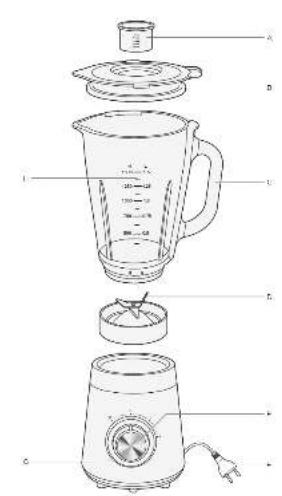

CONTROLS AND COMPONENTS

The product may be available in dierent colors. A. Filling cap B. Lid with feed opening C. Handle D. Blade insert E. On/off and mode selection switch P 0 1 2 F. Power cord with plug G. Motor unit H. Blender jar with scale (1.5 Litre)

BEFORE FIRST TIME USE

After unpacking, please refer to chapter Cleaning and care.

Twist the lid counterclockwise and at least 45° and pull it o. Also follow the symbols printed on the lid. Fig.

Fill the ingredients into the blender jar. Caution:

• Never use this product to mix hot oil, fat or other hot foodstus.

• Do not add liquid more than 60°C into the jar. Fig.

Put the lid on and turn it clockwise until it locks into position. Fig.

Place the ready filled and locked blender jar onto the motor unit at the right position. Built-in safety interlock This feature ensures that you can only switch on the product if you have correctly assembled the jar with its lid on the motor unit. If the blender is assembled correctly, the built-in safety lock is unlocked. Fig.

Choose from one of the speed settings. Speed setting Function 0 O 1 For liquid or solid food products 2 For mixing, purees and blending P For crushing ice cubes (max. 20 pcs.). Note: Add enough water, so that the ice can float in it (1:1 ratio, e.g. 100 g ice cubes & 100 ml water). The switch does not remain in this position. Hold the switch in this position briefly so that the motor does not become overloaded. Note: For short, powerful pulse operation. Fig.

Do not consecutively operate the product longer than 2 minutes. Let the product cool down before next use.

Fill in additional ingredients. Fig.  10 Re-insert the filling cap into the lid opening. Mix your ingredients as given in point 6. Caution:

• Never use this product to mix with hot oil, fat or other hot foodstus.

• To achieve the best results for pureeing solid ingredients, only insert these into the blender in small portions rather than filling a large amount at once.

• If you are working with solid ingredients, cut these into small pieces (2-3 cm).

• Start with a small amount of liquid when blending liquid ingredients. Then gradually add more liquid through the lid opening section.

• You can stabilise the product correctly if you place your hand on top of the locked blender.

• It may be useful to use the pulse mode when blending any solid or very thick food products, as this will prevent the cutting blade from becoming clogged.

• Warning! Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

• When cleaning, never use petrol or solvents, and do not use any abrasive cleaners or cleaning aids.

• Always clean the jar after each operation, first fill the jar half full with warm water and some detergent and operate at the short-time setting for several times. Fig.  13 Set the switch to position 0, unplug the power cable from the wall socket. Fig.  14 Unscrew the cutting attachment. Avoid touching the sharp blades. Warning! The cutting blade is very sharp. Fig.  15 Clean the lid, cutting attachment and blender jar under hot running water and mild dishwashing detergent. Dry all of the pieces completely before using again. Note: Detachable parts are dishwasher safe. Fig.  16 Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly. Make sure that no water enters the product interior (for example, through the switch). TECHNICAL DATA Rated voltage : 220 – 240 V~, 50-60 Hz Rated power input : 500 W Continuous Operation time : 2 minutes Protection class : II DISPOSAL The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. IM_OMX5220M_200527_V04_HR.indb 14IM_OMX5220M_200527_V04_HR.indb 14 27/5/2020 5:26 PM27/5/2020 5:26 PMES

1. In accordance with the conditions

below (points 2-7) we will remove defects of the device free of charge, it they are evidently due to material and/or production errors, and if they are reported to us immediately after detection and within 24 months of delivery to the first end user.

2. The warranty does not cover easily

breakable parts such as glass, plastic or light bulbs. A warranty obligation is not triggered by minor deviations from the target conditions, which are not significant to the value and usability of the device, by damages due to chemical and electro-chemical eects of water, in general by abnormal environmental conditions or improper operating conditions, or if the device otherwise comes into contact with unsuitable substances. A warranty can also not be assumed if the defects on the device are due to transport damage which is not caused by us, improper installation and assembly, incorrect operation, non-household usage, a lack of maintenance or the non-observance of the operating or assembly instructions. Warranty claims are void if repairs or interventions are carried out by people who are not authorised by us to do so, or if our devices have been equipped with spare parts, supplements or accessories, which are not original parts and therefore cause a defect.

3. The warranty service is performed by

either repairing the defect parts or replacing them with non-defect parts, at our discretion. Devices which can be transported (e.g. in a car) and on which a warranty service is claimed within the scope of this warranty, are to be handed over or sent to our closest customer service oce or our contracted customer service oce. Repairs at the place of installation can only be requested for devices which are operated on site (stationary devices). The respective sales receipt stating the purchase and /or delivery date is to be submitted. Replaced parts become our property.

4. If the rectification of the defect device

is rejected by us or fails, we will provide a replacement of equal value and at no charge within the above- mentioned warranty period, at the request of the end user.

5. Warranty services neither invoke an

extension of the warranty period, nor start a new warranty period. The warranty period for built-in replacement parts ends with the warranty period for the whole device.

6. Smart Devices: If your device is able

to connect to the internet (so called smart device) security updates are not part of the scope of this warranty. For a certain period of time security updates for your smart device will be done automatically. If this period ends you will be informed by a general note. Afterwards security updates can be performed manually.

7. This warranty extends to every

country where this device is supplied by an authorised distributor.

8. Any other or further claims,

in particular those regarding compensation for damage caused outside of the device are ruled out -provided liability is not obligatory by law.

9. We are furthermore liable without

restrictions in accordance to legal requirements for damage covered by the liability scope of the Product Liability Act, as well as for damage caused by intentional and gross negligent contract violations plus fraudulent intent by us, our legal representatives or vicarious agents.

10. This warranty bond does not aect
