USER MANUAL POWXG90405 PowerPlus

1 SYMBOLS 2
2 GENERAL POWER TOOL SAFETY WARNINGS 2
2.1 Working area 2
2.2 Electrical safety 2
2.3 Personal safety 3
2.4 Power tool use and care 3
2.5 Service 4
3 WARRANTY 4
4 ENVIRONMENT 4
5 DECLARATION OF CONFORMITY 5

HIGH PRESSURE WASHER 1400W POWXG90405

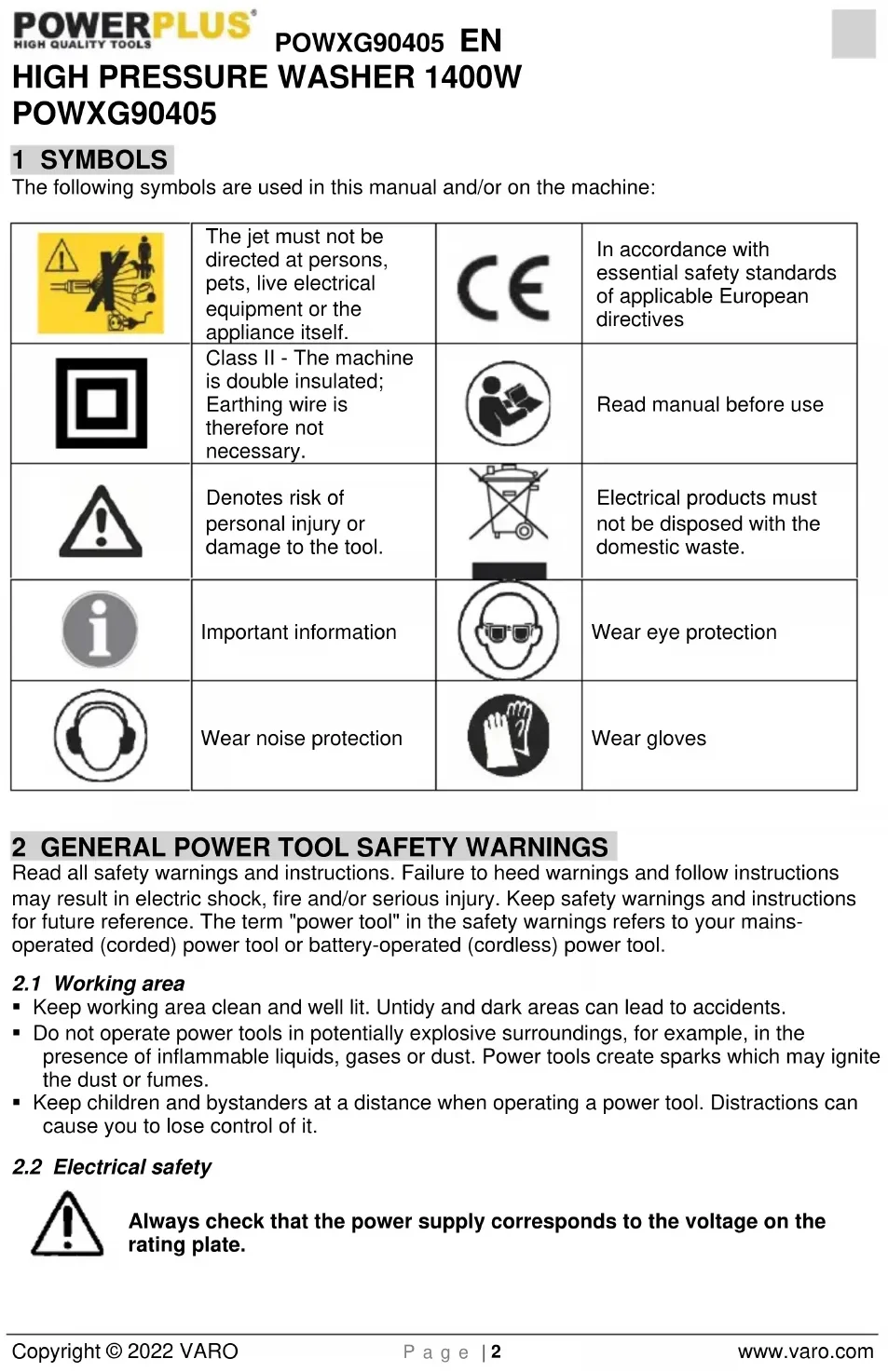

1 SYMBOLS

The following symbols are used in this manual and/or on the machine:

	The jet must not be directed at persons, pets, live electrical equipment or the appliance itself.	CE	In accordance with essential safety standards of applicable European directives
	Class II - The machine is double insulated; Earthing wire is therefore not necessary.		Read manual before use
	Denotes risk of personal injury or damage to the tool.		Electrical products must not be disposed with the domestic waste.
	Important information		Wear eye protection
	Wear noise protection		Wear gloves

2 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

2.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.

• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

2.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

POWXG90405 EN

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of a lethal electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.
• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

2.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.
• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

2.4 Power tool use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
• Maintenance. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

POWXG90405 EN

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

2.5 Service

• Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

3 WARRANTY

This product is warranted as provided by law for a 36 months period effective from the date of purchase by the first user.
- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations: nor the cost of transportation.
- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.
- You can always obtain more information at the number 00 32 3 292 92 90.
- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.
Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
- Your purchase receipt must be kept as proof of date of purchase.
- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

4 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

5 DECLARATION OF CONFORMITY

VARO N.V. - Vic. Van Rompuy N.V. Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product : High Pressure Washer

trade mark : POWERplus

model:POWXG90405

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature); 2011/65/EU

2006/42/EC

2014/30/EU

2000/14/EC Annex V LwA

Measured 88dB(A)

Guaranteed 92dB(A)

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60335-1:2012

EN60335-2-79:2012

EN55014-1:2017

EN55014-2:2015

ENIEC61000-3-2:2019

EN61000-3-3:2013

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO - Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Ludo Mertens

Regulatory Affairs - Compliance Manager

10/02/2022, Lier - Belgium

2 BESCHRIJVING (FIG. A)

11 PROBLEEMOPLOSSING

9.3 Lubrification des raccords

4.1 Mains power connection 3
4.2 Water connection 4
4.3 Safety devices 4
5 ASSEMBLY 4
5.1 Assembly of storage hook and gun holder 4
5.2 Assembly of the gun (Fig. 1) 4
5.3 Mounting of trolley handle (Fig. 2) 4
6 OPERATION 5
6.1 Connection of garden hose (Fig. 3) 5
6.2 Mounting of high pressure hose (Fig. 4) 5
6.3 Mounting of lance and nozzle 5
6.4 Water connection 5
6.5 Start/stop of the machine 5
6.6 Adjustable nozzle (Fig. 6) 6
7 TECHNICAL DATA 6
8 NOISE 6
9 MAINTENANCE AND CLEANING 7
9.1 Cleaning of inlet filter 7
9.2 Cleaning of air vents 7
9.3 Greasing of couplings 7
10 STORAGE 7
11 TROUBLE SHOOTING 8

HIGH PRESSURE WASHER 1400W POWXG90405

1 APPLIANCE

Your high pressure cleaner has been designed for outdoors cleaning. Cleaning of: machines, vehicles, structures, tools, facades, terraces, gardening tools,...

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG. A)

1. Water inlet coupling
2. Storage hook
3. Water outlet
4. Switch
5. Trolley handle
6. Gun holde
7. High pressure hose

8. Trigger gun

9. Trigger lock

10. Lance

11. Adjustable Nozzle
12. Hose lock button Gun
13. Hose lock button Machine
14. Soap bottle
15. Turbo nozzle

3 PACKAGE CONTENT LIST

• Remove all packing materials
• Remove remaining packaging and transit supports (if existing)
• Check the completeness of the packing content
• Check the appliance, the power cord, the power plug and all accessories for transportation damages.
• Keep the packaging materials as far as possible till the end of the warranty period. Dispos it into your local waste disposal system afterwards.

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

1x high pressure washer
1x trigger
1x extended lance for gun
1x adjustable nozzle
1x water inlet connector

1x3m pressure hose
1x manual
1x soap bottle
1x turbo nozzle
1x cleaning needle

When parts are missing or damaged, please contact your dealer.

4 ADDITIONAL SAFETY INSTRUCTIONS FOR HIGH-PRESSURE CLEANERS

• The appliance is designed solely for outdoor private use and NOT for commercial use. Please keep it away from heat, direct sunlight, moisture and rain, frost and sharp edg
• Do not let people who have not been trained in the use of a high pressure washer nor read the instruction manual operate the machine!
• High pressure cleaners shall not be used by children or untrained personnel.
  Children should be supervised to ensure that they do not play with the appliance.

POWXG90405 EN

• Before starting up your machine please check it carefully for any defects. If you find any, do not start up your machine and contact your local distributor.

• Check especially the insulation of the electric cable should be faultless and without any cracks. If the electric cable is damaged, an authorized local service centre should replace it.

WARNING: High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the appliance itself.

WARNING: Do not use the appliance within range of persons unless they wear protective clothing.

• Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
• Hold the spray lance firmly with both hands.
• The operator and anyone in the immediate vicinity of the site of cleaning should take action to protect them from being struck by debris dislodged during operation.
• Wear goggles and protection clothes during operation.
• Disconnect from electrical power supply before carrying out user maintenance.
• To ensure appliance safety, use only original spare parts from the manufacturer or approved by the manufacturer.
• Do not use the appliance if a supply cord or important parts of appliance are damaged, e.g. safety device, high pressure hose and trigger gun.
• Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• Tires and tire valves may be damaged by the high-pressure jet and then burst.
• Never use the machine in an environment where there could be a danger of explosion.
• It is not allowed to clean asbestos- containing surfaces with high pressure.
• This high pressure washer must not be used at temperatures below 0^

WARNING: High pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fittings and couplings recommended by the manufacturer.

WARNING: Inadequate extension cables can be dangerous. Cables on reels should always be completely unwinded to prevent the cable from overheating.

• If an extension cable is used, the plug and the socket must be waterproof and comply with the below-mentioned requirements for length and cable dimensions.

-1.0 mm² max. 12.5 m
-1.5 mm² max. 20 m

• If the electric cable is damaged, it must be replaced by the manufacturer or his service agent or similarly qualified person in order to avoid a hazard.

4.1 Mains power connection

The following should be observed when connecting the high pressure washer to the electric installation:

• The electric supply connection shall be made by a qualified electrician and comply with IEC 60364-1

It is recommended that the electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30mA for 30 ms.

4.2 Water connection

• Connection to the public mains according to regulations.
• Inlet hose can be connected to the water mains with a max. inlet pressure of 12 bars.

This high pressure washer is in Europe only allowed to be connected with the drinking water mains, when an appropriate mains backflow preventer has been installed, Type BA according to EN 1717. The length of the hose between the backflow preventer and the high pressure washer must be at least 10 metres to pole pressure peaks (min diameter 12 inch).

• As soon as water has flown through the BA valve, this water is not considered to be drinking water any more.

IMPORTANT! Only use water without any impurities. If there is a risk of sand particles in the inlet water (i.e. from your own well), an additional filter should be mounted.

4.3 Safety devices

• The unloader valve can reduce pressure if it exceeds pre-set values.
• Locking device on trigger gun (9): The trigger gun (8) features a locking device (9). When the knob is activated, the trigger gun (8) cannot be operated.
• A thermal sensor protects the motor against overloading. The machine will restart after a few minutes when the thermal sensor has cooled.

5 ASSEMBLY

This section will explain in details how to make you high pressure washer ready for use.

5.1 Assembly of storage hook and gun holder

• Slide the storage hook into the holder on the right side
• Screw the gun holder and gun saddle tight to the main body on the left side

5.2 Assembly of the gun (Fig. 1)

• Insert the extended lance into the gun. Push and turn the extended lance clockwise onto the gun. When the pieces are joined properly, you cannot separate the two components by pulling straight out on the gun.

• Insert the spray adjustable nozzle into the extension wand, as quick-connect type, you just need push it onto extension wand directly and powerful until hand tight to lock it in place. When the pieces are joined properly (cam adjustable nozzle must fit into slot from extension wand), you cannot separate the two components by pulling straight out on the extension wand

5.3 Mounting of trolley handle (Fig. 2)

1. Place the trolley handle on the machine
2. Secure the handle with the 2 screws.
3. Place the rear accessory hook
4. Secure the hook with two screws
5. Attach the right and left wheel.

6 OPERATION

6.1 Connection of garden hose (Fig. 3)

• Before attaching the water inlet connector to the pressure washer remove the plastic cap.
• Attach the hose connector (with built-in filter) to pressure washer.
• Connect the garden hose with a standard quick coupling

6.2 Mounting of high pressure hose (Fig. 4)

1. Attach the high pressure hose to the trigger gun and machine.
2. Detach the high pressure hose by pressing the pawl (A) or button (B)

6.3 Mounting of lance and nozzle

1. Push the lance into the trigger gun
2. When inserted turn it. Caution: Make sure the lance is properly fixed to the gun
3. Attach the nozzles. Push it powerful onto the lance. Check before activating the trigger that the nozzle is properly fixed.

6.4 Water connection

An ordinary 1 / 2'' garden hose of min. 10m and max. 25m will be suitable.

IMPORTANT! Only use water without any impurities. If there is a risk of sand particles in the inlet water (i.e. from your own well), an additional filter should be mounted.

1. Let the water run through the water hose before connecting it to the machine to prevent sand and dirt from penetrating the machine. Note: Check that the filter is fitted in the water inlet pipe and that it is not clogged up.
2. Connect the water hose to the water supply by means of the quick connector (inlet water, max. pressure: 12 bar, max. temperature: 50^ ).
3. Turn on the water.

6.5 Start/stop of the machine

The trigger gun and lance is affected by a thrust during operation - therefore always hold it firmly with both hands.

IMPORTANT: Point the nozzle at the ground.

This high pressure cleaner is equipped with an automatically sart/stop system, based on waterpressure.

1. Check that the machine is in upright position. NOTE: Do not place the machine in high grass!
2. Release the trigger lock
3. Activate the trigger of the trigger gun and let the water run until all air has escaped from the water hose.
4. Turn the Start/stop switch to the right
5. Activate the trigger of the trigger gun.
6. Always adjust the distance and thus the pressure of the nozzle to the surface, which is to be cleaned.

Do not cover the machine during operation or use it in a room without adequate ventilation! NOTE: If the machine is left or not used for 5 minutes, it must be switched off on the start/stop switch (4) "O":

1. Turn the start/stop switch to the left "O".

2. Disconnect the electrical plug from the socket.

3. Shut off the water supply and activate the trigger of the trigger gun to relieve the machine of pressure.
4. Lock the trigger gun. (Fig. 5)

When releasing the trigger of the trigger gun, the machine automatically stops. The machine will start again when you re- activate the trigger gun.

6.6 Adjustable nozzle (Fig. 6)

The pressure can for the adjustable nozzle be adjusted by tuning it.

WARNING: Do not do this under operation to avoid that the hand hits the jet.

7 TECHNICAL DATA

	POWXG90405
Motor TYPE	Brush motor
Pressure (Mpa)	8
Max. Pressure (Mpa)	11
Voltage	220-240V / 50Hz
Power	1400W
Flow	6,5 L/min
Water temperature	Max 50°C
Weight	5,8 kg

8 NOISE

Noise emission values measured according to relevant standard. (K = 3)

Acoustic pressure level LpA 75 dB(A)

Acoustic power level LwA 88 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration)

2,1 m/s²

K = 1,5 m/s²

9 MAINTENANCE AND CLEANING

WARNING! Always disconnect the electrical plug from the socket prior to maintenance or cleaning.

To ensure a long and problem free working life, please take the following advice:

• Wash out water hose, high pressure hose, spray lance and accessories before mounting
• Clean the connectors of dust and sand.
• Rinse the detergent spraying attachment after use.
  Clean the nozzles.

Any repair should always be made in an authorized workshop with original spare parts

9.1 Cleaning of inlet filter

• Clean the water inlet filter regularly Flush with water to remove dirt and debris.

CAUTION: Failure to fit the filter will invalidate the warranty

9.2 Cleaning of air vents

The machine should be kept clean so as to let cooling air pass freely through the machine vents.

9.3 Greasing of couplings

To ensure an easy connection and that o-rings do not dry up; the couplings should be greased regularly.

10 STORAGE

The machine should be stored in a frost-free room!

Pump, hose and accessories should always be emptied of water prior to storing as follows:

1. Stop the machine (turn the start/stop switch "O" and detach water hose and nozzle.
2. Restart the machine and activate the trigger of the trigger gun. Let the machine run until no more water runs through the trigger gun
3. Stop the machine, unplug and wind up hose and cable.
4. Place trigger gun, lance, nozzles and other accessories in the holders of the machine. The hook can be used for storage of the hose and cord

Should the machine by mistake be frozen, it will be necessary to check it for damage.

WARNING: Never start up a frozen machine. Frost damages are not covered by the guarantee!

11 TROUBLE SHOOTING

SYMPTOM	CAUSE	RECOMMENDED ACTION
Machine refuses to start	Machine not plugged in	Plug in machine.
	Defective socket	Try another socket.
	Defective extension cable	Try without the extension cable.
Fluctuating pressure	Pump is sucking air	Check that hoses and connections are airtight.
	Valves dirty, worn out or stuck	Contact your nearest service centre
	Water supply not sufficient	Increase water pressure, check for blockage of garden hose and/or change to bigger hose.
	Pump seals worn	Contact your nearest service centre
Machine stops	Incorrect mains voltage	Check that the mains voltage corresponds to specification on the name plate
	Thermal sensor activated	Leave the machine for 5 minutes to cool down
	Nozzle partially blocked	Clean the nozzle with a needle and by spraying water backwards through the nozzle
	Amperage increase	Try without the extension cable.
Machine pulsating	Air in inlet hose/pump	Allow machine to run with open trigger until regular working pressure resumes.
	Inadequate supply of mains water	Increase water pressure, check for blockage of garden hose and/or change to bigger hose.
	Nozzle partially blocked	Clean the nozzle with a needle and by spraying water backwards through the nozzle
	Water filter blocked	Clean the filter
	Hose kinked	Straighten out hose.
Machine often starts and stops by itself	Pump and/or trigger gun is leaking	Contact your nearest service centre
	No water supply	Connect inlet water.
Machine starts but no water comes out	Water filter blocked	Clean the filter
	Nozzle blocked	Clean the nozzle with a needle and by spraying water backwards through the nozzle

6.5 Start/stop daquina

9 LIMPEZA E MANUTENÇA

9 RENGJØRING OG VEDLIKEHOLD

1x water inlet connector

1x rengøringsnal

9.2 Rengoring at ventilationshuller

Maskinen skal holds ren, sáledes at koleluften frit kan passere gennem maskinens ventilationsabninger.

9.3 Smoring af koblinger

PANYETIKO YPSHAHSE NIEHSE 1400WPOWXG90405

1 EΦAPMÖΓ

To uynlncpiocn pnuotikocac exei oxediaotei yia kaopioo oE eWTEPIKO xwpo. Kaapioo: mnxavw, oxnatwv, kataokewv, epyaewv, TPOOpeewv, Eepavtwv/taatowv, EoTIAIOU KNTIWv, ...

PPOEIADONOIHSH! Tn Dikn Oac aovapaleia, diaoote TPOEKTiKa auto To EyXeipidio kai TIG Yevikecs Oyniecs aovapaleiac npiiv XpnoiIOIOInoeTe To mXavna. Av dwoTE TO nAektpiko epyaleio oe allo xpnotn, 0a TTpeTcIva dwoTEmu ki auTc TIG onyies.

2 ΠΕΡΑΦH (EIK. A)

Potisnite drzalo za pistolo v nosilec on the right side Slide the gun holder into the holder on the left side

5.2 Sestavljanje pistole (slika 1)

3 COIDEPXXHMOE YNAKOBKN

• YdaJIInTe BCE ynaKOBOHybIe MaTePnAbI.
• YdaIInTe ocTaKn ynaKOBKn n peKNaMhBle JnCTKn-BkJaDbIuN (ecnn ecTb).
• Поверпе поноту komпькта постбк.
• Поберпе annapat, синоь кабь, wTeNCel b N BCE npHaIeXHocTn Ha npeMet NOBpeKdEHH np TpaHCnpTupOBke.
  XpaHnTe ynaKOBOuHbIe MaTePnAblI NO BO3MOxHOCTN Do nCTeueHnraPaHTnHorO cPOKa. Iocne 3TOrO u36aBbTEcB OT HIX, nCIOJIb3yR MeCTHyO CnCTEmy yTINn3aunn 6bITOBbIX OTXoIDOB.

PNEyPPEKDEHNE: YnakoBOuHbIe MaTepnaIbI - 3TO He nrgyukn! He no3BOJrTe DeTm IrgpaTb C PnactNKOBbIMn NaKeTaM! Ectb OnaChoctb ydyweHn!

1 BBICOKOHaOpHbI npomBaTeJIb
1nyckoBovBbIKIOaTeNb
1yHnHHeJbHaTpy6KaIJaNCTOJeTaPacNbIInTeJIa
1 perynipemyoe conno
1 naTpy6ok nIy noDBoDa BObl

1IlaHr BbICOKO DaBJeHn nnHO5M
1 OCHOBHOe pyKOBOIDCTBO NO 3KcNpyaTcuIN
1 EMKOCTb C MbIJOM
1 Typ6oconno
1IgnaJnJyNCTKn

EcnI DeTaN OTCyTCTByOT Nn NOBpeXdeHbI, 6paTNTecb K CBOemy dInlepy.

4 DOnOJIHNTeJIbHbIE INHCTPYKcIIN IO TEXHNKE B30NACHOCTn IJRA BbICOKOHANOPHBIX POMbIBATEJIeI

YcTpoIcTBo npEHa3HaueHo TOJbKO DnA YaCTHO RcNoJIb3OBAHnB HBe NOMEeHn H He npEHa3HaueHO IIN KOMMepueCKOrO NCIOJIb3OBAHn. XpaHNTe erO BdJIOn OT NCTOCHIKOB TeNIIa, npRMBIX COJHeuHbIX Jyuei, DoXdI N CblPOCTN, Hn3Knx TempepaTyp n OcTpbiX KpaEB.
He pa3pewaIte pa6oTaTb Ha MaunHe IInuam, KOtOpbIe He npOuJn o6yueHne pa6oTe c BBICOKOHAnOpHbIM IpOMbIbATEJIem H He npOHTaJIpyKOBODTBO NO eRO 3KcNlyatauIN!
BbICOKoHaOpHbIe npombBaTeJIH He DoJXhbl IcNoJIb3OBAtbcra DeTbMn IIN Heo6yueHHbIM nepcoHaJOM.
IeTNdoJXHbI HaxoINTbcra NOI npncMOTpOM B3pocJIbIX I He DoJXHbI INpaTb C yCTpoiCTBOM.
Ipeed 3anyckom MaunHbI TuaTeNbHO npOBepbTe ee Ha HauNue DeeKToB. Pn ObhApyKeHH NIO6bIX DeEeKToB He 3anyckaIte MaunHy, a o6paTntecb K BaWemy MeCTHOMy DnCTpn6bIOTopy.
Oco6eHNO npOBepbTe n30JIaIIO 3JIeKTPnueCKOro Ka6eJHa OTCyTCTBne DeΦeKTOB pa3pbIBOB. EcII NOBpeXdEh 3JIeKTPnueckn Ka6eJb, OH DoJIxHe 6bITb 3aMeHeH B aBTOpN3OBAHHOM cepBUCHOM ueHTpe.

PPEyIYPEXJEHNE: Ctpya BbICOKO daBHeHn MaKeT 6bITb onaCho npie ee HnpaBnBHom nCNoB3OBaHn. Ctpya He doJxHa HanpaBnTbcra Ha IIOe, pa6oTaIoUee 3NeKtpoo6OpyDoBaHne nn caMo ycToiCTBO.

PNEyPEXKDEHNE: He noJb3yItec b ycTPOiCTBOM B npeJeax Docraemoctn IIOdei, ecn OHn He HaJIeN 3aunTHyo CneOdojdy.

He HanpaBnaTe ctpyHa ce6n npu npu nckte oekbln noybn.
Kpenko depknte tpy6ky paonblnteIy o6enm pykam.
OnepaTop nIIN KTO-NIO DO DpyroH, HaxOJaUncr NOBJN30CTN OT MeCTa YnCTKN, DoJIKeH npHHaTb Mepbl, YTO6bl 3aunITb ce6r OT nonaHaHMycopa, nepemeMaemoro BO BpeMpa60tbl.
- Pn pa6oTe HaJeBaIe 3aIHTbIe OUYN 3aIHTHyO CneIoJExyD.
- Pered BbINOHeHem O6cnyKBAHnO TCOeHNHTe yCTpOCTBO OT NCTOCHKA 3JIeKTPOPNTAHn.
- Дя obecneueHЯ 6e3oNaChOCTN yCtpoIcTBA nCNoJIb3yIte TOnIbKO opRnHaJIbHbIe 3aIaIcHbIe YactN, npOu3BeDeHHbIe IJIn Odo6peHHbIe N3rOToBnteIem.
He noIb3yntecb yctpoiCTBOM, ecn nobpejdeHb Ka6eN b NtAHn IIN BaxHbIe DeTaN yctpoiCTBa, HanpImep, npedoxpaHNTbHoe yctpoiCTBO, IJIaHr BBICOKO daBJeHn I NICTOJET-pacblnteJb.
He pa6oTaIe c yCTpoIcTBOM MOKpbIMn pykAMn. Ecnu ycTPOIcTBO BJIaXHoe nIN cbIpoe, HEmeJInEHH OTKIOUHTe erO oT ceTn. He onyckaIte yCTpoIcTBO B Body.
HbI HBeHTnH mOryT 6bITb NOBpeKdEhbl CTpye BbICOKoro DaBHeHnB TAKOM Cnyae MOryT B3OpBaTbcra.
He nolb3yntecb MaunHOB CpeDe, Ide cyuectByeT ONaCHOCTb B3pbIbA.
He pa3pewaaetc OunuataB NOB BBICOKM daBJIeHnEM IOBepxHOCTN, coepkaune ac6ecT.
TOBbICOKOHApHbI npOMbIBaTeJIb HeJIb3ra NcNOJIb3OBaTb Ipn TeMnepaTypax Hxke 0°C.

PNEpyPPEKDEHNE: UJahn BbICOKO RaBHeHn, NaTp6Kn u CoeHNHeHn IMeOT BaXHoe 3HaueHne IJa 6e3OnaChocTn yCTpoiCTBa. NcnoJIb3yIte TOnbKO UJAHn, NaTp6Kn n CoeHNHeHn, peKOMeHDoBaHHbIe H3ROTOBHTeIeM.

PNEyPEXKDEHNE: HenoOxOJaune ydInHnteNbHbIe Ka6eN MOryt 6bITb onaChb. Ka6eN Ha 6apabahax Bcerda dOnXhbl 6bITb NOJHOCTbIO pa3MOTaHbI DnA PpeDoTbpaueHn neperpeBa Ka6eN.

Ecnn nCnoNb3yeTcra ydHnHnteHbHbI Ka6eNb, BnJka n po3eTKa DOJXHbI HMeTb BOo3aunTHoe nCNOJIHeHne n COOTBETCTBOBaTb HxkeyKa3aHHbIM Tpe6OBAHnM NO DInHe n pa3Mepam Ka6eJa.

• ceueHne 1,0 MM², mKc.ДиHa 12,5 M

• ceueHne 1,5 MM², mAc.ДЛиHa 20 M

• Ecnn 3neKtpnueckn ka6eIb NOBpeXJeH, BO n36exaHHe ONaCHOCTn OH dONJxeh 6bITb 3ameHEn n3rOToBnTeIeM, erO cepBnCHbIM ueHTpOM IIN JNlCtOM, IMeIOUIM COOTBeTCTByIOuYIO KBaIIuΦnKaUIO.

4.1 NodknoueHue 3neKmponumaHua

Pn noKluHenn BICOKOHaOpHOro npombIaTeJI K 3neKtpoo6OpydoBaHIO Heo6xOIMOC6nDAtb CJeNyUOnne ycNoBn:

-ПОДКЛЮЧЕНЕ 3ЛЕКТРОПИТАнHAДОЛХNO ПОПИЗВОДИТСЕ КВАЛПФИЦИРОВАHHБIM 3ЛЕКТРИКOM И B COOTBETCTBUNCO CTAHДAPTOM IEC 60364-1.
- PeKOMeHdyetcra, yTO6bI nCTOuHnK 3JIeKTpONHTaHnK K 3TOMy yCTPONCTBy coDEpXaJI NIO6oeyCTPOINCTBO 3aUHTHO OTKIIQUeHnK, KOToPoe 6yDeT OTKNIOHaTb NITaHne, ecNI TOK YTeKn Ha 3eMnIO ppeBbICNT 30 mA B TeueHne 30 Mc.

4.2 NodKJIIOUeHue eOdbI

• Пдклоченke K kommyHaJIbHoB BOdOnpoBoJHO Cetn CoINaCHO INHCTpyKUmaM.
  BnyckHOI 1nHr MOKeT NOcEINHtbcK BOOpPOBOHOI CETN C MaKc. daBneHem Ha Bnycke 12 6ap.

3TOT BbICOKOHAnOpHbI NpOMbIBaTeJIb pa3peWaeTcra NOcOeDInHrB E Bpone TObKO K cETN NITbEBOrO BOOChA6XeHnR, B KOTOPoYcTaHOBJIeH COOTBeTCTByIOUm IOpaTHbI KNanAH Tnna BA corNaCHO cTaHdApTy EN 1717. DInHa WJHaRa MExdy O6paTHbIM KlanahOM N BbICOKOHAnOpHbIM npOMbIBaTeIeM DOJxHa 6bITb He MeHee 10 MeTpOB dJa NorIoUeHnR

BO3MOXHbIX CKaYKOB DaBJIeHnA (MNH. DnAmEtP 1/2 IIOHa).

Iocne toro, kak Boda npotekna uepe3 knanaH BA, 3ta Boda yke He cHTaetc nTbeBOi.

BHIMAHHE! IcnoJb3yIe ToJIbKO BOdy 6e3 npImecE. Ecnn nMeetc npck nonadaHnB B Ody Ha BnyCke YactNu necka (T.e. u3 co6CTBeHHoro KOIoDua), cJe dyET yCTaHOBtB dONOHHTeJIbHbI ΦJIbTp.

4.3 3aumhIe ycmpoicmea

Pa3py30hBn KnaH MoKET CHXKaTb DaBHeHne, cNIO OHO npeBbIaet 3aDaHHbIE 3HaueHn.
BLOKIOPOBOUHOe yCTpOHTBO Ha NCTOJTe-pacnbIITeNE (9):PiCToJET-pacnbIITeNB (8) coepKNT 6bOKIOPOBOUHOe ycTPOHTBO (9).Pn HaxaToH KONKe NCTOJET-pacnbIITeNB (8) pa60TaTB He CMOXeT.
TePMoTaTnK 3aunuetaet Dnuratelb OT neperpeBa.MaunHa 6ydt 3anyckatbcyape3 HECKOJIbKO MmHyT Nocne OXJaXdEHNr TepMoTaTnKa.

5 CBOPKA

B 3TOM pa3dene IIOpO6HO ONcBbAeTc, KAK IOIROTOBtB BbICOKOHApHbI npOMbIbATEJIb K 3KcNpyatau.

5.1 YcmaHOeKa KpOka dJa XpaHHeu UlaHaa u Ka6eJn u depXaMeJn dJa nucmOnema

BCTaBbTe qKcnpyiou KpIOB B depKaTeJIb c npaBOI CTOpOHbl. BCTaBbTe depKaTeJIb DnI NCTOJeTa B depKaTeJIb C neBOI CTOpOHbl.

5.2 C6opka nucmonema-pacnbunumen (Puc. 1)

BCTaBBte yDnHInTeIbHyIO Tpy6ky B nuctoNET-pacnbIInTeJIb. HaxMnte I NOBepHInTe yDnHInTeIbHyIO Tpy6ky no YacOBo CTEpeKe Ha nctoTete. EcnI DeTaN 6yDt COeINHeHi HaIeKaUM O6pa3OM, Bbl He CMOXeTe pa3dEINtB Dba KOMNOHEHa npi BBITRnBAHH IN HA NCTOJTe-PacnbIInTeJIe.

BCTaBbTe perynipemye coNIO B ydHnHInTeIbHyTO py6ky, n TaK KaK 3To 6bictpoJeCTByOuIc moCeoHNHTeB, Bam HAO npocTo BpyHyC ycHnem HaDeTb CoNIO Ha perynipemyIO ty6ky do ero qkcaunn Ha MeCTe. EcnI DeTaN 6yDyT coEHNHebl NaJIeKaUIM O6pa3OM (perynipemyoe coNIO DOJIXHO COBnAaTb C na3OM B ydHnHInTeIbHO Tpy6ke), Bbl He CMOXeTe pa3deIITb DBA KOMNOHEHTa npn BbITraIBAHnn nx Ha ydHnHInTeIbHO Tpy6ke.

5.3 YcmaHoKa nepedouxHou pykoamku (Puc. 2)

1. YctaHOBnte nepeDnKHyU pyKoTky Ha MaunHy.
2. 3akpenTe pykoTky 2 BnHTamN.
3. YctaHOBnte 3aHn DOnOJIHTbHbIK KpIok.
   4.3aKpeNte KpOK DByMBAHTaMn.
4. Писоевине павови щелове конeo.

6 3KcPJIyATAUJRA

6.1 NodcoeduneHue caooboo uHaea (Puc. 3)

• Ipeen KpenneHem NaTpy6ka IINI NOBDA BObI K BBICOKOHOPHOMY IpombIBaTeJIHO CHIMITE NIACTIKOBVIO KpbIUKY.
• PnKpeNITe nATpy6OK uHaHra (co BCTpoEHbIM fHbTpOM) K BBICOKOHaOpHomy npOMbIBaTeJIIO.
• IopdoeHInTe caObBm 7JNaHr cTahdApTHbIM 6bICTpopa3bEmhblm COeHHeHMeM.

6.2 YcmaHOeKa wJHaHa 8bICOKoO daJIeHua (Puc. 4)

1. POncoeHNHTe ⅢNaHr BbICOKOro DaBJeHnK NtCTOneTy-pacnbJIInTeJIO MaUNHe.
2. OToCoeINHraTe ⅢNaHr BbICOKOrO daBneHn HaKaTneH naIeNky (A) nII nn KhoNky (B).

6.3 YcmaHOeKa ydunHumeIbHoI mpy6ku u conJa

1. BctaBbTe ydHInHtEnbHyIO Tpy6ky B nCToJeT-pacnbHtEnb.
2. Pn BCTaBKe ee noBopauHbAte. BHMaHne: Y6eDntecb, YTO ydNInHtBHa rtp6ka npKpePJIeHa K NCTOJeTy-pacblIHTeIIO npabINbHO.
3. PnncoeHnTe conHa. HadehBe erO c ycnInem Ha Tpy6ky. Npeep npBedeHnEM B DeICTBNE NcKOBOro BbIKNoUaTeTne YbEdnteCb, YTO CONJIO UCTaHOBJeHO npabNJIbHO.

6.4 NodknHoyehue oobbl

IopOJTeTobHbCaOBbIuHaHr1/2"MH. dINHO10MnMAKc.dINHO25M

BHIMAHHE! NcnoIb3yIe ToIbKO BOdy 6e3 npImecen. EcIIN mMeetc npCK nonaHaHnB B Ody Ha BnYcke YactNt necka (T.e. n3 cO6CTBeHHoro KOIoDua), cJeNyET yCTaHOBntb DOONHHTeJIbHbI FJIbTp.

1. IpepeIpoDCoeHHeM K MaunHe BODaHrA npOnyCTteYepe3 Hero Body, yTO6bI npeDorBpaTntb nonadHne B MaunHy necka n rpa3n. IpImeuaHne: Y6eHTecb, yTO BO BnYCKHOM BoaHOM NaTPy6ke YcTaHOBJe HnJIbTp n yTO OH He 3acopeH.
2. POnCoeHNHtE BOJHOH ⅢAHaNr K BOJOpPOBHOH Cetn C NOMOuBIO 6bICTpopa3bEMHOcoeHNHTeJIa (BOa Ha Bnycke, MaKc. DaBHeHne: 12 6ap, MaKc. TemnepaTypa: 50^
3. BkInouHTe noaay BoDbl.

6.5 3anyck/ocmaHO8ka MaUHbI

Ha nctoIeT-pacnbHInTeB u ydnnHInTeBHyIO Tpy6ky Oka3bBaet BnnaHne oceBoe daBnHe Bo BpeMpa6Otbl -noaTomy Bcerda depxNte ux Kpenko 06enm pykAm.

BHIMAHHE: HanpaBnTe conJIO Ha 3emJIHO.

3TOT BbICOKOHaOpHbI npOMbIBaTeJIb OcHaueH aBTOMaTHueCKo CNCTeMoN 3aNycka/oCTaHOBKn, B 3aBNCMocTN OT HAnopa BObl.

1. Y6eIntecb, yTo MaunHa HaxoIITcB B BepTkaIbHOM noLoXeHN. IPNMEUAHNE: He pa3MeaIte MaunHy B BbcOKO TpaBe!
2. OTnyctnte 6JIOKINPOBky NcCKOBOro BbIKNIOUaTeJIa.
3. PnBBeNTe B DeIcTBne NyCKOBON BBIKHouaTeNb NCTOJeTa-pacNbIInTeJra I daIte BODe npOTeYb DO TEX NOP, NOKA IN3 BOdARHO OJNaHra He BbINDET BECb BO3DyX.
4. Повернite Выкноуател Двигатугь Впразв.
5. PnBEdNTe B DeIcTBne NyCKOBOn BBIKJIbOaTeIb NCTOJeTa-pacblntenr.
6. Bcerda perynpyte paocToHne n COOTBeTCTBHeHNO daBneHne cOnna Ha OCHuaeMyo NOBepxHOCTb.

He hakpbBaIte MaunHy BO BpeMa pa60tbi nn npn ee nCnoB3OBaHnn B nOmeueHN 6e3 HndHexauee BEHTnlaun!

ПРИМЕЧАНЕ: Ecп Maшина ocтавлеса 6e3 npICMOТра ИИн He ИСпОЛьзУЕТСВ В TeЧЕНЕ 5 MInHyT, ee Heo6xOДИМо BBiKJIIOHHTb C NOMOцью BBiKJIIOHuaTeJЯ BkI/NBbIKN (4) (nIoJOXeHne «O»):

1. NOBepHnTe BBIKIOUaTeJI BkJI/BbIKI BNeBO B noJIOXeHne «O».
2. BbItaIte CeTeByIO BNJky n3 po3eTKN.
3. OTKJIIOUHTe IODaCy BOdBi IN PnIBeIITe B DeIcTBHe NyCKOBb BBIKIOHaTeJIb NICTOJETaPacNbIINTEJRA, YTO6bI C6pocNTb DaBJIeHHe B MaUNHe.
4. 3a6JoknyTe nCTOJe-t-pacbInTeJb.(Pnc.5)

Pn OTnyckaHnn NcCKOBOro BbIKIOUaTeIg NcCTOJeTa-pacnbIInTeJI MaunHa OCTAHOBHTcABTOMATnueckn. MaunHa 3aNcyCTnTCs CHOBa Pn NOBTOPHOM PpNBedeHn B DeiCTBneNyCKOBOro BbIKIOUaTeJI.

6.6 Peaynpyemoe conno (Puc. 6)

DabHeHne IJn MHoroctpyHoro cOnna MoXHo perynipoBaT erO NOBOPOTOM.

PPEyIPEXJEHNE: He deJaTe 3TOro noD daBJeHnem BO n36eKaHne nonaDaHnry pyKn noD cTpyU.

7 TEXHnueCKNE DAHHbIE

3NaeHn yPoBnI yMa, n3MepeHHbI e cornaCHO COOTBeTCTByIOUcMy cTaHdApTy. (K=3)

YpOBeHb 3ByKOBOrO daBJIeHnla LpA 75 dE(A)

YPOBEHb 3ByKOBOm MOUHOCTN LwA 88 d6(A)

BHIMAHHE! 3BykoBoe daBHeHne MoKeT npeBbIaTb 85 d(A). B 3Tom cnyuae Heo6xOdmo HcNoJIb3OBaTb INHdNbDyajbHbIe cpeIcTBa 3aunTbI opraHOB cnya.

aw(Bu6paun):

11 DnAΓHOCTNKA HENCπPABHOCTE

NOrIbUaHe Ha Bb3MOxH NIKOBe B HAIraHTo (MnH. DnAmTeBp 1/2 LOpJ).

CneI KaTO BOaTa TnpEMHe Bb3BpaTHnBEHTnOT Tn BA, Ta3N BOa He ce cHtA NOBeYe 3a NITeHa.

BAJHO! 3noJ3BaIte cmo B0da 6e3 3aMbpcBAAHn. Ako nMa pNcK OT PncBCHyHn YactuBbB BXOJaTa B0da (HaNP.OT CO6CTBeH KnaDeHeU), Tp6Ba Da 6bJe MOHTupan DonbJHNTeNeH qNJTpP.

5.3 PpepaHu ycmpoUcmea

IpeHnA3HnT BeHTn MoKe Da HamaJn HaJraHeTo, Ako To npEBuHaBA npEdBapntHo 3aIaeHNTe CTOnHOCTN.
- 5nokpaio yctpoiCTBO Ha nctoeta cbc cnycbk (9): nctoetbT cbc cnycbk (8) pa3noIara c 6nokpaio yctpoiCTBO (9).Korato 6ytohbt e aKTNBupaH, He moke da ce pa60Tu C nctoJIeTa cbc cnycbk (8).
ToJIHHEn cEH3Op 3aUHTaba eJKeKTPOMOTopa cpeu npetOBapBaHe. MaunHata ue pectapTnpa CJIeH HAKOJIKO MHNVTN, KOrato ToJIHHnT CEH3OP Ce OXnAIn.

6 CΓΙΟΥBAHΕ

To3n pa3dien ue n3rCHN B noDpo6HocTn, KaK da noDrotBNTe CBOrTa MaUNHa 3a NOuNCtBaHe C BucOKo HAnraHe 3a yNoTpe6a.

6.1 MohmaK Ha kykama 3a cbxpaHeue u dbpkaHa nucmonema

• ПьзHeTe KyKaTa 3a CBxPaHHeNbДьрkaa OТЯСHaTcTpaHa.
  -ПьзHeTeДьрЖаHa NiCTOJeTaВДьрЖaOТЯBaTcPаHa.

6.2 Caio6BaHe Ha nucmonema (Fue.1)

BkapaTe ydbJxHnHaKpaHbNcNToTe. HATNCHeTn 3aBbPTeTe yDbJxHnHaKpaHbNcNo YacOBHka B NCTOte. Korato Yactnte ce CbbpKaT npabINHO, He MoKeTe Da pa3dJIte DbaTa KOMNOHeHTa Upe3 N3dIbPnBaHe HAnpaBO OT NCTOte.
BmbkHepepynnpyemaTAp03a 3a npbckAHeTo B yDblJNKeJIHaTa CTeHa, Tb KaTO cBeHNHTeIe T e 6bp3OeIcTBau, Tp8Ba npocTo da Ra HATNCHeTe B yDblJNKeJIHaTa CTeHa DnpeKTHo N CINHO, DOkato C dpyrata CN Pbka 3aTeHete Do 3akNIOUbaHe Ha MAcTo. Korato Yactnte ca CBbp3aHn npabuHNO (rbpbuaTa Ha perynnpyemaTa I03a Tp8Ba Da ce NoCTABN B npope3a Ha yDblJXnTEJIHaTa CTeHa), He MoKeTe Da pa3dEJIte DBaTa KOMNoHEtA Upe3 n3lbPnBAHe HAnpaBO OT pa3dEJIteJIHaTa CTeHa.

6.3 MoHmax Ha pbKOxEamkama Ha KOJIuYkama (Fue. 2)

1. NocTabete pkoXbaTkata Ha KOJIuYkata Bbpxy MaunHaTa.
2. 3akpenete pbkoxbatkata c 2 BnHTa.
3. NocTaBeTe KyKaTa 3a 3aDnHa akceCoap.
   4.Подсигуре КУКаТСДВВИNTA.
4. 3akpenete JIcHOTOn IJIbTOKoJeNo.

7 PABOTA

7.1 Cebp3aHe Ha epaadHcKu Mapky (Φue. 3)

• Ppei Da CbpxTe KOHeKToPa Ha BOdHnBxOJ KbM MaunHaTa 3a NOUcTBaHe C BnCOKo HAnraHe, OTCTpaHete NlaCTMaOBaTa KaNaYaKa.
  3aKpeTe KOHeKTopa Ha Mapkya (c Brpaedn fHJTbp) KbMaunHaTa 3a NOuNCTBaHe C BNCOKO HapraHe.
  CbpxTe rpaHnckn Mapky cbc cTaHapTeH 6bp3OeJeCTBaUc CbeHNHTeJ.

7.2 MoHmax Ha Mapkyua 3a eucoko HanraaHe (Fue. 4)

1. 3akpenete Mapkyua 3a Bucoko HaIraHe KbM NCTOte Ta CbC CNycbK MauHHata
2. Otkaute Mapkyua 3a Bucoko Hanahe c Hatackane Ha nanea (A) nn6ytoha (B).

7.3 MoHmK Ha HauHuKa u dO3ama

1. IocTabeTe HAKpaHnKa B INCTOJTe CbC cnYcbK.
2. Korato ro BKapate, ro 3aBbpte. BnMaHHe: YBepTe ce, ye HaKpaHnKbTe npabnHO 3aKpehen KbM NCTOeta.
3. 3aKpenBaHe Ha dH03nTe. HATncHeTe cHIO B HAKpaHnKa IpoBepTe npEi HA TnCKaHe Ha cnYcbKa DaJI N D03aTa e PpABUNHO FHKcnpHa.

7.4 Cebpb38aHe Ha boda

Ie 6bnde noxodn oBKnHOBeH rpaHnckn MapkyoT 1/2" cMnHmJHa dJnxHa 10 M n MaKcImaJIHa 25 M.

BAXHO! N3noJ3BaIte camo B0da 6e3 3aMbpcraBaHnA. Ako HMa pNCK OT nrcbUHn YactuIN BB BXODaTa B0da (Hanp.OT CO6CTBeH KJaDeHeu), Tpr6Ba Da 6bJe MOHTnpAH DOnbJIHHTeNeH qNITbp.

1. Octabete BODATA Da Teue npe3 Mapkyua npei Da rCbpxKeTe KbMaunHaTa, 3a da npeoTbpATnTE npOHKBaHTo Ha NcBk N 3aMbpcBaHnB MaunHaTa. 3a6eJeka: PpOBepTe DaIu FmTbpBT e MOHTnpaH BB BODHaTa BXOJaA Tpb6a N daJIH He e 3aDpbcTeH.

POWXG90405BG

1. CbpxKeTe BOHn MaKyU KbM BOOOnoDaBaHeTo c NOMOuTa Ha 6bp3OeNCTBauncBeHNHTeJ (BXOJaAa BOa, MAcC. HAnraHe 12 6apa, MAcC. TemnepaTypa: 50^
2. Nychete BodaTa.

7.5 NyckaHe/cnupaHe Ha MauuHama

IpeBkHouBaTeJrT CbC cnYcbK HnHaKpaHnKbT Ce BnIaRr OT ONopata No BpeMe Ha pa6ota - 3aTOBA BNHaRI rDpbXTE 3dPaBO C DBeTe CN Pbue.

BAXHO: Hacouete IIO3aTa KbM 3eMaTa.

Ta3n MaunHa 3a NOuchTbaHe c BucOKo HaIraHe e O6OpyDbHa c ABTomatuHa CnCTema 3a NpCKaHe/cnnpaHe Ha 6a3aTa Ha BOHOTO HauRaHe.

1. Поберете дади машина та визправен положен. 3АБЕЛEXКА: He noctabray Te mашина Вьв ВUCOKA TpeBa!
2. Ocb6oTe 6JIOKINPOBkaTa Ha cnYcbka.
3. HATNCHeTe CnycbKa Ha NICTOJIeTa Cbc CnycbK IOCTaBe TE BODaTa Da TeYe, DOKaTO BCNUKnT Bb3dYx N3JIe3E OT BOHNr MapKyU.
4. 3aBbptete npebkIIOUbaTeJra 3a cTaptnpaHe/cnnpaHe HaJrCHO.
5. HatncheTe cnycbKa Ha nncToJeTa cbc cnycbK.
6. Bnhar nperynnpaTe pa3ctoHneTo n c ToBa HnraHeTo Ha IIO3aTa KbM NOBbpxHOCTTa, KOrTO Tp6Ba Da 6bJe NoocteHa.

He nokpmbaIte MaunHaTa No BpeMe Ha pa6oTa I He y n3noJ3BaITe B nOmeJeHne 6e3 noxodya BeHTnlaucia!

3A6EJEXKKA: Ako MaunHaTa 6bJe octaBeHa nIe He 6bJe n3non3BaHa 5 MNHyTu, TAreTpaBaa da 6bJe n3KnIOueHa c npEbkNIOUbaTeJIa 3a nyckaHe/cnnpaHe (4) "O":

1. 3aBbptete npebklnoubaTeTna 3a cTaptnpaHe/cnnpaHe hAIBo Ha "O".
2. ɪəbaɪdete eɪneɪktpnuecknɪ yɪenceɪŋ OT KOHTaKaTa.
3. Cnpete KpaHa 3a noDaBaHe Ha BOna n HAtnChTe cnYcbKa Ha NnCTOJeta Cbc cnycbK 3a Da n3nycheTe HaIraHETO MTaMHHaTata.
   4.БлokираTe nIcToJIeTa cIc cnYcIbK.(ФИr.5)

Korato ocbooInde cnycbka Ha nictOJeTa cbc cnycbK, MaunHaTa ue cnpe aBtOMaTHUHO.

MaunHaTa 6bIe NychaTa OTHOBO, KOraTo HaTnCHTe NaK cnYcbKa Ha nNCTOneta.

7.6 Peaynupyema 3a (Fua.6)

HaIraHeTo 3a PerynpEma IIO3a MoKe Da 6bJe perynpaHO Upe3 HeHOTo 3aBbptAHe.

PNEyIeXeHHe: He npaBeTe ToBa no BpeMe Ha pa6oTa, 3a da n36erHete yapn B pbuTe cn OT ctpyTa.

8 TEXHnueCKn DAHHN

	POWXG90405
ТINДВИГATEЛ	Четков ДВИГATEЛ
Налаяне (Mpa)	8
Мак. Налаянe (Mpa)	11
Налегене	220-240 V / 50 Hz
Моцноct	1400 W
ДебиT	6,5 п/мен.
Температура на ВODаТa	Мак. 50°C
Тerglio	5,8 кг

9 LYM

CTOHOCTHa 3ByKOBOTo HaJIraHe N3MepeHn B CbOTBeTcTBne C npNJIOXIMnA cTaHapT. (K=3)

HnBO Ha 3ByKOBoTo HanaIaIe LpA 75 dB(A)

HnBO Ha 3BykoBaTa MOuHOCT LwA 88 dB(A)

BHIMAHHE! Hocete nHdNvduaHn npedna3Hn cpeCTBa 3a cnlyxa (aHTnfoH), aKO 3BykoBOTO hArahe npebuH 85 dB(A).

aw(Bu6paun):

2,1 m/s²

K = 1,5m / s^2

5.2 Assembly of the gun (Fig. 1)

• Insert the extended lance into the gun. Push and turn the extended lance clockwise onto the gun. When the pieces are joined properly, you cannot separate the two components by pulling straight out on the gun.
• Insert the spray adjustable nozzle into the extension wand, as quick-connect type, you just need push it onto extension wand directly and powerful until hand tight to lock it in place. When the pieces are joined properly (cam adjustable nozzle must fit into slot from extension wand), you cannot separate the two components by pulling straight out on the extension wand

5.3 Mounting of trolley handle (Fig. 2)

1. Place the trolley handle on the machine
2. Secure the handle with the 2 screws.
3. Place the rear accessory hook
4. Secure the hook with two screws
5. Attach the right and left wheel.

6 EKSPLUATACIJA

6.1 Dárza šlūtenes savienojums (3. att.)

• Before attaching the water inlet connector to the pressure washer remove the plastic cap.
• Attach the hose connector (with built-in filter) to pressure washer.
  Pievienojiet darza sluteni ar standarta atro savienojumu

6.2 Augstspiedena šlūtenes montāza (4. att.)

7. Turn the start/stop switch to the left "O".

1. Atvienojiet kontaktdaksu nokontaktligzdas.
2. Izslédziet udens padevi un aktivizējiet sprūda pistoles sprūdu, lái atbrivotu iekártu no spiediena.
3. Blokejiet spruda pistoli. (5 att)

• Clean the water inlet filter regularly Flush with water to remove dirt and debris.

UZMANIBU! Filtra neuzstadisanas gadijumā tiek anuleta garantija

9.2 Gaisa ventilacijas atveru tirisana

lekarta jauztur fira, laujot dzeseshanas gaisam brvi parvietoties caur tas ventilacijas atverem.

9.3 Savienojumu ellośana

11 PROBLEMU NOVERŠANA
