Product type	Manual cylinder lawn mower
Brand and model	Grizzly HRM 3003
Cutting width	300 mm
Number of blades	5 vibrating blades
Cutting height adjustment	Continuous, from 14 to 47 mm
Weight	About 6.4 kg
Grass catcher bag	Included, with fixing chain
Power supply	Manual (without motor)
Wheels	Two front wheels with adjustment knobs
Handle	Loop handle, disassemblable into three parts
Cutting gap adjustment	By lateral nuts to adjust blade/counter-blade contact
Cleaning	Brush or dry cloth; do not use water or solvents
Maintenance	Oil the blades after use; check screws and nuts
Safety	Danger pictograms: sharp blades, debris ejection; keep distance
Spare parts	Available at www.grizzly-service.eu
Warranty	24 months (excluding wear and non-compliant use)
Intended use	Private lawns, domestic use only
Storage	Dry place, out of reach of children
Disposal	Recycling via collection center; do not throw in household waste
Serial numbers	201801000001 - 201801001621

Frequently Asked Questions - HRM 3003 Grizzly

How to adjust the cutting height?

Loosen the wing screws on both sides of the machine, then adjust the position of the wheels to obtain the desired height (from 14 to 47 mm). Make sure both axles are at the same height for an even cut.

How to assemble the handle?

Screw the upper part of the handle onto the two middle parts, then attach these to the lower part. Finally, attach the lower part to the mower using the provided screws and nuts.

How to empty the grass catcher bag?

Unhook the fixing chain, then remove the bag from its holders. Empty it and put it back by hooking the chain onto the crossbar of the lower part of the handle.

How to adjust the cutting gap?

Gently turn the nuts on the left and right of the mower clockwise until the blades just lightly touch the lower metal support, like scissors.

What are the essential safety instructions?

Never use the mower barefoot, with open shoes, or if people or animals are nearby. Always work across slopes, never up or down. Keep hands and feet away from the blades.

How to clean the mower?

Use a brush or dry cloth to remove residues. Never use water or solvents. After mowing, remove debris between the wheels and blades, then wipe the blades with an oiled cloth.

Where to find spare parts?

Spare parts are available on the website www.grizzly-service.eu. You can also contact after-sales service by phone if you do not have internet access.

What to do if the mower does not cut well?

First check the cutting gap and adjust if necessary (see corresponding question). Also make sure the blades are not dull or damaged. Clean the grass residues between the blades.

What is the warranty of the mower?

The warranty is 24 months. It covers material or manufacturing defects, but excludes normal wear (e.g., spindle roller), overload, and incorrect handling. For any claim, return the clean appliance with proof of purchase.

Can I use the mower on slopes?

Yes, but only by working transversely to the slope (never going up or down). Be especially careful on sloping surfaces and avoid steep slopes. Ensure good stability.

USER MANUAL HRM 3003 Grizzly

Red and black lawn mower with black handle and red wheels (no text or symbols visible)

HRM 300-3

Translation of the original instructions for use

Labeled diagram of a lawn mower with numbered parts for identification

B

Metal bracket with two vertical posts and mounting holes, no text or symbols visible

Close-up of a mechanical assembly with a black arrow pointing to a component (no visible text or symbols)

C

Close-up of a mechanical component with a labeled arrow pointing to a feature, no visible text or symbols.

D

Black plastic container with a V-shaped neck and attached strap, showing internal structure (no text or symbols)

E

Close-up of a black mechanical device with attached clamps and a close-up inset showing a hand holding a tool (no visible text or symbols)

F

12 13

DE Originalbetriebsanleitung 5
GB Translation of the original instructions for use .....10
FR Traduction de la notice d'utilisation originale .....15
NL Vertaling van de originele gebruiksaanwijzing......20
IT Traduzione delle istruzioni per l'uso in originale ...25
PL Tłumaczenie oryginalnej instrukcji obsługi......30
CZ Překlad originálního návodu k obsluze......35
SK Preklad originálneho návodu na obsluhu .....40
LT Vertimas iš originalių eksploatavimo instrukcijoje ....45

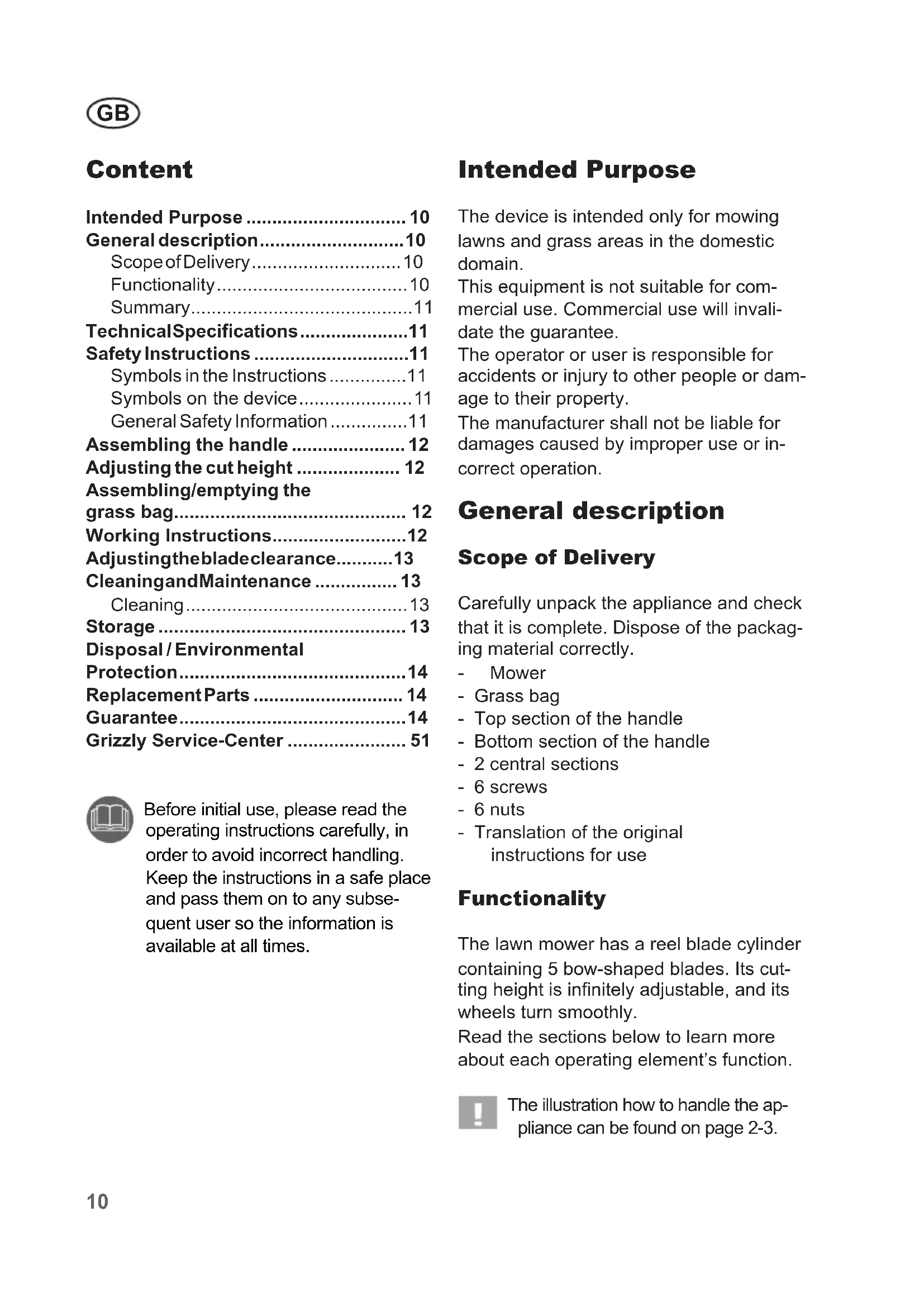

Inhalt

Grizzly Service-Center 51

Scope of Delivery....10

Functionality....10

Summary......11

TechnicalSpecifications....11

Safety Instructions ....11

Symbols in the Instructions .....11

Symbols on the device....11

General Safety Information ......11

Assembling the handle 12

Adjusting the cut height 12

Assembling/emptying the grass bag.... 12

Working Instructions......12

Adjustingthebladeclearance......13

CleaningandMaintenance .... 13

Cleaning....13

Storage 13

Disposal / Environmental

Protection....14

Replacement Parts 14

Guarantee....14

Grizzly Service-Center 51

Before initial use, please read the operating instructions carefully, in order to avoid incorrect handling. Keep the instructions in a safe place and pass them on to any subsequent user so the information is available at all times.

Intended Purpose

The device is intended only for mowing lawns and grass areas in the domestic domain.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The operator or user is responsible for accidents or injury to other people or damage to their property.

The manufacturer shall not be liable for damages caused by improper use or incorrect operation.

General description

Scope of Delivery

Carefully unpack the appliance and check that it is complete. Dispose of the packaging material correctly.

• Mower
• Grass bag
• Top section of the handle
• Bottom section of the handle
• 2 central sections
• 6 screws
• 6 nuts
• Translation of the original instructions for use

Functionality

The lawn mower has a reel blade cylinder containing 5 bow-shaped blades. Its cutting height is infinitely adjustable, and its wheels turn smoothly.

Read the sections below to learn more about each operating element's function.

The illustration how to handle the appliance can be found on page 2-3.

Summary

1 Bow handle

2 Rollers
3 Spindle cylinder with blade
4 Wheels

5 Wing screw for height adjustment

6 Grass bag with chain

Technical Specifications

Manual lawn mower...... HRM 300-3

Serial number

201801000001 - 201801001621

Blade width 300 mm

Number of blades 5

Weight .....approx. 6.4 kg

Safety Instructions

Symbols in the Instructions

Warning signs with information for the prevention of injuries or damage property.

Mandatory signs (instead of the exclamation mark, the command is explained) with information for the prevention of damage.

Information signs with information for better handling of the machine.

Symbols on the device

Caution!

Read the operating instructions carefully.

Risk of injury from parts being thrown up.

Keep nearby people away from the mower

Caution – Regularly adjust the blade clearance!

Caution – sharp cutting blade! Keep feet and hands away. Risk of injury!

Caution! Risk of injury from rotating blade cylinder. Keep hands and feet outside of the openings when using the equipment!

Observe the assembly instructions from the manual!

Blade width

General Safety Information

Observe the noise protection and local regulations.

Caution: to avoid accidents and injuries:

• Children and young people under the age of 16 and people who are not familiar with these instructions must not work with the machine.
- Never turn the machine on when people and particularly children or animals are nearby.
• People with motor disorders are not to operate the machine without supervision.
- Do not use the machine with bare feet or when wearing open sandals. Only run the machine at walking pace.

GB

• When working, ensure a firm foot-hold, particularly on slopes. Always work across the slope, never up or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.
• When switching the machine on, avoid feet or hands being trapped between the moving blades and the fixed parts of the machine.
• Never carry the machine by the blade cylinder.

Caution! To avoid damaging the machine and potential injury as a consequence:

• Check the terrain on which the machine is used and remove stones, sticks, wires or other foreign bodies that may be picked up and flung outwards.
• Ensure that the machine is in a safe operating condition. Replace worn or damaged parts.
• Protect the machine from the effects of weathering (damp, frost).

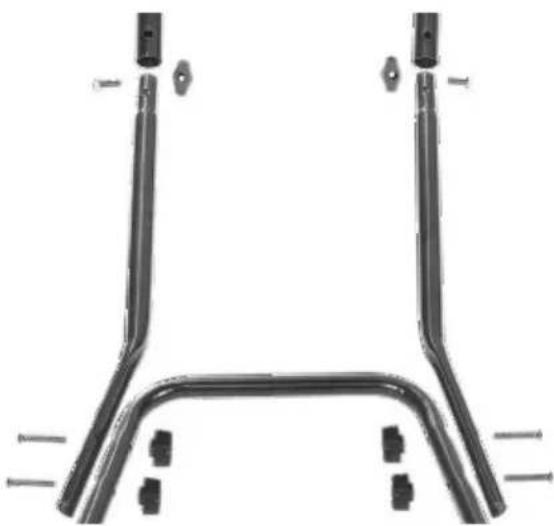

Assembling the handle

1. Plug the top section of the handle into the two central sections and screw it in place with the screws.

2. Screw the central sections to the bottom section of the handle

3. Fix the bottom section of the handle to the equipment.

Adjusting the cut height

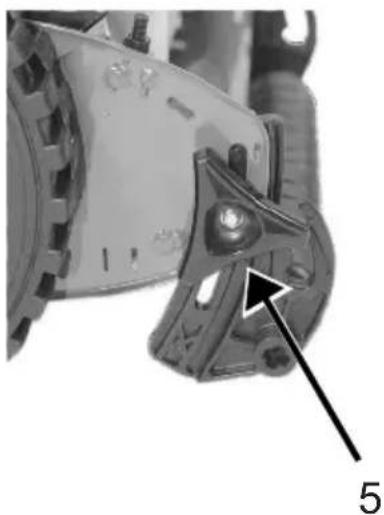

The cut height is infinitely adjustable (14 - 47 mm) by changing the position of the rollers:

Loosen the wing screws on both sides of the equipment and set the desired cut height. Ensure that both axles are set to the same height.

Set the cut height no lower than to where the blade cylinder does not touch the ground even where it is uneven.

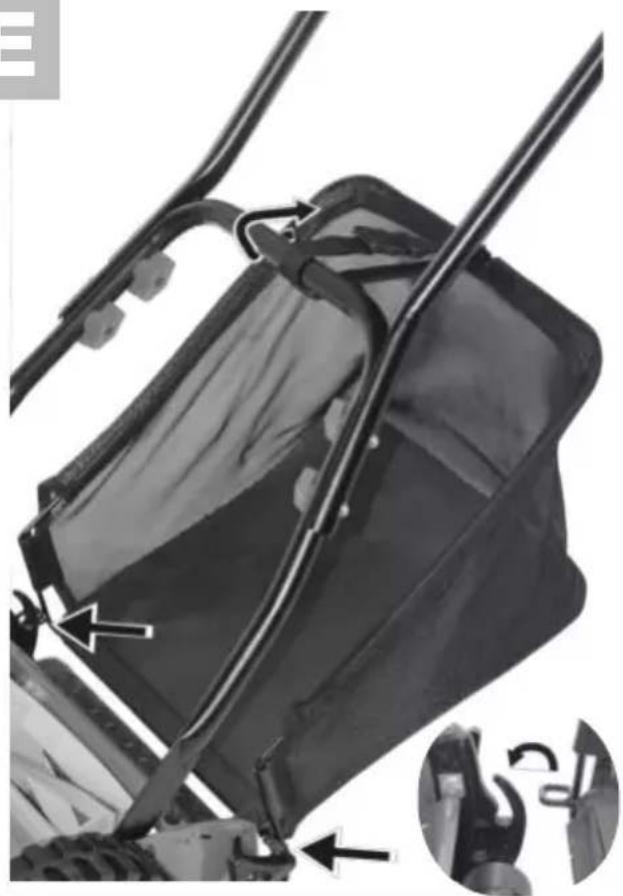

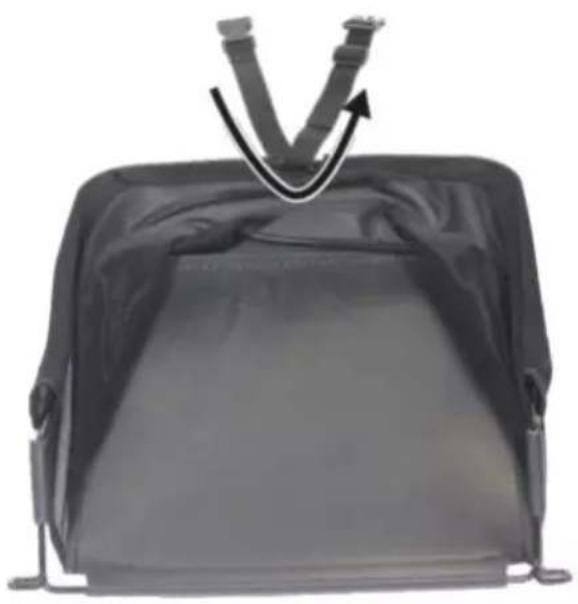

Assembling/emptying the grass bag

1. Hang the grass bag in the brackets provided for this.
2. Fix the grass bag with the chain on the crosspiece of the bottom section of the handle.
3. To take off / empty the grass bag, loosen the chain and unhook the grass bag.

Working Instructions

Before each use, check the machine for obvious defects, such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.

Regular mowing stimulates the stronger formation of leaves in the grass as well as allowing weeds to die off at the same time. Thus, the lawn becomes thicker each time it is mowed and a lawn with even resilience is produced.

- Run the machine at walking pace, in strips that are a straight as possible. For seamless mowing, the strips should always overlap by a few centimetres.

• On slopes, always work across the slope.
• For the first cut of the season, choose a high the cut height and reduce the height to around 20 mm for the subsequent cuts.

Adjusting the blade clearance

The spindle cylinder blades require adjustment if the grass is no longer being cut evenly and cleanly.

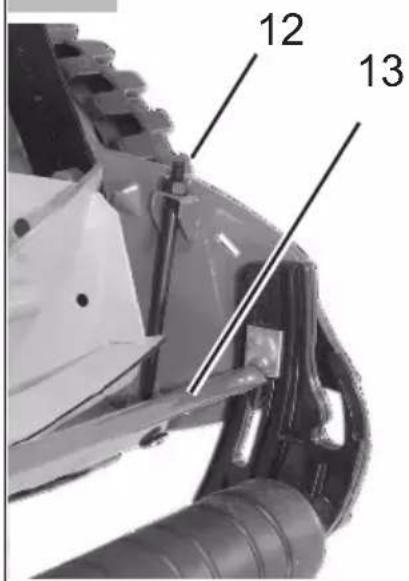

Turn the nuts (12) on the left and right of the equipment clockwise in small steps until the blades grind easily over the bottom metal bar (13) like a pair of scissors.

Cleaning and Maintenance

Have work that is not described in these instructions carried out by one of our authorised customer service centres. Use only original components. The following states how damage to the trimmer and possible injury to people can be avoided.

Wear gloves when dealing with the blades. Risk of cuts.

- Check covers and safety devices for damage and check that these are sitting correctly. Replace if necessary.

Cleaning

Neither hose down nor use running water to clean the mower.

• Always keep the machine clean. For cleaning, use a brush or cloth, but no cleaning agents or solvents.
• After mowing, remove any plant remains stuck to the wheels and the blade area.

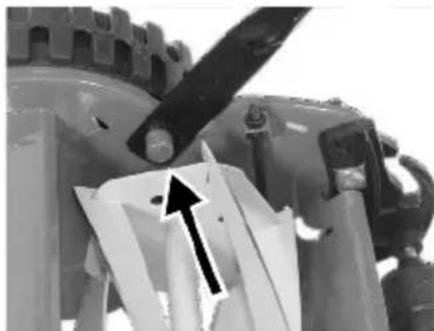

- Rub the blades with an oil rag or spray them with a metal maintenance spray.
- Due to the special cutting geometry, the blade cylinder blades cannot be re-sharpened. If necessary, the blade cylinder and sub-blade must therefore be replaced as a set. Have a specialist workshop carry out the installation of the blade cylinder.

Storage

- Keep the machine dry and out of reach of children.

Disposal / Environmental Protection

Recycle the device, accessories and packaging in an environmentally friendly manner.

• Machines do not belong in domestic waste. Take the machine to a recycling point. The plastic and metal components used can be separated by type and therefore recycled. Ask your dealer about this.
• Do not dispose of cut grass in the dust-bin; use it for composting or spread it as a mulch layer under shrubs and trees.

Replacement Parts

Spare parts and accessories can be obtained at

www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center")

Guarantee

We guarantee this equipment for 24 months. The guarantee does not include damages caused by natural wear, overloading or improper use. Certain parts, e.g. such as the spindle cylinder or the bottom metal bar, are subject to normal wear and not covered by the guarantee.

The guarantee is also subject to observance of the cleaning and maintenance instructions specified in the operating instructions. Damages caused by material or manufacturing defects will be rectified free of charge by replacement or repair.

This is conditional upon the equipment being returned to the dealer undismantled and with proof of purchase and guarantee. Repairs not covered by the guarantee can be performed by our service centre for a charge. Our service centre will be pleased to issue a quotation for you.

We can handle only equipment sent with sufficient packaging and postage.

Caution: In the case of a complaint or for servicing, please submit your equipment to our service address in clean condition and with an indication of the defect.

Equipment sent carriage forward by bulky goods, express or other special freight will not be accepted.

Defective units returned to us will be disposed of for free.
