Product type	Kettle with teapot function (water & tea cooker)
Brand	Princess
Model	236007
Capacity	1.5 L
Power	1700 W
Voltage	220-240 V
Dimensions (W x D x H)	18.2 x 18.2 x 28.6 cm
Weight	1.9 kg
Container material	Glass
Heating type	High-frequency coil induction
Temperature settings	70, 80, 90, 100 °C (dial)
Keep warm function	Yes, up to 30 minutes
Automatic shut-off	Yes (after 30 min or if carafe removed >90 s)
Overheat protection	Yes
Dry boil protection	Yes (turns off if water level < MIN)
Removable tea filter	Yes (for brewing)
Filter spout	Yes (prevents particles)
Dishwasher safe	Carafe and lid (glass parts)
Base cleaning	Damp cloth, do not immerse
Recommended descaling	Regularly, depending on water hardness
Warranty	24 months

Frequently Asked Questions - 236007 PRINCESS

How to use the Princess 236007 kettle?

Fill the carafe between MIN (0.3 L) and MAX (1.5 L), close the lid, place it on the base, plug in, press ON/OFF, set the temperature with the dial, then press START. For the keep warm function, press KEEP WARM before starting.

What temperatures to use for different teas?

Green, oolong, white tea: 80 °C. Black tea, rooibos: 100 °C. Herbal teas: generally 90 °C. Refer to the table in the manual for precise recommendations.

How to clean the kettle?

The glass carafe and lid are dishwasher safe (place the carafe upside down). For hand washing, use a soft sponge and dish soap. Clean the base with a damp cloth, do not immerse.

Can I put the carafe in the dishwasher?

Yes, the glass carafe and lid (including the filter spout) are dishwasher safe. Place the carafe upside down and the lid separately.

What if the kettle does not turn on?

Check the electrical connection and that the plug is properly inserted. If the appliance has overheated, let it cool for a few minutes. Ensure the carafe is correctly placed on the base.

How long does the keep warm function last?

The keep warm function maintains the set temperature for a maximum of 30 minutes. If you remove the carafe from the base for more than 90 seconds, the appliance shuts off automatically.

How to descale the kettle?

Use a commercial descaling agent or diluted white vinegar. Fill the carafe with the solution, boil, let sit for 15 minutes, then rinse thoroughly with clean water. Repeat if necessary.

Can I use other containers on the base?

No, use only the supplied glass carafe. The induction base is specially designed for this carafe. Using other containers may be dangerous.

What are the minimum and maximum water levels?

The minimum level (MIN) is 0.3 L and the maximum level (MAX) is 1.5 L. Do not exceed MAX to avoid boiling water overflow.

Does the kettle shut off automatically?

Yes, the appliance shuts off automatically if the carafe is removed from the base for more than 90 seconds, after 30 minutes of keep warm, or in case of overheating or dry operation.

USER MANUAL 236007 PRINCESS

White glass coffee maker with black handle and digital control panel (no visible text or symbols)

water & tea cooker

01.236007.01.001

FIGURE 1./FIGUUR 1./L'IMAGE 1./

ABBILDUNG 1./ILUSTRACIÓN 1./

FIGURA 1./RYS. 1./FIGURA 1./FIGURA 1./GPRÁT/KU4/GPRÁT

FIGUR 1.JOBRAZKO 1.JOBRAZKO 1./iLK RAKAM 1.

Labeled diagram of a coffee maker with numbered parts for identification

©PRINCESS FIGURE/FIGUUR/L'IMAGE/ABBILDUNG/ILUSTRACIÓN/FIGURA/RYS./FIGURA/ FIGUR/OBRÁZKU/OBRÁZKU/iLK RAKAM

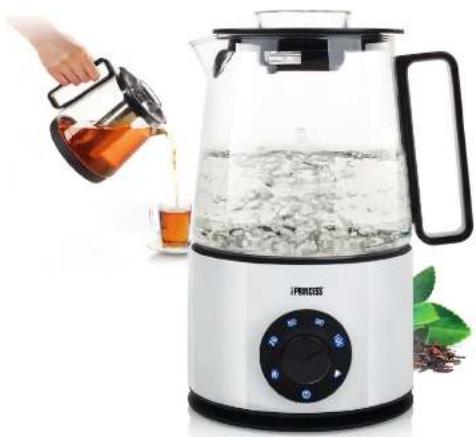

White FRUCESE water heater with orange liquid being poured into it, accompanied by a hand pouring liquid from a glass container (no text or symbols visible)

CONGRATULATIONS

Dear Customer,

Congratulations on the purchase of your new innovative water & tea cooker. Today, tea is the most consumed beverage in the world after water. Regardless of what your taste preference is, all tea drinkers know the special moment of escape that can be found while drinking that perfect cup of tea.

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

BENEFITS

• No lime scale - easy to clean
• Dishwasher proof
  • Efficient heating | low power consumption
• Accurate temperature settings
• 'Keep-warm' function for set temperature
  • Use in the kitchen & at the table
  • Suitable for boiling water and making tea
  • See the process of boiling water / making tea
• Healthy and tasteful

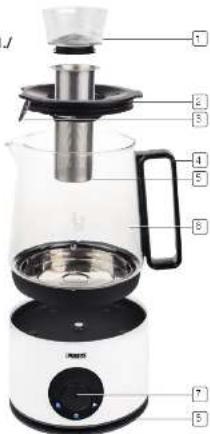

GENERAL PRODUCT DESCRIPTION WATER & TEA COOKER (FIGURE 1.)

1. Lid to fill
2. Lid
3. Filter spout
4. Handle
5. Tea sieve
6. Glass jar
7. Button
8. Induction base

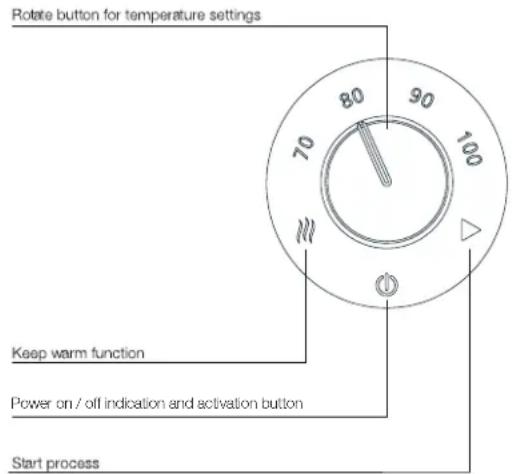

BUTTON FUNCTIONS

Rotate button for temperature settings 80 70 90 100 Keep warm function Power on / off indication and activation button Start process

HOW DOES YOUR WATER AND TEA COOKER WORK

A high frequency induction coil located underneath the top plate from the base heats the kettle by magnetic friction. The heat occurs directly within the kettle metal bottom whereby no energy is lost between the hob and the kettle. It's controlled by an electronic circuit to offer superior performance and functions. When you switch it off, the heating is stopped immediately.

IMPORTANT SAFETY INSTRUCTIONS

• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• The appliance must be placed on a stable, level surface.
• The user must not leave the device unattended while it is connected to the supply.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

- This appliance is intended to be used in household and similar applications such as: o Staff kitchen areas in shops, offices and other working environments.

• By clients in hotels, motels and other residential type environments.
  o Bed and breakfast type environments.
  o Farm houses.

• Children shall not play with the appliance.
- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
- If the kettle is overfilled, boiling water may be ejected.
- Do not remove the lid while the water is boiling.
- Please use the kettle only with the stand provided.
- Caution: Insure that the kettle is switched off before removing it from its stand.
- WARNING: Position the lid so that steam is directed away from the handle.
- To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- Only use the appliance with the appropriate connector.
- Do not immerse the base in water or any other liquid.
- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

EN

• Do not coil the cord around the base during the process. You can only winding the cord around for storing.
• Keep the main cord, the base and the kettle away from hot surfaces.
• Do not place the appliance on an enclosed surface (e.g. a serving tray), as this could cause water to accumulate under the appliance, resulting in a hazardous situation.
• Hot water can cause serious burns. Be careful when the kettle contains hot water.
• Do not touch the body of the kettle during and some time after use, as it gets very hot. Always lift the kettle by its handle.
• Never fill the kettle beyond the maximum level indication. If the kettle has been overfilled, boiling water may be ejected from the spout and cause scalding. Always fill the kettle above the minimum level to prevent damage on your kettle.
• Do not open the lid while the water is heating up or boiling. Be careful when you open the lid immediately after the water has boiled: the steam that comes out of the kettle is very hot.
• This rapid-boil kettle can draw up to 16 amps from the power supply in your home. Make sure that the electrical system in your home and the circuit to which the kettle is connected can cope with this level of power consumption. Do not let too many other appliances draw power from the same circuit while the kettle is being used.

• Only use the kettle in combination with its original base.

• Do not connect the appliance to an external switching device such as a timer and do not connect it to a circuit that is regularly switched on and off by the utility. This prevents a hazard that could be caused by inadvertent resetting of the thermal cut-out.

• Always place the base and the kettle on a dry, flat and stable surface.
• The kettle is only intended for boiling water and making tea. Do not use it to heat up soup or other liquids or jarred, bottled or tinned food.
• Never fill the kettle below the MIN 0.3L level to prevent it from boiling dry.
• Depending on the hardness of the water in your area, small spots may appear on the heating element of your kettle when you use it. This phenomenon is the result of scale build-up on the heating element and on the inside of the kettle over time. The harder the water, the faster scale builds up. Scale can occur in different colours. Although scale is harmless, too much scale can influence the performance of your kettle.
• Descale your kettle regularly by following the instructions given in chapter ‘CLEANING + DESCALING’.
• Some condensation may appear on the base of the kettle. This is perfectly normal and does not mean that the kettle has any defects.
• Only to use with the related glass jar! Do not use another jar/pot on this base!

PRINCESS

Instruction manual

BEFORE FIRST USE

Start

• Remove stickers, if any, from the base or the glass jar except for the stickers at the bottom of the base.
• Place the base on a dry, flat and stable surface.
• Do not wind the cord round the reel in the base.
• Rinse the glass jar with water.
• Fill the water & tea cooker with water up to the maximum level and let the water boil once. See chapter 'USING THE APPLIANCE'.
• Pour out the hot water and repeat that process once more.
  • After that, the water & tea cooker is ready to use.

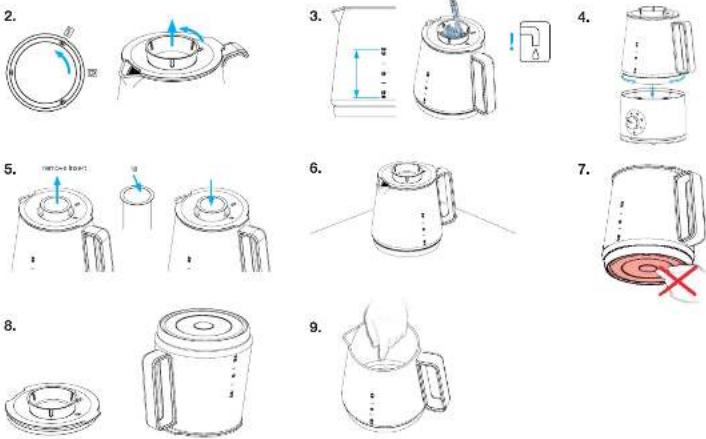

USING THE WATER & TEA COOKER (FIGURE 2.)

Put the plug into the wall socket.

Fill water & tea cooker with water through lid

To fill the water & tea cooker with water, you first have to open the inner lid by turning it anti clockwise. You can also remove the inner lid or the whole lid but this is not necessary.

IMPORTANT (Figure 3.):

• Always fill the water & tea cooker between the 0.3L minimum (MIN) and 1.5L maximum (MAX) marks on the water gauge.
• Too little water will result in the water & tea cooker switching OFF before the water has boiled. Filling above maximum (MAX) mark may result in boiling water splashing from the water & tea cooker.

Fill with the desired amount of water.

IMPORTANT:

• The energy consumption of the appliances can be optimized by heating only as much water as is actually needed.
• Close the lid before you switch on the water & tea cooker.

360° Positioning on base (Figure 4.)

Designed to allow you to place the glass jar on the base in any direction. Convenient for both left and right handed users.

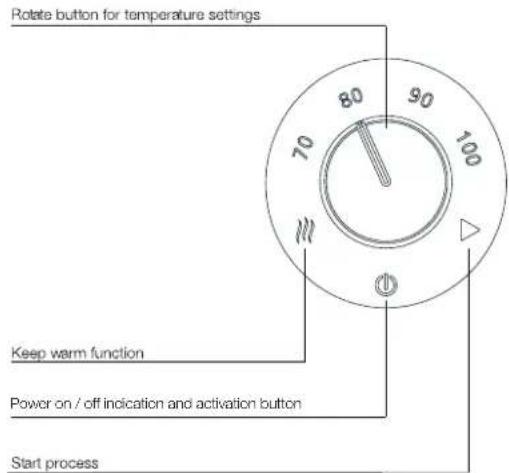

BUTTON FUNCTIONS

Rotate button for temperature settings 70 80 90 100 Keep warm function Power on / off indication and activation button Start process

EN

WITHOUT KEEP WARM FUNCTION

Switch on

Press the POWER button to switch the water & tea cooker on. (You can always switch off the kettle by pressing the power button again). All icons light up together with an acoustic signal.

Temperature

Turn the ROTATABLE button to the desired temperature. Only the chosen temperature lights up.

Activate process

In case you do not want a KEEP WARM function after reaching the temperature: Press the START button to activate the heating process.

Reached temperature

When the chosen temperature is reached, an acoustic signal sounds up 3 times.

Keep warm function later

You have 90 seconds to activate the KEEP WARM function. Otherwise the appliance switch off automatically and gives an acoustic signal.

Keep warm process

In case you pressed the KEEP WARM function (you can also activate it during the heating process): The keep warm process starts for 30 minutes and the keep warm icon lights up.

Remove the glass jar

When you remove the glass jar from the base for more then 90 seconds, the base automatically switch off.

Keep warm for 30 minutes

If you do not remove the glass jar, the keep warm process stops automatically after 30 minutes.

PRINCESS

Instruction manual

WITH KEEP WARM FUNCTION

Switch on

Press the POWER button to switch the water & tea cooker on. (You can always switch off the kettle by pressing the power button again). All icons light up together with an acoustic signal.

Temperature

Turn the ROTATABLE button to the desired temperature. Only the chosen temperature lights up.

Activate keep warm + start

Press the KEEP WARM button to start the keep warm process automatically after the temperature is reached. The heating process starts automatically.

The KEEP WARM icon is flashing till the keep warm process starts.

Reached temperature + keep warm process

When the chosen temperature is reached, an acoustic signal sounds up 3 times. The keep warm process starts for 30 minutes and the keep warm icon lights up constantly.

Remove the glass jar

When you remove the glass jar from the base for more then 90 seconds, the base automatically switch off.

Keep warm for 30 minutes

If you do not remove the glass jar, the keep warm process stops automatically after 30 minutes.

ACTIVATE A PROCESS, REACHED TEMPERATURE, KEEP WARM FUNCTION + SWITCH OFF always gives an acoustic signal.

You can always switch off the base during the process by pressing the on/off button.

IMPORTANT:

Pour out the excess water after heating in order to avoid excessive calcification.

MAKING TEA

Tea varieties are grown and produced in different environments and require specific water temperatures and controlled brew times to allow their unique flavour and aroma to develop during brewing. Boiled water is not considered good for making many tea types as the boiling process removes oxygen, making the water stale. To bring out the optimal quality and taste of more delicate tea leaves such as green, oolong and white tea, a lower temperature will produce a better flavoured cup of tea while boiling water may scald the tea leaves and result in a bitter, astringent brew.

The Water & tea cooker is for all types of tea, water temperatures and brew times, eliminating the guesswork so you can enjoy a perfect cup of tea, every time.

Fill the tea sieve (Figure 5.)

Remove the tea sieve to fill and place it back in the glass jar.

EN

Water temperature

Notice: Too long steeping time can result in more bitterness and a less balanced flavour. We recommend experimenting to find your best personal taste. Japanese green teas generally taste best at 1 - 2 minutes while Chinese green teas (bigger leaves) seem to prefer 2 - 3 minutes.

Tea Temperature in	°C
Apple 90
Black Tea 100
Blackcurrant 90
Ceylon 100
China Rose 100
Cranberry 90
Darjoeling 100
Earl Grey 100
Elderflower 90
English Breakfast 100
Green Tea 80
Green Tea (China) 80
Herbal 90
Indian Chai 100
Jasmine 80
Lapsang Souchong 100
Lemon 90
Mango 90
Oolong tea 80
Orange Pekoe	100
Red Tea	100
Roolbos 90
Sencha	80
White Tea	80

USING THE WATER & TEA COOKER

Place on table (Figure 6.)

You can place the glass jar without base directly on the table to have fresh tea where you need it.

Do not touch the metal bottom (Figure 7.)

Do not touch the metal bottom from the glass jar in case that is it still hot. The ring keeps the distance to the table, so you are able to place the glass jar directly on the table.

CLEANING + DESCALING

IMPORTANT:

Clean your appliance frequently to avoid calcification and to guarantee a long life with low energy consumption.

Cleaning the base

• Unplug the appliance first.
- Clean the outside of the induction base with a soft cloth moistened with warm water and some mild cleaning agent.
- Do not use chemicals, steel wool, or abrasive cleaners to clean the inside or outside of the glass jar as these may scratch the surface.

Cleaning + descaling the glass jar (Figure 8.)

• Cleaning is an inherent part of maintenance of the equipment because the mineral deposits, especially from hard water cause scaling which gradually slow down the process of heating.
• Scale is not harmful to your health but it may give your drink a powdery taste. The filter spout prevents scale particles from ending up in your drink.
• The glass jar is dish washer safe. Put it upside down into a dish washer. Place the lid separate in the dish washer to descale the filter spout.

PRINCESS

Instruction manual

Cleaning in dishwasher

The glass jar is dish washer safe. Put it upside down into a dish washer. Place the lid separate in the dish washer to descale the filter spout.

Cleaning by hand (Figure 9.)

You can easily clean the glass jar by hand. Remove the whole lid to reach the whole inner part of the jar.

Storage

Ensure the base is switched off, clean and dry before storing. Ensure the lid is closed and locked securely into place. Stand the jar upright on the power base. Do not store anything on top.

TROUBLESHOOTING

If your induction range seems to be working improperly, it doesn't necessarily mean it's faulty. In all cases, check the following points:

Problem Solution
Water & tea cooker does not switch on	There is a connection problem. Check if the plug is inserted into the wall socket.In case of overheating, the kettle will automatically shut down to prevent further damage, let the kettle cool down and try again.
Water & tea cooker switch off automatically	There is a boil-dry protection against overheating. The water should always be filled above the MIN level. If the boil-dry protection is activated, wait until the water & tea cooker is cooled down and try again.
My tea tastes too weak or too strong Tea taste is a personal preference and may require experimentation to get it to your liking. For stronger tasting tea, increase the amount of tea or brew time.For a weaker tasting tea, decrease the amount of tea or brew time and always check if you use the correct temperature.

EN

SPECIFICATIONS

Rated voltage 220 - 240 V

Rated output 1700 W

Capacity 1,51

Dimensions 18.2 x 18.2 x 28.6 cm

Weight 1,9 kg

Maximum power consumption

The power to heat distilled water (starting temperature: 20 degree Celsius) to the automatic switch-off do not exceed 0.115 kWh/litre of water.

DISPOSAL

If you want to dispose of equipment with this symbol on the appliance and/or in the user manual, follow the below procedure: Make sure that the appliance is processed in a responsible manner at the end of its service life to guarantee the maximum reuse of (parts of) the appliance. Do not dispose of the appliance with unsorted waste, but hand it in at the store or take it to a recognised collection point. Contact your municipality for information about the reception and collection systems in your area. Make sure that the appliance is reused if you want to dispose of the appliance while it is still in good working order or needs only a minor repair.

GUARANTEE

- This product is guaranteed for 24 months granted. Your warranty is valid if the product is used in accordance to the instructions and for the purpose for which it was created. In addition, the original purchase (invoice, sales slip or receipt) is to be submitted with the date of purchase, the name of the retailer and the item number of the product.

- For the detailed warranty conditions, please refer to our service website: service.princess.info

USO DE WATER & TEA COOKER

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

S FUNKCIOU UDRŽANIA TEPLA

Zapnutie

Jules Verneweg 87 | 5015 BH Tilburg | The Netherlands | service.princess.info
