Brand	Princess
Model	Tortilla Chef 118000
Product type	Multifunction toaster (tortilla, wok, pizza)
Power supply	220-240 V ~ 50/60 Hz
Plate material	Non-stick coating
Number of plates	2 plates (upper and lower)
Main functions	Spanish tortilla, wok, cooking plate, pizza
Temperature adjustment	Thermostat knob: positions 1 to 5 (80-215 °C)
Timer	Rotating button (variable duration)
Indicator lights	Power (red) and status (green)
Safety	Plate lock before flipping; hot surface; hot steam at rear outlet
Maintenance and cleaning	Wipe with a damp cloth; do not immerse; do not put in dishwasher; no abrasive cleaners
Storage	Vertical storage stand included
Warranty	24 months
Spare parts and repairability	Available at service.tristar.eu
Country of origin	Not specified (estimated: Europe)

Frequently Asked Questions - Tortilla Chef 118000 PRINCESS

How to use the appliance for the first time?

Remove all stickers and protective films. Clean the inside with a damp cloth and dry. Place the appliance on a stable surface with 35 cm space on the right and 10 cm around. Plug into a 220-240V socket. During first use, a normal odor may be released; ventilate the room.

How to prepare a Spanish tortilla?

Place the eggs, potatoes and other ingredients in the machine. Close and set the temperature and timer. Halfway through cooking, you can flip the appliance 180° after locking the plates. Check the cooking regularly.

Can I use the appliance as a wok or cooking plate?

Yes, open both plates flat. You can then use them simultaneously as a wok/frying pan and cooking plate. Do not use metal utensils to avoid damaging the non-stick coating.

How to cook a pizza with this appliance?

Place the raw pizza dough directly on the pan, add the toppings without exceeding the height of the upper plate to avoid burning. Cooking time depends on thickness. Open regularly to check.

How to clean the appliance?

Unplug and let cool. Wipe the inside and edges with absorbent paper or a cloth. Clean with a damp cloth. Never use abrasive cleaners, scouring pads or steel wool. Never immerse the appliance and do not put it in the dishwasher.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any danger.

Why do the indicator lights turn on?

The power indicator (red) shows that the appliance is powered. The status indicator (green) lights up during preheating and turns off when the set temperature is reached. Both knobs (temperature and timer) must be set for the appliance to operate.

Can I use the appliance with an external programmer?

No, the appliance is not intended to be used with an external programmer or remote control system.

How to store the appliance?

Hold the appliance vertically and slide the vertical storage stand over the cooking plates. Make sure the appliance is cool and clean before storing.

Where to find spare parts or assistance?

Visit the website service.tristar.eu to find all necessary information and spare parts.

USER MANUAL Tortilla Chef 118000 PRINCESS

Exterior view of a tortilla grater with open lid and side panel (no text or symbols on main subject)

Plated dish of stir-fried vegetables including a red bell pepper and garlic on a wooden cutting board (no text or symbols visible)

Tortilla maker

01.118000.01.001

PRINCESS

EN

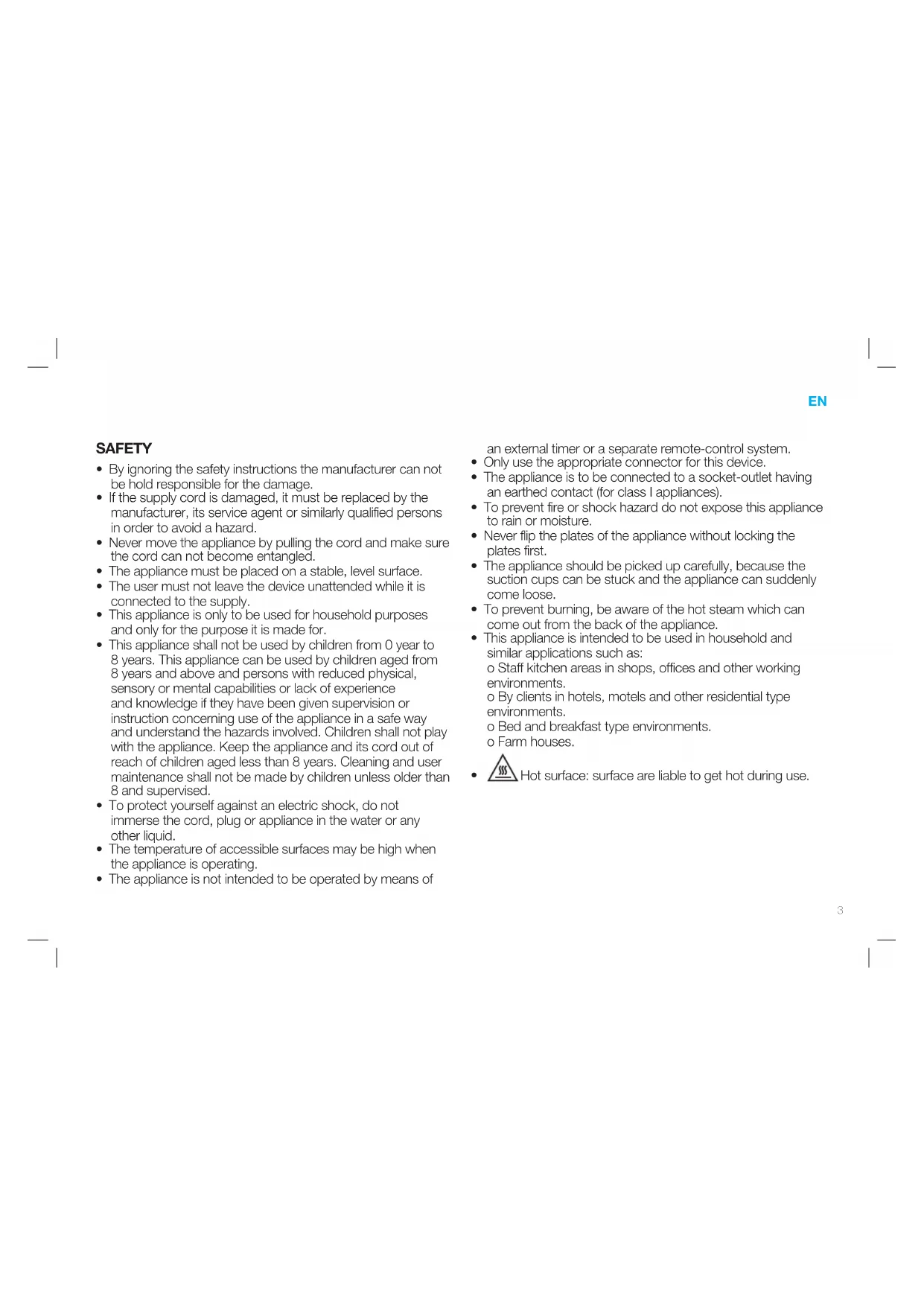

SAFETY

• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• The appliance must be placed on a stable, level surface.
• The user must not leave the device unattended while it is connected to the supply.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• The temperature of accessible surfaces may be high when the appliance is operating.
• The appliance is not intended to be operated by means of

an external timer or a separate remote-control system.

- Only use the appropriate connector for this device.

- The appliance is to be connected to a socket-outlet having an earthed contact (for class I appliances).

- To prevent fire or shock hazard do not expose this appliance to rain or moisture.

- Never flip the plates of the appliance without locking the plates first.

- The appliance should be picked up carefully, because the suction cups can be stuck and the appliance can suddenly come loose.

- To prevent burning, be aware of the hot steam which can come out from the back of the appliance.

- This appliance is intended to be used in household and similar applications such as:

o Staff kitchen areas in shops, offices and other working environments.

o By clients in hotels, motels and other residential type environments.

o Bed and breakfast type environments.

o Farm houses.

• Hot surface: surface are liable to get hot during use.

PRINCESS

Instruction manual

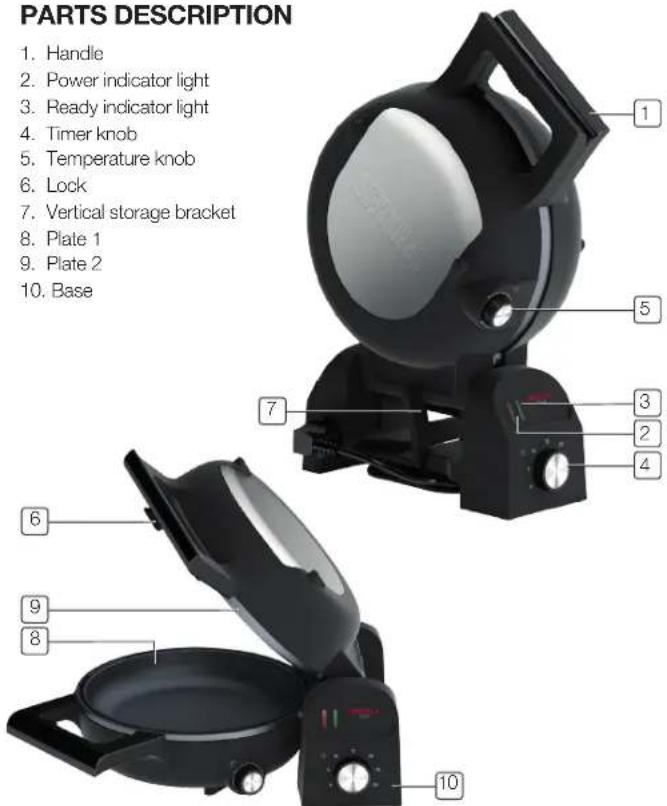

PARTS DESCRIPTION

1. Handle
2. Power indicator light
3. Ready indicator light
4. Timer knob
5. Temperature knob
6. Lock
7. Vertical storage bracket
8. Plate 1
9. Plate 2
10. Base

PARTS DESCRIPTION 1. Handle 2. Power indicator light 3. Ready indicator light 4. Timer knob 5. Temperature knob 6. Lock 7. Vertical storage bracket 8. Plate 1 9. Plate 2 10. Base

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
- Clean the inside of the Tortilla maker with a damp cloth and dry it well. Never immerse the appliance in water.
- Place the device on a flat stable surface with the plates positioned on the left side of the base. Ensure a free space of 35 cm on the right side of the base to be able to flip the plates and a minimum of 10 cm of free space around the rest of the device. This device is not suitable for installation in a cabinet or use in a humid environment.
• We advise to place a heat resistant surface between your table and the appliance (this way you will not get burn marks on your table or table cloth).
- Put the mains plug into the power outlet. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. (Voltage 220-240V - 50/60Hz)
- When the device is turned on for the first time, a slight odor may be noticeable. This fragrance is normal, temporary and will disappear soon. Please ensure there is adequate ventilation.

USE

• Close the Tortilla chef and plug it into the power outlet. Set the temperature knob to the desired temperature and turn the timer knob to the right. Both indication lights will illuminate, indicating that the device is on and preheating.
• Note: both control knobs must be set to operate the device.
• The green ready indication light will turn off once the set temperature is reached and the device is ready for use.
• Now place the desired dish in the pan and turn the timer knob to the desired cooking time.

EN

- The temperature indication of the thermostat settings is as described in the table below.

	Temperature (Celsius) +/- 15 degrees
Thermostat setting	Closed position	Opened position Plate 1	Opened position Plate 2
0 - - -
1 95 80 90
2 130 110 125
3 170 155 175
4 200 175 195
5 215 190 210

Peak temperature (heating up cycle) is resp. 245, 220 and 240 degrees.

Spanish Tortilla

• Place the eggs, potato and other ingredients of your choosing in the Tortilla chef and close the device. The baking time will dependent on the type and amount of ingredients. It is recommended to open the lid and check the baking progress, before flipping the Spanish Tortilla.
• Half way the baking process you can flip the Tortilla chef 180 degrees to bake the other side of the Spanish Tortilla. There is a lock on the inside of the handles which should be closed in order to lock the plates before you flip the device 180 degrees around its base. Never flip the device without locking the plates first.

Wok & baking plate

Place the Tortilla Chef with both plates open on the table. Now you can simultaneously use it as a wok/frying pan and baking plate for preparing multiple dishes at the same time. Do not use anything metal, to avoid damaging the non-stick coating.

Pizza

Place your un-cooked pizza dough directly onto the pan and add your favorite toppings. Never over-fill or mount your topping too high on your pizza. The topping should always be below the height of the top-heating plate to prevent burning. The baking time dependents on the thickness of the dough and the amount of topping. It is recommended that you open the lid regularly to check the backing progress.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Never pour cold water on a hot plate, this could damage the device and can cause splashing hot water.
• Wipe the inside and the edges of the appliance with a paper towel or a soft cloth.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• Never immerse the electrical device in water or any other liquid. The device is not dishwasher proof.
• For storage, keep the device with one hand in the vertical position and slide with your other hand the vertical storage bracket over the baking plates.

PRINCESS Instruction manual

GUARANTEE

• This product is guaranteed for 24 months granted. Your warranty is valid if the product is used in accordance to the instructions and for the purpose for which it was created. In addition, the original purchase (invoice, sales slip or receipt) is to be submitted with the date of purchase, the name of the retailer and the item number of the product.
• For the detailed warranty conditions, please refer to our service website: www.service.tristar.eu

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

SUPPORT

You can find all available information and spare parts at service.tristar.eu!
