USER MANUAL Compact4All Toaster 144000 PRINCESS

144000 Princess Compact4All Toaster

144001 Princess Compact4All Toaster

144002 Princess Compact4All Toaster

A1

A2

A3

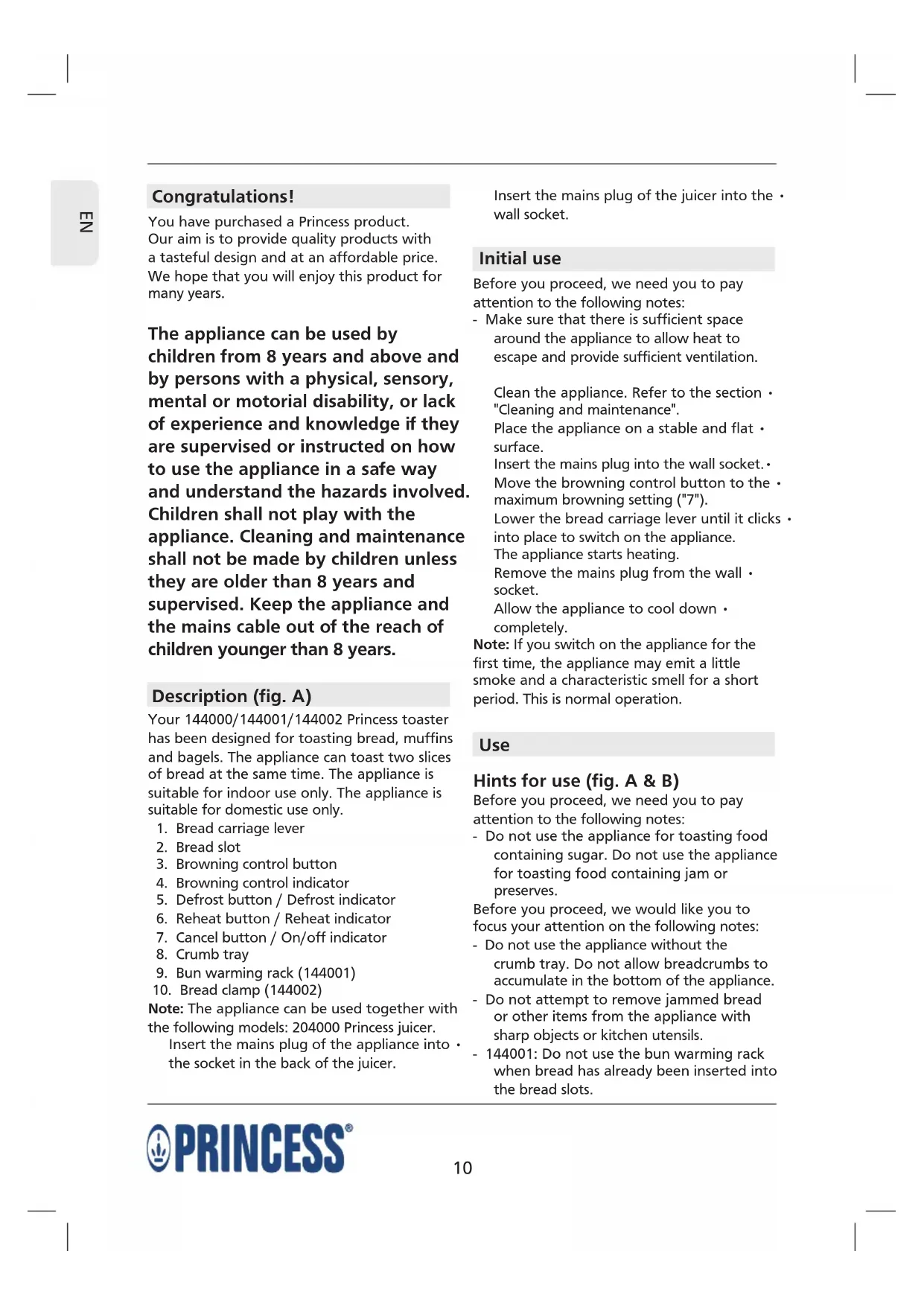

Gefeliciteerd!

You have purchased a Princess product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years.

The appliance can be used by children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years.

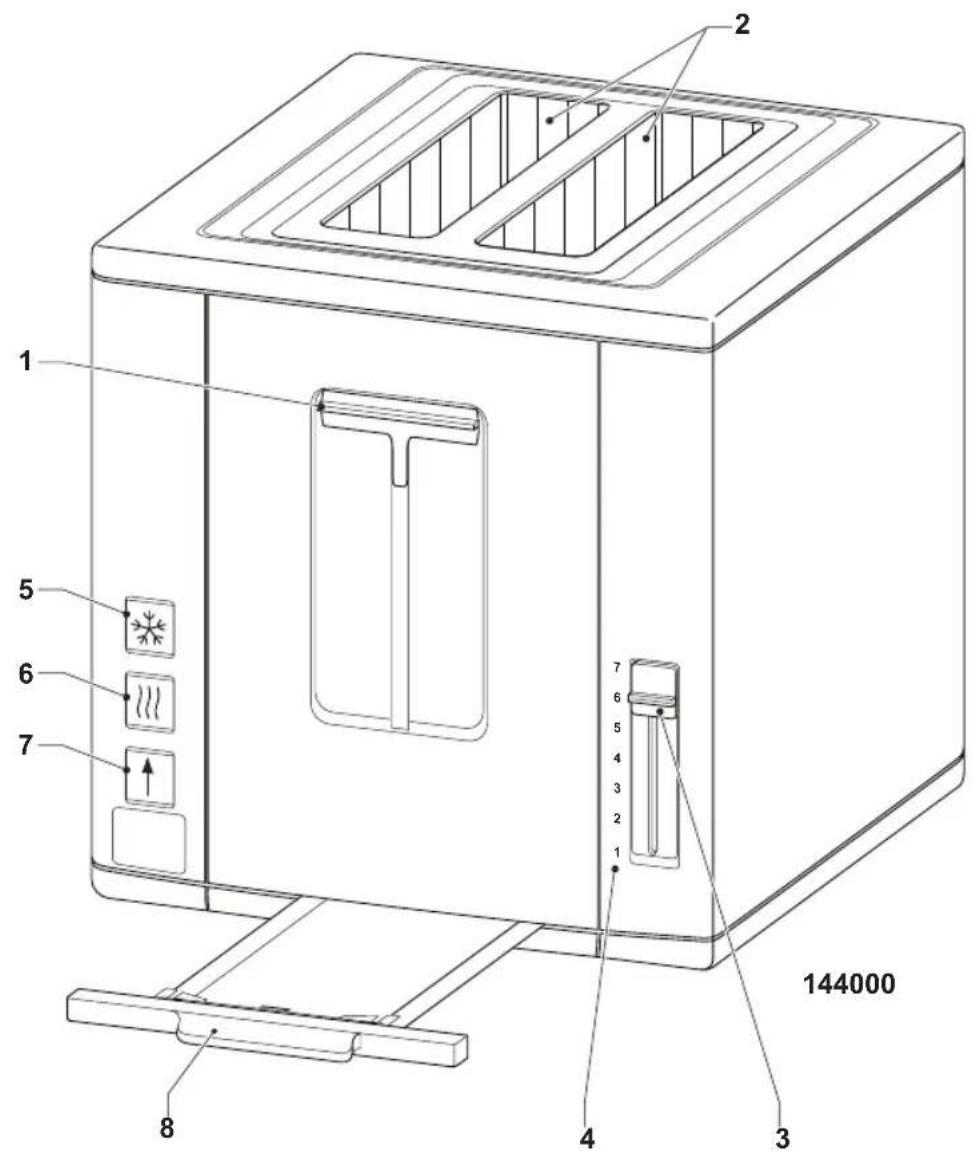

Description (fig. A)

Your 144000/144001/144002 Princess toaster has been designed for toasting bread, muffins and bagels. The appliance can toast two slices of bread at the same time. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

1. Bread carriage lever
2. Bread slot
3. Browning control button
4. Browning control indicator
5. Defrost button / Defrost indicator
6. Reheat button / Reheat indicator
7. Cancel button / On/off indicator
8. Crumb tray

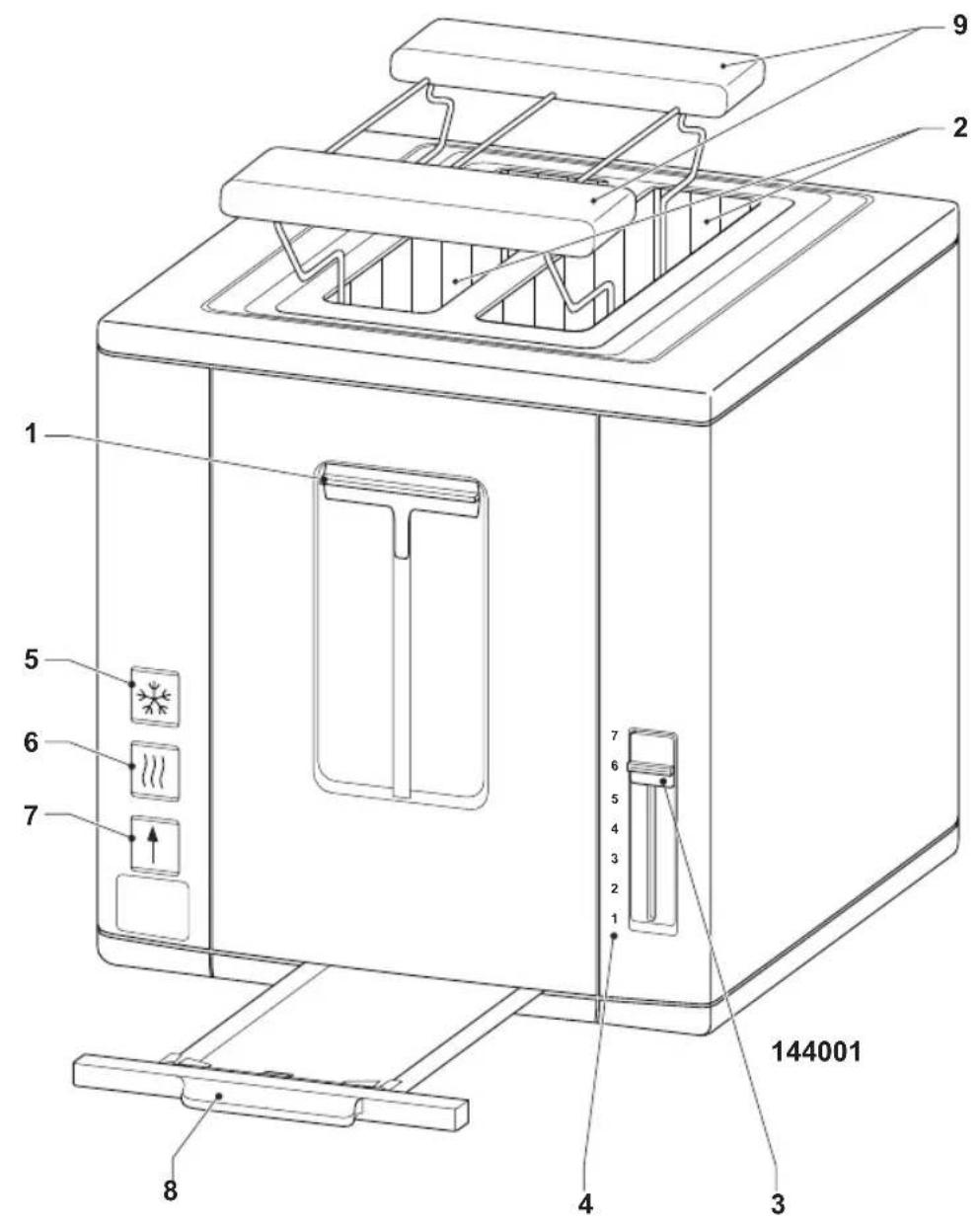

9. Bun warming rack (144001)

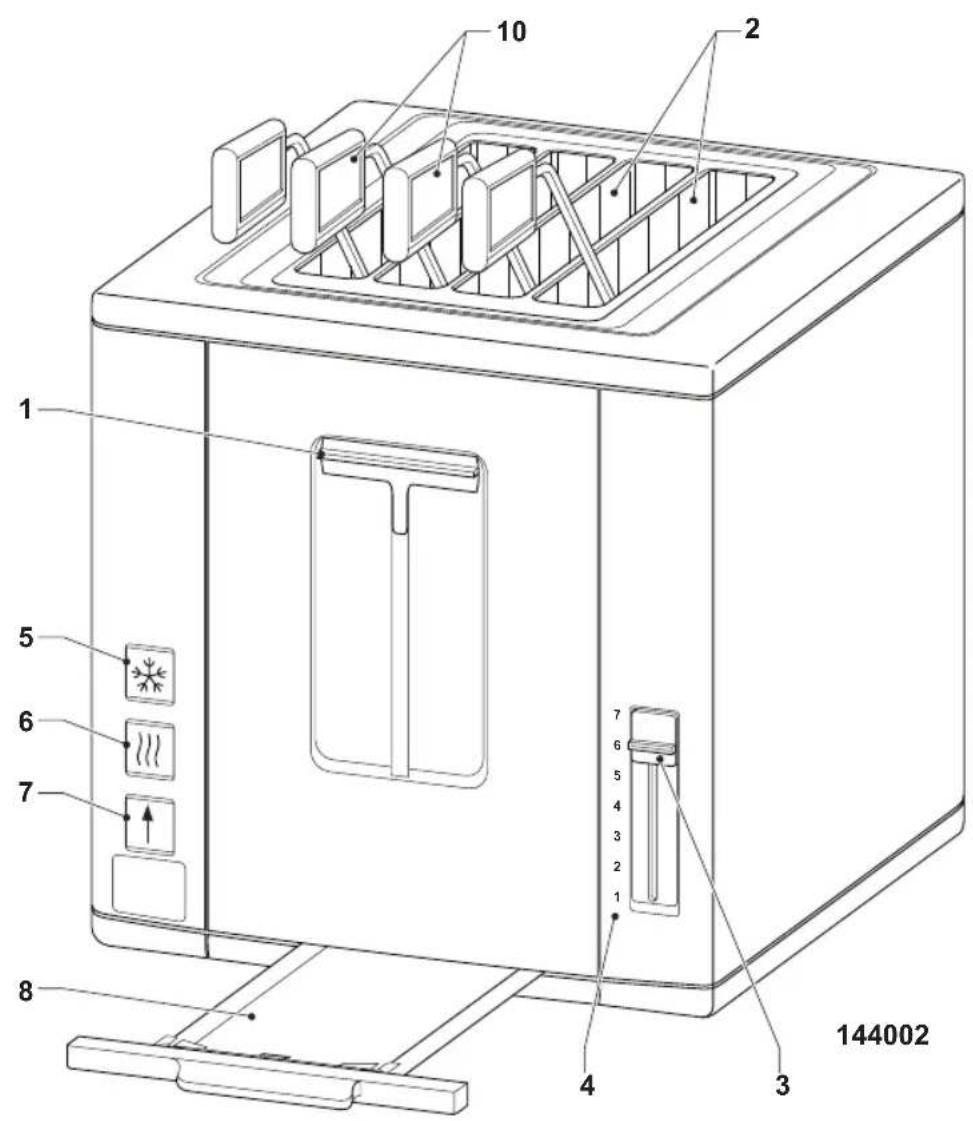

10. Bread clamp (144002)

Note: The appliance can be used together with the following models: 204000 Princess juicer.

Insert the mains plug of the appliance into the socket in the back of the juicer.

Insert the mains plug of the juicer into the wall socket.

Initial use

Before you proceed, we need you to pay attention to the following notes:
- Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation.

Clean the appliance. Refer to the section "Cleaning and maintenance".

Place the appliance on a stable and flat surface.

Insert the mains plug into the wall socket.

Move the browning control button to the maximum browning setting ("7").

Lower the bread carriage lever until it clicks into place to switch on the appliance.

The appliance starts heating.

Remove the mains plug from the wall - socket.

Allow the appliance to cool down completely.

Note: If you switch on the appliance for the first time, the appliance may emit a little smoke and a characteristic smell for a short period. This is normal operation.

Use

Hints for use (fig. A & B)

Before you proceed, we need you to pay attention to the following notes:

• Do not use the appliance for toasting food containing sugar. Do not use the appliance for toasting food containing jam or preserves.
  Before you proceed, we would like you to focus your attention on the following notes:
• Do not use the appliance without the crumb tray. Do not allow breadcrumbs to accumulate in the bottom of the appliance.
• Do not attempt to remove jammed bread or other items from the appliance with sharp objects or kitchen utensils.

• 144001: Do not use the bun warming rack when bread has already been inserted into the bread slots.

• 144002: Do not use the bread clamps when bread has already been inserted into the bread slots.

Place the appliance on a stable and flat surface.

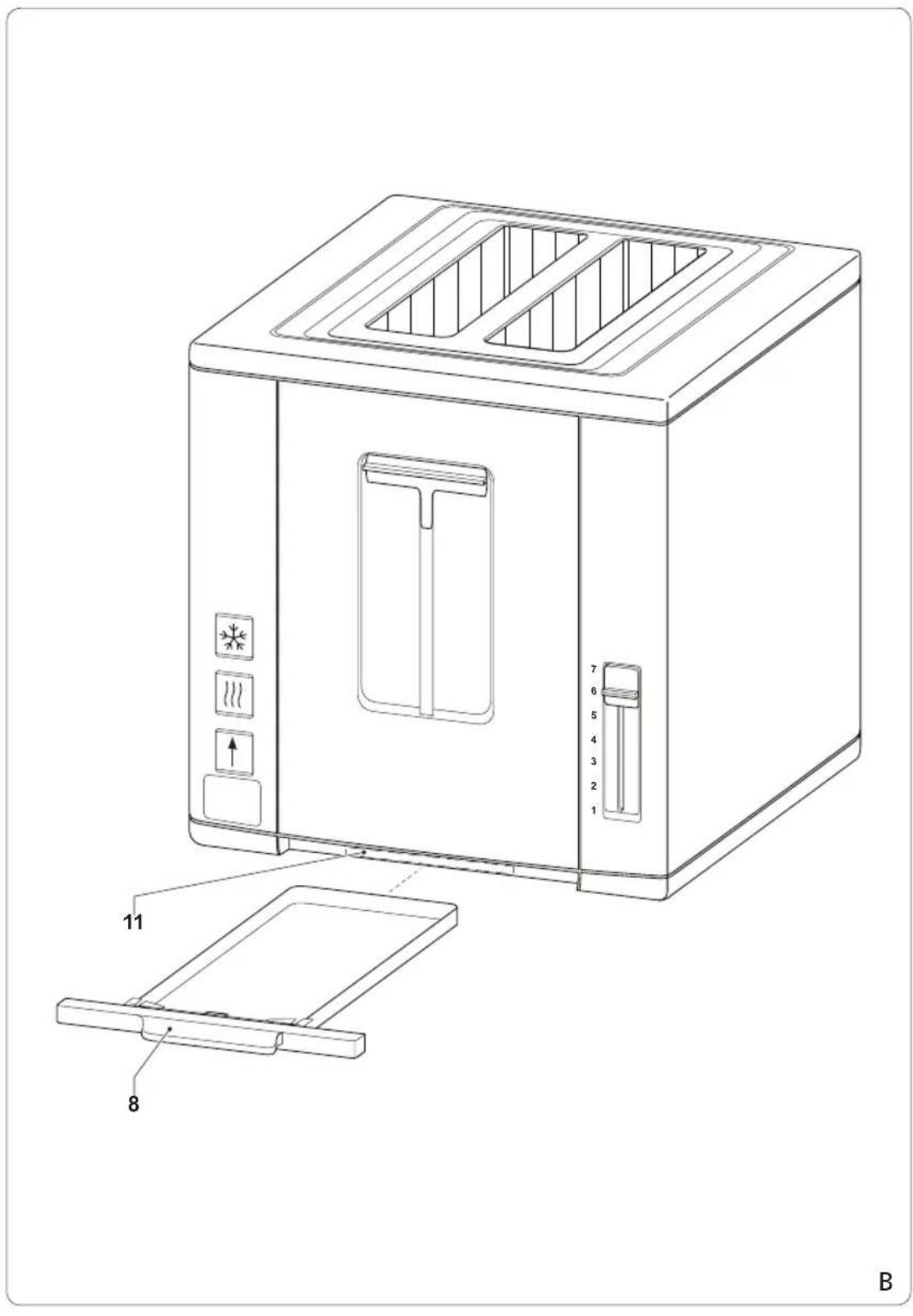

Insert the crumb tray (8) into the slot (11). Insert the mains plug into the wall socket. Take one of the following actions:

• 144000/144001/144002: Insert the bread into the bread slots (2).
• 144001: Place the bun warming rack (9) onto the bread slots (2). Place the buns onto the bun warming rack (9).
• 144002: Insert the bread into the bread clamps (10). Insert the bread clamps (10) into the bread slots (2).

Move the browning control button (3) to the required browning setting ("1-7"). The browning setting can be read from the browning control indicator (4).

Note: Experiment with the required browning setting to achieve the best results.

Lower the bread carriage lever (1) until it clicks into place to switch on the appliance. The appliance starts toasting the bread.

The on/off indicator (7) comes on. To toast frozen bread,press the defrost - button (5). The defrost indicator (5) comes on.

To reheat toasted bread, press the reheat - button (6). The reheat indicator (6) comes on.

Note: If the bread becomes jammed, remove the mains plug from the wall socket and wait until the appliance has cooled down. Hold the appliance upside down and carefully remove the jammed bread from the appliance.

To interrupt the process, press the cancel button (7). The on/off indicator (7) goes off.

If the process is completed, the appliance will switch off automatically and raise the toasted bread from the bread slots. The on/off indicator (7) goes off.

Take one of the following actions:

• 144000/144001/144002: Remove the bread from the bread slots (2).
• 144001: Remove the buns from the bun warming rack (9).

Remove the bun warming rack (9) from the bread slots (2).

• 144002: Remove the bread clamps (10) from the bread slots (2). Remove the bread from the bread clamps (10).

After use, remove the mains plug from the wall socket and wait until the appliance has cooled down.

Cleaning and maintenance

Before you proceed, we need you to pay attention to the following notes:

• Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or other liquids.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.

Regularly check the appliance for possible damage.

Clean the inside of the appliance after each use:

• Remove the crumb tray from the appliance.
• Hold the appliance upside down and shake the appliance to remove crumbs.
• Clean the crumb tray in soapy water. Rinse the crumb tray under running water. Thoroughly dry the crumb tray with a clean, dry cloth.
• Insert the crumb tray into the appliance. Clean the accessories:
• 144001: Clean the bun warming rack in soapy water. Rinse the bun warming rack under running water. Thoroughly dry the bun warming rack with a clean, dry cloth.
• 144002: Clean the bread clamps in soapy water. Rinse the bread clamps under running water. Thoroughly dry the bread clamps with a clean, dry cloth.

Clean the outside of the appliance with a soft, damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth.

Storage

Put the appliance and the accessories in the original packaging.

Store the appliance with the accessories in a dry and frost-free place, out of the reach of children.

Safety instructions

General safety

Read the manual carefully before use. Keep the manual for future reference.

Only use the appliance and the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.

Children should be supervised to ensure that they do not play with the appliance.

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not use the appliance near bathtubs, showers, basins or other vessels containing water.

Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket.

If the appliance is immersed in water or other liquids, do not use the appliance again.

This appliance is intended to be used in domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and-breakfast type environments.

Electrical safety

Before use, always check that the mains - voltage is the same as the voltage on the rating plate of the appliance.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Connect the appliance to an earthed wall - socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1 ~mm^2 ).

For additional protection, install a residual current device (RCD) with a rated residual operating current that does not exceed 30mA .

Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.

Always fully unwind the mains cable and the extension cable.
Make sure that the mains cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over. Keep the mains cable away from heat, oil and sharp edges.
- Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not pull the mains cable to disconnect the mains plug from the mains.

Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for toasters

• Do not use the appliance outdoors.

Place the appliance on a stable and flat surface.

Place the appliance on a heat-resistant and splash-proof surface.

Do not place the appliance on a hob.

Do not cover the appliance.

Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation.

Make sure that the appliance does not come into contact with flammable material.

Keep the appliance away from flammable materials (curtains, table cloth), because the bread can burn.

Keep the appliance away from heat sources. Do not place the appliance on hot surfaces or near open flames.

Beware of hot parts. The surfaces marked with a caution symbol for hot surfaces are liable to become hot during use. The accessible surfaces can become hot when the appliance is operating. The outer surface can become hot when the appliance is operating.

Always be careful when touching the appliance. Use oven gloves if you need to touch the appliance during or shortly after use.

Make sure that your hands are dry before touching the appliance.

Do not leave the appliance unattended. during use.

Do not move the appliance while it is switched on or is still hot. Remove the mains plug from the wall socket and wait until the appliance has cooled down.

U.K. Wiring instructions

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW must be connected to the terminal which is

marked with the letter E or and is coloured GREEN or GREEN/YELLOW.

Warning! This appliance must be earthed.

Disclaimer

Subject to change; specifications can be changed without further notice.
