Construction - Mobile Phone Hammer - Free user manual and instructions

Product type	Rugged mobile phone
Brand	Hammer
Model	Construction
Operating system	Android 12
Display	6.0 inches FHD+ (2160x1080 px), Gorilla Glass 3
Processor	Helio G85 Octa-core
RAM memory	6 GB
Internal storage	128 GB
Expandable storage	microSD up to 1 TB (hybrid slot)
Main camera	16 MP + 8 MP + LED flash
Front camera	8 MP
Battery	6000 mAh, built-in
Charger	Adapter 100-240V, output 5V/2A (10W)
Connectivity	Hybrid dual nanoSIM, Wi-Fi, Bluetooth, USB-C, 3.5 mm headphone jack
Water and dust resistance	IP68 (seals intact)
Laser rangefinder	Class 2 (IEC/NF EN 60825-1:2014)
Programmable button	Yes, customizable in settings
Sensors	Light, proximity, accelerometer
Maintenance	Clean with a dry cloth; do not use acidic or alkaline products
Repairability	Repair by authorized service only; unauthorized opening voids warranty
Kit contents	Phone, charger (adapter + USB cable), user manual

Frequently Asked Questions - Construction Hammer

How can I tell if IP68 sealing is guaranteed?

IP68 sealing is only ensured if all rubber seals are intact and correctly positioned, and if the covers (ports, trays) are properly closed with screws. After contact with water, dry the device and ensure the USB-C port is dry before connecting the charger.

Can I use the device in the rain?

Yes, thanks to IP68 certification, the phone resists prolonged immersion in water. However, avoid liquids other than water (e.g., salt water, soap) and always dry the connectors before use.

How do I insert the SIM and microSD cards?

The hybrid tray is under a waterproof seal. Use the provided tool to open the tray. You can place two nanoSIMs or one nanoSIM and one microSD card (up to 1 TB). Close carefully and screw the cover tight.

What to do if the phone does not charge?

Check that the USB-C cable is dry and the charging port is clean. Use only the original charger (5V/2A). If the problem persists, contact an authorized service center.

Is the laser rangefinder dangerous?

The laser is Class 2 (IEC 60825-1:2014 standard). It can cause eye injury if directed into eyes. Do not look into the beam or point it at others.

How to program the programmable button?

Go to Settings > Programmable button (or equivalent). You can choose an app or action to launch with a short press when the phone is unlocked.

Can I use the phone with gloves?

The standard touchscreen may not respond with thick gloves. Optionally enable 'glove mode' in display settings if available, or use a stylus.

How to clean the device?

Use a soft, dry cloth. Do not use chemicals, alcohol, or solvents. For stubborn stains, slightly dampen the cloth with water.

Where to find software updates?

Android updates are available via Settings > System > Software update. The installed version may vary by country and operator. The manufacturer may release updates without notice.

What to do in case of breakdown or damage?

Contact an authorized service center. Do not open the device yourself, as this voids the warranty. Keep your proof of purchase and user manual.

USER MANUAL Construction Hammer

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

laserowej.

Yellow triangular warning sign with a black sunburst symbol at center (no text)

-WODA I INNE PŁ YNY-

Yellow triangular warning sign with sun and eye symbol (no text)

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a circular button with purple and green concentric rings (no text or symbols)

White hand gesture with a blue arrow pointing downward (no text or symbols)

11. Komunikacja

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

https://www.hammerphones.com/support-warranty/

1. Table of contents

1. Table of contents 24
2. Safety...... 25
3. The use of the manual 28
4. Important information....29

4.1 Trademarks....29

1. Package content 30
2. Technical Specification 30
3. Appearance of the phone....31
4. eSIM function 32

8.1 Starting and activating the eSIM card 34
8.2 Disabling and deleting the profile....35

1. Buttons....35
2. Using the touch screen....36

10.1. Touch 36
10.2 Swipe....36
10.3 Triple click 36
10.4 Hold and swipe ....37
10.5 Slide in and out....37

1. Communication....37

11.1 Making calls ....37
11.2 SMS - Messages....37

1. Maintenance of the device 38
2. Correct disposal of used equipment 38
3. Correct disposal of used battery 39

CAUTION!	Statement
The manufacturer is not responsible for the consequences of situations caused by improper use of the phone or failure to follow the instructions in the operating manual.	The software version can be upgraded without earlier notice.The manufacturer's representative reserves the right to decide on the correct interpretation of this manual.

2. Safety

-DO NOT RISK-

All wireless devices may cause interferences, which could affect the quality of other connections. Do not switch the device on in places which are prohibited from using cell phones, or when it may cause interferences or other dangers. Always abide by any kinds of prohibitions, regulations and warnings conveyed by the staff.

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

—RESTRICTIONS IN USE—

Wi-Fi wireless connectivity uses the 2.4 GHz band and the 5 GHz band. The 5 GHz Wi-Fi band shall not be used outdoors in the European Union. Please observe the

national and local regulations at the place of use.

Additional safety instructions for lasers

LASER RADIATION. DO NOT STARE INTO THE BEAM The laser beam can cause serious damage to your eyesight. Do not look directly or indirectly (surface reflection) at the source of the Laser beam.

Yellow triangular warning sign with black sunburst pattern (no text)

During use, the laser beam must not be directed directly or indirectly at other people (through reflective surfaces).

Under no circumstances must the housing be opened. If the device is damaged, have it repaired by an authorized service center.

LASER This Laser meets the requirements of IEC/EN 60825-2 1:2014 for Class 2 equipment. The Laser does not contain any parts that require maintenance.

-QUALIFIED SERVICE-

Only qualified personnel or an authorized service center may install or repair this product. Repairing the device by an unqualified or unauthorized service technician may result in damage to the device and void the warranty.

-WI-FI (WLAN)-

In the European Union Member States, a WLAN network may be used indoors without any restrictions.

—PETROL STATIONS—

Do not use your mobile phone while refuelling at a petrol station or in the vicinity of chemicals.

CAUTION! In places where there is a risk of explosion (i.e. Petrol stations, chemical factories etc.), it is advisable to turn off the phone. Please refer to regulations governing the use of GSM equipment in these places.

-ALARM CALLS-

Making alarm calls may not be possible in some areas or circumstances. It is recommended to find an alternative way to notify emergency services if you are going to this type of remote areas.

-ROAD SAFETY-

Apart from emergency situations, using the phone while driving should be carried out only with use of a headset or a speakerphone, which ensures safety and does not limit motor abilities of the user. If one does not own a headset and still wants to use the phone, one should pull over and stop the car. Pay attention to the legal regulations of the country you are in, concerning the use of mobile phone while driving.

—WATER AND OTHER LIQUIDS—

The device has resistance certificate IP69. It means that the device is dust-proof and waterproof when all of the rubber seals are intact and properly put in place.

As far as possible protect the device from water and other liquids. Water and other fluids do not have a positive effect on phone electronic components. If wet, wipe and dry the device as soon as possible.

Make sure the USB cable is dry before connecting it to the phone's charging socket. Plugging the cable into a wet or damp outlet exposes it to slow corrosion and may cause problems with charging your phone

-CHILDREN,&PHYSICALLY/MENTALLY DISABLED PEOPLE-

This device should not be operated by people (including children) with limited physical or mental abilities, as well as by people with no earlier experience in operation of electronic equipment. They may use the device only under supervision of people responsible for their safety. This device is not a toy. Memory card and SIM card are small enough to be swallowed by a child and cause choking. Keep the device and its accessories out of reach of children.

-BATTERY AND ACCESSORIES-

Avoid exposing the battery to very high/low temperatures (below 0^ C/ 32^ F and over 40^ C/ 104^ F). Extreme temperatures may influence capacity and battery life. Avoid contact with liquids and metal objects as it may cause partial or complete battery damage. The battery

should be used according to its purpose. Do not destroy, impair or throw the battery into flames - it might be dangerous and may cause fire. Worn-out or impaired battery should be placed in a dedicated container. Installing an incorrect battery type can cause an explosion. Never open the battery. Please dispose of battery according to the instructions. Disconnect an unused charger from power grid. In case of the charger wire damage, it should not be repaired but replaced with a new one cable or a new charger. Use the original manufacturer's accessories only.

-HEARING-

To avoid hearing damage, do not use the device at high volume levels for a long period of time, do not put device directly to the ear.

Yellow triangular warning sign with sun and eye symbol (no text)

-EYESIGHT-

To avoid eyesight damage do not look closely onto the flash light during its work. A strong bean of light may potent eye damage!

3. The use of the manual

Pictures of the device and screenshots contained in this user manual may differ from the actual product. Accessories attached to the smartphone set may differ from the illustrations included in manual. Options described in the manual are found in Android system. Those descriptions may differ, depending on the version of the operating system and applications installed on the device.

Without prior written consent of the manufacturer, no part of this manual may be photocopied, reproduced, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in any systems of storing and sharing information.

4. Important information

The majority of applications which can be installed on the device are mobile apps. Modus operandi of such applications may be different from their counterparts installed on a personal computer. Apps installed on the device may vary depending on country, region, and hardware specifications. The manufacturer is not liable for problems caused by third party software. The manufacturer is not responsible for anomalies that may occur when editing the registry settings and modifying the operating system software. Attempts to modify the operating system can cause malfunctions and problems with applications. It may cause a loss of warranty.

Android System

Android 12 delivers even more personal, safe and effortless experiences on your device. Featuring a totally reimagined UI just for you, new privacy features that are designed for your safety and put you in control, and more seamless ways to get right to your gameplay or even switch to a new device.

Google Play

Google Play is your entertainment unbound. It brings together all of the entertainment you love and helps you explore it in new ways, anytime, anywhere. We've brought the magic of Google to music, movies, TV, books, magazines, apps and games, so you get more from your content every day.

4.1 Trademarks

• Google, Android, Google Play are Google LLC trademarks.
• Oracle and Java are a registered trademarks of Oracle and / or its affiliates.
• Wi-Fi® Wi-Fi logo are a registered trademarks Wi-Fi Alliance association.
• All other trademarks and copyrights belong to their respective

owners.

Manufacturer

mPTech Ltd.

Manufactured in China

5. Package content

• HAMMER CONSTRUCTION
- Charger (adapter + USB cable)
- User manual

If any of the above items is missing or damaged, please contact your dealer.

6. Technical Specification

Display: 6.0", FHD+ (2160 x 1080px), Gorilla Glass 3

Processor (CPU/GPU): Helio G85 Octa-core

Main camera (rear): 16Mpx + 8Mpx with LED lamp

Front camera: 8Mpx

RAM memory: 6 GB

Internal memory: 128 GB

Card reader: microSD (up to 1 TB)

Operating system: Android 12

Dual SIM: 2x nanoSIM (hybrid)

Water and dust resistance: IP69

Connector: USB-C

Battery: 6000 mAh, built-in

Charger input parameters: 100-240V \~ 0.3A, 50/60Hz

Charger output parameters: 5.0V=2.0A, 10.0W

Average efficiency during operation (for 230V, 50hz): 79.27%

Energy consumption in no-load condition: less than 0.3W

Dimensions: 168.6 × 82.8 × 15.2mm

Weight netto: 321.8g

1. Appearance of the phone

	Funcitons
1	Brightness and proximity sensors
2	Internal speaker
3	8 Mpx digital camera lens (selfie)
4	Notification diode
5	Laser Rangefinder
6	Minijack socket 3.5 mm (under waterproof seal)
7	16 Mpx digital camera lens (main)
8	0.3 Mpx digital camera lens (auxiliary)
9	Camera flash / Torch
10	The tray for SIM cards/ microSD
11	Volume control buttons
12	Service hole! Do not insert any objects inside. Damage will result in the loss of warranty!
13	Blockade on/off button
14	Programmable button
15	Touchscreen 6,0"
16	External speaker
17	Multifunctional USB-C port (under a waterproof plug)
18	Microphone
19	Fingerprint reader
20	Installation methods for SIM and microSD cards - hybrid Dual SIM

8. eSIM function

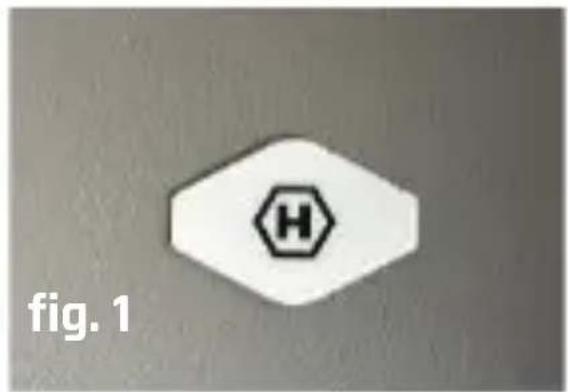

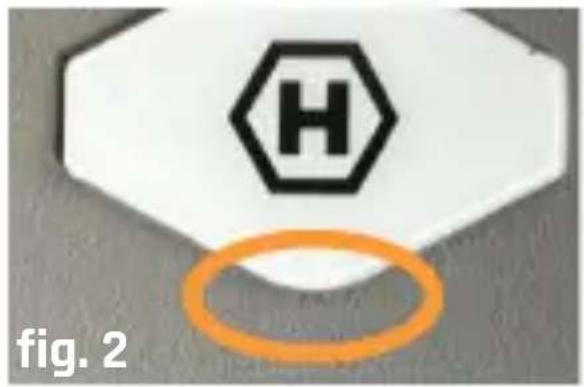

In the box there is a special tool (fig. 1) that makes it easier to open the SIM card slot. Always use the bottom edge of the tool to pry the tray open (fig. 2).

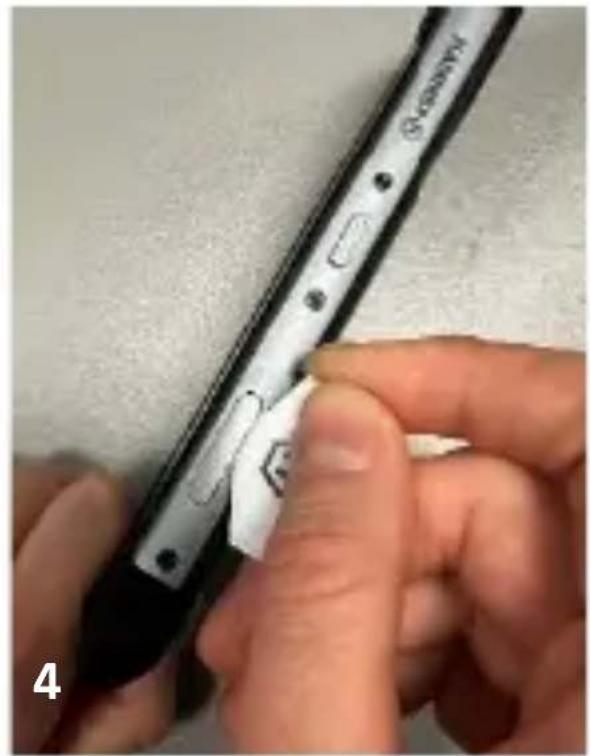

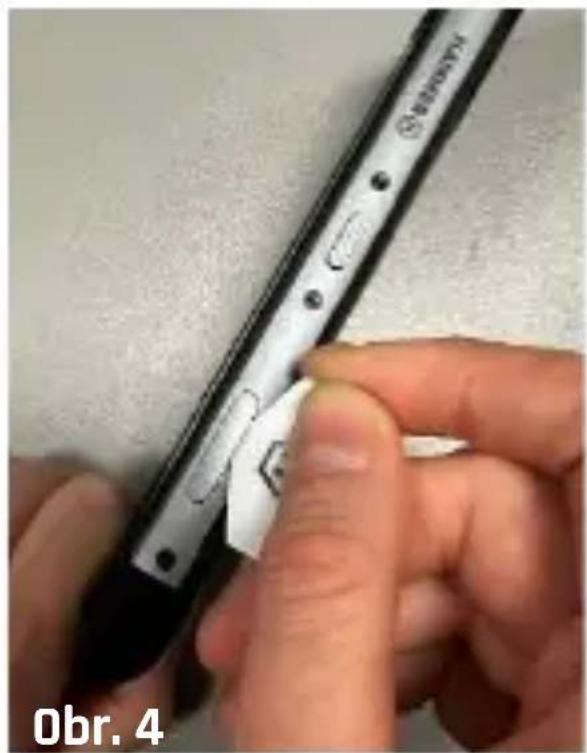

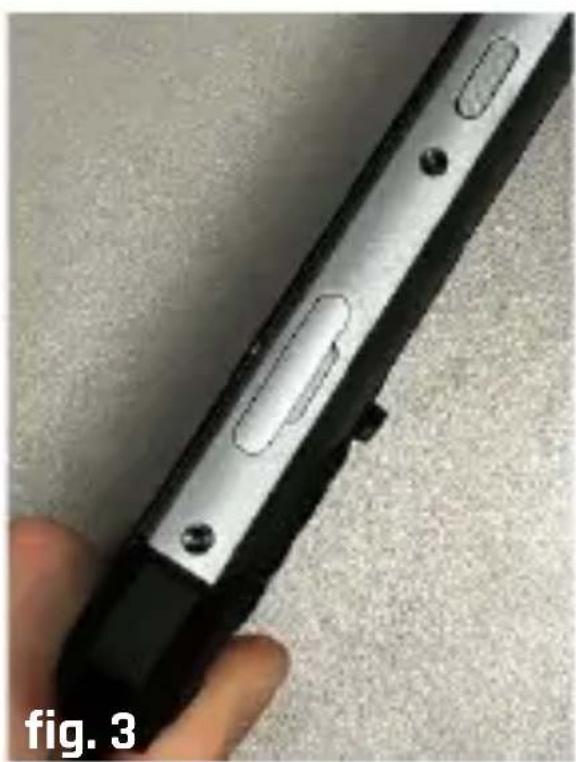

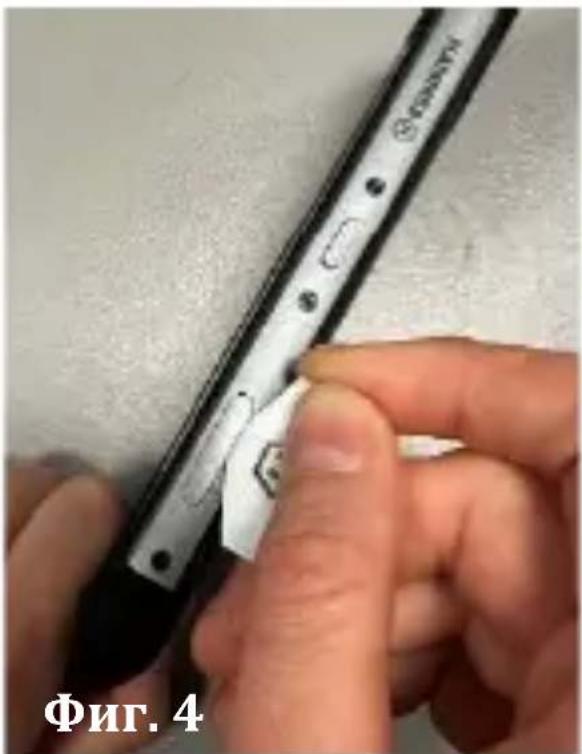

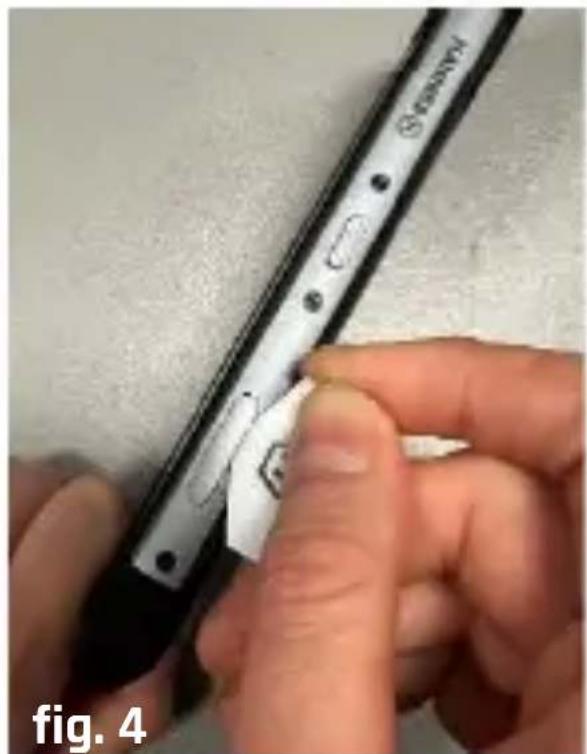

In the slot next to the SIM card slot (fig. 3), insert the bottom edge of the tray eject tool (fig. 4):

Close-up of a hand holding a black and silver electronic device with a white oval slot, labeled 'fig. 3' at bottom left (no other text or symbols visible)

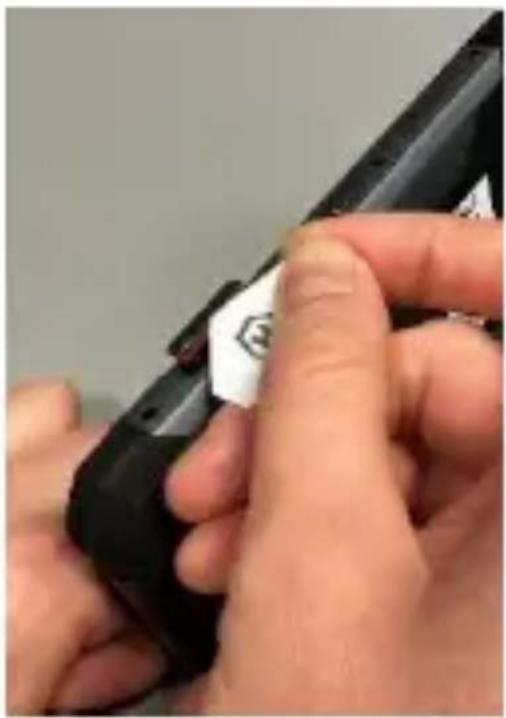

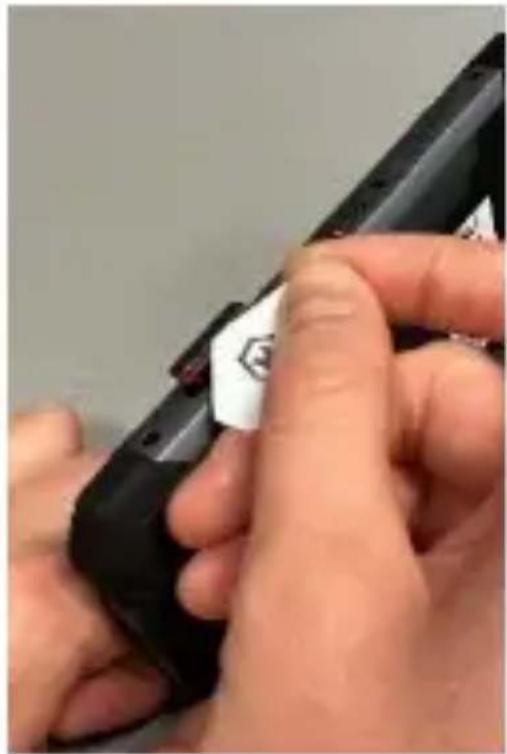

At the end, it is enough to slightly pry it (fig. 5) and it's ready:

Close-up of hands holding a black game controller with a white tag (no visible text or symbols)

Hammer Construction is equipped with a tray for SIM / eSIM / microSD cards, thanks to which you can use the phone in the following configurations:

1. SIM 1 card + SIM 2 card
2. SIM card + eSIM card
3. SIM card + microSD card
4. Micro SD card + eSIM card

eSIM is only supported by slot 1!

In the case of OPM phones, in order to be able to fully use the eSIM card, first, the nano eSIM card must be removed from the large card attached, which will enable the use of the virtual eSIM profile. Next, we need to place the nano eSIM card in slot 1 of the tray.

eSIM is only supported by slot 1!

In the case of phones dedicated to operators, in order to facilitate the quickest start of using the eSIM function, a special card for this is needed already placed in your Hammer Construction in slot No. 1 of the tray. However, if you do not want to use the eSIM function and your preferred configuration is, for example, to have 2 regular SIM cards, you need to remove the eSIM card and insert one of the standard nano SIM cards in its place.

An Internet connection (Wi-Fi or cellular data) is required to install the eSIM profile. The smartphone should have an eSIM to connect to the profile. Make sure it is located in the SIM slot. (It resembles a standard SIM card).

8.1 Starting and activating the eSIM card

Go to [Settings] and select [Mobile Network/eSIM] from the menu list (if a regular SIM card is inserted, go to [eSIM]) to start the card installation. Activating the eSIM card involves downloading its profile by going through the configuration.

If the SIM card is in the phone and already has an eSIM profile assigned by the carrier, the phone will automatically download and install this profile.

If adding a new eSIM card, remove the SIM card before configuration!

To set up a new eSIM profile, you will need to enter a special QR code you receive from your carrier, which you can scan with a QR code scanner or enter manually by going to the [Need help?] tab while scanning.

After scanning or entering the code, the card's profile will download automatically.

Once the profile is downloaded, [Menu] > [Settings] > [Mobile

Network/eSIM] will show a tab with the name of the operator and eSIM signature, and a network coverage icon in the top status bar.

8.2 Disabling and deleting the profile

To disable the eSIM card's profile, go to [Settings] > [Mobile

Network/eSIM] > [eSIM card's operator name] expand advanced options, then in the [Operator] tab go to the settings icon and select Disable/Enable. Once the card is disabled, the coverage icon will disappear from the top bar.

To remove the selected eSIM card profile completely, select Delete.

9. Buttons

Menu (virtual)

Pressing it will cause the list of open apps to appear, where you can switch in-between or turn them off.

Home (virtual)

One quick press takes you to phone desktop. A longer press launches Google Assistant.

Back (virtual)

Press to exit the application / return to the previous screen.

Blockade on/off button

• One quick press locks/unlocks the screen.

• Pressing the button for about 2 sec. will cause:

• If the smartphone is off - the device would switch on.

• if the smartphone is switched on, call up a menu to shut down the device, reboot the system.

Volume increase and decrease buttons

Pressing during a voice call will cause an increase or decrease of the audio connection volume.

Programmable button

Pressing on an unlocked smartphone launches a user-defined action

or application You can change its function using the settings menu.

10. Using the touch screen

The smartphone's touchscreen makes it easy to select items, perform operations and gestures. The touchscreen can be controlled by the following actions:

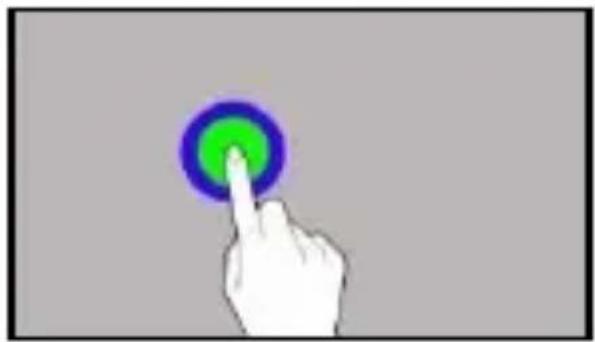

10.1. Touch

Touch one to start options, app, menu.

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

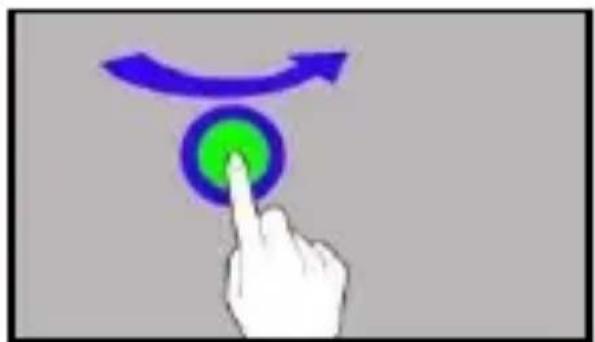

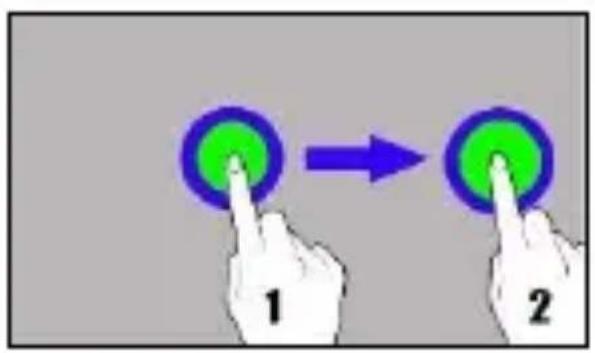

10.2 Swipe

Quickly swipe up, down, to the left or to the right, to scroll the list or the screen.

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

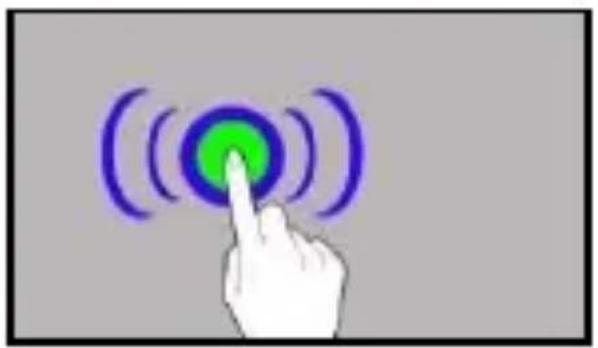

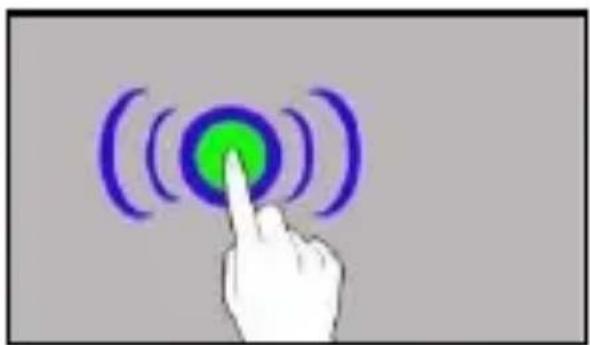

10.3 Triple click

Quickly tap the screen three times to start zooming - if this option is enabled in your smartphone settings.

Hand pressing a circular button with purple and green concentric rings (no text or symbols)

10.4 Hold and swipe

Touch an element (an icon perhaps) and hold it for about 1 seconds. Then you can delete/uninstall that element.

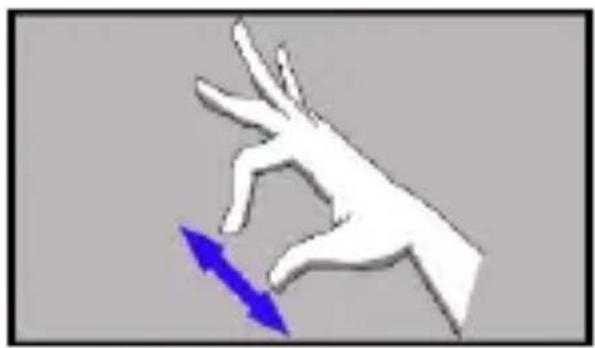

10.5 Slide in and out

Touch the screen with two fingers and slide them together or apart to zoom in or out a photo or a map.

White hand reaching toward a blue arrow, no text or symbols present

11. Communication

11.1 Making calls

To make a call touch [Phone] icon placed on the main screen or in Android applications menu. Insert the phone number you wish to call. Press "green handset" placed at the bottom of the screen and choose which SIM card you wish to use.

11.2 SMS - Messages

You can manage your messages using the [Messages]

application in the home screen or smartphone menu. Start the

application and touch the icon , type the phone

number, name of the contact or select a contact from the list. When you have chosen the contact a screen will appear where you type the message itself. Type the message body.

Before you send a text message you can transform it into a multimedia message by pressing symbol, situated in the left corner of the textbox and adding a sticker, audio or location. To add a photo from the gallery or directly from your camera, tap the symbol

To send the message press

12. Maintenance of the device

Follow the instructions below.

• For cleaning use only a dry cloth. Never use any agent with a high concentration of acids or alkalis.
• Use the original accessories only. Violation of this rule may result in an invalidation of the warranty.

13. Correct disposal of used equipment

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

The device is marked with a crossed-out garbage bin, in accordance with the European Directive 2012/19/EU on used electrical and electronic Equipment (Waste Electrical and Electronic equipment - WEEE). Products marked with this symbol should not be disposed of or dumped with other household waste after a period of use. The user is obliged to get rid of used electrical and electronic equipment by delivering it to designated recycling point in which dangerous waste are being recycled. Collecting this type of waste in designated locations, and the actual process of their recovery contribute to the protection of natural resources. Proper disposal of used electrical and electronic equipment is beneficial to human health and environment.

To obtain information on where and how to dispose of used electrical and electronic equipment in an environmentally friendly manner, user should contact their local government office, the waste collection point, or point of sale, where the equipment was purchased.

14. Correct disposal of used battery

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

According to the EU directive 2006/66/EC with changes contained in EU directive 2013/56/UE on the disposal of batteries, this product is marked with crossed-out garbage bin symbol. The symbol indicates that the batteries used in this product should not be disposed with regular household waste, but treated according to the legal directives and local regulations.

It is not allowed to dispose of batteries and accumulators with unsorted municipal waste. Users of batteries and accumulators must use the available collection points of these items, which allows them to return, recycle and disposal. Within the EU, the collection and recycling of batteries and accumulators is a subject to separate procedures. To learn more about existing procedures of recycling of batteries and accumulators please contact your local office or an institution for waste disposal or landfill.

Uživatelský manuál

HAMMER CONSTRUCTION

1. Obsah balení

Black icon of a stylized book with an exclamation mark (no text or symbols)

-OMEZENÍ VYUŽITÍ-

Yellow triangular warning sign with a black sunburst symbol (no text)

-SLUCH-

Yellow triangular warning sign with a black sun and eye symbol (no text)

-ZRAK-

www.myphone-mobile.com

Výrobce:

mPTech s.r.o.

Vyrobeno v Číně

5. Obsah balení

Close-up of a hand holding a black electronic device with a metallic handle and a white oval button, labeled 'Obr. 3' at bottom left (no other text or symbols visible)

Close-up of a hand holding a black game controller with a white tag (no visible text or symbols)

1. SIM 1 card + SIM 2 card
2. SIM card + eSIM card
3. SIM card + microSD card
4. Micro SD card + eSIM card

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

10.4 Držte a posuňte

White hand with a blue arrow pointing downward, no text or symbols present

11. Komunikace

11.1 Volání

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Black exclamation mark symbol on white background (no text or numbers)

-OBMEDZENIA V POUŽITÍ-

Yellow triangular warning sign with a black sunburst symbol at center (no text)

kábel nabíjačky poškodený, neopravujte ho, vymeňte kábel alebo nabíjačku za novú. Používajte iba originálne príslušenstvo od výrobcu.

-SLUCH-

Yellow triangular warning sign with sun and eye symbol (no text)

Close-up of a hand holding a black electronic device with metallic casing and a white oval slot, labeled 'Obr. 3' at bottom left (no other text or symbols visible)

Close-up of a hand holding a black game controller with a white tag (no visible text or symbols)

1. SIM 1 card + SIM 2 card
2. SIM card + eSIM card
3. SIM card + microSD card
4. Micro SD card + eSIM card

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

10.3 Trojité kliknutie

Hand pressing a circular button with purple and green concentric rings (no text or symbols)

10.4 Držte a posuňte

Abstract illustration of a hand reaching toward an angle with a blue arrow indicating direction (no text or symbols)

11. Komunikácia

11.1 Volanie

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no text or symbols (no text or labels)

Black icon of an exclamation mark on a stylized book (no text or symbols)

Yellow triangular warning sign with a black sunburst symbol at center (no text)

-HALLÁS-

Yellow triangular warning sign with sun and eye symbol (no text)

-LÁTÁS-

Close-up of a hand holding a black game controller with a white tag (no visible text or symbols)

1. SIM 1 card + SIM 2 card
2. SIM card + eSIM card
3. SIM card + microSD card
4. Micro SD card + eSIM card

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

10.2 Csúsztatás

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

10.3 Tripla kattintás

Hand pressing a circular button with purple and green arcs, symbolizing wireless or digital signal (no text or symbols)

10.4 Nyomvatartás

White hand reaching toward a blue arrow, no text or symbols present

11. Kommunikáció

Simple line drawing of a trash bin with crossed diagonals and a blank base (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

RADIAZIONE LASER.NON GUARDARE IL RAGGIO IL

Black exclamation mark symbol on white background (no text or numbers)

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a circular button with purple and green concentric rings (no text or symbols)

White hand holding a large object with a blue arrow pointing downward (no text or symbols)

10. Comunicazione

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no text or symbols (no text or labels)

Yellow triangular warning sign with sun and eye symbol (no text)

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

9.2 Deslizar

Hand pressing a button with a green center and blue curved arrow above it (no text or symbols)

9.3 El click triple

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

9.4 Sujetar y mover

White hand gesture with a blue arrow pointing downward (no text or symbols)

10. Comunicación

Simple line drawing of a trash bin with crossed x and y axes, no text or symbols present

Simple line drawing of a trash bin with no text or symbols

1. Communication....133

RAYONNEMENT LASER. NE REGARDEZ PAS LE

—SERVICE PROFESSIONNEL—

Yellow triangular warning sign with sun and eye symbol (no text)

Dimensions: 168.6 × 82.8 × 15.2mm

Poids netto: 321.8g

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

9.3 Triple-clic

Hand cursor clicking a circular button with green center and purple waves (no text or symbols)

White hand reaching toward a blue arrow, no text or symbols present

10. Communication

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Yellow triangular warning sign with sun and eye symbol (no text)

Câmara principal (atrás): 16Mpx + 8Mpx com LED

Câmara frontal: 8Mpx

Memória RAM: 6 GB

Hand pressing a green circular button with a blue ring (no text or symbols)

9.2 Deslizar

Hand pressing a button with a green circular icon and curved arrows above (no text or symbols)

9.3 El click triple

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

9.4 Sujetar y mover

White hand gesture with blue directional arrows indicating movement or force (no text or symbols)

10. Comunicación

Simple line drawing of a trash bin with crossed lines and a solid black rectangle below (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Yellow triangular warning sign with a stylized eye and sunburst symbol (no text)

Kartenleser: microSD (max. 1 TB)

Hand pressing a circular button with a green center and blue ring (no text or symbols)

9.2 Verschieben

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

White hand gesture with blue directional arrows pointing downward (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

LASERKIIRGUS. ÄRGE KIIRT VAADAKE! Laserkiir

-KUULMINE-

Yellow triangular warning sign with sun and eye symbol (no text)

Veebileht: www.myphone-mobile.com

Toodetud Hiinas

5. Pakendi sisu

• Mobiltelefon HAMMER CONSTRUCTION
- Laadija (adapter + USB-kaabel)
- Kasutusjuhend

Close-up of a hand holding a black electronic device with a metallic handle and circular button, against a textured gray background (no text or symbols visible)

Close-up of hands holding a black game controller with a white tag (no visible text or symbols)

1. SIM 1 card + SIM 2 card
2. SIM card + eSIM card
3. SIM card + microSD card
4. Micro SD card + eSIM card

eSIM-i toetab ainult pesa nr 1!

Hand pressing a button with a green circular icon and curved arrows above (no text or symbols)

10.3 Kolmekordne klöps

Hand pressing a circular button with purple and green concentric arcs (no text or symbols)

White hand gesture with blue directional arrows indicating movement or force (no text or symbols)

11. Suhtlemine

11.1 Helistamine

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

1LAZERIO SPINDULIUOTĖ.NEŽIŪRĖKITE I LAZERIO

-PAGALBOS SKAMBUČIAI-

ausies!

Yellow triangular warning sign with sun and eye symbol (no text)

Close-up of a hand holding a black and silver electronic device with a handle, against a textured gray background (no visible text or symbols)

Close-up of hands holding a device with a small white tag, no visible text or symbols on the device itself

Close-up of hands holding a black game controller with a white tag (no visible text or symbols)

1. SIM 1 card + SIM 2 card
2. SIM card + eSIM card
3. SIM card + microSD card
4. Micro SD card + eSIM card

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand touching a circular button with purple and green waves, no text or symbols present

LT © mPTech. Visos teisés saugomos.

White hand with blue arrow pointing downward, no text or symbols present

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

LÄZERA STAROJUMS.NESKATIETIES UZ LÄZERA

Yellow triangular warning sign with sun and eye symbol (no text)

-REDZE-

Close-up of a hand holding a black handheld device with a metallic handle and circular button, against a textured gray background (no text or symbols visible)

Beigās pietiek ar to nedaudz pagriezt (5. att.) un gatavs:

Close-up of a hand holding a black game controller with a white tag (no visible text or symbols)

1. SIM 1 card + SIM 2 card
2. SIM card + eSIM card
3. SIM card + microSD card
4. Micro SD card + eSIM card

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

10.2 Pavilkšana

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a circular button with purple waveform icons (no text or symbols)

White hand with a blue arrow pointing downward, no text or symbols present

11. Sakari

11.1 Zvanu veikšana

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with two crossed lines indicating no text or symbols (no text or labels)

RADIATIE LASER.EVITATI CONTACTUL VIZUAL

Yellow triangular warning sign with a sun and eye symbol (no text)

Close-up of a hand holding a black and silver electronic device with a white handle, against a textured gray background (no visible text or symbols)

La sfarsit, este suficient sa-l strabati usor (fig. 5) si este gata:

Close-up of a hand holding a black game controller with a white tag, no visible text or symbols

1. SIM 1 card + SIM 2 card
2. SIM card + eSIM card
3. SIM card + microSD card
4. Micro SD card + eSIM card

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

LASER

2

Yellow triangular warning sign with sun and eye symbol (no text)

Close-up of a hand holding a black and silver electronic device with a handle, showing internal components (no text or symbols visible)

Close-up of hands holding a black game controller with a white tag and number 5 visible (no text or symbols on the controller itself)

1. SIM 1 card + SIM 2 card
2. SIM card + eSIM card
3. SIM card + microSD card
4. Micro SD card + eSIM card

White hand with a blue arrow pointing downward, no text or symbols present

11. Связь

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

Yellow triangular warning sign with a black sunburst symbol at center (no text)

Close-up of a hand holding a black electronic device with metallic contacts and a white internal slot, labeled 'Фиг. 3' at bottom left (no other text or symbols)

www.myphone-mobile.com

Произведено в Китай

5. Съдържание пакет

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

10.2 Плъзгане

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand touching a circular button with green and purple segments, symbolizing wireless or digital signal (no text or symbols present)

White hand gesture with blue directional arrows indicating movement or action (no text or symbols)

11. Комуникиране

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple line drawing of a trash bin with no text or symbols
