Thermup Double - Bottle warmer Lionelo - Free user manual and instructions

Product type	Double bottle warmer
Brand	Lionelo
Model	Thermup Double
Dimensions (approx.)	20 x 20 x 22 cm
Weight	~1 kg
Power supply	220-240V ~ 50/60 Hz
Power	300 W (estimated)
Main functions	Defrosting/warming, keep warm (37-60°C), food warming (60-90°C), fast warming, disinfection
Capacity	Up to 280 ml of milk
Compatible bottle types	Glass, plastic, silicone
Auto shut-off	Depending on function: 30 min, 24 h, 6 h, or water evaporation
Keep warm temperature	Range 37-60°C
Food temperature	Range 60-90°C
Control panel	Touch with function selection and settings
Supplied parts	Lid, basket for bottle/container
Care and cleaning	Wipe with a soft, damp cloth; regular descaling (white vinegar or citric acid)
Safety	Do not use without water; do not immerse; hot surface; keep out of reach of children under 3 years
Housing material	Heat-resistant plastic
Warranty	See conditions on manufacturer's website
Country of manufacture	China (probable)
Intended use	Domestic only, for heating and defrosting baby food

Frequently Asked Questions - Thermup Double Lionelo

How to use the defrosting/warming function?

Place the bottle in the basket, fill with water to the mark, select the defrosting/warming function (4) and adjust the bottle's water amount with the +/- buttons. The device starts automatically after 3 seconds. The end is signaled by a beep.

How much water should I put in the device?

For defrosting/warming, fill to the maximum water level mark (10). For fast warming or disinfection, use exactly 80 ml of water.

How to adjust the keep warm temperature?

Select the keep warm function (5). Use the +/- buttons to adjust between 37°C and 60°C. The default temperature is 40°C.

Can I heat solid food?

Yes, use the food warming function (6). Place a heat-resistant container in the basket. Set the temperature between 60°C and 90°C. Stir regularly for even heating.

How long does fast warming take?

The duration depends on the amount of milk and the bottle material. Refer to the table in the manual. For example, for 60 ml of milk at 4°C in a glass bottle, expect about 4-6 minutes with 80 ml of water.

How to disinfect bottles?

First wash and rinse the bottle. Fill the device with 80 ml of water, place the bottle and accessories with the opening facing up, close the lid. Select the disinfection function (7) and set the duration (1 to 30 minutes). The device turns off when the water has evaporated.

What types of bottles are compatible?

The device is suitable for bottles made of glass, plastic and silicone. Heating times vary: glass heats faster than plastic, and silicone is the slowest.

How to clean the device?

Unplug it and let it cool down. Empty residual water. Wipe the inside and outside with a soft, damp cloth, then dry. Do not use abrasive products or hard brushes.

How often should I descale the device?

Every 4 weeks. Use either 50 ml of white vinegar + 100 ml of cold water, or 10 g of citric acid + 200 ml of cold water. Run the disinfection function for 2-3 minutes, then let it sit until the limescale dissolves. Rinse thoroughly.

The device turns off automatically, is this normal?

Yes, each function has an auto shut-off: 30 minutes for defrosting/warming, 24 hours for keep warm, 6 hours for food warming, and after water evaporation for disinfection. This prevents overheating.

USER MANUAL Thermup Double Lionelo

Double bottle warmer

Line drawing of a fish-shaped container with internal compartments and a handle, labeled with number 10 (no text or symbols on the diagram itself)

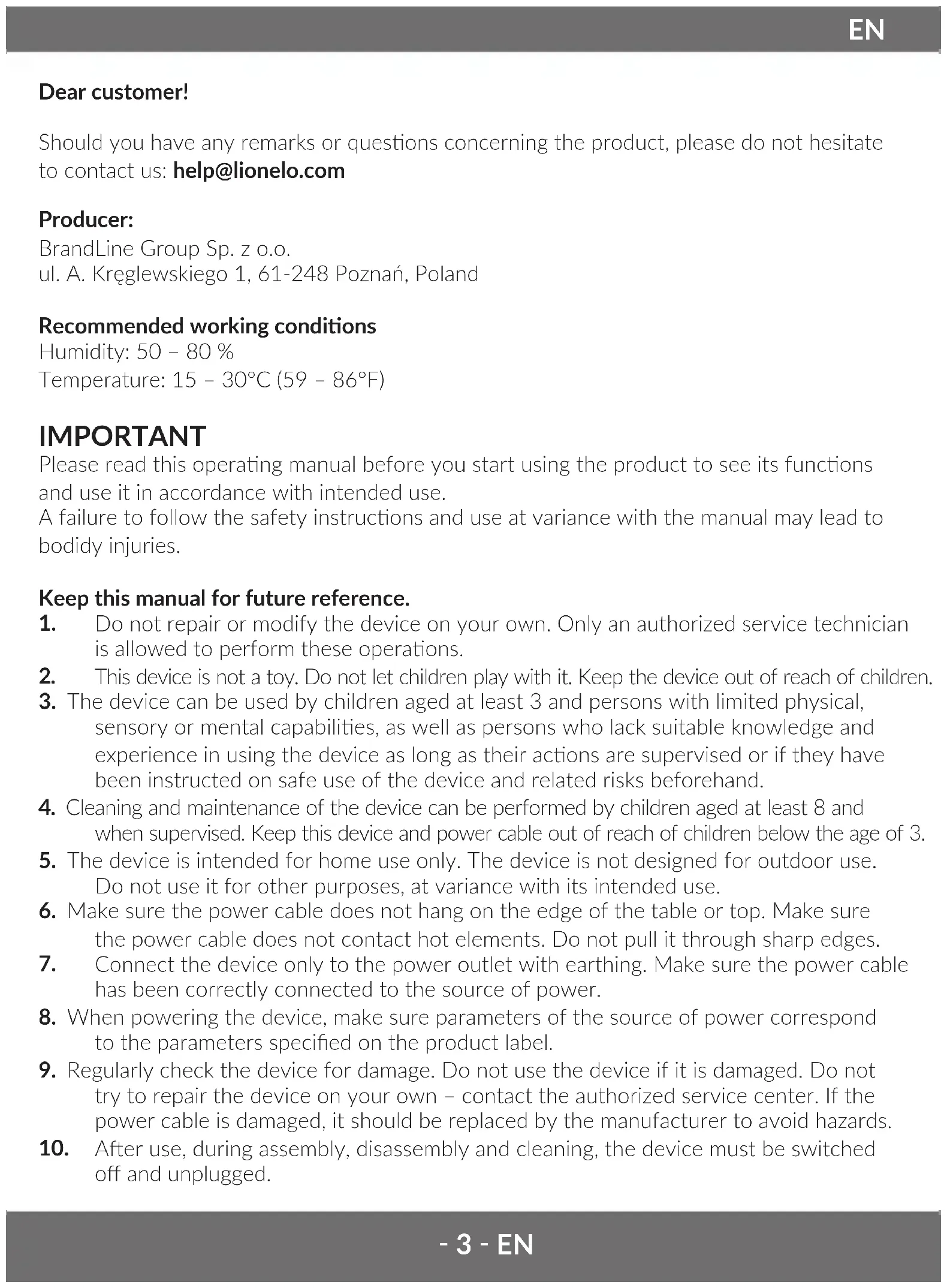

Dear customer!

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

Producer:

BrandLine Group Sp. z o.o.

Recommended working conditions

Humidity: 50 - 80 %

Temperature: 15 - 30°C (59 - 86°F)

IMPORTANT

Please read this operating manual before you start using the product to see its functions and use it in accordance with intended use.

A failure to follow the safety instructions and use at variance with the manual may lead to bodidy injuries.

Keep this manual for future reference.

1. Do not repair or modify the device on your own. Only an authorized service technician is allowed to perform these operations.
2. This device is not a toy. Do not let children play with it. Keep the device out of reach of children.
3. The device can be used by children aged at least 3 and persons with limited physical, sensory or mental capabilities, as well as persons who lack suitable knowledge and experience in using the device as long as their actions are supervised or if they have been instructed on safe use of the device and related risks beforehand.
4. Cleaning and maintenance of the device can be performed by children aged at least 8 and when supervised. Keep this device and power cable out of reach of children below the age of 3.
5. The device is intended for home use only. The device is not designed for outdoor use. Do not use it for other purposes, at variance with its intended use.
6. Make sure the power cable does not hang on the edge of the table or top. Make sure the power cable does not contact hot elements. Do not pull it through sharp edges.
7. Connect the device only to the power outlet with earthing. Make sure the power cable has been correctly connected to the source of power.
8. When powering the device, make sure parameters of the source of power correspond to the parameters specified on the product label.
9. Regularly check the device for damage. Do not use the device if it is damaged. Do not try to repair the device on your own – contact the authorized service center. If the power cable is damaged, it should be replaced by the manufacturer to avoid hazards.

10. After use, during assembly, disassembly and cleaning, the device must be switched off and unplugged.

11. Keep the device away from sharp edges and sources of heat and moisture. The device must not be exposed to direct sunlight.

12. Do not immerse the device or power cable in water or other liquids.
13. Make sure the device does not overheat.
14. Before you insert the bottle in the warmer and pour water in, make sure it is properly tight
15. Before you switch the device on, make sure there is water inside. Never turn the device on when water is missing.
16. Hot water may cause serious burning. If there is hot water in the device, carefully handle the device.
17. The surface of the device may get hot under the influence of hot water. Please remain careful
18. Do not move the device if it contains hot water.
19. When heated food reaches the desired temperature, take the bottle out of the warmer. Do not heat food up too long.
20. To make sure milk is warm enough, pour out a few drops on your forearm and assess the temperature. As for solid foods – taste it to make sure it is not too hot.
21. Before you start cleaning the device, wait until it gets cool.

The product complies with requirements of the EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. Do not dispose of it together with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electric and electronics recycling center.

List of parts (fig. A)

1. Cover
2. Bottle/container basket
3. Touch panel
4. Milk defrosting/heating
5. Constant temperature
6. Food heating
7. Quick heating/disinfecting
8. Value down/up
9. On/off switch
10. Maximum water level

Defrosting and heating

1. Place the bottle in the basket (2, fig. A).
2. Pour water into the warmer. Water must not exceed the maximum level in the basket (10, fig. A)
3. Choose defrosting/heating on the touch panel (4, fig. A).
4. Choose the amount of milk in the bottle through value down or up keys (8, fig. A).
5. The device will start working automatically 3 seconds after you select the function.
6. The display shows heating time. When heating is over, a distinctive sound is emitted.
7. Before you serve food, shake the bottle and then check the temperature. Take the bottle

out of the device when heating is finished to avoid food overheating.

1. Heating time depends on the material of the bottle (see: table below).
2. The device will shut down automatically after 30 minutes.

Amount of milk 60 - 120 ml 120 - 180 ml 180 - 240 ml
Glass bottle 4 - 6,5 min 6,5 - 7,5 min 7,5 - 9,5 min
Plastic bottle 6 - 8 min 8 - 9,5 min 9,5 - 10,5 min
Silicone bottle 8,5 - 11,5 min 11,5 - 15 min 15 - 17,5 min

NOTE

The aforesaid data apply to initial temperature of 20^ C for water and 3-7^ C for milk. In order to obtain specific temperature, use the constant temperature function.

Constant temperature

1. This function allows you to keep a constant temperature of milk or water. The default temperature is 40^ C.
2. Place the bottle in the basket (2, fig. A).
3. Pour water into the warmer. Water must not exceed maximum level in the basket (10, fig. A).
4. Select constant temperature on the touch panel (5, fig. A).
5. The display shows the temperature of heated liquid. The temperature can be adjusted in the range from 37^ C to 60^ C through value up or down keys (8, fig. A).
6. The device will start working automatically 3 seconds after you select the function.
7. Before you serve food, shake the bottle and check the temperature.
8. The device will shut down automatically after 24 hours.

Food heating

1. Place the heat-resistant container with food in the basket (2, fig. A).
2. Pour water into the warmer. Water must not exceed the maximum level in the basket (10, fig. A).
3. Select food heating on the touch panel (6, fig. A).
4. The display shows temperature of heated food. The default temperature is 60^ C. The temperature can be adjusted in the range from 60^ C to 90^ C through value up and down keys (8, fig. A).
5. The device will start working automatically 3 seconds after you select the function.
6. In order to heat food evenly, it is advisable to stir it regularly.
7. The device will shut down automatically after 6 hours.

Quick heating

1. Place the bottle in the basket (2, fig. A).

2. Pour 80 ml of water into the warmer.

3. Select quick heating on the touch panel (7, fig. A).

4. The display shows quick heating time which you have selected. You can adjust the time through value up and down keys (8, fig. A).

5. The device will start working automatically 3 second after you have selected the function.

6. The device has a smart memory system which remembers last heating time settings.

7. The display shows heating remaining time.

8. When heating is finished, you will hear a distinctive sound. The device switches into a constant temperature mode automatically. The default temperature is 40^ C.

9. Before you serve food, shake the bottle and then check the temperature.

NOTE

In case of quick heating, use the device together with its cover.

Depending on the amount of milk, the recommended heating time is presented in the table below.

Bottle Initial temp.		Amount of water	Amount of milk
			60ml 12	20ml 180ml	240ml 280 ml
Glass	4°C/41°F	min 5 min 80ml min 7 min 8 min 6 min	4 min 6	min 7 min	7 min 8 min
	20°C/68°F 3		5 min 6	min 6 min
Plastic	4°C/41°F 5		8 min 9	min 10 min
	20°C/68°F 5		7 min 8	min 8 min

Sterilization

1. Before you start disinfecting, please wash and carefully rinse the bottle and accessories.

2. Pour 80 ml of water into the warmer.

3. Place accessories and the bottle upside down in the warmer.

4. Put the cover on the device.

5. Select disinfecting on the touch panel (7. fig. A).

6. The display shows disinfecting time which you have selected. You can adjust the time in the range from 1 to 30 minutes through value up and down keys (8, fig. A).

7. The device will start working automatically 3 seconds after selecting the function.

8. The display shows disinfection remaining time. When disinfection is finished, the device keeps a constant temperature of the bottle. Please be careful when you are taking the bottle out of the device due to its high temperature.

9. The device will shut down automatically when water evaporates.

Cleaning

1. After every use and before cleaning, unplug the device. Before you start cleaning, wait until the device cools down.

2. Remove water from the device.

3. If you have heated food in the device, make sure there are no remains at the bottom.

4. Wipe the housing and interior of the warmer with a wet soft cloth and then wipe it

dry with a clean cloth or paper towel.

1. For cleaning, do not use scrub sponges, scrub agents or any other caustic substances or chemicals.

Descaling

It is advisable to descale the product on a regular basis, that is every four weeks, to make sure it operates properly.

Method 1

1. Pour 50 mg of white vinegar and 100 ml of cold water into the device.
2. Turn the device on and select disinfecting. Let the device operate for 2-3 minutes.
3. Leave the solution in the device until scale disappears completely.
4. Before you empty the device, unplug it.
5. Pour the solution out of the device. Pour water into the device, rinse remains of the solution and then empty the device.

Method 2

1. Mix 10 g of citric acid and 200 ml of cold water in the device.
2. Turn the device on and then select disinfecting. Let the device operate for 2-3 minutes.
3. Leave the solution in the device until scale disappears completely.
4. Before you empty the device, unplug it.
5. Pour the solution out of the device. Pour water into the device, rinse remains of the solution and then empty the device.

NOTE

Do not use other kinds of descalers.

The pictures are for reference only. The real design of the products may differ from the pictures presented.

PL

Drogi Kliencie!

BrandLine Group Sp. z o.o.

BrandLine Group Sp. z o.o.

EN: Simplified EU declaration of conformity

BrandLine Group Sp. z o. o. hereby declares that the “Thermup Double” product complies with the directive: 2014/30/EU - EMC Directive, 2014/35/EU - LVD Directive, 2011/65/EU - RoHS Directive. Full content of EU declaration of conformity is available on the following website:

Detailed warranty conditions are available on the website:

Thank you for purchasing our product
