Thermup Swift - Bottle warmer Lionelo - Free user manual and instructions

Product type	Bottle warmer
Brand	Lionelo
Model	Thermup Swift
Capacity of included container	180 ml
Power supply	5V = 2A via USB-C cable
Battery type	Built-in rechargeable (Lithium-ion)
Adjustable heating temperatures	37°C, 40°C, 45°C, 50°C
Temperature display	Yes, LED screen
Battery level indicator	Yes, 3 levels
Empty liquid detection	Yes, automatic shut-off
Included cable	Yes, USB-C
Included bottle adapters	5 adapters with seals
Included bottle warmer cover	Yes
Cleaning method	Damp cloth, do not immerse
Safety	Do not use if damaged; residual hot surface; keep out of reach of children
Target audience	Adults; children >8 years under supervision
Warranty	Detailed terms on Lionelo website
Recycling	WEEE compliant, do not dispose with household waste
Main material	Plastic and electronic components
Error code E1	Faulty sensor, contact a service center

Frequently Asked Questions - Thermup Swift Lionelo

How to heat milk with the Thermup Swift?

Pour milk at room temperature or boiled water into a suitable bottle. Insert the bottle into the device with the appropriate adapter. Turn on the device by holding the power button for 3 seconds. Select the desired temperature (37°C, 40°C, 45°C or 50°C) by pressing the button. The device heats up to the chosen temperature. Once finished, hold the button for 3 seconds to turn off.

What temperatures are available?

The adjustable temperatures are: 37°C (initial temperature), 40°C, 45°C and 50°C. Press the power button once, twice, or three times to select them.

How to charge the device?

Plug the provided USB-C cable into the device's port, then into a 5V = 2A charger (not included). During charging, the battery indicator shows flashing dashes. When the battery is full, the three dashes are solid.

What to do if the screen shows 'E1'?

Error code E1 indicates a sensor fault. In this case, stop using the device and contact an authorized service center for repair.

Can this device heat solid foods?

Yes, you can heat solid foods (purees, compotes) in the included container. Check the temperature by tasting a small amount before serving.

How to clean the Thermup Swift?

Wipe the device with a clean, damp cloth. Never immerse the device or cable in water. Let it dry completely before next use.

Can the device overheat or heat empty?

The device is equipped with empty liquid detection which automatically stops heating if the container is empty, preventing overheating.

The device is not charging, what to check?

Make sure the USB-C cable and charging port are not damaged. Use a 5V = 2A charger. If the problem persists, contact customer service.

Is it safe for children?

The device can be used by children 8 years and older under supervision. Do not let children play with it. The surface heats up and stays hot after use; keep it out of reach of young children.

Which bottles can I use?

Adapters are provided for different bottle types. Insert the bottle with the appropriate adapter into the groove of the heating element. The included 180 ml container is also compatible.

USER MANUAL Thermup Swift Lionelo

Portable bottle warmer

Line drawing of a USB cable with two connectors (no text or symbols)

3

4

Simple line drawing of a mechanical component with threaded base and flange (no text or symbols)

5

A

Line drawing of a cylindrical mechanical component with a small protrusion and labeled point '5' (no text or symbols on the object itself)

B

EN

Dear Customer!

In case of any questions or comments on the purchased product, please contact us: [e-mail]

Manufacturer:

BrandLine Group Sp. z o. o.

Please read these instructions before operating the product to familiarise yourself with its functions and use it as intended.

Failure to observe safety instructions and use contrary to instructions may result in damage to your health.

Keep these operating instructions for future reference.

1. Never try to repair or modify the product on your own. These actions may only be undertaken by an authorised service centre.
2. This product is not a toy. Do not allow children to play with it. Keep the product out of the reach of children.
3. Keep the product away from sharp edges, and sources of heat and moisture. The product should not be exposed to direct sunlight. Do not overheat the product.
4. Do not immerse the product or power cord in water or other liquids. Before use, make sure the product is dry.
5. Do not use the USB cable for purposes other than those intended.
6. Use only a 5V = 2A power source.
7. To check if the milk or formula isn't too hot, put a few drops on your forearm and test the temperature. For solid foods, taste them yourself to make sure they're not too hot.
8. After use, the surface of the heating element may retain residual heat.
9. This appliance may be used by children aged 8 or older and persons with reduced physical, sensory or mental abilities, as well as by persons without

relevant knowledge and experience in the use of the appliance if they are supervised or have been previously instructed in the safe use of the appliance and the risks involved.

1. Cleaning and maintenance of the product must not be carried out by children.
2. Do not use the appliance if it malfunctions, becomes excessively hot, develops discolouration or bulges, makes unusual sounds, emits odours, or exhibits any other abnormal behaviour. In such cases, please contact an authorised service centre.

PARTS LIST (FIG. A)

1. 180 ml container
2. Warmer
3. USB-C cable
4. Warmer attachment
5. 5x bottle adapters with seals

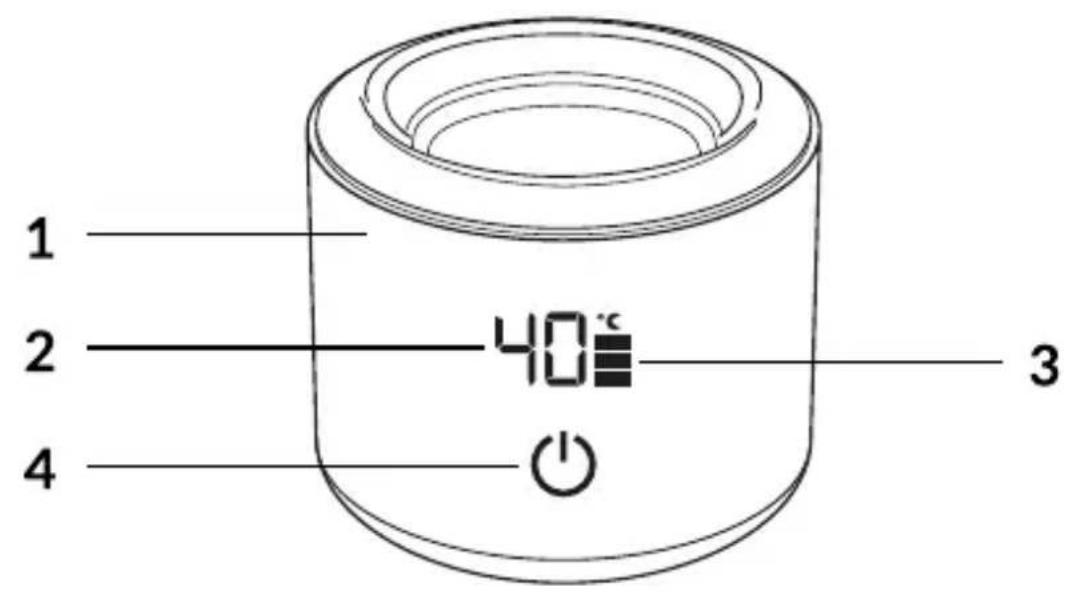

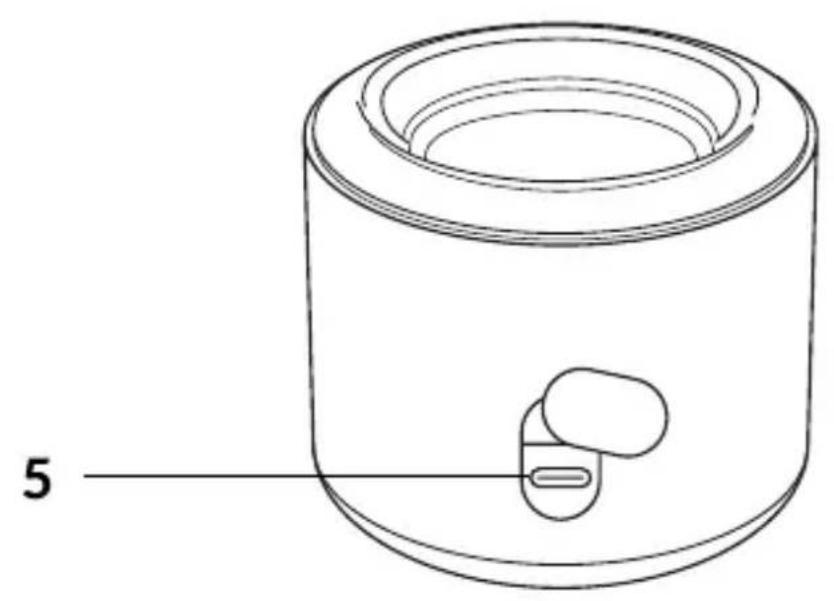

APPLIANCE DESCRIPTION (FIG. B)

1. Warmer
2. Temperature indicator
3. Battery level indicator
4. ON/OFF switch
5. USB-C port

CHARGING

Connect the USB-C cable plug to the warmer (6, Fig. B), and the other end to a recommended 5V == 2A charger.

While charging, the battery level indicator (4, Fig. B) will display: 1 flashing bar / 2 flashing bars / 3 flashing bars. When fully charged, the appliance will show 3 non-flashing bars.

USE

1. Pour boiled water or room-temperature milk/formula into the bottle, then screw the adapter or container onto the warmer.

Important! When assembling, align the adapter or container with the groove in the warmer and the contact point on the bottle. Tighten it using moderate force to avoid damaging the container or adapter.

1. To turn on the appliance, press and hold the ON/OFF switch for 3 seconds (5, Fig. B).

2. The initial temperature of 37^ C will appear on the display (3, Fig. B). Press the ON/OFF switch:

3. once to select 40^ C

4. twice to select 45^ C
   • three times to select 50°C

5. After selecting the temperature, the display will flash 3 times to confirm your chosen setting. The temperature increase can be observed on the display.

6. After heating the liquid, press and hold the ON/OFF switch for 3 seconds.

CLEANING

To clean the warmer, wipe its parts using a clean, damp cloth and leave them to dry.

TROUBLESHOOTING

- The appliance cannot be charged

Check whether the USB-C cable or the charging port in the appliance is damaged.

- Can milk/formula be heated in it?

The main function of the warmer is to heat milk/formula. The heating time depends on the ambient temperature, water temperature, bottle capacity, and battery power.

- Dry-run protection

The product is equipped with a dry-run detection feature that automatically stops heating when the container is empty.

- Error message

If the display shows "E1", it indicates a sensor malfunction. Please submit the appliance for servicing.

The photos are for illustrative purposes only, the actual appearance of the products may differ from that shown in the photos.

Drogi Kliencie!

APPARAATBESCHRIJVING (FIG. B)

EN: The product complies with the requirements of European Union directives.

In accordance with Directive 2012/19/EU, this product is subject to separate

collection. The product should not be disposed of with municipal waste as it may pose a risk to the environment and human health. Return the used product to the recycling centre for electrical and electronic equipment.

EN: The symbol placed on the product indicates that the batteries or accumulators used in it should not be disposed of with household waste. Such waste must be properly sorted in accordance with applicable regulations. Used batteries and accumulators must not be discarded in unsorted waste, as they may pose a risk to the environment and human health. Users should utilize available selective collection points, which enable their return, recycling, and safe disposal. For detailed information on local battery and accumulator recycling regulations, please contact your municipal office, local waste management facility, or landfill.

Note: Lithium batteries may pose a fire or explosion hazard, especially if damaged, overheated, or improperly disposed of. The chemicals contained within them may also be harmful to health and the environment.

Detailed warranty conditions are available on the website:
