USER MANUAL Thermup 2.0 Lionelo

White lionelo blender with digital display and control buttons (no visible text or symbols on device body)

A

1 2 3 4 5 8:00

B

1

2

3

4

5

6

7

1 833

Illustration of a baby bottle with a dropper and digital display (no text or symbols)

3 833℃ Fast Moderate Slow

4 888°C Fast Milk Fast

Illustration of a hand holding a bottle with liquid dripping from it (no text or symbols)

6 880°

Illustration of a blender with a digital display and a cooking tool (no text or symbols)

8 388℃ + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + - - + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + - - - + 833℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃ + 100℃

Illustration of hands pouring liquid from a spoon into a cup with a fork, no text or symbols present

Simple line drawing of a human head profile with a spoon, no text or symbols present

11 880°

12 888°

13 888°C Fast Milk Fast Lumber

Illustration of a wall-mounted electrical socket next to a mechanical clamp, with no text or symbols present.

Illustration of hands cleaning a kitchen sink with a tooth being brushed (no text or symbols)

16 88℃ - -

Dear Customer!

In case of any questions or comments on the purchased product, please contact us:

[e-mail]

Producer:

BrandLine Group Sp. z o. o.

Recommended operating conditions

Humidity: 50 - 80%

Room temperature: 15 - 30°C

Important information

Please read this manual before using the product to familiarize yourself with its functions and use it as intended.

Failure to follow the safety instructions and use not in accordance with the instructions may result in damage to health.

Keep this instruction manual for future reference.

1. Do not repair or modify the device yourself. These operations can only be performed by an authorized service centre.
2. This device is not a toy. Do not allow children to play with it. Keep the device out of the reach of children.
3. The device may be used by children of at least 3 years of age and persons with reduced physical, sensory or mental capabilities, as well as persons without relevant

knowledge and experience in the use of the device, if they are supervised or have been previously instructed in the safe use of the device and the risks involved.

1. Cleaning and maintenance of the device can be performed by children aged at least 8 and under supervision. Keep the device and power cable out of reach of children below the age of 3.
2. The device is for domestic use only. The device is not suitable for outdoor use. It should not be used for other purposes incompatible with its intended use.
3. Do not let the power cord hang over the edge of a table or countertop. Do not bring the power cable into contact with hot elements. It should not be pulled over sharp edges.
4. Only connect the device to a mains socket outlet with a ground connection. Make sure the power cord is properly connected to the power source.
5. Use a mains power supply corresponding to that indicated on the device label.
6. Use the device on a flat heat-resistant surface. Do not move the device during operation or when there is hot water in it.
7. Use only original accessories and spare parts.
8. Regularly check the device for damage. Do not use a damaged device. Do not attempt to repair the device

yourself – contact an authorized repair centre. If the mains cable becomes damaged, it should be replaced by the manufacturer to avoid danger.

1. After use, during assembly, disassembly and cleaning, the device must be switched off and disconnected from the power supply.
2. Keep the device away from sharp edges and sources of heat and moisture. The device should not be exposed to direct sunlight.
3. Do not immerse the device or the power cord in water or other liquids.
4. Avoid overheating the device.
5. Before putting the bottle in the heater and pouring in the water, make sure it is firmly capped.
6. Make sure there is water in the device before switching it on. Never switch on the device if there is no water in it.
7. Hot water can cause severe burns. If there is hot water in the device, handle it with care.
8. When exposed to hot water, the surface of the device can become hot. It is important to remain cautious.
9. When the heated food has reached the desired temperature, remove the bottle from the heater. Do not heat the food for too long.

10. Always check the temperature of the food before giving it to the baby.

11. Allow the device to cool down before cleaning.

12. The device should be descaled regularly, every four weeks or so.
13. The heating element surface is subject to residual heat after use.

The product complies with the requirements of European Union directives. In accordance with Directive 2012/19/EU, this product is subject to separate collection. The product should not be disposed of with municipal waste as it may pose a risk to the environment and human health. Return the used product to the recycling centre for electrical and electronic equipment.

Parts list (fig. A)

1. Lid
2. Control panel
3. Bottle/container basket
4. On/off switch
5. Device body

Control panel (fig. B)

1. On/off switch
   The switch is illuminated with a steady light when the device is switched on. The switch flashes when the device is in standby mode.
2. Decreasing the set value
   Press and hold for approximately 2 seconds to activate mute mode.
3. Increasing the set value
   Press and hold for approximately 2 seconds to return to the factory temperature and time settings.
4. Quick heat-up/defrost function
5. Milk warming function
6. Food warming function
7. Sterilization function

Defrost/quick warm-up function

Function with the option to run for 3 to 8 minutes. After the selected time has elapsed, the device will beep five times and then automatically enter warming mode, maintaining the temperature of the food for 24 hours.

1. Place the bottle or food container in the heater (fig. 1).
2. Fill the heater with 80 ml of distilled water (fig. 2).

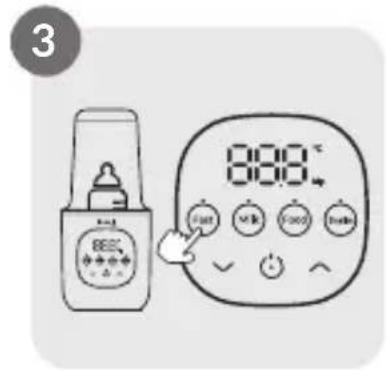

3. In the display, select the Fast defrost/quick warm-up function (fig. 3). Wait until the indicator light comes on.

NOTE

Due to the high variety of textures of baby food, frequent mixing and controlling the temperature of the food being defrosted is recommended.

Do not give milk/food to your child immediately after defrosting.

Frozen milk or food should not be heated. Milk or food can be reheated after defrosting.

Specifics of the operating mode

Quick warm-up
Bottle type	Initial temper-ature	Amount of water	Amount of milk
			60 ml 120 ml 180 ml 240 ml
Glass	4°C	3 min 4 min 5 min 6 min
	20°C 2,5 min	min 3 min 4 min 4,5 min 80 ml
Plastic	4°C 3 min	4,5 min 6 min 7 min
	20°C 2,5 min	3,5 min 4,5 min 5 min

Milk warming function

The heating time can vary depending on the amount of milk or water and the initial temperature.

1. Place the milk or water bottle in the heater (fig. 1).
2. Fill the heater with 80 ml of distilled water (fig. 2).

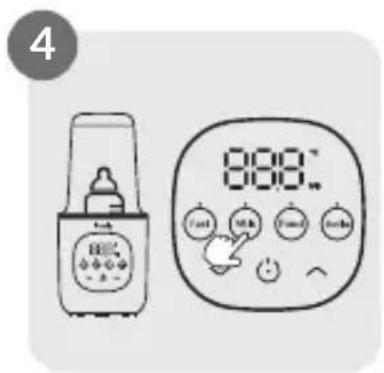

3. In the display, select the Milk heating function (fig. 4). Wait until the indicator light comes on.
4. Select the temperature using the increase and decrease buttons of the selected value (2, 3, fig. B). The temperature range for this function is 37 - 60^ C. The display shows the current fluid temperature.

NOTE

It is advisable to give the milk to the baby immediately after heating. Reheating the milk should be avoided.

Always check the temperature of the milk before giving it to the baby (fig. 5).

Food warming function

1. Place the food container in the heater (fig. 6).
2. Fill the heater with 80 ml of distilled water (fig. 7).

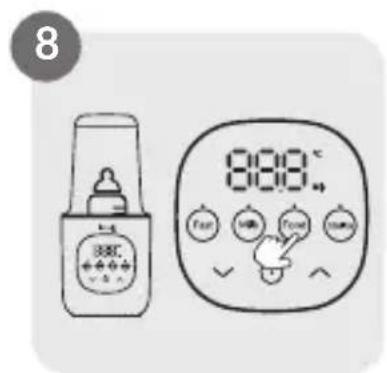

3. In the display, select the Food heating function (fig. 8). Wait until the indicator light comes on.
4. Select the temperature using the increase and decrease buttons of the selected value (2.3, fig. B). The temperature range for this function is 45 - 80°C. The display shows the current food temperature.

NOTE

Due to the high variety of textures of baby food, frequent mixing and controlling the temperature of the food is recommended (fig. 9).

Always check the temperature of the food before feeding (fig. 10).

Sterilization function

Wash and thoroughly rinse the bottle and accessories before disinfection.

1. Place the item to be sterilized in the heater (fig. 11). The bottle should be placed bottom up.
2. Fill the heater with 30 ml of distilled water (fig. 12).

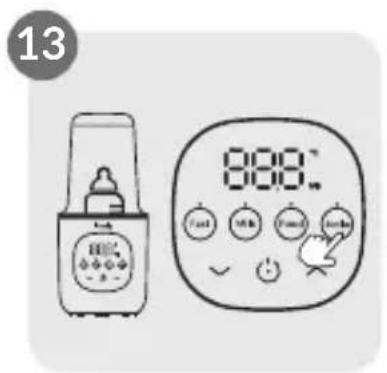

3. In the display, select the Sterilize disinfection function (fig. 13). Wait until the indicator light comes on.

Once the water has evaporated, the device switches off automatically. The disinfection time is approximately 10 minutes.

Temperature range and operating time of selected modes

Note! If there is no water in the reservoir, the device will switch off automatically.

Mode Temperature range Operating time
Milk 37 - 60°C Up to 24 hours
Food 45 - 80°C Up to 24 hours
Sterilize 100°C Up to 10 min
Fast 100°C 3-8 min

Cleaning

1. Unplug the device after each use and before cleaning. Allow the device to cool down before cleaning (fig. 14).

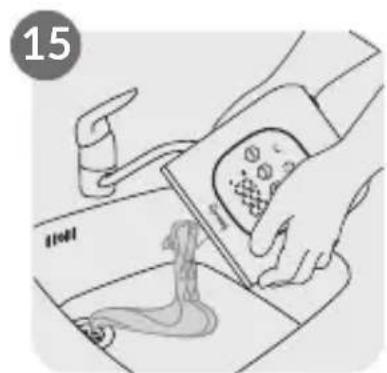

2. Empty the device of water (fig. 15).

3. If food has been heated in the device, make sure there are no leftovers on the bottom.

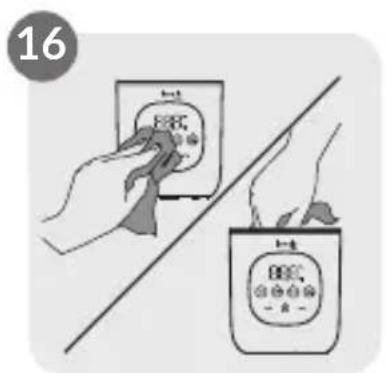

4. Wipe the casing and the inside of the heater using a soft damp cloth, then wipe dry with a clean cloth or paper towel (fig. 16).

Note! Do not use scouring sponges, scouring agents or any corrosive substances or chemicals for cleaning.

Descaling

Regular descaling every four weeks is recommended to ensure that the device works properly.

1. Pour 50 ml of white vinegar and 100 ml of cold water into the device.
2. Switch the device on and then select the milk heating function. Allow the device to run for 10 minutes.
3. Leave the solution in the device until the scale dissolves completely.
4. Unplug the device before draining it.
5. Pour the solution out of the device. Pour water into the device, rinse out the residual solution and then empty the device.

NOTE!

Descalers based on citric acid can also be used.

Do not use other types of descaler.

The photos are for illustrative purposes only, the actual appearance of the products may differ from those shown in the pictures.

PL

Drogi Kliencie!

EN: Simplified EU declaration of conformity

BrandLine Group Sp. z o. o. hereby declares that the “Thermup 2.0” product complies with the directive: 2014/30/EU - EMC Directive, 2014/35/EU - LVD Directive, 2011/65/EU - RoHS Directive. Full content of EU declaration of conformity is available on the following website:

Detailed warranty conditions are available on the website:
