USER MANUAL 105 Testboy

Operating instructions

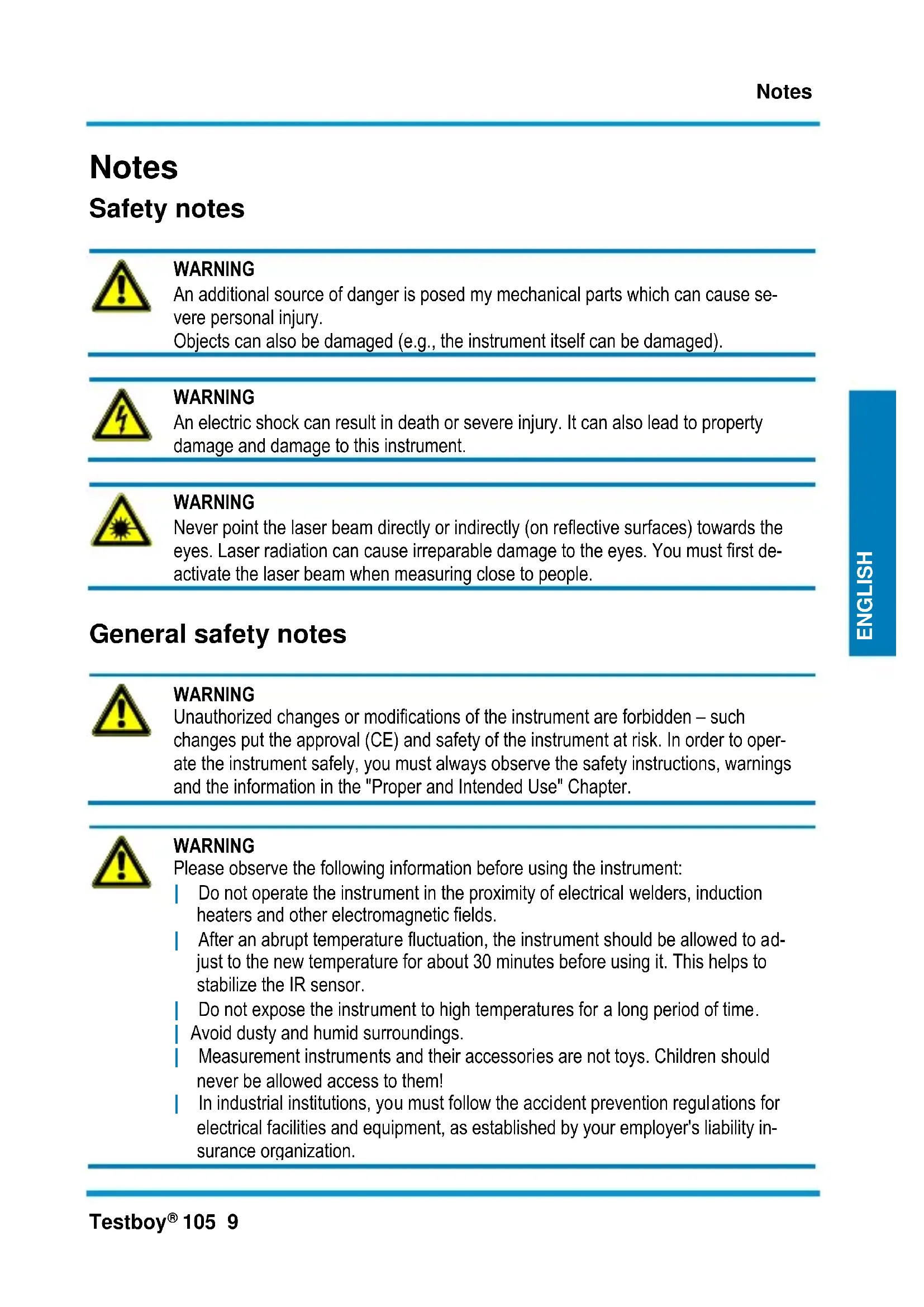

WARNING An additional source of danger is posed my mechanical parts which can cause se- vere personal injury. Objects can also be damaged (e.g., the instrument itself can be damaged).

WARNING An electric shock can result in death or severe injury. It can also lead to property damage and damage to this instrument.

WARNING Never point the laser beam directly or indirectly (on reflective surfaces) towards the eyes. Laser radiation can cause irreparable damage to the eyes. You must first de- activate the laser beam when measuring close to people.

General safety notes

WARNING Unauthorized changes or modifications of the instrument are forbidden – such changes put the approval (CE) and safety of the instrument at risk. In order to oper- ate the instrument safely, you must always observe the safety instructions, warnings and the information in the "Proper and Intended Use" Chapter.

WARNING Please observe the following information before using the instrument: | Do not operate the instrument in the proximity of electrical welders, induction heaters and other electromagnetic fields. | After an abrupt temperature fluctuation, the instrument should be allowed to ad- just to the new temperature for about 30 minutes before using it. This helps to stabilize the IR sensor. | Do not expose the instrument to high temperatures for a long period of time. | Avoid dusty and humid surroundings. | Measurement instruments and their accessories are not toys. Children should never be allowed access to them! | In industrial institutions, you must follow the accident prevention regulations for electrical facilities and equipment, as established by your employer's liability in- surance organization.Notes 10 Testboy

Please observe the following five safety rules: 1 Disconnect. 2 Ensure that the instrument cannot be turned back on again. 3 Ensure isolation from the main supply voltage (check that there is no voltage on both poles). 4 Earth and short-circuit. 5 Cover neighbouring parts that are under live electrical load.

Proper and intended use This instrument is intended for use in applications described in the operation manual only. Any other usage is considered improper and non-approved us-age and can result in accidents or the destruction of the instrument. Any misuse will result in the expiry of all guarantee and warranty claims on the part of the operator against the manufacturer.

Remove the batteries during longer periods of inactivity in order to avoid damaging the instrument.

We assume no liability for damages to property or personal injury caused by improp- er handling or failure to observe safety instructions. Any warranty claim expires in such cases. An exclamation mark in a triangle indicates safety notices in the operat- ing instructions. Read the instructions completely before beginning the initial com- missioning. This instrument is CE approved and thus fulfils the required guidelines.

All rights reserved to alter specifications without prior notice. © 2014 Testboy GmbH, Germany. Disclaimer and exclusion of liability

The warranty claim expires in cases of damages caused by failure to ob- serve the instruction! We assume no liability for any resulting damage!

Testboy is not responsible for damage resulting from: | failure to observe the instructions, | changes in the product that have not been approved by Testboy, | the use of replacement parts that have not been approved or manufactured by Testboy, | the use of alcohol, drugs or medication.Notes Testboy

ENGLISH DEUTSCH DEUTSCH Correctness of the operating instructions These operating instructions have been created with due care and attention. No claim is made nor guarantee given that the data, illustrations and drawings are complete or correct. All rights are reserved in regards to changes, print failures and errors. Disposal For Testboy customers: Purchasing our product gives you the opportunity to return the instrument to collection points for waste electrical equipment at the end of its lifespan.

The WEEE directive regulates the return and recycling of electrical appliances. Manufacturers of electrical appliances are obliged to take back and recycle all electrical appliances free of charge. Electrical devices may then no longer be dis- posed of through conventional waste disposal channels. Electrical appliances must be recycled and disposed of separately. All equipment subject to this di- rective is marked with this logo.

As an end user, you are legally obliged (by the relevant laws concerning bat- tery disposal) to return all used batteries. Disposal with normal household waste is prohibited! Contaminant-laden batteries are labelled with the adjacent symbol which indicates the prohibition of disposal with normal household waste. The abbreviations used for heavy metals are: Cd = Cadmium, Hg = mercury, Pb = lead. You can return your used batteries for no charge to collection points in your com- munity or everywhere where batteries are sold!

Certificate of quality All aspects of the activities carried out by Testboy GmbH relating to quality during the manufac- turing process are monitored permanently within the framework of a Quality Management Sys- tem. Furthermore, Testboy GmbH confirms that the testing equipment and instruments used dur- ing the calibration process are subject to a permanent inspection process. Declaration of Conformity The product conforms to the present directives. For more detailed information, go to www.testboy.deOperation 12 Testboy

DEUTSCH DEUTSCH Operation Thank you for choosing a Testboy

| Non-contact voltage tester from 12 V AC | High Performance LED Flashlight | Vibrates if voltage is detected. | Audible warning tone Non-contact voltage test The Testboy

105 is capable of detecting wires carrying live voltages using its built-in circuits in its tip. If an alternating voltage of > 110 V AC is detected, the white cap will glow red (refer to Figure Point 1a) the instrument will vibrate and a warning signal will sound. To detect voltages under 110 V AC, turn the flashlight on using the switch (1b). Now voltages from 12 V AC can be detected. A flowing current is not required!

Check the voltage tester before use against a known voltage supply (e.g. a power socket) to ensure that it is working correctly.

When using the Tester, if tip does not glow, voltage could still be present. The Tester indicates active voltage in the presence of electrostatic fields of sufficient strength generated from the source (MAINS) voltage. If the field strength is low, the Tester may not provide indication of live voltages. Lack of an indication occurs if the Tester is unable to sense the presence of voltage which may be influenced by several factors including, but not limited to: ● Shielded wire/cables ● Thickness and type of insulation ● Distance from the voltage source ● Fully-isolated users that prevent an effective ground ● Receptacles in recessed sockets/ differences in socket design ● Condition of the Tester and BatteriesOperation Testboy

WARNING Use caution with voltages above 30 V ac as a shock hazard may exist.

Anyone using this instrument should be knowledgeable and trained about the risks involved with measuring voltage, especially in an industrial setting, and the importance of taking safety precau- tions and of testing the instrument before and after using it to ensure that it is in good working condition. The single-pole phase testing is not appropriate to determine whether a line is live or not. For this purpose, the double-pole voltage test is always required. Definition of measurement categories. Measurement category II: Measurement category II is applicable to test and measuring circuits connected directly to utiliza- tion points (socket outlets and similar points) of the low-voltage mains installation. Typical short- circuit current is < 10 kA. Measurement category III: Measurement category III is applicable to test and measuring circuits connected to the distribution part of the building’s low-voltage mains installation. Typical short-circuit current is < 50 kA. Measurement category IV: Measurement category IV is applicable to test and measuring circuits connected at the source of the building’s low-voltage mains installation. Typical short-circuit current is >> 50 kA. Read the instruction before use. If the equipment is used in a manner not specified by the manu- facturer, the protection provided by the equipment may be impaired. All parts of the device and its accessories are not allowed to be changed or replaced , other than authorized by the manufacturer or his agent. For cleaning the unit, use a dry cloth. Flashlight Turn on the built-in flashlight by operating the switch (1b). The high-powered LED light can last for up to 100 hours per set of batteries! The life of LED is over 100,000 hours.Operation 14 Testboy

DEUTSCH DEUTSCH Changing the batteries Insert a screwdriver in to the notch (2) and pry the battery compartment cover off. Make sure you insert the batteries the right way round!

Only commission instruments that are closed!

Do not dispose of empty batteries in the normal household waste. Use an authorised local collection point!
