Operation

Thank you for choosing the Testboy © TV 222.

The Testboy® TV 222 is intended for measuring CAT III installations and voltages not exceeding 300V (AC or DC) referenced to earth.

Operation

Allow the unit to acclimatise before taking a measurement.

When using this clamp meter, the user must observe all the usual safety rules.
When used in the vicinity of equipment that generates interference or noise, the display may show gross errors.
Use the appliance only as described in this manual, otherwise the protective devices of this appliance may be impaired.
Only use the appliance if the housing and pliers jaws are in perfect condition.
To avoid damage to the unit, do not exceed the maximum input values specified in the technical data.
Pay attention to this and make sure that the correct measuring mode has been selected.
Take special care when working on uninsulated conductors or busbars. (Wear protective clothing if necessary)
Any accidental contact with the conductor may result in electric shock.
Take care when working with voltages above 60 V DC or 30 V AC RMS. There is a risk of electric shock at such voltages.
Before switching to other functions, the tongs must be removed from the tested circuit.
During the measurements, keep your fingers behind the protective ring.
To avoid incorrect readings: When the symbol appears, change the batteries.
Before each measurement, make sure that the tester is in good working order. Check the function on a known, working power source before using the unit.
The "+" sign on the clamp indicates the technical current direction in DC mode.
Voltage tests on sockets can be problematic due to the insecure connection with the built-in electrical contacts and can lead to misleading results. Therefore, other measures should be taken in addition to ensure that leads do not carry current.
Be careful when working near open exposed ladders or collection ladders. Individual protective equipment should be used.
Do not use current sensors whose wear is already visible in the clamp.

Product-specific safety instructions

Always disconnect the appliance from all electrical power sources before opening, neutralise own static charge, this could destroy internal components.
All adjustment, maintenance and repair work on the current-carrying clamp meter may only be carried out by qualified personnel who are familiar with the regulations in this manual.
"Qualified" means a person who is familiar with the set-up, construction and operation of the equipment and the hazards associated with it. He or she is experienced and authorised to

energise or de-energise circuits and electrical equipment in accordance with professional working practices.

When the units are open, remember that some internal capacitors may still have life-threatening voltage potential even after they have been switched off.
If any faults or abnormalities are found, take the unit out of service and ensure that it cannot be used until it has been checked.
If the unit is not to be used for a long period of time, remove the batteries and store the unit in an environment that is not too humid or too hot.
Extreme caution is advised when working on uninsulated conductors and busbars. Touching these parts could result in an electric shock! Use suitable protective equipment for this purpose!

Definition of the measurement categories

Measurement category II: Measurements on circuits that are electrically connected directly to the low-voltage mains via plugs. Typical short-circuit current < 10kA

Measurement category III: Measurements within the building installation (stationary consumers with non-pluggable connection, distribution connection, permanently installed devices in the distribution board).

Typical short-circuit current < 50kA

Measurement category IV: Measurements at the source of the low-voltage installation (meter, main connection, primary overcurrent protection). Typical short-circuit current >> 50 kA

To determine the measuring category for a combination of measuring cable and measuring device, the lowest category of either the measuring cable or the measuring device always applies.

When using this clamp meter, the user must observe all the usual safety rules:

Protection against hazards caused by electric current.
Protection of the meter against misuse.

For your own safety, only use the measuring heads supplied with the device. Before using the device, check that it is in perfect condition.

Maintenance and cleaning

Clean the housing at regular intervals with a dry cloth without cleaning agents. Do not use abrasives, scouring agents or solvents.

To avoid electric shocks, do not allow moisture to enter the housing.

Battery change

Procedure:

When the working voltage of the battery becomes too low, the symbol appears on the LCD display; the battery must then be replaced.
Loosen the locking screw on the back with a screwdriver. Remove used batteries and replace with two new batteries of type 1.5 V AAA.
Replace cover and secure with screw.

Batteries do not belong in household waste. There is also a collection point near you!

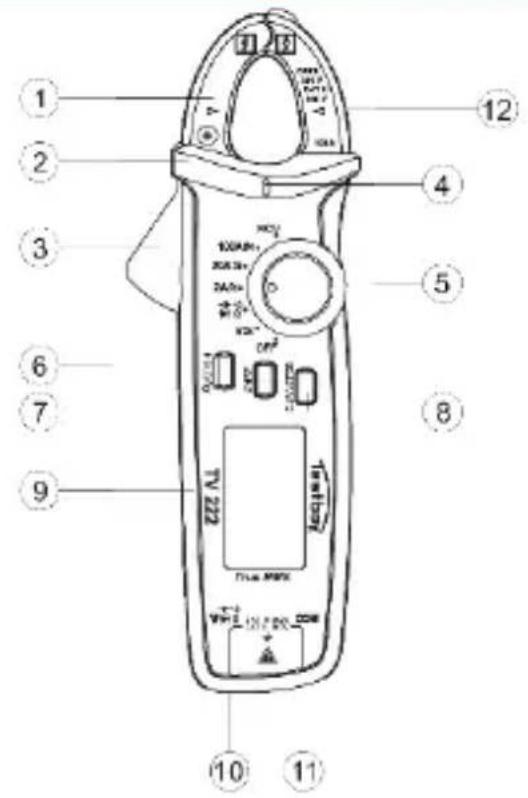

Key explanation

1) Transducer clamp jaws
2) Measuring mark
3) Opening lever
4) Measuring mark
5) Function selector switch
6) Date Hold / Backlight button
7) Zero button
8) Select button
9) Display
10) Measuring socket red
11) Measuring socket black

HOLD button / backlight

Press the HOLD button to freeze the currently displayed value.

Press and hold the button to switch the backlight on or off.

Auto Power off

After about 15 minutes, the TV 222 switches off automatically to conserve battery life.

Transducer clamp jaws

Record the current flowing through the conductor.

Look for the marking on the current jaws to determine the current direction (DC measurement only).

Open the pliers jaws, enclose a conductor and make sure that the jaws are closed correctly and that there are no foreign bodies in the connection gap.

Measurement details

For the greatest possible measuring accuracy, place the cable as precisely as possible in the intersection of the markings between the pliers jaws.

AC current

Measuring range	Resolution	Tolerance (50-60 Hz)
2 A	1 mA	± 3 % + 10 digits
20 A	10 mA	± 2.5 % + 8 digits
100 A	100 mA	± 2.5 % + 5 digits

Maximum input current: 100 A AC

DC current

To enter the DC current measuring range, press the "Select" key until "DC" is displayed. The zeroing is carried out by a short press on the "ZERO" key.

Measuring range	Resolution	Tolerance
2 A	1 mA	± 2 % + 8 digits
20 A	10 mA	± 2 % + 3 digits
100 A	100 mA	± 2 % + 3 digits

Maximum input current: 100 A DC

NCV

The NCV mode can be switched on with the NCV selection. In this mode, voltages can be detected without contact. The tip of the clamp serves as a detecting sensor.

If no voltage is detected, the display shows "EF". If a voltage is detected, the display shows "- to

"----". The closer you get to the detected voltage, the more dashes are shown in the display.

AC voltage

Measuring range	Resolution	Tolerance (45-400 Hz)
2 V	1 mV	± 1 % + 3 digits
20 V	10 mV
200 V	100 mV	± 1 % + 3 digits VFC Mode ± 4 % + 3 digits
600 V	1 V	± 1.2 % + 3 digits VFC Mode ± 4 % + 3 digits

Maximum input voltage: 600 V AC
Input resistance: 10 MΩ

DC voltage

Measuring range	Resolution	Tolerance
200 mV	0.1 mV	± 0.7 % + 5 digits
2 V	1 mV	± 0.7 % + 3 digits
20 V	10 mV
200 V	100 mV
600 V	1 V

Maximum input voltage: ± 600V DC
Input resistance: 10 MΩ

Resistance

Measuring range	Resolution	Tolerance
200 Ω	0,1 Ω	± 1 % + 2 digits
2 kΩ	1 Ω
20 kΩ	10 Ω
200 kΩ	100 Ω
2 MΩ	1 kΩ	± 1.2 % + 3 digits
20 MΩ	10 kΩ

Overvoltage protection: 600 V RMS

Capacity

Measuring range	Resolution	Tolerance
2 nF	1 pF	± 4 % + 10 digits
20 nF - 200 μF	10 pF - 100 nF	± 4 % + 5 digits
2 - 20 mF	1 μF - 10 μF	± 10 %

Overvoltage protection: 600 V RMS

Technical data

Power supply	2 x 1.5 V type AAA/LR03
Operating height	< 2000 m
Operating temperature	0 - 30°C, < 75 % RH30 - 40°C, < 50 % RH
Storage temperature	-10 - +50°C
Overvoltage category	CAT II 600 VCAT III 300 V
Test standard	IEC/EN 61010-1 (DIN VDE 0411);IEC/EN 61010-2-032
Display	LC display
Battery status indicator	If the battery voltage is too low, the battery symbol appears in the display
Pincer opening	Cable Ø 16.7 mm
Dimensions	175 x 60 x 33.5 mm (WxHxD)
Weight	approx. 150 g
Accessories	Operating instructions, bag
