14167506L - Lighting Livarno Lux - Free user manual and instructions

Product Type	LED Ceiling Light
Model	14167506L
Supply Voltage	230-240 V~, 50 Hz
Rated Power	17 W (luminaire) / 14.5 W (LED)
Protection Class	I
Protection Rating	IP20 (indoor use only)
Energy Efficiency Class	E
Luminous Source Lifespan	25,000 hours
Light Source	Non-replaceable LED by user
Use	Indoor, dry and enclosed environment
Mounting	On ceiling, on normally non-flammable surface
Required Tools	Pencil, voltage tester, screwdriver, drill, ø6 mm drill bit, wire cutters, stepladder
Package Contents	1 ceiling light, 3 screws, 3 wall plugs, 2 protective sleeves, 1 instruction manual
Warranty	36 months
Maintenance	Clean with a dry, lint-free cloth after disconnecting the power supply
Disposal	Recycle packaging and product according to local regulations

Frequently Asked Questions - 14167506L Livarno Lux

Can I install the light fixture myself?

The electrical installation must be carried out by a professional electrician or a qualified person. Follow the instructions in the manual strictly.

Is this light fixture compatible with a dimmer?

No, this light fixture is not suitable for external dimmers or electronic switches.

Can I replace the LED?

The light source can only be replaced by the manufacturer, its service department, or a qualified professional.

What is the IP20 protection rating?

IP20 means the luminaire is protected against solid bodies larger than 12.5 mm (e.g., fingers) but not against water. It is intended for dry indoor use only.

How do I clean the light fixture?

First, cut off the power supply (fuse or circuit breaker). Allow it to cool completely, then use a dry, lint-free cloth. Never use water or solvents.

What should I do if the light fixture does not turn on?

First, check the fuse or circuit breaker. Ensure the wiring is correct and connections are tight. If the problem persists, contact customer service.

Is this light fixture suitable for a bathroom?

No, the IP20 rating does not protect against humidity. It is exclusively for dry, enclosed environments.

What is the warranty period?

The warranty is 36 months from the date of purchase, covering defects in materials and workmanship.

Where can I find the customer service number?

The toll-free number is 00800 / 27456637. Please have your IAN reference (373016_2204) ready.

What tools are required for installation?

You will need a pencil, a voltage tester, a screwdriver, a drill with a 6 mm bit, wire cutters, and a stepladder.

USER MANUAL 14167506L Livarno Lux

Interior ceiling view with a circular recessed ceiling light and curtains, no text or symbols visible

LED Ceiling Light

DE AT CH

LED-DECKENLEUCHTE

STROPNÉ LED SVIETIDLO

Pokyny pre montáž, obsluhu a bezpečnostné pokyny

IT

LAMPADA LED DA SOFFITTO

Assembly, operating and safety instructions

PL

LAMPA SUFITOWA LED

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Assembly, operating and safety instructions Page 13

Technical diagram showing a circular component with labeled parts and a schematic of its internal structure, including numbered annotations.

Intended use......Page 15

Scope of delivery.... Page 15

Parts description......Page 15

Technical data.... Page 15

Safety......Page 15

Safety notices....Page 15

Preparation......Page 16

Required tools and material.... Page 16

Prior to installation......Page 16

Start-up Page 17

Mounting the light fixture....Page 17

Maintenance and cleaning......Page 17

Warranty and service....Page 17

Warranty......Page 17

Service address...... Page 18

Declaration of conformity....Page 18

Manufacturer......Page 18

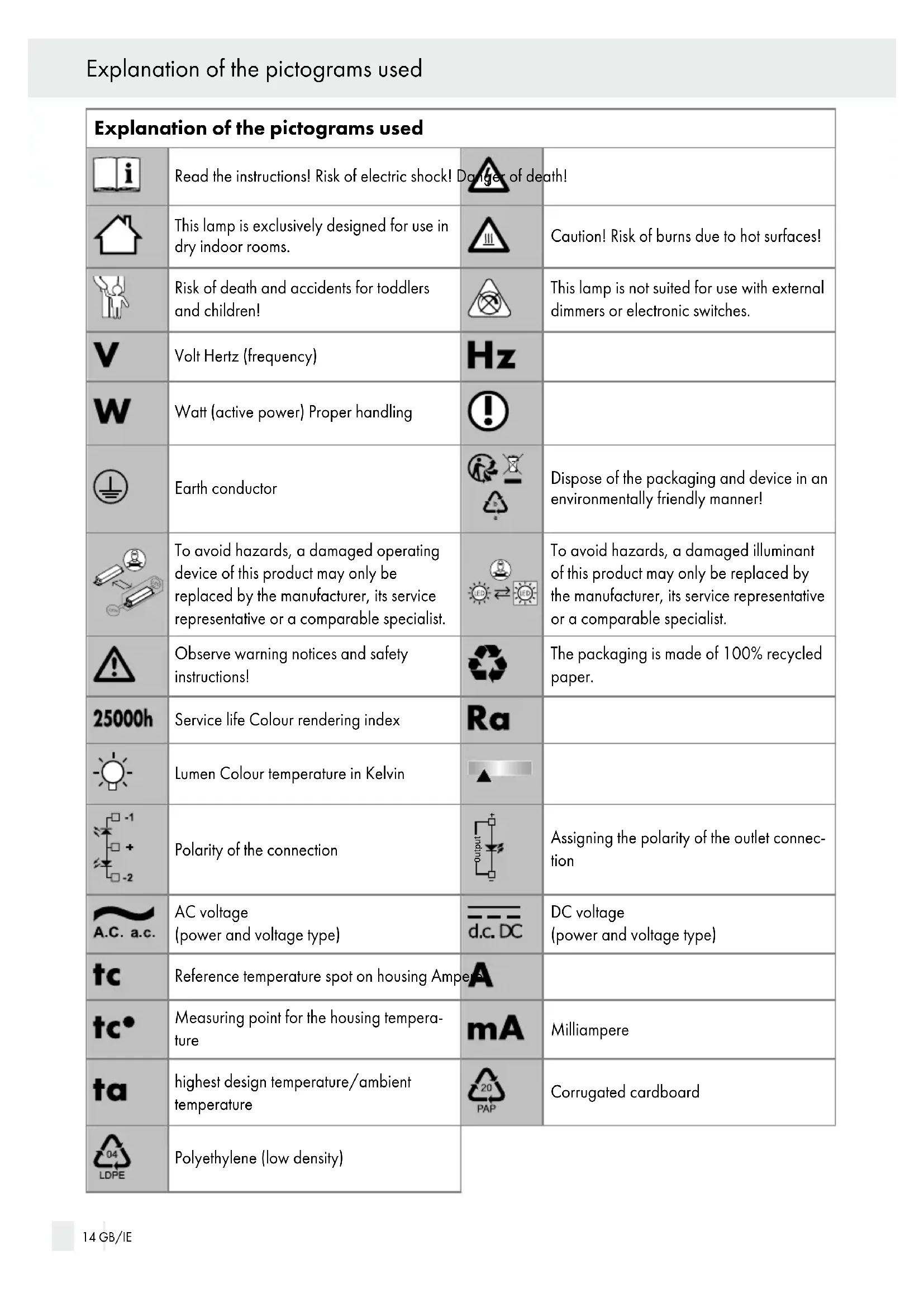

Explanation of the pictograms used
	Read the instructions! Risk of electric shock! D of death!
	This lamp is exclusively designed for use in dry indoor rooms.		Caution! Risk of burns due to hot surfaces!
	Risk of death and accidents for toddlers and children!		This lamp is not suited for use with external dimmers or electronic switches.
	Volt Hertz (frequency)
	Watt (active power) Proper handling
	Earth conductor		Dispose of the packaging and device in an environmentally friendly manner!
	To avoid hazards, a damaged operating device of this product may only be replaced by the manufacturer, its service representative or a comparable specialist.		To avoid hazards, a damaged illuminant of this product may only be replaced by the manufacturer, its service representative or a comparable specialist.
	Observe warning notices and safety instructions!		The packaging is made of 100% recycled paper.
	Service life Colour rendering index	[3TSA]
	Lumen Colour temperature in Kelvin
	Polarity of the connection		Assigning the polarity of the outlet connection
	AC voltage(power and voltage type)		DC voltage(power and voltage type)
[HKWIA]	Reference temperature spot on housing Ampe	[1AZT]
[4627]	Measuring point for the housing tempera-ture	[244W]	Milliampere
[30WZ]	highest design temperature/ambient temperature		Corrugated cardboard
	Polyethylene (low density)

LED Ceiling Light

- Introduction

Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the complete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.

- Intended use

This light fixture is exclusively designed for use in dry indoor rooms. The light fixture can be fastened to any normally inflammable surface. The product is exclusively intended for use in private households and not for commercial use. This product is intended for normal operation.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED ceiling light (model 14167506L)

3 screws

3 wall plugs

2 protective tubes

1 installation and user manual

- Parts description

1 Base plate
2 Wall plugs
3 Protective tube
4 (External) power cable
5 Screw terminal
6 Screw
7 Shade

- Technical data

Light fixture:

Model no.: 14167506L

Operating voltage: 230–240 V\~, 50 Hz

Illuminant: LEDs

Rated power: 17 W

Protection class: I

IP rating: IP20 (for indoor use only)

LED:

Illuminant: LEDs

Rated power 14.5 W

This product uses illuminants with the energy efficiency rating "E".

•Safety

Safety notices

Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

WARNING! RISK OF FATAL INJURY AND ACCI- DENT HAZARD FOR

TODDLERS AND SMALL CHILDREN!

Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Please always keep the product out of the reach of children.

■ Do not leave the lamp or the packaging material lying around. Plastic foils, bags, parts, etc. can become dangerous toys in the hands of children.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user

maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

■ Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.

■Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage.

WARNING!

A damaged mains cable indicates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician.

■ Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
■Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (see "Technical data").
■ Ensure that the light does not come into contact with water or other liquids under any circumstances.
■Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
■ Do not install the light on a wet or conductive substrate!

Prevent fire and injury hazards

■ Check the light fixture for damage immediately after unpacking. If the light fixture is damaged, contact customer service.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Make sure that the light fixture is turned off and cooled down before you touch it to prevent burns. Bulbs generate a lot of heat at the front of the light fixture.

■The illuminant of this light fixture must only be replaced by the manufacturer or a technician appointed by the manufacturer or a similarly qualified person.

■This light is not suitable for external

dimmers or electronic switches.

■ Do not look directly into the light source (light bulb, LED etc.).
■ Do not use optical instruments to look at the light.

Safe working

■Mount the light so that it is protected from moisture and dirt.
Carefully prepare for assembly and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.
■Always be attentive! Always pay attention to what you are doing and use common sense. Never install the light if you are having difficulty concentrating or do not feel well.

●Preparation

- Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil / making tool
• 2-pole voltage tester
• Screwdriver
• Electric drill
• Bit (ø 6 mm)
• Side cutting pliers
• Ladder

- Prior to installation

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations.

☐Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it. Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.

☐ Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
□Use the 2-pole voltage tester to verify the de-energised status.

- Start-up

- Mounting the light fixture

□Undo the shade 7 from the base plate 1 by turning it anti-clockwise.
☐Hold the base plate 1 up to the ceiling and mark the drill holes using the screw holes provided in the base plate 1 for the screws 6.
Drill the mounting holes (approx. ∅ 6 mm, depth approx. 40 mm). Make sure that you do not damage the power cable.
☐Insert the wall plugs 2 into the drill holes. Use a hammer, if necessary.
☐ Attach the base plate 1 to the ceiling with the screws 6.
☐ Pull the protective tubes 3 over the wires L and N of the (external) power cable 4.
☐ Connect the (external) power cable 4 with the screw terminal 5 to the light fixture.
□Make sure to connect the individual wires of the light fixture cable with the correspondingly coloured wires of the power cable (current-carrying conductor, black or brown = symbol L, neutral conductor, blue = symbol N, earth conductor, yellow-green = ⏻
□ Ensure a tight fit.
□Attach the shade 7 to the base plate 1 by turning it clockwise.
☐Replace the fuse or switch on the circuit breaker (I position) in the fuse box.

Your light fixture is now ready to use.

●Maintenance and cleaning

WARNING! RISK OF ELECTRIC SHOCK!

Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety, never clean the light with water or other liquids, or immerse it in water.

CAUTION! DANGER OF BURNS DUE TO HOT SURFACES!

Allow the light to cool completely.

■ Do not use solvents, benzene or similar substances. They could damage the light.
☐ Only use a dry, lint-free cloth for cleaning.
☐Replace the fuse or switch on the circuit breaker (I setting) inside the fuse box.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging are recyclable and subject to

extended producer responsibility. Please dispose of them separately according to the symbols on the packaging for better waste management. The Triman logo applies exclusively in France.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty and service

• Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all

Warranty and service

material and manufacturing defects. In the event that a defect arises during the warranty period, please send the device to the listed service centre address, quoting the following model number: 14167506L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

●Service address

Free service number:

Tel.: 00800 / 27456637

IAN 373016\_2204

Please have your receipt and the article number (e.g. IAN 373016_2204) ready as your proof of purchase when enquiring about your product.

- Declaration of conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

•Manufacturer
