Product type	Alarm clock with indoor climate display
Brand	Auriol
Model	IAN 414915
Dimensions (L x H x D)	Depending on model: approx. 153 x 174 x 107 mm, 105 x 193 x 131 mm, or 125 x 175 x 121 mm
Weight (without batteries)	Approximately 188 to 210 g depending on model
Power supply	2 x 1.5 V AA LR6/R6P batteries
Time display	12h / 24h (switchable)
Alarm	Adjustable alarm with snooze function (5 min)
Night light	Multicolor (blue, cyan, green, yellow, red, lilac, white, gradient) with 5 or 15 min timer
Temperature display	Range: -9.9°C to 50°C, switchable °C/°F
Humidity display	Range: 20% to 95%
Care and cleaning	Clean with a soft, dry, lint-free cloth; do not immerse
Safety	Do not expose to water, heat sources or magnetic fields; follow battery instructions
Spare parts and repairability	3-year warranty; repair by customer service
General information	Manufactured by digi-tech gmbh; article number: 414915_2201

Frequently Asked Questions - IAN 414915 AURIOL

How to set the time on the alarm clock?

In normal display mode, press and hold the SET button. The hours flash. Use the UP and DOWN buttons to adjust. Press SET to confirm, then set the minutes, year, month, and day in the same way.

How to set the alarm?

From the normal display, press the SET button 3 times to display the alarm. Press and hold SET: the hours flash. Adjust with UP and DOWN, then confirm with SET. Set the minutes in the same way.

How to activate or deactivate the alarm?

Use the ALARM ON/OFF switch located on the device. Position ON: alarm activated. Position OFF: alarm deactivated.

How to use the snooze function?

When the alarm sounds, press the top of the figurine or the Snooze/Light button. The alarm stops temporarily and sounds again after 5 minutes. The alarm symbol flashes. To stop permanently, set the light switch to OFF.

How to change the night light color?

Set the light switch to 5 or 15, then press the Snooze/Light button to turn it on. Press the DOWN button repeatedly to cycle through colors: blue, cyan, green, yellow, red, lilac, white, gradient.

How to switch between 12h and 24h display?

From the normal display, press and hold the UP button to toggle between 12h and 24h formats. In 12h mode, AM is displayed in the morning and PM in the afternoon.

How to switch between Celsius and Fahrenheit?

From the normal display, press and hold the DOWN button to toggle between °C and °F.

What to do if the device does not turn on?

Check that the batteries are inserted correctly (observe polarity). If necessary, replace them with two new 1.5 V AA LR6/R6P batteries. Ensure that the safety screw of the battery compartment is tightened.

How to clean the alarm clock?

Use a soft, dry, lint-free cloth (like for glasses). Do not immerse the device in water and do not use harsh detergents, hard brushes, or metal objects.

How to dispose of the device at end of life?

Do not dispose of the device with household waste. Take it to a collection point for electrical and electronic equipment (e.g., return to LIDL store). Remove the batteries and dispose of them separately according to local regulations.

USER MANUAL IAN 414915 AURIOL

NL WEKKER MET WEERGAVE VAN HET RUIMTEKLIMAAT

©BUDÍK S UKAZATELEM KLIMATU MÍSTNOSTI

PL BUDZIK ZE WSKAŹNIKIEM PARAMETRÓW KLIMATYCZNYCH W POMIESZCZENIU

SK BUDÍK S UKAZOVATELOM OVZDUŠIA MIESTNOSTI

DK VÄKKEUR MED VISNING AF RUMMETS KLIMA

IT MT SVEGLIA CON INDICATORE DEL CLIMA AMBIENTALE

HU ÉBRESZTŐÓRA

SI BUDILKA S PRIKAZOM KLIME V PROSTORU

HR BUDILICA S PRIKAZOM KLIME U PROSTORIJI

RO CEAS DEŞTEPTĂTOR, CU AFIŞAREA CLIMATULUI ÎNCĂPERII

GB IE Usage and safety instructions

Table of Contents

Table of Contents.... - 1 -

Introduction - 3 -

Intended use.... - 3 -

Scope of delivery - 3 -

Technical specifications - 3 -

Explanation of symbols - 4 -

Explanation of the battery symbols ...... - 5 -

Important safety information Important safety information.... - 6 -

Safety information for users - 6 -

Epilepsy warning - 6 -

Safety information for the batteries ....- 7 -

Set up the device securely - 8 -

Display -9-

Controls ....- 10 -

Setup....-10-

Settings 11 -

Basic settings and time setting ....- 11 -

Alarm ....- 11 -

Alarm setting ....- 11 -

Activate or deactivate the alarm - 11 -

Snooze function (SNOOZE) - 11 -

Light/night light 11 -

Set light/night light....- 12 -

Switch light/night light on and off 12 -

Temperature - 12 -

12-/24-hour display ....- 12 -

Cleaning instructions ....- 12 -

Storage - 12 -

Simplified EU Declaration of Conformity ....- 13 -

Disposal - 13 -

Disposing of the electrical device ....- 13 -

Disposal of batteries....- 14 -

Warranty terms ...... - 16 -

Warranty period and statutory claims for defects ....- 16 -

Scope of Warranty 16 -

Processing in the event of a warranty claim ....- 17 -

Service 17 -

Supplier 18 -

GB IE NI CY MT

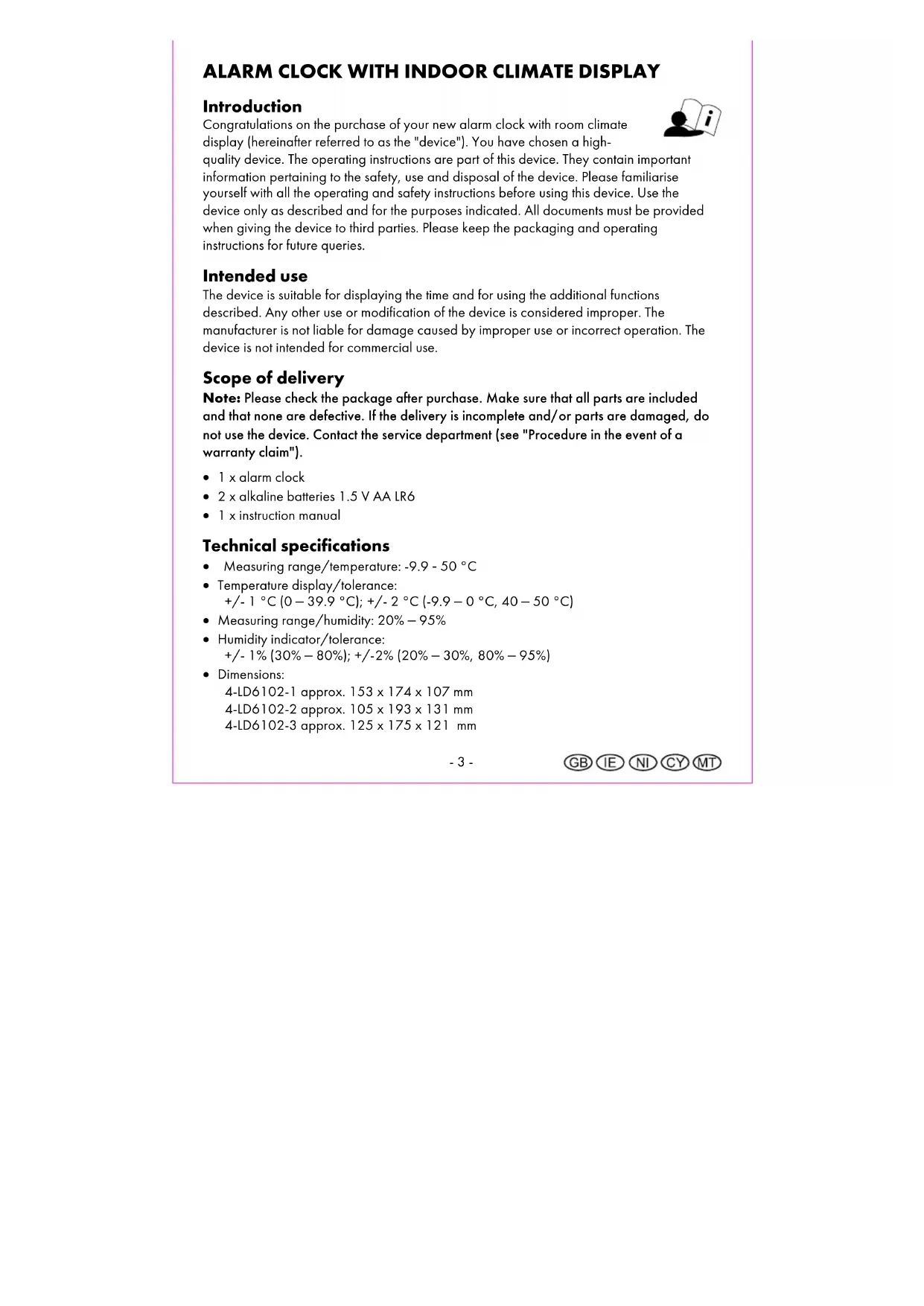

ALARM CLOCK WITH INDOOR CLIMATE DISPLAY

Introduction

Congratulations on the purchase of your new alarm clock with room climate display (hereinafter referred to as the "device"). You have chosen a high-quality device. The operating instructions are part of this device. They contain information pertaining to the safety, use and disposal of the device. Please for yourself with all the operating and safety instructions before using this device device only as described and for the purposes indicated. All documents must when giving the device to third parties. Please keep the packaging and open instructions for future queries.

Intended use

The device is suitable for displaying the time and for using the additional functions described. Any other use or modification of the device is considered improper. The manufacturer is not liable for damage caused by improper use or incorrect operation. The device is not intended for commercial use.

Scope of delivery

Note: Please check the package after purchase. Make sure that all parts are included and that none are defective. If the delivery is incomplete and/or parts are damaged, do not use the device. Contact the service department (see "Procedure in the event of a warranty claim").

• 1 x alarm clock
  • 2 x alkaline batteries 1.5 V AA LR6
• 1 x instruction manual

Technical specifications

• Measuring range/temperature: -9.9 - 50 °C
- Temperature display/tolerance: +/- 1 °C (0 - 39.9 °C); +/- 2 °C (-9.9 - 0 °C, 40 - 50 °C)
• Measuring range/humidity: 20% – 95%
- Humidity indicator/tolerance: +/- 1% (30% - 80%); +/- 2% (20% - 30%, 80% - 95%)
- Dimensions: 4-LD6102-1 approx. 153 x 174 x 107 mm 4-LD6102-2 approx. 105 x 193 x 131 mm 4-LD6102-3 approx. 125 x 175 x 121 mm

-3-

GB IE NI CY MT

- Weight:

4-LD6102-1 approx. 210 g (excl. battery)

4-LD6102-2 approx. 188 g (excl. battery)

4-LD6102-3 approx. 188 g (excl. battery)

• Operation with two 1.5 V AA LR6/R6P

batteries marked for DC voltage

Explanation of symbols

	WARNING!	This warning signal/word indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.
	Note:	This signal word indicates additional information.
		Epilepsy notice (night light & alarm)
[50Y6]		Improper use of disposable/rechargeable batteries may cause an explosion and/or leakage of battery fluid.
		Alkaline batteries included
		Batteries:2 x 1,5 V AA R6/LR6
		Symbol for DC voltage
		Operating instructions
		Please read the operating instructions!
		With the CE mark, digi-tech gmbh declares conformity with the applicable EU directives.

GB IE NI CY MT

		Time
		Wake-up alarm
		Light/night light
		Temperature indoors
		Humidity

Explanation of the battery symbols

Always keep batteries out of children's reach.

Do not throw batteries into fire or put them in contact with fire.

Always insert batteries with the correct polarity.

Do not deform or damage batteries.

Do not open or disassemble batteries.

Do not mix batteries of different brands or types.

Do not mix new and used batteries.

Do not charge batteries.

GB IE NI CY MT

Protect batteries from moisture and keep them away from liquids.

Do not short-circuit batteries.

Always insert the batteries in the correct polarity.

Important safety information

Safety information for users

WARNING!

DANGER TO HEALTH/LIFE!

Keep the packaging film out of reach of children.

Danger of suffocation!

Epilepsy warning

WARNING!

HEALTH HAZARD!

A small percentage of the population (approximately 1 person in 4,000) may experience epileptic seizures while looking at the blinking lights and patterns that occur in our surroundings on a daily basis. Consult a doctor before using the product if you or a member of your family has epilepsy.

-6-

GB IE NI CY MT

WARNING!

HEALTH HAZARD!

RISK OF EXPLOSION!

Keep old and new disposable batteries/rechargeable batteries out of reach of small children. If a disposable battery/rechargeable battery is swallowed, seek medical attention immediately.

The disposable batteries/rechargeable batteries must always be inserted with the correct polarity. Clean the battery and device contacts beforehand if necessary. Do not attempt to recharge, short-circuit, or open the batteries. Never heat the disposable/rechargeable batteries to recharge them. Do not expose the disposable/rechargeable batteries to excessive heat such as sunshine, fire or the like. There is an increased risk of leakage! Never throw disposable/rechargeable batteries onto a fire, as they may explode.

Improper use of disposable/rechargeable batteries may cause an explosion and/or leakage of battery fluid.

If the disposable/rechargeable batteries do leak, avoid contact with skin, eyes and mucous membranes. Use protective gloves. In case of contact with battery fluid, rinse the affected areas with plenty of clean water straight away and seek medical attention immediately. Remove exhausted disposable/rechargeable batteries from the device immediately as there is an increased risk of leakage.

Note:

• Non-rechargeable batteries must not be recharged!
- Rechargeable batteries may only be charged under adult supervision!

-7-

GB IE NI CY MT

• Rechargeable batteries must be removed from the toy before they are charged!
• Different batteries or new and used batteries must not be used together!
• Do not short-circuit the connecting terminals!

Set up the device securely

Place the device on a firm and flat surface. The device is not designed for use in rooms with high humidity (e.g., bathrooms). Protect sensitive surfaces before setting up to avoid scratches. Make sure that:

• the device is not placed on a thick carpet or bed when in use;
• no direct heat sources (e.g., heaters) affect the device;
  • the device is not exposed to direct sunlight;
• contact with water spray and drops of water is avoided (do not place any objects filled with liquids, e.g., vases, on or near the device);
• the device is not in the immediate vicinity of magnetic fields (e.g. loudspeakers);
  • no foreign objects can enter the device;
• candles and other open flames must be kept away from this product at all times to prevent the spread of fire.

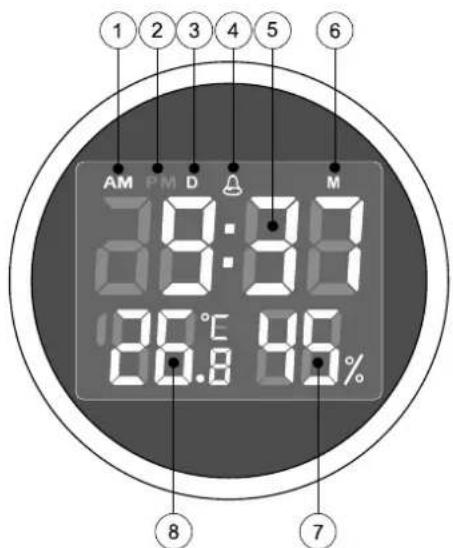

Display

1 2 3 4 5 6 AM PM D M 19:00 180.0°C 195% 100.0%

1	12-hour display before noon - AM	5	Time
2	12-hour display after noon -PM	6	month
3	Date	7	Humidity
4	Alarm symbol	8	Temperature

-9-

GB IE NI CY MT

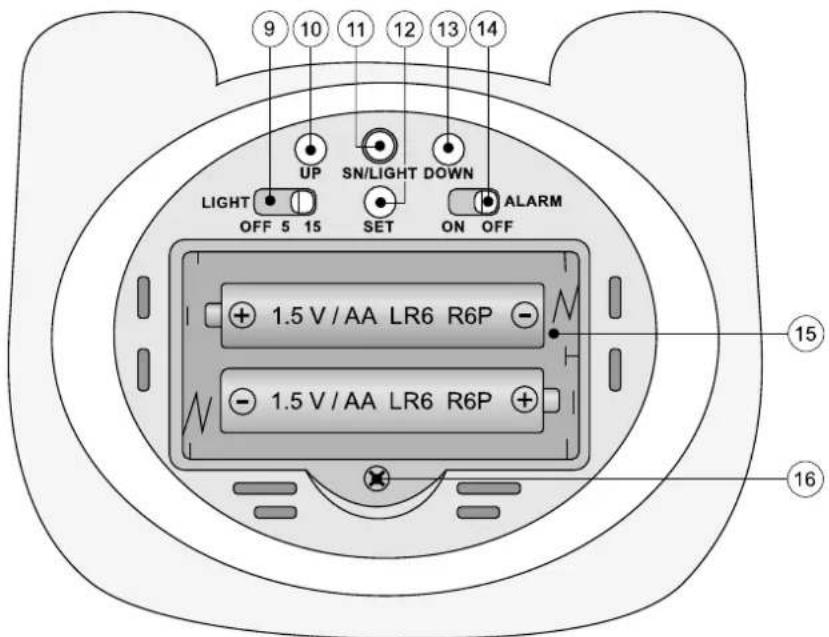

Controls

9 10 11 12 13 14 UP SN/LIGHT DOWN LIGHT ALARM OFF 5 15 SET ON OFF 1.5 V / AA LR6 R6P - 1.5 V / AA LR6 R6P + 15 16

9	Light switch (off, 5 min., 15 min.)	13	Down button, color change, °C/° F
10	Up button, 12/24 hour display	14	ALARM ON/OFF switch
11	Snooze/light button	15	Battery compartment
12	SET button	16	Safety screw

Setup

• Loosen the safety screw (16) on the battery compartment cover on the underside of the device with a small screwdriver.
• Open the battery compartment (15).
• Insert two 1.5 V AA LR6/R6P batteries in the correct polarity according to the marking in the battery compartment.

The device will light up briefly and emit a beep. The room temperature and humidity are displayed, but the device needs a few minutes to adjust to the climatic conditions.

- Close the battery compartment (15) and tighten the safety screw (16) again.

GB IE NI CY MT

Settings

In the normal time display, press the SET button (12) to display the year, month/day and alarm.

Basic settings and time setting

- In the normal time display, press and hold the SET button (12). The hours flash and can be changed with the UP button (10) and the DOWN button (13).

- Confirm your entry by pressing the SET button (12).

- Set the minutes, year, month and day in the same way. If you do not make any settings for more than 10 seconds, the device returns to the normal time display.

Alarm

Alarm setting

• In the normal time display, press the SET button (12) 3 times to display the alarm.
• Press and hold the SET button (12). The hours flash and can be changed with the UP button (10) and the DOWN button (13).
• Confirm your entry by pressing the SET button (12).
• Set the minutes in the same way.

Activate or deactivate the alarm

• Set the ALARM ON/OFF switch (14) to ON, the alarm is switched on and will sound at the set time, the light/night light and the background lighting only light up when the light/night light is switched on.
• Set the ALARM ON/OFF switch (14) to OFF and the alarm is switched off.

Note: If the night light lights up when the alarm sounds, a slight flickering can be perceived; this can lead to perception disorders in sensitive people, see epilepsy information.

Snooze function (SNOOZE)

• When the alarm sounds, press the figure from above or press the snooze/light button (11) to temporarily deactivate the alarm.
  The alarm symbol (4) will flash on the display and: The alarm will sound again after 5 minutes.
• Set the light switch (9) to OFF to switch off the alarm.

Light/night light

You have the option to let the light/night light shine for different lengths of time and you have different light colors to choose from.

-11-

GB IE NI CY MT

Set light/night light

Night light color:

- Set the light switch (9) to 5 or 15, press the snooze/light button (11). The light/night light is on.

- Press the DOWN/Down button (13) repeatedly to change the light color. The order of selection is blue, cyan, green, yellow, red, purple, white, fluently changing colors and then repeated again from blue.

• The display is illuminated in white.

Duration of lighting:

- Switch the light switch (9) to 5 - 5 minutes or 15 - 15 minutes, press the snooze/light button (11), the light/night light lights up and goes out automatically after the set time.

Switch light/night light on and off

- Set the light switch (9) to 5 or 15, press the figure from above or press the snooze/light button (11) to switch on the light/night light.

- Set the light switch (9) to OFF to switch off the light/night light.

Temperature

In the normal time display, press and hold the DOWN button (13) to toggle between the °C (degrees Celsius) and °F (degrees Fahrenheit) display.

12-/24-hour display

In the normal time display, press and hold the UP button (10) to toggle between the 12/24 hour display.

With the 12-hour display, AM (1) appears before noon and PM (2) in the afternoon.

Cleaning instructions

Incorrect cleaning can damage the device. DO NOT immerse the device in water or other liquids. Do not use aggressive cleaning agents, brushes with metal or nylon bristles or sharp or metallic cleaning objects such as knives, hard spatulas etc. These can damage the surface. Clean the device with a soft, dry, lint-free cloth, such as is used for cleaning eyeglass lenses.

Storage

If the device is not used for a fairly long period of time, remove the batteries and store the device, cleaned and protected from sunlight, in a cool, dry place, ideally in the original packaging.

Simplified EU Declaration of Conformity

digi-tech gmbh hereby declares that the alarm clock with indoor climate display 4-LD6102-1-3 complies with the RoHS 2011/65/EU and EMC 2014/30/EU guidelines.

You can download your operating instructions and declaration of conformity here: www.digi-tech-gmbh.com/downloads.

Then click on the magnifying glass and enter the article number 414915_2201.

Disposal

The product and packaging materials are recyclable; dispose of them separately for better waste treatment. For options for disposing of the used product, please contact your town council or city administration.

Pay attention to the labelling on the packaging materials when separating waste; these are marked with abbreviations (a) and numbers (b) that mean the following:

1-7: plastics

20-22: paper and cardboard

80-98: composites.

Disposing of the electrical device

The symbol with the crossed-out waste bin signifies that electrical and electronic equipment must not be disposed of with household waste. Consumers are legally obliged to collect electrical and electronic equipment separately from unsorted municipal waste at the end of their service life. In this way, an environ friendly and resource-saving usage is ensured.

Disposable and rechargeable batteries that are not firmly enclosed by the electrical or electronic device and that can be removed in a non-destructive way must be separated from the device before it is handed over to a collection point and disposed of as intended. The same applies to light sources that can be removed from the device in a non-destructive way.

Owners of electrical and electronic equipment from private households can hand them in at the collection points of the public waste disposal authorities or at the collection points set up by the manufacturers or distributors within the jurisdiction of the ElektroG (Electrical and Electronic Equipment Act). The surrender of old devices is free of charge. Please dispose of the device by returning it to your local branch of LIDL.

Dealers with a sales area of at least 400 m ^2 for electrical and electronic equipment are obliged to take them back. The same applies to food retailers with a total sales area of at least 800 m ^2 , provided that they offer electrical and electronic equipment

continuously or at least several times a year. Distance sellers with a storage area of at least 400 m² for electrical and electronic equipment or a total storage area of at least 800 m² are also obligated. In general, distributors are obliged to ensure that old devices can be returned free of charge by means of suitable return options at a reasonable distance.

Consumers have the option of handing over an old device free of charge to a distributor who is obliged to take it back if the consumer purchases an equivalent new device with essentially the same function. This possibility also exists for deliveries to a private household. In distance selling, the option of free pick-up when purchasing a new device is limited to heat exchangers, computer monitors and large devices that have at least one outer edge with a length of more than 50 cm. When concluding the purchase contract, the distributor must ask the consumer about how they intend to return the device. Apart from that, consumers can hand in up to three old devices of one type at a distributor's collection point free of charge, without this being tied to the purchase of a new device. However, the edge lengths of the respective devices must not exceed 25 cm.

Consumers are encouraged to take measures to avoid waste. With regard to electrical and electronic devices, this means extending their lifespan by repairing defective devices and selling used devices that are in good working order instead of disposing of them.

Remove the battery before disposal without causing damage and dispose of it separately (see "Disposal of batteries").

Disposal of batteries

The accompanying symbol indicates that batteries and rechargeable batteries must not be disposed of with normal household waste. Defective or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EU and its amendments. Consumers are legally obliged to dispose of all batteries and rechargeable batteries, regardless of whether they contain harmful substances such as: Cd = cadmium, Hg = mercury, Pb = lead, Li = lithium or not, at a collection point in their municipality/district or at a retail outlet, for environmentally friendly disposal and for the recovery of valuable raw materials such as cobalt, nickel, or copper.

Batteries and rechargeable batteries may be returned free of charge.

WARNING!

Environmental damage due to incorrect disposal of batteries/rechargeable batteries!

Some of the possible materials such as mercury, cadmium and lead are poisonous and, if not disposed of properly, endanger the environment. Heavy metals, for example, can have harmful effects on the health of humans, animals and plants and accumulate in the environment and in the food chain, and then enter the body indirectly via food.

WARNING!

Risk of explosion!

With used batteries containing lithium (Li = lithium), there is a high risk of fire. Therefore, special attention must be paid to the proper disposal of used and rechargeable batteries containing lithium. Incorrect disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for humans and the environment.

For this reason, tape off the poles of lithium-based and rechargeable batteries prior to disposal in order to avoid an external short circuit.

Batteries and rechargeable batteries that are not permanently installed in the device must be removed and disposed of separately before disposal of the device.

Please only return empty batteries and rechargeable batteries! Use rechargeable batteries instead of disposable batteries whenever possible.

Recycling

This product packaging consists of recyclable materials.

Waste disposal

Please dispose of packaging in an environmentally friendly manner. Note the labelling on the various packaging materials and dispose of them separately if necessary.

The digi-tech gmbh warranty

This device has a 3-year warranty valid from the date of purchase. In the event of defects in this device, you have legal rights against the seller of the device. These statutory rights are not limited by our warranty set out below.

Warranty terms

The warranty period begins on the date of purchase. Please keep the receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this device, the device will be repaired or replaced – at our discretion – by us free of charge. This warranty requires that the defective device and the purchase receipt are presented within the three-year period with a briefly written statement stating the nature of the defect and when it occurred. If the defect is covered by our warranty, you will receive the repaired or a new device back. No new warranty period begins with the repair or replacement of the device.

Warranty period and statutory claims for defects

Statutory warranty rights do not extend the warranty period. This also applies to replaced and repaired parts. Any damage or defects already present at the time of purchase must be reported immediately after unpacking. After the warranty has expired, any repairs are subject to a charge.

Scope of Warranty

The device was carefully manufactured according to strict quality guidelines and carefully checked before delivery. The warranty applies to material or manufacturing defects. This warranty does not cover parts of the product that are subject to normal wear and tear and can therefore be regarded as wear parts or for damage to fragile parts, e.g. switches, batteries or parts made of glass. This warranty is void if the unit has been damaged or improperly used or maintained. For proper use of the device, all instructions given in the manual must be strictly observed. Uses and actions that are advised against or warned against in the operating instructions must be avoided at all costs. The device is designed exclusively for private and not for commercial use. The warranty expires in the event of abusive or improper handling, the use of force or repairs that were not carried out by our authorised service branch.

Processing in the event of a warranty claim

To ensure that your request is processed quickly, please follow the instructions below:

• For all inquiries, please have the receipt and item number (414915_2201) ready as proof of purchase.
• Please refer to the type plate, engraving, title page of your manual (bottom left) or to the sticker on the back or underside for the item number.
• If functional errors or other defects occur, first contact the following service department by phone or email.

You can download this manual and many other user manuals, product videos and software at www.lidl-service.com.

PDF ONLINE www.1idi-service.com

This QR code will take you directly to the Lidl service page (www.lidl-service.com) and you will be able to access your operating manual by entering the article number (414915_2201).

Service

Inter-Quartz GmbH

Valterweg 27A

65817 Eppstein

GERMANY

Email: [e-mail]

Phone: [phone]

AT BE DE ES FI FR GB IE IT NI NL PT SE

00800 5515 6616

BG 00800 1114916 8800 33139

CH 0800 563862 8000 5884 LV

CY 8009 4403 800 62851 MT

CZ 800 142 315 00800 44 11 193

-17-

GB IE NI CY MT

DK 800 5515 6616 0800 896840

EE 80000 49116 0800 191026 RS

GR 00800 44140855 0800 80847

HR 0800 222943 0800 004449K

HU 0680 981220

IAN 414915_2201

Item-No.: 4-LD6102-1-3

Year of manufacture: 2022

Supplier

Please note that the following address is not a service address. Contact the service point named above first.

digi-tech gmbh

Valterweg 27A

65817 Eppstein

GERMANY

-18-

GB IE NI CY MT

RISQUE POUR LA SANTÉ !

WEKKER MET WEERGAVE VAN HET RUIMTEKLIMAAT

Inleiding

Open of demonteer batterijen niet.

VÄKKEUR MED VISNING AF RUMMETS KLIMA

Indledning

Pooblaščeni serviser:

Inter-Quartz GmbH, Valterweg 27A, 65817 Eppstein, Nemčija,

Hotline: SI 0800 80847, E-pošta: [e-mail]

Garancijski list

www.digi-tech-gmbh.com/downloads

Zatim kliknite povećalo i upišite broj artikla 414915_2201.

Odlaganje

www.digi-tech-gmbh.com/downloads

Apt.-N°: 4-LD6102-1-3

-276-

BG

Доставчик

KIN KNNYNOATHANIMAI!
