HG00870A - Alarm Clock AURIOL - Free user manual and instructions
Find the device manual for free HG00870A AURIOL in PDF.
| Product type | Radio-controlled alarm clock |
| Brand | Auriol |
| Model | HG00870A |
| Power supply | 2 LR03 batteries (AAA, 1.5 V) |
| Display | LCD with backlight (5 seconds) |
| Radio reception | DCF 77.5 kHz |
| Clock functions | 12/24 h display, date, day of week, temperature |
| Alarm function | Progressive alarm (4 levels), 2 minutes |
| Snooze | 10 minutes |
| Temperature unit | °C or °F (switchable) |
| Operating temperature | 0 - 50 °C |
| Languages for day of week | German, Italian, French, Dutch, Spanish, Danish, English |
| Time zone | Adjustable from -12 to +12 h |
| Cleaning | Soft dry cloth |
| Package contents | 1 alarm clock, 2 LR03 batteries, 1 instruction manual |
| Dimensions | Not specified in the manual |
| Weight | Not specified |
Frequently Asked Questions - HG00870A AURIOL
User questions about HG00870A AURIOL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Alarm Clock in PDF format for free! Find your manual HG00870A - AURIOL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HG00870A by AURIOL.
USER MANUAL HG00870A AURIOL
Operation and Safety Notes
FR BE
RÉVEILRADIOGUIDE
GB/IE/NI Operation and Safety Notes Page 5
DKBrugs-og
Intended use.. Page 7
Parts description.. Page 8
Technical data.. Page 10
Scope of delivery.. Page 10
General safety instructions Page 11
Safety instructions for batteries /
rechargeable batteries . Page 13
Before initial use.. Page 19
Initial use.. Page 21
Automatic or manual DCF signal activation......Page 21
Changing basic settings.. Page 22
Setting the alarm.. Page 25
Turning the alarm on/off.. Page 26
Switching off the alarm signal.. Page 27
Using the snooze function.. Page 27
Lighting the LC display.. Page 28
Switching the temperature display unit......Page 28
Replacing batteries . Page 28
Troubleshooting
Cleaning and care.. Page 29
Disposal
Simplified EU declaration of conformity
Radio-controlled alarm clock
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intendeduse
This product shows time, date and indoor temperature. The product is intended for private household use and is not suitable for commercial use.
- Partsdescription
The control panel (see Fig. A)
1 ALARM button: Press this button to access the alarm function. Use to activate / deactivate the alarm function and shut off the alarm.
2 MODE button: Press this button to access the general settings for the product. Confirm settings with this button. In activate alarm mode, press this button to return to clock mode.
3 +/RCC button: Press this button to activate/deactivate DCF signal reception. In time mode press this button to select 24 or 12 hour format. In settings mode use this button to increase the values you wish to set.
4 - /°C/°F button: Press this button to select the temperature display unit (°C or °F). In settings mode use this button to decrease the values you wish to set.
5 SNOOZE/LIGHT button: When the alarm sounds press this button to snooze the alarm for 10 minutes. Otherwise press this key to activate the backlight for approx. 5 seconds.

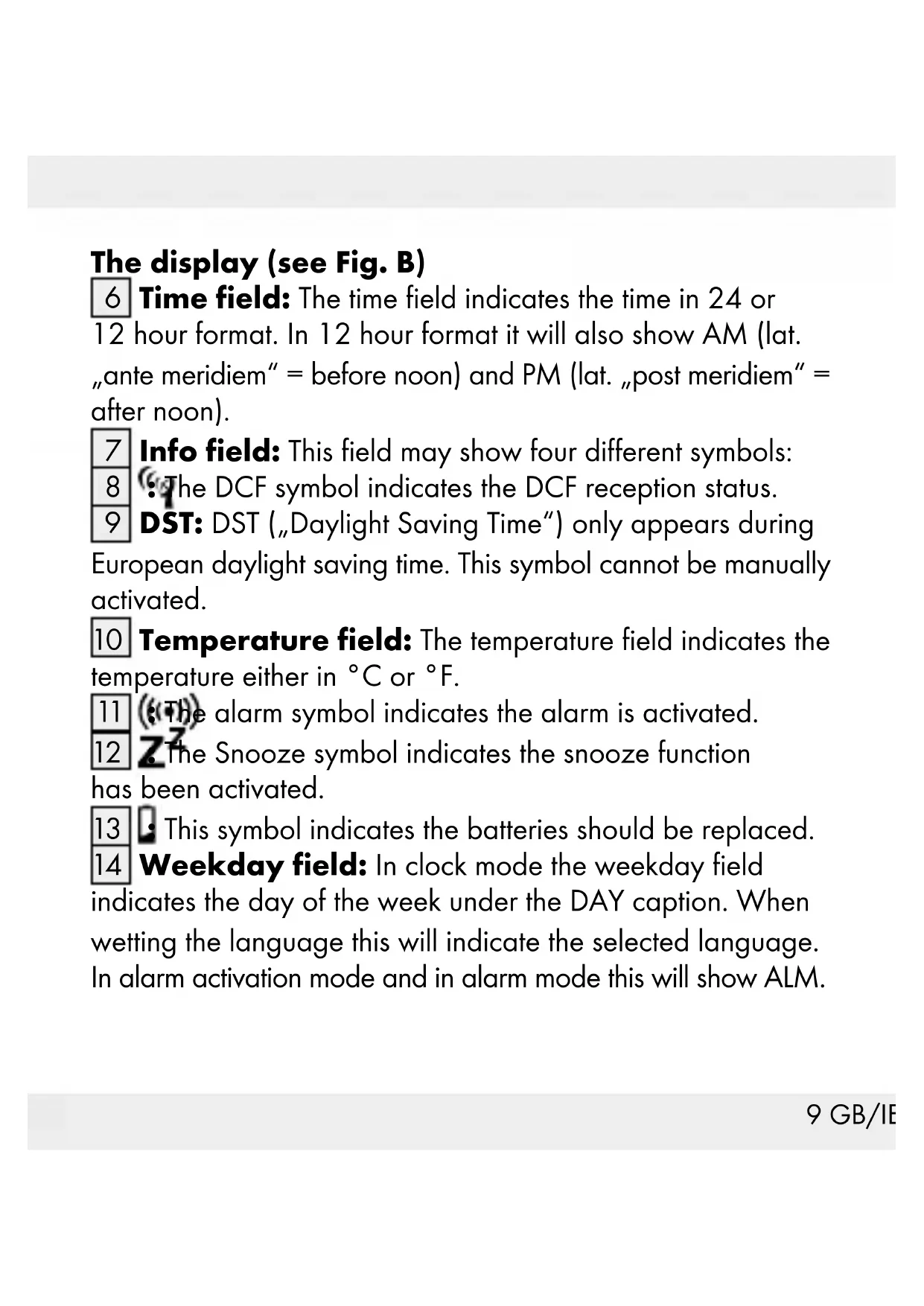

The display (see Fig. B)
Time field: The time field indicates the time in 24 or 12 hour format. In 12 hour format it will also show AM (lat. "ante meridiem" = before noon) and PM (lat. "post meridiem" = after noon).
7 Info field: This field may show four different symbols: 8 :The DCF symbol indicates the DCF reception status.
9 DST: DST ("Daylight Saving Time") only appears during European daylight saving time. This symbol cannot be manually activated.
10 Temperature field: The temperature field indicates the temperature either in ^ C or ^ F .
11 The alarm symbol indicates the alarm is activated.
12 The Snooze symbol indicates the snooze function has been activated.
This symbol indicates the batteries should be replaced. Weekday field: In clock mode the weekday field indicates the day of the week under the DAY caption. When wetting the language this will indicate the selected language. In alarm activation mode and in alarm mode this will show ALM
15 Date field: The date field shows the day of the month under DATE and the month under MONTH. You may also set it to show the year.
16 Battery compartment cover (see Fig. C)
17 Battery compartment (see Fig. D)
Technical data
Operatingvoltage:3V (direct current)
Batteries: 2 × Batteries LRO3 (type AAA, 1.5 V)
Temperature range: approx. 0 - 50^ (32-122 F)
Frequency band: 77.5kHz
Scope of delivery
1 Radio controlled alarm clock
2 Batteries LRO3 (inserted)
1 Set of operating instructions
General safety instructions
Before using the product, please familiarise yourself with all of the safety information and instructions for use! When passing this product on to others, please also include all the documents!
WARNING! DANGER TO LIFE
AND RISK OF ACCIDENTS FOR INFANTS AND CHIL
DREN! This product may be
used by children age 8 years
and up, as well as by persons
with reduced physical, sensory
or mental capacities, or lack-
ing experience and / or knowl-
edge, so long as they are
supervised or instructed in the
safe use of the product and un-
derstand the associated risks.
Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.
Safetyinstructions for batteries/re-chargeable batteries
DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If
accidentally swallowed seek immediate medical attention.
DANGER OF EXPLSION
PLOSION! Never
recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.
Never throw batteries/rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
Avoid extreme environmental conditions and temperatures, which could affect batteries/ rechargeable batteries, e.g. radiators/direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
EAR PROTECTIVE
GLOVES! Leaked or
damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear
suitable protective gloves at all times if such an event occurs.
In the event of a battery leak, immediately remove it from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
Remove the batteries/re-chargeable batteries if the
product will not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery/rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Clean the contacts on the battery and in the battery compartment before inserting!
Remove exhausted batteries/ rechargeable batteries from the product immediately.
Before initial use
□ First remove the protective film from the LC display of the product.
Remove the plastic strip sticking out of the battery compartment.
Note: The LC display will now perform a quick function check and starts receiving the DCF signal (for details please refer to: automatic or manual DCF signal activation). This process may
take a few minutes and is indicated by the DCF symbol flashing in the info field 7 .
Upon successful reception of the radio signal the DCF symbol will stop flashing.
The product is now in clock mode and indicates the current time (CET - Central European Time). It also indicates the date, weekday in German and the temperature in ^ C .
Note: If you are located in a time zone other than Central European Time or wish to display the weekday in another language, it must be manually set. Please refer to chapter "Changing basic settings".
Note: Should you be in a country in which the DCF signal can be received but the time is different to your current local time, you can use the time zone setting to have the product display your current local time. If you find yourself in a country in which, for example, the local time is an hour ahead of Central European Time (CET), you set the time zone to +01. The product is now still controlled by DCF but shows the time as one hour ahead of CET.
Note: If the product is unable to receive a signal after 7 minutes, the DCF symbol will turn off. In this case, possibly change the location of the product and start reception of the
radio signal manually. Please refer to chapter „Automatic or manual DCF signal activation".
Note: If a signal can't be received after changing the location the time must be set manually. Please refer to chapter „Changing basic settings".
Initialuse
Automatic or manual DCF signal activation
automatic:
Note: The DCF signal (time signal transmitter) consists of time pulses emitted by one of the most accurate clocks in the world close to Frankfurt / Main, Germany – this varies by 1 second in 30,000 years. Your product will receive the time signal under optimum conditions up to a distance of approx. 1,500 km from Frankfurt am Main, Germany. Reception of the radio signal generally takes approx. 3–10 minutes. Reception can be considerably impaired by obstacles (e.g. concrete walls) or sources of interference (e.g. other electrical devices). You may have to change the location of the product (e.g. near a window) if there are problems with reception. This product
updates its time once daily via DCF signal. The reception process is indicated with an animated DCF symbol [8] in the info field [7]. If reception is successful the DCF symbol will be static. If reception is unsuccessful the DCF symbol will disappear until the next successful reception.
manually:
Press and hold the + / RCC 3 button for 3 seconds. The flashing DCF symbol in the info field 7 indicates the product is attempting to receive a signal.
Note: You may cancel reception by pressing the + / RCD 3 button again. The DCF symbol will then stop flashing.
- Changing basic settings
Press and hold the MODE 2 button for 3 seconds to access the basic settings mode from clock mode.
During each of the following programming steps press the + / RCC 3 or - / ^ / ^ 4 button to make a change.
TIP: Pressing and holding the + / RCC or - / ^ / ^ button will quickly increase or decrease the numbers.
Press the MODE 2 button to confirm a setting. You will automatically advance to the next programming step.
22 GB/IE/NI
Note: If no changes are made for 20 seconds the product will automatically return to clock mode.
The following settings can be adjusted one after the other:
| Program- ming step | Setting Standard display | Explanation |
| 1 | Setting the time zone | 0 Enter your time difference from Central European Time. The time difference can be set ranging from +12 hours to -12 hours. |
| Programming steps 2 to 3 should only be adjusted if the DCF signal reception failed. When receiving the DCF signal any deviations from the will be corrected. | ||
| 2 | Set hour The hour display in the clock field 6 flashes | |
| 3 | Set minutes The minute display in the clock field 6 flashes | |
| 4 | Set year The year display in the date field 15 flashes | The year can be set up to 2099. |
| 5 | Set month The month display in the date field 15 flashes | |
| 6 | Set day The day dis- play in the date field 15 flashes | |
24 GB/IE/NI
| The following language setting impacts the weekday display in the weekday field 14. | |||
| 7 | Set language The acronym for the current language flashes in the weekday field 14 | Choose from the following languages: GER - German ITA - Italian FRE - French NET - Dutch ESP - Spanish DAN - Danish ENG - English | |
In program step press the MODE button 2 to confirm the language. The product will return to clock mode.
Setting the alarm
Press and hold the ALARM 1 button for 3 seconds to switch from clock mode to alarm mode. The weekday field will display ALM. at the bottom left. This indicates the product is in alarm mode. At the same time the alarm
symbol ( ) 11 will appear in the info field 7, indicating the alarm function is now ready for use. The hour display will flash.
Press the + / RCC 3 or -/^ C/^ F 4 button to adjust the hour display.
TIP: Press and hold the + / RCC or - / ^ /^ button to quickly increase or decrease the numbers.
Press the ALARM button again to confirm your entry. The minute display will now flash.
Press the + / RCC 3 or -/°C/°F 4 button to adjust the minute display.
TIP: Press and hold the + / RCC or - / ^ /^ button to quickly increase or decrease the numbers.
Press the ALARM button again to confirm your entry. The ALM indicator will return to the weekday display. The product will now return to clock mode.
Turning the alarm on / off
- Briefly press the ALARM button 1. The product is now in alarm mode and indicates the alarm time. ALM will appear at the bottom left.
Press the ALARM button again to turn the alarm on or off. The alarm symbol ( · ) 11 indicates the alarm has been activated.
Press the MODE button 2 again to leave alarm mode. The ALM display will disappear and the product returns to clock mode. In clock mode the alarm function being activated is also indicated by the Alarm symbol (11
Switching off the alarm signal
Note: With the alarm activated a signal with 4 levels will sound for approx. 2 minutes at the alarm time set. The alarm symbol () 11 flashes.
Press the ALARM 1 button to switch off the alarm. The alarm symbol stops flashing. The static alarm symbol continues to appear in the info field 7.
Note: If the alarm function is not switched off, the alarm will again sound the next day at the set time.
Using the snooze function
Press the SNOOZE/LIGHT 5 button when the alarm sounds to activate the snooze function. The alarm sound will stop and sound again 10 minutes later. During this
10 minute period the snooze symbol Zwill flash next to the alarm symbol ((·)) 11.
To actually shut the alarm off, press the ALARM 1 button. The snooze symbol will now turn off.
Lighting the LC display
Press the SNOOZE/LIGHT 5 button to light the LC display for approx. 5 seconds.
Switching the temperature display unit
In clock mode press the -/^ C / ^ F button 4 to switch the temperature unit between Celsius (display: ^ C ) and Fahrenheit (display: ^ F ).
Replacingbatteries
Note: If the LC display shows 13, the batteries need to be changed.
Always replace all the batteries at the same time.
Only use battery type LRO3.
- Open the battery compartment 17 by the handle of the battery compartment cover 16.
Remove the old batteries and insert new batteries. Check the polarity of the batteries. This is shown in the battery compartment. - Close the battery compartment. Your product is now again ready for use.
- Troubleshooting
The product contains delicate electronic components. For this reason it is possible that it can be disrupted by radio transmitting equipment in the immediate vicinity. Electrostatic discharges can lead to malfunctions. In the event of such malfunctions, remove the batteries briefly and reinsert them.
- Cleaning and care
The product should only be cleaned externally, using a soft, dry cloth.
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste.
Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is
why you should dispose of used batteries / rechargeable batteries at a local collection point.
- Simplified EU declaration of conformity
Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declares that the roduct LCD Radio-controlled alarm clock, HG00870A, HG00870B, is in compliance with Directives 2014/53/EU and 2011/65/EU.
The full text of the EU declaration of conformity is available at the following internet address: www. owim.com
