RB38T674CSA - Freezer SAMSUNG - Free user manual and instructions

Product type	Combined fridge-freezer
Brand	Samsung
Model	RB38T674CSA
Total net capacity	392 L (estimated)
Fridge capacity	272 L (estimated)
Freezer capacity	120 L (estimated)
Dimensions (W x H x D)	83.5 x 178.0 x 73.6 cm (estimated)
Net weight	100 kg (estimated)
Power supply	220-240 V, 50 Hz
Energy class	A++
Annual consumption	300 kWh (estimated)
Cooling system	No Frost (fan-assisted)
Lighting	LED
Display	Electronic with digital screen
Special features	Open door alarm, child lock (estimated)
Maintenance	Clean interior with warm water and mild soap
Safety	Open door alarm, child lock (estimated)
User-replaceable spare parts	Handles, gaskets, drawers, hinges
Repairability	Professional repair recommended for hinges
General information	Manual available in several languages (FR, EN, ES, etc.)

Frequently Asked Questions - RB38T674CSA SAMSUNG

How to replace the door handle of my Samsung RB38T674CSA refrigerator?

To replace the handle, use a flat-head screwdriver to remove the screw covers, then a Phillips screwdriver to unscrew the screws. Remove the handle and install the new one by following the reverse procedure. Make sure not to scratch the door. Handles are user-replaceable.

How to remove and replace the door gasket?

Open the door and remove the old gasket. Attach a new gasket ensuring no gap between the gasket and the door. A poorly attached gasket may let cold air escape.

How to dismantle the freezer drawer?

Gently lift the front of the drawer and slide it out to remove it. To reinstall, follow the reverse procedure making sure the drawer is properly inserted into the rail.

How to replace a door hinge?

Replacing hinges requires removing the doors. It is recommended to have at least two people. Unplug the power before starting. Use appropriate tools (screwdrivers, socket wrenches) and follow the disassembly steps in the manual. Be careful as doors are heavy.

How to reverse the door opening direction?

Door reversal requires disassembling the hinges and repositioning them on the other side. Follow the detailed procedure in the manual starting with removing the top cover and connectors. Use the listed tools (Phillips screwdriver, 8 mm socket wrench, etc.). Ensure the connectors are properly plugged after reassembly.

What tools are needed to replace parts?

Required tools (not supplied) are a Phillips screwdriver, a flat-head screwdriver, an 11 mm wrench, a 10 mm socket wrench, an 8 mm socket wrench, and a 10 mm wrench.

Which spare parts are user-replaceable?

User-replaceable parts are handles (for some models), gaskets, drawers, and hinges. For hinges, extreme caution is required.

What to do if the door does not close properly?

Check that the gasket is properly attached and that there is no gap. If the gasket is worn, replace it. Ensure the door is properly aligned and the hinges are not loose.

How to clean the refrigerator interior?

Clean the interior with warm water and mild soap. Avoid abrasive products. Dry thoroughly before replacing food.

Where to find the model number to order spare parts?

The model code is displayed on the outer side of the product and on the barcode label at the bottom left of the product. Visit the parts purchase site (samsung.com) and enter this code to check available parts.

USER MANUAL RB38T674CSA SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com

2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.

3. You can check the model code and version on the barcode label at the bottom left of the product.

4. For replacement parts, make sure the part name matches that of the illustration in this manual.

5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

01 Top hinge 02 Gasket
03Drawer 04 Handles (Applicable models only)
05 Middle hinge 06 Barcode label
07 Bottom hinge

English

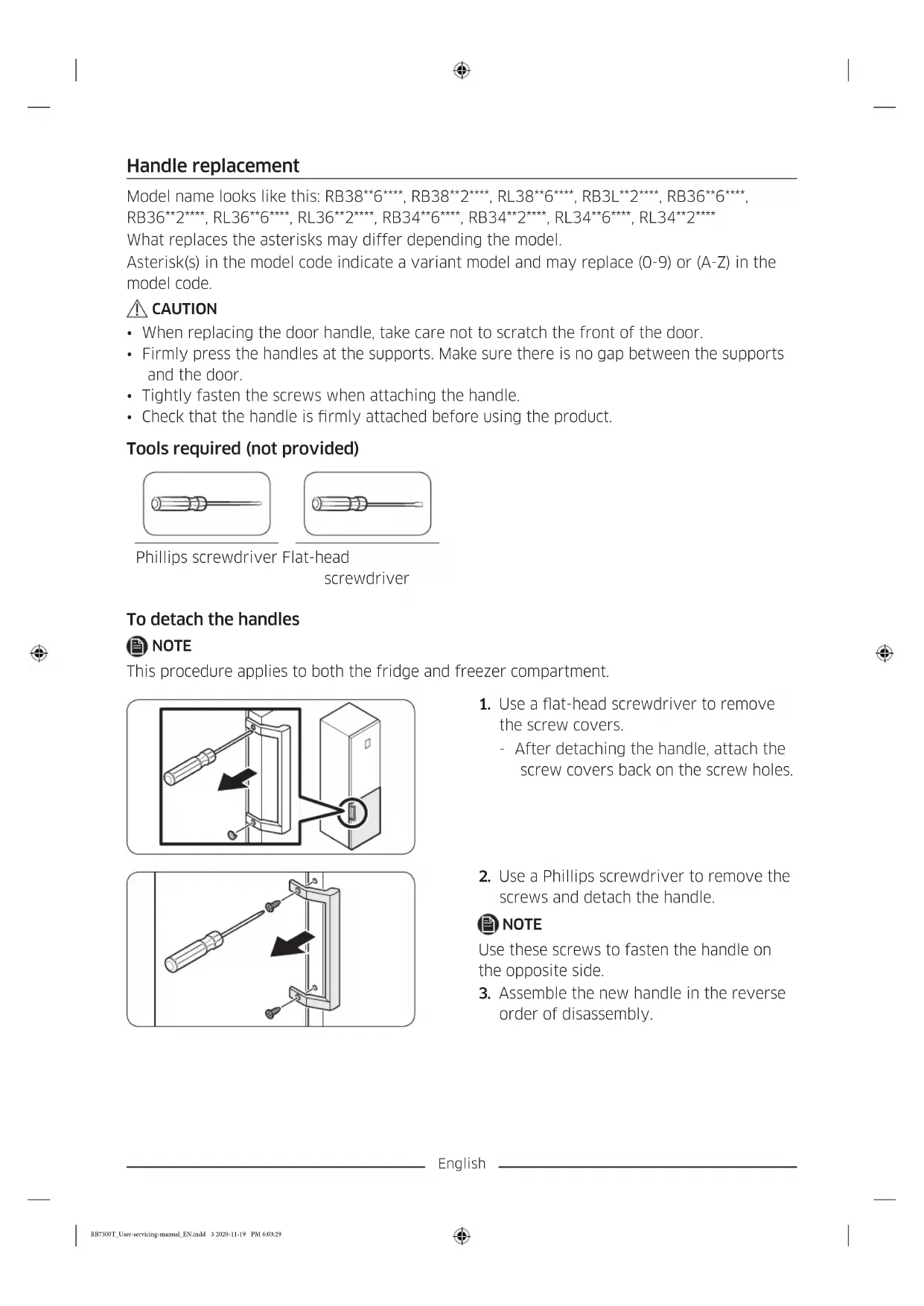

Handle replacement

Model name looks like this: RB386, RB382, RL386, RB3L*2, RB366, RB362, RL36*6, RL362, RB346, RB34*2, RL346, RL342***

What replaces the asterisks may differ depending on the model.

Asterisk(s) in the model code indicate a variant model and may replace (0-9) or (A-Z) in the model code.

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.
• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.
• Tightly fasten the screws when attaching the handle.
• Check that the handle is firmly attached before using the product.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver

To detach the handles

NOTE

This procedure applies to both the fridge and freezer compartment.

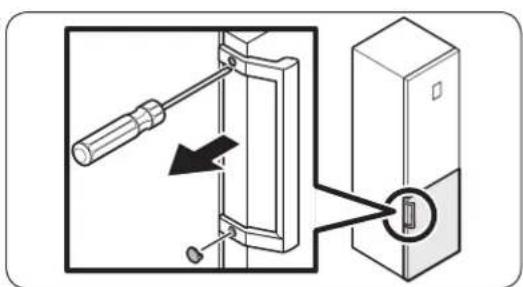

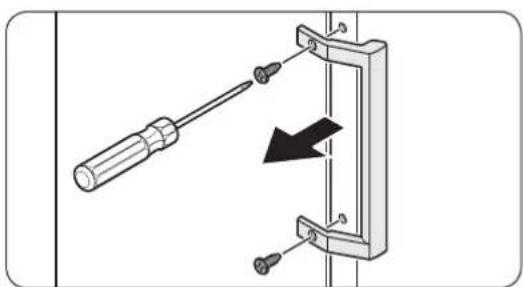

1. Use a flat-head screwdriver to remove the screw covers. After detaching the handle, attach the screw covers back on the screw holes.
2. Use a Phillips screwdriver to remove the screws and detach the handle.

NOTE

Use these screws to fasten the handle on the opposite side.
3. Assemble the new handle in the reverse order of disassembly.

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

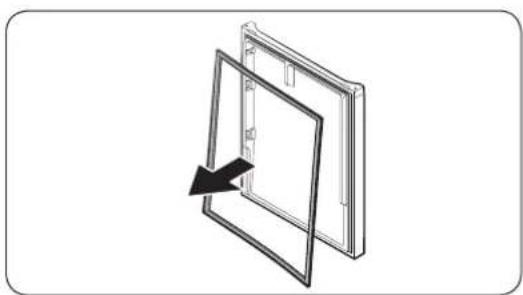

Open the door and remove the gasket from the door.

To replace the gasket

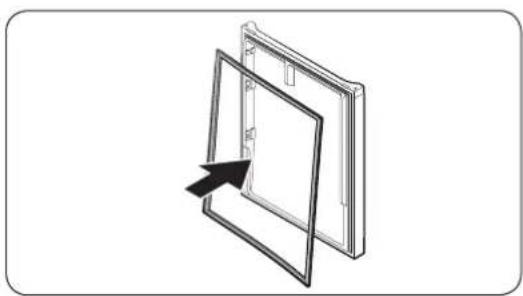

Attach a new gasket to the refrigerator door.
Make sure there is no gap between the new gasket and the door.

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawer

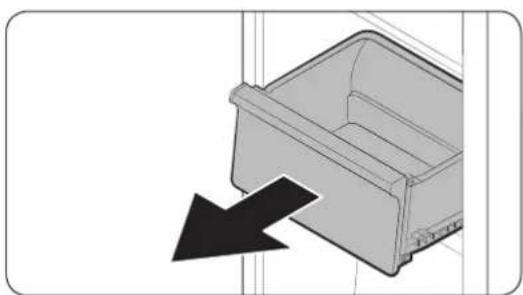

Gently lift up the front of the drawer and slide it out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

English

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.
  If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is firmly tightened on the hinge.
• Check that the hinge is firmly attached to the cabinet.
• Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench 8 mm socket wrench 10 mm spanner

English

Reversing the door

NOTE

For the models with handles, reverse the handles first. (For detailed information, see the "Handle replacement (For models with bar handles)" section.)

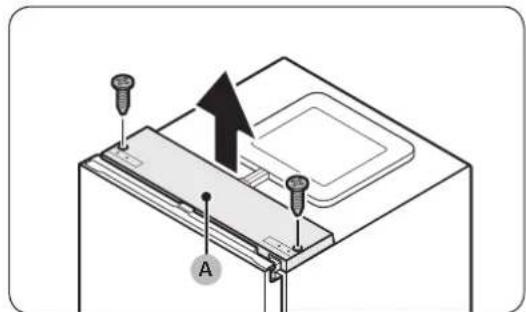

1. With the fridge door closed, use a Phillips screwdriver to remove the screws fastening the top cover (A).

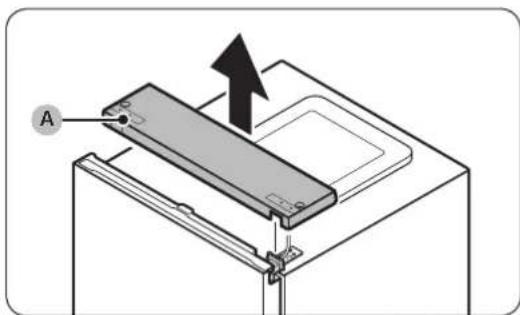

2. Gently lift the top cover (A) and place it on top of the refrigerator.

3. Be careful when you lift the top cover (A). There is a wire connected underneath it.

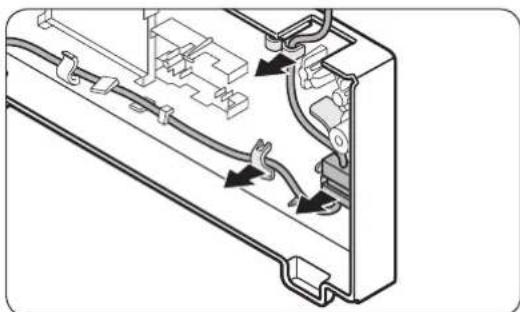

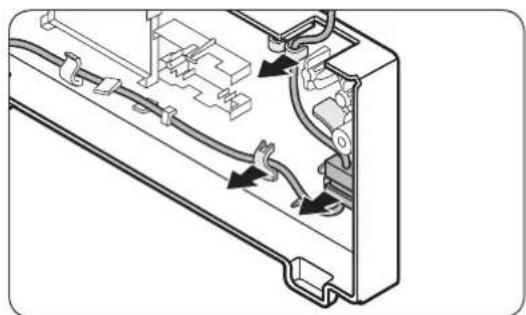

4. Remove the wire and the wire connector placed on the holder underneath the top cover.

5. This step may not apply to some models.

CAUTION

Do not pull the connectors too hard.

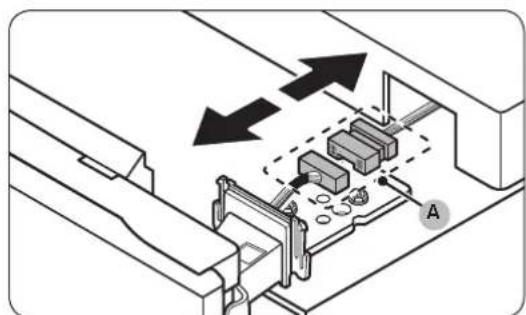

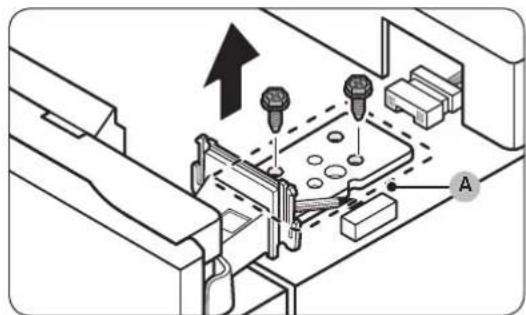

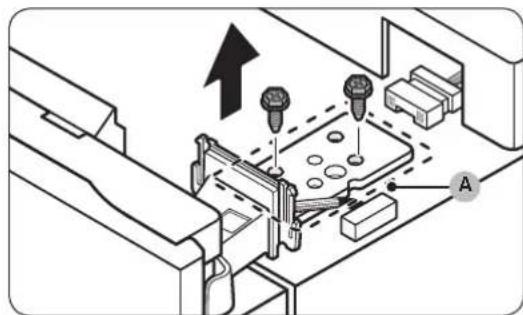

1. Disconnect the wire connector (A).

2. This step may not apply to some models.

English

1. Use a socket wrench (8 mm) to remove the screws fastening the top hinge (A).

CAUTION

To prevent the fridge door from falling, make sure to hold it tight while removing the screws.

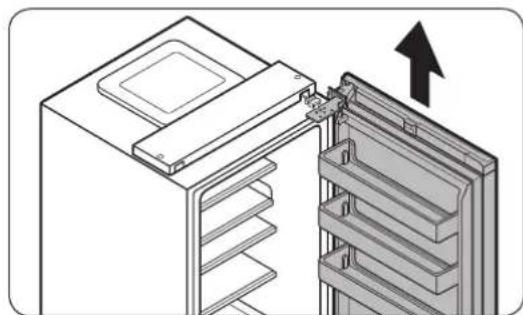

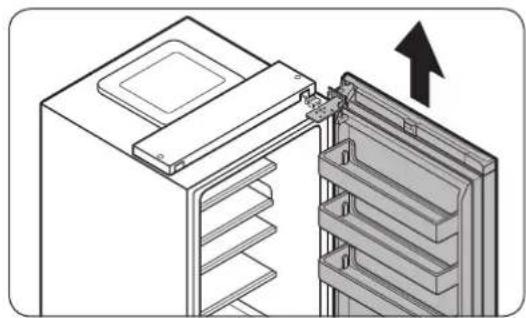

1. Open the fridge door, and then lift the door to remove it from the middle hinge. Keep the door in a safe place.

CAUTION

The door is heavy. To prevent damage or injury, use caution while removing the door.

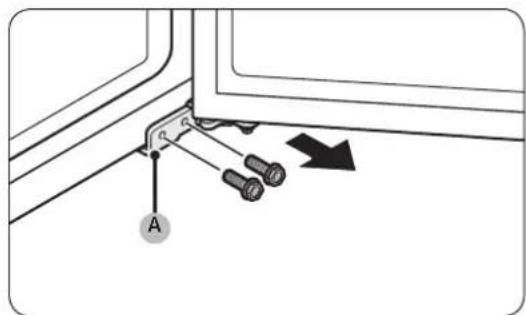

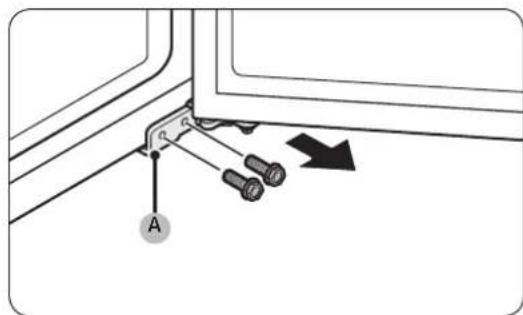

1. Open the freezer door, and then use a socket wrench (8 mm) to remove the screws fastening the bottom hinge (A).

English

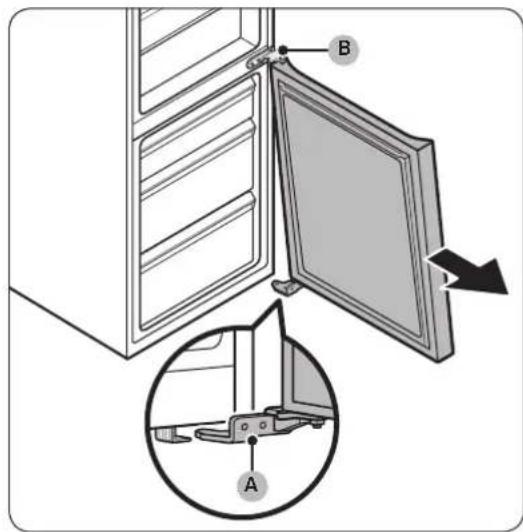

1. With the freezer door sitting on the bottom hinge (A), slowly pull the bottom hinge (A) to remove it from the holder on the bottom of the refrigerator. Once the bottom hinge (A) is removed from the holder, remove it from the freezer door, and then pull the freezer door down to remove it from the middle hinge (B).

CAUTION

To prevent the freezer door from falling, make sure to hold the freezer door tight until it is safely removed from the middle hinge (B).

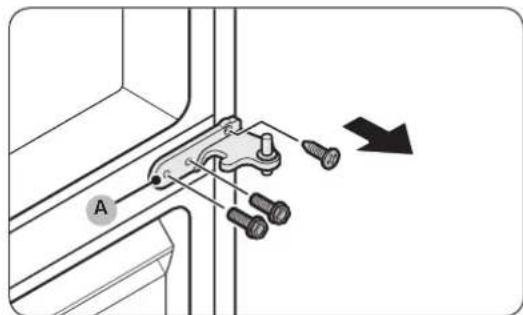

1. Use a Phillips screwdriver and socket wrench (10mm) to remove the screws fastening the middle hinge (A).
2. Reassemble in the opposite order of disassembly after replacing the top, middle, and/or bottom hinge.

CAUTION

• Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover

English
