USER MANUAL PLMB 4 B1 PARKSIDE

Translation of the original instructions

NL BE

Accu-meetlint 4 V

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

PR 电

GB / MT Translation of the original instructions Page

m = 311

Werfen Sie das

Gerat mit

eingebautem

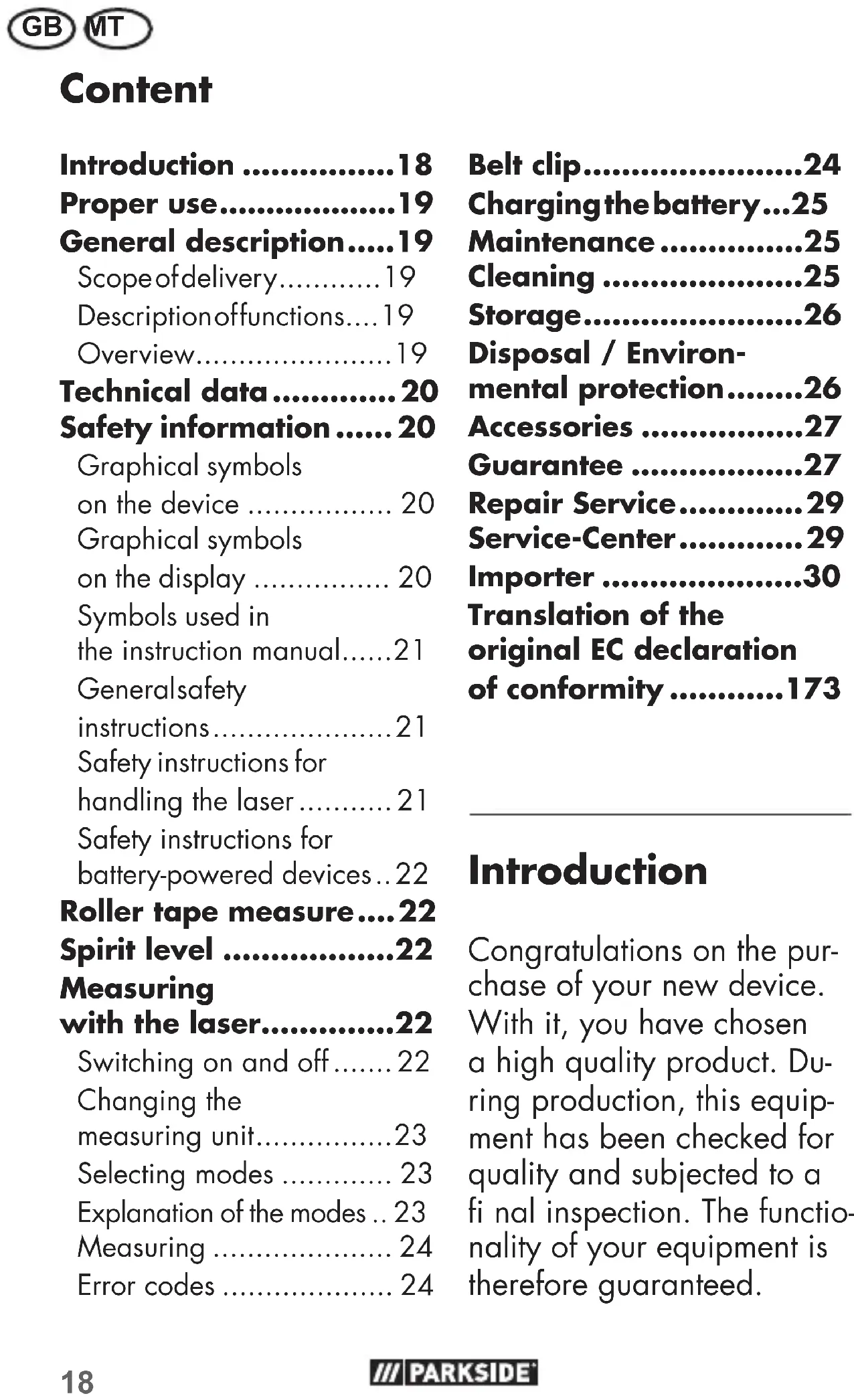

General description.....19

Scope of delivery. 19

Descriptionoffunctions....19

Overview. 19

Technical data. 20

Safety information.....20

Graphical symbols

on the device 20

Graphical symbols

on the display 20

Symbols used in

the instruction manual.....21

General safety

instructions 21

Safety instructions for

handling the laser 21

Safety instructions for

battery-powered devices..22

Roller tape measure....22

Spirit level 22

Measuring

with the laser. 22

Switching on and off.....22

Changing the

measuring unit. 23

Selecting modes 23

Explanation of the modes .. 23

Measuring 24

Error codes 24

Belt clip. 24

Charging the battery...25

Maintenance. 25

Cleaning 25

Storage. 26

Disposal / Environmental protection......26

Accessories 27

Guarantee 27

Repair Service............29

Service-Center. 29

Importer 30

Translation of the original EC declaration of conformity.......173

Introduction

Congratulations on the purchase of your new device.

With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Proper use

The tape measure with laser and spirit level is designed for measuring distances. The device is intended for use by adults. The operator or user is responsible for any accidents or personal injury and/or material damage to third parties or their property. The manufacturer is not liable for damage caused by improper use or incorrect operation. This device is not suitable for commercial use. The warranty is void in the case of commercial use. The

device is suitable for use in dry rooms only.

General description

The illustrations can be found on

the fold-out page.

Scope of delivery

Unpack the device and check for completeness.

• Laser range fi nder with tape measure
• USB-C charging cable
• Instruction manual

Dispose of the packaging material properly.

Description of functions

Please refer to the descriptions below for information on how the operating elements work.

Overview

1 Spirit level
2 Display
3 "Mode" button
4 "Laser" button
5 Belt clip

6 Charging socket
7 USB-C charging cable
8 USB plug
9 USB-C plug
10 Roller tape measure
11 Release button
12 Laser aperture

Technical data

Automatic Tape

Measure.....PLMB 4 B1

Operating voltage

U max. 4V=

Capacity. 0.3 Ah

Supply voltage/

Charging voltage

U IN .5V=

Charging current.....1 A

Battery capacity..300 mAh

Lithium-ion

......rechargeable battery

Protection type........IP20

Roller tape

measure length .3 m

Laser

Laser class 2

Wavelength

630-670 nm

Total radiant

power P_0 .< 1 mW

Accuracy .± 2 mm

Measuring

range .0.05 - 50 m

Safety information

Graphical symbols on the device

Do not dispose

of devices with

a built-in battery in the household waste.

Direct voltage/

DC voltage

LASERCLASS2 EN60825-1:2014 = 630 - 670nm

P<1mW

Caution!

Laser beam

Do not look into the beam! Laser class 2

Graphical symbols on the display

Starting point of the measurement at the rear edge of the device

Laser beam active

Battery level indicator

Measure area

Measure volume

Measure simple Pythagoras

Measure double Pythagoras

Measure triple Pythagoras

Measure continuous distance

Save the last 100 measurements

Symbols used in the instruction manual

Hazard symbol with information on the prevention of personal injury or property damage

Hazard symbol with information on the prevention of personal injury caused by electric shock

i Advisory symbol with information on how to best use the device

General safety instructions

• Observe the information on operation, cleaning, storage and disposal in the operating instructions.
• Keep children away from the device.
• Check the device each time before using. If damaged, have the device repaired. Do not use the device if damaged.
• Turn off the device when not in use. Do not leave the device unsupervised.
• Keep the device away from medical devices, magnetic data storage media and magnetically sensitive devices.

Safety instructions for handling the laser

• Caution: Leaser beam – Do not look into the beam! Laser class 2 Danger of eye injury!
• Do not aim the laser beam at people. Danger of eye injury!
• Markings and warnings

are located on the back of To retract, press the locking the device. button (12).

Safety instructions for battery-powered devices

• In order to minimise the risk of electric shock, pull the charger plug out of the socket prior to cleaning it.
• Do not expose the battery/device to direct sunlight for long periods and do not place the device on a radiator. Heat damages the battery and there is a risk of explosion.
• If warm, allow the battery to cool before charging.
• Do not open the battery and avoid mechanical damage to the battery. There is a risk of a short circuit and vapours may leak out, causing irritation to the respiratory tract. Seek fresh air and medical assistance.

Spirit level

The 2 spirit levels (1) are at a 90^ angle to each other. Place the device upright on a surface and check that the device is level using the spirit level (1) on top.

This ensures that the laser takes an accurate measurement horizontally or vertically.

Measuring with the laser

Caution! Laser beam. Do not look into the beam. Turn your head away or close your eyes to prevent looking into the laser beam. Danger of eye injury!

i Measurements through plastic or glass panes distort the measurement result.

Switching on and off

Roller tape measure Switching on and off

When extracting, the roller tape measure (10) locks automatically.

To switch on, press the "Laser" button (4) for 2 seconds.

To switch off, press the "Laser" button (4) for 2 seconds.

The device turns off automatically after 3 minutes of inactivity.

Changing the measuring unit

You can display the measurements in metres (m), feet (ft), inches (in) or inches (").

You can change the measuring unit by pressing the "Mode" button (3) for 2 seconds.

Selecting modes

You can switch through the modes using the "Mode" button (3) in the following order:

• Measure distance
• Measure area
• Measure volume
• Measure simple Pythagoras
• Measure double Pythagoras

• Measure triple Pythagoras

• Measure continuous distance

• Save the last 100 measurements

On switching on, the device will be in "Measure distance" mode.

Explanation of the modes

Measure distance

The current measurement is always shown in the bottom line of the display (2). When the next measurement is taken, the previously measured value slides up one line.

Measure area

Take two measurements. The individual measurements are displayed in the upper lines. The area is then calculated from the length and width and displayed in the bottom line.

Measure volume

Take three measurements. The individual measurements are displayed in small font in the upper lines. The volume is then

calculated from the length, width and height and is displayed in the bottom line.

Simple Pythagoras/ double Pythagoras/triple Pythagoras

For calculating the distance in a right-angled triangle.

As soon as you press the "Laser" button (4) to take
the measurement, the value to be measured will assist by flashing on the small mode icon.

Measure continuous distance

To record a maximum and minimum distance with continuous measurement. Press the "Laser" button (4) to record the maximum distance. Press the "Laser" button (4) again to record the minimum distance. As the complete measurement is taken, the current distance is displayed in the bottom line.

Save the last 100

measurements

Press the "Laser" button (4) to go backwards through the stored values.

Measuring

1. Select the required mode.
2. Press the "Laser" button (4) to measure.
3. Aim the laser at the point to which you want to measure the distance.
4. Press the "Laser" button (4) again. The measured value is now displayed.

Error codes

Error 08 - Pythagorean theorem cannot be used, no right-angled triangle

Error 10 - Battery empty
Error 15 - Value is outside the measuring range
Error 00/44 - Distance to be measured is too close

Belt clip

During breaks in work, the device can be hung from a belt, using the integrated belt clip (5). Ensure that the device is switched off.

Charging the battery

Do not expose the battery to extreme conditions such as heat and shocks. There is a risk of injury caused by leaking electrolyte solution! In the case of contact, rinse with water or neutraliser. Seek medical advice if the solution has come into contact with the eyes etc.

The battery must only be charged up in dry areas.

• Charge the built-in battery before using it for the first time.
• Defects resulting from improper handling are not covered by the warranty.

• The battery is not replaceable. If you have any problems with the battery, please contact the service centre.

• Insert the USB-C plug (9) into the charging socket (6) on the device.

• Connect the USB plug (8) to a USB port/power supply. The supply voltage / charging voltage must not be more than 5V , the charging current must not be more than 1 A.

The battery status indicator remains on the display when the battery is fully charged.

1. After charging, fi rst disconnect the USB plug (8) from the USB port/ power supply.
2. Then pull the USB-C plug (9) out of the charging socket (6).

Maintenance

The unit is maintenance-free.

Cleaning

Switch off the device before cleaning.

• Clean the device, using a soft dry cloth so as not to scratch the display (2).
• Do not use any abrasive

cleaning agents or solvents. These could damage the device irreparably.

• Do not use water or metallic aids. There is a risk of a short circuit.

Storage

Store the device in a dry place, out of reach of children. The device must not be exposed to direct sunlight during storage.

Disposal / Environmental protection

The device and packaging should be properly recycled.

Do not dispose of devices with a built-in battery

in the household waste, a fire (risk of explosion) or water. Damaged batteries can harm the environment and your health if poisonous fumes or liquids escape.

• Dispose of the device with the battery

discharged. Do not open the device or battery.

In accordance with the Directive 2012/19/EU on waste electrical and electronic equipment, used electrical devices must be collected separately for disposal and recycled in an environmentally sound manner.

Depending on the implementation in national law, you may have the following options:

• Return to a shop.

• Return to an offi cial collection point. For more information, please contact your local waste management provider or our service centre.

• Return to the manufacturer/distributor. We will dispose of any defective devices that you send to us free of charge.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Accessories

You can get accessories from www.grizzlytools.shop

If you have problems with the ordering process, please use the contact form. If you have any further questions, please contact the "Service Center" (see page 29).

USB-C charging cable, item number: 80001029

Guarantee

Dear Customer,
This device comes with a 3-year warranty from the date of purchase.
statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of

purchase.

If a material or manufacturing defect occurs within three years from the date of purchasing of this product, the product will be repaired or replaced by us for free – according to our choice. This warranty service requires you to present the defective device and proof of purchase (sales receipt) within three years and describe briefly in writing the nature of the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must

be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The warranty is only valid for material or manufacturing defects. This warranty does not extend to consumable parts exposed to normal wear and tear (e.g. battery capacity).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Neither does it extend to damage resulting from water, frost, lightning and fire or improper transport. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and

actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identifi cation number (IAN 385158_2107) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing

of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specifi cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will

be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 385158_2107

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN 385158_2107

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Gelif kspanning/ Gelif kstroom

Accu-meetlint....PLMB 4 B1

Bedrij fsspanning U max. 4 V

Metingen door plastic of glazen ruiten

Mereni trojite Pythagory

Service-Center.....102

Dovozca. 102

Metro enrollable .120

Nivel de burbuja.....121

Medicion laser 121

metro enrollable.....3 m Lásér

Tipode laser 2

Longitud de onda 630-670 nm

Potencia total de radiacion P_0· · < 1 mW

Precisión ...± 2 mm

Akkumulator ......Lithium-ion

Védelem...IP20

Görgősmerőszalag

hossza. 3 m

Lézer

Lezerosztaly 2

GB MT	Translation of the original EC declaration of conformity
We hereby confirm that the Automatic Tape Measure, model PLMB 4 B1 Serial number: 000001 - 075000 conforms with the following applicable relevant version of the EU guidelines:
2014/35/EU • 2014/30/EU 2011/65/EU* & (EU) 2015/863
In order to guarantee consistency, the following harmo- nised standards as well as national standards and stipu- lations have been applied:
EN 61326-1:2013 • EN 61326-2-2:2013 EN 61010-1:2010/A1:2019 • EN 60825-1:2014 EN IEC 63000:2018
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE M 22 0071 **
Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, GERMANY 30.03.2022	Christian Frank, Documentation Representative

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
  ** Metrology marking M 22 means: Attachment in 2022 + the notified body

Paper from responsible sources

FSC C150223

FSC

www.fsc.org

MDXTE

Papier Issu de sources

responsibless

FSC C150223

Addendum / Erratum

Fehler-Codes

Error 08 - Pythagorean theorem cannot be used, no right-angled triangle

Error 10 - Battery empty
Error 15 - Value is outside the measuring range or measurement error

Error 16 - Excessive ambient light or measuring surface not suitable (e.g. reflective)

Error 26 - Value cannot be shown (value too large/high)

Reference points for the distance meter

By briefly pressing the "Laser" and "Mode" buttons at the same time, rear edge is shown on the display as the reference point for the distance meter. Pressing these two buttons again switches the display to the front edge reference point.

Addendum / Erratum

FR BE

NL BE

Codes d'erreur

Foutcodes
