POWDP75300 - Multitools PowerPlus - Free user manual and instructions

Product Type	Cordless Rotary Multi-Tool
Brand	PowerPlus
Model	POWDP75300
Power Supply	20 V DC (Li-ion battery)
Rotation Speed	5000 to 33000 min⁻¹ (continuous adjustment)
Collet Chuck	3.2 mm
Flexible Drive Shaft Length	1 m
Shaft Lock	Yes
Sound Pressure (LpA)	80 dB(A)
Sound Power (LwA)	91 dB(A)
Vibration (aw)	≤ 2.9 m/s² (K=1.5 m/s²)
Weight	Approx. 0.6 kg (without battery)
Battery	Li-ion, 20 V, not included
Charger	Suitable charger, not included
Warranty	36 months
Main Functions	Drilling, routing, engraving, polishing, cutting, grinding, sanding (wood, metal, plastic, stone)
Included Accessories	Polishing felts, abrasive papers, wire brush, grinding stones, diamond drill bits, cutting discs, etc.
Safety	Double insulation (charger), soft grip handle, eye and ear protection recommended
Maintenance	Regular cleaning of ventilation slots, avoid solvents
Usage	Non-professional, DIY

Frequently Asked Questions - POWDP75300 PowerPlus

How to charge the battery of the PowerPlus POWDP75300 multi-tool?

Plug the charger into a mains socket (green solid indicator means ready). Insert the battery into the charger; the red light flashes during charging. Once charged, the light becomes solid green. Disconnect the charger and remove the battery. Full charging takes about 1 hour after normal use. Charge only indoors at a temperature between 4°C and 40°C.

How to adjust the rotation speed?

Use the speed adjustment knob (mark 2 in the figure). Turn it to go from minimum speed (MIN) to maximum speed (MAX). The range is from 5000 to 33000 rpm. Always start at a slow speed, then increase gradually.

What accessories are included with the POWDP75300?

The kit contains: 4 polishing felts (B1), 10 sheets of abrasive paper (B2), 1 plastic box (B3), 1 polishing paste (B4), 1 wrench (B5), 1 wire brush (B6), 3 grinding stones (B7), 2 sanding rods (B8), 1 3.2 mm drill bit (B9), 2 collets (B10A and B10B), 3 diamond drill bits (B11), 1 carving bit (B12), 6 abrasive bands (B13) and 5 cutting discs (B14).

How to attach an accessory to the multi-tool?

Press the shaft lock button (mark 3) and slightly turn the collet chuck handle (mark 4) to loosen. Insert the accessory, then firmly tighten the chuck handle. Make sure not to exceed the collet length to avoid imbalance. Never use the lock when the tool is running.

What is the warranty of the PowerPlus POWDP75300 tool?

The warranty is 36 months from the date of purchase by the first user. It covers material and manufacturing defects, but excludes batteries, chargers, wear parts (bearings, brushes, cables, etc.) and damages due to incorrect use or modifications. Keep your purchase receipt.

How to clean and maintain the multi-tool?

After each use, clean the housing with a soft slightly damp cloth (soapy water if necessary). Keep ventilation slots clean to prevent overheating. Never use solvents like gasoline, alcohol or ammonia. Any internal maintenance must be carried out by an authorized service center.

Can I use the tool on metal?

Yes, the tool is suitable for drilling, cutting, grinding and polishing metal. Use appropriate accessories (grinding stones, cutting discs, wire brushes). Avoid metals containing more than 80% magnesium, as they are flammable. Always wear eye protection.

What to do if the battery does not charge?

First check that the charger is plugged in and the indicator is solid green (ready). Insert the battery correctly. If the light remains solid red or flashes abnormally, the battery or charger may be damaged. Let the battery cool down if it is hot. Try another cycle. If the problem persists, contact after-sales service.

What type of battery is compatible with the POWDP75300?

The tool operates with a 20 V DC Li-ion battery. Use only PowerPlus batteries recommended for this tool. Using other batteries may pose a risk of fire or injury. The battery is not included with the tool.

How to check the battery charge level?

The battery is equipped with a capacity indicator (mark 11). Press the button (mark 12) next to the indicator: 3 LEDs lit = full charge, 2 LEDs = 60% charge, 1 LED = low battery. You can also operate the switch to check if the tool runs normally.

USER MANUAL POWDP75300 PowerPlus

FI·EL·HR·CS·SK·RO·PL·HU·RU·BG

ROTARY MULTITOOL

ROTERENDE MULTITOOL - MULTI-OUTIL ROTATIF - ROTIERENDES MULTITOOL

MULTIHERRAMIENTA ROTATIVA - MULTITOOL ROTATIVO

i

NL NEDERLANDS VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING

FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE

EN ENGLISH ORIGINAL INSTRUCTION MANUAL

Pure diagram of a rectangular panel with nine circular holes arranged in a vertical row, labeled B2 at the bottom (no text or symbols on the panels themselves)

B3 B4 B5 B6 B7

B6 B8 B9 B10B B10a B11 B12

POWDP75300

B13 B14

FIG. B

3 4 a

FIG. C

8.2 Zachte TPR handgreep....9

9 GEBRUIK....9

2 BESCHRIJVING (FIG. A)

02/03/22, Lier - Belgium

1 UTILISATION 3

2 DESCRIPTION (FIG. A)....3

3 LISTE DES PIÈCES CONTENUES DANS L'EMBALLAGE....3

4 PICTOGRAMMES....4

5 CONSIGNES DE SÉCURITÉ GÉNÉRALES ......4

16 DÉCLARATION DE CONFORMITÉ

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIQUE, déclare que :

appareil : MULTI-OUTIL ROTATIF 20 V

marque : PowerPlus

modèle : POWDP75300

02/03/2022, Lier - Belgium

1 INTENDED USE....3

2 DESCRIPTION (FIG. A)......3

3 PACKAGE CONTENT LIST .... 3

4 SYMBOLS....4

5 GENERAL POWER TOOL SAFETY WARNINGS....4

5.1 Working area....4

5.2 Electrical safety....4

5.3 Personal safety .... 5

5.4 Power tool use and care....5

5.5 Battery tool use and care ....5

5.6 Service....6

6 SPECIFIC SAFETY WARNINGS....6

6.1 Additional safety instructions....7

7 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS 7

7.1 Batteries 7

7.2 Chargers....8

7.3 Residual risks....8

8 FEATURES....8

8.1 Li-ion battery....8

8.2 TPR soft grip 8

9 OPERATION....8

9.1 Charging the battery pack....8

9.2 Charging indication (14) (Fig. B)....9

9.3 Battery capacity indicator (Fig. A) 9

9.4 Inserting and removing the battery (Fig. A)....9

10 OPERATION .... 10

10.1 Switching ON/OFF (Fig. A).... 10

10.2 Attaching small tools directly to the multi tool. (Fig. A & B)....10

10.3 Setting the speed (Fig. A)....10

10.4 Accessories (Fig. B)....10

POWERPLUS HIGH QUALITY TOOLS

POWDP75300 EN

10.4.1 Grinding bits (B7) 10
10.4.2 Grinding points (B11) (B12)....10
10.4.3 Sander (B8 + B13) (B10b + B2) 10
10.4.4 Drill bit (B9) 10
10.4.5 Cutting disc (B10b + B14) 10
10.4.6 Buffing wheels (B10a + B1)....10
10.4.7 Wire brush (B6)....10
11 CLEANING AND MAINTENANCE .... 11
11.1 Cleaning....11
11.2 Maintenance....11
12 TECHNICAL DETAILS ...... 11
13 NOISE....11
14 WARRANTY....12
15 ENVIRONMENT 12
16 DECLARATION OF CONFORMITY .... 13

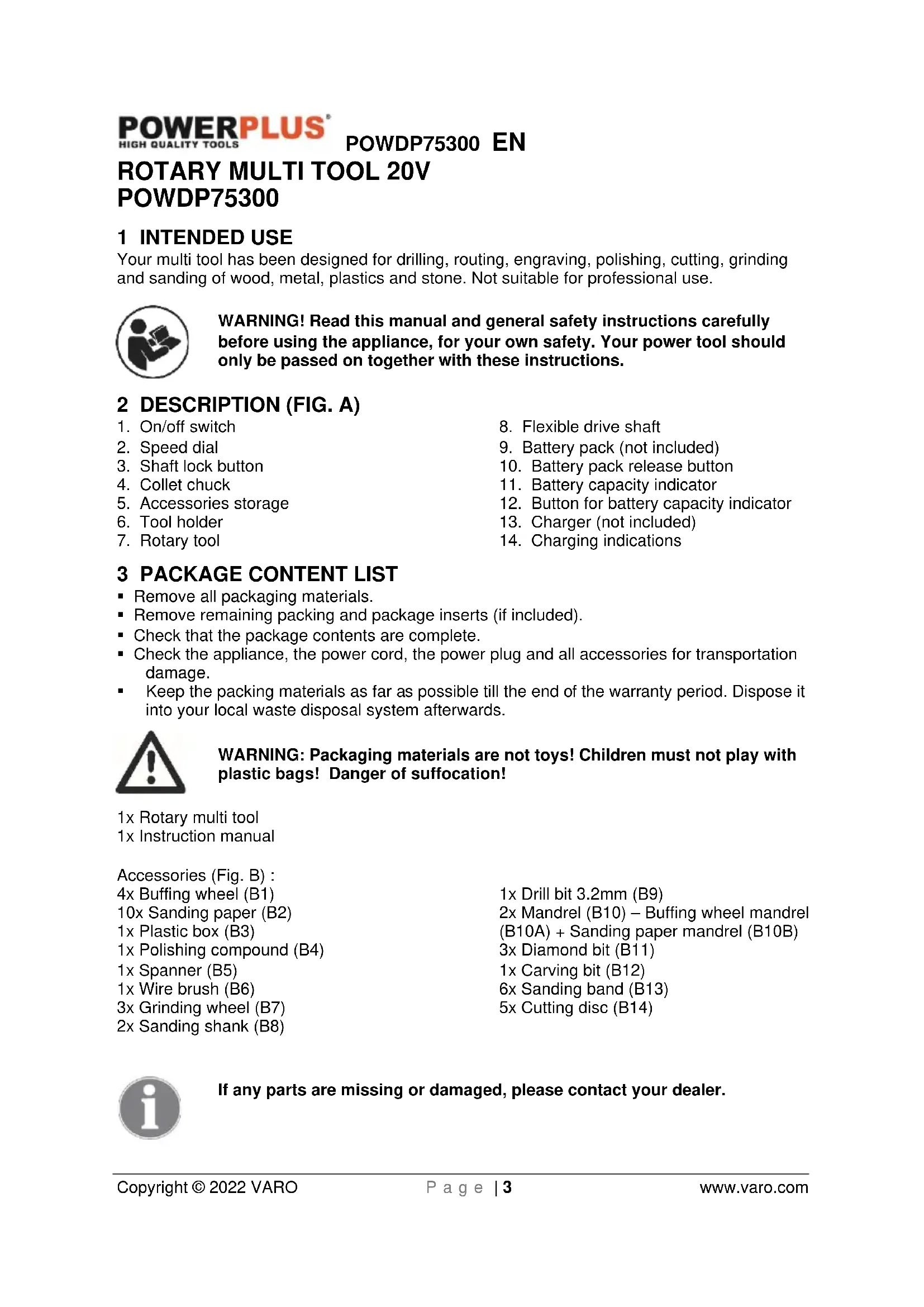

ROTARY MULTI TOOL 20V

POWDP75300

1 INTENDED USE

Your multi tool has been designed for drilling, routing, engraving, polishing, cutting, grinding and sanding of wood, metal, plastics and stone. Not suitable for professional use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG. A)

1. On/off switch
2. Speed dial
3. Shaft lock button
4. Collet chuck
5. Accessories storage
6. Tool holder

7. Rotary tool

8. Flexible drive shaft

9. Battery pack (not included)
10. Battery pack release button
11. Battery capacity indicator
12. Button for battery capacity indicator
13. Charger (not included)
14. Charging indications

3 PACKAGE CONTENT LIST

• Remove all packaging materials.
• Remove remaining packing and package inserts (if included).
• Check that the package contents are complete.
• Check the appliance, the power cord, the power plug and all accessories for transportation damage.
• Keep the packing materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation!

1x Rotary multi tool

1x Instruction manual

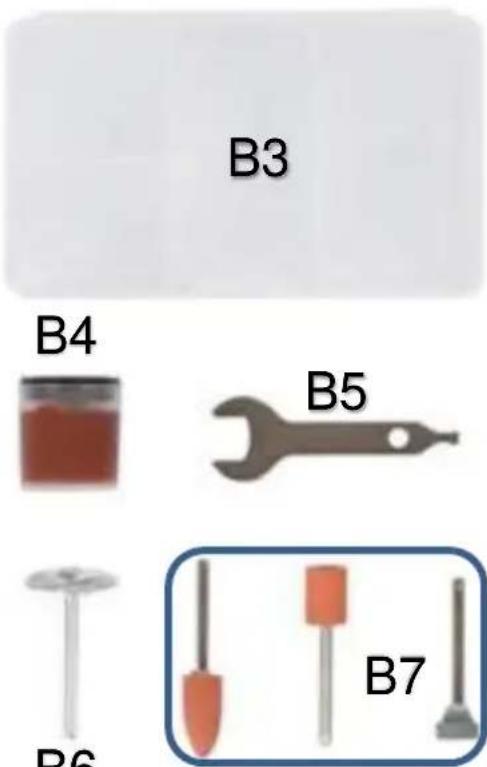

Accessories (Fig. B) :

4x Buffing wheel (B1)
10x Sanding paper (B2)
1x Plastic box (B3)
1x Polishing compound (B4)
1x Spanner (B5)
1x Wire brush (B6)
3x Grinding wheel (B7)
2x Sanding shank (B8)

1x Drill bit 3.2mm (B9)
2x Mandrel (B10) – Buffing wheel mandrel
(B10A) + Sanding paper mandrel (B10B)
3x Diamond bit (B11)
1x Carving bit (B12)
6x Sanding band (B13)
5x Cutting disc (B14)

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

	Denotes risk of personal injury or damage to the tool.		In accordance with essential requirements of the European directive(s)
	Read manual before use		"Class II - The machine is double insulated; earthing wire is therefore not necessary (only for charger)
	Mandatory use of eye protection.		Wear gloves
	Fire hazard		Electrical products must not be disposed with the domestic waste.
	Important information		Do not incinerate the battery.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

- Keep working area clean and well lit. Untidy and dark areas can lead to accidents.

- Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

- Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

- Always check that the power supply corresponds to the voltage on the rating plate.

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.

- Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of an electric shock if your body is earthed.

- Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.

- Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.

- When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of an electric shock.

- If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.

5.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewelry or long hair can become entangled in the moving parts.
• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Battery tool use and care

- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

- Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

POWDP75300 EN

■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
- Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

5.6 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 SPECIFIC SAFETY WARNINGS

• Check that the maximum speed indicated on the grinding disc corresponds to the maximum speed of the machine. The speed of the machine must not exceed the value on the grinding disc.
  ■ Make sure that the dimensions of the grinding disc correspond to the specifications of the machine.
• Make sure that the grinding disc has been mounted and fastened properly. Do not use reducing rings or adapters to make the grinding disc fit properly.
  ■ Treat and store grinding discs in conformance with the supplier's instructions.
• Do not use the machine for grinding workpieces with a maximum thickness exceeding the maximum grinding depth of the grinding disc.
• Do not use grinding discs for deburring.
• When grinding discs have to be mounted on the thread of the spindle, make sure that the spindle has sufficient thread. Make sure that the spindle is sufficiently protected and does not touch the grinding surface.
  ■ Before use, inspect the grinding disc for any damage. Do not use grinding discs which are cracked, ripped or otherwise damaged.
  ■ Before use, let the machine run idle for 30 seconds.
• Immediately switch off the machine in case of abnormal vibrations or occurrence of another defect. Carefully inspect the machine and grinding disc before switching the machine on again.
  ■ Make sure that sparks do not put people into danger or that they contact highly flammable substances.
• Make sure that the workpiece is sufficiently supported or clamped. Keep your hands away from the surface to be cut.
• Always wear safety goggles and hearing protection. If desired or required also use another kind of protection like for example an apron or helmet.
• Ensure that mounted wheels and points are fitted in accordance with the manufacturer's instructions.
• Ensure that blotters are used when they are provided with the bonded abrasive product and when they are required.
  ■ If a guard is supplied with the tool never use the tool without such a guard.
• For tools intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length.
• Ensure that ventilation openings are kept clear when working in dusty conditions.
• If it should become necessary to clear dust, first disconnect the battery (use non-metallic objects) and avoid damaging internal parts.

POWDP75300 EN

• Though poor conditions of the electrical mains, shortly voltage drops can appear when starting the equipment. This can influence other equipment (eq. blinking of a lamp). If the mains-impedance Zmax <0.348 Ohm, such disturbances are not expected. (In case of need, you may contact your local supply authority for further information.
  ■ Make sure that the accessories used are suitable for the maximum speed stated in the technical data.
  ■ Make sure that the accessories are mounted according to the instructions.
  ■ Only use accessories and adapters supplied by the manufacturer.
  ■ Make sure that sparks cannot hit any persons or set flammable materials alight.
• Always wear safety goggles, hearing protection and if necessary other protective means, such as working gloves, hard hat, etc.

6.1 Additional safety instructions

Three triangular warning symbols with exclamation marks, commonly used to indicate warnings or alerts.

Do not use the tool on light metal with a magnesium content exceeding 80%, as this type of metal is flammable.

The work head may continue rotating after the tool is turned off

On the upper side of the tool there is a spindle-lock button. Do not press the spindle-lock button while the tool is running

• Make sure that the accessories used are suitable for the maximum speed stated in the technical data.
  ■ Make sure that the accessories are mounted according to the instructions.
• Only use accessories and adapters supplied by the manufacturer.
  ■ Make sure that sparks cannot hit any persons or set flammable materials alight.
• Always wear safety goggles, hearing protection and if necessary other protective means, such as working gloves, hard hat, etc.

7 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS

Use only batteries and chargers applicable for this machine.

7.1 Batteries

■ Never attempt to open for any reason.
- Do not store in locations where the temperature may exceed 40 °C.
- Charge only at ambient temperatures between 4 °C and 40 °C.
- When disposing of batteries, follow the instructions given in the section "Protecting the environment".
- Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal directly or via accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat generation which may lead to casing rupture or fire.
- Do not heat. If batteries are heated to above 100 °C, sealing and insulating separators and other polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning may result.
- Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows: carefully wipe the liquid off using a cloth. Avoid skin contact.

- In case of skin or eye contact, follow the instructions below:

√ Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar.

√ In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician.

Fire hazard! Avoid short-circuiting the contacts of a detached battery.

Do not incinerate the battery.

7.2 Chargers

• Never attempt to charge non-rechargeable batteries.
• Have defective cords replaced immediately.
• Do not expose to water.
• Do not open the charger.
• Do not probe the charger.
• The charger is intended for indoor use only.

7.3 Residual risks

• Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool's construction and design:
• Damage to lungs if an effective dust mask is not worn.
• Damage to hearing if effective hearing protection is not worn.
• Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.

8 FEATURES

8.1 Li-ion battery

Advantages of Li-ion batteries :

• Li-ion batteries have a higher capacity/weight ratio (more power for less heavy, more compact, battery)
• No memory effect (capacity loss after several charge/discharge cycles) like other type batteries. (Ni-Cd, Ni-MeH ..).
• Limited self discharge. (also see chapter : storage)

8.2 TPR soft grip

Your cordless drill is equipped with TPR soft grip and protective parts. TPR (Thermoplastic rubber) is elastic, chock absorbing and environmental friendly (recyclable).

9 OPERATION

9.1 Charging the battery pack

The battery pack for this tool is supplied in a low charge condition to prevent possible problems, therefore, you have to charge the battery before first use.

Note: Batteries will not reach full charge the first time they are charged. Allow several cycles for the item to fully charge. The battery should only be charged indoors.

After normal use, about 1 hour of charging time is required for the battery to be fully charged.

The battery pack will become slightly warm while charging, this is normal and does not indicate a problem.

Do not place the charger in an area of extreme heat or cold. Best is at normal room temperature. When the battery becomes fully charged, unplug your charger from the power supply and remove the battery pack from the charger.

Note:

• Allow the battery pack to cool completely before charging
• Inspect the battery pack before charging, do not charge a cracked or leaking battery pack.

9.2 Charging indication (14) (Fig. B)

Connect the charger to the power outlet socket

• Solid green: ready to charge
  ■ Flickering red: charging
• Solid green: charged
• Solid green and red: battery or charger damaged

Note: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart. Do not charge any other battery pack or any battery pack that does not securely fit the charger.

• Frequently monitor the charger and battery pack while connected
• Unplug the charger and disconnect it from the battery pack when finished.
• Allow the battery pack to cool completely before using it.
• Store the charger and battery pack indoors, out of reach of children.

NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries.

NOTE: Remove the battery pack from the charger with your hands only, press the battery's release button in and pull the battery pack off at the same time.

9.3 Battery capacity indicator (Fig. A)

• There are battery capacity indicators (11) on the battery pack, you can check the capacity status of the battery if you squeeze the button for battery capacity indicator (12).
• Those 3 LED's show the status of the capacity level of the battery:

3 LED's are lit: Battery fully charged

2 LED's are lit: Battery 60% charged

1 LED is lit: Battery almost discharged

9.4 Inserting and removing the battery (Fig. A)

WARNING: Before making any adjustments ensure the tool is switched off or remove the battery pack

• Hold the tool with one hand and the battery pack (9) with the other.
• To install: push and slide the battery pack into the battery port, make sure the release button (10) on the rear side of the battery snaps into place and the battery is secure before beginning operation.

- To remove: Press the battery release button (10) and pull the battery pack (9) out at the same time.

10 OPERATION

10.1 Switching ON/OFF (Fig. A)

• Switching the power tool ON: slide the ON/OFF switch button (1) into the ON position.
• Switching the power tool OFF: slide the ON/OFF switch button (1) into the OFF position.

10.2 Attaching small tools directly to the multi tool. (Fig. A & B)

• Turn the collet chuck (4) slightly while holding down the shaft lock button (3) until the button engages.
• Never press down on the spindle lock button while the tool is running.
  ■ If the collet chuck (4) can not be loosened by hand, use the small spanner (B5).
• Change the attachment tool. Always tighten attachment tools as much as possible. Shafts which extend out from the collet will cause wobbling.
• Tighten the collet chuck.

10.3 Setting the speed (Fig. A)

• The multi tool speed is continuously adjustable. Always start from the lowest speed and then increase the speed to the desired level.
• To adjust the speed, turn the speed dial (2). Position "MIN" denotes the lowest speed. Position "MAX" denotes the highest speed. Turn the dial to increase or decrease the speed

10.4 Accessories (Fig. B)

10.4.1 Grinding bits (B7)

Use: sharpening, deburring, rust removal, shaping.

10.4.2 Grinding points (B11) (B12)

Use: For fine engraving of various materials.

Tip: Work on metals at a low speed and process as if it were hardwood.

Plastics must be processed at low speeds because of their tendency to melt during processing.

Operating the multi tool at a higher speed will lessen vibration.

10.4.3 Sander (B8 + B13) (B10b + B2)

- Use: sanding, smoothing and shaping wood and fiberglass.

10.4.4 Drill bit (B9)

Use: drill small holes in wood.

10.4.5 Cutting disc (B10b + B14)

Use: Cutting or slitting bolts, screws, sheet metal, thin wood and plastic.

10.4.6 Buffing wheels (B10a + B1)

Use: Buffing and shining smooth surfaces i.e. metals, paint, leather etc.

Use the polishing compound (B3) to achieve a fine finish.

10.4.7 Wire brush (B6)

Use: Removing rust, paint and encrusted dirt form metal surfaces.

11 CLEANING AND MAINTENANCE

11.1 Cleaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
• Regularly clean the machine housing with a soft cloth, preferably after each use.
• Keep the ventilation slots free from dust and dirt.
• If the dirt does not come off use a soft cloth moistened with soapy water.
• Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

11.2 Maintenance

Our machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

12 TECHNICAL DETAILS

Chuck collet	3.2 mm
Power supply	20 Volt DC
Rotation speed	5000 – 33000 min ^-1
Drive shaft length	1m
Shaft lock	Yes

13 NOISE

Noise emission values measured according to relevant standard. (K=5)

Acoustic pressure level LpA	80dB(A)
Acoustic power level LwA	91dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration)

2.9m/s²

K = 1.5m / s^2

14 WARRANTY

- This product is warranted for a 36-month period effective from the date of purchase by the first user.

- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

■ We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

■ Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

- Your tool must be charged at least 1x per month to ensure optimal operation of this tool.

15 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way.

Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

Product: Rotary multi tool 20V

Trade mark: PowerPlus

Model: POWDP75300

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU

2006/42/EC

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60745-1:2009

EN60745-2-23:2013

EN IEC55014-1 : 2021

The undersigned acts on behalf of the company CEO,

Mentens Ludo

Ludo Mertens

Regulatory Affairs – Compliance Manager

02/03/22, Lier - Belgium

1 EINSATZBEREICH....3

02/03/22, Lier - Belgium

1 APLICACIÓN ....3

02/03/2022, Lier - Belgium

1 APPLICAZIONE....3

2 DESCRIZIONE (FIG. A)....3

3 DISTINTA DEI COMPONENTI....3

4 SIMBOLI....4

5 NORME GENERALI DI SICUREZZA ....4

Regulatory Affairs – Compliance Manager

02/03/2022, Lier - Belgium

1 APLICAÇÃO ....3

02/03/2022, Lier - Belgium

1 BRUKSOMRÅDE....3

2 BESKRIVELSE (FIG. A) 3

3 PAKKENS INNHOLD....3

4 SYMBOLFORKLARING .... 4

5 GENERELLE SIKKERHETSADVARSLER....4

2 BESKRIVNING (FIG. A)....3

3 FÖRPACKNINGSINNEHÅLL 3

4 SYMBOLER 4

5 ALLMÄNNA SÄKERHETSANVISNINGAR FÖR ELEKTRISKA VERKTYG 4

3 FÖRPACKNINGSINNEHÅLL

10 x hiomapaperi (B2)

02/03/2022, Lier - Belgium

1 ЕФАРМОГН....3

02/03/2022, Lier - Belgium

1 PRIMJENA 3
2 OPIS (SL. A) 3
3 POPIS SADRŽAJA PAKETA 3
4 SIMBOLI....4
5 OPĆA UPOZORENJA O SIGURNOSTI RUKOVANJA ELEKTRIČNIM ALATIMA......4
5.1 Radno mjesto 4
5.2 Električna sigurnost....4
5.3 Osobna sigurnost .... 5
5.4 Uporaba i održavanje električnog alata 5
5.5 Upotreba i održavanje akumulatorskog alata....6
5.6 Servis....6
6 ODREĐENE SIGURNOSNE NAPOMENE....6
6.1 Dodatne sigurnosne upute....7
7 DODATNE SIGURNOSNE UPUTE ZA BATERIJE I PUNJAČE .....7
7.1 Baterije....7
7.2 Punjači....8
7.3 Skrivene opasnosti 8
8 ZNAČAJKE 8
8.1 Litij-ionska baterija ....8
8.2 TPR meki rukohvat....8
9 RAD....9
9.1 Punjenje baterijske 9
9.2 Indikacija punjenja (14) (slika A)....9
9.3 Indikator kapaciteta baterije (slika A) 9
9.4 Umetanje i vađenje baterije (slika A)....10
10 UPORABA....10
10.1 Uključivanje i isključivanje (slika A)....10
10.2 Postavljanje alata neposredno na rotacijski višenamjenski alat (slike A i B) .....10
10.3 Podešavanje brzine (slika A)....10
10.4 Pribor (slika B) 10

POWERPLUS HIGH QUALITY TOOLS

POWDP75300 HR

10.4.1 Nastavci za brušenje (B7)....10
10.4.2 Brusni šiljci (B11 + B12)....10
10.4.3 Brusna traka (B8 + B13 + B10b + B2) 10
10.4.4 Nastavak svrdla (B9)....11
10.4.5 Rezna ploča (B10b + B14)....11
10.4.6 Kotači za poliranje (B10a + B1)....11
10.4.7 Žičana četka (B6)....11
11 ČIŠĆENJE I ODRŽAVANJE.... 11
11.1 Čišćenje....11
11.2 Održavanje....11
12 TEHNIČKI PODACI....11
13 BUKA 11
14 JAMSTVO 12
15 OKOLIŠ....12
16 IZJAVA O SUKLADNOSTI....13

ROTACIJSKI VIŠENAMJENSKI ALAT 20V POWDP75300

1 PRIMJENA

Rotacijski višenamjenski alat predviđen je za bušenje, provođenje, graviranje, poliranje, rezanje, brušenje i poliranje drveta, metala, plastike i kamena. Nije prikladno za profesionalnu uporabu.

UPOZORENJE! Prije uporabe alata, a radi vaše vlastite sigurnosti pažljivo pročitajte ovaj priručnik i opće upute o sigurnosti. Ove upute čine sastavni dio opreme električnog alata, pa i u slučaju prodaje drugom vlasniku.

2 OPIS (SL. A)

1. Sklopka za uključivanje/isključivanje
2. Birač brzine
3. Gumb za blokadu vratila
4. Glava stezne čahure
5. Pretinac za pribor
6. Držač alata

7. Rotacijski alat

8. Fleksibilno pogonsko vratilo

9. Baterija (nije isporučena)
10. Gumb za oslobađanje baterije
11. Indikator napunjenosti baterije
12. Gumb za indikator kapaciteta baterije
13. Punjač (nije isporučen)
14. Indikatori punjenja

3 POPIS SADRŽAJA PAKETA

Warning symbol with flame and battery icons, indicating hazardous or hazardous items

2 POPIS (OBR. A)....3

3 OBSAH BALENIA....3

4 SYMBOLY 4

5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE ....4

5.1 Pracovná plocha ....4

8.1 Acumulator li-ion....8

8.2 Manşon moale din cauciuc termoplastic....8

9 MOD DE UTILIZARE 9

7.1 Akumulatory....8

7.2 Ładowarki....9

02/03/2022, Lier - Belgium

1 НАЗНАЧЕНИЕ ....3

2 ОПИСАНИЕ (РИС. А) 3

02/03/2022, Lier - Belgium

POWDP75300 BG

Warning sign with flame symbol and battery icon, indicating hazardous substances

POWERPLUS DISCOVER THE ENTIRE PRODUCT RANGE AT WWW.DUAL-POWER.COM
