Product type	Laser receiver for red and green rotary lasers
Brand	Laserliner
Model	SensoLite 110 Set
Laser reception range	100 m maximum
Power supply	2 AAA batteries 1.5 V
Dimensions (W x H x D)	60 x 110 x 23 mm
Weight (batteries included)	0.14 kg
Operating conditions	0 to 40 °C, max. relative humidity 80 % (non-condensing)
Max. working altitude	4,000 m above sea level
Storage conditions	-10 to 70 °C, max. relative humidity 80 %
Main functions	Circular alignment groove, laser reception field, magnet, universal mount, surveyor rod mount, hand-held range and precision range, audible signal on/off
Battery charge indicator	Yes
Maintenance and cleaning	Clean with a slightly damp cloth; do not use abrasive cleaners or solvents; remove batteries before prolonged storage
Safety	Follow instructions: avoid strong magnetic fields (min. distance 30 cm from implants/magnets), do not expose to mechanical stress or extreme temperatures
Warranty and repairability	See booklet 'Additional notes and warranty information'; modification of the instrument prohibited
General information	Compliant with EMC directive 2014/30/EU; disposal according to WEEE directive

Frequently Asked Questions - SensoLite 110 Set Laserliner

What type of batteries should I use for the Laserliner SensoLite 110 Set?

Use two AAA batteries (1.5 V). Open the battery compartment on the back and insert them observing polarity.

What is the maximum laser reception range?

The reception range is 100 meters maximum under optimal conditions.

How to use the two tolerance ranges?

The receiver has two ranges: the hand-held range (wide tolerance for rough adjustment) and the precision range (fine tolerance for precise adjustment, for example with surveyor rods).

How to attach the receiver to a rod?

Use the universal mount to attach the receiver to flexi rods (references 080.50 for red, 080.51 for green). The alignment groove allows you to mark the height.

What do the audible signals mean?

Rapid beeps indicate you are far from the beam center, slow beeps that you are approaching, and a continuous tone that you are exactly on the center mark (13).

What precautions should be taken with magnets?

Strong magnets can affect pacemakers and damage electronic devices. Always maintain a distance of at least 30 cm from implants and sensitive objects.

How to maintain the Laserliner SensoLite 110 Set?

Clean the components with a slightly damp cloth. Do not use aggressive cleaning agents, solvents, or abrasives. Remove batteries during prolonged storage and keep the device in a dry, clean place.

Can I use this receiver with all rotary lasers?

Yes, the receiver is designed for red and green rotary lasers. Set the rotary laser to maximum rotation speed for optimal detection.

What are the temperature conditions for use?

The device operates from 0 °C to 40 °C with a maximum relative humidity of 80% (non-condensing). Storage is possible from -10 °C to 70 °C.

How to dispose of this device at end of life?

This electrical device must be collected and disposed of separately in accordance with the WEEE directive. Do not dispose of it with household waste.

USER MANUAL SensoLite 110 Set Laserliner

Laserliner

!

Interior view of a remote control device showing internal components and labeled buttons (no readable text or symbols)

Medical device with measurement scale and adjustment knobs (no visible text or symbols)

!

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Laser receiver for red and green rotary lasers

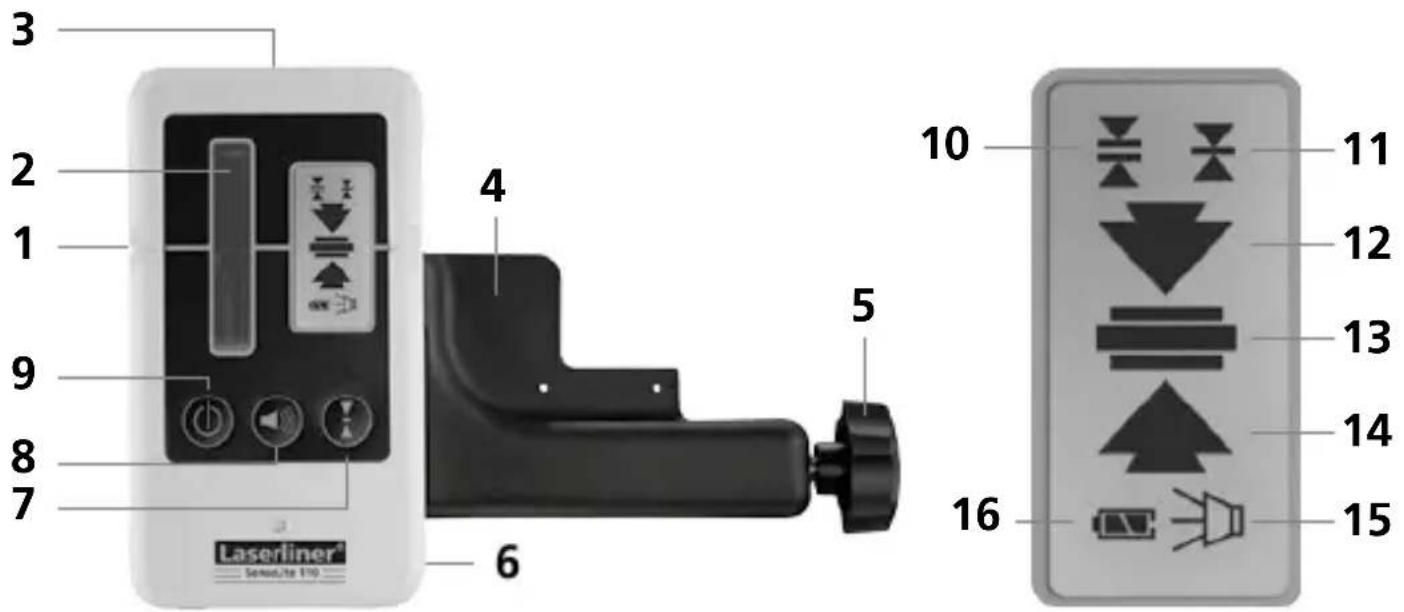

1 All-round marking groove
2 Receiver field for laser beam
3 Magnet
4 Universal mount
5 Fastening screw for levelling staffs
6 Battery compartment (rear side)
7 Switch: Precision range / Free-hand range
8 Sound ON / OFF
9 ON / OFF switch

10 Free-hand range
11 Fine range
12 Hand receiver above laser level
13 Precisely on laser level
14 Hand receiver below laser level
15 Sound ON / OFF
16 Low battery indicator

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Inserting the battery

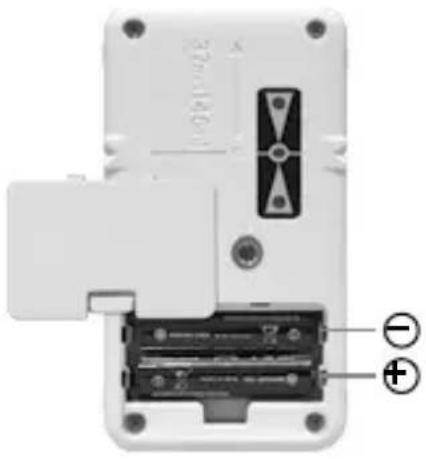

Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

Interior view of a white remote control device showing battery pack and indicator lights (no text or symbols visible)

Working with the laser receiver

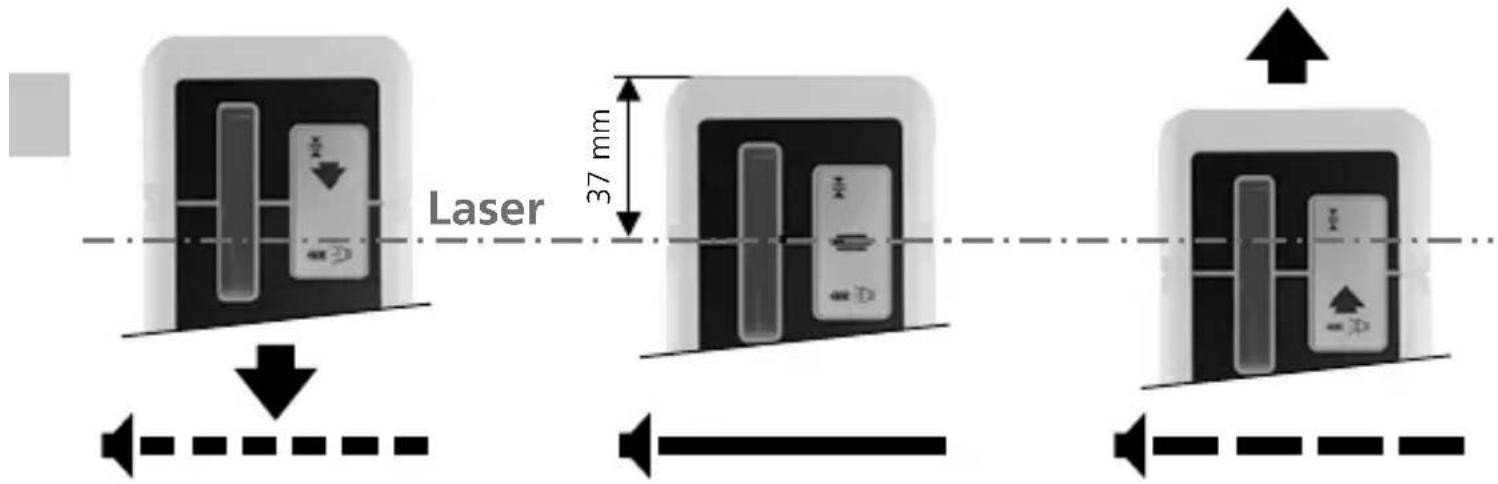

Set the rotary laser to maximum speed and switch the laser receiver on. It is able to detect the laser beam at a great distance now. Move the SensoLite up and down through the laser beam until the middle indicator (13) appears. Mark the measured height at the perimeter marking groove.

Rapid peeping Slow peeping continuous tone = mark the reference

The laser receiver has two tolerance settings:

• Free-hand range (10): Display with larger tolerance for rough alignment by hand.
• Precision range (11): Display with smaller tolerance for precision alignment (e.g. levelling staff).

Universal mount

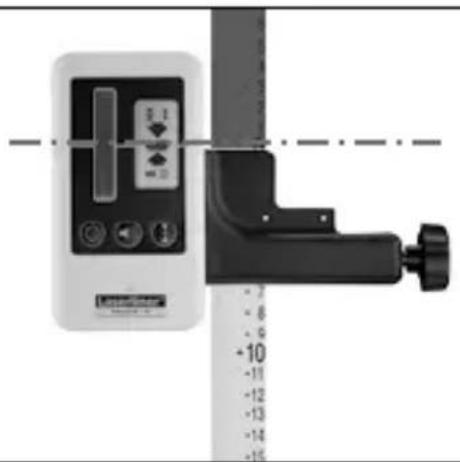

The laser receiver can be installed on levelling staffs with the aid of the universal mount. The Flexi measuring staff (Art. No. 080.50 – red / 080.51 – green) is always recommended when measuring from floor heights. It also allows you to determine heights directly without any need for calculation.

Medical device with measurement scale and adjustment knob (no visible text or symbols)

Danger - powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields” (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical data (Subject to technical alterations. 10.17)
Laser reception range max. 100 m
Power supply 2 x AAA 1.5 Volt batteries
Operating conditions 0 ... 40°C, Max. humidity 80% rH,no condensation, Max. working altitude 4000 m above sea level
Storage conditions -10 ... 70°C, Max. humidity 80% rH
Weight (incl. battery) 0,14 kg
Dimensions (W x H x D) 60 x 110 x 23 mm

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=sesoli110

!

Interior view of a white remote control device showing battery pack, switch, and mounting holes (no text or symbols visible)

Medical device with digital display and adjustable arm, no visible text or symbols

Interior view of a white remote control device showing battery pack and indicator lights (no text or symbols visible)

Interior view of a white remote control device showing battery pack and indicator lights (no text or symbols visible)

Medical imaging device with measurement scale and adjustment knob (no visible text or symbols)

Interior view of a remote control device showing battery pack and indicator lights (no text or symbols visible)

Medical device with measurement scale and adjustment knob (no visible text or symbols)

Interior view of a white remote control device showing battery pack and indicator lights (no text or symbols visible)

Medical device with measurement scale and adjustment knobs (no visible text or symbols)

Interior view of a white remote control device showing battery pack and indicator lights (no text or symbols visible)

Medical device with digital display and adjustable arm, showing measurement scale (no text or symbols visible)

Interior view of a white remote control device showing internal components and labeled pins (no readable text or symbols)

Medical device with digital display and adjustable arm, showing measurement scale (no text or symbols visible)

Interior view of a white remote control device showing internal components and mounting holes (no text or symbols visible)

Medical device with measurement scale and adjustment knob (no visible text or symbols)

Interior view of a remote control device showing internal components and mounting holes (no text or symbols visible)

Medical device with measurement scale and adjustment knob (no visible text or symbols)

Diagram of a mechanical assembly with metal beams and a device, showing motion lines and components (no text or symbols)
