Product type	Super telephoto zoom lens for Fujifilm X mount
Brand	Fujifilm
Model	XF 150-600mm f/5.6-8 R LM OIS WR
Focal length	150-600 mm (35mm equivalent: 229-914 mm)
Maximum aperture	f/5.6-8
Minimum aperture	f/22
Optical construction	24 elements in 17 groups (4 super ED, 3 ED)
Angle of view	10.8° – 2.7°
Minimum focusing distance	2.4 m (from focal plane)
Maximum magnification	0.24×
Filter diameter	82 mm
Dimensions (Diameter × Length)	99 × 314.5 mm
Weight (without accessories)	1605 g
Optical stabilization (OIS)	Yes (built-in)
Weather resistance	Yes (dust and splash resistant)
Focus type	Linear autofocus (LM) and manual
Number of diaphragm blades	9 (circular)
Selectable focus range	FULL (0-∞) or 5 m-∞
Included accessories	Front and rear caps, lens hood, case, strap, tripod collar
Mount compatibility	Fujifilm X mount (exclusively)

Frequently Asked Questions - XF 150600mm f5.68 R LM OIS WR FUJIFILM

Is this lens compatible with all Fujifilm X cameras?

Yes, this lens is designed for the Fujifilm X mount and works with all X series cameras (X-T, X-H, X-Pro, etc.). However, some features like focus preset or AF lock may require recent firmware. Refer to Fujifilm's website for detailed compatibility.

What is the function of the focus range selector?

The focus range selector (FULL or 5m-∞) limits the focusing distance to speed up autofocus. In mode 5m-∞, focus only works for subjects at least 5 meters away, avoiding unnecessary hunting when shooting animals or landscapes.

How do I use the focus preset (PRESET)?

The focus preset allows you to memorize a specific focusing distance. To register, press the preset button (c) at the desired distance. To recall, set the focus selector to PRESET then press one of the focus setting buttons (a). The distance is retained even after turning off the camera.

Is this lens weather-resistant?

Yes, the lens is protected against dust and splashes with sealing joints. It is also designed to withstand temperatures down to -10°C. However, it is not fully waterproof: avoid prolonged exposure to rain or humidity.

What filter can I use with this lens?

The filter diameter is 82 mm. You can use UV, polarizing, neutral density, etc. For a polarizing filter, an access port is provided on the lens hood so you can rotate it after mounting. Note that using a filter may slightly reduce image quality.

How to attach the tripod collar?

Slide the tripod collar ring of the lens into the tripod foot until it stops, then tighten the locking knob. To remove, loosen the knob and hold down the release lever while sliding the foot. Ensure the ring locking knob is tight to prevent accidental rotation.

Does the lens have optical stabilization?

Yes, the lens has built-in optical stabilization (OIS) that compensates for camera movements. It is especially useful for long focal lengths, allowing several stops of shutter speed improvement. Stabilization can be enabled/disabled via the camera body.

What is the minimum focusing distance?

The minimum focusing distance is 2.4 meters (from the focal plane). This corresponds to a maximum magnification of 0.24×, suitable for wildlife or sports photography but not for macro.

How to clean the lens?

Use a blower to remove dust, then a soft cotton cloth lightly dampened with optical cleaner. Never use solvents like benzene or thinner. Store the lens in a cool, dry place away from sunlight, with caps on.

Can I use this lens with an adapter on other mounts?

No, this lens is exclusively designed for the Fujifilm X mount. There is no official adapter for other mounts. Using it on another camera could damage the lens or camera.

USER MANUAL XF 150600mm f5.68 R LM OIS WR FUJIFILM

https://fujifilm-x.com/ja-jp/support/download/firmware/

JA-5

ストラップの取り付け方

レンズフードの取り外し方

PL フィルターの使い方

Diagram showing a cylindrical object being cut with a magnified inset view of its internal structure (no text or symbols)

Technical illustration of a mechanical component with internal channels and a central shaft (no text or symbols)

三脚座について

AF-LOCK (フォーカスロック)

https://fujifilm-x.com/ja-jp/support/compatibility/lenses/

JA-11

日本語

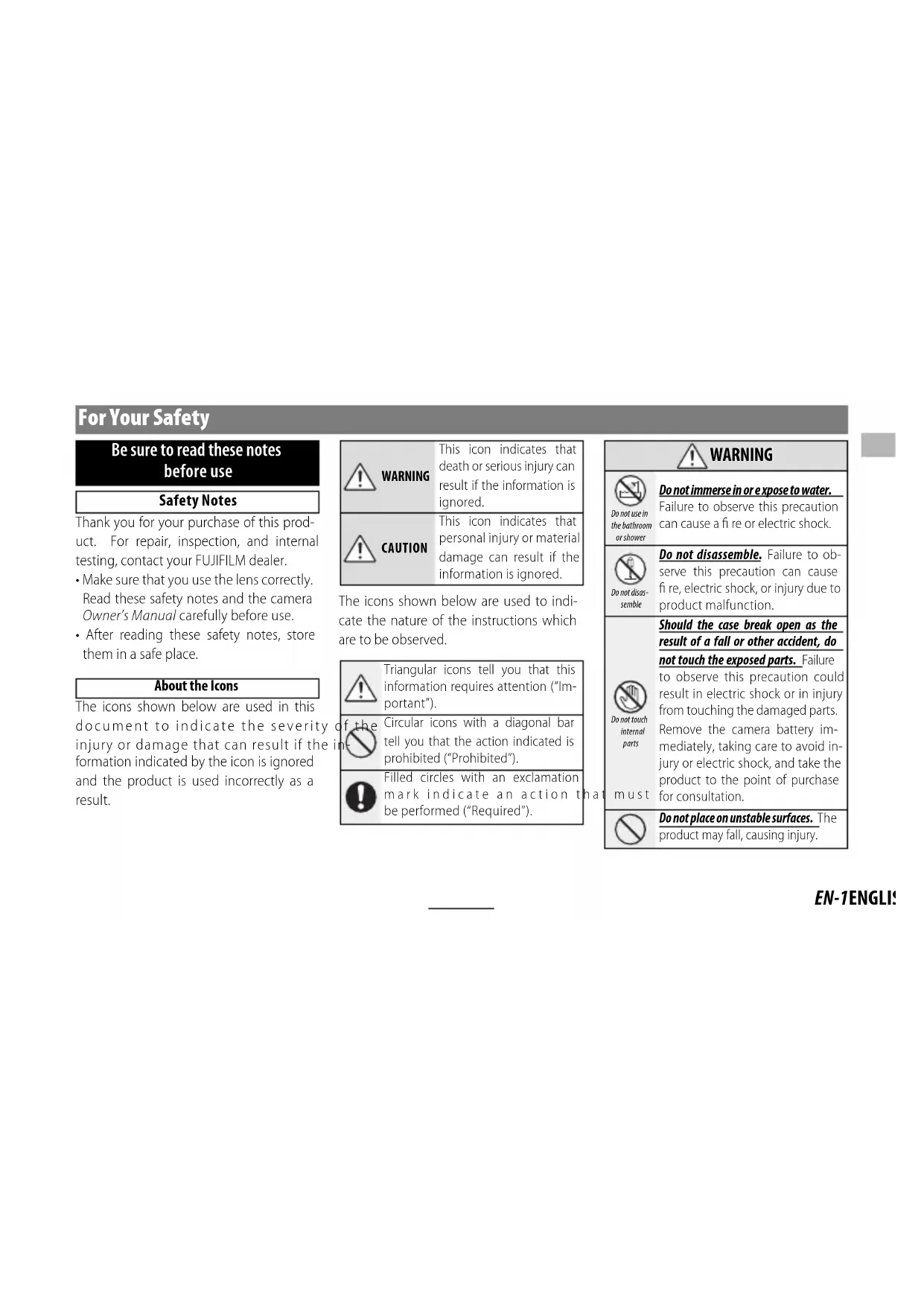

For Your Safety

Be sure to read these notes before use

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your FUJIFILM dealer.

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

	This icon indicates that death or serious injury can result if the information is ignored.
	This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

	Triangular icons tell you that this information requires attention ("Important").
if the	Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
	Filled circles with an exclamation mark indicate an action t be performed ("Required").

WARNING
Do not use in the bathroom or shower	Do not immerse in or expose to water.Failure to observe this precaution can cause a fi re or electric shock.
Do not disassemble	Do not disassemble.Failure to observe this precaution can cause fi re, electric shock, or injury due to product malfunction.
Do not touch internal partsmust	Should the case break open as the result of a fall or other accident, do not touch the exposed parts.Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts.Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.
	Do not place on unstable surfaces. The product may fall, causing injury.
	Do not view the sun through the lens or camera viewfi nders.Failure to observe this precaution can cause permanent visual impairment.
	CAUTION
	Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty.Failure to observe this precaution can cause fi re or electric shock.
	Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day.Failure to observe this precaution can cause fi re.
	Keep out of the reach of small children.This product could cause injury in the hands of a child.
	Do not handle with wet hands.Failure to observe this precaution can cause electric shock.

For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAN ICES-3 (B)/NMB-3(B)

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
• Clean only with a dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

Australian RCM

EN-3ENGLI

Before Using This Product

The lens may not perform as expected and some features may not be available with outdated lens or camera fi rmware. Be sure to update the lens and camera fi rmware to the latest versions. Instructions on viewing fi rmware version information and updating fi rmware are available from the following website:

https://fujifilm-x.com/support/download/firmware/

If you do not have access to a computer, support is available from the local distributor listed in the "FUJIFILM Worldwide Network" material provided with your camera.

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.
• Keep the lens signal contacts clean.
• Use a blower to remove dust and lint from the

glass surfaces of the lens or fi lter. To remove smudges and fi ingerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fi ngers.

• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Attach the front and rear caps when the lens is not in use.
• Store the lens and fi Iter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting can cause irreparable damage. Wipe off rain and water droplets.
  • Leaving the lens in extremely hot locations could cause damage or warping.
• Note that depending on the positions of the camera and tripod, the hand holding the camera grip may contact the tripod or tripod collar foot when the camera is rotated.

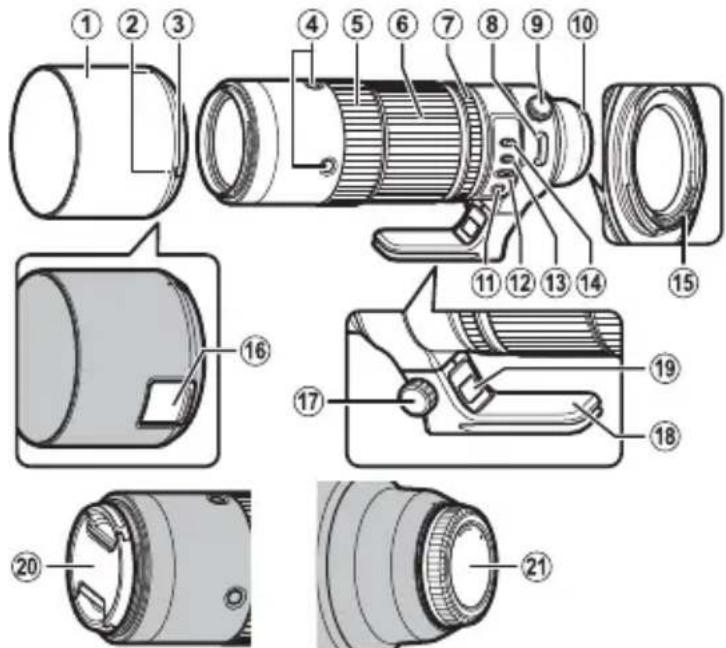

Parts of the Lens

XF150-600mmF5.6-8 R LM OIS WR

① The lens mount includes a rubber ring to ensure that the lens remains dust- and splash-proof. The ring can be replaced for a fee at any Fujifi lm service center.

① Lens hood
② Mounting marks
③ Hood latch release
④ Focus control button (×4)
⑤ Focus ring
⑥ Zoom ring
⑦ Aperture ring
⑧ Strap eyelet
⑨ Tripod collar ring-locking knob
⑩ Mounting marks (focal length)
⑪ Focus preset button
⑫ Focus selector
⑬ Aperture mode switch
⑭ Focus range selector
⑮ Lens signal contacts
⑯ Filter access port
⑰ Tripod collar-locking knob
⑱ Tripod collar foot
⑲ Tripod collar release lever
⑳ Front lens cap
②1 Rear lens cap

Supplied Accessories

- Front lens cap

- Lens hood

- Rear lens cap

- Lens pouch

- Shoulder strap

- Tripod collar foot

Attaching the Lens

See the camera manual for information on attaching and removing lenses.

① This product is for use exclusively with the FUJIFILM X mount. It is not compatible with the G mount or with X mount film cameras.

Removing the Caps

Remove the caps as shown.

EN-6 ENGLISH

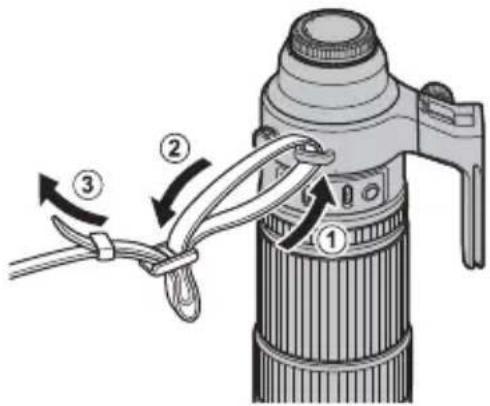

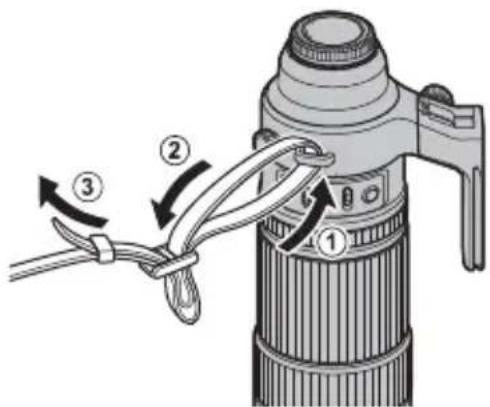

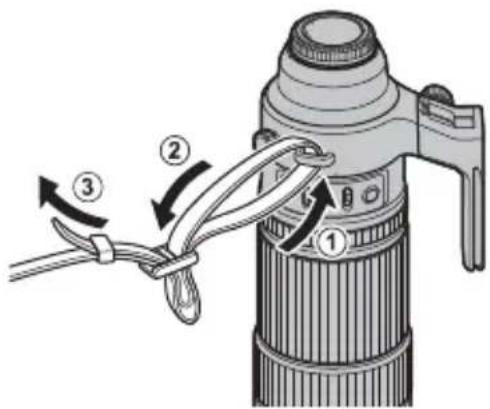

Attaching the Shoulder Strap

Attach the strap to the two strap eyelets as shown.

① To avoid dropping the lens, be sure the strap is correctly secured.

① Use the lens strap, not the camera strap, when carrying the camera with the lens attached.

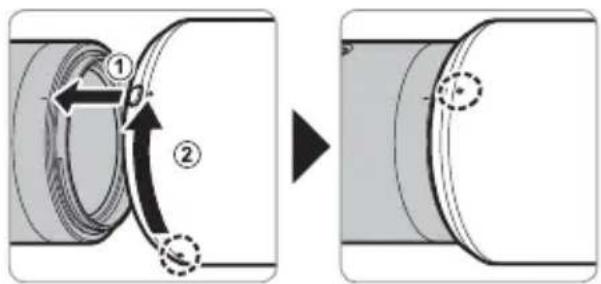

Attaching the Hood

When attached, lens hoods reduce glare and protect the front lens element.

Removing the Hood

To remove the hood, press and hold the hood latch release while rotating the hood counterclockwise.

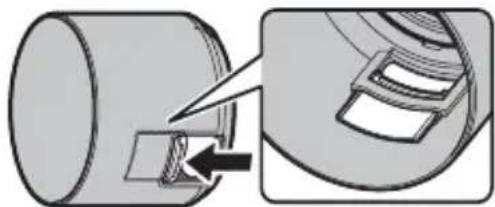

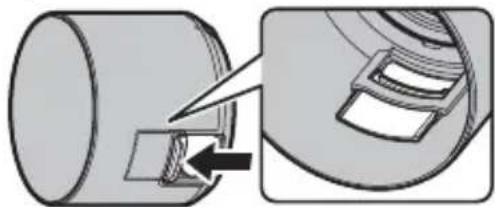

The Polarizing Filter

To access the polarizing fi lter, open the fi lter access port cover.

Diagram showing a cylindrical object being cut with a magnified inset view of its internal structure (no text or symbols)

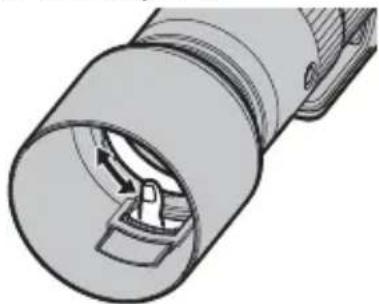

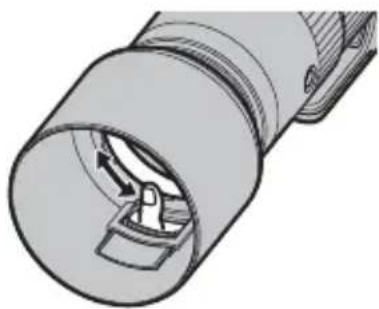

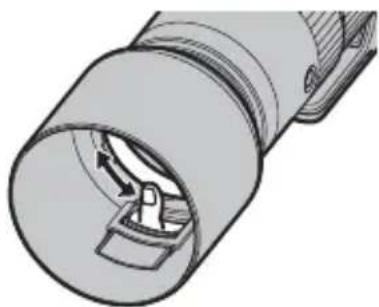

The filter can be rotated by inserting a finger through the access port.

Technical illustration of a mechanical component with internal flow arrows (no text or symbols)

① Note that the port cover could move and catch your finger.

EN-7ENGLI

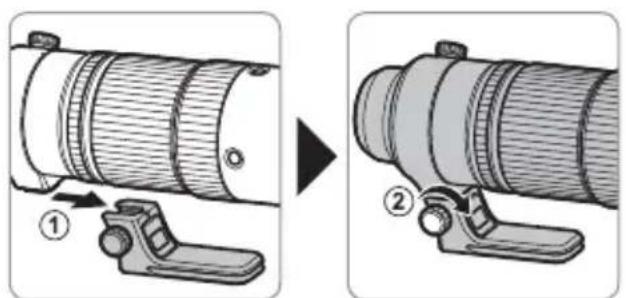

Attaching the Tripod Collar Foot

Slide the lens tripod collar ring fully into the tripod collar foot ^① . Tighten the tripod collar-locking knob ^② to fasten it in place.

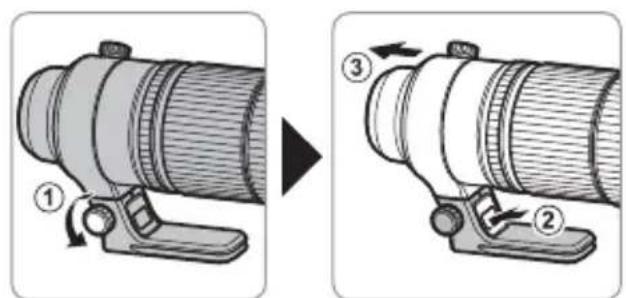

Removing the Tripod Collar Foot

Loosen the tripod collar-locking knob (①) and keep the tripod collar release lever pressed (②) while sliding the tripod collar foot from the lens (③).

① The foot cannot be securely fastened if orientated incorrectly. Orient the foot as shown in the illustration.

The Tripod Collar

To rotate the camera to take pictures in "tall" (portrait) or "wide" (landscape) orientation, loosen the tripod collar ring-locking knob.

① Tighten the tripod collar ring-locking knob to prevent the camera rotating unexpectedly.

EN-8 ENGLISH

The Focus Range Selector

Choose the focus range for autofocus.

• FULL: Focus on subjects at any distance.
- 5m–∞: Focus on subjects at distances of 5 m or more. Focus is faster than when FULL is selected.

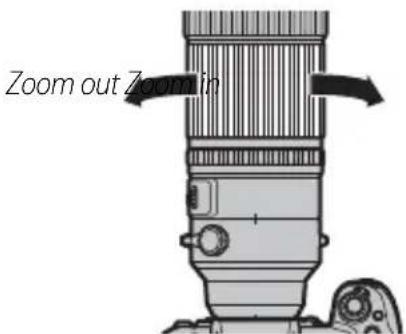

Zoom

Rotate the zoom ring left to zoom out, reducing magnifi cation and increasing the area visible in the frame. Rotate the ring right to zoom in, increasing magnifi cation so that the subject occupies more of the frame.

① Using the zoom ring while the lens is wet makes it easier for water to find its way inside the lens. Wipe any water from the lens before using the zoom ring.

Aperture

For auto aperture control, slide the aperture mode switch to A.

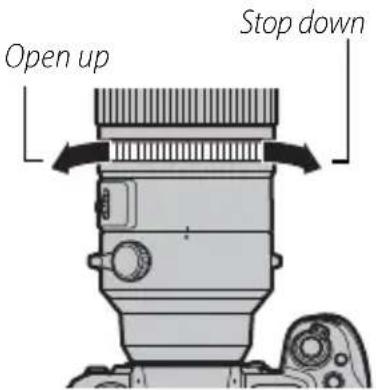

To adjust aperture manually, slide the switch to ⚙ and rotate the aperture ring. Rotate the ring left for wider apertures (lower f-numbers), right for smaller apertures (higher f-numbers).

The Focus Control Buttons, Focus Selector, and Focus Preset Button

AF-LOCK (Focus Lock)

1 Slide the focus selector (b) to AF-L.
2 Press any of the focus control buttons (a) to lock focus at the current position.
Focus can also be locked using camera controls.

Autofocus (AF-ON)

1 Slide the focus selector (b) to AF.
2 The focus control buttons (a) will now perform the same function as the camera AF-ON button.

PRESET (Focus Preset)

① Creating a Focus Preset

To save the current focus position in the lens as a focus preset, press the focus preset button (c).

The focus distance can be saved with the focus selector (b) in any position.

② Recalling the Focus Preset

1 Slide the focus selector (b) to PRESET.
2 Press any focus control button (a) to restore the preset focus position.

Status is shown in the camera LCD monitor.

• Preset saved (green)
• Preset recalled (green)
• Preset save/load error (blinks red)

The lens will store the preset focus distance even when the camera is off or the lens is removed from the camera.
If ON is selected for AF+MF, pressing a focus control button will return the lens to the preset focus position even while the shutter button is pressed halfway.

Specifications

Type XF150-600mmF5.6-8 R LM OIS WR
Lens construction	24 elements in 17 groups (4 super ED elements, 3 ED elements)
Focal length (35 mm format equivalent) f=	150–600 mm (229–914mm)
Angle of view 10.8°–2.7°
Max. aperture f/5.6–8
Min. aperture f/22
Aperture controlNumber of bladesStop size	9 (rounded diaphragm opening) 13 EV (13 stops)
Minimum focus distance (measured from focal plane) 2.4 m
Max. magnifi cation 0.24 ×
External dimensions: Diameter × Length* (approx.)* distance from front of lens to lens mount fl ange	99 × 314.5 mm
Weight* (approx.)* excluding caps, hoods, and tripod collar feet	1605 g
Filter size	82 mm

① Improvements may result in unannounced changes to specifications and appearance.
① Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.
Turn the camera off before removing the lens. Turning the camera off locks the internal parts of the lens.
Lens performance and supported features vary with the camera used. Compatibility data for this lens are available from: https://fujifilm-x.com/global/support/compatibility/lenses/

EN-12 ENGLISH

Pour votre sécurité

https://fujifilm-x.com/support/download/firmware/

FR-6 FRANÇAIS

Diagram showing a cylindrical object being cut with a magnified inset view of its internal structure (no text or symbols)

Technical illustration of a mechanical component with internal flow arrows (no text or symbols)

https://fujifilm-x.com/global/support/compatibility/lenses/

FR-12 FRANÇAIS

https://fujifilm-x.com/support/download/firmware/

DE-6 DEUTSCH

Abnehmen der Haube

Der Polfi Iter

Diagram showing a cylindrical object being cut with a magnified inset view of its internal structure (no text or symbols)

Technical illustration of a mechanical component with internal flow arrows (no text or symbols)

https://fujifilm-x.com/global/support/compatibility/lenses/

https://fujifilm-x.com/support/download/firmware/

Diagram showing a cylindrical object being cut with an arrow, alongside a magnified view of a mechanical component (no text or symbols present)

Technical illustration of a cylindrical mechanical component with internal flow arrows (no text or symbols)

https://fujifilm-x.com/global/support/compatibility/lenses/

ES-12 ESPAÑOL

Voor uw veiligheid

NL-6 NEDERLANDS

Diagram showing a cylindrical object being cut with a tool, and a close-up of its internal structure (no text or symbols)

Technical illustration of a mechanical component with internal flow arrows (no text or symbols)

De statiefgondel

AF-LOCK (scherpstelvergrendeling)

https://fujifilm-x.com/global/support/compatibility/lenses/

NL-12 NEDERLANDS

För din säkerhet

https://fujifilm-x.com/support/download/firmware/

SV-6 SVENSKA

Fästa axelremmen

Diagram showing a cylindrical object being inserted into a mechanical component, with an arrow indicating the insertion direction (no text or symbols present)

Technical illustration of a cylindrical mechanical component with internal flow arrows (no text or symbols)

Stativkragen

AF-LOCK (Fokuslås)

https://fujifilm-x.com/global/support/compatibility/lenses/

SV-12 SVENSKA

For din sikkerhet

https://fujifilm-x.com/support/download/firmware/

NO-6 NORSK

Feste skulderstroppen

Fjerne solblenderen

Diagram showing a cylindrical object being cut with a tool, and a close-up of its internal structure (no text or symbols)

Technical illustration of a mechanical component with internal flow arrows (no text or symbols)

Stativkrage

AF-LOCK (Fokuslås)

https://fujifilm-x.com/support/download/firmware/

FI-6 SUOMI

Polarisaatiosuodin

Diagram showing a cylindrical object being inserted into a slot, with an arrow indicating the insertion direction (no text or symbols present)

Technical illustration of a mechanical component with internal flow arrows (no text or symbols)

Jalustarengas

https://fujifilm-x.com/support/download/firmware/

RU-6 РУССКИЙ

Снятие бленды

Diagram showing a cylindrical object being cut with a magnified inset of its internal structure (no text or symbols)

Technical illustration of a cylindrical mechanical component with internal flow arrows (no text or symbols)

Кольцо штатива

https://fujifilm-x.com/global/support/compatibility/lenses/

RU-12 РУССКИЙ

Sicurezza

https://fujifilm-x.com/support/download/firmware/

IT-6 ITALIANO

Diagram showing a cylindrical object being inserted into a slot, with an arrow indicating the insertion direction (no text or symbols present)

Technical illustration of a cylindrical mechanical component with internal flow arrows (no text or symbols)

La fl angia treppiedi

https://fujifilm-x.com/global/support/compatibility/lenses/

IT-12 ITALIANO

For din sikkerheds skyld

https://fujifilm-x.com/support/download/firmware/

DA-6 DANSK

Diagram showing a cylindrical object being cut with an arrow, alongside a magnified view of a mechanical component (no text or symbols present)

Technical illustration of a mechanical component with internal flow arrows (no text or symbols)

Stativkraven

Technical line drawing of a camera lens assembly (no text or symbols)

(b)
(c)

AF-LOCK (fokuslås)

PL-6 POLSKI

Zdejmowanie osłony

Diagram showing a cylindrical object being cut with a magnified inset view of its internal structure (no text or symbols)

Technical illustration of a cylindrical mechanical component with internal flow arrows (no text or symbols)

Kołnierz statywu

AF-LOCK (blokada ostrości)

https://fujifilm-x.com/global/support/compatibility/lenses/

PL-12 POLSKI

安全须知

使用前务必阅读本注意事项

安全使用注意事项

https://fujifilm-x.com/support/download/firmware/

ZHS-6

安装肩带

如图所示将肩带安装至 2 个肩带穿孔。

取下遮光罩

偏光滤镜

Diagram showing a cylindrical object being processed with a mechanical component, no text or symbols present

随后，将手指插入操作端口即可旋转滤镜。

Technical illustration of a cylindrical mechanical component with internal flow arrows (no text or symbols)

三脚架固定环

Technical diagram of a mechanical device with directional arrows indicating motion or assembly (no text or symbols present)

AF-LOCK（对焦锁定）

https://fujifilm-x.com/support/download/firmware/

安装肩带

如圖所示將肩帶安裝至2個肩帶穿孔。

取下遮光罩

若要取下遮光罩，請按住遮光罩釋放栓扣並同時逆時針旋轉遮光罩。

偏光濾鏡

若要操作偏光濾鏡，請打開濾鏡操作埠蓋。

Diagram showing a cylindrical object being cut with a magnified inset view of its internal structure (no text or symbols)

隨後，將手指插入操作埠中即可旋轉濾鏡。

Technical illustration of a cylindrical mechanical component with internal channels and a handle (no text or symbols)

三腳架固定環

AF-LOCK（對焦鎖定）

https://fujifilm-x.com/support/download/firmware/

어깨 스트랩 부착

후드 제거

편광 필터

Diagram showing a cylindrical object being cut with a magnified inset view of its internal structure (no text or symbols)

Technical illustration of a cylindrical mechanical component with internal flow arrows (no text or symbols)

삼각대 칼라

AF-LOCK(초점 고정)

.PRESET (b) feebtmeyr mcdd tskiyz

Diagram showing a cylindrical object being cut with a paper, and a magnified view of a mechanical component (no text or symbols)

Technical illustration of a mechanical component with internal flow arrows (no text or symbols)

تركيب الواقية

Pure technical diagram of a cylindrical component with a dashed circular mark and arrow, no text or symbols present.

إزالةWOAFIC

① واقية العدسة

② علامات التركيب

③ تحرير قفل الواقية
