Product Type	Wide-angle large aperture lens
Brand	Fujifilm
Model	FUJINON XF 16mm F1.4 R WR
Mount	Fujifilm X (APS-C)
Focal Length	16 mm (equivalent 24 mm in 35mm format)
Maximum Aperture	f/1.4
Minimum Aperture	f/16
Optical Construction	13 elements in 11 groups (2 aspherical, 2 ED)
Angle of View	83.2°
Image Stabilization	No
Autofocus	Stepping motor
Minimum Focusing Distance	15 cm
Filter Diameter	67 mm
Dimensions (Diameter × Length)	73.4 mm × 73 mm
Weight	375 g (approx.)
Weather Resistance	Yes (seals, WR)
Coating	Nano GI (anti-reflective)
Aperture Ring	Yes, with click stops
Accessories Included	Lens hood, front and rear caps
Care and Cleaning	Clean with a soft, dry cloth. Avoid solvents.
Safety	Do not subject to shocks, excessive humidity, or extreme temperatures.
Spare Parts and Repairability	Parts available through Fujifilm after-sales service. Repair by an authorized technician.
General Information	Lens designed for Fujifilm X mirrorless cameras. Compatible with adapter rings.

Frequently Asked Questions - FUJINON XF 16mm F1.4 R WR FUJIFILM

How to clean the FUJINON XF 16mm F1.4 R WR lens?

Use a dry microfiber cloth for the lenses. For stubborn stains, lightly dampen the cloth with a lens cleaner. Never use harsh solvents.

Can I use this lens with an adapter on a camera of another brand?

Yes, if the adapter is compatible with the Fujifilm X mount. However, autofocus and data transmission features may be limited depending on the adapter.

What is the filter diameter for this lens?

The filter thread diameter is 67 mm.

How to activate manual focus (MF)?

Slide the focus ring forward or backward (depending on the camera body) to switch to manual focus. Turn the ring to focus.

Is the lens weather resistant?

Yes, it carries the WR (Weather Resistant) designation. It is protected against dust and water splashes, but is not fully submersible.

What is the minimum focusing distance?

The minimum distance is 15 cm from the sensor (or focal plane). This allows close-up shots with a wide angle.

How to attach the included lens hood?

Screw the hood onto the 67 mm filter thread on the front of the lens. To remove, turn it counterclockwise.

Does this lens require power?

No, the lens is fully mechanical for aperture and manual focus. Autofocus and aperture control are handled by the camera body via the contacts.

What to do if the lens stops responding after a shock?

Immediately turn off the camera, remove the lens, and inspect the electrical contacts. If no visible damage, try remounting it. If the problem persists, contact Fujifilm after-sales service.

Can I use filters with the lens hood attached?

Yes, the hood is designed to accept 67 mm filters screwed directly onto the lens before the hood. Ensure the hood does not cause vignetting with thick filters.

USER MANUAL FUJINON XF 16mm F1.4 R WR FUJIFILM

!

∅

!

!

∅

http://fujifilm.jp/support/digitalcamera/download/

XF14mmF2.8 R XF16mmF1.4 R WR XF23mmF1.4 R

XF16mmF1.4 R WR

AF

MF

XF14mmF2.8 R

AF

MF

	XF14mmF2.8 R XF16mmF1.4 R WR XF23mmF1.4 R
	7 1023	11 132	8 111
	f=14 mm35 mm 21 mm	f=16 mm35 mm 24 mm	f=23 mm35 mm 35 mm
	90.8	83.2	63.4
	F2.8 F1.4 F1.4
	F22 F16 F16
	71/3 19	91/3 22	71/3 22
	30 cm18 cm	15 cm15 cm	0.6 m28 cm
	0.12	0.21	0.1
	65.0 mm 58.4 mm	73.4 mm 73.0 mm	72.0 mm 63.0 mm
	235 g 375 g 300 g
	58 mm	67 mm	62 mm

For Your Safety

Be sure to read these notes before use

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your FUJIFILM dealer.

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

WARNING	This icon indicates that death or serious injury can result if the information is ignored.
CAUTION	This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

	Triangular icons tell you that this information requires attention ("Important").
	Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
	Filled circles with an exclamation mark indicate an action to be performed ("Required").

	WARNING
	Do not immerse in or expose to water.Failure to observe this precaution can cause a fi re or electric shock.
	Do not disassemble (do not open the case).Failure to observe this precaution can cause fi re, electric shock, or injury due to product malfunction.
	Should the case break open as the result of a fall or other accident, do not touch the exposed parts.Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts. Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.
	Do not place on unstable surfaces. The product may fall, causing injury.
	Do not view the sun through the lens or camera view fi ndFailure to observe this precaution can cause permanent visual impairment.
	Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fi re or electric shock.
	Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day.Failure to observe this precaution can cause fi re.

	CAUTION
	Keep out of the reach of small children. This product could cause injury in the hands of a child.
	Do not handle with wet hands.Failure to observe this precaution can cause electric shock.
	Keep the sun out of the frame when shooting backlit subjects.Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.
	When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.
	Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

	CAUTION
	Keep out of the reach of small children. This product could cause injury in the hands of a child.
	Do not handle with wet hands.Failure to observe this precaution can cause electric shock.
	Keep the sun out of the frame when shooting backlit subjects.Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.
	When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.
	Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

For Customers in the U.S.A. For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAN ICES-3 (B)/NMB-3(B)

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
• Clean only with a dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

Australian RCM

ENGLISH

EN-3

Before Using This Product

Some lens features are not available with older versions of the camera fi rmware. Be sure to update the camera fi rmware to the latest version. Instructions on viewing the camera fi rmware version and updating camera fi rmware are available from the following website:

http://www.fujifilm.com/support/digital_cameras/software/#firmware

If you do not have access to a computer, support is available from the local distributor listed in the "FUJIFILM Worldwide Network" material provided with your camera.

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.

• Keep the lens signal contacts clean.

• Use a blower to remove dust and lint from the glass surfaces of the lens or fi lter. To remove smudges and fi ingerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fi ngers.

• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Attach the front and rear caps when the lens is not in use.
• Store the lens and filter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphc moth balls.
• Keep the lens dry. Rusting can cause irreparable damage. Wipe off rain and water droplets.
  • Leaving the lens in extremely hot locations could cause damage or warping.

Parts of the Lens

XF14mmF2.8 R/XF16mmF1.4 R WR/XF23mmF1.4 R

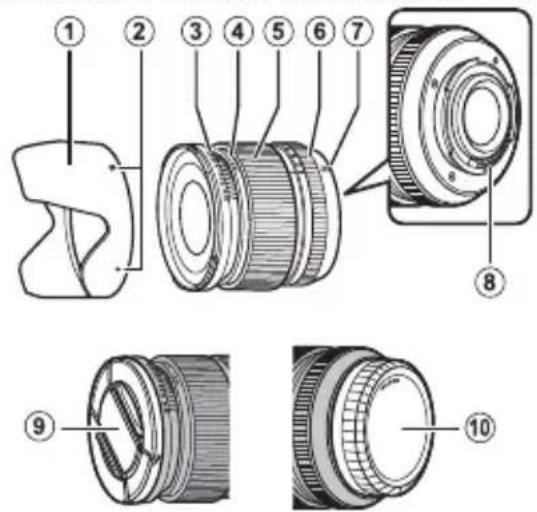

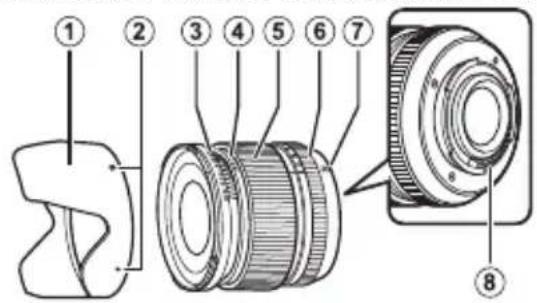

① Lens hood
② Mounting marks
③ Depth-of-fi eld indicator
④ Distance indicator
⑤ Focus ring
⑥ Aperture ring
⑦ Mounting marks (focal length)
⑧ Lens signal contacts

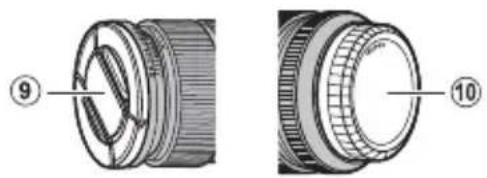

⑨ Front lens cap
⑩ Rear lens cap
① The lens mount includes a rubber ring to ensure that the lens remains dust- and splash-proof. The ring can be replaced for a fee at any FUJIFILM service center (XF16mmF1.4 R WR only).

Supplied Accessories

• Front lens cap

• Rear lens cap

• Lens hood

• Cloth wrapping

ENGLISH

EN-5

Attaching the Lens

See the camera manual for information on attaching and removing lenses. Note that this product is not compatible with X mount fi lm cameras.

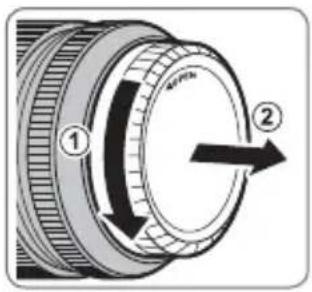

Removing the Caps

Remove the caps as shown.

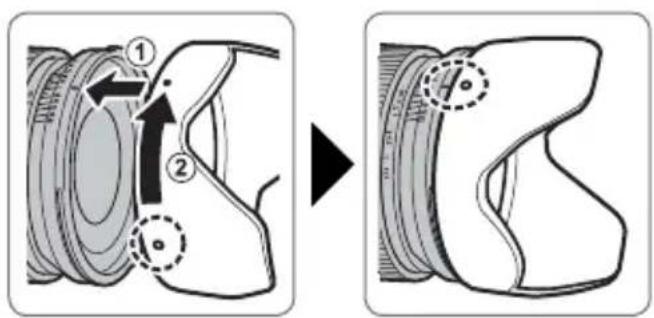

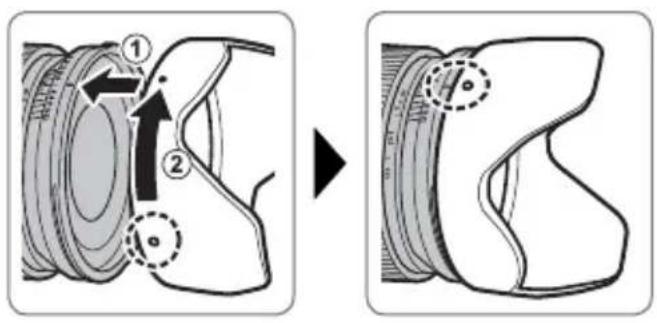

Attaching the Hood

When attached, lens hoods reduce glare and protect the front lens element.

The Focus Ring

• Slide the focus ring to the front for autofocus.
• Slide the focus ring to the back for manual focus.

To adjust focus, rotate the focus ring while viewing the effects in the camera display. The focus distance and depth-of-fi eld indicators can be used to assist manual focus.

The Depth-of-Field Indicator

The depth-of-fi eld indicator shows the approximate depth of fi eld (the distance in front of and behind the focus point that appears to be in focus).

The illustration shows the XF14mmF2.8 R.
Regardless of the focus mode selected with the camera, manual focus can not be used when the focus ring is set for autofocus.

Specifications

Type XF14mmF2.8 R XF16mmF1.4 R WR XF23mmF1.4 R
Lens construction 10 elements in 7 groups	(includes 2 aspherical and 3 extra low dispersion elements)	13 elements in 11 groups (includes 2 aspherical and 2 extra low dispersion elements)	11 elements in 8 groups (includes 1 aspherical elements)
Focal length (35 mm format equivalent)	f=14 mm (21 mm)	f=16 mm (24 mm)	f=23 mm (35 mm)
Angle of view 90.8° 83.2° 63.4°
Max. aperture f/2.8 f/1.4	f/1.4
Min. aperture f/22 f/16	f/16
Aperture controlNumber of bladesStop size	7 (rounded diaphragm opening)1⁄3 EV (19 stops)	9 (rounded diaphragm opening)1⁄3 EV (22 stops)	7 (rounded diaphragm opening)1⁄3 EV (22 stops)
Focus range	Normal: 30 cm-infinityMacro: 18 cm-infinity	Normal: 15 cm-infinityMacro: 15 cm-infinity	Normal: 0.6 m-infinityMacro: 28 cm-infinity
Max. magnification	0.12×	0.21×	0.1×
External dimensions: Diameter × Length* (approx.)* distance from camera lens mount flange	∅65.0×58.4 mm	∅73.4×73.0 mm	∅72.0×63.0 mm
Weight* (approx.) * excluding caps and hoods	235 g	375 g	300 g
Filter size	∅58 mm	∅67 mm	∅62 mm

① Improvements may result in unannounced changes to specifications and appearance.
① Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.

EN-8 ENGLISH
