SMAS 500 C3 - Milk frother SILVERCREST - Free user manual and instructions
Find the device manual for free SMAS 500 C3 SILVERCREST in PDF.
| Product type | Milk frother |
| Brand | SilverCrest |
| Model | SMAS 500 C3 |
| IAN reference | 384725_2107 |
| Power supply | 220-240 V ~, 50/60 Hz |
| Power | Approx. 500 W |
| Maximum capacity (froth) | 150 ml |
| Maximum capacity (hot milk) | 300 ml |
| Minimum capacity | 75 ml |
| Functions | Creamy hot froth, firm hot froth, heating milk with a little froth, cold froth, milk-based drinks |
| Control type | LED light ring with pressure selection |
| Light indicators | Red (heating), blue (cold froth) |
| Automatic shut-off | Yes, at the end of the program |
| Container material | Stainless steel with ILAG non-stick coating |
| Included accessories | Whisk, lid, base plate, quick start guide |
| Care and cleaning | Hand wash, do not immerse base plate, do not put in dishwasher |
| Safety | Automatic shut-off, overheat protection, non-slip feet |
| Weight | Approx. 0.8 kg |
| Dimensions (L x W x H) | Approx. 14 x 12 x 20 cm |
| Warranty | 3 years |
Frequently Asked Questions - SMAS 500 C3 SILVERCREST
User questions about SMAS 500 C3 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Milk frother in PDF format for free! Find your manual SMAS 500 C3 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SMAS 500 C3 by SILVERCREST.
USER MANUAL SMAS 500 C3 SILVERCREST
GB IE
MILK FROTHER
Short manual
FR BE
MOUSSEUR À LAIT
| FR BEAvant de lire le mode d'emploi, ouvrez la page contenant les illustrations. | NL BEVouw vóór het lezen de pagina met de afbeeldingen open. |
| CZPřed čtením si rozložte stránku s ilustracemi. | PLPrzed przeczytaniem proszę rozłożyć stronę z ilustracjami. |
| SKPred čítaním rozložte stranu s ilustráciami. | ESAntes de empezar a leer abra la página que contiene las imágenes. |
| DKFør du læser, vend siden med billeder frem. | ITPrima di leggere aprire la pagina con le immagini. |
| HUOlvasás előtt hajtsa ki az illusztrációkat tartalmazó oldalt. | SIPred branjem razgrnite stran z ilustracijami. |
GB/IE Short manual Page 5
| DE/AT/CH Kurzanleitung Seite 23 | |||
| FR/BE Guide de démarrage rapide Page 41 | |||
| NL/BE Beknopte gebruiksaanwijzing | Pagina 61 | ||
| CZ | Stručný návod | Strano | 79 |
| PL | Skrócona instrukcja obstugi | Strona | 97 |
| SK | Krátky návod | Strana | 115 |
| ES | Guía breve | Página | 133 |
| DK | Kort vejledning | Side | 151 |
| IT | Guida rapida | Pagina | 169 |
| HU | Rövid útmutató | Oldal | 189 |
| SI | Kratka navodila | Stran | 207 |
Table of contents
1. Introduction
1.1. Information about this short manual 6
1.2. Explanation of symbols ...... 6
- Proper use
- Safety instructions ....
- Appliance overview
- Package contents ....
- Before first use 19
- Using the milk frother 19
7.1. Interrupting operation
7.2. Ending operation
- Cleaning and maintenance 22
- Disposal
SILVERCREST®

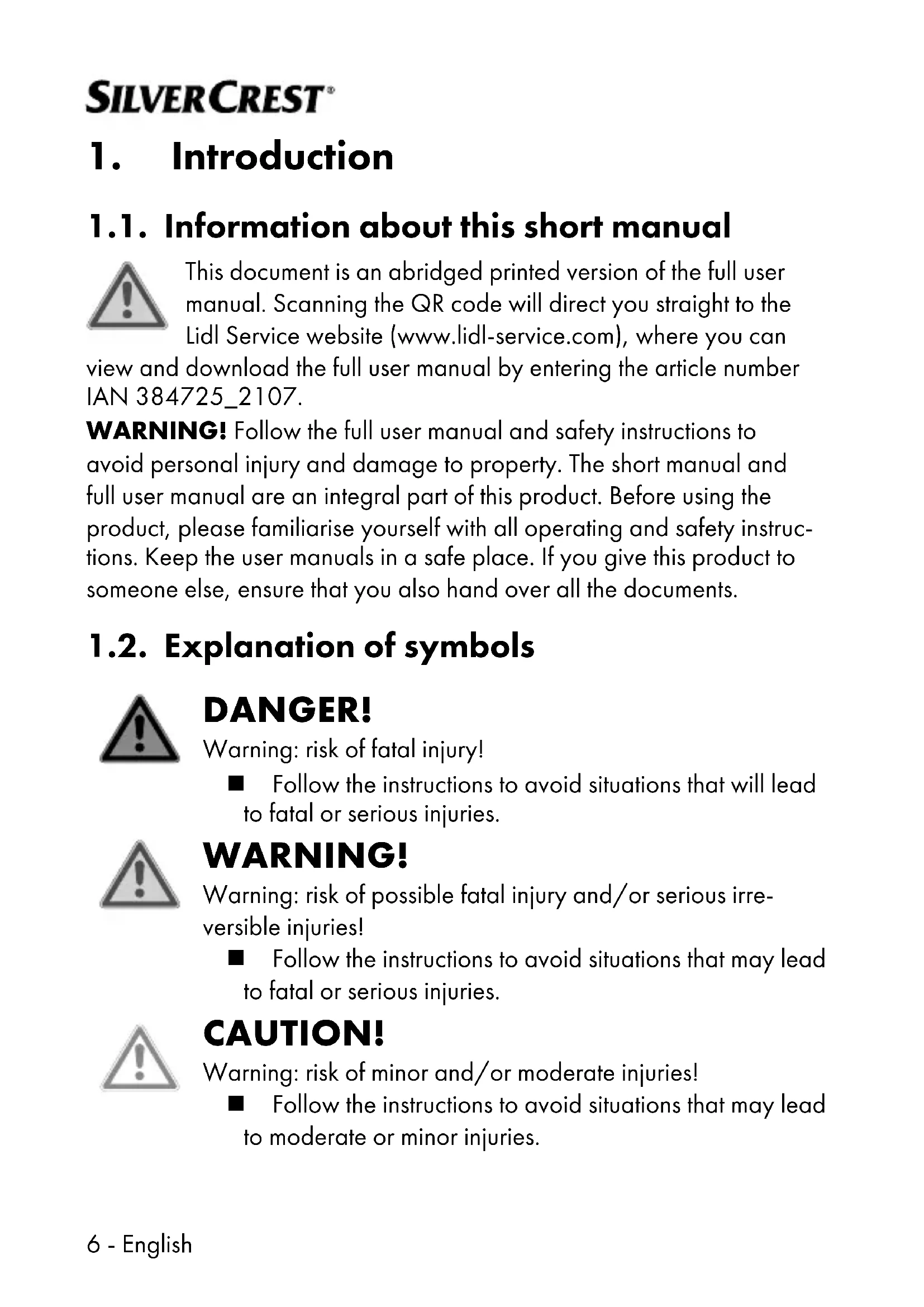

1. Introduction
1.1. Information about this short manual
This document is an abridged printed version of the full user manual. Scanning the QR code will direct you straight to the Lidl Service website (www.lidl-service.com), where you can view and download the full user manual by entering the article number IAN 384725_2107.
WARNING! Follow the full user manual and safety instructions to avoid personal injury and damage to property. The short manual and full user manual are an integral part of this product. Before using the product, please familiarise yourself with all operating and safety instructions. Keep the user manuals in a safe place. If you give this product to someone else, ensure that you also hand over all the documents.
1.2. Explanation of symbols
DANGER!
Warning: risk of fatal injury!
■ Follow the instructions to avoid situations that will lead to fatal or serious injuries.
WARNING!
Warning: risk of possible fatal injury and/or serious irreversible injuries!
■ Follow the instructions to avoid situations that may lead to fatal or serious injuries.
CAUTION!
Warning: risk of minor and/or moderate injuries!
■ Follow the instructions to avoid situations that may lead to moderate or minor injuries.
WARNING!
Warning: risk of electric shock!
NOTICE!
Follow the instructions to avoid property damage.
■ Follow the instructions to avoid situations that may damage the appliance.
Notes regarding assembly or operation
Follow the instructions in the user manual!
■ Instruction to be followed to prevent hazards
• Bullet point/information on steps during operation
▶ Instruction to be carried out
Protective earthing symbol (for protection class I)
Electrical appliances in protection class I are electrical appliances that permanently have at least basic insulation and either have a plug with earth contact or a fixed power cable with protective earth.
Declaration of Conformity (see "Declaration of Conformity" section): Products that feature this symbol meet the requirements of the EU directives.
Tested safety: Products that feature this symbol meet the requirements of the German Product Safety Act.
Symbol used in the EU to indicate materials that come into contact with food, such as packaging or appliance surfaces.
High-quality, non-stick coating from ILAG®
SILVERCREST®
This product is not dishwasher safe.
Do not immerse it in water or other liquids.
Packaging material label regarding waste separation: Label includes abbreviations (a) and numbers (b) with the following meaning: 1–7: plastics/20–22: paper and cardboard/80–98: composite materials. board/80–98: composite mate
The “Triman” symbol tells the consumer that the product can be recycled, is covered by an extended system of manufacturer’s responsibility and must be sorted by material type, in France.
Packaging marked with this symbol is produced in a particularly resource-efficient and environmentally friendly way.
Dispose of packaging in compliance with environmental regulations (see section "Disposal").
Dispose of packaging in compliance with environmental regulations (see section "Disposal").
Dispose of the appliance in compliance with environmental regulations (see section "Disposal").
2. Proper use
This appliance is solely intended for making warm or cold milk froth, warming milk and making milk-based beverages.
This appliance is designed for use in private households and similar household applications, such as
-in kitchens for staff in retail outlets, offices and other commercial areas
-on agricultural estates
-by customers in hotels, motels and other accommodation facilities
-in bed-and-breakfast establishments.
Please note that we shall not be liable in cases of improper use:
Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.
▶ Only use replacement parts or accessories that we have supplied or approved.
Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.
SILVERCREST®
3. Safety instructions
IMPORTANT SAFETY INSTRUCTIONS – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE!
WARNING!
Risk of injury!
Risk of injury due to improper use.
- Keep the appliance and its accessories out of the reach of children.
This appliance can be used by children aged 8 years and above, by people with reduced physical, sensory or mental capabilities, or people who lack experience and/or knowledge if proper supervision is provided or if these people have been instructed in how to use the appliance safely and have fully understood the possible dangers.
■ Children must not be allowed to play with the appliance.
■ Cleaning and user maintenance must not be carried out by children unless they are aged 8 or over and are supervised.
SILVERCREST®
■ Do not allow children younger than 8 years old near the appliance and its power cable.
DANGER!
Risk of choking and suffocation!
There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.
- Keep all packaging materials used (bag, pieces of polystyrene etc.) out of the reach of children.
WARNING!
Risk of electric shock caused by moisture!
The base plate must not be immersed in water or other liquids, or held under running water, because this could cause an electric shock.
■ Always unplug the appliance plug from the mains power socket:
-when you are cleaning the appliance
- when the appliance/base plate is damp or wet
SILVERCREST®
- when the appliance is unattended
—during thunderstorms
- if you are no longer using the appliance.
■ Always hold the plug to pull it out and never pull the cable.
■ Never expose the base plate to water drops or water spray. Never immerse the appliance/base plate in water or other liquids!
■ Please also observe the information on cleaning in the full user manual.
■ Do not use the appliance outdoors.
■ Before cleaning the milk container, always remove the container from the base plate.
■ Do not expose the appliance to extreme conditions. Avoid:
-high humidity or wet conditions
—extremely high or low temperatures
-direct sunlight
-naked flames.
WARNING! Risk of electric shock!
There is a risk of electric shock due to live parts.
■ Only connect the appliance to a properly installed power socket. The mains voltage must match the technical specifications for the appliance.
■ The power socket must be easily accessible so that you can unplug the appliance from the mains quickly if necessary.
■ Check the appliance and the mains cable for damage before using the appliance for the first time and after each use.
■ Do not use the appliance if you notice that it, or its mains cable, is damaged.
■ Contact our Service Centre without delay if the appliance has been damaged during transport.
■ Do not, under any circumstances, make any unauthorised modifications to the appliance or try to open a component and/or repair it yourself.
SILVERCREST®
If there is damage to the mains connection cable on this appliance, it must be replaced by the manufacturer, its customer service department or another suitably qualified person. This is necessary to avoid hazards.
■ Ensure that the mains cable does not come into contact with hot appliance parts or other heat sources.
■ Never open the housing.
■ To completely disconnect the appliance from the power supply, the mains plug must be removed from the earthed mains socket.
■ Only operate this appliance with the base plate supplied.
CAUTION!
Risk of injury!
The touchable surfaces on the appliance and the container become extremely hot when the appliance is in use. There is a risk of burns.
■ Do not touch the housing.
■ During operation, touch the appliance only by the milk container handle and the mode
SILVERCREST®
selection button.
■ Steam escapes during use. Do not reach into this steam.
■ Do not move the appliance when it is in use.
■ Never reach inside the appliance when it is in use.
■ The heating element remains hot for some time after the appliance is switched off. Ensure that the inside of the appliance is not touched.
CAUTION!
Risk of injury!
Injuries may result from using the appliance carelessly.
■ Never leave the appliance unattended when it is in use.
■ Ensure the mains cable does not become a tripping hazard – do not use an extension cable.
■ Place the appliance on a stable, level surface.
- Never place the appliance on the edge of a table – it could tip over and fall.
■ Never use the appliance without milk. Never use the appliance if the lid is not put on properly.
SILVERCREST®
■ Do not exceed the MAX fill level. Boiling liquid could spurt out. Do not open the lid when the appliance is in use.
WARNING!
Risk of fire!
There is a risk of fire because the appliance surfaces become extremely hot when it is in use.
■ Ensure that the appliance does not come into contact with any other objects during use. Allow sufficient clearance in all directions and above. Above all, do not set up the appliance near easily flammable materials (curtains, drapes, paper etc.).
■ Do not cover the appliance.
■ Do not place any objects on the appliance.
■ Do not place the appliance on surfaces that can become hot (e.g. on hotplates).
■ Do not operate the appliance with an external timer or a separate remote control system.
■ Leave a little space between this appliance and other appliances or the wall to allow air
SILVERCREST®
to circulate freely. Do not cover the appliance when it is in use.
NOTICE!
Possible damage to the appliance!
Using the appliance in a way that was not intended may damage it.
■ Do not kink the mains cable or wrap it around the appliance. Unwind the cable fully when using the appliance. Do not kink or crush the mains cable.
■ Do not use the milk container in the microwave.
■ Only use the supplied milk container for operation.
SILVERCREST®

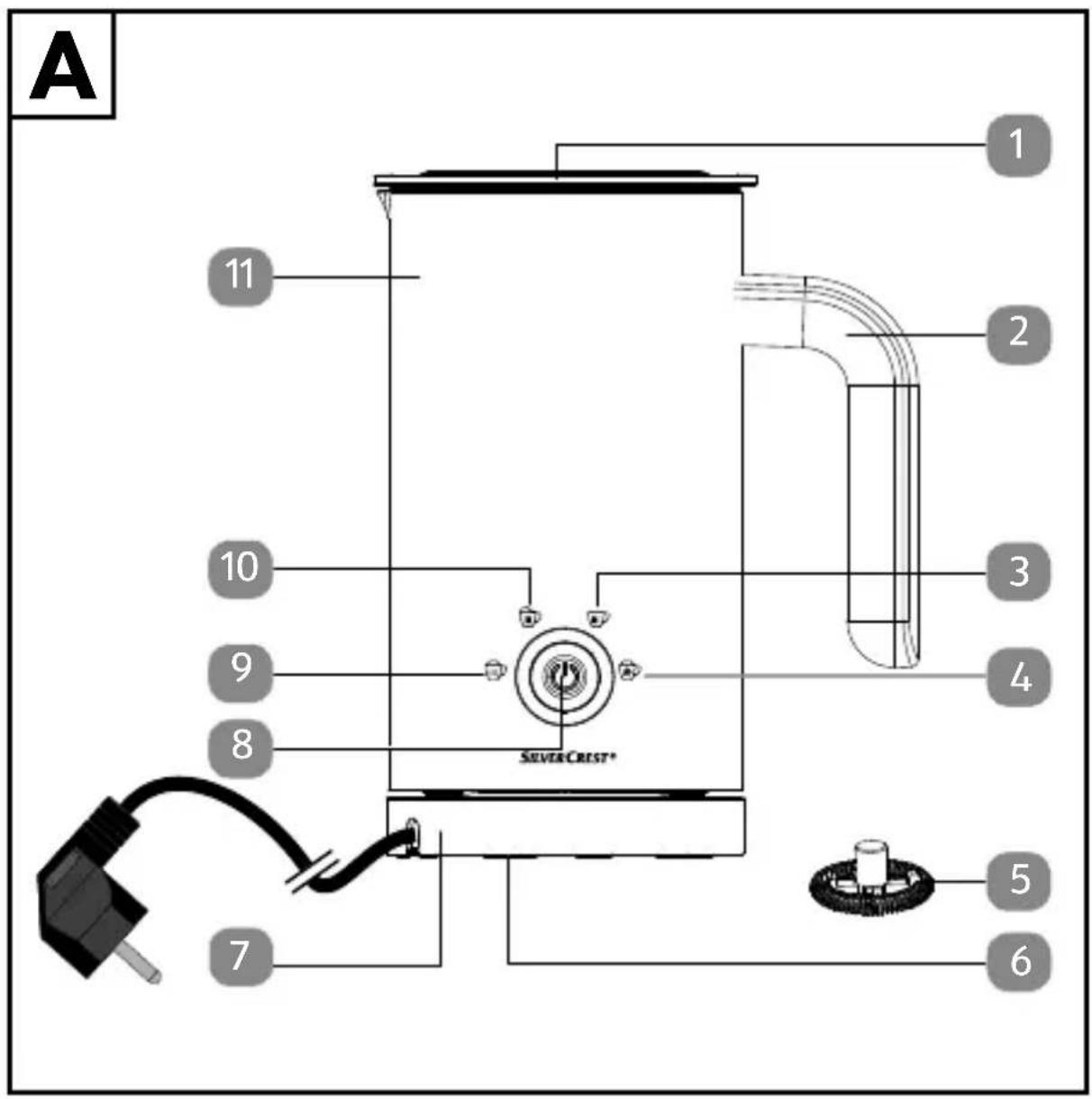

4. Appliance overview
See Fig. A
1) Lid
2) Handle
3) Operating hot heated milk with a little froth
4) Operating light cold frothing
5) Whisk
6) Non-slip feet
7) Base plate with mains cable and mains plug
8) ⏻: mode selection button with operating LED
9) Operating light warm, creamy froth
10) Operating light: warm, dense froth
11) Milk container with spout

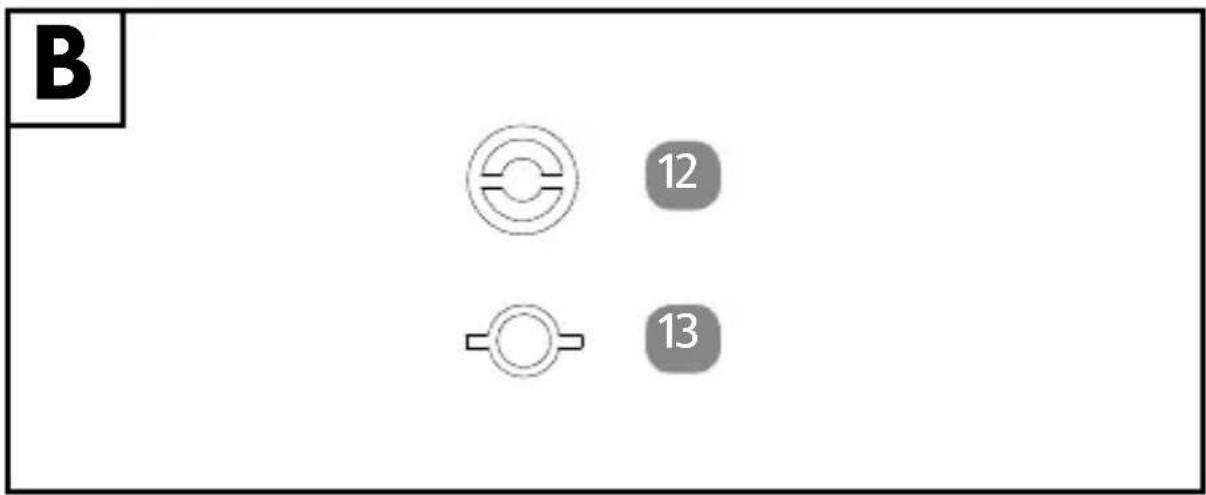

See Fig. B
12) MAX marking up to max. 150 ml for preparing milk froth
13) MAX marking: up to max. 300 ml for preparing warm milk and milk-based beverages
5. Package contents
Remove the product from the packaging and remove all packaging materials.
Please check your purchase to ensure that all items are included and in perfect condition. If anything is missing or damaged, contact us within 14 days of purchase.
The following items are supplied with your product:
- Milk frother
- Whisk
- Short manual
- The full user manual is available for download at www.lidl-service.com (article number IAN 384725_2107)
6. Before first use
The detailed user manual contains in-depth information on using the appliance for the first time.
7. Using the milk frother
The detailed user manual contains in-depth information on how to use the appliance.
Use the whisk (5) for all applications to prevent the milk from burning.
Place the whisk (5) onto the pin in the milk container (11).
▶ Fill the milk container (11) as specified in the following table.
Place the lid (1) onto the milk container (11). Note the position of the spout.
Press the  button (8) | Max. fill level (in ml) | Display/ note |
| Press once: warm, creamy froth | Min. 75 ml milk (MIN marking), max. 150 ml (MAX marking  (12)) | 1) Operating light [11] (9) lights up red continuously.2) The operating light  (9) flashes at the end of the pro-gramme.3) The process is complete. |
| Press twice: warm, dense froth | 1) Operating light [11] (10) lights up red.2) The operating light  (10) flashes at the end of the pro-gramme.3) The process is complete. | |
| Press three times: heated milk with a little froth | Min. 75 ml milk (MIN marking), max. 300 ml (MAX marking  (13)) | 1) Operating light [11] (3) lights up red.2) The operating light [11] (3) flashes at the end of the pro-gramme.3) The process is complete. |
| Press four times: cold frothing | Min. 75 ml milk, max. 150 ml (MAX marking  (12)) | 1) Operating light [11] (4) lights up blue.2) The operating light [11] (4) flashes at the end of the pro-gramme.3) The process is complete. |
| Press four times: Making milk-based beverages | Min. 75 ml milk (MIN marking), max. 300 ml (MAX marking =(13)) | ▶ To prepare milk-based beverages, add cocoa, syrup or something similar to cold milk.1) Operating light(4) lights up blue.2) The operating light(4) flashes at the end of the programme.3) The process is complete. |
▶ Press the mode selection button ⏻ (8) once or several times until the operating light (3, 4, 9 or 10) for the respective function lights up.
The selected programme starts after 2 seconds. At the end of the programme, the indicator flashes and turns off when the appliance switches off automatically.
Remove the lid (1) and pour the milk froth/drink into a suitable container once the programme is complete.
7.1. Interrupting operation
To interrupt operation, remove the milk container (11) from the base plate (7) or press and hold the mode selection button (8) until the appliance switches off.
7.2. Ending operation
▶ Unplug the mains plug on the base plate (7) and clean the appliance as described in section "Cleaning the appliance" in the full user manual.
SILVERCREST®
8. Cleaning and maintenance
For information on how to clean and look after the appliance, please refer to the detailed user manual.
9. Disposal
PACKAGING
Your appliance has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.
APPLIANCE
Do not dispose of old appliances in normal household waste. In accordance with Directive 2012/19/EU, the appliance must be properly disposed of at the end of its service life.
This involves separating the materials in the appliance for the purpose of recycling and minimising the environmental impact.
Take old appliances to an electrical scrap collection point or a recycling centre.
Contact your local waste disposal company or your local authority for more information on this subject.
SILVERCREST®
Inhaltsverzeichnis
-in tenute agricole;
-in bed & breakfast;
