SMAI 550 A1 - Milk frother SILVERCREST - Free user manual and instructions

Product type	Milk frother
Brand	SilverCrest
Model	SMAI 550 A1
Power supply	220 - 240 V ~, 50 Hz
Rated power	550 W
Minimum milk capacity	130 ml
Maximum capacity for foam	350 ml
Maximum capacity for heating	500 ml
Functions	Hot airy milk foam, hot compact milk foam, heat milk, cold milk foam
Heating type	Induction
Jug material	Stainless steel
Removable parts	Lid with stirrer, coil, seal
Net weight	1.2 kg (estimated)
Dimensions (L x W x H)	13 x 14 x 20 cm (estimated)
Color	White and silver
Safety	Automatic shut-off, overheating protection, shut-off when jug removed
Care and cleaning	Jug dishwasher safe; other parts hand wash; do not immerse base
Warranty	3 years
Intended use	Household only, for cow's milk

Frequently Asked Questions - SMAI 550 A1 SILVERCREST

How to prepare hot milk foam with the SMAI 550 A1?

Fill the jug with at least 130 ml and at most 350 ml of milk. Place the coil on the stirrer, close the lid, then press once for airy foam (symbol A) or twice for compact foam (symbol B). The appliance stops automatically.

Can I heat milk without frothing it?

Yes, select program C by pressing the on/off button 3 times. The maximum capacity is 500 ml. You can also add cocoa powder for hot chocolate.

How to clean the milk frother?

Let the appliance cool down. The jug is dishwasher safe. The lid, stirrer, coil, and seal must be hand washed with dish soap. Wipe the base with a damp cloth.

Why is my milk not frothing?

Make sure the coil is properly in place. Use cow's milk with at least 1.5% fat, preferably cold. Do not exceed the maximum capacity of 350 ml for foam.

What type of milk can I use?

This appliance is designed only for cow's milk. Plant-based milks froth poorly and may overflow. Use milk with a fat content of 1.5% to 3.5% for best results.

What to do if the appliance does not turn on?

Check that the plug is properly inserted and the jug is correctly placed on the base. If red symbols flash, the milk level is too low (minimum 130 ml). Contact customer service if the problem persists.

Can I use the frother for liquids other than milk?

No, the appliance is exclusively designed to heat and froth milk. Using other liquids may damage the appliance and void the warranty.

Does the jug get hot during use?

Yes, the jug becomes very hot. Always grasp it by the handle. Avoid touching metal parts. Do not leave the appliance unattended.

What is the warranty on this product?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not normal wear. Keep your receipt.

How to get spare parts or repair?

Contact Kompernass customer service at 0800 919270 (France) or by email at [e-mail]. You can order parts such as the coil or seal from customer service.

USER MANUAL SMAI 550 A1 SILVERCREST

INDUKTIONS-MILCHAUFSCHÄUMER INDUCTION MILK FROTHER ÉMULSIONNEUR DE LAIT À INDUCTION SMAI 550 A1

DE AT CH

INDUCTION MILK FROTHER

Operating instructions

NL BE

INDUCTIE MELKOPSCHUIMER

Gebruiksaanwijzing

ES

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions Page 17

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Contents

Introduction....18

Copyright 18

Intended use 18

Package contents....19

Appliance description....19

Technical data....19

Safety information 20

Preparations 22

Unpacking 22

Disposal of the packaging 22

Setting up 23

Tips for frothing milk 23

Control panel 23

Use 24

Making hot frothed milk 25

Heating milk 26

Making cold frothed milk 27

Using milk froth 28

Italian-style cappuccino 28

Marocchino 28

Vienna Melange 28

Cleaning and maintenance 28

Storage 29

Troubleshooting 30

Disposal of the appliance 30

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including extracts thereof, and the reproduction of images (even in a modified state), is only permitted with the written authorisation of the manufacturer.

Intended use

This appliance is intended solely for heating milk and whisking milk into froth (hot or cold) in domestic households. It is not intended for use with any other liquids or for commercial applications.

This appliance is intended solely for use in private households. Not for commercial use!

WARNING

Danger if not used as intended!

The appliance can be hazardous if used for any other purpose and/or in any other manner than the one intended.

▶ Use the appliance only for its intended purpose.
▶ Observe the procedures described in these operating instructions.

Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorised modifications or the use of non-approved spare parts will not be acknowledged.

The risk shall be borne solely by the user.

Package contents

The appliance is supplied with the following components as standard:

• Induction Milk Frother (jug 5 + base 6)
• Operating instructions

NOTE

▶ Check the package for completeness and signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Appliance description

1 Lid
② Sealing ring
③ Stirrer with whisk
4 Detachable spiral coil
5 Jug
6 Base
⑦ Control panel
8 On/Off button / programme selection

Technical data

Power supply 220–240 V	~ (AC), 50 Hz
Rated power 550 W
	All parts of this appliance that come into contact with food are food-safe.

Safety information

DANGER - RISK OF ELECTRIC SHOCK!

▶ Use the appliance only with the supplied base.
▶ Ensure that the power cable never becomes wet or damp when the appliance is in use. Route the cable so that it cannot be trapped or damaged in any way.
- Arrange for defective power plugs and/or cables to be replaced as soon as possible by a qualified technician or by our Customer Service Department to avoid the risk of injury.
▶ Check the appliance for visible external damage before use. Do not operate an appliance that has been damaged or dropped.
▶ All repairs on the appliance must be carried out by authorised specialist companies or Customer Service. Improper repairs may put the user at risk. It will also invalidate any warranty claims.
- Do not allow any liquid to run over the appliance's plug connections.

Never immerse the base in water or other liquids!

⚠ WARNING - RISK OF INJURY!

The jug heats up during operation. Always hold it by the handle.
▶ Do not touch the rotating parts during operation!
▶ Ensure that the appliance is stable and upright before switching it on. Otherwise, the appliance may tip over and the hot milk will spill out.
▶ After use, the surfaces of the heating elements will still have some residual heat.

⚠ WARNING - RISK OF INJURY!

This appliance may be used by children aged 8 years or over, if they are supervised or have been told how to use the appliance safely and are aware of the potential risks.

- Cleaning and user maintenance tasks must not be carried out by children unless they are aged 8 years or over and are supervised.

The appliance and its connecting cable must be kept away from children younger than 8 years old.

This appliance may be used by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

▶ Do not allow children to use the appliance as a toy.

There is a risk of injury if the appliance is used incorrectly. Use the appliance only as described in the instructions!

Caution! Hot surface!

CAUTION - PROPERTY DAMAGE!

- Do not use an external timing switch or a separate remote control system to operate the appliance.

▶ Never leave the appliance unattended during operation.

- Ensure that the appliance, the power cable or the plug do not come into contact with sources of heat, such as hotplates or open flames.

▶ Never operate the appliance when it is empty. The appliance could be irreparably damaged!

Preparations

Unpacking

◆ Remove all parts of the appliance and the operating instructions from the box.

◆ Remove all packaging material.

- Clean the appliance as described in the section "Cleaning and care".

Disposal of the packaging

The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

NOTE

▶ If possible, keep the original packaging of the appliance for the entire duration of the warranty period so that the appliance can be packed properly for return shipment in the event of a warranty claim.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (b) and numbers (a) with the following meanings:

1-7: plastics, 20-22: paper and cardboard, 80-98: composites

Setting up

1) Place the appliance on a dry and level surface. Ensure that the mains plug is within easy reach.

2) Insert the plug into a mains power socket.

Tips for frothing milk

■ Froth only cow's milk with this appliance. Other types of milk can only be frothed to a certain extent or may cause the appliance to overflow.

■ Low-fat milk might not froth as well. Therefore, use milk with a fat content of 3.5% or 1.5% when possible.

■ Well-cooled milk can be frothed better than warm milk.

■ Do not froth the milk a second time, otherwise it may burn.

Leave frothed milk to stand for about 30 seconds before you add the foam to cappuccino, espresso, etc. This allows the larger bubbles to burst and the still liquid milk sinks to the bottom. You can then use the fine foam.

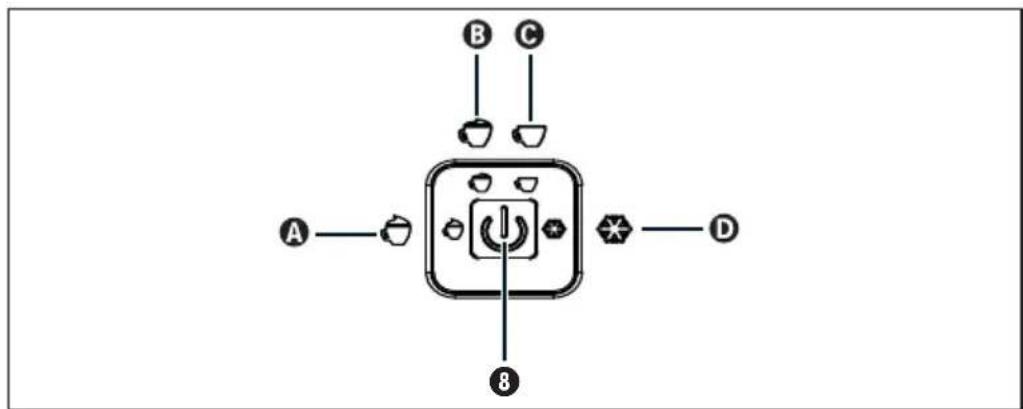

Control panel

The control panel ⑦ is made up of the following components:

A : Programme for fluffy milk froth, red symbol
Programme for dense milk froth, red symbol
C. Programme for heating milk, red symbol
D Programme for cold milk froth, blue symbol
8 :On/Off button / programme selection

Fig. 1

Use

WARNING - RISK OF INJURY!

For safety reasons you should not open the lid ① while the appliance is in operation. There is a risk of scalding.
▶ Always use fresh milk. Do not consume milk that has been standing in the jug ⑤ for an extended period of time.

NOTE

If you lift the jug ⑤ off the base ⑥ during preparation, the appliance will stop. You will have to restart preparation by pressing the On/Off / programme selection button ⏻ ⑧.

Making hot frothed milk

1) If not yet attached: Insert the spiral coil ④ into the slots of the whisk on the stirrer ③.

2) Remove the jug ⑤ from the base ⑥ and add milk. Add enough milk to reach MIN mark inside the jug ⑤ (130 ml). Never exceed the lower MAX mark ⏱ (350 ml). Otherwise, the appliance may overflow. When frothed, the volume of the milk increases significantly!

NOTE

If there is not enough milk in the appliance, all three red symbols A, B and C will flash simultaneously shortly after you start the appliance and you will hear 9 beeps. Add milk. Observe the MIN mark!

3) Place the jug ⑤ on the base ⑥.

4) Put on the lid ① with the stirrer ③.

5) Press the On/Off / programme selection button ⏻ once to produce fluffy froth. The symbol lights up. Press the On/Off / programme selection button twice to produce dense froth. The symbol lights up. The whisk will start rotating and frothing the milk and the milk is heated.

6) The appliance switches off as soon as the milk is frothed. The appropriate symbol A/B will flash for approximately 30 seconds and you will hear a beep.

NOTE

If you wish to stop the preparation process before completion, press the On/Off / programme selection button ⏻ 8. To restart the preparation process, press the On/Off / programme selection once or twice again until the symbol 📂 for light up. The preparation process will restart.

7) Wait about 30 seconds. During this time the still-liquid milk flows to the bottom.
8) Remove the lid ① and pour the milk froth into the desired container.

Wait about 2 minutes before you froth up another portion of milk.

Heating milk

1) If not yet attached: Insert the spiral coil ④ into the slots of the whisk on the stirrer ③.
2) Remove the jug ⑤ from the base ⑥ and add milk. Add enough milk to reach MIN mark inside the jug ⑤ (130 ml). Never exceed the lower MAX mark ⑦ (500 ml).
Otherwise, the appliance may overflow.

NOTE

If there is not enough milk in the appliance, all three red symbols A, B and C will flash simultaneously shortly after you start the appliance and you will hear 9 beeps. Add milk. Observe the MIN mark!

NOTE

To prepare hot chocolate, add the cocoa powder to the jug now. The right amount of cocoa powder varies depending on the brand and your personal taste. Consult the instructions on the packaging of the cocoa powder.

3) Place the jug ⑤ on the base ⑥.

4) Put the lid ① on.

5) Press the On/Off / programme selection button ⏻ 3 times until the symbol lights up. The appliance will heat up the milk and the whisk will start rotating. This ensures that the milk is heated evenly.

6) The appliance switches off, the symbol 📋 will flash for approximately 30 seconds and you will hear a beep as soon as the milk is hot.

NOTE

▶ If you wish to stop the preparation process before completion, press the On/Off / programme selection button ⏻ 8. To restart the preparation process, press the On/Off / programme selection button ⏻ 3 times again until the 📋 symbol Ⓐ lights up. The preparation process will restart.

7) Take the lid off ① and pour the hot milk into the desired container. Wait about 2 minutes before you heat up another portion of milk.

Making cold frothed milk

1) If not yet attached: Insert the spiral coil ④ into the slots of the whisk on the stirrer ③.
2) Remove the jug ⑤ from the base ⑥ and add the cold milk. Add enough milk to reach MIN mark inside the jug ⑤ (130 ml). Never exceed the lower MAX mark (350 ml).
Otherwise, the appliance may overflow. When frothed, the volume of the milk increases significantly!

NOTE

If there is not enough milk in the appliance, all three red symbols A, B and C will flash simultaneously shortly after you start the appliance and you will hear 9 beeps. Add milk. Observe the MIN mark!

3) Place the jug ⑤ on the base ⑥.

4) Put on the lid ① with the stirrer ③.

5) Press the On/Off / programme selection button ⏻ 8 4 times until the symbol Ⓓ lights up. The whisk will start rotating. It froths the milk.

6) The appliance switches off as soon as the milk is frothed. The symbol will flash and you will hear a beep.

NOTE

If you wish to stop the preparation process before completion, press the On/Off / programme selection button ⏻ 8. To restart the preparation process, press the On/Off / programme selection button ⏻ 3 4 times again until the 🔊 symbol lights up. The preparation process will restart.

7) Wait about 30 seconds. During this time the still-liquid milk flows to the bottom.

8) Remove the lid ① and pour the milk froth into the desired container.

Using milk froth

You can use the milk froth for various drink variations:

Italian-style cappuccino

■ Pour an espresso (about 25-30 ml) into an approx. 120-180 ml cup.

■ Then pour milk froth onto it until the cup is filled to the brim.

Marocchino

■ Melt about a teaspoon of milk chocolate.

■ Spread the melted chocolate onto the inside of a glass and pour an espresso in.

■ Add around 3–4 teaspoons of frothed milk and then sprinkle it with cocoa powder.

Vienna Melange

■ Pour about 125 ml of strong black coffee into a mocha coffee cup.

■ Froth up about 130 ml of milk and add as much milk froth as is needed to fill the cup to just below the rim.

■ Depending on personal taste, you can add a little sugar.

Cleaning and maintenance

DANGER – RISK OF ELECTRIC SHOCK!

Before cleaning the appliance, disconnect the power plug from the mains power socket! Otherwise, there is a risk of electric shock!

▶ Never open any parts of the housing. There are no serviceable parts whatsoever inside. When the housing is open, there is a risk of a potentially fatal electrical shock.

Never immerse the base ⑥ in water or other liquids!

WARNING – RISK OF INJURY!

▶ Allow the appliance to cool sufficiently before cleaning it. Risk of burns!

CAUTION - PROPERTY DAMAGE!

▶ Do not use abrasive or caustic cleaning agents. These can attack the surface and damage the appliance beyond repair.

NOTE

▶ Ideally, clean the appliance directly after cooling, so that milk residues cannot dry onto it. For the first, rough cleaning, fill the jug ⑤ with water and a little detergent (the used whisk ③ is still fitted). Pay attention to the MIN and MAX marks. Start the appliance so that the whisk swirls through the water. Afterwards, rinse the appliance out with plenty of clean water.

■ Disassemble the appliance to clean it thoroughly:

• remove the spiral coil ④ from the appliance.
• Pull the sealing ring ② off the lid ①.

- Clean the lid ① and stirrer ③, sealing ring ②, spiral coil ④ and jug ⑤ in warm water with a mild detergent. Rinse all the parts thoroughly to remove any detergent residue. Dry all parts well.

NOTE

You can also clean the jug ⑤ in the dishwasher.

Wipe the base ⑥ with a damp cloth. For stubborn soiling, use a mild detergent on the cloth. Afterwards, wipe it with a cloth moistened only with fresh water to ensure that all detergent is removed. Dry the base well before using it again.

■ Reassemble the appliance:

• Push the sealing ring ② back onto the rim of the lid ①. Ensure that the small sealing lip on the sealing ring ② is facing outwards.
• Insert the spiral coil ④ into the slots of the whisk on the stirrer ③.
• Place the lid ① back onto the jug ⑤.

Storage

■ Store the cleaned appliance in a clean and dry location.

Troubleshooting

Fault Cause Remedy
The appliance is not working.	The plug is not inserted into a mains power socket.	Connect the plug to the power supply.
	The appliance is not switched on.	Switch the appliance on.
	The appliance is defective.	Contact the Customer Service department.
The milk is not being frothed.	The spiral coil 4 is not attached.	Insert the spiral coil 4.

Disposal of the appliance

Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance via an approved disposal company or your municipal waste facility. Please comply with all applicable regulations. Please contact your waste disposal centre if you are in any doubt.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 292870

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Table des matières

Introduction 34

Droits d'auteur 34

Usage conforme 34

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 50

Auteursrecht 50

⚠WAARSCHUWING - LETSELGEVAAR!

⚠ WAARSCHUWING - LETSELGEVAAR!

⚠ WAARSCHUWING - LETSELGEVAAR!

AARSCHUWING - LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....66

Autorské právo 66

POZOR - HMOTNÉ ŠKODY!

POZOR - HMOTNÉ ŠKODY!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

Índice

Introducción 82

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Índice

Introdução....98

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stav informací · Estado de las informaciones · Estado das informações:

10 / 2017 · Ident.-No.: SMAI550A1-102017-2
