| Product type | LED ceiling/wall light |
| Model | 14166602L / 14166702L |
| Supply voltage | 230-240 V ~, 50 Hz |
| Total nominal power | 13 W |
| LED power | 10 W (2 × 5 W) |
| Protection class | I |
| Protection rating | IP20 |
| Light source | Integrated non-replaceable LED module |
| Energy efficiency class | F |
| Use | Indoor, dry and enclosed rooms |
| Mounting | Wall or ceiling |
| Fixing material supplied | 2 screws, 2 wall plugs, 2 protective sleeves |
| Electrical installation | By a qualified electrician |
| Maintenance | Clean with a dry cloth, cut power before |
| Warranty | 36 months |
| After-sales service | 00800 / 27456637 (toll-free number) |
| IAN reference | 389530_2201 |
| Delivery contents | Lamp, screws, wall plugs, protective sleeves, instructions |
Frequently Asked Questions - 14166602L Livarno Lux
User questions about 14166602L Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual 14166602L - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 14166602L by Livarno Lux.
USER MANUAL 14166602L Livarno Lux


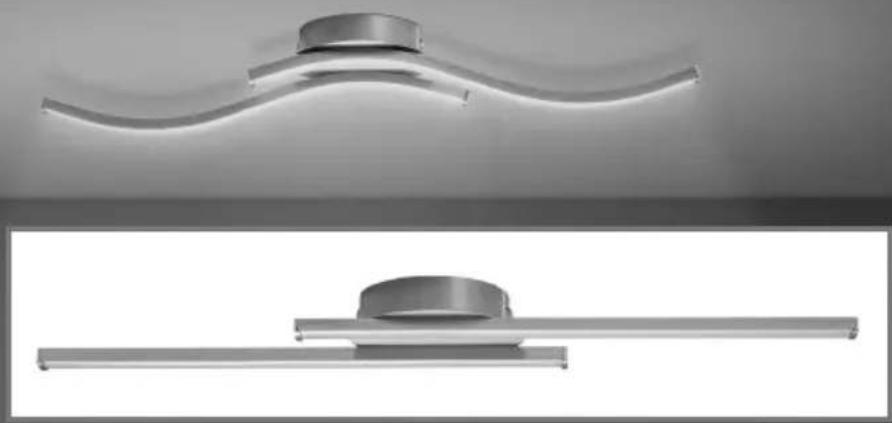

Two-panel image showing ceiling and horizontal LED lighting fixtures (no text or symbols visible)LED WALL OR CEILING LIGHT
DE AT CH
LED-WAND-/DECKENLEUCHTE
Assembly, operating and safety instructions
PL
LAMPA ŚCIENNA/ SUFITOWA LED
NÁSTĚNNÉ / STROPNÍ LED SVITIDLO
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB / IE Assembly, operating and safety instructions Page 13
Intended use......Page 15
Scope of delivery.... Page 15
Parts description......Page 15
Technical data.... Page 15
Safety......Page 15
Safety notices....Page 15
Preparation......Page 16
Required tools and material.... Page 16
Prior to installation......Page 16
Start-up Page 17
Mounting the light....Page 17
Maintenance and cleaning......Page 17
Warranty and service....Page 18
Warranty......Page 18
Service address...... Page 18
Declaration of conformity....Page 18
Manufacturer......Page 18

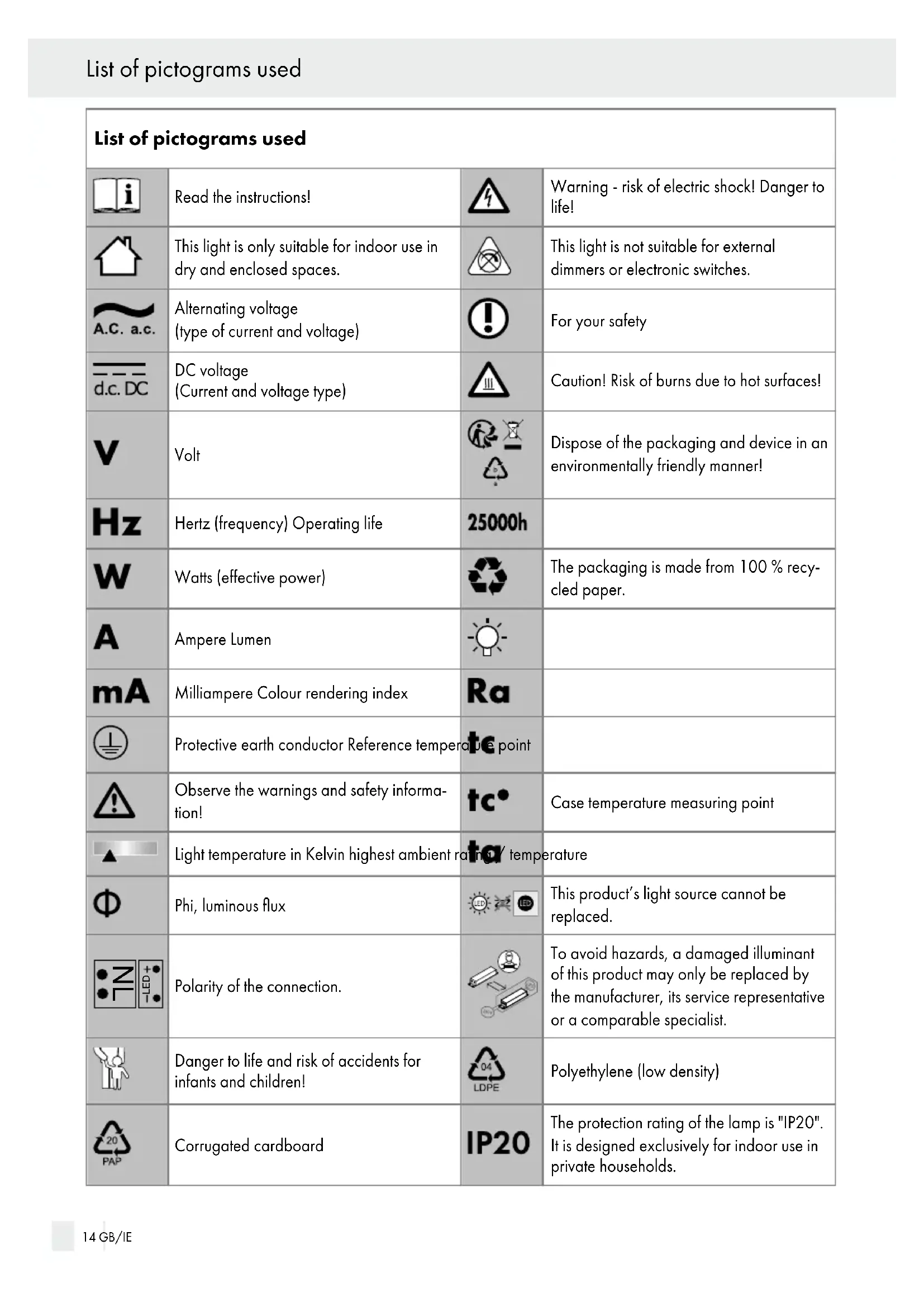

| List of pictograms used | |||
 | Read the instructions! |  | Warning - risk of electric shock! Danger to life! |
 | This light is only suitable for indoor use in dry and enclosed spaces. |  | This light is not suitable for external dimmers or electronic switches. |
| [WABH] | Alternating voltage (type of current and voltage) |  | For your safety |
 | DC voltage (Current and voltage type) |  | Caution! Risk of burns due to hot surfaces! |
 | Volt |  | Dispose of the packaging and device in an environmentally friendly manner! |
 | Hertz (frequency) Operating life |  | |
 | Watts (effective power) |  | The packaging is made from 100 % recycled paper. |
 | Ampere Lumen |  | |
 | Milliampere Colour rendering index |  | |
 | Protective earth conductor Reference temperc |  | |
 | Observe the warnings and safety information! |  | Case temperature measuring point |
 | Light temperature in Kelvin highest ambient ra |  temperature | |
 | Phi, luminous flux |  | This product's light source cannot be replaced. |
 | Polarity of the connection. |  | To avoid hazards, a damaged illuminant of this product may only be replaced by the manufacturer, its service representative or a comparable specialist. |
 | Danger to life and risk of accidents for infants and children! |  | Polyethylene (low density) |
 | Corrugated cardboard |  | The protection rating of the lamp is "IP20". It is designed exclusively for indoor use in private households. |
LED Wall Or Ceiling Light
- Introduction
Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the complete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.
- Intended use
This light is only suitable for indoor use in dry and enclosed spaces. The light can be fastened to any normally inflammable surface. This product is intended for private household use only. This product is intended for normal operation and can be used for wall or ceiling installation.
- Scope of delivery
Check immediately after unpacking that the parts are complete and that the product is in proper condition.
1 LED wall or ceiling light, model 14166602L / 14166702L
2 Screws
2 Wall plugs
2 Protective tubes
1 Set of assembly instructions and usage instructions
- Parts description
1 Wall plugs
2 Mounting bracket
3 Screws (mounting bracket)
4 Locating screws (connection housing)
5 Connection housing
6 Terminal block
7 Mains connection cable (external)
8 Protective tube
- Technical data
Light:
Model no.: 14166602L / 14166702L
Operating voltage: 230–240 V\~, 50 Hz
Rated power: 13 W
Protection class: I
IP rating: IP20
LED:
Rated power: 10 W (2x 5 W)
This product contains illuminants of energy efficiency category "F".
•Safety
Safety notices
Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!
WARNING! RISK OF FATAL INJURY AND ACCI- DENT HAZARD FOR
TODDLERS AND SMALL CHILDREN!
Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Please always keep the product out of the reach of children.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
Avoid the risk of fatal injury from electric shock
■ Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
■ Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage.
WARNING!
A damaged mains cable indicates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician.
■Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
■Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (see "Technical data").
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
■ Do not install the light on a wet or conductive substrate!
Prevent fire and injury hazards
RISK OF INJURY!
Check the light for damage immediately after unpacking.
■ Do not mount the light with defective lamps and / or lamp lenses. In this case contact the service centre for a replacement.
■Do not look directly into the light source (light bulb, LED etc.).
■ Do not use optical instruments to look at the light.
The light's illuminant is not replaceable. The entire light needs to be replaced if the illuminant reaches the end of its service life.
■This light is not suitable for external
dimmers or electronic switches.
Safe working
- Mount the light so that it is protected from moisture and dirt. - Carefully prepare for assembly and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.
■Always be attentive! Always pay attention to what you are doing and use common sense. Never install the light if you are having difficulty concentrating or do not feel well.
●Preparation
- Required tools and material
The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.
- Pencil / making tool
- 2-pole voltage tester
- Screwdriver
- Electric drill
- Bit (ø 6 mm)
- Side cutting pliers
- Ladder
- Prior to installation
Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations.
□Be sure to pay attention to the type of the supporting surface, as the enclosed fastening material is not suitable for all types of walls. Inquire at the hardware store about the screws and wall plugs suitable for your type of supporting surface. The manufacturer accepts no liability for improper wall to wall plug connection and any damage caused as a result.
Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it. Familiarise yourself with all
the instructions and diagrams in this manual, as well as with the light itself, before you install it.
☐ Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
□Use the 2-pole voltage tester to verify the de-energised status.
- Start-up
- Mounting the light
☐Remove the screws 4 visible at the side of the connection housing 5 and remove the mounting angle 2 from the back.
□Use the slotted holes in the mounting bracket intended for the screws to mark the bores.
☐Now drill the fixing holes (diameter approx. 6 mm, depth approx. 40 mm). Be careful not to damage the supply line.
☐Insert the dowels into the bores.
☐ Fasten the mounting bracket 2 with the provided screws 3.
□Feed both the L and N cables through the protective tubes 8.
□Now connect the connection cable of the light to the mains connection cable (external) 7 using the terminal block 6.
Note: Be sure to correctly connect each of the individual wires of the mains connection cable (external): black or brown live wire = L symbol, blue neutral wire = N symbol. Connect the protective conductor (green-yellow) to the marked ground terminal ⏻ inside the connection housing 5.
□Now use the screws 4 to screw the light to the mounting bracket 2.
☐Replace the fuse or switch on the circuit breaker (I setting) inside the fuse box.
Your light is now ready to use.
- Maintenance and cleaning
WARNING! RISK OF ELECTRIC SHOCK!
Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
WARNING! RISK OF ELECTRIC SHOCK!
For electrical safety, never clean the light with water or other liquids, or immerse it in water.
CAUTION! DANGER OF BURNS DUE TO HOT SURFACES!
Allow the light to cool completely.
- Do not use solvents, benzene or similar substances. They could damage the light.
□Only use a dry, lint-free cloth for cleaning.
☐ Replace the fuse or switch on the circuit breaker (I setting) inside the fuse box.
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
● Warranty and service
• Warranty
You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event that a defect arises during the warranty period, please send the device to the listed service centre address, quoting the following model number: 14166602L/14166702L.
Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.
• Service address
Free service number:
Tel.: 00800 / 27456637
IAN 389530\_2201
Please have your receipt and the article number (e.g. IAN 389530_2201) ready as your proof of purchase when enquiring about your product.
- Declaration of conformity
This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.
