ZFV619K - Basket ZANUSSI - Free user manual and instructions

Product Type	Kitchen hood
Brand	Zanussi
Model	ZFV619K
Power supply	220-240 V / 50-60 Hz
Number of speeds	4 (1st, 2nd, 3rd, maximum)
Hob²Hood function	Yes, automatic connection with compatible hob
Lighting	Integrated LED, replacement by a technician
Grease filters	2 dishwasher-safe metal filters (short cycle, low temperature)
Charcoal filter (optional)	Replace every 4 months, not washable
Control	Touch control with filter notification
Installation type	Wall-mounted or built-in, external evacuation or recirculation
Minimum distance between hob and hood	65 cm
Material	Stainless steel
Warranty	2 years
Maintenance	Monthly cleaning of grease filters, soft cloth and mild detergent
Safety	Automatic shutdown after 5 minutes at maximum speed, flame protection
Provided accessories	Grease filters, fixing screws, installation manual
Electrical connection	Must be carried out by a qualified professional
Use	Domestic, indoor

Frequently Asked Questions - ZFV619K ZANUSSI

How to clean the grease filters of the Zanussi ZFV619K hood?

The grease filters can be cleaned in the dishwasher on a short cycle at low temperature, or by hand with a sponge and non-abrasive detergent. They should be cleaned at least once a month or when the filter indicator lights up.

When should the charcoal filter be replaced?

The charcoal filter (optional) must be replaced every 4 months, or more often depending on use. It is not washable. Follow the instructions provided with the filter.

How to replace the LED bulb of the hood?

The LED bulb is integrated and can only be replaced by an authorized technician. In case of malfunction, contact the after-sales service.

How to use the Hob²Hood function?

This function automatically connects the hood to a compatible hob. The fan speed adjusts according to the temperature of the hottest pot. Activate it from the hob.

What to do if the filter indicator lights up?

The indicator shows that the grease filter needs cleaning (if it blinks for 30 seconds) or the charcoal filter needs to be replaced/cleaned (if it stays on for 30 seconds). After maintenance, reset by pressing the filter button for 3 seconds.

What is the minimum distance between the hob and the hood?

The minimum distance is 65 cm, unless otherwise specified in the installation manual of the hob.

How to activate the maximum motor speed?

Press the maximum speed symbol. The hood runs at full power for 5 minutes, then returns to the previous setting.

Can I use the hood without connecting it to an external evacuation?

Yes, in recirculation mode with an optional charcoal filter. The air is filtered and then returned to the room. Ensure compliance with local regulations.

My appliance does not turn on, what should I do?

Check that the hood is properly plugged in and that the circuit breaker has not tripped. If the problem persists, call a qualified electrician.

How to clean the exterior of the hood?

Use a soft cloth, warm water, and mild detergent. Do not use abrasive products, metal scrapers, or steam cleaners.

USER MANUAL ZFV619K ZANUSSI

Simple line drawing of a chimney with three windows and a base (no text or symbols)

ZFV619K

ZFV616K

ZFV726K

ZFV729K

QR code containing a document icon in the center, likely linking to a digital resource or webpage.

www.zanussi.com/support

Simple line drawing of a rectangular object with a circular base and an arrow labeled '1' indicating rotation (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a circular base and an arrow labeled '1' indicating rotation (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Změny vyhrazeny.

OBSAH

1. BEZPEČNOSTNÍ INFORMACE....21
2. BEZPEČNOSTNÍ POKYNY 24
3. INSTALACE.... 25
4. POPIS SPOTŘEBIČE 25
5. DENNÍ POUŽÍVÁNÍ 26
6. ČISTĚNÍ A ÚDRŽBA....27
7. ODSTRAŇOVÁNÍ ZÁVAD....28
8. POZNÁMKY K OCHRANĚ ŽIVOTNÍHO PROSTŘEDÍ...... 29

1. ⚠BEZPEČNOSTNÍ INFORMACE

Simple line drawing of a rectangular object with a curved arrow labeled '1' on its side, resting on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a label '1' and an arrow, placed on a base (no text or symbols beyond the label)

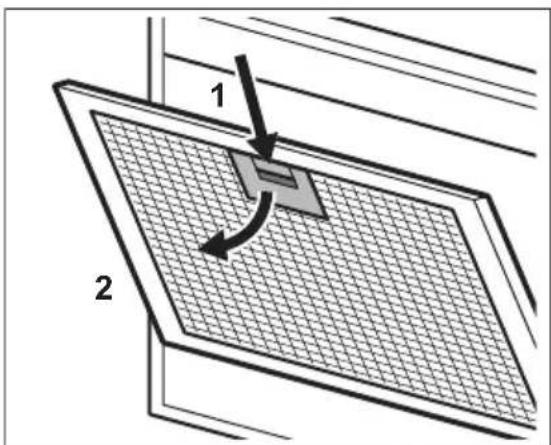

1. Tryk på grebet til monteringsclipsen på filterpanelet under emhætten (1).

1 2

Isometric view of a grid-patterned metal panel with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned panel or panel structure with an arrow pointing to one corner (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

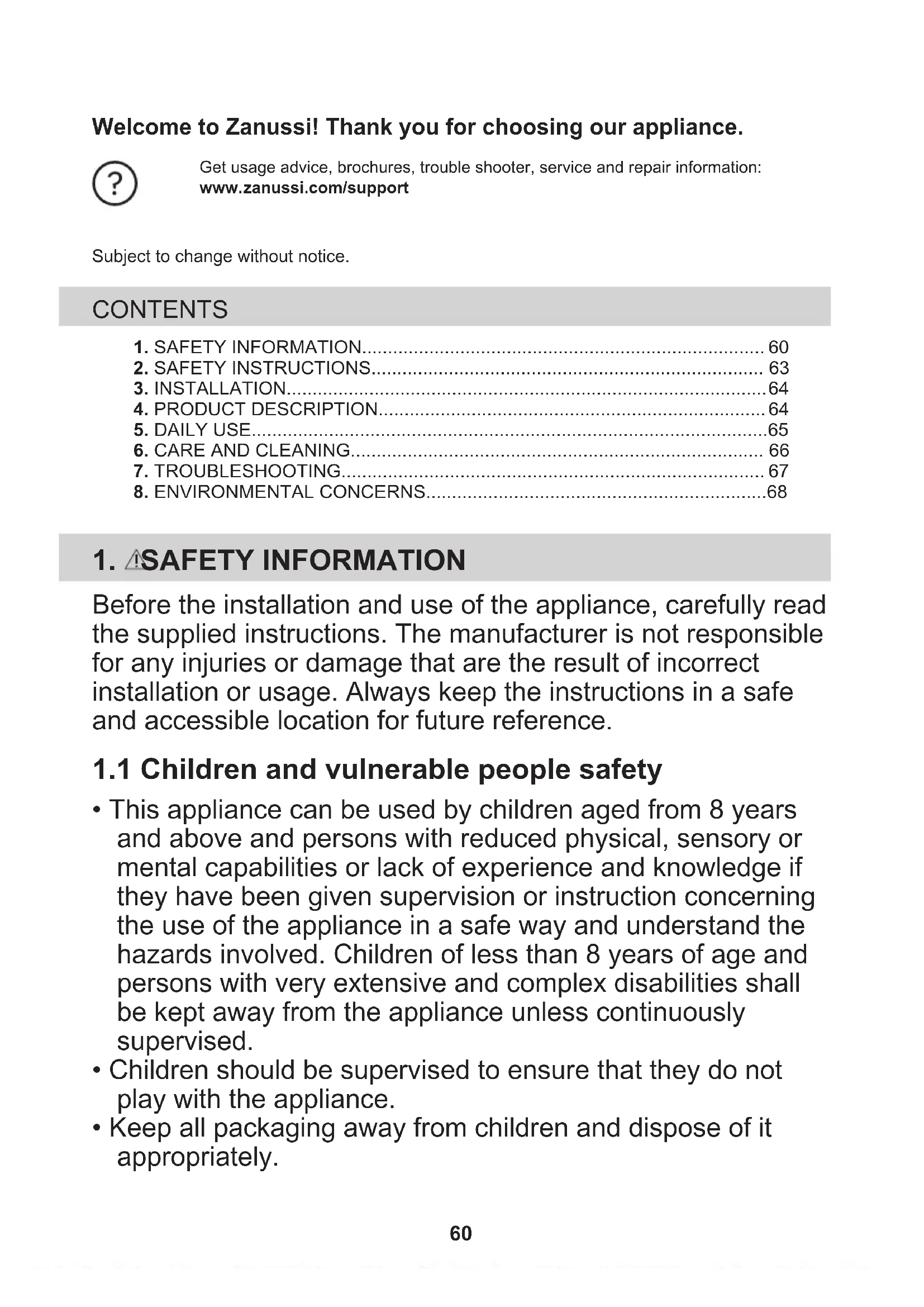

Welcome to Zanussi! Thank you for choosing our appliance.

Get usage advice, brochures, trouble shooter, service and repair information:

www.zanussi.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......60
2. SAFETY INSTRUCTIONS.... 63
3. INSTALLATION....64
4. PRODUCT DESCRIPTION....64
5. DAILY USE....65
6. CARE AND CLEANING.... 66
7. TROUBLESHOOTING....67
8. ENVIRONMENTAL CONCERNS....68

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• Keep children and pets away from the appliance when it operates.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions. Install the appliance in a safe and suitable place that meets installation requirements.
• WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions for the appliance or hob.
• The discharge of air must comply with local authorities regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.

- Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

- When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.

- Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.

- If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- Do not flambé under the appliance.

- Do not use to exhaust hazardous or explosive materials and vapours.

- Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.

- Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.

- Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.

- Use a cloth to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance remove all the packaging, the labelling and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol ( ) not printed on the rating plate, the appliance must be earthed.
  • Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
- Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purpose.
- Do not change the specification of this appliance.
- Do not operate the appliance with wet hands or when it has contact with water.
- Use only the accessories supplied with the appliance.
- Keep flames or heated objects away from fats and oils during cooking and frying.
- Do not use uncovered electric grills.
- Do not use the appliance as a storage surface.
- Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.
- If the appliance works with other devices, the maximum developed pressure must not exceed 4 Pa (4x10-5 bar).

2.4 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

- Contact your municipal authority for information on how to dispose of the appliance.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Installation instructions

For complete information about the installation of the appliance refer to a separate installation booklet.

4. PRODUCT DESCRIPTION

4.1 Control panel overview

011 2 3 65

Function Description

1

First speed / Off The motor switches to first speed level. Second press turns off the appliance.

2

Second speed The motor switches to second speed level.

3

Third speed The motor switches to third speed level.

4

Maximum speed The motor switches to maximum speed.

5

Filter notification Reminds to change or clean the charcoal filter and clean the grease filter.

6

Lamp Turns the lights on and off.

5. DAILY USE

5.1 Using the hood

Check the recommended speed according to the table below.

0|1	While heating up food, cooking with covered pots.
2	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
3	While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
	While boiling and frying big quantities of food without a lid, big humidity. After 5 minutes the appliance returns to previous setting.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

The control Panel is a sensor field. To operate the hood touch the symbol exactly in the middle for at least 1 second.

To operate the hood:

1. Turn on the appliance by pressing the 0|1 symbol.

You can now activate the functions.

1. To activate the function touch the symbol.

The hoods light works independently to other hood functions. To illuminate the cooking surface touch 🙏

To turn off the appliance press the 0|1 symbol again.

5.2 Hob ^2 Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate

the fan using the hob manually. The function can be activated from panel of the hob.

For more information how to use the function refer to the hob user manual.

5.3 Activating Maximum Motor Speed

When you touch 🚗 the Maximum Motor Speed starts to operate for 5 minutes. After that time, the appliance returns to its previous speed settings.

When the function is turned on, additional touch on does not have any effects.

5.4 Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator washes for 30 seconds if the charcoal filter must be replaced or cleaned.

Refer to cleaning the grease filter in care and cleaning chapter.

Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To reset the function touch 📋 or 3 seconds.

To activate or deactivate function:

1. Switch on the control panel. Make sure that the panel is on.

2. To activate function touch for 3 seconds.

If the function is activated, the filter icon flashes five times.

1. To deactivate function touch for 3 seconds.

If the function is deactivated, the filter icon turns on for 4 seconds.

6. CARE AND CLEANING

6.1 Notes on cleaning

Cleaning Agents

Do not use abrasive detergents and brushes.

Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.

After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.

Clean stains with a mild detergent.

Keep the hood clean

Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.

Follow the instructions for cleaning the accessories when filter notification is on. Refer to Filter notification in daily use chapter.

Grease filters can be washed in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter.

6.2 Cleaning the grease filter

There are two grease filters. One situated underneath and the other at the front side of the appliance.

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

1. Pull the cover to open it.

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1 2

1. Slightly tilt the front of the filter downwards (2), then pull.

Repeat the first two steps for all filters.

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

6.3 Replacing the charcoal filter - optional

WARNING!

The charcoal filter is non-washable!

Refer to the leaflet provided with the filter.

7. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

To replace the filter:

1. Remove the grease filters from the appliance.
   Refer to "Cleaning the grease filter" in this chapter.
2. Press the front edge in slot towards the bottom part of the filter. Slightly tilt the front of the filter downwards. There are two charcoal filters. One situated underneath and the other at the front side of the appliance.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

1. To install a new filter, perform the same steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

6.4 Replacing the lamp

This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

7.1 What to do if...

Problem Possible cause Remedy
You cannot activate the appliance. The appliance is not connected to a power supply or it is connected incorrectly.		Check if the appliance is correctly connected to the electrical supply.
You cannot activate the appliance. The fuse is blown. Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp. Refer to the "Care and Cleaning" chapter.
The appliance does not absorb enough vapours.	The motor speed is not adequate to the appearing vapours.	Change the speed of the motor.
The filter alarm indicator on.	The filter alarm is on. The grease filter must be cleaned or the charcoal filter (optional) must be replaced or cleaned.	Refer to the filter notification in "Daily use" chapter.

8. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📋 with the household waste. Return the product to your local recycling facility or contact your municipal office.

www.zanussi.com/support

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

Isometric line drawing of a grid structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a labeled arrow indicating rotation (no text or symbols)

Isometric line drawing of a grid-patterned structure with an arrow pointing to a specific area (no text or symbols)

www.zanussi.com/support

1. ⚠TURVALLISUUSTIEDOT

Simple line drawing of a rectangular object with a label '1' and an arrow, resting on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular holes at the base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

5. SVAKODNEVNA UPORABA

5.1 Uporaba nape

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

1. Pritisnite ručku montažne kopče na ploči filtra ispod nape (1).

1 2

1. Lagano nagnite prednji dio filtra prema dolje (2), a zatim ga povucite.

Ponovite prva dva koraka za sve filtre.

1. Očistite filtre pomoću spužve s neabrazivnim deterdžentima ili u perilici posuđa.

i

Isometric line drawing of a grid-patterned structure with an arrow pointing to one corner (no text or symbols)

1. Da biste instalirali novi filtar, izvršite iste korake obrnutim redoslijedom. U svakom slučaju, potrebno je zamijeniti filtre najmanje svaka četiri mjeseca.

6.4 Zamjena žarulje

Ovaj uređaj se isporučuje s LED žaruljom. Ovaj dio može zamijeniti samo tehničar. U slučaju bilo kakvog kvara, pogledajte "Servis" u poglavlju "Sigurnosne upute".

7. RJEŠAVANJE PROBLEMA

UPOZORENJE!

www.zanussi.com/support

Simple line drawing of a rectangular object with a label '1' and an arrow, resting on a base (no text or symbols beyond the label)

Isometric view of a grid-patterned metal panel structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a circular base and an arrow labeled '1' indicating rotation (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow pointing to one corner (no text or symbols)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Galimi pakeitimai.

TURINYS

1. SAUGOS INFORMACIJA....143
2. SAUGOS TAISYKLÈS.... 145
3. IRENGIMAS.... 147
4. GAMINIO APRAŠYMAS.... 147
5. KASDIENIS NAUDOJIMAS....147
6. VALYMAS IR PRIEŽIŪRA....149
7. TRIKČIŲ ŠALINIMAS....150
8. APLINKOS APSAUGA....151

1. ⚠SAUGOS INFORMACIJA

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric view of a grid-patterned metal panel with an arrow pointing to one corner (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular holes at the base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a circular base and an arrow labeled '1' indicating rotation (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned structure with an arrow pointing to one corner (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a curved arrow labeled '1' on its side, resting on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

7. PROBLEEMOPLOSSING

WAARSCHUWING!

www.zanussi.com/support

Med forbehold om endringer.

INNHOLD

1. SIKKERHETSINFORMASJON.... 181
2. SIKKERHETSINSTRUKSJONER.... 183
3. MONTERING.... 184
4. PRODUKTBESKRIVELSE....185
5. DAGLIG BRUK....185
6. STELL OG RENGJ∅RING....187
7. FEILS∅KING....188
8. BESKYTTELSE AV MILJ∅ET....189

1. ⚠SIKKERHETSINFORMASJON

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

1. Trykk på håndtaket til monteringsklipsen på filterpanelet under ventilatoren (1).

1 2

Isometric line drawing of a grid-like structure with an arrow pointing to one corner (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a circular base and an arrow labeled '1' indicating rotation (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular base, no text or symbols present.

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a label '1' and an arrow, resting on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Pridržujemo si pravico do sprememb.

KAZALO

1. VARNOSTNE INFORMACIJE....237
2. VARNOSTNA NAVODILA....239
3. NAMESTITEV....241
4. OPIS IZDELKA....241
5. VSAKODNEVNA UPORABA.... 241
6. VZDRŽEVANJE IN ČIŠČENJE....243
7. ODPRAVLJANJE TEŽAV....244
8. SKRB ZA OKOLJE....245

1. ⚠️VARNOSTNE INFORMACIJE

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

4. PËRSHKRIM I PRODUKTIT

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

Isometric view of a grid-patterned metal panel with an arrow pointing to one corner (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

1. Притисните ручку стеге за монтажу на панелу филтера испод аспиратора (1).

1 2

Isometric view of a grid-patterned metal panel with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

www.zanussi.com/support

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow pointing to one corner (no text or symbols)

ELECTROLUX APPLIANCES AB

BUSINESS SECTOR EMA-EMEA (SEE)

ST GÖRANSGATAN 143

SE-105 45 STOCKHOLM

SWEDEN

TEL: [phone]

FAX: [phone]

www.electrolux.com

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow pointing to one corner (no text or symbols)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

www.zanussi.com/support
