USER MANUAL SFW 350 E5 SILVERCREST

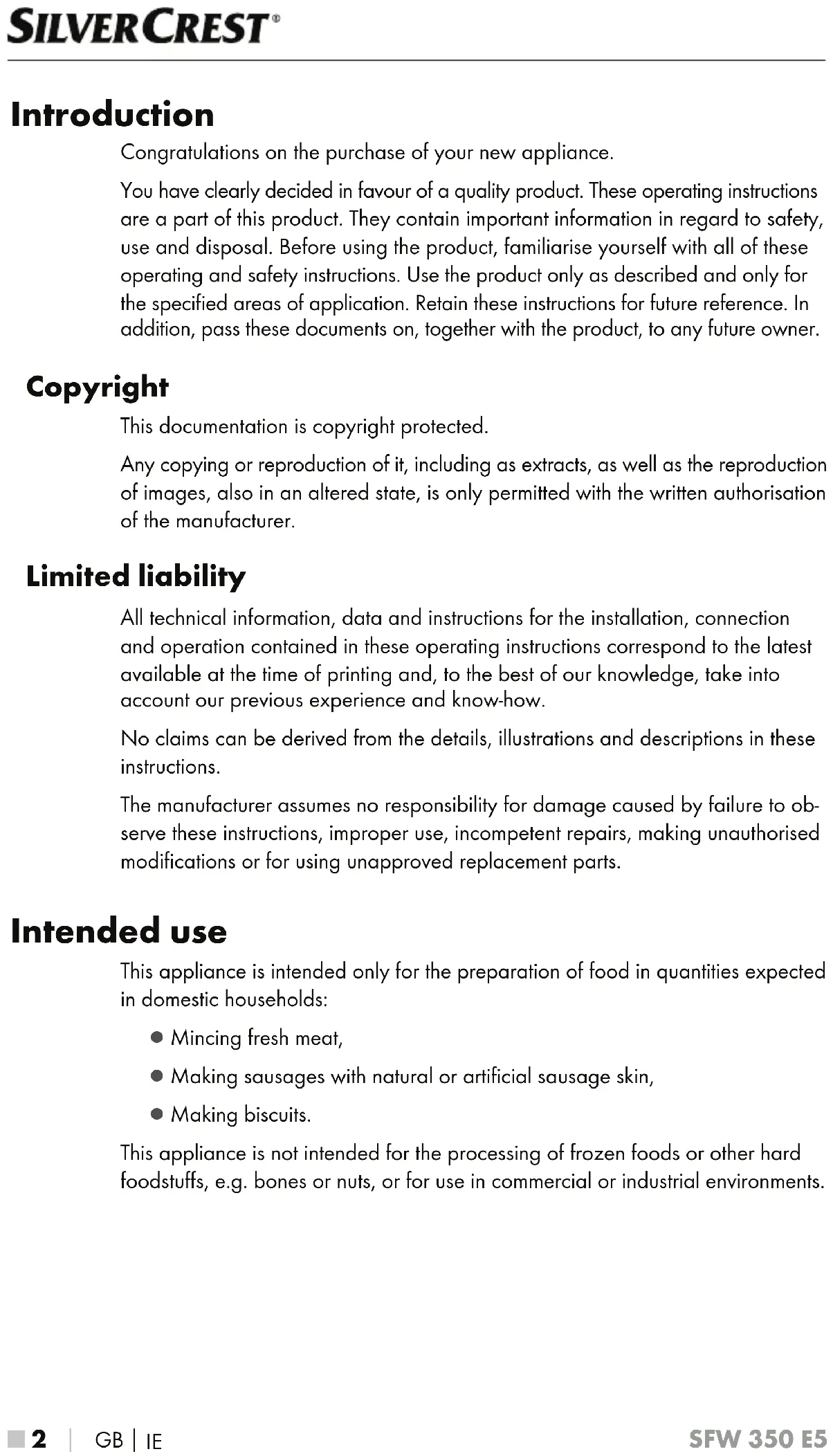

SFW 350 E5 Introduction Congratulations on the purchase of your new appliance. You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. Retain these instructions for future reference. In addition, pass these documents on, together with the product, to any future owner. Copyright This documentation is copyright protected. Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer. Limited liability All technical information, data and instructions for the installation, connection and operation contained in these operating instructions correspond to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how. No claims can be derived from the details, illustrations and descriptions in these instructions. The manufacturer assumes no responsibility for damage caused by failure to ob- serve these instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts. Intended use This appliance is intended only for the preparation of food in quantities expected in domestic households: ▯ Mincing fresh meat, ▯ Making sausages with natural or artificial sausage skin, ▯ Making biscuits. This appliance is not intended for the processing of frozen foods or other hard foodstuffs, e.g. bones or nuts, or for use in commercial or industrial environments.GB

 3 ■ SFW 350 E5 Items supplied / Component description Figure A: 1 Biscuit attachment with pattern strips 2 Stodger 3 Feeding tray 4 Cable retainer 5 Motor unit 6 Meat grinder casing made of metal 7 Transport screw 8 Spring 9 Cross blade 0 Cutting discs for coarse and fine mincing q Ring clamp w Sausage stuffer attachment e Sausage disc r Kubbe attachment Figure B: t Locking button Figure C: z “<” button (Reverse) u “0” button (Off) i “I” button (On) Technical data Voltage 220 - 240 V ∼ (AC), 50 Hz Power consumption 250 - 350 W Protection class II / (Double insulation) All of the parts of this appliance that come into contact with food are food-safe. C.O. Time 15 minutes C.O. Time The C.O. Time (Continuous Operation) details how long an appliance may be used without the motor overheating and being damaged. After the appliance has run for this period it must be switched off until the motor has cooled itself down.■ 4 

SFW 350 E5 Safety instructions

RISK OF ELECTRIC SHOCK

► Ensure that the power cable does not become damaged. Protect the cable from heat and ensure that it cannot be trapped or clamped. ► To avoid potential risks, if the appliance power cable is dam- aged, it must be replaced by the manufacturer, its customer service or by a qualified technician. ► Use the appliance only in dry indoor areas, not outdoors. Never immerse the motor block in water or any other liquid! If you do, then you could receive a potentially fatal electric shock. WARNING! ► Never use the appliance for purposes other than those listed here. There will be a major risk of serious accidents should you try to neutralise the safety fitments on the appliance! WARNING! RISK OF INJURY! ► Never put your hand into the openings of the appliance. Do not insert any objects of any kind into the openings – except for the appropriate stodger and the foodstuff to be processed. If you do, there will be a serious risk of accidents! ► Unplug the appliance from the power source before attaching or removing accessories. ► Do not leave the appliance unsupervised when it is ready for use. To avoid it being switched on accidentally, always unplug the appliance after use or during breaks. ► Only use the original accessory parts for this appliance. Other accessories may not meet the safety requirements. ► Never operate the appliance in a no-load condition. This could irreparably damage the appliance.GB

 5 ■ SFW 350 E5 WARNING! RISK OF INJURY! ► Before changing accessories or additional parts that are in motion during operation, the appliance must be switched off and disconnected from mains power. ► Never use the appliance for purposes other than those described in these instructions. ► Warning – the cross blade is very sharp! Always take care when handling and cleaning the appliance. ► The appliance should always be disconnected from the mains when unattended and before assembly, disassembly or cleaning. ► This appliance may not be used by children. ► The appliance and its connecting cable must be kept away from children. ► This appliance may be used by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. ► The appliance must not be used as a plaything by children.■ 6 

SFW 350 E5 Assembly / Disassembly CAUTION - PROPERTY DAMAGE! ► All accessories are coated with a thin film of oil to protect them from corrosion. Therefore, carefully clean all of the parts before using the appliance for the first time, as described in detail in the chapter "Cleaning". After subsequent usage, always apply a light coating of cooking oil to the metallic components. NOTICE

Before using for the first time, remove the protective foil from the control panel. Assembling the meat grinder Unfold the fold-out side. There you will find the step-by-step illustrations for assem- bling the appliance. Please note that you do not need the cross blade 9 and the spring 8 or a cutting disc 0/sausage disc e for all attachments.

1) Coat all metal parts with cooking oil.

2) Place the transport screw 7 in the meat grinder casing 6.

3) Place the spring 8 onto the transport screw 7.

4) Then fit the cross blade 9 on so that the sharp side points away from the

spring 8. Ensure that the square opening in the cross blade 9 is placed correctly on the square axle. Fig. 1 WARNING! RISK OF INJURY! ► The cross blade 9 is very sharp! Risk of injury!GB

6) Place your selected cutting disc 0 into the meat grinder casing 6 so that

the fixings on the cutting disc 0 are located in the openings in the meat grinder casing 6.

7) After everything has been correctly assembled, screw the ring clamp q

8) The ready-assembled meat grinder ca sing 6 is connected by a bayonet

connector to the motor unit 5: – Fit the meat grinder casing 6 into the motor unit 5 so that the sym- bol on the meat grinder casing 6 is aligned with the symbol on the motor unit 5. The locking button t pushes in (fig. B). – Press the meat grinder casing 6 in gently, at the same time turning the feed tube on the meat grinder casing 6 to the middle position (fig. B), so that the symbol on the feed tube points to the symbol. When the meat grinder casing 6 clicks into place, the locking button t pops out again. – Finally, place the feeding tray 3 on top of the feeding funnel. – To dismantle it, press the locking button t and turn the feeding funnel to the right (Fig. B) . You can now pull the meat grinder casing 6 out. Assembling the sausage stuffer attachment Unfold the fold-out side - there you will find the step-by-step illustrations for as- sembling the appliance.

1) Remove the meat grinder casing 6 as described under “Assembling the

2) Dismantle all parts which are fitted to/in the meat grinder casing 6 and

3) Coat all metal parts with cooking oil.

4) Put the transport screw 7, the spring 8 and the cross blade 9 back into

the meat grinder casing 6.

5) Insert the sausage disc e so that the fixings on the sausage disc e are

located in the openings in the meat grinder casing 6.

6) Then place the sausage stuffer attachment w before the sausage disc e.

7) Screw the ring clamp q on hand-tight.

8) Assemble the meat grinder casing 6 as described under “Assembling the

7) Replace the pattern strips 1 back in to the front of the biscuit attachment 1.

Ensure that the grip on the pattern strips 1 points away from the appliance. If it does not, you will not be able to adjust the pattern, which is located directly on the grip.

8) Assemble the meat grinder casing 6 as described under “Assembling the

9) To dismantle it, you must first remove the pattern strips 1 before you can

screw the ring clamp q open and take the biscuit attachment 1 back out. Operation

RISK OF ELECTRIC SHOCK

► NEVER open the housing of the motor unit 5 – it does not contain any user-serviceable elements. If the housing is opened, the warranty becomes void. If the housing is opened, there is a risk of receiving a potentially fatal electric shock. CAUTION - PROPERTY DAMAGE! ► Do not use the appliance for longer than 15 minutes continuously. To avoid an overheating of the appliance, after such a period switch it off and allow it to cool down for ca. 30 minutes. ► NEVER activate the buttons "I" i or "<" z, during a change of rotation direction, if the appliance motor has not come to a complete stop. This could damage the motor. Operating the appliance Once the appropriate attachments have been fixed:

1) Place the appliance where it will at all times be absolutely stable and under

no circumstances could it fall off of the work surface or in any way come into contact with water (due to vibrations or becoming snagged in the power cable). Vibration is unavoidable when it is working.

RISK OF ELECTRIC SHOCK

► Never touch an appliance, which is plugged in or is operational when it happens, that falls or lands in water – or in the case of other emergencies! First disconnect the appliance from the mains power source in all emergency situations! Otherwise you run the risk of serious injury or loss of life!

2) Put the food which is to be processed in the feeding tray 3 and place a

catchment container at the front under the exit opening.

3) First press the button “0” u to check that the appliance is still switched off.

Otherwise there is a risk that the appliance could unintentionally start when the plug is inserted into the power socket.■ 10 

4) Then insert the plug into a mains power socket.

5) Press the button “I” i to start the appliance.

WARNING! RISK OF INJURY! ► Push the foodstuff into the feeding shaft ONLY with the round stodger 2 – NEVER with one’s fingers, forks, spoons or similar objects. That could lead to physical injury and also damage the appliance. CAUTION - PROPERTY DAMAGE! ► Do not ever press so hard that the motor gets audibly slower. This could overburden the machine and damage it. Processing meat

1) Use pieces of meat that fit easily into the feeding funnel. If necessary, cut the

meat to size beforehand. Check that the meat does not have any bones and or tendons. WARNING! ► Minced meat is very prone to bacterial contamination. Therefore take care to maintain good hygiene when processing meat. If you do not, it may cause serious health problems.

2) When you have read and understood all of the instructions on the topic

”Meat“, you can now use the appliance as described in the chapter “Operating the appliance”. Processing sausage meat

1) Pass meat through the meat grinder twice before using it as sausage stuffing.

2) To make sausage stuffing, add some chopped onions, spices and other

ingredients to the minced meat, as per your recipe, and knead the mixture well. Refrigerate this for 30 minutes before processing it further.

3) Pull one end of the sausage skin (natural or artificial sausage skin) onto the

sausage stuffer attachment w and tie a knot in the other end. For 1 kg of the filling, you will need approximately 1.60 m of sausage skin. TIP! Soak the natural sausage skin in lukewarm water for about 3 hours before using it and wring it out before attaching it. This will make the natural sau- sage skin more elastic. Natural sausage skins are available from butcher suppliers close to slaughter houses or from your family butcher.

4) The sausage mixture will be pressed into the sausage skin by the sausage

stuffer attachment w. When it is long enough switch the appliance off, press the sausage together at the ends and rotate it a couple of times along its longitudinal axis.GB

 11 ■ SFW 350 E5 TIP! Sausage meat tends to expand when cooked or frozen. Therefore, to prevent it from bursting it is best not to overstuff the sausage.

5) When you have read and understood all of the instructions on the topic

”Sausage”, you can now use the appliance as described in the chapter “Operating the appliance”. Using the kubbe attachment With the kubbe attachment r foodstuffs can be processed to form hollow rolls of meat or vegetables, which can then be stuffed as desired.

1) First put the meat through the meat grinder twice before pressing it through

the kubbe attachment r.

2) When you have read and understood all of the instructions on the topic

“Kubbe-Attachment”, you can now use the appliance as described in the chapter “Operating the appliance”. Making biscuits After you have made the biscuit pastry according to your recipe, and after having fixed the biscuit attachment 1:

1) Line a small baking tray with greaseproof paper and place or hold it directly

under the exit opening at the front of the appliance.

2) Press pastry evenly into the meat grinder casing 6 – the transport screw 7

then pushes it through the selected design on the design motif strip of the biscuit attachment 1.

3) When the biscuit is the required length, stop the appliance and break the

pastry off at the exit opening. Lay the biscuits on the baking tray.

4) When you have read and understood all of the instructions on the topic

“Biscuits”, you can now use the appliance as described in the chapter “Operating the appliance”.■ 12 

SFW 350 E5 Non-functionality If the drive is blocked by accumulated food: ■ Press the button “0” u to stop the meat grinder. ■ Press and hold the button “<” z. The appliance will now run in the reverse direction. This enables you to transport the food which has become stuck a short way backwards, and the motor to run freely again. ■ When the drive runs smoothly again, release the “<” z button. ■ Press the button “I” i to re-start the meat grinder. ■ If you do not succeed in getting the drive free with this, clean the appliance as described in the chapter “Cleaning”. Should the motor suddenly stop, it could be due to automatic activation of the internal overload fuse. This is intended to protect the motor. ■ Switch the appliance off and allow it cool down for approximately 30 minutes before continuing to use it. ■ Should this not work, wait for a further 15 minutes. ■ If it still does not function at the end of this period, this indicates a technical problem. In this case, contact the Customer Service Centre. If the power cable is damaged or the accessories are visibly damaged: ■ Immediately switch the appliance off by pressing the “0” u button! ■ If this is not possible without risk to personal safety, disconnect the plug from the mains power socket. ■ Arrange for the defective parts to be repaired by Customer Services before re-using the appliance.GB

► Disconnect the plug from the mains power socket before cleaning the appli- ance. In this way accidents caused by the inadvertent switching on of the appliance and electric shocks can be avoided. Cleaning the motor block ■ Clean the exterior surfaces and the power cable with a slightly damp cloth. For stubborn dirt, add mild detergent to the cloth. Afterwards, wipe with a cloth moistened only with fresh water to ensure that all detergent is removed. Dry the appliance well before re-using it.

Never immerse the motor block 5 in water or any other liquid! Should this occur, you are at risk of a potentially fatal electric shock if permeating moisture makes contact with the electrical wiring. CAUTION - PROPERTY DAMAGE! ► Never use detergents, abrasive cleaners or solvents. These could damage the appliance and leave residues on the foodstuffs. Cleaning the accessories ■ Clean all accessories that can come into contact with food with hot washing-up water and a household detergent suitable for food. NOTICE

The plastic part of the biscuit attachment 1, the stodger 2, the sausage stuffer attachment w and the kubbe attachment r are dishwasher safe. ► Place these plastic parts in the upper basket of the dishwasher if possible and make sure that none of the parts can get stuck. Otherwise, the parts could become deformed! WARNING! RISK OF INJURY! ► The cross blade 9 is very sharp! Risk of injury! ■ Dry all parts thoroughly, before re-using the appliance. NOTICE ► Apply a light coating of cooking oil to all metallic components after each cleaning Otherwise, metal parts can discolour!■ 14 

SFW 350 E5 Storage ■ Wind the mains cable clockwise around the cable retainer 4 on the underside of the appliance and fasten it in place as shown below. This keeps it safe from damage: Fig. 2 ■ Store the appliance at a dry location. ■ After drying the metal attachments coat them lightly with a little cooking oil – if you are not going to use the appliance immediately. This will protect them from corrosion. ■ Store the appliance where it will be out of reach of children and people requiring supervision. They are not always able to correctly assess the potential risks involved with using electrical appliances.GB

 15 ■ SFW 350 E5 Disposal The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The product is recyclable, subject to extended producer responsibility and is collected separately. The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composites. NOTICE ► If possible, keep the original packaging of the appliance during the warranty period so that the device can be packed properly for returning in the event of a warranty claim.■ 16 

SFW 350 E5 Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after un- packing. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accordance with strict quality guide- lines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.GB

 17 ■ SFW 350 E5 Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (IAN)390010_2201 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN)390010_2201. Service Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] E-Mail: [e-mail] IAN 390010_2201 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

SFW 350 E5 Recipes Kibbeh Ingredients for the mince filling 400 g lean beef or lamb 2 onions 10 g flour 25 g coarsely chopped pine nuts 1/2 tsp. each of ground allspice, cinnamon, cumin, caraway, cloves, nutmeg Salt and pepper Ingredients for the shell 500 g bulgur wheat (soaked) 500 g lean beef or lamb 1 onion 1 pinch of black pepper, 1 pinch of chilli Mince filling Prepare the mince filling first and leave it to cool while you prepare the shell. Chop the meat twice with the mincer (using first the coarse, then the fine perforated disc 0). Mix the meat, flour, pine nuts and spices well. Chop and sear the onions. Add the mince and mix it with the onions. Thoroughly fry the mixture, then let it cool. Shell Chop the meat for the shell twice with the mincer (using first the coarse, then the fine perforated disc 0) and mix it with the bulgur wheat, chopped onion and spices. Process the mass twice more using the mincer. Replace the perforated disc 0 with the kibbeh attachment r (see chapter “Installing the kibbeh attach- ment”) and make kibbeh shells of approx. 7 cm length. Preparation Fill each kibbeh shell with the mince as soon as it is made, pinching the ends together to create small pouches. Deep-fry the finished kibbeh in hot oil (190 °C) for approximately 3 minutes. They should have a golden brown colour.GB

 19 ■ SFW 350 E5 Meat rolls Ingredients for the mince shell 450 g of lean Lamb, Veal or Beef 150 g Flour 1 Tsp Pimento (type of pepper) 1 Tsp Nutmeg 1 Pinch Chili powder 1 Pinch Pepper Ingredients for the meat filling 400 g Mutton 1 1/2 Tbsp Olive oil 1 1/2 Tbsp Onions, finely chopped 1/2 Tsp Pimento (type of pepper) 1/2 Tsp Salt 1 1/2 Tbsp Flour Pass the meat for the wrapping through the meat grinder twice (using first the medium-sized, then the fine perforated disc 0) and then combine it with the ingredients. Then pass this mixture through the meat grinder twice. Exchange the cutting disc 0 for the kibbeh attachment r (see chapter “Using the kubbe attachment”). Shape the kibbeh wrappers with the kubbe attachment r and then freeze them. Filling: Pass the meat through the meat grinder twice (using first the medium-sized, then the fine perforated disc 0). Saute the onions and then mix them well with the meat and other ingredients. Fill the kibbeh wrappers and fry until done. Alternative Fillings: 250 g steamed Broccoli or 250 g steamed Zucchini or 250 g cooked Rice■ 20 

SFW 350 E5 Fresh Grill Sausages Ingredients: 300 g lean Beef 500 g lean Pork 200 g Shoulder bacon 20 g Salt 1/2 Tsp ground white Pepper 1 Tsp Caraway 1/2 Tsp Nutmeg Pass the beef, pork and bacon through the meat grinder twice. Add the mixed spices and salt and thoroughly knead for 5 minutes. Place the sausage filling in the refrigerator for ca. 30 minutes. Fill the skins with sausage meat as detailed (see chapter “Processing sausage meat”) and make sausages of ca. 25 cm in length. Grill the sausages well and eat them on the same day. Biscuits Ingredients: 500 g butter 500 g sugar

2 - 3 packets of vanilla sugar

1 packet of vanilla custard 1/4 tsp salt 1 egg 4 egg yolks 800 g plain flour 2 tbsp baking powder 200 g ground (blanched) almonds Zest of a lemon Beat the butter until fluffy. Add the remaining ingredients one after another and knead well into the dough. Cover the finished dough and allow to stand for around 12 hours in the fridge (e.g. overnight). Then pass it through the meat grinder with the biscuit attachment 1. Place the biscuits on a baking tray lined with baking paper. Bake the biscuits in a pre-heated oven at 180°C for approx.

10 - 15 minutes until golden brown.DE

former en saucisses.

SFW 350 E5KOMPERNASS HANDELS GMBH
