| Product type | Meat grinder |
| Brand | SilverCrest |
| Model | SFW 350 D3 |
| Voltage | 220-240 V ~, 50 Hz |
| Power consumption | 250-350 W |
| Protection class | II (double insulation) |
| Intermittent operation capacity | 15 minutes (then 30 min rest) |
| Materials in contact with food | Stainless steel (blade, grids), food-grade plastic (tray, accessories) |
| Main functions | Meat grinding, sausage making, shortbread cookies, tomato purée, kibbeh attachment |
| Included accessories | Fine grid, coarse grid, cross blade, auger, spring, sausage nozzle, sausage grid, kibbeh attachment, shortbread cookie attachment, tomato ejector, sieve, filling tray, plug |
| Cleaning accessories | Plastic parts dishwasher safe (top rack), metal parts hand wash with hot water and dish soap |
| Cleaning motor unit | Slightly damp cloth, never immerse |
| Safety | Emergency stop via 'O' button, reverse for unblocking, internal overload fuse, safety lock |
| Warranty | 3 years (Kompernass Handels GmbH) |
| After-sales service | France: 0800 919270, Belgium: contact the mentioned service |

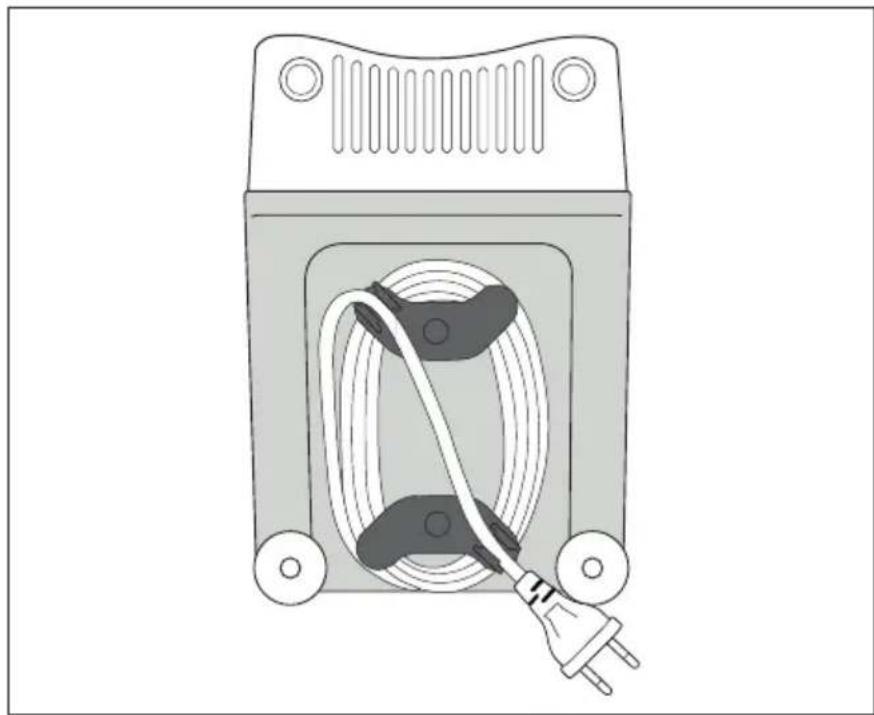

| Storage | Wrap cord under the unit, store dry, oil metal parts |
Frequently Asked Questions - SFW 350 D3 SILVERCREST
User questions about SFW 350 D3 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Meat Grinder in PDF format for free! Find your manual SFW 350 D3 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SFW 350 D3 by SILVERCREST.
USER MANUAL SFW 350 D3 SILVERCREST
Operating instructions
NL BE
VLEESMOLEN
Gebruiksaanwijzing
CZ
MLÝNEK NA MASO
Návod k obsluze
IAN 314659
DE AT CH
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB/IE Operating instructions Page 25
Close-up of a silver sewing machine nozzle with metallic blade and metal clamped (no visible text or symbols)natural_image
Diagram of an electrical plug with a coiled cable and terminal block (no text or symbols)KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Rezepte
Kebbe
1 Päckchen Vanillepudding
1/4 Teelöffel Salz
1 Ei
4 Eigelb
800 g Mehl (Type 405)
Limited liability 26
Intended use 26
Items supplied / Component description....27
Technical data 28
Safety instructions 28
Assembly / Disassembly....30
Assembling the meat grinder 30
Assembling the sausage stuffer attachment 31
Assembling the kubbe attachment.... 32
Assembling the biscuit attachments 32
Fitting the strainer attachment 33
Operation 34
Operating the appliance....35
Processing meat....35
Processing sausage meat. 36
Using the kubbe attachment 36
Making biscuits 37
Straining tomatoes.... 37
Non-functionality 38
Cleaning....38
Cleaning the motor block 39
Cleaning the accessories....39
Storage 40
Disposal....41
Kompernass Handels GmbH warranty....42
Service....43
Importer 43
Recipes....44
Kibbeh 44
Meat rolls. 45
Fresh Grill Sausages 46
Biscuits 46
Introduction
Congratulations on the purchase of your new appliance.
You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. Retain these instructions for future reference. In addition, pass these documents on, together with the product, to any future owner.
Copyright
This documentation is copyright protected.
Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.
Limited liability
All technical information, data and instructions for the installation, connection and operation contained in these operating instructions correspond to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how.
No claims can be derived from the details, illustrations and descriptions in these instructions.
The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts.
Intended use
This appliance is intended only for the preparation of food in quantities expected in domestic households:
- Mincing fresh meat,
● Making sausages with natural or artificial sausage skin, - Making biscuits,
- Straining tomatoes.
This appliance is not intended for the processing of frozen foods or other hard foodstuffs, e.g. bones or nuts, or for use in commercial or industrial environments.
Items supplied / Component description
Figure A:
① Biscuit attachment with pattern strips
② Stodger
③ Feeding tray
4 Cable retainer
⑤ Motor unit
6 Meat grinder casing made of metal
⑦ Locking clamp
⑧ Tomato outlet
9 Plastic screw
10 Strainer sieve
⑪ Transport screw
12 Spring
13 Cross blade
14 Cutting discs for coarse and fine mincing
15 Ring clamp
16 Sausage stuffer attachment
⑰ Sausage disc
18 Kubbe attachment
Figure B:
19 Locking button
Figure C:
20 "1" button (On)
21 "0" button (Off)
22 "<" button (Reverse)

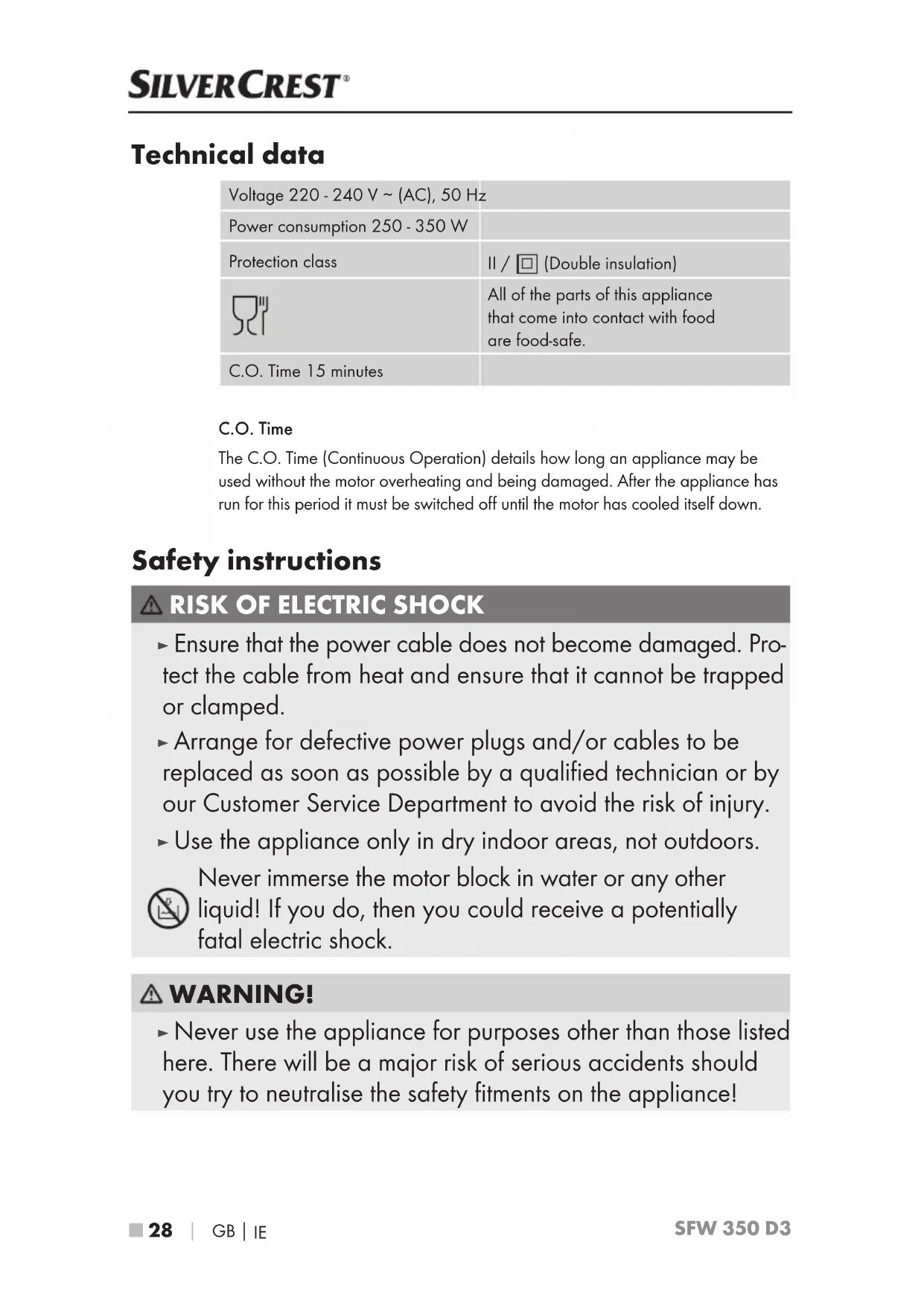

Technical data
| Voltage 220 - 240 V ~ (AC), 50 Hz | |
| Power consumption 250 - 350 W | |
| Protection class | II / □ (Double insulation) |
 | All of the parts of this appliance that come into contact with food are food-safe. |
| C.O. Time 15 minutes |
C.O. Time
The C.O. Time (Continuous Operation) details how long an appliance may be used without the motor overheating and being damaged. After the appliance has run for this period it must be switched off until the motor has cooled itself down.
Safety instructions
RISK OF ELECTRIC SHOCK
▶ Ensure that the power cable does not become damaged. Protect the cable from heat and ensure that it cannot be trapped or clamped.
- Arrange for defective power plugs and/or cables to be replaced as soon as possible by a qualified technician or by our Customer Service Department to avoid the risk of injury.
▶ Use the appliance only in dry indoor areas, not outdoors.
Never immerse the motor block in water or any other liquid! If you do, then you could receive a potentially fatal electric shock.
WARNING!
▶ Never use the appliance for purposes other than those listed here. There will be a major risk of serious accidents should you try to neutralise the safety fitments on the appliance!
⚠ WARNING! RISK OF INJURY!
▶ Never put your hand into the openings of the appliance. Do not insert any objects of any kind into the openings – except for the appropriate stodger and the foodstuff to be processed. If you do, there will be a serious risk of accidents!
▶ Unplug the appliance from the power source before attaching or removing accessories.
▶ Do not leave the appliance unsupervised when it is ready for use. To avoid it being switched on accidentally, always unplug the appliance after use or during breaks.
▶ Only use the original accessory parts for this appliance. Other accessories may not meet the safety requirements.
▶ Never operate the appliance in a no-load condition. This could irreparably damage the appliance.
▶ Before changing accessories or additional parts that are in motion during operation, the appliance must be switched off and disconnected from mains power.
▶ Never use the appliance for purposes other than those described in these instructions.
▶ Warning – the cross blade is very sharp! Always take care when handling and cleaning the appliance.
The appliance should always be disconnected from the mains when unattended and before assembly, disassembly or cleaning.
- This appliance may not be used by children.
The appliance and its connecting cable must be kept away from children.
This appliance may be used by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.
The appliance must not be used as a plaything by children.
Assembly / Disassembly
CAUTION - PROPERTY DAMAGE!
All accessories are coated with a thin film of oil to protect them from corrosion. Therefore, carefully clean all of the parts before using the appliance for the first time, as described in detail in the chapter "Cleaning". After subsequent usage, always apply a light coating of cooking oil to the metallic components.
NOTICE
▶ Before using for the first time, remove the protective foil from the control panel.

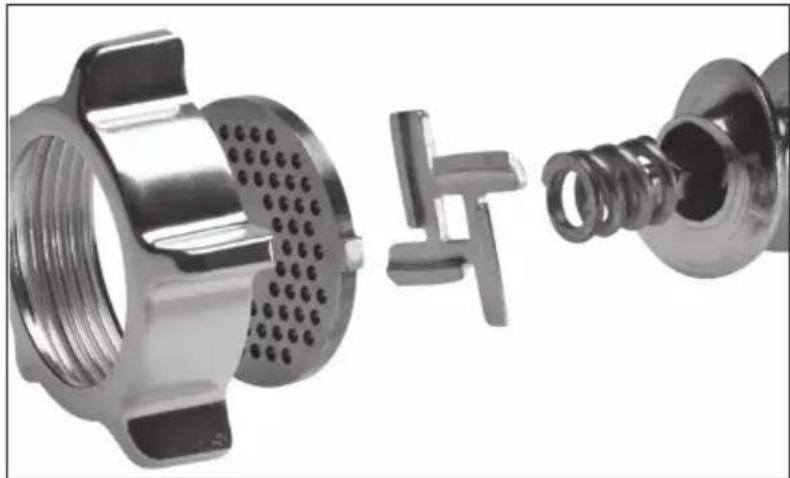

Assembling the meat grinder
Unfold the fold-out side. There you will find the step-by-step illustrations for assembling the appliance.
1) Place the transport screw ⑪ in the meat grinder casing ⑥.
2) Place the spring ⑫ onto the transport screw ⑪.
3) Then fit the cross blade ⑬ on so that the sharp side points away from the spring ⑫. Ensure that the square opening in the cross blade ⑬ is placed correctly on the square axle.
The cross blade 13 is very sharp! Risk of injury!
CAUTION - PROPERTY DAMAGE!
The appliance will be damaged if the cross blade 13 is inserted the other way around!
4) Select the appropriate cutting disc 14.
5) Place your selected cutting disc 14 into the meat grinder casing 6 so that the fixings on the cutting disc 14 are located in the openings in the meat grinder casing 6.
6) After everything has been correctly assembled, screw the ring clamp 15 back on hand-tight.
7) The ready-assembled meat grinder ca sing ⑥ is connected by a bayonet connector to the motor unit ⑤:
- Insert the meat grinder casing ⑥ into the motor unit ⑤ such that the arrow on the meat grinder casing ⑥ lies against the symbol ⏻ on the motor unit ⑤. The locking button ⑲ presses itself in (Fig. B).
- Lightly press the meat grinder casing ⑥ in and at the same time turn the feeding shaft on the meat grinder casing ⑥ into the middle position (Fig. B) so that the arrow on the feeding shaft points to the symbol ⏻. When the meat grinder casing ⑥ engages, the locking button ⑲ springs out.
- Finally, place the feeding tray ③ on top of the feeding funnel.
- To dismantle it, press the locking button 19 and turn the feeding funnel to the right (Fig. B) 📋. You can now pull the meat grinder casing 6 out.
Assembling the sausage stuffer attachment
Unfold the fold-out side - there you will find the step-by-step illustrations for assembling the appliance.
1) Remove the meat grinder casing ⑥ as described under "Assembling the meat grinder".
2) Dismantle all parts which are fitted to/in the meat grinder casing ⑥ and clean them.
3) Coat all metal parts with cooking oil.
4) Put the transport screw ⑪, the spring ⑫ and the cross blade ⑬ back into the meat grinder casing ⑥.
5) Insert the sausage disc ⑰ so that the fixings on the sausage disc ⑰ are located in the openings in the meat grinder casing ⑥.
6) Then place the sausage stuffer attachment 16 before the sausage disc 17.
7) Screw the ring clamp 15 on hand-tight.
8) Assemble the meat grinder casing ⓑ as described under "Assembling the meat grinder".
Assembling the kubbe attachment
Unfold the fold-out side. There you will find the step-by-step illustrations for assembling the appliance.
1) Remove the meat grinder casing ⓑ as described under "Assembling the meat grinder".
2) Disassemble any attachments that might be fitted and clean the meat grinder casing 6.
NOTICE
To use the kubbe attachment 18, neither the cross blade 13 with the spring 12, nor a cutting or sausage disc 14/17 are required! Remove these from the meat grinder casing 6 if necessary.
3) Coat all metal parts with cooking oil.
4) Insert the two plastic parts of the kubbe attachment ⑱ so that the fixings on the bottom kubbe attachment ⑱ ring are located in the openings in the meat grinder casing ⑥.
5) When everything has been attached correctly, screw the ring clamp 15 back on hand-tight.
6) Assemble the meat grinder casing ⑥ as described under "Assembling the meat grinder".
Assembling the biscuit attachments
Unfold the fold-out side. There you will find the step-by-step illustrations for assembling the appliance.
1) Remove the meat grinder casing ⓑ as described under "Assembling the meat grinder".
2) Disassemble any attachments that might be fitted and clean the meat grinder casing 6.
NOTICE
To use the biscuit attachment ①, neither the cross blade ⑬ with the spring ⑫, nor a cutting or sausage disc ⑭/⑰ are required! Remove these from the meat grinder casing ⑥ if necessary.
3) Coat all metal parts with cooking oil.
4) Pull the pattern strips ① away from the front of the biscuit attachment ①.
5) First place the plastic disc and then the metal disc of the biscuit attachment ① into the meat grinder casing ⑥ (see fold-out side). Insert the biscuit attachment ①. so that the fixings on the biscuit attachment ①. are located in the openings in the meat grinder casing ⑥.
6) After everything has been correctly assembled, screw the ring clamp ⑮ back on hand-tight.
7) Replace the pattern strips ① back in to the front of the biscuit attachment ①. Ensure that the grip on the pattern strips ① points away from the appliance. If it does not, you will not be able to adjust the pattern, which is located directly on the grip.
8) Assemble the meat grinder casing ⓑ as described under "Assembling the meat grinder".
9) To dismantle it, you must first remove the pattern strips ① before you can screw the ring clamp ⑮ open and take the biscuit attachment ⑪ back out.
Fitting the strainer attachment
Unfold the fold-out page – it contains the step-by-step illustrations for assembling the appliance.
1) Remove the meat grinder casing ⑥ as described in "Assembling the meat grinder".
2) Remove any attachments that might be fitted and clean the meat grinder casing 6.

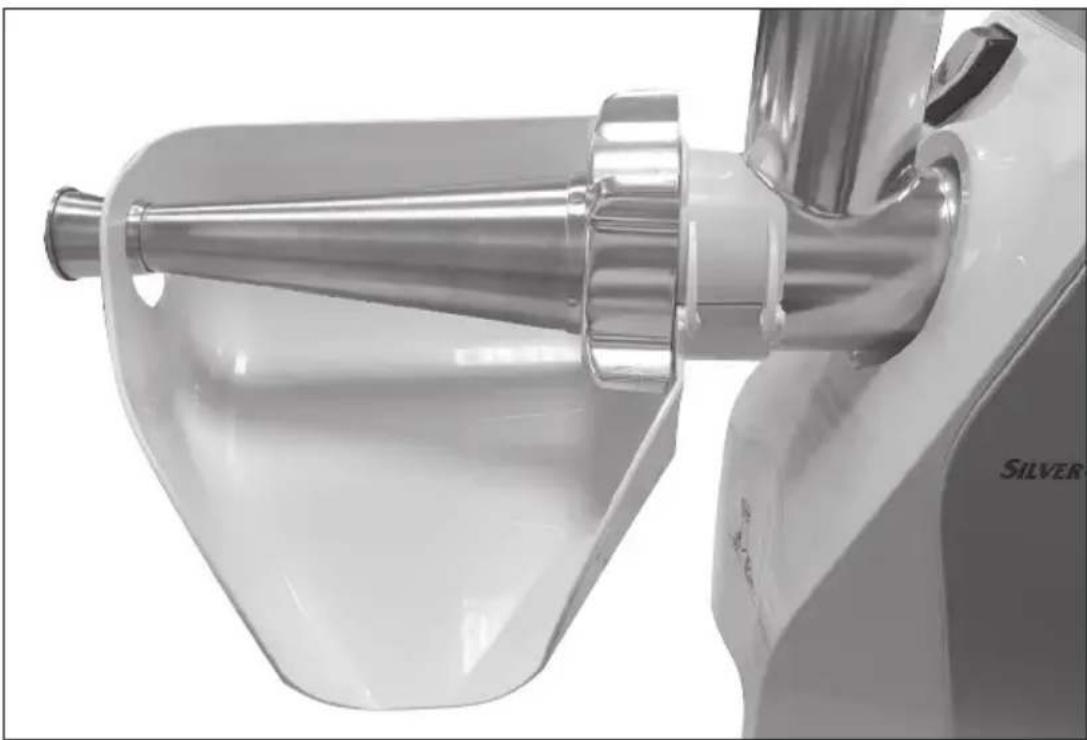

NOTE
The transport screw ⑪ and the cross blade ⑬ with the spring ⑫ are not required for the strainer attachment! Remove these from the meat grinder casing ⑥ if necessary.
3) Push the plastic screw ⑨ into the meat grinder casing ⑥.
4) Push the strainer sieve 10 over the plastic screw 9 so that the tabs on the strainer sieve 10 fit into the recesses in the meat grinder casing 6. The holes of the strainer sieve 10 should be facing downwards.
5) Once everything has been correctly attached, roll the ring clamp 15 over the strainer sieve 10 and screw it on hand-tight.
6) Fit the meat grinder casing ⑥ as described in "Assembling the meat grinder".
7) Undo the locking clamp ⑦ on the tomato outlet ⑧.
8) Place the tomato outlet ⑧ under the strainer sieve by pushing the tip of the strainer sieve ⑩ through the small hole in the tomato outlet ⑧:
10) Close the locking clamp ⑦ by flipping the small closure over the locking clamp ⑦.
Operation
RISK OF ELECTRIC SHOCK
▶ NEVER open the housing of the motor unit ⑤ – it does not contain any user-serviceable elements. If the housing is opened, the warranty becomes void. If the housing is opened, there is a risk of receiving a potentially fatal electric shock.
CAUTION - PROPERTY DAMAGE!
▶ Do not use the appliance for longer than 15 minutes continuously. To avoid an overheating of the appliance, after such a period switch it off and allow it to cool down for ca. 30 minutes.
▶ NEVER activate the buttons "l" 20 or "<" 22, during a change of rotation direction, if the appliance motor has not come to a complete stop. This could damage the motor.
Operating the appliance
Once the appropriate attachments have been fixed:
1) Place the appliance where it will at all times be absolutely stable and under no circumstances could it fall off of the work surface or in any way come into contact with water (due to vibrations or becoming snagged in the power cable). Vibration is unavoidable when it is working.
RISK OF ELECTRIC SHOCK
▶ Never touch an appliance, which is plugged in or is operational when it happens, that falls or lands in water – or in the case of other emergencies! First disconnect the appliance from the mains power source in all emergency situations! Otherwise you run the risk of serious injury or loss of life!
2) Put the food which is to be processed in the feeding tray ③ and place a catchment container at the front under the exit opening.
3) First press the button "0" 21 to check that the appliance is still switched off. Otherwise there is a risk that the appliance could unintentionally start when the plug is inserted into the power socket.
4) Then insert the plug into a mains power socket.
5) Press the button "1" 20 to start the appliance.
WARNING! RISK OF INJURY!
- Push the foodstuff into the feeding shaft ONLY with the round stodger ② - NEVER with one's fingers, forks, spoons or similar objects. That could lead to physical injury and also damage the appliance.
CAUTION - PROPERTY DAMAGE!
▶ Do not ever press so hard that the motor gets audibly slower. This could overburden the machine and damage it.
Processing meat
1) Use pieces of meat that fit easily into the feeding funnel. If necessary, cut the meat to size beforehand. Check that the meat does not have any bones and or tendons.
WARNING!
▶ Minced meat is very prone to bacterial contamination. Therefore take care to maintain good hygiene when processing meat. If you do not, it may cause serious health problems.
2) When you have read and understood all of the instructions on the topic "Meat", you can now use the appliance as described in the chapter "Operating the appliance".
Processing sausage meat
1) Pass meat through the meat grinder twice before using it as sausage stuffing.
2) To make sausage stuffing, add some chopped onions, spices and other ingredients to the minced meat, as per your recipe, and knead the mixture well. Refrigerate this for 30 minutes before processing it further.
3) Pull one end of the sausage skin (natural or artificial sausage skin) onto the sausage stuffer attachment ⑯ and tie a knot in the other end. For 1 kg of the filling, you will need approximately 1.60 m of sausage skin.
TIP!
Soak the natural sausage skin in lukewarm water for about 3 hours before using it and wring it out before attaching it. This will make the natural sausage skin more elastic. Natural sausage skins are available from butcher suppliers close to slaughter houses or from your family butcher.
4) The sausage mixture will be pressed into the sausage skin by the sausage stuffer attachment ⑯. When it is long enough switch the appliance off, press the sausage together at the ends and rotate it a couple of times along its longitudinal axis.
TIP!
Sausage meat tends to expand when cooked or frozen. Therefore, to prevent it from bursting it is best not to overstuff the sausage.
5) When you have read and understood all of the instructions on the topic "Sausage", you can now use the appliance as described in the chapter "Operating the appliance".
Using the kubbe attachment
With the kubbe attachment 18 foodstuffs can be processed to form hollow rolls of meat or vegetables, which can then be stuffed as desired.
1) First put the meat through the meat grinder twice before pressing it through the kubbe attachment ⑱.
2) When you have read and understood all of the instructions on the topic "Kubbe-Attachment", you can now use the appliance as described in the chapter "Operating the appliance".
Making biscuits
After you have made the biscuit pastry according to your recipe, and after having fixed the biscuit attachment ①:
1) Line a small baking tray with greaseproof paper and place or hold it directly under the exit opening at the front of the appliance.
2) Press pastry evenly into the meat grinder casing ⑥ - the transport screw ⑪ then pushes it through the selected design on the design motif strip of the biscuit attachment ①.
3) When the biscuit is the required length, stop the appliance and break the pastry off at the exit opening. Lay the biscuits on the baking tray.
4) When you have read and understood all of the instructions on the topic "Biscuits", you can now use the appliance as described in the chapter "Operating the appliance".
Straining tomatoes
1) Place a container under the tomato outlet 8.
2) Place a container at the front under the strainer sieve 10.
3) Quarter the tomatoes and push them into the meat grinder casing ⑥ slowly and evenly.
The plastic screw ⑨ pushes the tomatoes through the strainer attachment. The strained tomatoes fall into the tomato outlet ⑧.
The tomato skin is ejected from the strainer sieve ⑩ at the front of the appliance.
NOTE
If tomato juice starts leaking from the screw joints of the strainer attachment, this can have the following causes:
-You are working too fast.
- You are using too much pressure to press the tomato pieces into the appliance.
—The tomato pieces are too large.
▶ Try working more slowly, press the tomato pieces gently into the appliance and cut the tomatoes into smaller pieces.
4) Once you have read and understood all of the instructions in the section "Straining tomatoes", you can use the appliance as described in the section "Operating the appliance".
Non-functionality
If the drive is blocked by accumulated food:
■ Press the button "O" 21 to stop the meat grinder.
Press and hold the button "<" 22. The appliance will now run in the reverse direction. This enables you to transport the food which has become stuck a short way backwards, and the motor to run freely again.
■ When the drive runs smoothly again, release the "<" 22 button.
■ Press the button "I" 20 to re-start the meat grinder.
If you do not succeed in getting the drive free with this, clean the appliance as described in the chapter "Cleaning".
Should the motor suddenly stop, it could be due to automatic activation of the internal overload fuse. This is intended to protect the motor.
■ Switch the appliance off and allow it cool down for approximately 30 minutes before continuing to use it.
■ Should this not work, wait for a further 15 minutes.
If it still does not function at the end of this period, this indicates a technical problem. In this case, contact the Customer Service Centre.
If the power cable is damaged or the accessories are visibly damaged:
- Immediately switch the appliance off by pressing the "0" 21 button!
If this is not possible without risk to personal safety, disconnect the plug from the mains power socket.
- Arrange for the defective parts to be repaired by Customer Services before re-using the appliance.
Cleaning
RISK OF ELECTRIC SHOCK
▶ Disconnect the plug from the mains power socket before cleaning the appliance. In this way accidents caused by the inadvertent switching on of the appliance and electric shocks can be avoided.
Cleaning the motor block
■ Clean the exterior surfaces and the power cable with a slightly damp cloth. For stubborn dirt, add mild detergent to the cloth. Afterwards, wipe with a cloth moistened only with fresh water to ensure that all detergent is removed. Dry the appliance well before re-using it.
RISK OF ELECTRIC SHOCK
▶ Never immerse the motor block ⑤ in water or any other liquid! Should this occur, you are at risk of a potentially fatal electric shock if permeating moisture makes contact with the electrical wiring.
CAUTION - PROPERTY DAMAGE!
▶ Never use detergents, abrasive cleaners or solvents. These could damage the appliance and leave residues on the foodstuffs.
Cleaning the accessories
■ Clean the accessories that could come in contact with foodstuffs, ...
- with hot water and a household detergent suitable for use with foods.
NOTICE
▶ We recommend using a bottle brush to clean the strainer sieve 10. This makes it easier to clean the small holes.
NOTICE
The plastic part of the biscuit attachment ①, the stodger ②, the sausage stuffer attachment ⑯ and the kubbe attachment ⑬ are dishwasher safe.
▶ Place the plastic parts in the upper basket of the dishwasher if possible and make sure that none of the parts can get stuck. Otherwise, the plastic parts could become deformed!
WARNING! RISK OF INJURY!
The cross blade 13 is very sharp! Risk of injury!
■ Dry all parts thoroughly, before re-using the appliance.
NOTICE
▶ Apply a light coating of cooking oil to all metallic components after each cleaning Otherwise, metal parts can discolour!
Storage
Wind the mains cable clockwise around the cable retainer ④ on the underside of the appliance and fasten it in place as shown below. This keeps it safe from damage:
■ After drying the metal attachments coat them lightly with a little cooking oil - if you are not going to use the appliance immediately. This will protect them from corrosion.
■ Store the appliance where it will be out of reach of children and people requiring supervision. They are not always able to correctly assess the potential risks involved with using electrical appliances.
Disposal
Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).
Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.
The packaging protects the appliance from damage during carriage. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.
Returning the packaging to the materials cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.
NOTICE
▶ If possible, keep the original packaging of the appliance during the warranty period so that the device can be packed properly for returning in the event of a warranty claim.
Dispose of the packaging in an environmentally friendly manner.
Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:
1-7: Plastics
20-22: Paper and cardboard
80-98: Composites
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.
If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 314659
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
GERMANY
www.kompernass.com
Recipes
Kibbeh
Ingredients for the mince filling
400 g lean beef or lamb
2 onions
10 g flour
25 g coarsely chopped pine nuts
1/2 tsp. each of ground allspice, cinnamon, cumin, caraway, cloves, nutmeg
Salt and pepper
Ingredients for the shell
500 g bulgur wheat (soaked)
500 g lean beef or lamb
1 onion
1 pinch of black pepper, 1 pinch of chilli
Mince filling
Prepare the mince filling first and leave it to cool while you prepare the shell.
Chop the meat twice with the mincer (using first the coarse, then the fine perforated disc 14). Mix the meat, flour, pine nuts and spices well. Chop and sear the onions. Add the mince and mix it with the onions. Thoroughly fry the mixture, then let it cool.
Shell
Chop the meat for the shell twice with the mincer (using first the coarse, then the fine perforated disc 14) and mix it with the bulgur wheat, chopped onion and spices. Process the mass twice more using the mincer. Replace the perforated disc 14 with the kibbeh attachment 18 (see chapter "Installing the kibbeh attachment") and make kibbeh shells of approx. 7 cm length.
Preparation
Fill each kibbeh shell with the mince as soon as it is made, pinching the ends together to create small pouches. Deep-fry the finished kibbeh in hot oil (190 °C) for approximately 3 minutes. They should have a golden brown colour.
Meat rolls
Ingredients for the mince shell
450 g of lean Lamb, Veal or Beef
150 g Flour
1 Tsp Pimento (type of pepper)
1 Tsp Nutmeg
1 Pinch Chili powder
1 Pinch Pepper
Ingredients for the meat filling
700 g Mutton
1 1/2 Tbsp Olive oil
1 1/2 Tbsp Onions, finely chopped
1/2 Tsp Pimento (type of pepper)
1/2 Tsp Salt
1 1/2 Tbsp Flour
Pass the meat for the wrapping through the meat grinder twice (using first the medium-sized, then the fine perforated disc 14) and then combine it with the ingredients. Then pass this mixture through the meat grinder twice. Exchange the cutting disc 14 for the kibbeh attachment 18 (see chapter "Using the kibbeh attachment").
Shape the kibbeh wrappers with the kibbeh attachment 18 and then freeze them.
Filling:
Pass the meat through the meat grinder twice (using first the medium-sized, then the fine perforated disc 14). Saute the onions and then mix them well with the meat and other ingredients. Fill the kibbeh wrappers and fry until done.
Alternative Fillings:
250 g steamed Broccoli
or 250 g steamed Zucchini
or 250 g cooked Rice
Fresh Grill Sausages
Ingredients:
300 g lean Beef
500 g lean Pork
200 g Shoulder bacon
20 g Salt
1/2 Tsp ground white Pepper
1 Tsp Caraway
1/2 Tsp Nutmeg
Pass the beef, pork and bacon through the meat grinder twice.
Add the mixed spices and salt and thoroughly knead for 5 minutes.
Place the sausage filling in the refrigerator for ca. 30 minutes. Fill the skins with sausage meat as detailed (see chapter "Processing sausage meat") and make sausages of ca. 25 cm in length.
Grill the sausages well and eat them on the same day.
Biscuits
Ingredients:
500 g butter
500 g sugar
2 - 3 packets of vanilla sugar
1 packet of vanilla custard
1/4 tsp salt
1 egg
4 egg yolks
800 g plain flour
2 tbsp baking powder
200 g ground (blanched) almonds
Zest of a lemon
Beat the butter until fluffy. Add the remaining ingredients one after another and knead well into the dough. Cover the finished dough and allow to stand for around 12 hours in the fridge (e.g. overnight). Then pass it through the meat grinder with the biscuit attachment ①. Place the biscuits on a baking tray lined with baking paper. Bake the biscuits in a pre-heated oven at 180^ C for approx. 10 - 15 minutes until golden brown.
Sommaire
Introduction....48
Diagram of an electrical outlet with a coiled cable and a plug, no text or symbols presentKOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Recettes
Kebbé
⚠ WAARSCHUWING! LETSELGEVAAR!
⚠ WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
BURGSTRASSE 21
DE-44867 BOCHUM
DUITSLAND
www.kompernass.com
Recepten
Kebbe
Close-up of a silver sewing machine nozzle with metallic blade and metal clamped (no visible text or symbols)natural_image
Diagram of an electrical plug with a coiled cable and terminal blocks (no text or symbols)KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
NIEMCY
www.kompernass.com
Przepisy
Kebbe
Diagram of an electrical outlet with a coiled cable and a power plug, no text or symbols presentKOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
NĚMECKO
www.kompernass.com
Recepty
Kebbe
Diagram of an electrical outlet with a coiled cable and a plug, no text or symbols presentKOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
NEMECKO
www.kompernass.com
Recepty
Kebbe
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
GERMANY
www.kompernass.com
Stand der Informationen · Last Information Update · Version des informations
