USER MANUAL PSMA 20Li A1 PARKSIDE

PDF ONLINE www.lidl-service.com

Black PAKSIDE lawn mower with attached handle and base (no visible text or symbols)

Akku-Spindelmäher 20 V / Cordless Cylinder Lawnmower 20V / Tondeuse hélicoïdale sans fi l 20 V PSMA 20-Li A1

DE AT CH

Translation of the original instructions

NL BE

Accu-spindelmaaimachine 20 V

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / MT Translation of the original instructions Page

Service-Center......20

Importeur 20

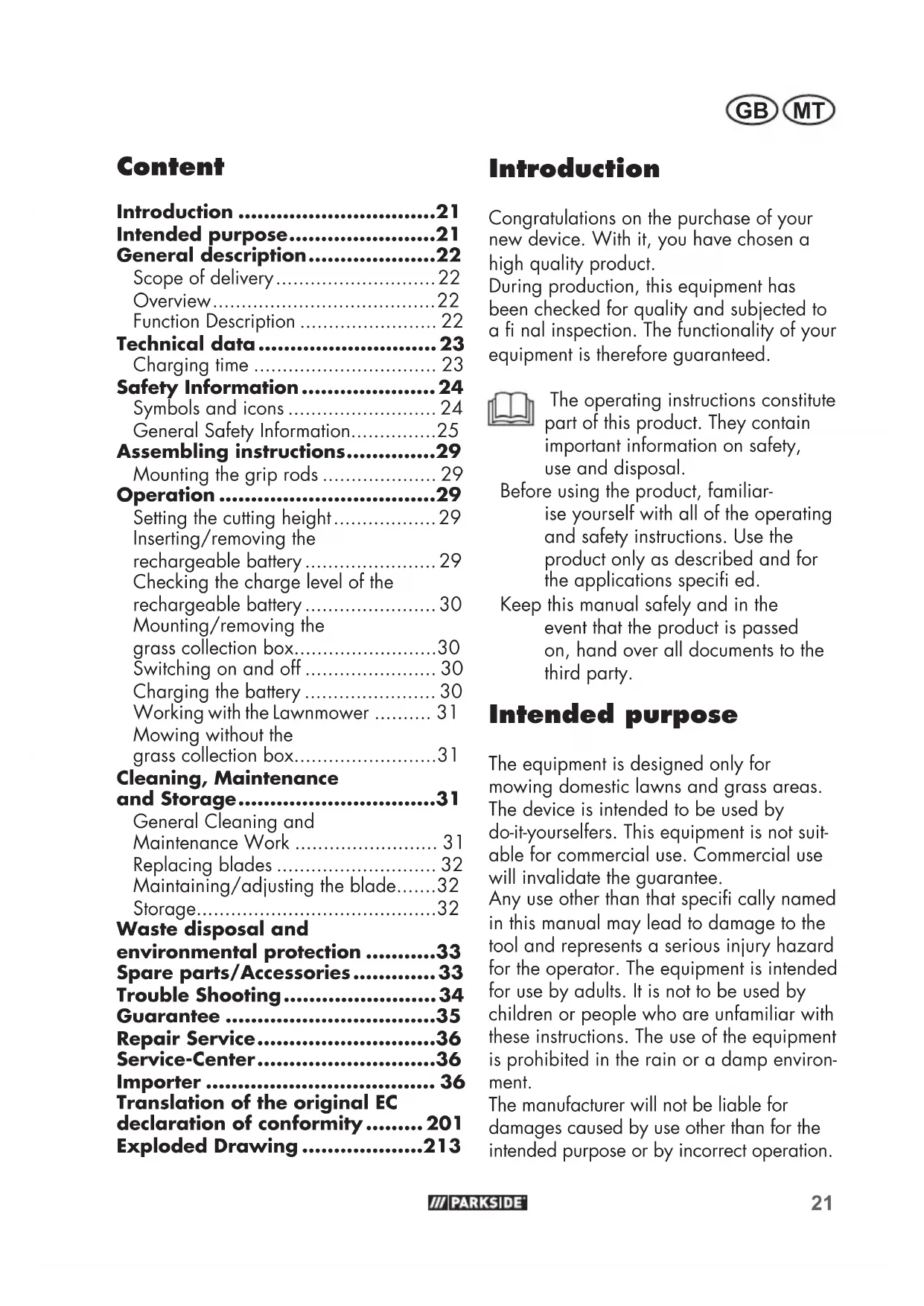

Original-

Intended purpose......21

General description......22

Scope of delivery 22

Overview....22

Function Description 22

Technical data 23

Charging time 23

Safety Information......24

Symbols and icons 24

General Safety Information......25

Assembling instructions......29

Mounting the grip rods 29

Operation 29

Setting the cutting height 29

Inserting/removing the rechargeable battery 29

Checking the charge level of the rechargeable battery 30

Mounting/removing the grass collection box....30

Switching on and off 30

Charging the battery 30

Working with the Lawnmower ..... 31

Mowing without the grass collection box....31

Cleaning, Maintenance and Storage....31

General Cleaning and Maintenance Work 31

Replacing blades 32

Maintaining/adjusting the blade.....32

Storage....32

Waste disposal and environmental protection ....33

Spare parts/Accessories......33

Trouble Shooting 34

Guarantee 35

Repair Service....36

Service-Center 36

Importer 36

Translation of the original EC declaration of conformity......201

Exploded Drawing ......213

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The equipment is designed only for mowing domestic lawns and grass areas.

The device is intended to be used by do-it-yourselfers. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

Any use other than that specifically named in this manual may lead to damage to the tool and represents a serious injury hazard for the operator. The equipment is intended for use by adults. It is not to be used by children or people who are unfamiliar with these instructions. The use of the equipment is prohibited in the rain or a damp environment.

The manufacturer will not be liable for damages caused by use other than for the intended purpose or by incorrect operation.

General description

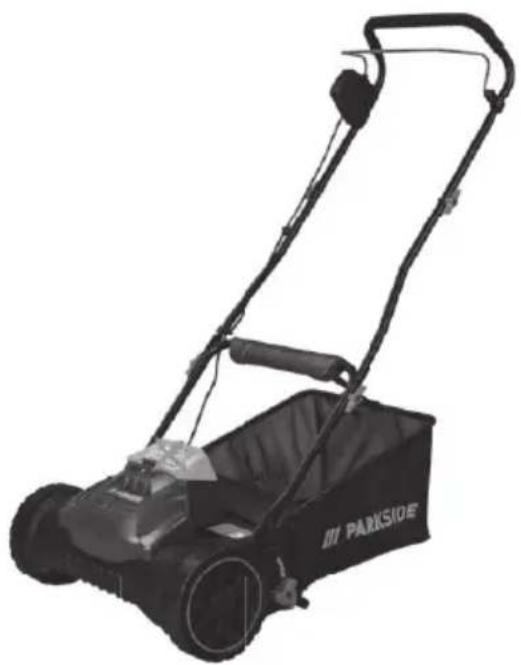

An illustration of the most important functional components can be found on the front and the back fold-out pages.

Scope of delivery

Carefully remove the tool from the packaging and check that the following parts are complete:

• Cordless reel mower and bow-type handle
• 2 x bar
• 1 x bracket
• Grass collection box
• 2 x cable holder
• Metal plate
• Hexagon socket screwdriver
• 4 x wing nut
  4 x screw
• Instruction manual

The metal plate (16) and hexagon socket screwdriver (15) are stowed in the device under the transparent cover (7) on delivery.

The rechargeable battery and charger are not included in delivery!

Dispose of the packaging material properly.

Overview

1 Bow-type handle
2 Start handle
3 Wing nut
4 Screw
5 Bar

6 Bracket

7 Cover

8 Charge level indicator

9 Housing

10 Star grip nut
11 Impact protection
12 Grass collection box
13 Device cable
14 Release button
15 Hexagon socket screwdriver
16 Metal plate
17 Ignition key
18 Rechargeable battery
19 Release button

20 Charger

A 21 Holders
A 22 Screw
A 23 Cable holder
B 24 Scale
B 25 Roller bracket
D 26 Clip fastener
E 27 Lower blade
E 28 Cutting roll
E 29 Hexagon socket screw

Function Description

The cordless reel mower has a rotating cutting tool parallel to the cutting plane. It is equipped with a high-performance electric motor, robust plastic housing, a safety key, impact protection and a grass collection box. In addition, the device has infinite height adjustment and smooth-running wheels.

Please refer to the following descriptions for the function of the controls.

Technical data

Cordless Cylinder

Lawnmower ...... PSMA 20-Li A1

Motor voltage U....20 V=

Cutting tool speed......max. 1000 min ^-1

Cutting circle 380 mm

Cut height 12 - 42 mm

Protection class ....III

Protection type....IPX1

Weight

(without battery and recharger)....11.5 kg

Lawn bag volume....35 l

Sound pressure specifi cation

(L_pA) 75.2 dB(A); K_pA = 3 dB

Noise level specifi cation (LWA)

measured.....85.3 dB(A); K_WA=1.87 dB

guaranteed 90 dB

Vibration (q_n) ..... 1.083m / s^2 ; K = 1.5m / s^2

Temperature...... max. 50 °C

Charging process....4-40 °C

Operation....-20 - 50 °C

Storage....0-45 °C

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to

be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).

Noise and vibration values were determined according to the standards and stipulations mentioned in the declaration of conformity.

Charging time

The device is part of the Parkside X 20 V TEAM series and can be operated with batteries of the Parkside X 20 V TEAM series.

Batteries of the Parkside X 20 V TEAM series may only be charged using chargers of the Parkside X 20 V TEAM series.

We recommend that you operate this appliance with the following batteries only: PAP 20 B1, PAP 20 B3, Smart PAPS 204 A1, Smart PAPS 208 A1. We recommend charging these batteries with the following chargers: PLG 20 A3, PLG 20 A4, PLG 20 C1, PLG 20 C3, PDS-LG 20 A1, Smart PLGS 2012 A1.

An up-to-date list of battery compatibility can be found at: www.lidl.de/akku

Charging time (min.)	PAP 20 A1 PAP 20 B1	PAP 20 A2	PAP 20 A3 PAP 20 B3	Smart PAPS 204 A1	Smart PAPS 208 A1
PLG 20 A1 PLG 20 A4 PLG 20 C1	60 90 1	20 120 210
PLG 20 A2 45 60	80 80 165
PLG 20 A3 PLG 20 C3	35 45 60	50 120
PDSLG 20 A1 35	45 60 50 120
Smart PLGS 2012 A1	35 40 40	40 40 50

Safety Information

This section describes the basic safety rules when working with the device.

Symbols and icons

Symbols on the device:

Attention!

Read the instruction manual carefully.

Danger of electric shock!

Risk of injury due to ejected parts

Keep persons in the vicinity away from the device

Caution – sharp cutting blade! Keep feet and hands away. Risk of injury.

Switch off the motor and disconnect the ignition key before adjustment or repair work or if the power cable is caught or damaged.

Caution! The lawnmower blade continues to run after switching off.

Noise level specification L_WA in dB

Do not dispose of electrical equipment in domestic waste.

Do not work in the rain and do not cut wet grass.

Wear eye protection. Wear ear protection.

Cutting diameter

Cutting height adjustment

Charge level indicator

This device is part of the Parkside X 20 V TEAM series

Symbols used in the instructions:

Hazard symbols with information on prevention of personal injury and property damage.

Precaution symbol with information on prevention of harm / damage.

Wear gloves.

Notice symbol with information on how to handle the device properly.

General Safety Information

IMPORTANT READ THE OPERATING IN- STRUCTIONS CAREFULLY. STORE THE OPERATING INSTRUCTIONS FOR LATER REFERRAL.

This device may cause serious injury if used improperly. To avoid personal injury and damage to property, read and comply with the following safety instructions and familiarise yourself with all control elements.

• Read the operating instructions carefully.
• This device must not be used by children. Children must be supervised to ensure that they do not play with the device. Clean-

ing and maintenance must not be carried out by children.

- This device can be used by individuals with reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the resulting hazards.

Preparation:

• Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.
• Do not use the equipment when people and particularly children or pets are nearby. Children must not play with the device.
• The operator or user is responsible for accidents, injuries to other people or damage to the property of others.
• Check the terrain on which the equipment is to be used and remove stones, sticks, wires and other foreign objects that could become caught and thrown up.
• Wear suitable work clothing such as stable shoes with non-slip soles and robust, long trousers. Do not use the equipment when barefoot or when wearing open sandals. Avoid wearing loose clothing or clothing with hanging cords or belts.
• Before each use, carry out a visual inspection of the equipment. Do not use the equipment if protective devices (e.g. colli-

©

transit, when crossing surfaces other than grass, and when the equipment is being transported to and from the surfaces to be mowed.

- Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.

- Do not leave the equipment unattended in the workplace.

- Do not work with equipment that is damaged, incomplete, or has been modified without the authorisation of the manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deflection and/or grass collection devices.

- Do not overload the equipment. Work only within the specified power range and do not change the regulator settings on the motor. Do not use low-powered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.

- Do not use the equipment near infl ammable liquids or gases. Non-observance will result in a risk of fire or explosion.

- Switch the device off, remove the safety key and take out the battery. Make sure that all movable parts are stationary:

• whenever you leave the apparatus unattended and when it is not being used,

• before removing obstructions or loosening blockages from the discharge chute,

• before checking or cleaning the apparatus or performing any work on it,

• when a foreign object has been hit by the apparatus. Check for damage to the apparatus and carry out the necessary repairs before switching it on again and working with it,
• if the apparatus starts to vibrate excessively, an immediate check is required.
• make sure that all nuts, bolts and screws are properly tightened.
• inspect the apparatus for any damage.
• have any necessary repairs carried out to damaged parts.

- Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejection hole during sickle mowing.

• Always pull the circuit breaker/ignition key if:

• you leave the apparatus unattended, before clearing blockages,
• if you check or clean the apparatus or work on it,
• after a collision with a foreign object. Immediately examine the device for damage and, if necessary, have it repaired,
• if the apparatus starts to vibrate in an unusual way (check immediately!).

- When starting or turning the motor on, the lawnmower must not be tilted, unless it is required to lift the lawnmower in the

process. In this event, tilt it only as far as absolutely necessary and lift it only on the side facing away from the user.

Maintenance and Storage:

• Allow the motor to cool before storing the equipment in a confined space.
• During maintenance of the cutting blades, be aware of the fact that even if the power supply is switched off, the cutting blades can be set into motion.
• Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition.
• Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specified in these instructions is to be carried out only by customer service centres that we have authorised.
• Keep the equipment in a dry location and out of reach of children.
• Handle the equipment with care. Keep tools sharp and clean, in order to facilitate better and safer work. Follow the maintenance instructions.
• Wear protective gloves when changing the cutting device.
• Regularly check the grass collection device for wear and strains. For safety reasons, replace worn or damaged parts. When adjusting the blades, take particular care to avoid fingers being trapped between the ro-

tating blades and fixed parts of the machine.

- Check that only replacement tools authorised by the manufacturer are used.

Electrical Safety:

- The plug of the charger must fit into the socket. The plug must not be modified in any way. Do not use any adapter plugs together with electric tools that have a protective earth. Un-modified plugs and matching sockets reduce the risk of electric shock.

- Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.

- Do not expose electric tools to rain or wet conditions. The penetration of water into an electric tool increases the risk of electric shock.

- Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire

Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X 20 V Team series. A detailed description of the charging process and further information can be found in the separate operating instructions.

Assembling instructions

• Alwayas wear cut-protection gloves
- Undertake only work with which you are confident.
• In case of uncertainty, contact a specialist or contact our service directly

A Mounting the grip rods

① + ② Mounting the lower bars

1. Unscrew the two small screws (22) from the housing.

2. Insert the lower bracket (6) into the two holders (21) on the housing.

3. Using the hexagon socket screwdriver (15), tighten the two small screws (22) in order to fasten the lower bracket (6).

4. Fasten the two centre bars (5) to the lower bracket (6) using one wing nut (3) and one screw (4) each.

③ Mounting the bow-type handle

1. Slide the bow-type handle (1) onto the centre bars (5).

2. Fasten the bow-type handle (1) to the centre bars (5) using one wing nut (3) and one screw (4) each.

② Mounting the cable holder

1. Clip the cable holders (23) onto the lower bracket (6) and the centre bar (5) and use them to fix the device's cable in place (13).

If you loosen the wing nuts (3), you can fold the bow-type handle (1) and the centre bars (5) downwards to store the device. Ensure that the device's cable (13) is not trapped.

Operation

The cordless reel mower can be used with or without a rechargeable battery.

The mower must only be set when the motor is switched off and the blades are shutdown. Be aware that the blade also moves without the battery inserted. There is a risk of personal injury.

Switch of the device, pull the ignition key (17) and wait for the blades to come to a stop.

B Setting the cutting height

The cutting height can be adjusted on the device continuously from 12 to 42 mm.

1. Loosen the two star grip nuts (10) on the left and right of the device.
2. Set the desired cutting height on the scale (24) by moving the roller bracket (25).
3. Fix the cutting height by tightening the two star grip nuts (10) on the left and right of the device.

The correct cutting height is between 25 and 30 mm for an ornamental lawn and about 30 to 65 mm for a utility lawn.

A high cutting height should be selected for the first mowing of the season.

i Observe noise protection rules and other local regulations.

Inserting/removing the rechargeable battery

Switch off the device, pull the ignition key (17) and wait for the blade to come to a stop. There is a risk of personal injury.

GB MT

1. Lift the transparent cover (7) on the housing.
2. To insert the battery (18) into the device, push the battery along the guides into the device. You will hear it click into place.
3. To remove the battery (18) from the device, press the release button (19) on the battery and pull the battery out.

Checking the charge level of the rechargeable battery

When the device is switched on, you will find the charge status of the battery on the charge level indicator (8).

Red-yellow-green => battery fully charged Red-yellow => battery voltage at approx. 2-18 V

Red => battery needs to be charged Red LED on right => Error

Mounting/removing the grass collection box

1. Lift the impact protection (11) and hook in the grass collection box (12).
2. Fasten the grass collection box (12) to the bottom bracket (6) with the clip fastener (26).
   You can adjust the height of the grass collection box (12) via the n of the belt.
3. To remove the grass collection box (12), unhook the grass collection box (12) and unfasten the clip fastener (26). Fold back the impact protection (11) on the housing (9).

Switching on and off

1. Place the mower on a level surface.
2. Lift the transparent cover (7) on the device housing.
3. Slide the charged battery (18) along the guide rail into the device. You will hear it click into place.
4. Insert the contact key (17) in the corresponding opening provided.
5. Before switching the device on, make sure that it is not touching any objects.
6. To switch the device on, press the release button (14) and hold it down while pressing the start handle (2).
7. Let go of the release button (14).
8. To switch the device off, release the start handle (2).

The blade will keep rotating for a few seconds after the device has been switched off. Do not touch the running blade. There is a risk of personal injury.

Charging the battery

1. If necessary, remove the battery (18) from the device.
2. Slide the battery (18) into the charging slot of the charger (20).
3. Plug the charger (20) into a socket.
4. Once charging is complete, disconnect the charger (20) from the mains supply.
5. Remove the battery (18) from the charger (20).

Working with the Lawnmower

Regular mowing encourages increased foliation of the grass and kills off weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn. The first cut is to be made in around April, at a growth height of 70 – 80 mm. In the main vegetation period, the lawn is to be mowed at least once a week.

• Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.
• Adjust the cut height so the equipment is not overloaded. Otherwise, the motor may be damaged.
• On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.
• Clean the equipment after each use, as described in the chapter on "Cleaning, Maintenance and Storage".

Switch off the equipment after work and in order to transport it, disconnect the plug and wait until the blade stops. There is a risk of injury.

Mowing without the grass collection box

Fold the impact protection down when mowing without the grass collection box. There is a risk of injury.

When mowing without the grass collection box, the very fine grass cuttings are not collected in a collection box, but are shredded and remain on the lawn. The nutrients contained in the clippings are thus left to be broken down by soil organisms and form a nutrient cycle. Mulched lawns therefore need to be fertilised much less frequently.

As a basic rule, the lawn has to be mowed relatively often so that only small amounts of grass cuttings remain on the lawn. It is therefore best to mow the lawn at least once a week without the grass collection box and to adjust the mower so that only about 40% of the total height of the lawn becomes cutting grass. If the grass cuttings remain visible on the lawn (for example when cutting the lawn for the first time of the year or during strong growth), the grass collection box (12) should be used.

Cleaning, Maintenance and Storage

Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts.

Wear gloves when handling the blade

Switch off the device, pull the ignition key (17) and wait for the blades to come to a stop. There is a risk of personal injury.

General Cleaning and Maintenance Work

Do not hose down the lawn- mower with water. Electric shock hazard

GB MT

• Always keep the equipment clean. To clean, use a brush or cloth but no detergent or solvent.
• After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.
• Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.
• Check the covers and protective devices for damage and check that they are sitting correctly. Replace them if necessary

Replacing blades

If the blade is blunt, it can be re-sharpened or replaced. Contact a specialist workshop or the service centre.

E Maintaining/adjusting the blade

Your lawnmower's blade is adjusted to the optimal settings at the factory. If the grass isn't cut as clean after a longer period of use, please correct the position of the lower blade.

1. Check the cutting roll (28) and the lower blade (27) for nicks and remove them with a grindstone if necessary.
2. Loosen the two hexagon screws (29) on the left and right of the lower blade (27) using the hexagon socket screw-driver (15).

3. Slide the supplied metal plate (16) (feeler gauge) on the one side between a blade of the cutting roll (28) and the lower blade (27).

4. Tighten the two hexagon screws (29) on the same side using the hexagon socket screwdriver (15) until the metal plate (16) (feeler gauge) clamps lightly between the cutting roll (28) and the lower blade (27).

5. Continue turning the cutting roll (28) until the adjusted blade is directly below the lower blade (27) on the other side.
6. Now, tighten the two hexagon screws (29) on the same side using the hexagon socket screwdriver (15) until the metal plate (16) (feeler gauge) clamps lightly between the cutting roll (28) and the lower blade (27).
7. Check: Spin the cutting roll (28). If the cutting roll (28) and the lower blade (27) touch and the contact can barely be heard, the blade is adjusted correctly.

Storage

Loosen the four wing nuts (3) and fold the bow-type handle (1) and the centre bars (5) up to store the device. Ensure that the device's cable (13) is not trapped.

• Keep the equipment dry and out of reach of children.
• Allow the motor to cool before storing the equipment in a confined space.
• Before a longer period of storage (e.g. over winter), remove the battery from the equipment.

We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non-original parts or by use other than for the intended purpose.

Waste disposal and environmental protection

Remove the battery from the device and recycle the device, accessories and packaging in an environmentally-friendly manner. Instruction on how to dispose of the rechargeable battery can be found in the separate instruction manual for your battery and charger.

Machines do not belong with domestic waste.

In accordance with the Directive 2012/19/EU on waste electrical and electronic equipment, used electrical devices must be collected separately for disposal and recycled in an environmentally sound manner.

Depending on the implementation in national law, you may have the following options:

- Return to a shop, - Hand over to an offi cial collection point. For more information, please contact your local waste management provider or our service centre.

- Return to the manufacturer/distributor. We will dispose of any defective devices that you send to us free of charge.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Spare parts/Accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form. If you have any other questions, contact the "Service-Center" (see page 36).

Grass collection box....91106237

Trouble Shooting

Problem Possible Cause Fault Fixing
Equipment does not start	Battery is empty or not inserted	Check charge level,have repairs carried out by a qualified electrician, if necessary
	Defective start lever (2) or release button (14)	Repair by customer services
	Defective motor
	Grass too long Set a greater cut height.
Motor stops	Blockage by foreign object Remove the foreign object
Result unsatisfactory or motor labours	Cut height too low Set a higher cut height
	Blade (28) blunt	Have the blade sharpened or replace it
	Blade area blocked Clean the equipment
Blade fails to turn Blade (28) blocked by grass Remove the grass
Strange noises, rattling or vibrations	Blade (28) damaged Replace the blade

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. blade) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

- Please have the receipt and identification number (IAN 376666_2104) ready as proof of purchase for all enquiries.

- Please find the item number on the rating plate.

- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

GB MT

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone]

E-Mail: [e-mail]

IAN 376666_2104

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN 376666_2104

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service-Center......55

Importateur ....55

Service-Center....71

Importeur 71

Vertaling van de originele CE-conformiteitsverklaring .... 203

Explosietekening......213

Inleiding

Service-Center......88

Importer 88

Service-Center....103

Dovozce....103

Service-Center......119

Dovozca....119

Service-Center......134

Importør 134

Service-Center......150

Importador 150

Service-Center......167

Importatore ....167

Pooblaščeni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

	Translation of the original EC declaration of conformity
We hereby confi rm that the Cordless Cylinder Lawnmower 20V model PSMA 20-Li A1 Serial number 000001 - 019500 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU 2000/14/EC & 2005/88/EC 2011/65/EU* & (EU) 2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A15:2021 • EN 60335-2-77:2010 EN 55014-1:2017/A11:2020 • EN 55014-2:2015 EN IEC 55014-1:2021 • EN IEC 55014-2:2021 ISO 3744:1995 • ISO 11094:1991 • EN IEC 63000:2018
We confi rm the following in accordance with the 2000/14/EC emissions guideline: Sound power level: guaranteed: 90 dB(A) measured: 85.3 dB(A) Compliance evaluation process carried out in accordance with Appendix VI / 2000/14/EC Registered Offi ce: TÜV SÜD Industrie Service GmbH, Westendstrasse 199, 80686 München, Germany (NB 0036)
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim GERMANY 30.03.2022	Christian Frank Documentation Representative

Translation of the original EC declaration of conformity

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
