Product Type	Wet and dry vacuum cleaner
Brand	Fein
Model	Dustex 35 LX AC
Dust class	L (occupational exposure limit > 1 mg/m³)
Tank capacity	35 L
Hose diameter	35 mm
Hose length	4 m
Filter type	Pleated flat filter
Automatic filter cleaning	Yes (AC)
Protection	IPX4
Socket for power tool	Yes, with automatic control
Automatic cut-off in liquid suction	Yes (conductive liquids)
Suction types	Dry and wet
Usage	Professional, construction sites, workshops
Power supply	Mains socket with protective conductor
Electrostatic discharge	Yes, via earthed tubing
Air flow acoustic signal	No (only on MX model)
User replaceable parts	Felt filter bag, collection bag, pleated flat filter, hose, nozzles, rubber lips
Recommended maintenance	Clean filter regularly, empty tank after each use
Safety	Read instructions, use PPE, unplug before maintenance
Ambient operating temperature	-10 °C to +40 °C
Warranty	According to the legal regulations of the country

Frequently Asked Questions - Dustex 35 LX AC Fein

Can I use the vacuum cleaner to suck up flammable liquids?

No, it is prohibited to vacuum flammable liquids such as gasoline, alcohol or solvents. This presents a risk of fire or explosion.

How to clean the pleated flat filter?

The pleated flat filter cleans itself every 15 seconds via the AC function (automatic cleaning). For manual cleaning, remove the filter and brush it gently. Never use the vacuum without a filter.

What should I do if the acoustic signal sounds?

The acoustic signal (only on the MX model) indicates a drop in air speed below 20 m/s. Check if the tank is full or if the suction system is blocked.

How to vacuum water with this vacuum cleaner?

To vacuum liquids, make sure the tank is in horizontal position. Conductive liquids cause automatic shutdown when the maximum level is reached. For non-conductive liquids, monitor the level and empty in time.

What type of filter should I use for fine dust?

To vacuum fine dust and facilitate disposal, use a collection bag or a felt filter bag in addition to the pleated flat filter (recommended for the MX model, compatible with the LX).

Can I use the vacuum cleaner on a generator?

Yes, provided the generator has sufficient power and complies with ISO 8528, class G2. The harmonic distortion factor must not exceed 10%.

How to change the pleated flat filter?

Unplug the vacuum, open the latches and remove the upper part. Remove the used filter while wearing a mask and gloves, then insert the new filter. Close carefully.

The vacuum cleaner does not start. What to check?

Check that the domestic fuse has not blown. Make sure the service mode switch is set to "I" and not in automatic mode (position "l").

How to safely transport the vacuum cleaner?

Carry the vacuum by the handle, never by the bracket. Lock the swivel wheels when transporting in a vehicle. For the MX model, close the suction connection with the sealing cap.

What if dust escapes from the vacuum cleaner?

Check that the pleated flat filter is properly installed. If the problem persists, replace the filter. Also ensure the upper part of the vacuum is properly closed.

USER MANUAL Dustex 35 LX AC Fein

Illustration of a vacuum cleaner with attached hose and control panel (no text or symbols)

Illustration of a vacuum cleaner with attached hose and wheels (no text or symbols)

EAC !

FEIN Dustex 35 LX AC (**) 9 20 30

FEIN Dustex 35 MX AC (**) 9 20 32

FEIN Dustex 35 LX AC (**) - 9 20 30 ...
		... 211240 ... 223000 ... 223060 ... 223080 ... 223240
P_1		W 1000 1200 1200 1200 1200
P_Max		W - 1380 1380 1380 1380
P_A		W 750 2200 1200 1100 1800
UV 110 220-240 240 220-240 220-240
fHz 50-60 50-60		50-60 50-60 50-60
	I	35	35	35	35	35
	I	21	21	21	21	21
	l/s	37	39	39	39	39
	l/s	68	72	72	72	72
	hPa 210 235 235 235 235
	kg	14,1	14,1	14,1	14,1	14,1
L_pA^1)	dB(A)	68	67	67	67	67
L_wA^1)	dB(A)	81	81	81	81	81
K_pA/K_wA^1)	dB(A)	2	2	2	2	2
a_h	m/s2	<2,5	<2,5	<2,5	<2,5	<2,5
K_a	m/s2	0,2	0,2	0,2	0,2	0,2
		⊥	⊥	⊥	⊥	⊥
		IPX4	IPX4	IPX4	IPX4	IPX4
LxBxH mm			540 x 355 x 940
LxBxH [CKH2] mm			540 x 355 x 590
[5SKY]			3 13 45 250 01 0
[KYZW]			3 13 45 066 01 0
[4KZC]			3 13 45 251 01 0
			3 13 45 063 01 0
	CELLULOSE		3 13 45 012 01 0
[TX72]	PES		3 13 45 059 01 0
	HEPA		3 13 45 060 01 0
FEIN Dustex 35 MX AC (**) - 9 20 32 ...
		... 211240 ... 223000 ... 223060 ... 223080 ... 223240
P_1	W	1000	1200	1200	1200	1200
P_Max	W	-	1380	1380	1380	1380
P_A	W 750 2200 1200 1100 1800
UV 110 220-240 240 220-240 220-240
fHz 50-60 50-60 50-60 50-60 50-60
	I	35	35	35	35	35
	I	21	21	21	21	21
	I/s	34	37	37	37	37
	I/s	68	72	72	72	72
	hPa 210 235		235	235 235
	kg	14,1	14,1	14,1	14,1	14,1
L_pA^1)	dB(A)	68	67	67	67	67
L_wA^1)	dB(A)	81	81	81	81	81
K_pA/K_wA^1)	dB(A)	2	2	2	2	2
a_h	m/s2	<2,5	<2,5	<2,5	<2,5	<2,5
K_a	m/s2	0,2	0,2	0,2	0,2	0,2
		⊥	⊥	⊥	⊥	⊥
		IPX4	IPX4	IPX4	IPX4	IPX4
LxBxH	mm		540 x 355 x 940
LxBxH	mm		540 x 355 x 590
			3 13 45 250 01 0
			3 13 45 066 01 0
			3 13 45 251 01 0
			3 13 45 063 01 0
	CELLULOSE 3 13 45 012 01 0
	PES		3 13 45 059 01 0

1) EN 60335-2-69

de 21 tr 140 et 266 en 31 hu 149 lt 275 fr 40 cs 160 lv 285 it 51 sk 169 zh(CM) 296 nl 62 pl 179 zh(CK) 306 es 72 ro 191 ko 314 pt 82 sl 201 th 323 el 92 sr 210 ja 332 da 104 hr 219 hi 342 no 113 ru 229 ar 360 sv 122 uk 242 fi 131 bg 254

FEIN Dustex 35 MX AC (**)


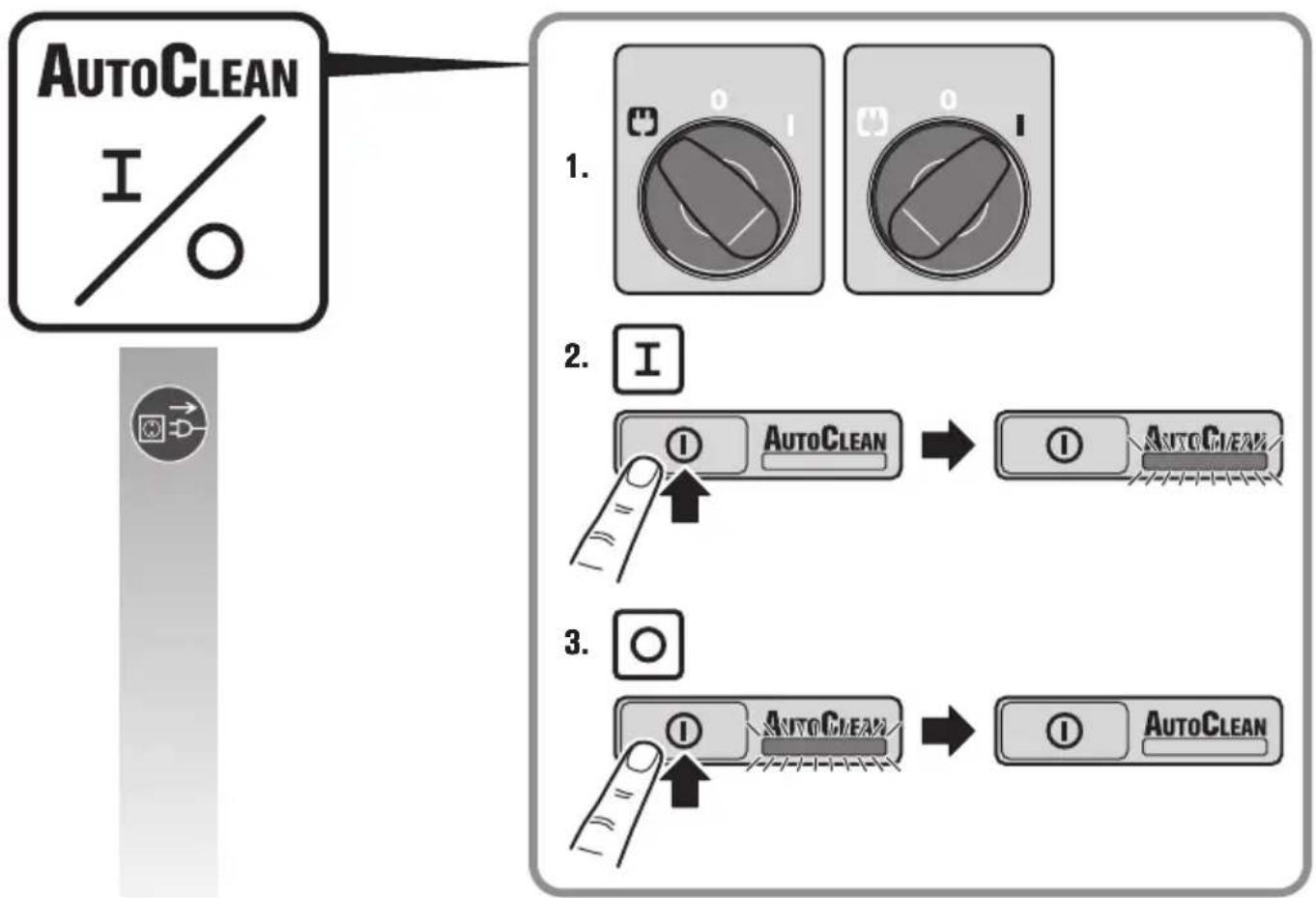


i+

3 13 45 138 01 0 3 13 45 139 01 0 3 13 45 079 01 0

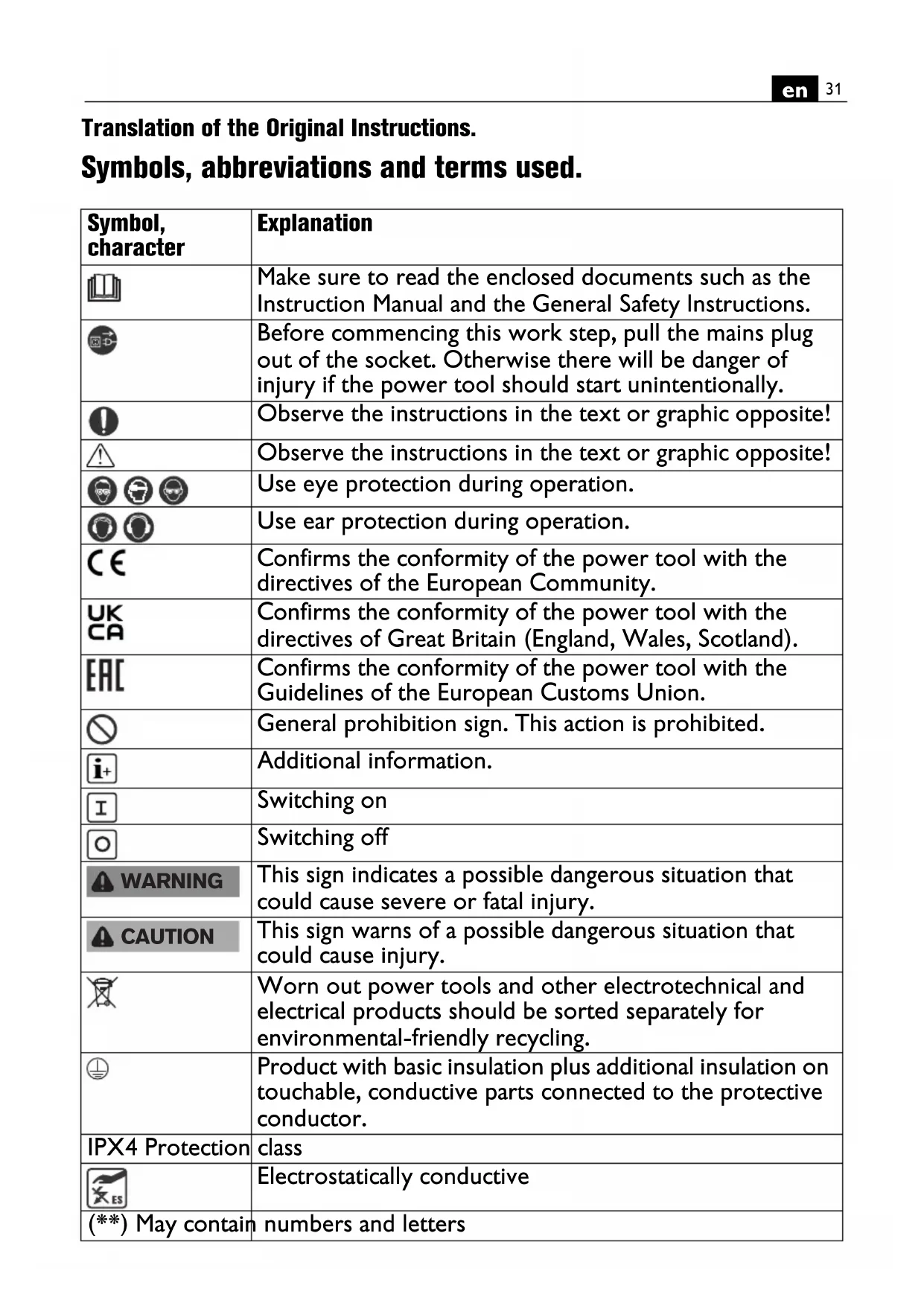

Translation of the Original Instructions.

Symbols, abbreviations and terms used.

Symbol, character	Explanation
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally.
	Observe the instructions in the text or graphic opposite!
[IMAGE]	Observe the instructions in the text or graphic opposite!
	Use eye protection during operation.
	Use ear protection during operation.
CE	Confirms the conformity of the power tool with the directives of the European Community.
[YB2Z]	Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
	Confirms the conformity of the power tool with the Guidelines of the European Customs Union.
	General prohibition sign. This action is prohibited.
[i+	Additional information.
	Switching on
	Switching off
WARNING	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
CAUTION	This sign warns of a possible dangerous situation that could cause injury.
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
	Product with basic insulation plus additional insulation on touchable, conductive parts connected to the protective conductor.
IPX4 Protection	class
	Electrostatically conductive
[ZCS4]May contain numbers and letters

Character	Unit of measurement, international	Unit of measurement, national	Explanation
P_1	W W Power input
P_Max	W W Power consumption, max.
P_A	W W Max. connected load of the integrated socket outlet
UV V Rated voltage
fHz Hz Frequency
	I I Container capacity
	I I Capacity for liquids
	l/s l/s Air flow with 4 m hose ∅ 35 mm
	l/s l/s Air flow at fan
	hPa hPa Vacuum
L x B x H	mm mm Length x Width x Height
∅ mm mm	Diameter of a round part
	kg kg Weight according to		EPTA-Procedure 01
L_w	h-1	h-1	Air-exchange rate
L_pA	dB(A) dB(A) Sound pressure level
L_wA	dB(A) dB(A) Sound power level
K_pA/K_wA	dB(A) dB(A) Uncertainty
a	m/s2	m/s2	Vibrational emission value according to ISO 5349-1
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this vacuum cleaner before your have thoroughly

read and completely understood this instructions manual and the enclosed “safety warnings”. The documents mentioned should be kept for later use and enclosed with the vacuum cleaner, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the vacuum cleaner:

Wet/dry vacuum cleaner for vacuuming of non-hazardous dusts and dusts of dust category L (FEIN Dustex 35 LX AC ( ^ )) and dust category M (FEIN Dustex 35 MX AC ( ^ )), minor dust particles, particularly when carrying out dust-forming work with a power tool, and extraction of non-combustible liquids, in weather-protected environments using the application tools and accessories recommended by FEIN.

This vacuum cleaner is intended for commercial use, such as in hotels, schools, hospitals, factories, shops, offices and rental businesses.

Only for EU countries:

Vacuum cleaners of dust category L according to IEC/

EN 60335-2-69 for dry vacuuming of hazardous dusts with an exposition limit value >1 mg/m ^3 .

Vacuum cleaners of dust category M according to IEC/

EN 60335-2-69 for dry vacuuming of hazardous dusts with an exposition limit value > 0.1 mg/m ^3 .

Only for Switzerland:

The vacuum cleaner's socket outlet may only be used in dry environments.

WARNING

The vacuum cleaner contains materials that are hazardous to one's health. Have the emptying and maintenance, incl. the disposal of dust-collection containers, carried out

only by specialists. Appropriate protective equipment is required. Do not operate the vacuum cleaner without the complete filter system. Otherwise there is danger to your own health.

This vacuum cleaner is also suitable for use with AC generators with sufficient power output that correspond the the Standards ISO 8528, design type G2. This Standard is particularly not complied with when the so-called distortion factor exceeds 10 %. When in doubt, please refer to the generator instructions/specification guide.

Special safety instructions.

This vacuum cleaner is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, or lack of experience and/or knowledge.

Supervise children. This will ensure that they do not play with the vacuum cleaner.

WARNING

Operating personnel must be appropriately instructed in the use of this vacuum cleaner. Before usage, the person operating the vacuum cleaner must have been provided with information, instructions and training on using the vacuum cleaner and the materials to be vacuumed, including the safe procedure for disposal of vacuumed materials. The person operating the vacuum cleaner must observe the relevant safety regulations for the materials being vacuumed.

Wear personal protective equipment.

Depending on application, use face

shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Operate the vacuum cleaner only from socket outlets with earthing contact that are according to regulations. Use only undamaged supply cords and regularly checked extension cords with earthing contact. A protective conductor without continuity can lead to electric shock.

The earthed connection socket discharges static charges. In connection with electrostatically discharging accessories (optional), this prevents the formation of sparks and current surges.

When wet vacuuming, operate the vacuum cleaner only when the container is level. Otherwise there is danger of electric shock from water penetrating into the vacuum cleaner motor.

Do not misuse the power supply cord to pull the vacuum cleaner around or pull the mains plug from the socket outlet. Keep the power supply cord away from heat, oil sharp edges, or moving parts. Do not drive over or pinch the power supply cord. Damaged or entangled power supply cords increase the risk of an electric shock.

Before replacing accessories, pull the mains plug from the socket outlet. This safety measure reduces the risk of electric shock.

Do not vacuum materials that are hazardous to one's health, e. g., dust from beech or oak wood, masonry dust, asbestos. These materials are considered carcinogenic.

Provide for good ventilation of the workplace.

Do not vacuum inflammable or explosive fluids; for example, benzene, oil, alcohol, solvents. Do not vacuum hot or inflammable dusts. Do not operate the vacuum cleaner in rooms where the danger of an explosion exists.

The dusts, vapours or fluids can ignite or explode.

Do not rivet or screw any name-plates or designs to the vacuum cleaner. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.

Do not use accessories not specifically intended or recommended for this vacuum cleaner. Just because the accessory can be attached to your vacuum cleaner, it does not assure safe operation.

Before starting operation (see page 6-12), check the power supply cord and the mains plug for damage.

WARNING

Use the vacuum cleaner's socket

outlet only for connection of an external power tool. The vacuum cleaner is automatically put into operation via the connected power tool.

The connected load of the power tool must not exceed the maximum con-

nected load of the vacuum cleaner's socket outlet P_A .

Please also observe the operating instructions and safety warnings of the power tool being connected to the socket outlet of the vacuum cleaner.

Recommendation: Always operate the vacuum cleaner via a residual current device (RCD) with a rated residual current of 30 mA or less.

The vacuum cleaner may only be stored indoors.

The allowable ambient temperature when vacuuming is -10 °C to +40 °C.

Using the vacuum cleaner at low temperatures is not permitted. At low temperatures, the mains cable can become damaged and thus impair the safety.

Operating Instructions.

Operation, see page 11/12.

An adequate ventilation rate L must be provided for when the outgoing air is circulated. The circulated airflow must not exceed 50 % (max.) of the fresh air volume (room volume x ventilation rate L_w ). The following applies without special ventilation measures:

$$ L _ {w} = 1 h ^ {- 1}. $$

In case of a short-circuit and/or heavy discharge of dust, switch the vacuum cleaner off immediately and disconnect it from the power supply.

Do not use the vacuum cleaner as a step or stepladder. If the vacuum cleaner tips over, you could injure yourself or damage the vacuum cleaner.

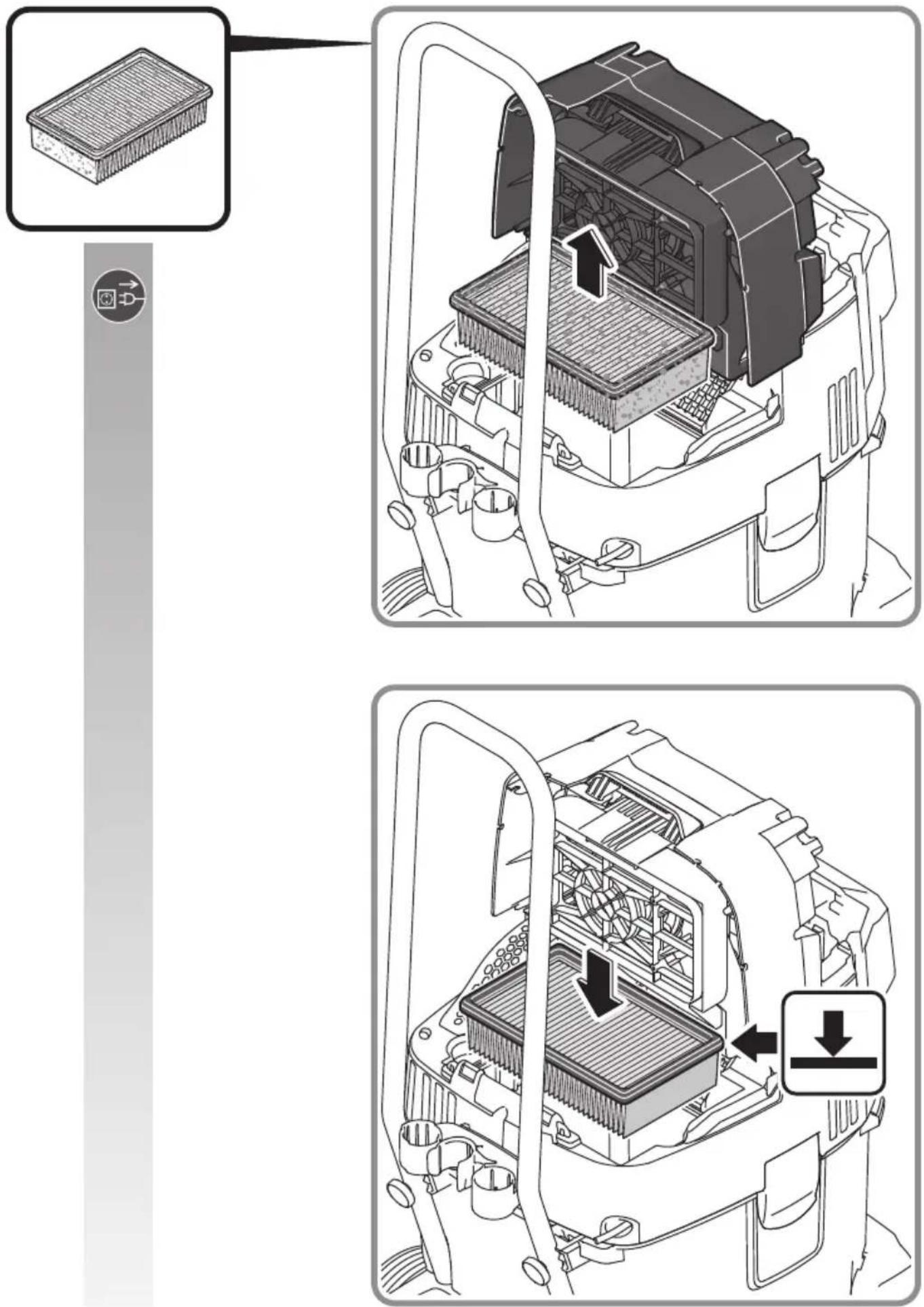

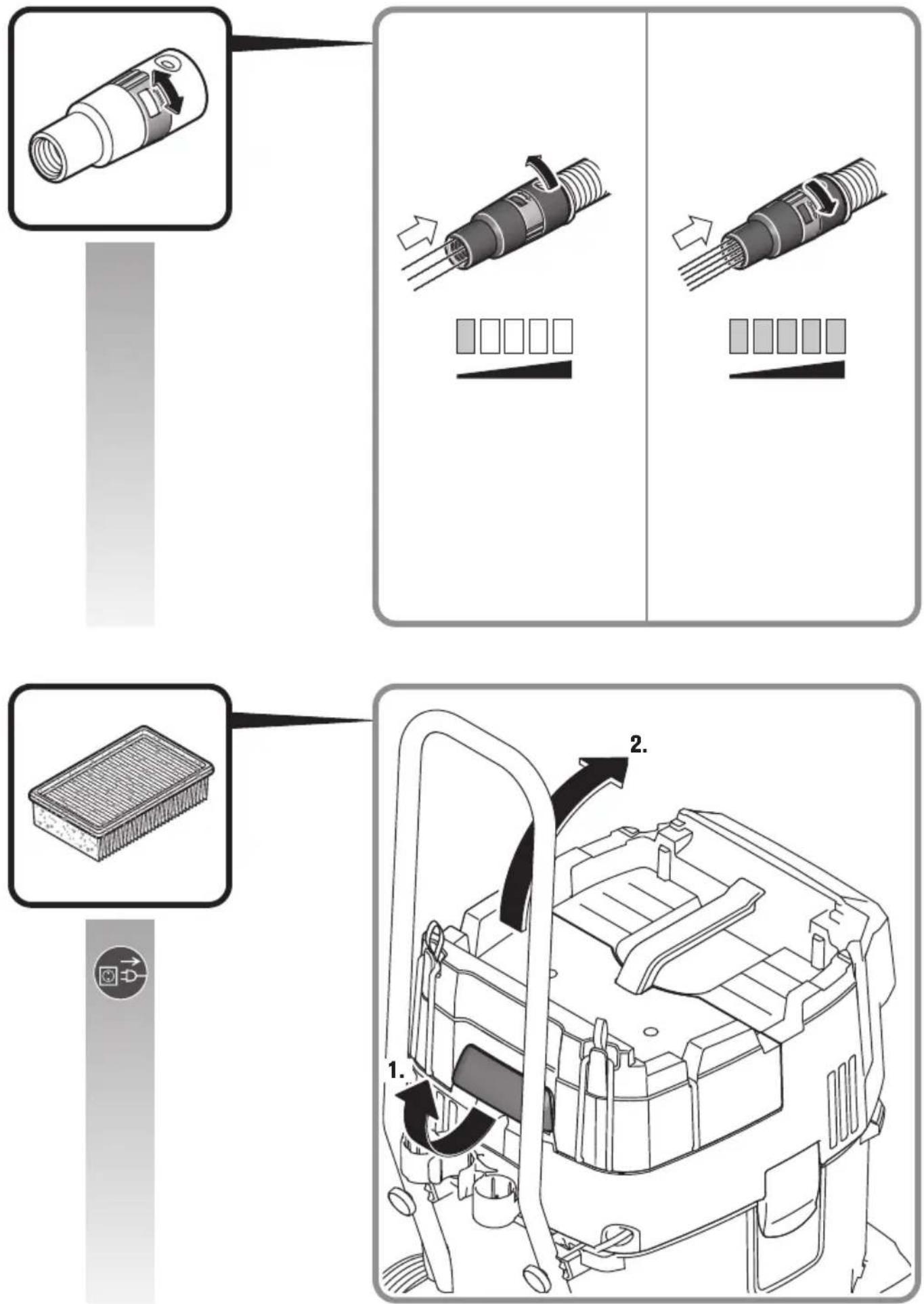

Flat-fold filter

Changing the filter, see page 13–15/38 Section “Fault Finding.”

Wear personal protective equipment (respiratory mask, protective gloves) when changing the filter.

The filter may only be changed in rooms suitable for this, where other persons are not at hazard.

After removing the contaminated filter, clean the clean-gas side and the sealing surfaces using commercially available, non-scouring cleaning agents and water.

CAUTION

Never vacuum without the flat-

fold filter, as otherwise the motor will become damaged and increased output of fine dust may pose a hazard to one's health.

For vacuuming dusts of dust category L or M, only dry flat-fold filters may be used that never were moist nor wet.

Before switching from wet to dry vacuuming, allow the flat-fold filter to dry or replace through a dry one. Otherwise, the flat-fold filter will become unusable.

Keep the flat-fold filter dry and clean it regularly.

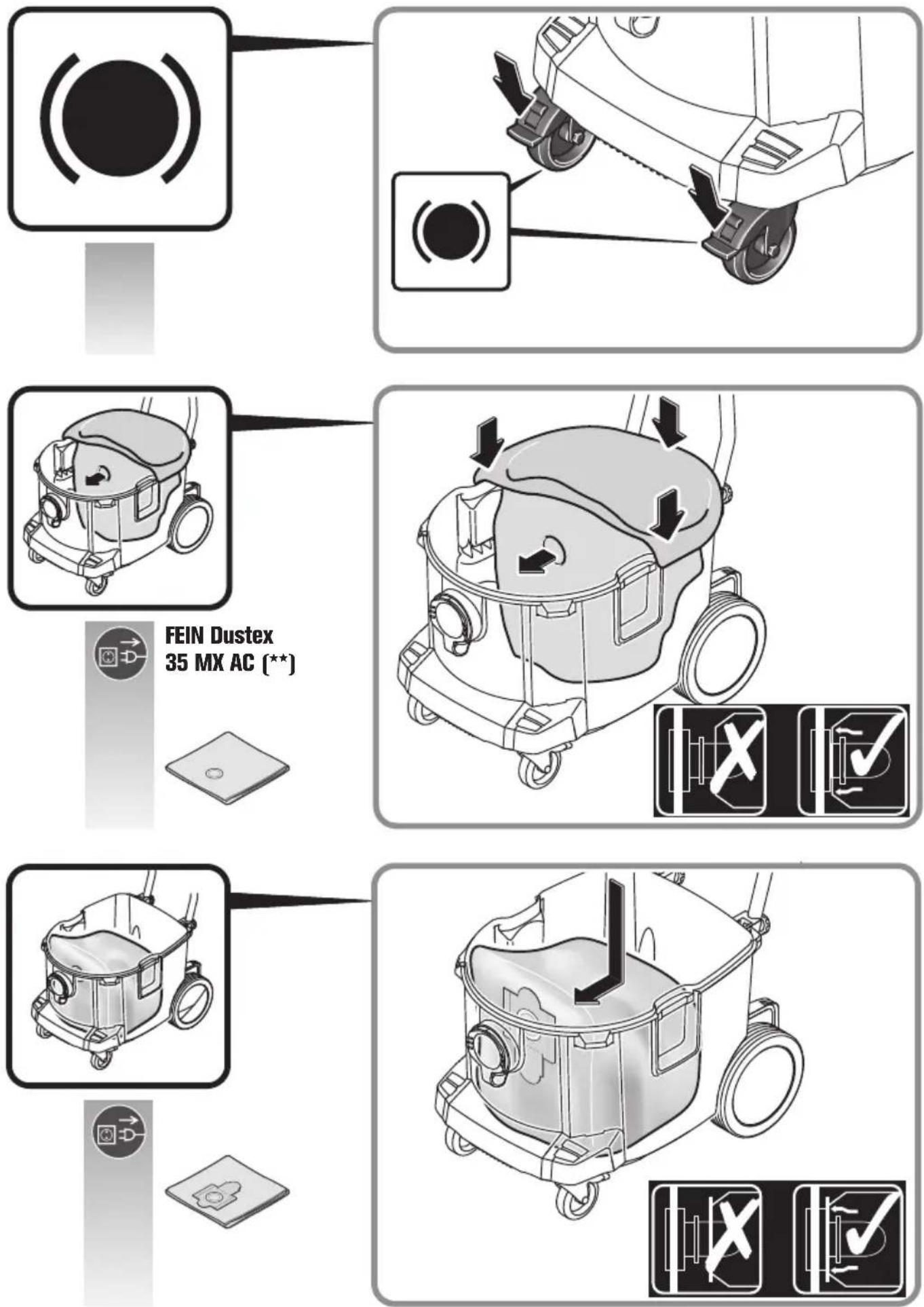

Disposal bag, fleece filter bag (see page 8)

Only for FEIN Dustex 35 MX AC ( ^** ):

For vacuuming fine dust and for low-dust disposal, a disposal bag or fleece filter bag must additionally be used.

When inserting, work the disposal bag over the container rim. Pull the other opening of the disposal bag completely over the collar of the vacuum socket.

To remove, work the disposal bag up, and pull it out toward the rear via the vacuum socket. Seal off the disposal bag with the closing strip.

After vacuuming wet debris, always remove the disposal bag.

When inserting a fleece filter bag, take care that the closing cover and the fleece filter bag face completely against the inside wall of the container. The cardboard flange of the fleece filter bag must be pulled over the collar of the vacuum socket.

After removing the fleece filter bag, seal it with the closing cover in order to avoid debris.

Audio signal (see page 12) Only for FEIN Dustex 35 MX AC ( ^** ):

Set the selector switch for the vacuum-hose diameter to the appropriate value.

When the air velocity falls below 20 m/s, an audio signal will sound.

Empty the container and/or check the vacuum system for clogs.

Vacuum cleaner socket outlet (see page 11)

The switch position for switching the vacuum cleaner on is shown on page 11/12.

In switch position, the vacuum cleaner automatically starts as soon as the power tool connected to it is switched on.

Switch the vacuum cleaner off before connecting a power tool to the vacuum cleaner's socket outlet. Make sure that the power tool is switched off when inserting its plug into the vacuum cleaner's socket outlet.

After switching off a power tool connected to the vacuum cleaner's socket outlet, the vacuum cleaner will run on for approx. 15 seconds and then automatically switch off.

Wet vacuuming (see page 17)

When wet vacuuming electrically conductive liquids, the vacuum cleaner is automatically switched off (automatic shut-off) when reaching the maximum filling height of the container. Pull the mains plug from the socket outlet and empty the container.

When wet vacuuming electrically non-conductive liquids (e. g., oils, drilling emulsions), the vacuum cleaner is not automatically switched off when reaching the maximum filling height of the container. Empty the container in time.

Switch the vacuum cleaner off immediately as soon as foam or water comes out, and empty the container.

After completion of the wet vacuuming, clean the sensors and their intermediate area using a brush (see page 16).

Automatic filter dedusting (see page 12)

The AC function “Automatic Filter Cleaning” is factory set, meaning, the flat-fold filter is automatically cleaned every 15 seconds through several air blasts.

When vacuuming wet debris or when primarily vacuuming water, we recommend switching off the AC function “Automatic Filter Cleaning”.

Accessories (see page 9/20)

Mount accessories applying only slight pressure. For disassembling,

turn the parts somewhat against each other and pull apart.

Transport

The vacuum cleaner is not suitable for handling by crane. Do not hang the vacuum cleaner to a crane hook. Otherwise, you could injure yourself or damage the vacuum cleaner.

Lock the lockable castors when transporting the vacuum cleaner in vehicles (see page 8).

Carry the vacuum cleaner only by the handle, not by the push bar.

Only for FEIN Dustex 35 MX AC ( ^** ):

Seal off the vacuum connection with the plug (see page 18).

Repair and customer service.

Prior to any maintenance and cleaning, disconnect the vacuum cleaner from the power source (pull mains plug).

Check the connections, seals and hoses. Have damage repaired by through a qualified repair per- and only using original FEIN placement parts.

Only for FEIN Dustex 35 MX AC ( ^** ):

For transport and maintenance of the vacuum cleaner, seal off the vacuum connection with the plug (see page 18).

Use commercially available, non-scouring cleaning agents and water for cleaning the vacuum cleaner.

After cleaning, allow the vacuum cleaner to dry completely.

Empty the container each time after using and remove coarse debris and dust.

Empty the container after vacuuming liquids. Afterwards, run the vacuum cleaner with the accessories connected for several minutes in order to dry them.

Dispose of used flat-fold filters and filter bags according to statutory regulations.

When replacing the power cable is required, have this carried out by FEIN or by an authorized FEIN Service Agent, in order to avoid hazardous situations.

Have a dust-technical inspection carried out at least once every year by the manufacturer or an instructed person, e. g. for damage of the filter, function and tightness against leakage of the vacuum cleaner as well as function of the control/monitoring unit (for FEIN Dustex 35 MX AC (**)).

For category L and M vacuum cleaners that were in contaminated environments, the exterior as well as all machine parts should be cleaned or treated with sealants. When performing maintenance and repair work, all contaminated components that cannot be cleaned to satisfactory must be disposed of. Such components must be disposed of in impermeable plastic bags conforming with the valid regulations for the disposal of such waste.

For maintenance on behalf of the user, the vacuum cleaner must be disassembled, cleaned and maintained as far as feasible, without causing a risk for the maintenance personnel or other persons. Prior to disassembly, the vacuum cleaner

should be cleaned in order to prevent any risks.

The room/enclosure in which the vacuum cleaner is disassembled should be well ventilated. Wear personal protective equipment during maintenance. After the maintenance, the maintenance area should be cleaned.

Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.

The current spare parts list for this vacuum cleaner can be viewed on the Internet at www.fein.com.

If required, you can change the following parts yourself:

Fleece filter bag, disposal bag, flat-fold filter, hose, tool adapter, elbow, vacuum tubes, crevice nozzle, floor nozzle, bristle lips, rubber lips, step adapter, vacuum brushes

Fault Finding.

Malfunction Cause Troubleshooting
Vacuum cleaner can-not be switched on.	Circuit breaker of power connection has tripped.	Ensure power supply.
	Vacuum cleaner in remote control operation.	Set operating-mode selector switch to “I”.
Reduced vacuuming capacity.	Vacuum cleaner not fitted correctly.	Mount vacuum cleaner lid properly and completely close both fasteners.
	Vacuum system clogged.	Clean vacuum hose and extension tubes.
	Fleece filter bag full.	Replace fleece filter bag.
	Flat-fold filter full.	Replace flat-fold filter.
	Disposal bag full.	Replace disposal bag.
Dust escapes during vacuuming.	Incorrect installation position of flat-fold filter	Correct installation position of flat-fold filter.
No suction capacity when wet vacuuming.	Container full. Empty	container.
The automatic shut-off (while wet vacuuming) does not respond.	Sensors soiled/ dirty.	Clean sensors and space in between with a brush.
	Container full. For electrically non-conductive liquids, check filling level and empty container, as required.
Automatic filter dedusting (AC) inoperative.	Vacuum hose not connected.	Connect vacuum hose.
The automatic filter dedusting (AC) cannot be switched on/off.		Contact the FEIN Customer Service.
FEIN Dustex 35 MX AC (**):Audio signal sounds.	The vacuum-hose diameter setting and the actual vacuum-hose diameter do not correspond.	Set correct vacuum-hose diameter value at selector switch.
	Flat-fold filter full. Replace flat-fold filter.
	Disposal bag full. Replace disposal bag.
	Vacuum system clogged.	Clean vacuum hose and extension tubes.

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your vacuum cleaner may include only a part of the accessories described or shown in this instruction manual.

Declaration of conformity.

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity. FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual. Technical documents at:

C. & E. Fein GmbH

Hans-Fein-Straße 81

73529 Schwäbisch Gmünd-Bargau, Germany

Environmental protection, disposal.

Packaging, worn out vacuum cleaners and accessories should be sorted for environment-friendly recycling.

Engangspose, fleece-filterpose (se side 8)

Bare ved FEIN Dustex 35 MX AC ( ^** ):

Table of Toxic and Hazardous Substances/Elements and their Content as required by China's Management Methods for Controlling Pollution by Electronic Information Products

有毒有害物质 / 成分及其含量表

ระบบTaking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, taking place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, take place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information, taken place information,

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

CE

EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 +

A1:2019 + A14:2019 + A2:2019

EN 60335-2-69:2012

EN 55014-1:2017+A11:2020

EN 55014-2:1997+A1:2001+A2:2008

EN 55014-2:2015+Cor:2016

EN 61000-3-2:2014

EN 61000-3-2:2019

EN 61000-3-3:2013

EN 61000-3-3:2013+A1:2019

EN 62233:2008

2006/42/EG, 2014/30/EU,

2011/65/EU

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product Management Development

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

UK CA

EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 +

A1:2019 + A14:2019 + A2:2019

EN 60335-2-69:2012

EN 55014-1:2017+A11:2020

EN 55014-2:1997+A1:2001+A2:2008

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-2:2019

EN 61000-3-3:2013

EN 61000-3-3:2013+A1:2019

EN 62233:2008

Supply of Machinery Regulations 2008,

EMC Regulation 2016, The Restriction of the Use of

Certain Hazardous Substances in Electrical and

Electronic Equipment Regulations 2012

la. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product Management Development
