Dustex 25 L - Vacuum Cleaner Fein - Free user manual and instructions

Brand	Fein
Model	Dustex 25 L
Product type	Vacuum cleaner
Tank capacity	25 liters
Power supply	230 V / 50 Hz
Nominal power	1,200 W
Suction type	Wet and dry
Filtration system	Pleated filter with pulsed air cleaning
Sound level	70 dB(A)
Cable length	7.5 m
Hose diameter	35 mm
Dimensions (W × D × H)	550 × 370 × 470 mm
Net weight	12.5 kg
Protection class	IPX4
Main functions	Fine dust and liquid vacuuming, blower
Maintenance and cleaning	Clean filter regularly, empty tank after each use
Safety	Automatic shut-off when maximum liquid level reached
Spare parts and repairability	Filters, hose, nozzles available as spare parts
General information	Professional vacuum cleaner for workshop and construction site

Frequently Asked Questions - Dustex 25 L Fein

How to empty the tank of the Dustex 25 L vacuum cleaner?

Unscrew the cover by pressing the side clips, remove the tank and empty it. For liquids, use the drain plug located at the bottom of the tank.

What type of filter to use for fine dust vacuuming?

Use the supplied pleated filter. For very fine dust, an optional HEPA filter is recommended.

How to clean the pleated filter?

The filter can be cleaned with compressed air or lukewarm water. Let it dry completely before reinstalling. Do not use abrasive products.

The vacuum cleaner stops automatically, what to do?

The automatic shut-off activates when the tank is full (liquid) or in case of clogging. Empty the tank or check the hose and filter.

Can I vacuum liquids with the Dustex 25 L?

Yes, the vacuum cleaner is designed for liquid vacuuming. Make sure to remove the dust filter and use the specific seal for liquids.

What accessories are available for this vacuum cleaner?

Floor nozzle, crevice nozzle, liquid nozzle, anti-static hose, and blower kit are available as options.

How to change the power cable?

Cable replacement must be carried out by an authorized professional. Contact Fein after-sales service.

The dirty filter indicator light comes on, what to do?

Clean or replace the pleated filter. If the light persists, check the filter condition and correct seating.

What is the warranty of the Dustex 25 L?

The legal warranty is 2 years. An extended warranty can be purchased from Fein. Keep the purchase receipt.

Where to find the complete user manual?

The manual is available for free download on the website notice-facile.com in PDF format. You can also request it by email.

USER MANUAL Dustex 25 L Fein

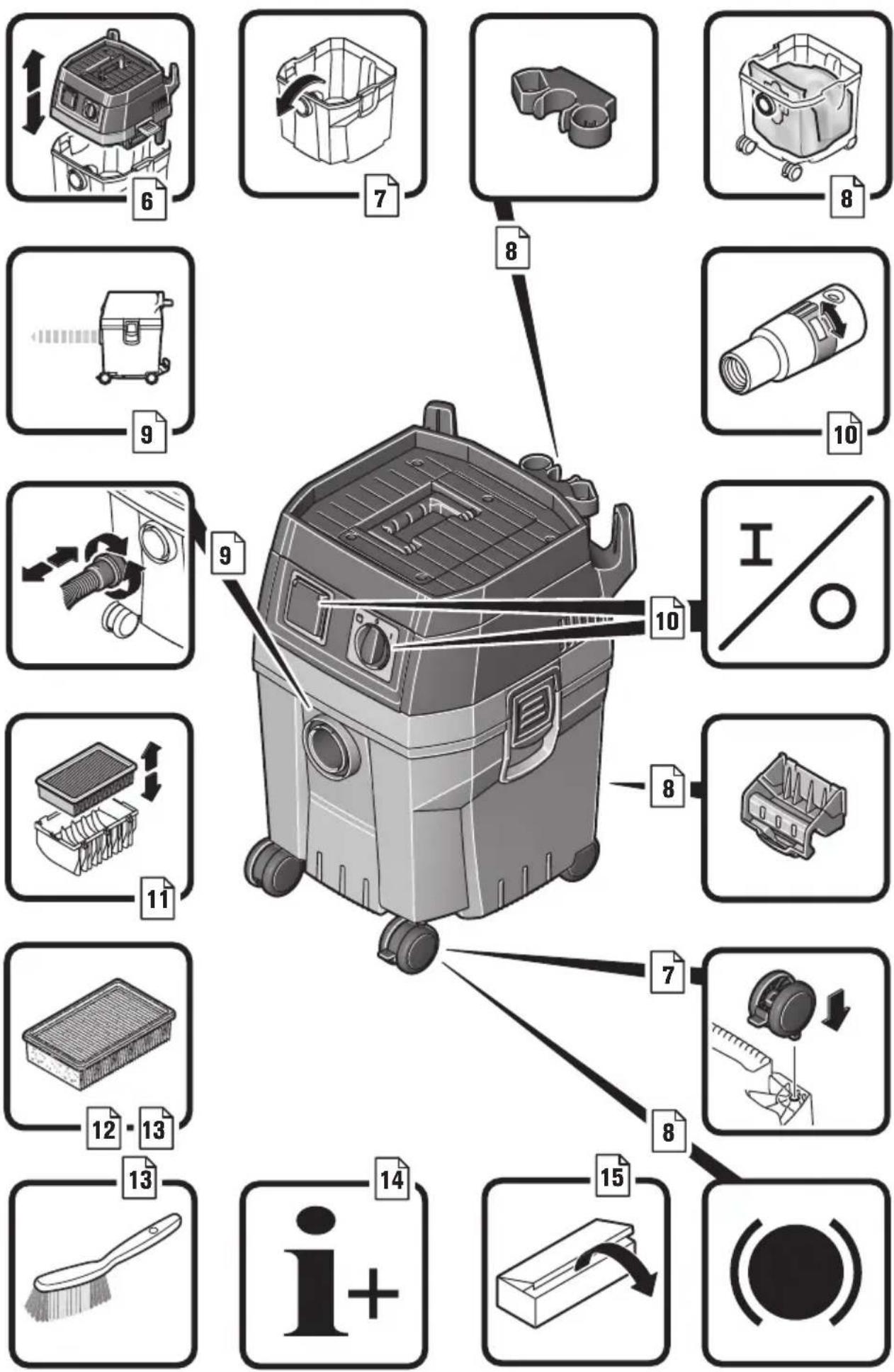

Illustration of a vacuum cleaner with coiled tubing and control panel (no text or symbols)

FEIN Dustex 25L 9 20 35

FEIN Dustex 35L 9 20 36

FEIN Dustex 25L (**) - 9 20 35 ...
	... 211240	... 223000	... 223080	... 223240
P_1	W 1000 1200 1200 1200
P_Max	W 1	0	0	0	1
P_A	W 750 2200 1100 1800
UV 110 220-240 220-240 220-240
fHz 50/60 50-60 50-60 50-60
	I	2	2	2	2
	I	13	13	13	13
	I	/	s	3	0
	l/s	67	72	72	72
	hPa 213 253 253 253
	kg 8,6	8,6 8,6	8,6
L_pA	dB	68	68	68	68
K_pA	dB	2	2	2	2
L_wA	dB	81	81	81	81
a_h	m/s2	<2,5	<2,5	<2,5	<2,5
K_a	m/s2	0,2 0,2	0,2 0,2
		IPX4	IPX4	IPX4	IPX4
L x B x H mm		440 x 380 x 471
		3 13 45 250 01 0
		3 13 45 066 01 0
		3 13 45 061 01 0
	CELLULOSE	3 13 45 012 01 0
	PES	3 13 45 059 01 0
	HEPA	3 13 45 060 01 0

FEIN Dustex 35L (**) - 9 20 36 ...
	... 211240	... 223000	... 223080	... 223240
P_1	W 1000 1200 1200 1200
P_Max	W 1000 1380 1380 1380
P_A	W 750 2200 1100 1800
UV 110 220-240 220-240 220-240
fHz 50/60 50-60 50-60 50-60
	I	3	2	3
	I 26 26 26 26
	I	/	s	3
	l/s 68 72 72 72
	hPa 213 253 253 253
	kg 9,6 9,6 9,6 9,6
L_pA	dB 68 68 68 68
K_pA	dB 2 2 2 2
L_wA	dB 81 81 81 81
a_h	m/s2	< 2,5 < 2,5 < 2,5 < 2,5
K_a	m/s2	0,2	0,2	0,2
		IPX4	IPX4	IPX4
L x B x H	mm	440 x 380 x 569
		3 13 45 250 01 0
		3 13 45 066 01 0
		3 13 45 062 01 0
	CELLULOSE	3 13 45 012 01 0
	PES	3 13 45 059 01 0
	HEPA	3 13 45 060 01 0

Translation of the Original Instructions.

Symbols, abbreviations and terms used.

Symbol, character	Explanation
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally.
	Observe the instructions in the text or graphic opposite!
	Observe the instructions in the text or graphic opposite!
	Use eye protection during operation.
	Use ear protection during operation.
	Switching on
	Switching off
	Confirms the conformity of the power tool with the directives of the European Community.
	Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
	Confirms the conformity of the power tool with the Guidelines of the European Customs Union.
	General prohibition sign. This action is prohibited.
	Additional information.
WARNING	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
CAUTION	This sign warns of a possible dangerous situation that could cause injury.
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
[HA5S]	Product with basic insulation plus additional insulation on touchable, conductive parts connected to the protective conductor.
IPX4 Protection	class
[HSHW]	Electrostatically conductive

Character	Unit of measurement, international	Unit of measurement, national	Explanation
P_1	W W Power input
P_Max	W W Power consumption, max.
P_A	W W Max. connected load of the integrated socket outlet
UV V Rated voltage
fHz Hz Frequency
	I I Container capacity
	I I Capacity for liquids
	l/s l/s Air flow with 4 m hose		∅ 35 mm
	l/s l/s Air flow at fan
	hPa hPa Vacuum
L x B x H	mm mm	Length x Width x Height
∅	mm mm	Diameter of a round part
	kg kg Weight according to EPTA-Procedure 01
L_w	h-1	h-1	Air-exchange rate
L_pA	dB dB Sound pressure level
L_wA	dB dB Sound power level
K...			Uncertainty
a	m/s2	m/s2	Vibrational emission value according to EN 60745 (vector sum of three directions)
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this vacuum cleaner before your have thoroughly and completely understood this instructions manual and the enclosed safety warnings". The documents mentioned should be kept for later

use and enclosed with the vacuum cleaner, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the vacuum cleaner:

Wet/dry vacuum cleaner for vacuuming and extraction of dry, non-hazardous dusts of dust category L, minor dust particles, particularly when carrying out dust-forming work with a power tool, and non-combustible liquids, in weather-protected environments using the application tools and accessories recommended by FEIN.

This vacuum cleaner is intended for commercial use, such as in hotels, schools, hospitals, factories, shops, offices and rental businesses.

Only for EU countries:

Vacuum cleaners of dust category L according to IEC/EN 60335-2-69 for dry vacuuming of hazardous dusts with an exposition limit value >1 mg/m ^3 .

Only for Switzerland:

The vacuum cleaner's socket outlet may only be used in dry environments.

WARNING

The vacuum cleaner contains materials that are hazardous to one's health. Have the emptying and maintenance, incl. the disposal of dust-collection containers, carried out only by specialists. Appropriate protective equipment is required. Do not operate the vacuum cleaner without the complete filter system. Otherwise there is danger to your own health.

WARNING

The vacuum cleaner contains materials that are hazardous to one's health. Have the emptying and maintenance, incl. the disposal of dust-collection containers, carried out only by specialists. Appropriate protective equipment is required. Do not operate the vacuum cleaner without the complete filter system. Otherwise there is danger to your own health.

This vacuum cleaner is also suitable for use with AC generators with sufficient power output that correspond the the Standards ISO 8528, design type G2. This Standard is particularly not complied with when the so-called distortion factor exceeds 10 %. When in doubt, please refer to the generator instructions/specification guide.

Special safety instructions.

This machine is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, or lack of experience and/or knowledge.

Children should be supervised in order to ensure that they do not play with the machine.

Cleaning and maintenance of the vacuum cleaner shall not be made by children without supervision.

WARNING

Operating personnel must be appropri-

ately instructed in the use of this

vacuum cleaner. Before usage, the person operating the vacuum cleaner must have been provided with information, instructions and training on using the vacuum cleaner and the materials to be vacuumed, including the safe procedure for disposal of vacuumed materials. The person operating the vacuum cleaner must observe the relevant safety regulations for the materials being vacuumed.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Operate the vacuum cleaner only from socket outlets with earthing contact that are according to regulations. Use only undamaged supply cords and regularly checked extension cords with earthing contact. A protective conductor without continuity can lead to electric shock.

The earthed connection socket discharges static charges. In connection with electrostatically discharging accessories (optional), this prevents the formation of sparks and current surges.

When wet vacuuming, operate the vacuum cleaner only when the container is level. Otherwise there is danger of electric shock from water penetrating into the vacuum cleaner motor.

Do not misuse the power supply cord to pull the vacuum cleaner around or pull the mains plug from the socket outlet. Keep the power supply cord away from heat, oil sharp edges, or moving parts. Do not drive over or pinch the power supply cord. Damaged or entangled power supply cords increase the risk of an electric shock.

Before replacing accessories, pull the mains plug from the socket outlet. This safety measure reduces the risk of electric shock.

Do not vacuum materials that are hazardous to one's health, e. g., dust from beech or oak wood, masonry dust, asbestos. These materials are considered carcinogenic.

When vacuuming larger quantities of fine dust, electrostatic charging may occur.

Provide for good ventilation of the workplace.

Do not vacuum inflammable or explosive fluids; for example, benzene, oil, alcohol, solvents. Do not vacuum hot or inflammable dusts. Do not operate the vacuum cleaner in rooms where the danger of an explosion exists.

The dusts, vapours or fluids can ignite or explode.

Do not rivet or screw any name-plates or designs to the vacuum cleaner. If the insulation is damaged,

protection against an electric shock will be ineffective. Adhesive labels are recommended.

Do not use accessories not specifically intended or recommended for this vacuum cleaner. Just because the accessory can be attached to your vacuum cleaner, it does not assure safe operation.

Before starting operation (see page 6–9), check the power supply cord and the mains plug for damage.

WARNING

Use the vacuum cleaner's socket

outlet only for connection of an external power tool. The vacuum cleaner is automatically switched on and off via the connected power tool. The connected load of the power tool may not exceed the maximum connected load P_A of the vacuum cleaner's socket outlet.

Please also observe the operating instructions and safety warnings of the power tool being connected to the socket outlet of the vacuum cleaner.

Recommendation: Always operate the vacuum cleaner via a residual current device (RCD) with a rated residual current of 30 mA or less. The vacuum cleaner may only be stored indoors.

Operating Instructions.

Operation, see page 10.

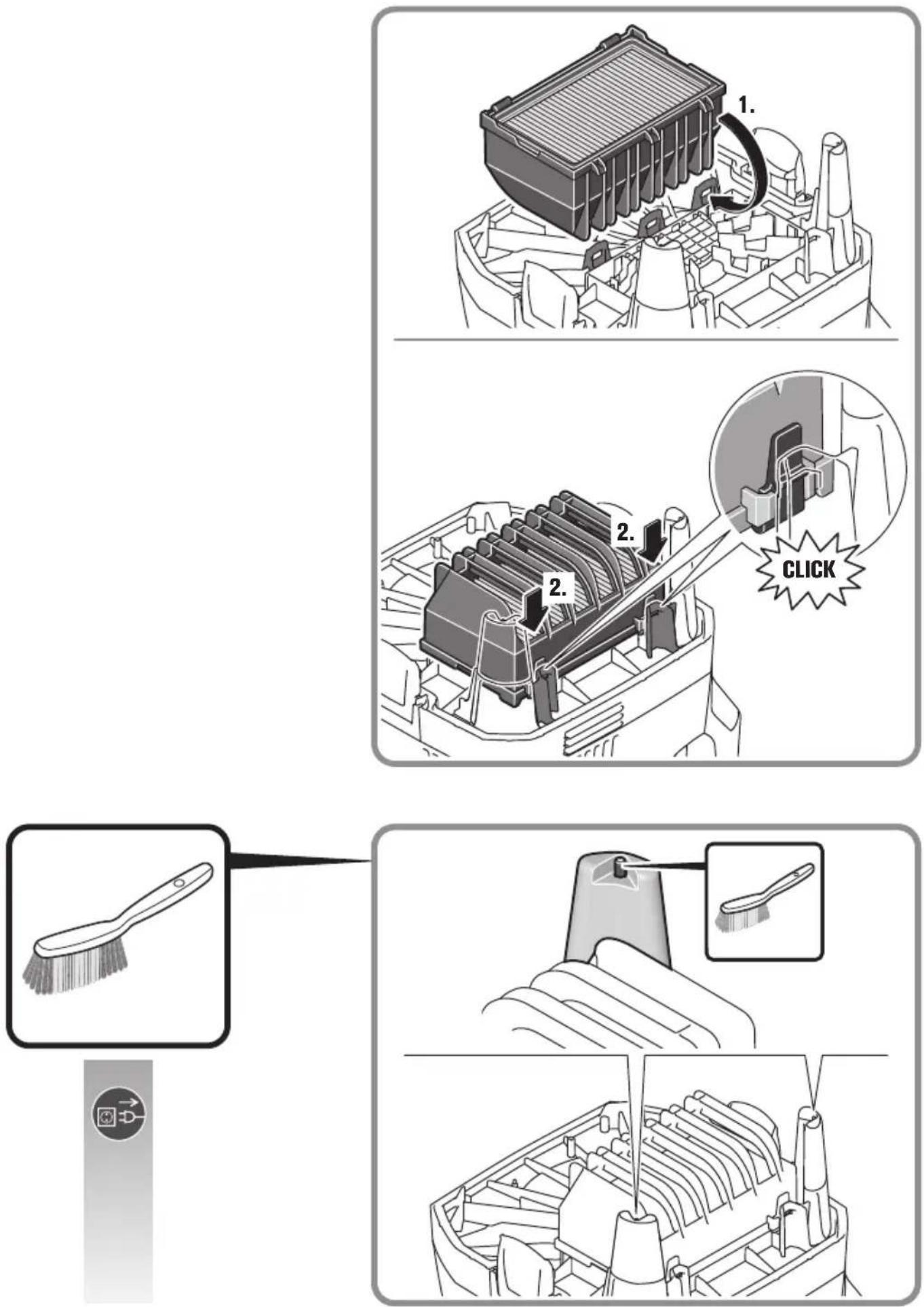

Filter replacement and filter cleaning, see page 11–13/30 section “Fault Finding.”

CAUTION

Never vacuum with- out the flat-fold filter, as otherwise the motor will be damaged and a health hazard will occur through increased exposure of fine dust. When vacuuming fine dust, a fleece filter bag must be used additionally.

An adequate ventilation rate L must be provided for when the outgoing air is circulated. The circulated airflow must not exceed 50 % (max.) of the fresh air volume (room volume x ventilation rate L_w ). The following applies without special ventilation measures: L_w = 1 h^-1 .

When inserting the fleece filter bag, pay attention that the closing cover and the fleece bag face completely against the interior side of the container.

After removing the fleece filter bag, seal it with the closing cover in order to avoid debris.

For vacuuming dusts of dust category L, only dry flat-fold filters, which have not been moist or wet, are permitted to be used.

Before switching from wet to dry vacuuming, allow the flat-fold filter to dry or replace through a dry one. Otherwise, the flat-fold filter will become unusable.

Keep the flat-fold filter dry and clean it regularly.

Mount accessories applying only slight pressure. For disassembling, turn the parts somewhat against each other and pull apart.

Switch the vacuum cleaner off before connecting a power tool to the vacuum cleaner's socket outlet. Make

sure that the power tool is switched off when inserting its plug into the vacuum cleaner's socket outlet.

After switching off a power tool connected to the vacuum cleaner's socket outlet, the vacuum cleaner will run on for approx. 15 seconds and then automatically switch off. When wet vacuuming electrically conductive liquids, the vacuum cleaner is automatically switched off (automatic shut-off) when reaching the maximum filling height of the container. Pull the mains plug from the socket outlet and empty the container.

When wet vacuuming electrically non-conductive liquids (e. g., oils, drilling emulsions), the vacuum cleaner is not automatically switched off when reaching the maximum filling height of the container. Empty the container in time.

After finishing the wet vacuuming, clean the sensors and the space in between using a brush.

CAUTION

Check the sensors regularly for signs of damage.

Switch the vacuum cleaner off immediately as soon as foam or water comes out, and empty the container.

In case of a short-circuit and/or heavy discharge of dust, switch the vacuum cleaner off immediately and disconnect it from the power supply.

For transport of the vacuum cleaner, activate the vacuum cleaner's lockable castor brake.

Repair and customer service.

Check the connections, seals and hoses. Have damage repaired y through a qualified repair per- and only using original FEIN lacement parts.

Use commercially available, non-scouring cleaning agents and water for cleaning the vacuum cleaner. After cleaning, allow the vacuum cleaner to dry completely.

Empty the container each time after using and remove coarse debris and dust.

Empty the container after vacuuming liquids. Afterwards, run the vacuum cleaner with the accessories connected for several minutes in order to dry them.

Dispose of used flat-fold filters and filter bags according to statutory regulations.

When the machine's power supply cord is damaged, it must be replaced by the manufacturer or their representative.

Have a dust-technical inspection carried out at least once every year by the manufacturer or an instructed person, e. g., for damage of the filter, function and tightness against leakage of the vacuum cleaner.

For category L vacuum cleaners that were in contaminated environments, the exterior as well as all machine parts should be cleaned or treated with sealants. When performing maintenance and repair work, all contaminated components that cannot be cleaned to satisfactory must be disposed of. Such components

must be disposed of in impermeable plastic bags conforming with the valid regulations for the disposal of such waste.

For maintenance on behalf of the user, the vacuum cleaner must be disassembled, cleaned and maintained as far as feasible, without causing a risk for the maintenance personnel or other persons. Prior to disassembly, the vacuum cleaner should be cleaned in order to prevent any risks.

The room/enclosure in which the vacuum cleaner is disassembled should be well ventilated. Wear personal protective equipment during maintenance. After the maintenance, the maintenance area should be cleaned.

Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.

The current spare parts list for this vacuum cleaner can be viewed on the Internet at www.fein.com.

If required, you can change the following parts yourself:

Fleece filter bag, flat-fold filter, filter cartridge, hose, tool sleeve

Fault Finding.

Malfunction Cause Troubleshooting
Vacuum cleaner can-not be switched on.	Circuit breaker of power connection has tripped.	Ensure power supply.
	Vacuum cleaner in remote control operation.	Set operating-mode selector switch to “I”.
Reduced vacuuming capacity.	Vacuum cleaner not fitted correctly.	Mount vacuum cleaner lid properly and completely close both fasteners.
	Vacuum system clogged.	Clean vacuum hose and extension tubes.
	Fleece filter bag full. Replace fleece filter bag.
	Flat-fold filter full. Replace flat-fold filter.
Dust escapes during vacuuming.	Incorrect installation position of flat-fold filter	Correct installation position of flat-fold filter.
No suction capacity when wet vacuuming.	Container full. Empty container.
Automatic shut-off does not actuate.	Sensors soiled/dirty. Clean sensors and space in between with a brush.

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your vacuum cleaner may include only a part of the accessories described or shown in this instruction manual.

Declaration of conformity.

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

The UKCA declaration is only valid for the Great

Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Technical documents at: C. & E. Fein GmbH Hans-Fein-Straße 81 73529 Schwäbisch Gmünd-Bargau, Germany

Environmental protection, disposal.

Packaging, worn out vacuum cleaners and accessories should be sorted for environment-friendly recycling.

Table of Toxic and Hazardous Substances/Elements and their Content as required by China's Management Methods for Controlling Pollution by Electronic Information Products

有毒有害物质 / 成分及其含量表

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

CE

EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 +

A1:2019 + A14:2019 + A2:2019

EN 60335-2-69:2012

EN 55014-1:2017+A11:2020

EN 55014-2:1997+A1:2001+A2:2008

EN 55014-2:2015+Cor:2016

EN 61000-3-2:2014

EN 61000-3-2:2019

EN 61000-3-3:2013

EN 61000-3-3:2013+A1:2019

EN 62233:2008

2006/42/EG, 2014/30/EU,

2011/65/EU

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product Management Development

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

UK CA

EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 +

A1:2019 + A14:2019 + A2:2019

EN 60335-2-69:2012

EN 55014-1:2017+A11:2020

EN 55014-2:1997+A1:2001+A2:2008

EN 55014-2:2015+Cor:2016

EN 61000-3-2:2014

EN 61000-3-2:2019

EN 61000-3-3:2013

EN 61000-3-3:2013+A1:2019

EN 62233:2008

Supply of Machinery Regulations 2008,

EMC Regulation 2016, The Restriction of the Use of

Certain Hazardous Substances in Electrical and

Electronic Equipment Regulations 2012

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product Management Development
