HT 22 - Beard trimmer BEURER - Free user manual and instructions

Product Type	Beard Trimmer
Brand	Beurer
Model	HT 22
Dimensions	25.6 x 4.1 x 4.4 cm
Weight	261 g
Power Supply	5.0 V, 1.0 A (via USB cable)
Battery Type	Li-ion 1800 mAh, 3.7 V
Charging Time	Approx. 2 hours for a full charge
Direct Drive Function	Can be used while plugged in even if battery is dead
Travel Lock	Electronic lock activatable for 3 seconds
Display	Shows charge status and lock
Cutting Head	Blades with cutting chamber and hair reservoir
Included Accessories	Anti-fork comb, cleaning brush, USB cable
Cleaning	Clean the reservoir and cutting chamber with the brush; housing washable with warm water
Maintenance	No maintenance required
Usage	Dry and clean hair, without styling products
Safety	Do not use near water; do not immerse; child safety
Operating Conditions	Indoor use only

Frequently Asked Questions - HT 22 BEURER

How to charge the battery of the Beurer HT 22?

Connect the supplied USB cable to the device and to a USB power adapter (not included) or a USB port. Full charging takes about 2 hours. The red battery symbol turns green when charging is complete.

Can I use the trimmer while charging?

Yes, thanks to the Direct Drive function, you can use the device plugged in even if the battery is dead.

How to clean the Beurer HT 22?

After each use, remove the reservoir and clean it as well as the cutting chamber with the supplied cleaning brush. The housing can be cleaned with a soft cloth and warm water. Do not use abrasive cleaners and do not put in the dishwasher.

What does the suitcase symbol on the display mean?

The suitcase symbol indicates that the travel lock is activated. The device cannot be turned on to prevent accidental activation in a suitcase.

How to activate or deactivate the travel lock?

Press and hold the ON/OFF button for 3 seconds to activate or deactivate the travel lock. When activating, a red suitcase symbol flashes; when deactivating, the device turns on.

Is the battery removable?

No, the built-in Li-ion battery cannot be removed. For disposal, fully discharge it and return the device to a WEEE collection point.

What to do if the battery no longer holds a charge?

Make sure to fully charge the device at least 2 times a year to maximize battery life. If the problem persists, contact Beurer customer service.

Is the device waterproof?

No, the Beurer HT 22 is not waterproof. Do not use it near a bathtub, shower, or sink full of water, and do not immerse it.

Can I use the trimmer on wet hair?

No, the device must be used on dry and clean hair, without styling products. Wet hair can damage the device.

How to know if the battery is fully charged?

During charging, the battery symbol on the display is red. When charging is complete, the symbol turns green.

USER MANUAL HT 22 BEURER

EN Unfold page 3 before reading the instructions for use.

https://www.beurer.com/web/we-landingpages/de/cedeclarationofconformity.php

8. GARANTIE

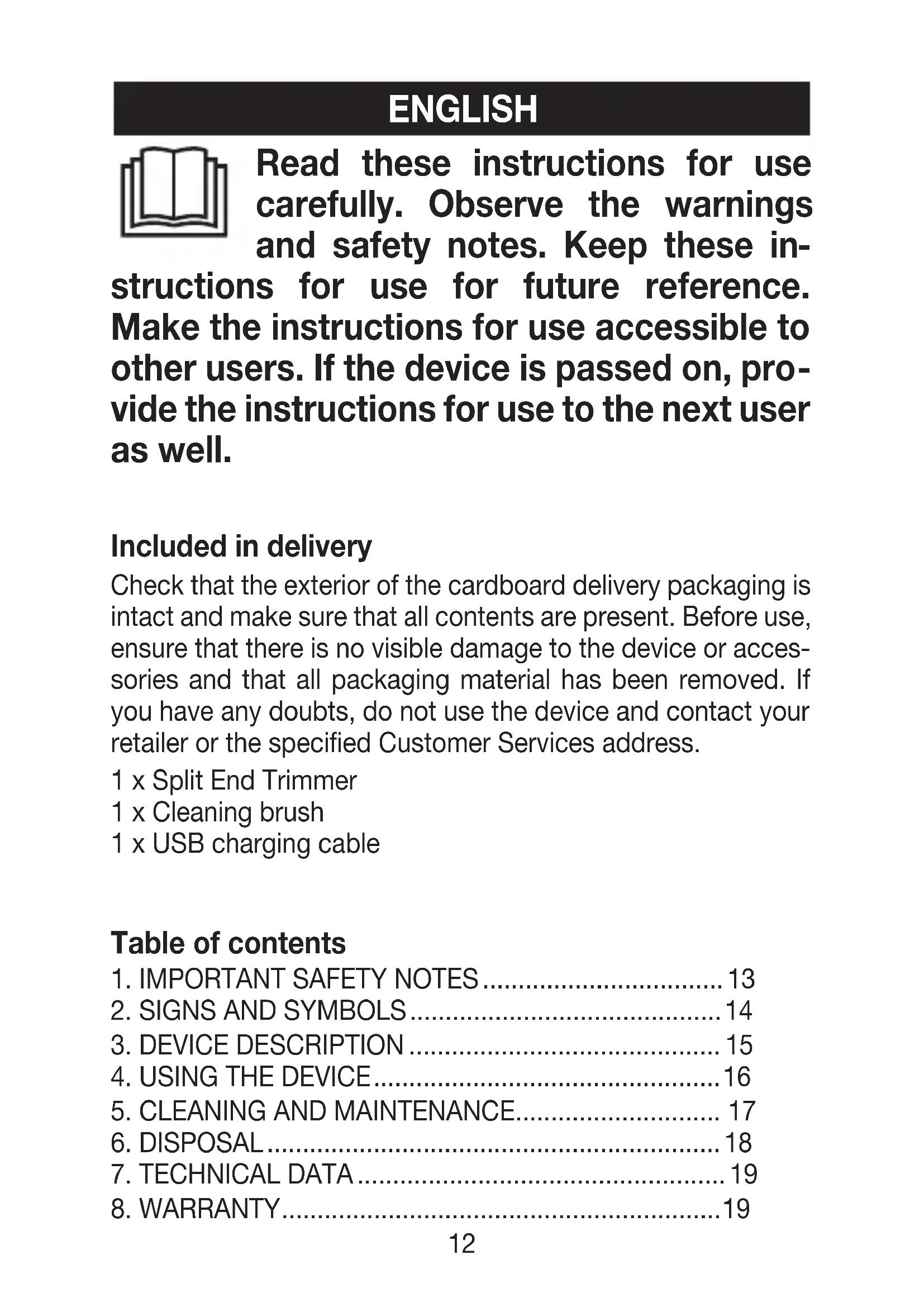

Read these instructions for use carefully. Observe the warnings and safety notes. Keep these in

structions for use for future reference. Make the instructions for use accessible to other users. If the device is passed on, provide the instructions for use to the next user as well.

Included in delivery

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

1 x Split End Trimmer
1 x Cleaning brush
1 x USB charging cable

Table of contents

1. IMPORTANT SAFETY NOTES 13
   2.SIGNS AND SYMBOLS 14
2. DEVICE DESCRIPTION 15
3. USING THE DEVICE 16
   5.CLEANING AND MAINTENANCE. 17
   6.DISPOSAL 18
4. TECHNICAL DATA 19
   8.WARRANTY 19

1. IMPORTANT SAFETY NOTES

• The device must only be used for the purpose for which it was designed and in the manner specified in the instructions for use.
• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills, or a lack of experience and/or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and have understood the risks involved.
• Children must not play with the device.
• Danger of suffocation! Keep packaging materials away from children.
• Cleaning and user maintenance must not be performed by children unless supervised.

• Do not use this appliance near bathtub, shower trays or other containers that have water in them.

• This device is not designed for use in commercial areas.

• Risk of electric shock! Ensure that no water gets inside the device!

Notes on handling batteries

• If your skin or eyes come into contact with fluid from a battery cell, wash the affected areas with water and seek medical assistance.
• Protect batteries from excessive heat.
• Risk of explosion! Never throw batteries into a fire.
• Do not disassemble, split or crush the batteries.
• Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications regarding correct charging in these instructions for use must be observed at all times.
• Fully charge the battery prior to initial use.
• In order to achieve as long a battery service life as possible, fully charge the battery at least 2 times a year.

2. SIGNS AND SYMBOLS

The following symbols are used on the device, in these instructions for use, on the packaging and on the device's type plate:

This device must not be used near water or in water (e.g. in a wash basin, or in the shower or bath) - risk of electric shock!

Warning notice indicating a risk of injury or damage to health.

	Separate the packaging elements and dispose of them in accordance with local regulations.
A	Marking to identify the packaging material. A = Material code, B = Material number: 1-7 = Plastics, 20-22 = Paper and cardboard
	Separate the product and packaging elements and dispose of them in accordance with local regulations.
	Read the instructions for use.
CE	CE labelling This product satisfies the requirements of the applicable European and national directives.
=	Direct current The device is suitable for use with direct current only.
EAC	The products demonstrably meet the requirements of the Technical Regulations of the EAEU.
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE.
UKCA	United Kingdom Conformity Assessed Mark

3. DEVICE DESCRIPTION

The corresponding drawings are shown on page 3.

1 Display

4 Cutting chamber

2 ON/OFF button

5 Collection tray

3 Plate locking system

6 Charging socket

4. USING THE DEVICE

Charging the battery

The device should only be charged with a mains adapter with an output of 1 A.

Before using the device for the first time, you must charge it for a minimum of 2 hours.

1. Connect the device using the supplied charging cable and a compatible USB connection (mains adapter not included in delivery) (see Figure A).
2. During charging, the battery symbol in the display 1 is displayed in red. Once the device is fully charged, the battery symbol turns green.
3. Remove the charging cable from the device. The device is now ready for use.

Direct drive function

If the battery is completely flat, you can continue using the device immediately via mains operation.

Travel lock

The device has a travel lock. If the travel lock is activated, it is not possible to switch on the device. The travel lock prevents the device from switching on unintentionally (e.g. when being carried in a suitcase).

1. To activate the travel lock, press and hold the ON/OFF button 2 for 3 seconds. A red suitcase symbol flashes on the display 1. The device is now locked. If you press the ON/OFF button 2 while the travel lock is activated, the red suitcase symbol flashes briefly.
2. To deactivate the travel lock, press and hold the ON/OFF button 2 again for 3 seconds. The device switches on and is now unlocked.

Using the device

1. Comb your hair with a large-toothed comb to get rid of any tangles. Your hair should be clean, dry and free from styling products.
2. Slide the plate locking system 3 down to unlock the device (see Figure B). Make sure that the collection tray 5 is inserted.
3. Switch on the device using the ON/OFF button 2. Use the ON/OFF button 2 to select the correct direction of use. The correct direction of use depends on which hand you are using or which side of your head you are using the device on. The green arrows in the display 1 should point towards the floor during use.
4. Part the hair into individual sections that are approximately 2 to 3 cm wide.
5. Hold a section taut and place it between the plates near the roots (see Figure C).
6. Slowly move the device from the roots to the tips in a fluid motion (see Figure D). Dry and broken hair tips are cut off and land in the collection tray 5.
7. To switch off the device, press the ON/OFF button 2 until the green arrows disappear from the display.
8. Press the two plates together and slide the plate locking system 3 upwards.

5. CLEANING AND MAINTENANCE

WARNING

Risk of injury/crusting! Switch off the device before removing the collection tray 5 from the device. Do not reach into the cutting chamber from behind while the device is switched on!

1. Slide the collection tray 5 on. Clean the collection tray 5 and cutting chamber 4 with the cleaning brush after each use.
2. The device housing can be cleaned with a soft cloth dampened with warm water.
3. Your device is maintenance-free.
4. Protect the device from dust, dirt and humidity.
5. Do not clean the device in the dishwasher.
6. Do not use any aggressive, caustic, abrasive or corrosive cleaning products or hard brushes!

6. DISPOSAL

WARNING

The integrated battery cannot be removed for disposal. Risk of explosion and injury. The lithium-ion battery used in this device must not be disposed of in household waste, but must be disposed of correctly. For information on disposal, please contact the authorised seller or a municipal collection point. When disposing of the device, you must point out that it contains a battery. Discharge the battery before disposal. Take the device and switch it on until the battery is flat.

For environmental reasons, do not dispose of the device in household waste at the end of its service life. Dispose of the

device at a suitable local collection or recycling point in your country. Observe the local regulations for material disposal. Dispose of the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment).

If you have any questions, please contact the local authorities responsible for waste disposal.

You can obtain the location of collection points for old devices from the local or municipal authorities, local waste disposal company or your dealer, for example.

7. TECHNICAL DATA

Dimensions 25.6 x 4.1 x 4.4 cm
Weight 261 g
Device input 5.0 V	--- 1.0 A
Ambient conditions Only approved for indoor use
Battery:
Capacity	1800 mAh
Nominal voltage	3.7 V
Type designation	Lithium-ion

Subject to technical changes.

The Declaration of Conformity for this product can be found at the following address:

https://www.beurer.com/web/we-landingpages/de/cedeclarationofconformity.php

8. WARRANTY

Further information on the warranty and warranty conditions can be found in the warranty leaflet supplied.

FRANÇAIS

Remarques relatives aux batteries

https://www.beurer.com/web/we-landingpages/de/cedeclarationofconformity.php

8. GARANTIE

https://www.beurer.com/web/we-landingpages/de/cedeclarationofconformity.php

8. GARANTÍA

https://www.beurer.com/web/we-landingpages/de/cedeclarationofconformity.php

8. GARANZIA

1. BAXKhbie yKA3AHnIy IIO TEXHnKE 6E3OnAChOCTN

He nO3B0JMyTe DeTAM nIgpaTb c np6opom.

• Onachoctb ydyuweHn! He daBaIte yna-KOBOHyMaTePnAJI DeTAM.

He donyckaetcBbINOJIHHeNHe Ounchkn I TexHnueCKOrO 06CnyJXnBaHnI prI 6opa DeTbMn, 3a NCKJIIOUeHNem Tex

cIyuaeB, KOrda OHn HaxOjTcR IOd PnpCMOTpOM.

He nCpOJIb3yIte npI6Op B6JIn3n

BaHH, DyUeBbIX POnDoHOB IJI N DpyrNX EMKoCTeC BODOJ.

• Данныnpибор HeпpeДи3нayeHдя ИспОьВань B KOMМерчecKnxцелax.
• Onachoctb nopaxeHn8 3JIeKTPnuecknM Tokom! CJIeIte 3a TeM, YTO6bl BHyTpb np60pa He nonala Boda!

O6paueHne c aKKymyJTopamn

Bo3MOxHbI TexHnueCKne n3MeHeHn.

C DeKnapaun o COOTBeTCTBn DaHHoro npOdyKTa DnpeKTHBam MOxH0 O3HaKOMITbCS, NpeiJa nO CneDyUoSei CcblKe: https://www.beurer.com/web/we-landingpages/de/cedclarationofconformity.php

8. ΓΑΡΑΤΥ

3. BESCHRIJVING VAN HET APPARAAT

Direct-Drive-function

https://www.beurer.com/web/we-landingpages/de/cedclarationofconformity.php

8. GARANTI

https://www.beurer.com/web/we-landingpages/de/cedclarationofconformity.php

8. GARANTI

5. RENGJØRING OG VEDLIKEHOLD

ADVARSEL

https://www.beurer.com/web/we-landingpages/de/cedeclarationofconformity.php

8. TAKUU

Beurer UK Ltd., Suite 16, Stonecross Place, Yew Tree Way, WA3 2SH Golborne, United Kingdom

Beurer GmbH • Söflinger Str. 218 • 89077 Ulm (Germany) www.beurer.com • www.beurer-healthguide.com www.beurer-gesundheitsratgeber.com
