Product type	Metal shelf
Brand	Bartscher
Model	601182
Material	Chrome-plated steel
Dimensions (W x D x H)	910 x 460 x 1845 mm
Weight	14.3 kg
Total load capacity	200 kg (even distribution)
Number of shelves	4
Shelf type	Metal wire grid
Height adjustment of shelves	Yes (plug-in system with plastic cones)
Assembly system	Simple plug-in, tool-free assembly
Adjustable feet	Yes, for leveling (4 feet)
Included accessories	4 shelves, 4 corner posts, 16 plastic cones, 4 feet
Recommended use	Storeroom shelving, office, wine
Cleaning	Soft damp cloth, dry thoroughly
Prohibited cleaning products	Caustic products or harsh cleaners
Spare parts available	Shelves, posts, cones, feet (references in manual)
Assembly	Simple, by plugging in cones and snapping shelves into place
Color	Chrome (chrome-plated steel)
Repairability	Individually replaceable parts

Frequently Asked Questions - 601182 BARTSCHER

How to assemble the Bartscher 601182 shelf?

First assemble the four posts by screwing the two parts of each post together. Insert the plastic cones into the grooves of the posts at the desired height (tapered end upwards). Tilt the shelf, guide the posts through the holes, then straighten and press firmly to clip the shelf onto the cones. Repeat for each shelf. Use a rubber mallet if necessary. Adjust the feet to level the unit.

What is the maximum load capacity of the shelf?

The total load capacity is 200 kg with even distribution on the four shelves.

How to adjust the height of the shelves?

The shelves are height-adjustable thanks to the plug-in system. Move the plastic cones in the grooves of the posts to the desired height, then snap the shelf over them by pressing firmly.

What material is the shelf made of?

The shelf is made of chrome-plated steel, providing robustness and corrosion resistance.

How to clean the Bartscher shelf?

Clean regularly with a soft damp cloth, then wipe thoroughly. Never use caustic products or harsh cleaners that could damage the chrome surface.

Which cleaning products should I avoid?

Avoid caustic substances and abrasive cleaners (e.g., scouring powder, bleach) as they damage the chrome plating.

How many shelves are provided with model 601182?

The kit includes 4 shelves in metal wire grid, as well as 4 corner posts and mounting accessories.

Is the shelf stable on uneven floors?

Yes, thanks to the adjustable feet located at the base of each post. You can screw or unscrew each foot to level the shelf on any surface.

Can I buy additional shelves to expand the shelf?

Yes, replacement shelves are available. Consult the parts list in the manual to find the appropriate reference (e.g., for model 601161, 9 bottle channels).

What accessories are included in the kit?

The kit contains: 4 shelves, 4 corner posts (in two parts each), 16 plastic assembly cones and 4 adjustable feet.

USER MANUAL 601182 BARTSCHER

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Regalböden (4)
Art.-№: 601151/601182/601192

Structural framework diagram showing truss connections and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and threaded component with directional arrows (no text or labels)

Pure mechanical diagram showing a cylindrical component with internal channels and arrows indicating motion (no text or symbols)

Diagram of a wire fence structure with diagonal bracing and mounting points (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

3D diagram of a two-tiered storage unit with embedded components and mounting holes (no text or symbols)

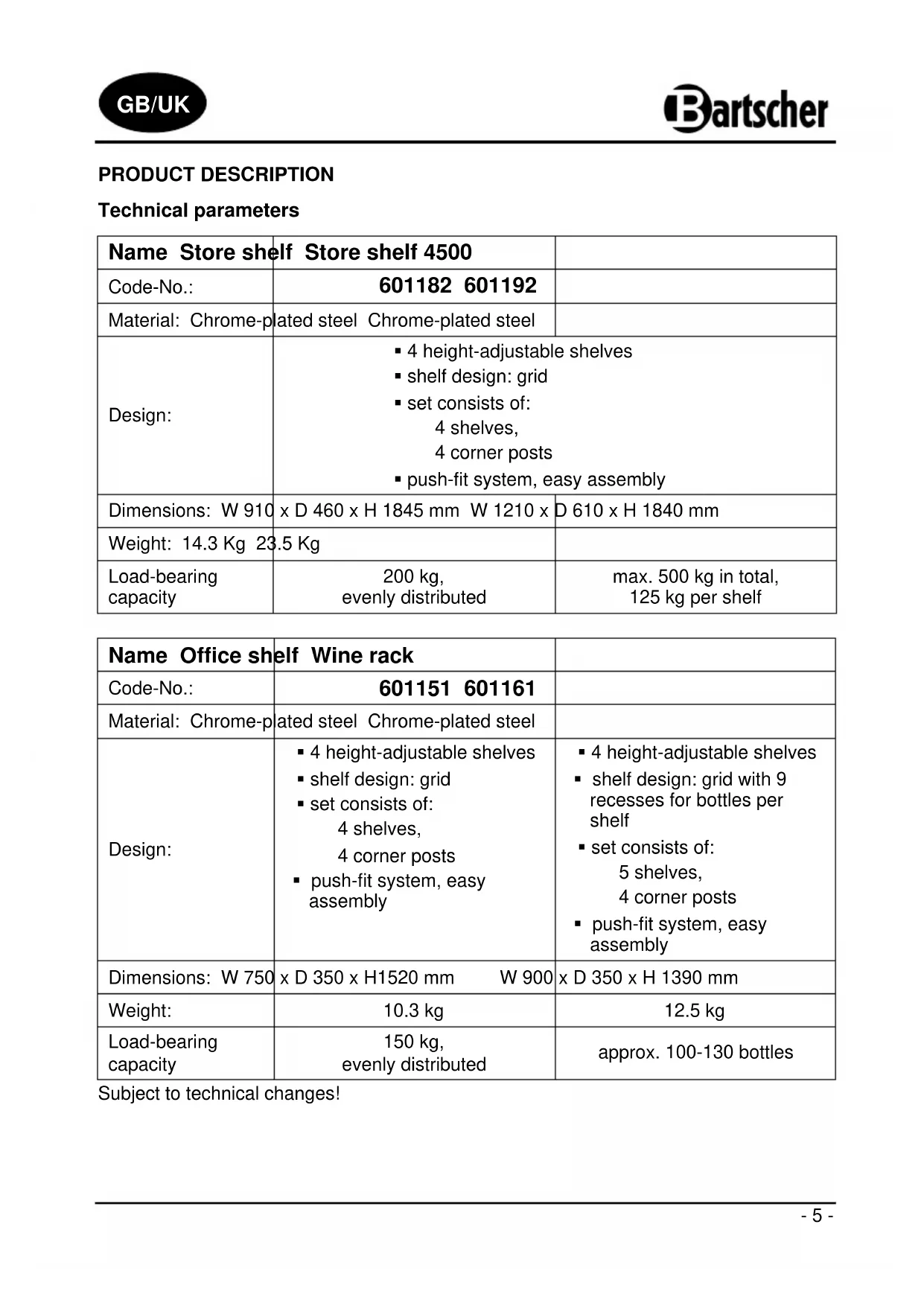

Name Store shelf	Store shelf 4500
Code-No.:	601182 601192
Material: Chrome-plated steel	Chrome-plated steel
Design:	4 height-adjustable shelvesshelf design: gridset consists of:4 shelves,4 corner postspush-fit system, easy assembly
Dimensions: W 910 x D 460 x H 1845 mm W 1210 x	D 610 x H 1840 mm
Weight: 14.3 Kg 23.5 Kg
Load-bearing capacity	200 kg,evenly distributed	max. 500 kg in total,125 kg per shelf

Name Office shelf Wine rack
Code-No.:	601151 601161
Material: Chrome-plated steel Chrome-plated steel
Design:	4 height-adjustable shelvesshelf design: gridset consists of:4 shelves,4 corner postspush-fit system, easy assembly	4 height-adjustable shelvesshelf design: grid with 9 recesses for bottles per shelfset consists of:5 shelves,4 corner postspush-fit system, easy assembly
Dimensions: W 750 x D 350 x H1520 mm W 900 x D 350 x H 1390 mm
Weight:	10.3 kg	12.5 kg
Load-bearing capacity	150 kg,evenly distributed	approx. 100-130 bottles

Subject to technical changes!

List of parts / scope of delivery

1 2 3 4 5

Pure structural diagram of a vertical column with diagonal bracing and horizontal supports (no text or symbols)

Shelves (4)
Code-No.:
601151/601182/601192

1 Corner post (4)
2 Connecting piece for corner post (4)
3 Shelf (4 or 5)
4 Plastic snap-fit joints (16 lub 20)
5 Feet for adjusting height (levelling) of the rack (4)

Close-up of a metal lattice structure with vertical supports and triangular supports (no text or symbols visible)

Shelves (5)
Code-No.: 601161
each with 9 recesses for bottles

ASSEMBLY

Assembly of the posts

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

1) All four posts consist of two parts and are screwed together with the help of the connecting pieces with threads that should already have been screwed to one of the two post parts. The upper part of the posts has a plastic cover at the top, the lower part of the post can be levelled at the bottom. Screw together the two parts of the post hand-screwed in a clockwise direction. Should it not be possible to screw the two post parts together easily, then the two thread parts were not joined properly.

Attaching a shelf

2) Attach the bottom shelf to the corner posts first. It is recommended that the bottom shelf should not be mounted higher than 15 cm above the floor.

At the desired height, snap the conical plastic snap-fit joints into the grooves on the posts, with the narrower end of the snap-fit joints pointing up and the thicker end of the snap-fit joints pointing down.

3) Tilt the shelf slightly to the side and slide the upper parts of the four posts (with plastic caps) through the openings in the shelf's corners until they are firmly seated at snap-fit joints.

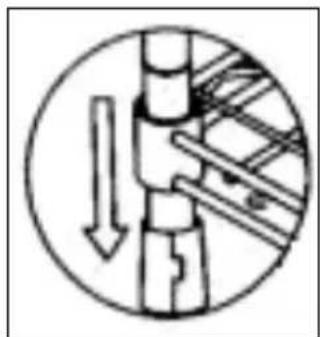

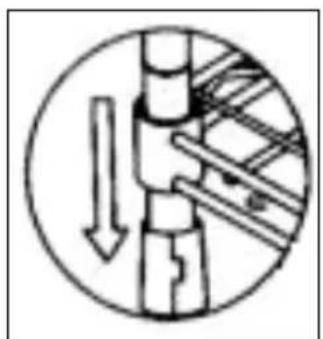

4) Place the entire rack upright and push the shelf down firmly at the corners, to make sure that the shelf lies firmly on the plastic snap-fit joints.

Further assembly

5) Attach the plastic snap-fit joints for the next shelf at the desired height. Slide the shelf down from above over the posts onto the plastic snap-fit joints and press it down firmly again.
6) Repeat step 5) for the other shelves.
7) To adjust the height (levelling) of the rack, rotate the feet on the bottom parts of the posts in and out.

Diagram of a two-tiered storage unit with chains and a hammer, no text or symbols present

Now, the rack has been completely assembled.

Note: a rubber hammer can make the assembly much easier.

Cleaning

- Clean the rack regularly with a soft, moist cloth and wipe it thoroughly afterwards.

CAUTION!

Never use corrosive or abrasive cleaning agents which may damage the chromed surface of the rack.
