14135502L - Lighting Livarno Lux - Free user manual and instructions

Product type	LED floor lamp with white dimmer and reading light
Model	14135502L / 14135602L
Brand	Livarno Lux
Power supply	220-240 V ~, 50/60 Hz
Total power	38.5 W (34 W head + 4.5 W reading light)
Protection class	II / III
Ingress protection rating	IP20
Color temperature	Cold white, neutral white, warm white (adjustable)
Functions	Dimmer, night light, 30 min timer
Control	Remote control (2 AAA 1.5 V batteries included) and manual switches
Remote control batteries	2 x 1.5 V AAA
Contents	Floor lamp, lamp glass, central tube, base, remote control, power supply unit, screws, assembly tool
Use	Indoor, dry and enclosed rooms
Assembly	Tube assembly, glass fixing, mains connection
Maintenance and cleaning	Disconnect before cleaning; use a dry, lint-free cloth; do not immerse
Safety	Do not open electrical components; do not cover; keep out of reach of children; risk of burns
Warranty	36 months from date of purchase
Spare parts	Available during the warranty period; LEDs are not individually replaceable
Recycling	Packaging recyclable; do not dispose of product and batteries in household waste

Frequently Asked Questions - 14135502L Livarno Lux

How to assemble the Livarno Lux 14135502L floor lamp?

Assemble the two parts of the central tube, insert the cable into the base, secure the safety plate, washer and nut using the provided tool. Place the lamp glass on the head and fix it with the screws and washers. Connect the power supply unit. Refer to the manual for details.

How to replace the remote control batteries?

Slide the battery compartment out of the remote control. Remove the used batteries and insert two new AAA 1.5 V batteries respecting the indicated polarity. Replace the compartment.

What to do if the remote control stops working?

Check that there is no obstacle between the lamp and the remote control. Replace the batteries if necessary. Make sure the ON/OFF switch on the lamp head is turned on.

Can I use the lamp with an external dimmer?

No, the lamp is not compatible with external dimmers or electronic switches. Use only the remote control or the built-in switches.

How to safely clean the luminaire?

Always disconnect the power supply unit before cleaning. Let the lamp cool down. Use a dry, lint-free cloth. Never use water, solvents or abrasive products.

Is the LED lamp replaceable?

No, the LED light source is not replaceable. At the end of its life, the entire lamp must be replaced. Contact customer service for any malfunction.

What is the warranty period?

The warranty is 36 months from the date of purchase. It covers material and manufacturing defects, but excludes damage due to misuse or normal wear.

Can I use the lamp outdoors?

No, this lamp is exclusively designed for indoor use in dry and enclosed rooms. Do not expose it to moisture or water.

How to adjust the light color?

Use the remote control: press the switching button to switch between cold white, neutral white and warm white. The lamp remembers the last selected color.

What to do in case of breakdown or damage?

Immediately disconnect the lamp. Do not use it if it is damaged. Contact customer service at the address indicated in the manual, mentioning the model number 14135502L or 14135602L.

USER MANUAL 14135502L Livarno Lux

Assembly, operating and safety instructions

NL BE

LED-PLAFONDSCHIJNWERPER MET KLEURREGELING

STOJACI LED LAMPA S NASTAVITELNOU TEPLOTOU SVETLA

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IEAssembly,operating and safety instructionsPage 15

WARNING! STROMSCHLAGGEFAHRI!

List of pictograms used

Introduction

Proper use.. Page 17

Included items . Page 17

Parts description.. Page 17

Technical data.. Page 18

Safety

Safety advice.. Page 18

Safety instructions for batteries/rechargeable batteries Page 19

Preparation Page 20

Required tools and material . Page 20

Preparing the product for use

Assembling the lamp.. Page 20

Inserting/replacing batteries.. 20

Switching the light on/off.

Directing the lamp.. Page 21

Care and cleaning.. Page 21

Disposal

Warranty and service.. Page 22

Warranty.. Page 22

Service address.. Page 22

Declaration of Conformity. Page 22

Manufacturer.. Page 22

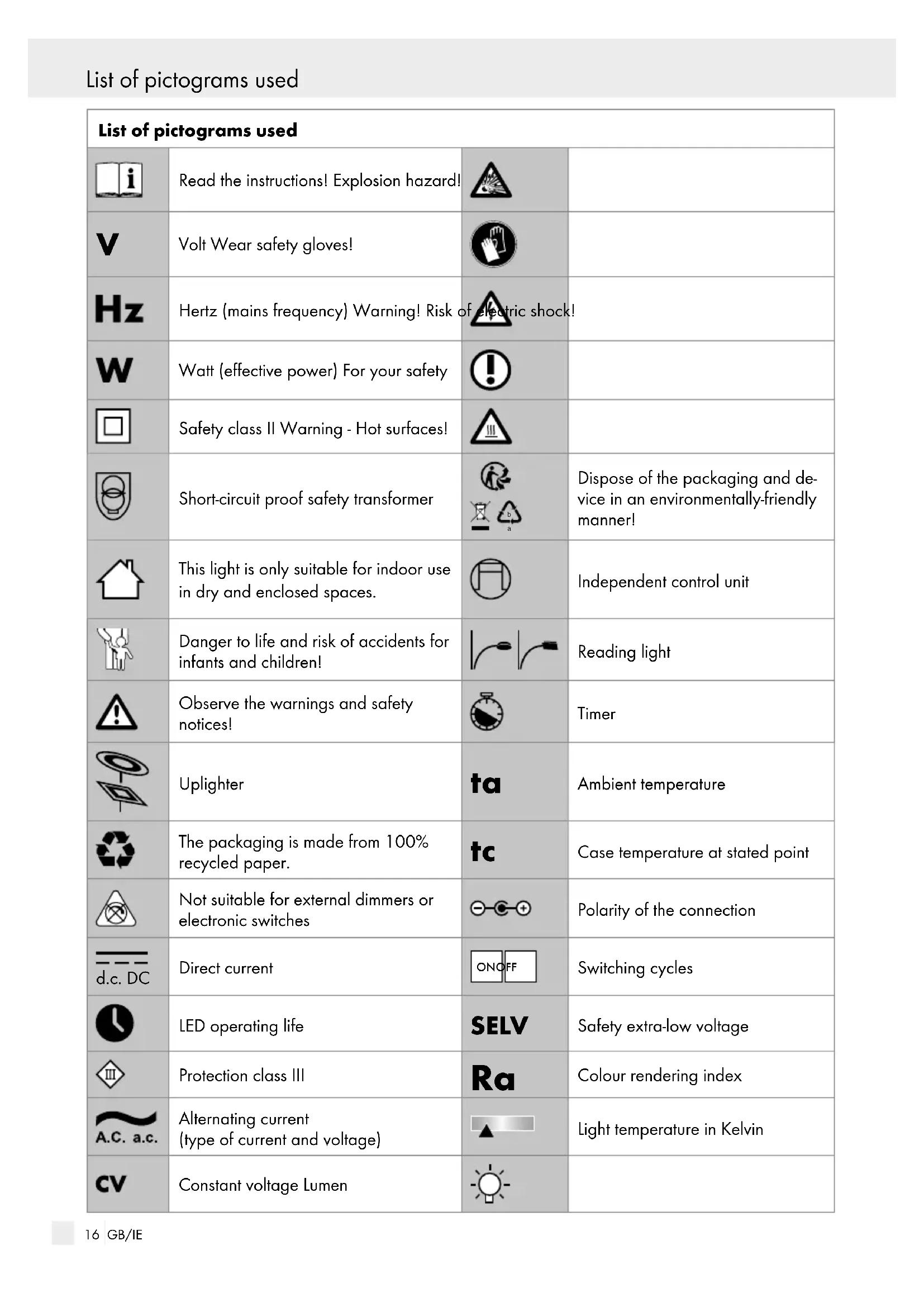

List of pictograms used
i	Read the instructions! Explosion hazard!
V	Volt Wear safety gloves!
Hz	Hertz (mains frequency) Warning! Risk of electric shock!
W	Watt (effective power) For your safety
	Safety class II Warning - Hot surfaces!
	Short-circuit proof safety transformer		Disposition of the packaging and device in an environmentally-friendly manner!
	This light is only suitable for indoor use in dry and enclosed spaces.		Independent control unit
	Danger to life and risk of accidents for infants and children!		Reading light
	Observe the warnings and safety notices!		Timer
	Uplighter	ta	Ambient temperature
	The packaging is made from 100% recycled paper.	tc	Case temperature at stated point
	Not suitable for external dimmers or electronic switches		Polarity of the connection
d.c. DC	Direct current	ONOFF	Switching cycles
	LED operating life	SELV	Safety extra-low voltage
	Protection class III	Ra	Colour rendering index
A.C. a.c.	Alternating current (type of current and voltage)		Light temperature in Kelvin
CV	Constant voltage Lumen
A	Ampere Incl. remote control
zz	Night light Dimmable by remote control
+	Incl. batteries (remote control)

LED Uplighter/Reading Lamp with Adjustable Light Tone

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. Please read carefully

and completely through these operating instructions. Fold out the page with the illustrations. These instructions form part of the product and contain important information about bringing the product into use and its handling. Always observe all the safety advice. Check that the correct mains voltage is available and that all the parts have been properly assembled before bringing into use. Should you have any questions or be uncertain as to how to operate the device, please get in touch with your dealer or service point. Please keep these instructions in a safe place and hand them on to a third party if necessary.

Properuse

This light is suitable only for interior use, in dry and enclosed spaces. This lamp is intended for use only in a domestic envi

ronment. This product is intended for normal operation.

IncludedItems

Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking.

1 Father & Child LED Lamp With Light Tone Control, Model 14135502L and 14135602L
1 Lamp glass
1 Tube (2-piece)
3 Screws (lamp glass) (14135502L)
4 Screws (lamp glass) (14135602L)
3 Washers/Rubber rings (14135502L)
4 Washers/Rubber rings (14135602L)
1 Remote control
2 Batteries 1.5 V AAA
1 Bracket (2-piece)
2 Screws (bracket)
1 Base
1 Tool
1 Securing plate (oval)
1 Plug-in power supply unit
1 Washer (large)
1 Nut
1 Set of assembly instructions and instructions for use

- Partsdescription

Screw (lamp glass)
2 Washer/Rubber rings
3 Lamp glass
4 Uplight head
5 Lamp head (reading light)
6 Flexible arm (reading light)
7 Tube
Remote control
9 2-piece bracket (remote control)
10 Screw (bracket)
11 Base
12 Mains cable
13 Plug-in mains adapter
14 Securing plate (oval)

15 Washer (large)
16 Nut
17 Tool
[18] Transport lock
19 ON/OFF switch (reading light)
20 ON/OFF switch (uplighter)

-Technicaldata

Light (incl. plug-in power supply)

Model number: 14135502L/14135602L

Operating voltage: 220-240 V , 50/60 Hz

Rated power: 36W

Protection class: II /

IP rating: IP20

Plug-in mains adapter

Model number: TGA36-240150-04

LED modules

Uplightheadmodule:34W

Reading light module: 4.5 W

Remote control

Batteries: 2 × 1.5V , AAA

Safety

Safetyadvice

The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions! No liability is accepted for consequent damage! No liability is accepted for damage to property or persons caused by improper handling or non-observation of the safety advice!

WARNING! RISK OF FATAL INJURY AND ACCIDENT HAZARD FOR TODDLERS AND

SMALL CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material

poses a suffocation hazard. Children frequently underestimate dangers. Please always keep the product out of the reach of children.

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

To avoid danger to life from electric shock

Every time before connecting the lamp the mains, check it and the mains lead for damage. Never use your light if you find it is damaged in any way.

WARNING!

A damaged light bulb means your life is at risk from electric shock. If there is any damage, repairs to be carried out or other problems related to the light bulb, please contact the service centre or a qualified electrician.

In order to prevent hazards, if the outer flexible cable of this lamp becomes damaged it may only be replaced by the manufacturer, a service representative of the manufacturer or a similar specialist!
Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary of the light (see "Technical Data").
- Never let the lamp come into contact with water or other liquids.
Always unplug the light from the mains prior to assembly, disassembly, cleaning or if the light will not be used for extended periods.
Never open or insert anything into electrical fittings or equipment. Doing this sort of thing can lead to a serious danger to life from electric shock.
Do not kink the power cable.
Do not lay the cable on sharp corners.

To avoid danger of fire and injury

CAUTION! RISK OF INJURY!

Check each uplight for damage immediately after unpacking. Do not install the light if the lamp glass is defective. In this case, contact the service centre for a replacement.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Bulbs give off a lot of heat around the top of the lamp.

• Do not cover the light or the mains plug with objects. Excessive heat can result in a fire.
  Never leave the lamp operating unattended.

ATTENTION!

• Do not look into the LED from a close distance during operation.
  Do not look at the LED with an optical instrument (e.g. magnifier).
  The illuminant in this light is not replaceable; if the illuminant reaches the end of its services life, replace the entire light.

Working safely

Install the light so that it is protected from moisture and dirt.
Prepare carefully before assembly and allow yourself enough time. Lay out all the individual components and additional tools or materials required so that you can see and reach them.
- Remain alert at all times and always watch what you are doing. Always proceed with caution and do not assemble the lamp if you cannot concentrate or feel unwell.
In order to disconnect the light completely from the power supply, the mains plug must be removed from the socket.

Safety instructions for batteries/rechargeable batteries

DANGER TO LIFE!

Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

• Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

• Never throw batteries / rechargeable batteries into fire or water.
• Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight
  If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Use a dry lint-free cloth or cotton swab to clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
Remove exhausted batteries/rechargeable batteries from the product immediately.

Preparation

- Required tools and material

The tools and materials specified are not included. This information and values specified are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Screwdriver

Preparing the product for use

- Assembling the lamp

Note: You will require a second person to help with the assembly of the product.

Note: Place the floodlight on a soft surface (i.e. a blanket) during assembly to prevent it from being damaged.

Note: Please ensure that you pull the cable slowly through the base during fitting.

Remove the transport locks 18 from the tube 7.
- Connect the sections of tube 7 and screw in place.

Note: Be sure to screw in the section of tube as far in as possible to ensure the light is stable.

Make sure that the mains cable [12] running through the tube [7] does not get trapped.

Insert the power cord 12 through the opening in the middle of the base 11.
First slide the securing plate (oval) 14, then the washer (large) 15 and finally the nut 16 over the power cable 12.
Then pass the power cord 12 outwards through the opening on the side of the base 11.
Insert the upright tube through the opening on the base 11.
Make sure that the power cable [12], which runs through the upright tube [7], does not get jammed.
- Slide the securing plate (oval) 14 and the washer (large) 15 onto the upright tube 7 from below.
Tighten the nut 16 on the bottom of the base 11 using the tool 17.

Ensure it is in the correct position.

Note: Be sure to hold the tuetight when tightening the nut 16.

Note: Ensure the cable is inside the designated opening in the base 11 so it cannot be pinched.

Position the upright upright.
Place the lamp glass 3 on the uplighter head 4.
- Affix the lamp glass 3 using the screws 1 and washers 2 to the uplighter head 4 (see Fig. A).
Mount the bracket using the two screws to the tube (see Fig. C).
- Connect the mains cable [12] to the plug-in mains adapter [13].
Plug the plug-in mains adapter 13 into a properly installed socket.

Your light is now ready for operation.

- Inserting/replacing batteries

• Slide the battery compartment out of the remote control 8.
  Insert the batteries included in the scope of delivery into the remote control 8.
  Only use batteries specified in the chapter "Technical Data".

Preparing the product for use / Care and cleaning / Disposal

Note: The correct polarity is indicated in the battery compartment.

Switch between cold, neutral and warm light by pressing the button

• Slide the battery compartment back into the remote control.
  If the range of the remote control reduces, the battery needs to be replaced.
• Slide the battery compartment out of the remote control.
  Remove the batteries.
  Insert new batteries. Proceed as described above.

- Directing the lamp

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

First allow the lamp to cool completely.

Bend the flexible arm 6 to bring the reading lamp into the desired position.
Adjust the uplight head 4 to the desired position.

- Switching the light on / off

Use the ON/OFF switch 20 to switch the uplighter floor lamp on or off.
Switch the reading light 5 on or off using the ON/OFF switch 19.

Controlling the upright head 4 using the remote control 8:

Switch the upright head 4 on using the ON / OFF switch 20.
Ensure that there are no obstacles between the lamp and the remote control.

The lamp saves the most recently selected light colour.

Choose from the following functions:

① Switch on the uplighter

Switch off the uplighter

Select cold, neutral or warm white light

• brighten

Nightlight function: Using the programme button, the floodlight illuminates at a very low warm white dimming level.
The lamp switches off automatically after 30 minutes.

Care and cleaning

WARNING! RISK OF ELECTRIC SHOCK!

First unplug the plug-in mains adapter 13 from the socket.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

First allow the lamp to cool completely.

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety reasons, never clean the lamp with water or other fluids nor immerse it in water.

Do not use any solvents, petrol or similar. This would cause damage to the light.
Always use a dry, fluff-free cloth for cleaning.
Plug the plug-in mains adapter 13 back into the socket.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Per Directive 2006 / 66 / EC and its amendments, defective or used batteries must be recycled. Return the batteries and/or the product to a collection site.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household bin. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection facilities.

Warranty and service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event that a defect arises during the warranty period, please send the device to the listed service centre address, quoting the following model number: 14135502L/14135602L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observation of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

-Serviceaddress

Free service number:

Tel.: [phone]

IAN 353749_2010

Please have your receipt and the product number (e.g. IAN 123456_7890) available for all queries as proof of purchase.

Declaration of Conformity (C)

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer

Preparation. Page 28

NOSTE OCHRANNÉ RUKAVICE!

NOSTE OCHRANNÉ RUKAVICE!

Montering of lampe. Side 88

Isaetning / skif at baterier Side 88

Taend/sluk of lampen Side 89
