Product Type	True Wireless Earbuds
Brand	Soundcore
Model	Sport X10
Bluetooth Version	5.2
Bluetooth Range	10 m
Power Supply	Rechargeable battery via USB-C (5 V, 0.5 A)
Battery Capacity (earbuds)	55 mAh x 2
Battery Life (earbuds)	Up to 8 hours
Total Battery Life with Case	Up to 32 hours
Charging Time	2 hours
Driver Size	10 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ω
Waterproof Rating	IPX7 (earbuds)
Active Noise Cancellation (ANC)	Yes
Controls	Touch (playback, volume, calls, ANC)
Dedicated App	Soundcore
Mono Mode	Yes
Care and Cleaning	Dry completely before charging; clean with a soft cloth
Safety	Use certified USB-C cable and charger
Replacement Parts	5 pairs of ear tips

Frequently Asked Questions - Sport X10 soundcore

How to pair the Sport X10 earbuds with my phone?

Open the charging case and press its button for 3 seconds until the 3 LED lights flash white. Select « Soundcore Sport X10 » from your device's Bluetooth list.

What is the battery life of the earbuds?

The earbuds provide up to 8 hours of playback on a single charge, and up to 32 hours with the charging case.

How to charge the case and earbuds?

Place the earbuds in the case and close it. Connect a certified USB-C cable to the case and a charger (5 V, 0.5 A). The LED light indicates the charging status. Full charging time is approximately 2 hours.

Are the earbuds water-resistant?

Yes, the earbuds have an IPX7 waterproof rating, meaning they can withstand immersion in up to 1 meter of water for 30 minutes. The case is not waterproof.

How to reset the earbuds?

Place the earbuds in the case and leave it open. Press the case button for 10 seconds until the lights flash white 3 times, then flash in sequence. The reset is then complete.

Can I use a single earbud at a time?

Yes, in mono mode you can use one earbud. Simply place the other in the case. During a call, if you place one earbud in the case, the microphone of the other activates.

What touch controls are available?

In stereo mode: one press for volume, two presses for play/pause or next track, hold 2 seconds for ANC. In mono mode: two presses for play/pause, one press to answer a call, hold 2 seconds to reject.

How to activate Active Noise Cancellation (ANC)?

Press and hold the touch button on one of the earbuds for 2 seconds to switch between normal ANC and transparency modes.

Is the Soundcore app necessary?

No, but it allows you to customize the equalizer, controls, update firmware, and manage ANC modes. It is recommended for an optimal experience.

Are the ear tips replaceable?

Yes, 5 pairs of ear tips in different sizes are included. Choose the ones that offer the best comfort and fit.

USER MANUAL Sport X10 soundcore

Line drawing of a wireless earbuds and soundcores (no text or symbols)

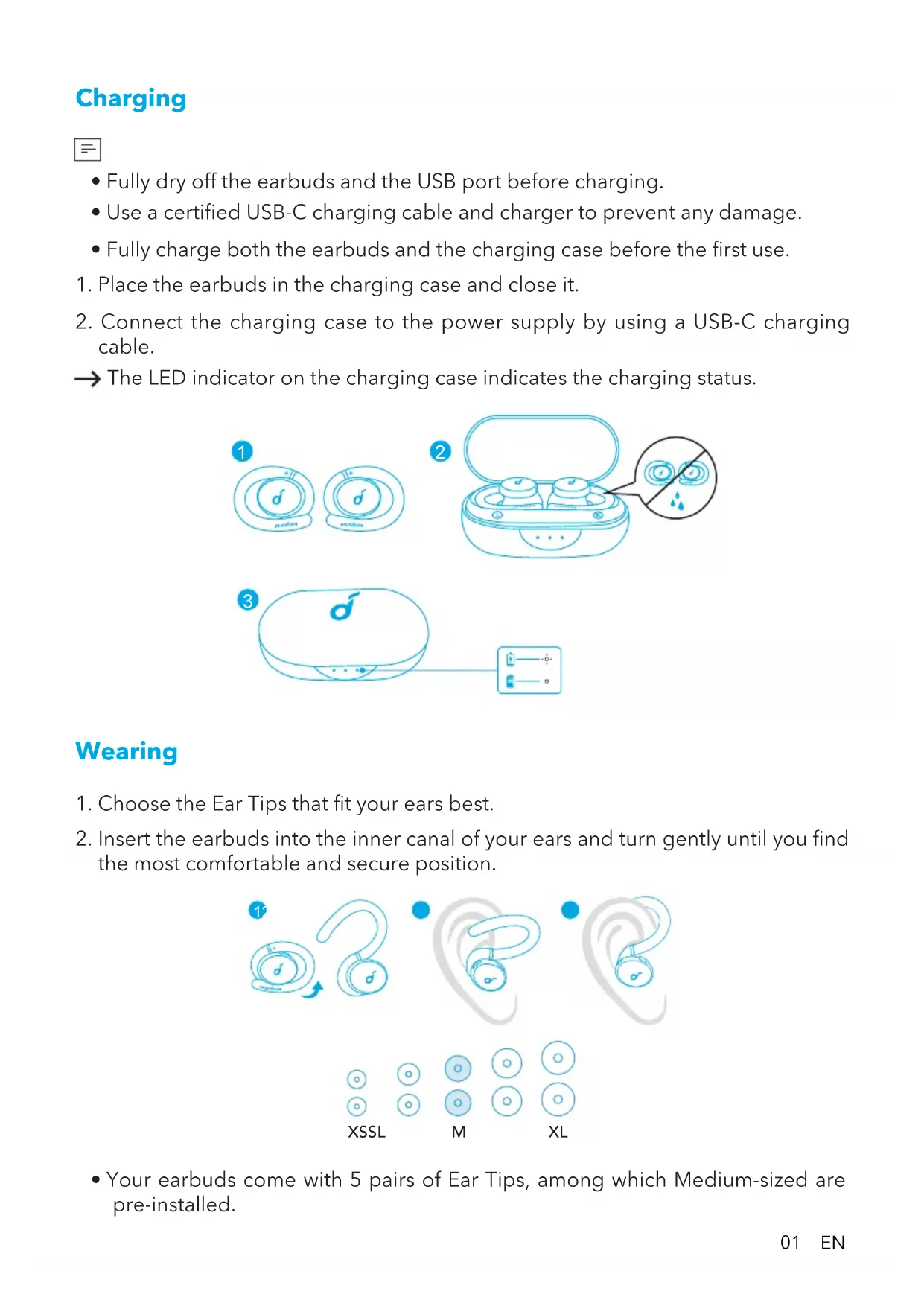

• Fully dry off the earbuds and the USB port before charging.
• Use a certified USB-C charging cable and charger to prevent any damage.

• Fully charge both the earbuds and the charging case before the first use.

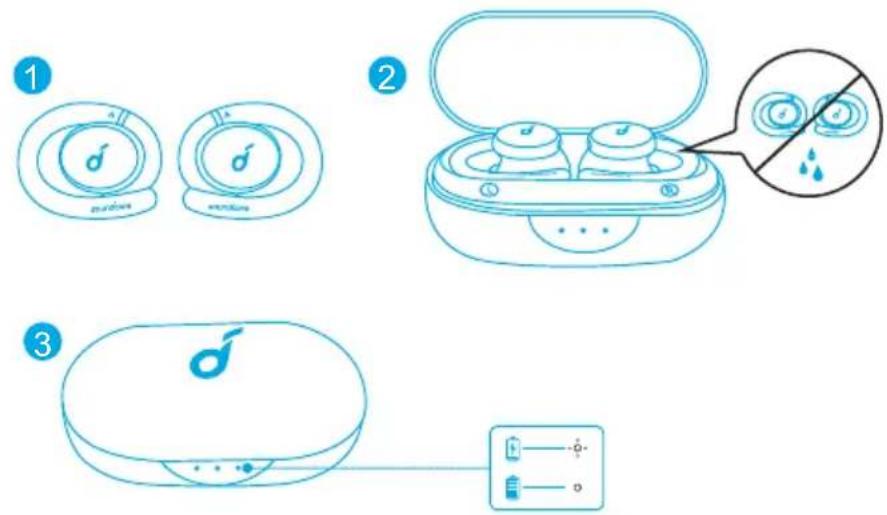

• Place the earbuds in the charging case and close it.

• Connect the charging case to the power supply by using a USB-C charging cable.

→ The LED indicator on the charging case indicates the charging status.

Diagram showing three-step product development: earbuds, charging case, and wireless earbuds with a close-up of earbuds.

Wearing

1. Choose the Ear Tips that fit your ears best.
2. Insert the earbuds into the inner canal of your ears and turn gently until you find the most comfortable and secure position.

XSSL M XL

- Your earbuds come with 5 pairs of Ear Tips, among which Medium-sized are pre-installed.

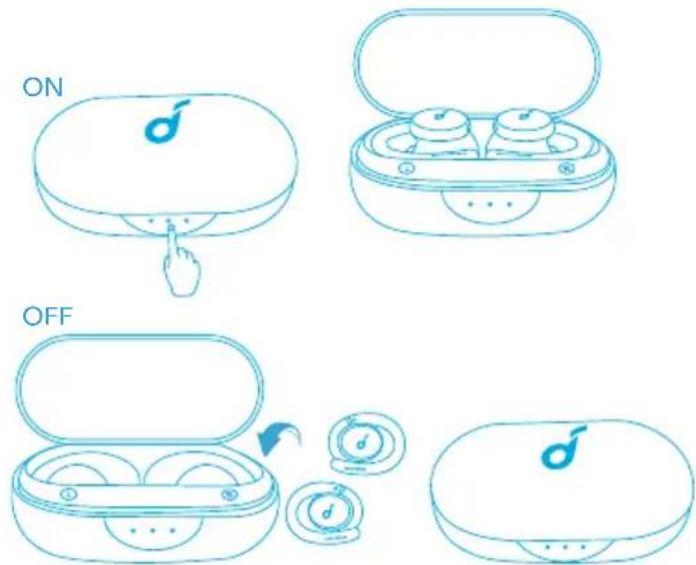

Powering On/Off

- Open the charging case, the earbuds will automatically power on.

• To power off, place the earbuds into the charging case and close it.

ON OFF

- The earbuds will automatically power off after 10 minutes if no device is connected.

- To manually power on, press and hold the multi-function button on both earbuds for 3 seconds.

Bluetooth Pairing

1. Open the charging case, and press the button on the charging case for 3 seconds to enter Bluetooth pairing mode.

- The 3 LED indicators on the charging case will flash white in sequence continuously.

1. Select "Soundcore Sport X10" on your device's Bluetooth list to connect.

- When successfully connected, the 3 LED indicators will turn white for 3 seconds and then turn off.

Soundcore Sport X10 ON Soundcore Sport X10 3s PAIRING CONNECTED 3s...

- Pairing with another device: Place the earbuds in the charging case and leave the case open. To enter pairing mode, press and hold the button on the case for 3 seconds until the 3 LED indicators flash white in sequence continuously.

• Each time you power on your Soundcore earbuds, they will automatically connect to your last successfully connected device if available within the Bluetooth range.

- Mono mode: When Bluetooth connected, you can use either one of the earbuds only by placing the other one into the charging case.

- When powered on and connected, if either one of the earbuds is out of battery and powered off, you can keep using the other one.

- When you are on a call, place either one of the earbuds into the charging case, and the microphone in the other earbud will be activated.

Controls

Stereo Mode

Play/Pause Press twice (R)
Next track Press twice (L)
Volume up Press once (R)
Volume down Press once (L)
ANC Press and hold for 2 seconds(R/L)
Answer a call Press once(R/L)
End a call/Reject a call Press and hold for	2 seconds(R/L)

Mono Mode

Play/Pause Press twice
Answer a call Press once
End a call/Reject a call	Press and hold for 2 seconds
Activate Siri or other voice assistant software

Soundcore App

Download the Soundcore App to customize the user interface (e.g. adjust volume, control playback, activate Siri), adjust EQ, switch ANC modes, update firmware, and explore more.

Soundcore GET IT ON Google Play Download on the App Store Google Play and the Google Play logo are trademarks of Google Inc. Apple and the Apple logo are trademarks of Apple Inc. T2:34 SPORT X10 soundcore HEAR IT FEEL IT. Breathe Start Uplinker Growth Authere Sound Sprint Update Firmware Vegas 10.22 Sun 1,500 Uplinker 1 Open download and play info online atting 1 Power the website are placed in the charging area and the open browser and the app store open a computer 1 Open instructions allow it to use your phones.

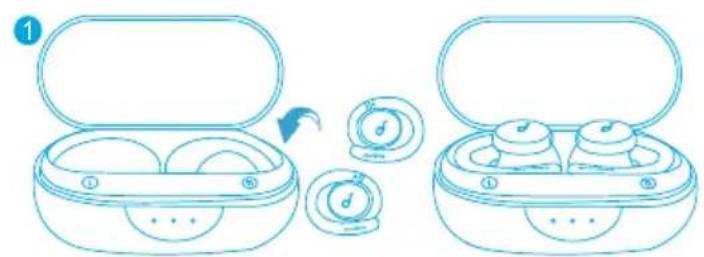

Reset

- You might need to reset the earbuds if you experience any connectivity problems or function issues.

1. Place the earbuds in the charging case and leave the case open.
2. Press and hold the button on the charging case for 10 seconds until the LED indicators on the case flash white 3 times and then flash in sequence. This confirms that the reset was successful and your earbuds can be connected normally.

Line drawing of two wireless earbuds with accessories, one open and one closed, showing a transformation (no text or symbols)

2 10s x3

Specifications

Specifications are subject to change without notice.

Input 5 V 0.5 A	---
Rated output power 5 mW (@1% THD)
Battery capacity	55 mAh x 2 (earbuds);540 mAh (charging case)
Charging time 2 hours
Playtime(varies by volume level and content)	Up to 8 hours(Total 32 hours with the charging case)
Driver size 10 mm x 2
Frequency response 20 Hz - 20 kHz
Impedance 32 Ω
Waterproof level IPX7(earbuds)
Bluetooth version 5.2
Bluetooth range 10 m / 33 ft
