Product Type	Commercial Microwave Oven
Brand	Samsung
Model	MJ26A6053AT
External Dimensions (W x H x D)	484 x 368 x 557 mm
Internal Dimensions (W x H x D)	370 x 190 x 370 mm
Capacity	26 liters
Net Weight	33.1 kg
Power Supply	230-240 V ~ 50 Hz, 12.7 A
Microwave Output Power (IEC-705)	1500 W
Operating Frequency	2450 MHz
Power Levels	5 levels: High (100% - 1500 W), Medium (70% - 1050 W), Low (50% - 750 W), High Defrost (25% - 375 W), Low Defrost (13% - 195 W)
Main Functions	Cooking, reheating, defrosting, memory (50 programs), two-step cooking, +20s button, Double Quantity button, clock, program lock, adjustable sound signal
Installation Type	On worktop (placed), stackable with provided support
Maintenance and Cleaning	Interior cleaning with damp cloth, removable interior top, removable air filter washable with soapy water, filter cleaning interval programmable (500 h default)
Safety	Door safety lock, program lock, automatic shut-off in case of overheating, open door detection, precautions against microwave exposure
Spare Parts and Repairability	Lamp (light source, category G) not replaceable by user, air filter, turntable. Repair by authorized technician only.
Included Accessories	Stacking support (for high installation), turntable
Usage	Professional and domestic (reheating food, defrosting)
General Information	Samsung warranty does not cover travel for explanations or incorrect installation. Complies with safety standards.

Frequently Asked Questions - MJ26A6053AT SAMSUNG

How to set the clock on the Samsung MJ26A6053AT microwave oven?

To set the clock, press the + 20 sec button once for 24h format or twice for 12h format. Use the numeric keys to enter the time (at least three digits, e.g., 5,0,0 for 5:00). Press START to confirm. The clock synchronizes every 10 seconds.

How to use the memory function to program a cooking?

Press and hold the PROGRAM LOCK and PROGRAM buttons simultaneously for 2 seconds until 'PROG' appears on the screen. Select a memory number (numeric keys), choose the power level with the POWER LEVEL or DEFROST button, set the cooking time with the numeric keys, then repeat the key combination to save. You can program up to 50 memories.

What does error code E41 mean and how to fix it?

Code E41 indicates a HVT-I power error (internal circuit system failure). Unplug the power cord, wait 10 seconds, then plug it back in. If the code persists, contact the nearest Samsung repair center.

How to clean the microwave air filter?

Unplug the appliance. Remove the bolts at the ends of the filter, pull it gently to release it. Wash it with warm soapy water, dry it, and replace it. The FILTER indicator lights up after 500 hours of use to remind you to clean it.

Can I use metal containers in this microwave?

No, never use metal containers, dishes with gold or silver trim, or metal ties. They can cause arcing or fire. Use only microwave-safe containers (glass, ceramic, heat-resistant plastic).

How to increase cooking time during operation?

Press the + 20 sec button during cooking to add 20 seconds per press, without exceeding the maximum allowed time for the selected power level.

How to change the sound level of the end-of-cooking signal?

Press and hold the CANCEL and 0 buttons simultaneously for 2 seconds. The sound cycles to the next level (Sound 1 → Sound 2 → Sound 3 → Sound 0 = silent). Default setting is Sound 2.

Is the defrost function automatic?

Defrosting is not automatic in terms of weight detection. You must select the level (HIGH DEFROST or LOW DEFROST) and manually set the time (max. 50 min). The oven defrosts at reduced power.

How to program a two-step cooking (e.g., defrost then cook)?

Use multi-step cooking. After selecting the first power level and time, repeat the operation for the second step. You cannot set the same power level or defrost twice. Press START to start the sequence (Step I → Step II).

What to do if the oven does not heat but the fan is running?

First check that the door is properly closed and the seals are clean. If error code E42 appears (HVT-II power error), unplug and wait 10 seconds before plugging back in. If the problem persists, contact a Samsung authorized technician. Do not attempt to repair yourself.

USER MANUAL MJ26A6053AT SAMSUNG

Microwave Oven (COMMERCIAL)

Owner's Instructions & Cooking Guide

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

MJ26A6093 (1850 WATT)

MJ26A6053 (1500 WATT)

imagine the possibilities

Thank you for purchasing this Samsung product.

SAMSUNG

CONTENTS USING THIS INSTRUCTION BOOKLET

Using this instruction booklet....2

Important safety information 2

Legend for symbols and icons....2

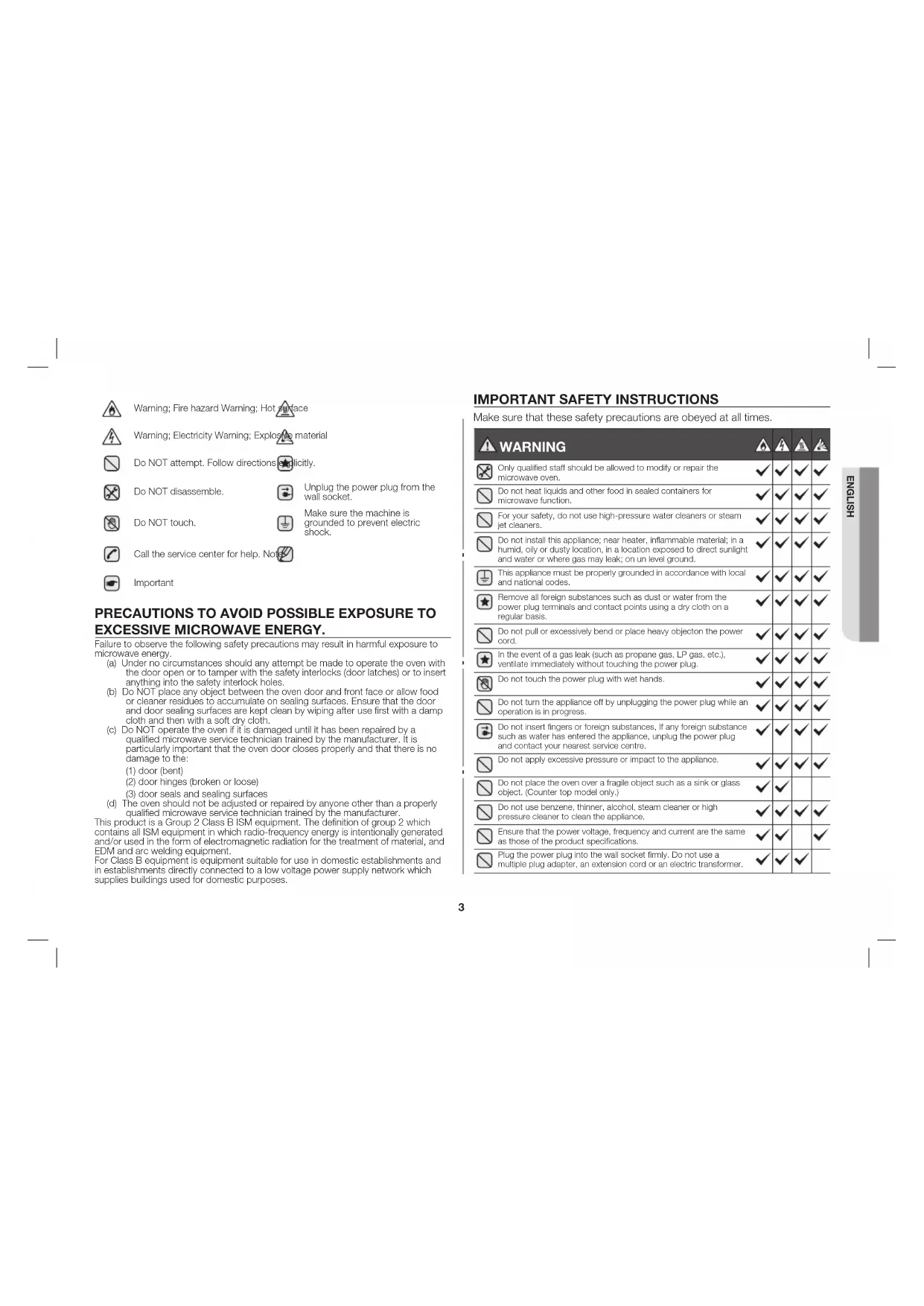

Precautions to avoid possible exposure to excessive microwave energy....3

Important safety instructions....3

Correct disposal of this product (waste electrical & electronic equipment)....5

Installation & Wiring Instructions....6

Lamp (light source)....6

Oven 6

Control Panel....7

Display 7

Setting the time....7

Cooking Instructions....8

Cooking/Reheating....8

Power levels and Time Variations....9

Stopping the cooking 10

Repeat Feature....10

Using +20s Pad....10

Using the Defrost Feature....11

Memory Pads Programming....11

How to Operate Memory Cooking....13

How to Operate Double Quantity Pad....13

Double Quantity Pad Programming....14

Controlling Beep Tone 14

Programming Air Filter Clean Time....15

Error Codes....15

Hidden Keys....16

Care of Your Microwave Oven....16

Cleaning the Ceiling Cover....17

Cleaning the Air Filter....17

Installation Instructions for Stacking....17

Cookware guide....18

Cleaning your microwave oven....22

Storing and repairing your microwave oven....22

Technical specifications 23

You have just purchased a SAMSUNG microwave oven. Your Owner's Instructions contain valuable information on cooking with your microwave oven:

• Safety precautions
• Suitable accessories and cookware
• Useful cooking tips
• Cooking tips

IMPORTANT SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Before using the oven, confirm that the following instructions are followed.

• Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

LEGEND FOR SYMBOLS AND ICONS

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

Warning; Fire hazard Warning; Hot surface

Warning; Electricity Warning; Explosive material

Do NOT attempt. Follow directions explicitly.

Do NOT disassemble.

Do NOT touch.

Call the service center for help. Not

Important

→

	Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.	√	√	√
	Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre.	√	√	√	√
	Appliances are not intended to be operated by means of an external timer or separate remote-control system.	√	√
	Do not pour or directly spray water onto the oven.	√	√
	Do not place objects on the oven, inside or on the door of the oven.	√	√	√
	Do not spray volatile material such as insecticide onto the surface of the oven.	√	√
	Children should be supervised to ensure that they do not play with the appliance. Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.	√	√	√	√
	The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.	√	√	√	√
	Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vspours may contact a hot part of the oven.	√		√	√
	The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet. (Counter top model only.)	√	√	√	√
	WARNING: The appliance and its accessible parts become not during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.	√	√	√	√
	WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.	√	√	√	√
	This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.	√	√	√	√
	WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.	√	√	√	√

	WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.	√	√	√	√
	WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.	√	√	√
	WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.	√		√	√
	WARNING: Accessible parts may become hot during use. To avoid burns young children should be kept away.	√		√
	WARNING: Microwave heating of beverages can result in delayed eruptive boiling,therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating.In the event of scalding, follow these FIRST AID instructions:Immense the scalded area in cold water for at least 10 minutes.Cover with a clean, dry dressing.Do not apply any creams, oils or lotions.	√	√	√	√
	During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.	√		√	√
	WARNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;			√
	The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.	√	√	√	√
	This oven should be positioned proper direction and height permitting easy access to cavity and control area.	√	√	√	√
	Before using the your oven first time, oven should be operated with the water during 10 minute and then used.	√	√	√	√
	This microwave oven has to be positioned so that plug is accessible.If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.	√	√	√	√
	during cleaning conditions the surfaces may get hotter than usual and children should be kept away. (Cleaning function model only.)		√	√
	Excess spillage must be removed before cleaning and utensils which state in cleaning manual can be left in the oven during cleaning. (Cleaning function model only.)	√	√	√	√

	√	√	√
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.	√
WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.	√
The temperature of accessible surfaces may be high when the appliance is operating	√
The door or the outer surface may get hot when the appliance is operating	√

CAUTION
Only use utensils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc. Remove wire twist ties from paper or plastic bags. Reason: Electric arcing or sparking may occur and may damage the oven.	√		√
When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;	√		√
Do not use your microwave oven to dry papers or clothes.	√		√
Use shorter times for smaller amounts of food to prevent overheating and burning food.	√		√
If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;	√		√
The oven should be cleaned regularly and any food deposits removed;	√	√
Do not immerse the power cable or power plug in water and keep the power cable away from heat.	√	√
Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc.			√
Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself off automatically, and will remain off until it cools sufficiently.	√		√

	Always use oven mitts when removing a dish from the oven to avoid unintentional burns.		√
	Do not touch heating elements or interior oven walls until the oven has cooled down.		√
	Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.		√
	Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.		√
	Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally.	√		√
	Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.	√		√
	Install the oven in compliance with the clearances stated in this manual. (See installing your microwave oven.)	√		√
	Take care when connecting other electrical appliances to sockets near the oven.	√	√	√

CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations o.g. REACH, WEEE, Batteries, visit : www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

INSTALLATION & WIRING INSTRUCTIONS

IMPORTANT NOTE :

The mains lead on this equipment is supplied with a mouldedplug incorporating a fuse.

The value of the fuse is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to BS1363 of the same rating must be used. Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug.

Replacement covers are available from your Dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your Dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket, as there is a risk of shock hazard from the bared flexible cord.

LAMP (LIGHT SOURCE)

This product contains a light source of energy efficiency class < G>.

The lamps and control gears are not user-serviceable. To replace the lamps or control gears of the product, contact a local Samsung service centre.

OVEN

21 3 4 08:36 6 75 11 8 9 10

1. DISPLAY
2. CONTROL PANEL
3. START BUTTON
4. CEILING COVER
5. DOOR HANDLE

6. DOOR

7. DOOR LATCHES

8. PLATE TRAY
9. AIR FILTER
10. SAFETY INTERLOCK HOLES
11. OVEN LAMP

CONTROL PANEL

1 2 3 4 5 6 7 8 9 10

1. DISPLAY
2. PROGRAM PAD
3. NUMBER PADS (Time, Memory Programming)
4. PROGRAM LOCK PAD

5. POWER LEVEL SELECTOR PAD

6. DEFROST SELECTOR PAD

7. DOUBLE QUANTITY PAD
8. +20s PAD (One Touch Cook Pad)
9. CANCEL PAD
10. START BUTTON

DISPLAY

PROG FILTER DATA 1 2 3 4 5 6 7 8

1. PROGRAM INDICATOR
2. TIME DISPLAY
3. AIR FILTER CHECK TIME DISPLAY INDICATOR
4. MEMORY PAD NUMBER INDICATOR
5. POWER LEVEL INDICATORS
6. DEFROST INDICATORS
7. DOUBLE QUANTITY INDICATOR
8. DATA CHECK INDICATOR

SETTING THE TIME

Your microwave oven has an inbuilt clock. When power is supplied, ":0", "88:88" or "12:00" is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12-hour notation. You must set the clock:

• When you first install your microwave oven
  • After a power failure

Do not forget to reset the clock when you switch to and from summer and winter time.
Auto energy saving function

If you do not select any function when appliance is in the middle of setting or operating with temporary stop condition, function is canceled and clock will be displayed after 25 minutes.

Oven Lamp will be turned off after 5 minutes with door open condition.

1. To display the time in the... Then press '+20s'

24-hour notation

12-hour notation

Once

Twice

1. Use NUMBER PADS button to enter the current time. You must press at least three numbers to set the clock. If the current time is 5:00 enter, 5,0,0.

1. When the right time is displayed, press the START BUTTON to start the clock. The clock sets by itself within 10 seconds.

If you don't want to setting the time, press the CANCEL PAD before starting your cooking.
If you want to change or reset the time setting, plug your oven again.

COOKING INSTRUCTIONS

The IEC Power Output rating is an internationally standardised rating, so all microwave manufacturers now use the same method of measuring power output.

If food packaging gives cooking instructions based on IEC Power ratings, set cooking times according to the IEC Power of your oven.

For example :

If the cooking instructions are based on a 650W oven, then you will need to reduce some cooking time for the MW87L (850W) Ready meals are now very convenient and popular. These are meals which are already prepared and cooked by the food manufacturer, and then frozen, chilled or vacuum sealed for long life.

Increasingly, heating times for such ready meals are being based on the Heating Categories A, B, C, D and E.

On this instance, simply match the heating category of your oven to the instructions on the food package, and set your timer accordingly. For example: If the heating instructions are 3 minutes on HIGH for a D category oven, then you will need to set your timer for less than 3 minutes on HIGH for the MJ26A6093 (E category).

Always remember that cooking instructions are intended only as a guide. If you have followed the instructions and the food is still not piping hot throughout, simply return it to the oven and cook it until it is.

COOKING/REHEATING

One-stage cooking

Make sure the oven is plugged into a properly earthed electrical outlet. Open the door(The oven lamp will be turned on.). Put the food into a suitable container, place it in the centre of the oven and then close the door securely (The oven lamp will go off.).

1. Select the desired power level by pressing the Power Level Selector pad.

Result: The selected power level will be displayed in the display window.

1. Set the desired heating time by pressing the NUMBER pads.

Result: The selected time is displayed in the display window.

The maximum time according to each cooking power level can be referred to in the title "Power Levels ans Time Variations" on page 9. The NUMBER pads will not operate or respond when you press a cooking time exceeding the maximum value. It is not possible to set a cooking time for longer than the maximum time allowed on the chosen program. It is advisable to press CANCEL and to enter a new power level and cooking time.

1. Press the ◁button.

Result: The oven lamp and cooling fan will be turned on. Heating will start. The time on digital display will count down.

11:59

When all time is elapsed, the end of cycle Beep Tone will sound 4 times and all heating will stop. The oven lamp will go off. For 1 min, the cooling fan will keep working in order to cool down the interior parts. During the time, the fan will not stop even when you open the door. 1 min later it will stop. Food may be removed from oven whilst the fan is still running. During the time, the fan will not stop even when you open the door. 1 min later it will stop. Food may be removed from oven whilst the fan is still running.

1. Open the door and take the food out.

Close the door. The oven lamp will go off.

Whilst in a heating cycle, one press on ( pad stops the oven. You can restart it by pressing the ( button or a second press on ( pad will cancel the selected program. While NOT in a heating cycle, one tap on ( pad cancels the selected program. You can press +20s pad one or more times in order to add the cooking time by 20 seconds. But you can not exceed the maximum time per power level allowed for power level selected.

When you first plug in the power cord, the oven beeps once and all the indicators show for 5 sec in the display window.

When heating cycle is completed and you open the door, the oven lamp automatically turns on and goes off 5 min later.

When you open the door whilst in a heating cycle, the oven stops operating and the oven lamp automatically turns on for 5 min and goes off 5 min later. If you leave the oven door open for more than 1 min, the oven beeps once every minute.

Multi-stage cooking

1. Select the desired power level by pressing the POWER LEVEL Selector pad or DEFROST pad. Result: The selected power level will be displayed in the display window.

1. Set the desired heating time by pressing the NUMBER pads. Result: The selected time is displayed in the display window.

The maximum time according to each cooking power level can be referred to in the title "Power Levels and Time Variations" on page 9. The NUMBER pads will not operate or respond when you press a cooking time exceeding the maximum value. It is not possible to set a cooking time for longer than the maximum time allowed on the chosen program. It is advisable to press CANCEL and to enter a new power level and cooking time.

1. Repeat steps 1 and 2 for I or II stage memory programming.

2. Press the button. Result: The oven lamp and cooling fan will be turned on. The oven will automatically start heating according to pre-programmed cooking time and power level.(I stage → II stage). The time on digital display will count down.

You can not set up the same POWER LEVEL or DEFROST. It operates as setting up sequence.

POWER LEVELS AND TIME VARIATIONS

The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity. You can choose between the power levels below.

Power level	MJ26A6093 MJ26A6053
	Percentage Output Percentage Output
HIGH (###)	100% 1850 W 100% 1500 W
MEDIUM (###)	70% 1295 W 70% 1050 W
LOW (###)	50% 925 W	50%	750 W
HIGH DEFROST (###)	20% 370 W	25%	375 W
LOW DEFROST (###)	10% 185 W	13%	195 W

The cooking times given in recipes and in this booklet correspond to the specific power level indicated.

Power level	Max. Time
HIGH (###)	25 mins
MEDIUM (###)	40 mins
LOW (###)	40 mins
HIGH DEFROST (###)	50 mins
LOW DEFROST (###)	50 mins

STOPPING THE COOKING

You can stop cooking at any time so that you can:

• Check the food
• Turn the food over or stir it
• Leave it to stand

To stop the cooking... Then...

Temporarily	Open the door or press ( ☑ pad once.Result: Cooking stops.To resume cocking, close the door and press ( ☑ again.
Completely	Press the ( ☑ pad twice.Result: The cooking settings are cancelled.

If you want to cancel any cooking settings before starting cooking, simply press CANCEL ( once.

REPEAT FEATURE

1. You can repeat the previous cooking setting (regardless of manual or automatic memory heating) by pressing the START (☑ button. The oven starts with exactly the same heating time and power level that were used in the last operation.

1. The repeat feature will be cancelled once the power source is cut off.

USING +20S PAD

You can increase the cooking time by pressing the +20ssec pad while heating is being done.

A cooking time increases by 20 seconds at each press on +20s pad. But it can not exceed the maximum time.

Like traditional cooking, you may find that, depending on the food's characteristics or your tastes, you have to adjust the cooking times slightly. You can:

• Check how cooking is progressing at any time simply by
• opening the door
• Close the door
• Increase the remaining cooking time.

Before operating the oven, times can be increased/decreased using either the time pads or +20s button. During the operating, time may only be added by using the +20s button.

+20s

USING THE DEFROST FEATURE

The Defrost feature enables you to defrost meat, poultry or fish.

Only use containers that are microwave-safe.

Open the door. Place the frozen food in the centre of the plate tray. Close the door.

1. Press the Defrost selector pad to set DEFROST HIGH ( ) or DEFROST LOW ( ) as you wish.

Result: The DEFROST indicator appears in the display.

1. Press the NUMBER pads to set the defrosting time. (Max. 50 min)

1. Press the button.

Result: Defrosting begins.

49:59

It is not possible to set a defrosting time for longer than 50min. The defrost indicator will flash and it is advisable to press CANCEL (☑) and enter a new defrost level and time.

When the oven was operating for longer than 25 min under Defrosting cycle, you can NOT change the power level from Defrosting to Heating(Cooking/Reheating) mode.

MEMORY PADS PROGRAMMING

One-stage

1. Hold down PROGRAM LOCK (F) and then press PROGRAM (P) pad. Hold together for 2 sec.

Be sure to press the pads firmly.

Result: PROG indicator appears in the digital display.

1. Press appropriate NUMBER pad for the desired memory number.

Result: Selected memory program code appears below the PROGRAM indicator.

1. Select power level by pressing the POWER LEVEL pad or DEFROST pad.

Result: Default power level HIGH appears in the display at first press of the POWER LEVEL pad.

Press the POWER LEVEL pad or DEFROST pad one or more times until you get the desired power level.

1. Press NUMBER pads to set the cooking time.

The maximum time according to each cooking power level can be referred to in the title "Power Levels and Time Variations" on page 9. The

NUMBER pads will not operate or respond when you press a cooking time exceeding the maximum value.

It is not possible to set a cooking time for longer than the maximum time allowed on the chosen program. It is advisable to press CANCEL and to enter a new power level and cooking time.

1. Hold down PROGRAM LOCK ( ) and then press PROGRAM (P) pad. Hold together for 2 sec once again.

Result: PROG indicator and memory number indicator blink 3 times in the digital display with a beep sound. And then the display goes blank.

Caution: Be sure to press the pads firmly in the right position.

2:00

1. When you want to program more, repeat the procedures above again.

Memory programs are available up to 50 items.

Make sure the unit is properly programmed.

After programming is finished, all you have to do for memory cooking is to press the NUMBER pad. Then the selected memory program automatically starts cooking.

Multi-stage

1. Hold down PROGRAM LOCK ( ) and then press PROGRAM (P) pad. Hold together for 2 sec.

Be sure to press the pads firmly.

Result: PROG indicator appears in the digital display.

1. Press appropriate NUMBER pad for the desired memory number.

Result: Selected memory program code appears below the PROGRAM indicator.

1. Select power level by pressing the POWER LEVEL pad or DEFROST pad.

Result: Default power level HIGH appears in the display at first press of the POWER LEVEL pad.

Press the POWER LEVEL pad or DEFROST pad one or more times until you get the desired power level.

1. Press NUMBER pads to set the cooking time.

The maximum time according to each cooking power level can be referred to in the title "Power Levels and Time Variations" on page 9. The

NUMBER pads will not operate or respond when you press a cooking time exceeding the maximum value.

It is not possible to set a cooking time for longer than the maximum time allowed on the chosen program. It is advisable to press CANCEL and to enter a new power level and cooking time.

1. Repeat steps 3 and 4 for I or II stage memory programming.

2. Hold down PROGRAM LOCK (±) and then press PROGRAM (P) pad. Hold together for 2 sec once again.

Result: PROG indicator and memory number indicator blink 3 times in the digital display with a beep sound. And then the display goes blank.

Caution: Be sure to press the pads firmly in the right position.

1. When you want to program more, repeat the procedures above again.

Memory programs are available up to 50 items.

Make sure the unit is properly programmed.

After programming is finished, all you have to do for memory cooking is to press the NUMBER pad. Then the selected memory program automatically starts cooking.

You can not set up the same POWER LEVEL or DEFROST.

It operates as setting up sequence.

HOW TO OPERATE MEMORY COOKING

After having finished memory programming, just press the NUMBER pad of the memory number you want to select. The oven will automatically start heating according to the pre-programmed cooking time and power level.

1. Make sure the oven is plugged into a properly earthed electrical outlet.

2. Open the door.

The oven lamp will be turned on.

1. Put the food into a suitable container, place it in the centre of the oven and then close the door securely.

Result: The oven lamp will go off.

1. Press NUMBER pad.

Result: The selected memory program automatically starts heating. But, NUMBER pad 1, 2, 3 operate after 2 seconds.

HOW TO OPERATE DOUBLE QUANTITY PAD

1. Press the Double Quantity pad.

1. Press the desired memory NUMBER pad.

Result: Cooking time which was multiplied by the preset factor appears in the display and cooking starts with time digits counting down.

DOUBLE QUANTITY PAD PROGRAMMING

1. Hold down ( ) and then press ( ) and. Hold together for 2 seconds.

1. Select desired program code by using NUMBER pads.

1. Press NUMBER pads to set the magnification factor within the range from 1.00 to 9.99.

Default factor is 1.65 preset from the manufacturer for increasing the cooking time. Make sure that you set a correct factor between 1.00 and 9.99 for each memory code number.

1. Press ( ◊ button.

Press pad to exit the programming mode. Though you can successfully set a double quantity factor whose setting might result in excess of the maximum time allowed for each power level, the oven does not operate exceeding the maximum time.

Double Quantity Factor Editing

Feature Key	Entry Display Remark
Double Quantity Factor Edit	Hold down CANCEL ( Ⓤ and then ( ✗)2 pad.		Hold down for 2 sec.
	Code No.		After 1 sec, default value shows in the display window.
	(Input desired factor value.)		1.00 - 9.99 available (Change the factor if required.)
	START ( ⏻		If you don't want to change more, press CANCEL to exit the editing mode.
	New Code No.		Skip this step if not necessary.
	(Input desired factor value.)		Skip this step if not necessary.
	START ( ⏱		Skip this step if not necessary.
	CANCEL ( Ⓐ	(Mode cancel) This exits the editing mode.

You can select the beep tone you require. There are 4 sound levels available.

Hold down CANCEL ( ☑ ) and then press NUMBER

0 pad. Hold together for 2 seconds.

Result: Beep tone is changed to one level higher than current one.

Beep tone 0 does not make beep sound.

Settings are circulating whenever you press the hidden keys in the following order.

Snd 0 → Snd 1 → Snd 2 → Snd 3 → Snd 0 (No sound)

Default tone is Snd 2.

PROGRAMMING AIR FILTER CLEAN TIME

When the air filter check indicator (FILTER) appears in the display window after a certain time of use, you should clean the air filter according to the instructions "Cleaning the Air Filter" on page 17 in this booklet. Then follow the procedure as below if you want to change the air filter clean time.

1. Hold down PROGRAM LOCK (±) and then press NUMBER 3 pad. Hold together for 2 seconds.

Result: The display will show the length of time in hours between cleaning the air filter you have programmed in or the original time preset by the manufacturer.

Default clean time is 500 hours in terms of pure oscillating time, not the continuity time.

1. Press NUMBER pads to set the desired clean time.

You can set up to 999 hours.

1. Hold down PROGRAM LOCK (手) and then press NUMBER 3 pad. Hold together for 2 seconds in order to save the new value. This completes the programming of the air filter clean time.

1. Press CANCEL (☑) pad to return to cooking mode.

After the clean time has expired, you should clean the air filter. See page 17.

ERROR CODES

Error Items	Code	Error Beep	Cause Remedy
Power frequency Error (50/60Hz)	E1 - Power		frequency is other than 50 Hz.	Unplug the power cord plug and check if the power frequency is 50 Hz.Plug the power cord in 50 Hz power source and see If “E1” appears. If the error code is displayed again even after the correct power source is provided, contact the nearest service centre.
HVT-I Power Error	E41 One long beep for 2 sec		The circuitry inside the oven is not working correctly.	Unplug the power cord and wait for 10 seconds.Plug the power cord in again and check if the error code “E41” appears again. If the symptom persists, contact the nearest service centre.
HVT-II Power Error	E42 One long beep for 2 sec		The circuitry inside the oven is not working correctly.	Unplug the power cord and wait for 10 seconds.Plug the power cord in again and check if the error code “E42” appears again. If the symptom persists, contact the nearest service centre.
EEPROM Error	E5 One long beep for 2 sec		Memory IC (EEPROM IC) is not working correctly.In this case, other features except for memory function work properly.(You can operate the oven manually)	Press CANCEL pad one or more times and try to start a memory heating. If the error code “E5” persists, contact your nearest service centre.

HIDDEN KEYS

Note: Press Key 1 and then the next one. Hold for 2 secs.

Feature	Key Entry		Display Remark
	Key 1 Next
Continuity time total	CANCEL(∅)	1	0	Hold together for 2 sec. Unit: 10 hrs.
Magnetron oscillating time total	CANCEL(∅)	2	0	Hold together for 2 sec. Unit: 1 hr.
Number of times of use by memory program code	CANCEL(∅)	START	- : -	Hold together for 2 sec.
	Code No.		- : -	-
	(Data display after 2 sec.)		739	739 times of use
	(New code can be set after data display)		2	-
	CANCEL (∅)		(Mode cancel)	-
Heating time per memory program code(Automatic sequential display)	CANCEL(∅)	(P)	2:00	Hold together for 2 sec.
	-		(Sequentially displays for 3 sec from 1 to 30)	-
	CANCEL (∅)		(Mode Cancel) -

Cleaning the Microwave Oven

1. Unplug the oven from the electrical socket before cleaning.

2. Clean the inside of the oven. Wipe up all spills with a damp cloth. Kitchen detergent solution may be used if the oven gets too dirty. Do not use harsh detergents or abrasives.

If food remnant or spilled liquids stick to the oven walls, or between door seal and door surface, they will absorb microwaves possibly resulting in arcing or sparks.

1. Clean the outside of the oven with soap and water, then dry with a soft cloth.

Caution: Make sure that water does not get into the back ventilation or control panel opening.

1. When you clean the window of the door, be sure to use a soft cloth after washing with very mild soap and water. Do not use window cleaner as the front door can be scratched by harsh soap or cleaners.

CLEANING THE CEILING COVER

1. Hold side stoppers of ceiling cover with both hands and pull them in and down. Then take the ceiling cover out of the oven cavity.
2. Rinse ceiling cover in soapy water or Food Sanitizer Solution.
3. Be sure to replace the ceiling cover before using the oven.

CAUTION : Ceiling cover must be in place securely when you use the oven. When you removed the Ceiling Cover for the purpose of cleaning, be sure to be extremely careful about the exposed inside components on the top of the oven cavity. If any of them are deformed, abnormal

Ceiling Cover

symptom can happen such as arcing or sparks during operation. In case of such problem, contact the nearest after-sales service centre.

CLEANING THE AIR FILTER

Clean the Air Filter regularly according to the following instructions. The oven may have problems when the Air Filter becomes clogged with dust.

1. Remove the bolt at both ends of the Air Filter.
2. Lift the Air Filter off the post carefully.
3. Wash this filter in warm soapy water.
4. Be sure to replace the Air Filter before using the oven.

Line drawing of a microwave oven with control panel and display (no text or symbols)

If the Air Filter becomes clogged with debris, this will cause an overheating problem on the oven.

If the want to change the air filter clean time, refer to "Programming Air Filter Clean Time" in page 15.

INSTALLATION INSTRUCTIONS FOR STACKING

Important

1. Disconnect the power cord from the wall socket before attempting installation.
2. For stacking installation, you must use the "bracket plate" which is enclosed with this unit.
3. The maximum stacking height is two units.

Stacking the two units is limited to the following models.

CAUTION : Be sure the oven cavity is empty.

Installation

1. Stack two units together.
2. Remove 6 screws as shown in the figure.
3. Place the Bracket-plate to join the two units.
4. Attach and tighten 6 screws as shown in the figure here.
5. Ensure the top oven is at a safe and workable height.

Screen Bracket-Place

COOKWARE GUIDE

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware Microwave-	Safe	Comments
Aluminum foil	√ x	Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
China and earthenware	√	Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless deco-rated with a metal trim.
Disposable polyester cardboard dishes	√	Some frozen foods are packaged in these dishes.
Fast-food packaging
• Polystyrene cups containers	√	Can be used to warm food. Overheating may cause the polystyrene to melt.
• Paper bags or newspaper	x	May catch fire.
• Recycled paper or metal trims	x	May cause arcing.
Glassware
• Oven-to-tableware	√	Can be used, unless decorated with a metal trim.
• Fine glassware	√	Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly.
• Glass jars	√	Must remove the lid. Suitable for warming only.

Cookware Microwave-	Safe	Comments
Metal
• Dishes	✗	May cause arcing or fire.
• Freezer bag twist ties	✗
Paper
• Plates, cups, napkins and Kitchen paper	√	For short cooking times and warming. Also to absorb excess moisture.
• Recycled paper	✗	May cause arcing.
Plastic
• Containers	√	Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.
• Cling film	√	Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.
• Freezer bags	√✗	Only if biolable or oven-proof. Should not be airtight. Prick with a fork, if necessary.
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

√ : Recommended

√X : Use Caution

X : Unsafe

Cooking Guide
F : Frozen C : Chilled

Recipe Method	Power Level	Timing		Stand Time
		1850W	1500W
BREAD & PASTRIES
To Defrost
Vienna Baton 9" F		DEFROST 1 ( [IMAGE]	0'45" 0	50" 5 mins
Vienna Baton 9" X 2 F		DEFROST 1 ( [IMAGE]	1'10" 1	15" 5 mins
Gateaux, ind. Slice F	Place on plate DEFROST 2 ( [IMAGE]	2'30" 2	40" 5 mins
To warm
Quiche 11" sliced 136g	Place on plate DEFROST 1 ( [IMAGE]HIGH 0'40" 0'45" 1 min
Mince pies ind. X 2 F	Remove from tin foil Place on plate	HIGH 0'10" 0'15" 1 min
Fruit pie F Place on plate HIGH 0'40" 0'45" 1 min
Croissant X 2 F Place on plate HIGH 0'05" 0'10" 1 min
Pastry, baked 227g C	Place on plate HIGH 0'45" 0'55" 1 min
Chicken & mushroom pie X 2 C	Remove foil. Place on plate	HIGH 0'45" 0'55" 1 min
Chicken & mushroom pie C	Place on plate, remove foil	HIGH 0'30" 0'40" 1 min
SNACK & STARTERS
To cook
Bacon, rasher C Place on rack HIGH 1'30" 1'40" 1 min
Eggs, poached X 2 C	Place in ramekins	HIGH 0'30" 0'40" 1 min

Recipe Method		Power Level	Timing		Stand Time
			1850W	1500W
Eggs, scrambled X2 C	Beat eggs and place in bowl	HIGH	25"-30"	30"-40"	1 min
Sausages X 2 Thick C	Pierce	MED 1'00"	1'10" 2	mins
To Reheat
Sausages Cumberland F	Place on plate	MED 2'00"	2'10" 2	mins
Full breakfast C	Cover	MED	2'30"	2'40"	1 min
Beefburgers F		HIGH 0'55"	1'05" 1	min
Chickenburger F		HIGH 0'55"	1'05" 1	min
Donner kebab 162g F		HIGH 1'00"	1'10" 1	min
Hot Dog F		HIGH 1'00"	1'10" 1	min
Pizza 190g F	Place on plate	LOW	2'30"	2'45"	2 min
Chargrilled ribs 200g F	Place on plate	MED 3'30"	3'45"	1 min
Wings of fire X 6 F	Arrange on plate, thin parts to center	HIGH 2'00"	2'15" 1	min
Baked Beans 500g	Cover and Stir half way	HIGH 2'00"	2'10" 2	mins
Baked Beans 250g	Cover and Stir half way	HIGH 1'00"	1'05" 2	mins
DESSERTS
To warm
Apple Crumble 200g F	Cover in dish	HIGH 1'20"	1'30" 2	mins
Christmas Pudding 150g C	Place in bowl	HIGH 0'20"	0'25" 2	mins
Jam Roly Poly 80g F	On a plate	HIGH 1'00"	1'05" 2	mins
Crepes Suzette 2 F	Pierce film	HIGH 0'50"	1'00" 1	min

F : Frozen
C: Chilled

Recipe Method		Power Level	Timing		Stand Time
			1850W	1500W
Suet Sponge pudding F	X 2 HIGH 0'35" 1'05" 2 minsX 1 HIGH 0'40" 0'50" 2 mins
Sponge pudding F	X 2 HIGH 0'35" 1'05" 2 minsX 1 HIGH 0'40" 0'45" 2 mins
RECIPE DISH ENTREES
To Reheat
Amorini & Stilton bake C	Place in microwave safe dish	HIGH 3'30" 3'40" 1	min
Chicken Tikka masala F	Pierce film HIGH	3'20" 3'30" 2	mins
Thai Green Chicken curry F	Pierce film HIGH	3'00" 3'15" 2	mins
Chilli con Carne F	Pierce film HIGH	3'30" 3'45" 2	mins
Chicken cooked 1/2 Chilled	Place in m/w in pierced bag	MED 4'30" 5'00" 2	mins
Lasagne 192g Place in microwave safe dish		MED 4'00" 4'15" 2	mins
Moules Marinieres 466g F	Pierce bag HIGH	2'30" 2'45" 2	mins
Salmon & Avacodo Paupiette C	Pierce bag HIGH	2'30" 2'45" 2	mins
Shepherd's pie 300g C	Place in oven and cover	MED 3'00" 3'15" 2	mins
Suet puddings chilled	Cover - place upright on microwave safe plate	LOW 4'00" 4'20" 2	mins

Recipe Method	Power Level	Timing		Stand Time
		1850W	1500W
Supreme of chicken in red pesto 312g F	Pierce bag place on plate	DEFROST 1 ( [IMAGE]HIGH 3'30" 3'45"	5'00" 5'00" 1 min
Tagliatelle carbonara C	Pierce film, place on plate	HIGH 1'40" 2'00" 1	min
Tortellini formaggio C	Place in dish and cover	HIGH 2'00" 2'15" 1	min
Vegetable Cumberland Pie C	Place in microwave safe dish	HIGH 3'20" 3'35" 1	min
Plated Meal 350g C	Covered HIGH 2'00" 2'15" 1 min
Plated Meal 700g C	Covered HIGH 3'00" 3'15" 1 min

FRESH VEGETABLES

To cook 500g

Beans, green sliced	60ml/4tbsps water cover	HIGH 3'00" 3'15" 2 mins
Brocolli, florets	60ml/4tbsps water cover	HIGH 3'00" 3'15" 2 mins
Cabbage, shredded	10tbsps water cover	HIGH 5'00" 5'30" 2 mins
Carrots, sliced	60ml/4tbsps water cover	HIGH 3'30" 3'45" 2 mins
Cauliflower, florets	60ml/4tbsps water cover	HIGH 3'30" 3'45" 2 mins
Whole Green beans	60ml/4tbsps water cover	HIGH 3'30" 3'45" 2 mins
Potatoes, jacket	Turn half way	HIGH	10'00"	11'00"

Recipe Method	Power Level	Timing		Stand Time
		1850W	1500W
Sprouts 60ml/4t baps water cover	HIGH 4'30"	4'45"	2 mins
Beans, green sliced	Cover, stir half way through cooking	HIGH 3'00"	3'15"	2 mins
Beans, whole Cover, stir half way	HIGH 4'00"	4'15"	2 mins
Brocolli Florets Cover, stir half way	HIGH 4'00"	4'15"	2 mins
Cabbage, shredded	Cover, stir half way	HIGH 4'00"	4'15"	2 mins
Carrot batons Cover, stir half way	HIGH 4'00"	4'15"	2 mins
Cauliflower, florets	Cover, stir half way	HIGH 4'00"	4'15"	2 mins
Corn on the Cob Cover HIGH 4'00"	4'30"	2 mins
Corn, whole baby	Cover, stir half way	HIGH 5'00"	3'15"	2 mins
Mushrooms, whole	Cover, stir half way	HIGH 3'00"	3'15"	2 mins
FRESH VEGETABLES
To cook 500g
Potatoes, jacket 230~290g X 1		HIGH 3'00"	4'00"	2 mins
Potatoes, Mashed X 2 Potatoes, Mashed X 4		HIGH 6'00"	6'30"	2 mins
		HIGH 10'00"	11'15"	2 mins
Ratatouille 500g HIGH 3'30"	4'00"	2 mins
Sprouts Cover, stir half way	HIGH 3'00"	3'30"	2 mins

Recipe Method		Power Level	Timing		Stand Time
			1850W	1500W
RICE, 500g
To Reheat
Rice, boiled F	Cover, stir half way	HIGH 3'00" 3'15" 2	mins
Rice, Pilau F Cover, stir half way		HIGH 3'00" 3'15" 2	mins

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces
• Door and door seals
- Plate tray

ALWAYS ensure that the door seals are clean and the door closes properly.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the of the appliance and possibly result in a hazardous situation.

1. Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.

2. Remove any splashes or stains on the inside surfaces or on the roller ring with a soapy cloth. Rinse and dry.

3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice on the turntable and heat for ten minutes at maximum power.

DO NOT spill water in the vents.
NEVER use any abrasive products or chemical solvents.

Take particular care when cleaning the door seals to ensure that no particles:

• Accumulate
• Prevent the door from closing correctly

Clean the microwave oven cavity right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury.

STORING AND REPAIRING YOUR MICROWAVE OVEN

A few simple precautions should be taken when storing or having your microwave oven serviced.

The oven must not be used if the door or door seals are damaged:

• Broken hinge
  • Deteriorated seals
  • Distorted or bent oven casing

Only a qualified microwave service technician should perform repair.

NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplug it from the wall socket
• Contact the nearest after-sales service centre

TECHNICAL SPECIFICATIONS

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model MJ26A6093 MJ26A6053
Power source 230-240 V ~ 50 Hz
Power consumption Microwave	13 A 12.7 A
Output power	1850 W(IEC-705)240 V : 1850 W230 V : 1780 W	1500W(IEC-705)240 V : 1500 W230 V : 1450 W
Operating frequency 2450 MHz
Dimensions(W x H x D)OutsideOven cavity	464 x 368 x 557 mm370 x 190 x 370 mm
Volume 26 liter
WeightNet	33.1 kg approx

MEMO

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
AUSTRIA 0800 72 67 864 (0800 SAMSUNG) www.samsung.com/at/support
BELGIUM 02 201 24-18		www.samsung.com/be/support(Dulch)www.samsung.com/be fr/support(French)
DENMARK 707 019 70 www.samsung.com/dk/support
FINLAND 030-0227 515 www.samsung.com/fi/support
FRANCE 01 48 60 00 00 www.samsung.com/tr/support
GERMANY 08106 77 555 77 www.samsung.com/de/support
ITALIA 800 SAMSUNG (800.726/964) www.samsung.com/vit/support
CYPRIUS	8009 4000 only from landline, toll tree	www.samsung.com/gr/support
ORIFEEF	80111 SAMSUNG (80111 726 7864)only from land line(180) 210 689/691 from mottle andland line	www.samsung.com/gr/support
LUXEMBURG	261 03 710 www.samsung.com/be_tr/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
PORTUGAL	808 207 267	www.samsung.com/pt/support
SPAIN	91 175 00 15	www.samsung.com/es/support
SWEDEN 07/1 726 786 www.samsung.com/se/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support(German)www.samsung.com/cn_tr/support(French)
UK	0333 000 0333	www.samsung.com/uk/support

SAMSUNG

COUNTRY CALL OR VISIT US ONLINE AT
IRELAND (EIRE) 081# 717100 www.samsung.com/c/support
POLAND	[M]801-172-678* lub [phone]*Specialistyczna infolinia do obslugizapytarń dotyczących telefonówkomórkowych:801-672-678** (opłata wiezug taryfy operatora)[CE]801-172-678* lub [phone]** (opłata wiezug taryfy operatora)	http://www.samsung.com/c/support/
CZECH I	800 - SAMSUNG(800-726786)	www.samsung.com/c/support
SLOVAKIA 0800 - SAMSUNG (0800-726 786) www.samsung.com/sk/support
ROMANIA	0800872678 - Apel gratuit*8000 - Apel tarillat in retea	www.samsung.com/c/support
BULGARIA	0800 111 31 - Безплатен за всички оператори*3000 - Цена на един градкиразговор или споредтарифата на мобильнят оператор09:00 до 18:00 - Понеделник до Петък	www.samsung.com/bg/support

DE68-04029H-00

Mikrowellengerät

(GEWERBLICH)

1 2 3 4 5 6 7 8 9 10 P 1 2 3 4 5 6 7 8 9 0 Prevent Lift. Heat Defrost +20s

1. DISPLAY
2. TASTO PROGRAM (PROGRAMMA)
3. TASTI NUMERICI (programmazione tempo, memoria)
4. TASTO PROGRAM LOCK (BLOCCO PROGRAMMA)

5. TASTO POWER LEVEL SELECTOR (SELETTORE LIVELLO DI POTENZA)

6. TASTO DEFROST SELECTOR (SELETTORE SCONGELAMENTO)

7. TASTO DOUBLE QUANTITY (QUANTITÀ DOPPIA)
8. TASTO +20sec (Tasto cottura con un tocco)
9. TASTO CANCEL (ANNULLA)
10. TASTO START (AVVIO)

DISPLAY

PROG 8:00:00 FILTER DATA 1 2 3 4 5 6 7 8

1. INDICATORE PROGRAMMA
2. DISPLAY DELL'ORA
3. INDICATORE DISPLAY DELL'ORA DI CONTROLLO FILTRO DELL'ARIA
4. INDICATORE NUMERO DI TASTO IN MEMORIA
5. INDICATORI DEL LIVELLO DI POTENZA
6. INDICATORI DI SCONGELAMENTO
7. INDICATORE QUANTITÀ DOPPIA
8. INDICATORE CONTROLLO DATI

Quindi, premere '+20s'

Una volta

Due volte

USO DEL TASTO +20SEC

Illustration of a laboratory instrument labeled 'Boltone' (no other text or symbols visible)

Line drawing of a laboratory oven with a labeled component (no text or symbols on the device itself)

Technical diagram of a dual-chamber electronic device with labeled components and a schematic view below.

GUIDE DES RÉCIPIENTS

PROGRAMMERING GEHEUGENTOETSEN

Eén fase

Line drawing of a portable electronic device with control panel and display (no text or symbols)

Schröof Superpeta plate

RICHTLIJNEN VOOR KOOKMATERIALEN

Line drawing of a laboratory instrument with a screen and control panel (no text or symbols)

Line drawing of a portable electronic device with control panel and display (no text or symbols)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY.

POZORNE SI ICH PREČÍTAJTE A USCHOVAJTE ICH PRE BUDÚCE POUŽITIE.

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Dbajte na to, aby sa tieto bezpečnostné opatrenia vžoy rešpektovali.

Stropony Ixyt

ČISTENIE VZDUCHOVÉHO FILTRA

POKYNY NA INŠTALÁCIU STOHOVANÍM

Dôležité

Illustration of a portable electronic device with a control panel and display screen (no text or symbols visible)

PÄÄLLEKKÄIN SIJOITETTAVIA LAITTEITA KOSKEVAT ASENNUSOHJEET

Tärkeää

KYSYMYKSET JA KOMMENTIT

MAA SOITA TAI KÄY OSOITTEESSA
AUSTRIA 0800 72	67 864 (0800-SAMSUNG) www.samsung.com/ai/support
BELGIUM 02-201	24-18	www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
DENMARK 707 019	70 www.samsung.com/dk/support
FINLAND 030-8227	515 www.samsung.com/fi/support
FRANCE 01 48 83	00 00 www.samsung.com/fr/support
GERMANY 06196	77 555 77 www.samsung.com/do/support
ITALIA 800-SAMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS 8009 4000	only from landline, toll free www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line(-30) 210 6897691 from mobile and land line	www.samsung.com/gr/support
LUXEMSBURG	261 03 710 www.samsung.com/be fr/support
NETHERLANDS	068 90 90 100	www.samsung.com/nl/support
NORWAY	21828099	www.samsung.com/no/support
PORTUGAL 808 207	287 www.samsung.com/pt/support
SPAIN	91 175 00 15 www.samsung.com/ce/support
SWEDEN 0771 726 786	www.samsung.com/se/support
SWITZERLAND	0800 728 786	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
UK	0333 000 0333 www.samsung.com/uk/support
IRELAND (FIRE)	0819 717100 www.samsung.com/le/support

SAMSUNG

MAA SOITA TAI KÄY OSOITTEESSA
POLAND	[M]801-172-678* lub -48 22 607-96-33*Specjalistyczna Infolinia do obstugizapytań dotyczacych teleforówkornirkowych:801-6/2-6/8"* (opłata wedlug taryfy operatora)[CE]801-172-678* lub -48 22 607-96-33"* (opłata wedlug taryfy operatora)	http://www.samsung.com/pl/support/
CZECH	800 - SAMSUNG(800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786) www.samsung.com/sk/support
ROMANIA	0800672678 - Apel gratuit*S300 - Apel tarifat in rejeva	www.samsung.com/rc/support
BULGARIA	0800 111 31 - Безплатен zавсички оператори*3000 - Цена на един градскирazговор или споредтарифата на мобилниятоператор09:00 до 18:00 - Понеделникдо Петък	www.samsung.com/bg/support

DE68-04029H-00

Örbylgjuofn

(VIĐSKIPTI)

HVERNIG NOTA MÁ MINNISELDUN

Line drawing of a portable oven with a digital display and control panel (no text or symbols)

Skeff Eccutriplacer

LEIDBEININGAR FYRIR ELDUNARÁHÖLD

PRIF Á ÖRBYLGJUOFNINUM

GEYMSLA OG VIDGERD Á ÖRBYLGJUOFNI

PROGRAMMERING MED MINNEFLATER

Ettrinns

1. Hold nede PROGRAMLÅS (fog trykk deretter PROGRAM) pflaten. Hold samtidig i 2 sek.

SLIK BRUKER DU MINNETILBEREDNING

Illustration of a medical or laboratory device with a screen and control panel, labeled '300' at the bottom (no other text or symbols visible)

MINNESKNAPPSPROGRAMMERING

Ett steg

1. Håll nere PROGRAMLÅSET (Tech tryck sedan på PROGRAM (p-knappen. Håll dem nere i 2 sek.

HUR MAN HANTERAR MINNESUPPVÄRMNING

Line drawing of a portable electronic device with a control panel and display screen (no text or symbols)

1. For at vise tiden i...

24-timers visning

12-timers visning

Tryk derefter på '+20s'

En gang

To gange

Illustration of a portable electronic device with a screen and control panel (no visible text or symbols)

Padgout Share Shrub

GHIDUL PENTRU MATERIALE DE GĂTIT

Illustration of a portable oven with control panel and lid, labeled 'Box' (no text or symbols on the device itself)

BENT Face-on line 3D
