USER MANUAL WEA 19180 Quick RT METABO

WEPBA 17-125 Quick DS

WEPBA 17-125 Quick RT

WEPBA 17-125 Quick RT DS

WEPBA 17-150 Quick

WEPBA 17-150 Quick RT

WEPBA 17-150 Quick RT DS

WEA 19-180 Quick RT

WEPBA 19-125 Q DS M-Brush

WEPBA 19-150 Q DS M-Brush

WEPBA 19-180 Quick RT

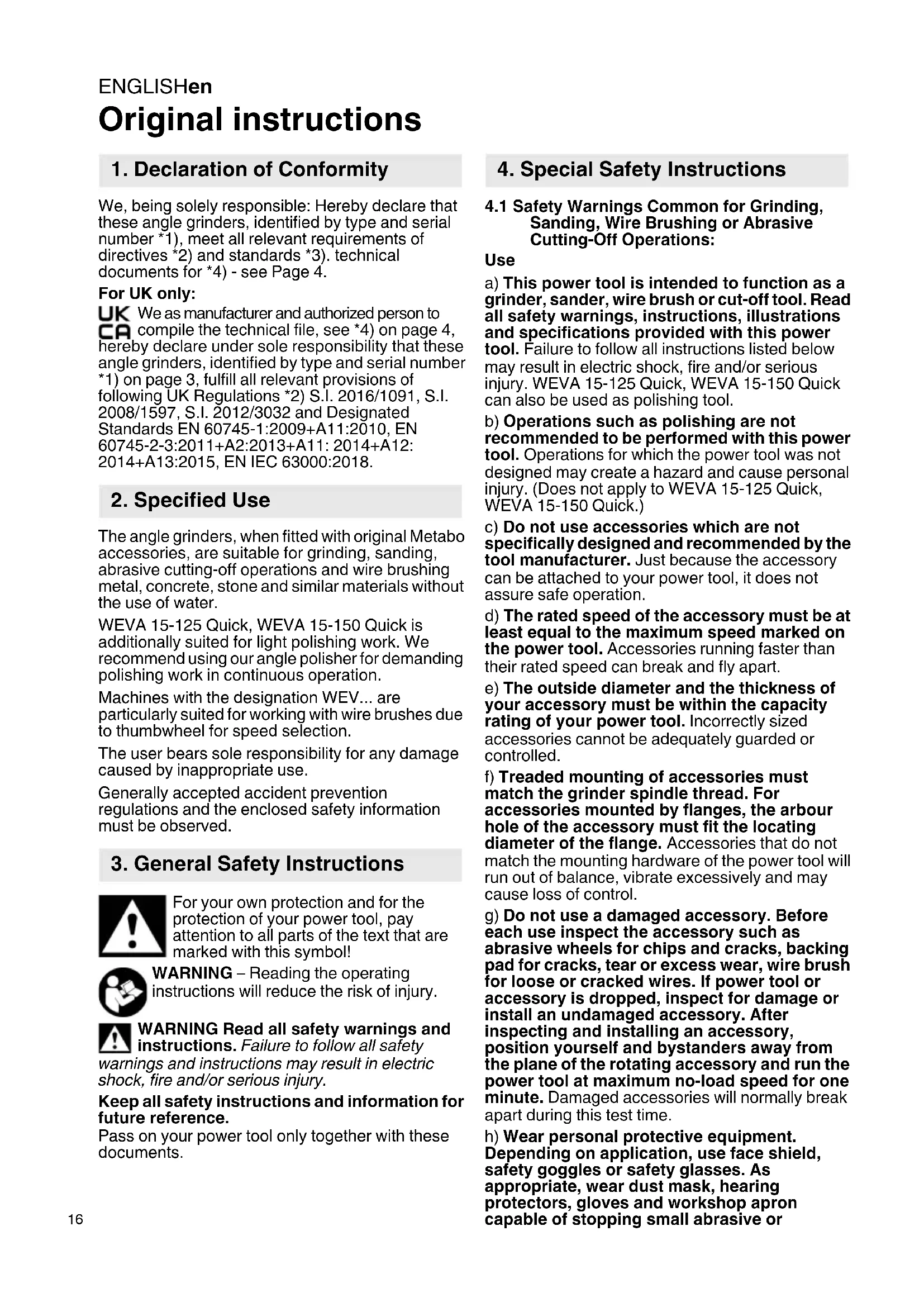

Original instructions

1. Declaration of Conformity

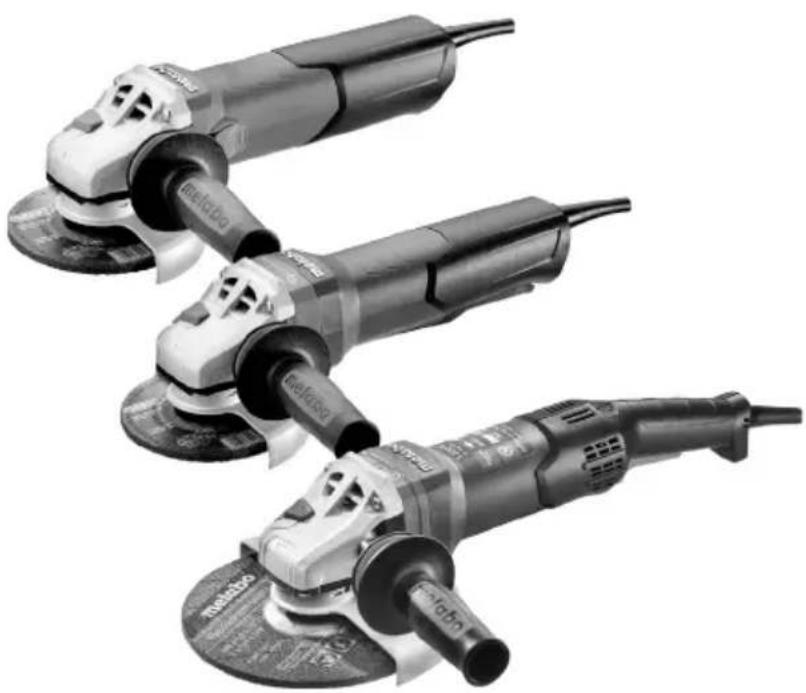

We, being solely responsible: Hereby declare that these angle grinders, identified by type and serial number 1 , meet all relevant requirements of directives 2 and standards 3 . technical documents for 4 - see Page 4.

For UK only:

UK We as manufacturer and authorized person to compile the technical file, see *4) on page 4, hereby declare under sole responsibility that these angle grinders, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations *2) S.I. 2016/1091, S.I. 2008/1597, S.I. 2012/3032 and Designated Standards EN 60745-1:2009+A11:2010, EN 60745-2-3:2011+A2:2013+A11:2014+A12: 2014+A13:2015, EN IEC 63000:2018.

2. Specified Use

The angle grinders, when fitted with original Metabo accessories, are suitable for grinding, sanding, abrasive cutting-off operations and wire brushing metal, concrete, stone and similar materials without the use of water.

WEVA 15-125 Quick, WEVA 15-150 Quick is additionally suited for light polishing work. We recommend using our angle polisher for demanding polishing work in continuous operation.

Machines with the designation WEV... are particularly suited for working with wire brushes due to thumbwheel for speed selection.

The user bears sole responsibility for any damage caused by inappropriate use.

Generally accepted accident prevention regulations and the enclosed safety information must be observed.

3. General Safety Instructions

For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol!

WARNING - Reading the operating instructions will reduce the risk of injury.

WARNING Read all safety warnings and instructions. Failure to follow all safety

warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Pass on your power tool only together with these documents.

4. Special Safety Instructions

4.1 SafetyWarnings Common for Grinding, Sanding, Wire Brushing or Abrasive Cutting-Off Operations:

Use

a) This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. WEVA 15-125 Quick, WEVA 15-150 Quick can also be used as polishing tool.
b) Operations such as polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury. (Does not apply to WEVA 15-125 Quick, WEVA 15-150 Quick.)
c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f) Treaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the armour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or

workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
j) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
l) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
n) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

4.2 Kickback and RelatedWarnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up.
The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

4.3 SafetyWarnings Specific for Grinding and Abrasive Cutting-Off Operations:

a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The grinding surface of the centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel and sparks which could ignite clothing.
d) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
f) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

4.4 Additional SafetyWarnings Specific for Abrasive Cutting-Off Operations:

a) Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel

ENGLISHen

increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.

b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
f) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

4.5 SafetyWarnings Specific for Sanding Operations:

a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

4.6 Only for WEVA 15-125 Quick, WEVA 15-150 Quick: SafetyWarnings Specific for Polishing Operations:

a) Do not allow any loose portion of the polishing bonnet or its attachment strings to spin freely. Tuck away or trim any loose attachment strings. Loose and spinning attachment strings can entangle your fingers or snag on the workpiece.

4.7 SafetyWarnings Specific for Wire Brushing Operations:

a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
b) If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

4.8 Additional Safety Instructions:

WARNING - Always wear protective goggles.

WARNING - Always operate with two hands.

Use elastic cushioning layers if they have been supplied with the grinding media and if required.

Observe the specifications of the tool or accessory manufacturer! Protect the discs from grease or impacts!

Grinding discs must be stored and handled with care in accordance with the manufacturer's instructions.

Never use cutting discs for roughing work! Do not apply pressure to the side of the cutting discs.

The workpiece must lay flat and be secured against slipping, e.g. using clamps. Large workpieces must be sufficiently supported.

If accessories with threaded inserts are used, the end of the spindle may not touch the base of the hole on the grinding tool. Make sure that the thread in the accessory is long enough to accommodate the full length of the spindle. The thread in the accessory must match the thread on the spindle. See page 4 and chapter 14. Technical

Specifications for more information on the spindle length and thread.

Use of a fixed extractor system is recommended. Always install an RCD with a max. trip current of 30 mA upstream. If the angle grinder is shut down via the RCD, it must be checked and cleaned. See chapter 9. Cleaning.

Damaged, eccentric or vibrating tools must not be used.

Avoid damage to gas or water pipes, electrical cables and load-bearing walls (static).

Pull the plug out of the socket before making any adjustments, converting or servicing the machine.

Metabo S-automatic safety clutch. When the safety clutch responds, switch off the machine immediately!

A damaged or cracked additional handle must be replaced. Never operate a machine with a defective additional handle.

A damaged or cracked safety guard must be replaced. Never operate a machine with a defective safety guard.

Secure small workpieces. For example, clamp in a vice.

Reducing dust exposure:

WARNING - Some dust created by power, sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to be cancer, birth defects or other reproductive. Some examples of these chemicals are:

• Lead from lead-based paints,

• Crystalline silica from bricks and cement and other masonry products, and

• Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

This also applies to dust from other materials such as some timber types (like oak or beech dust), metals, asbestos. Other known diseases are e.g. allergic reactions, respiratory diseases. Do not let dust enter the body.

Observe the relevant guidelines and national regulations for your material, staff, application and place of application (e.g. occupational health and safety regulations, disposal).

Collect the particles generated at the source, avoid deposits in the surrounding area.

Use suitable accessories for special work. In this way, fewer particles enter the environment in an uncontrolled manner.

Use a suitable extraction unit.

Reduce dust exposure with the following measures:
- do not direct the escaping particles and the exhaust air stream at yourself or nearby persons or on dust deposits,
- use an extraction unit and/or air purifiers,
- ensure good ventilation of the workplace and keep clean using a vacuum cleaner. Sweeping or blowing stirs up dust.
- Vacuum or wash the protective clothing. Do not blow, beat or brush.

5. Overview

See page 2.

1 "Quick"clamping nut *
2 Spindle
3 Autobalancer support flange
4 Spindle locking button
5 Sliding on/off switch *
6 Handl e
7 Electronic signal indicator
8 Thumbwheel for selection of speed *
9 Trigger switch *
10 Eyelet (for fall protection)
11 Paddle switch
12 Additional handle/Additional handle with vibration damping
13 Safety cover
14 Support flange
15 2-hole nut
16 2-hole spanner *
17 Lever for safety guard attachment

• depending on equipment/not in scope of delivery

6. Commissioning

Before plugging in, check that the rated mains voltage and mains frequency, as stated on the rating label, match with your power supply.
Always install an RCD with a max. trip current of 30mA upstream.

6.1 Attaching the additional handle

Always work with the additional handle (12) attached! Attach the additional handle on the left or right of the machine and secure.

6.2 Attach the safety guard

For safety reasons, always use the safety guard provided for the respective wheel! See also chapter11. Accessories!

Safety guard for grinding

Designed for work with roughing wheels, flap sanding pads, diamond cut-off wheels.

See illustration D on page 3.

• Push and hold the lever (17). Place the safety guard (13) in the position indicated.
• Release the lever and turn the safety guard until the lever engages.
• Push the lever and turn the safety guard until the closed section is facing the operator.
• Make sure that the guard is placed securely: The lever must engage and you should not be able to turn the safety guard.

Use only accessories that are covered by at least 3.4mm by the safety guard.

(Disassemble in reverse order.)

7. Attaching the grinding disc

Prior to any conversion work: Pull the mains plug from the socket. The machine must be switched off and the spindle at a standstill.

For reasons of safety, attach the parting guard before performing parting work (see chapter

1. Accessories).

7.1 Locking the spindle

• Press in the spindle locking button (4) and turn the spindle (2) by hand until the spindle locking button engages.

7.2 Placing the grinding wheel in position

See illustration A on page 2.

The Autobalancer support flange (3) is permanently fitted on the spindle. As is the case with most other angle grinders, a detachable support flange is not necessary.
The contact surfaces of the Autobalancer support flange (3), grinding wheel and the

ENGLISHen

"Quick" clamping nut (1) must be clean. Clean if necessary.

• Place the grinding wheel on the Autobalancer support flange (3). The grinding wheel must lie flat on the Autobalancer supporting flange.

WPB..., WEVB 1...

See illustration B on page 2.

• Fit the support flange (14) on the spindle. The flange should not turn on the spindle when properly attached.
• Place the grinding disc on the support flange (14). The grinding disc must lay flat on the supporting flange.

7.3 Securing/Releasing the "Quick" clamping nut (depending on features)

Securing the "Quick" clamping nut (1):

Only attach the "Quick" clamping nut (1) to tools with "Metabo Quick System". These can be identified by the red spindle lock button with "M-Quick" logo

Do not use the "Quick" clamping nut if the accessory has a clamping shank thicker than

7.1 mm! In this case, use the 2-hole nut (15) with 2-hole spanner (16).

• Lock the spindle (see chapter 7.1).
• Position the "Quick" clamping nut (1) on the spindle (2) so that the 2 lugs engage in the 2 grooves on the spindle. See illustration on page 2.
• Tighten the "Quick"clamping nut by turning clockwise by hand.
• Turn the grinding wheel firmly clockwise to tighten the "Quick" clamping nut.

Releasing the clamping nut (1):

Only when the "Quick" clamping nut (1) is attached must the spindle be stopped using a fixed M-Quick spindle locking button (4)!

• The machine continues to run after switching off.
• Press in the M-Quick spindle locking button (4) just before the grinding disc stops. The "Quick" clamping nut (1) loosens itself by around half a turn and can be removed without additional effort or tools.

7.4 Securing/Releasing the 2-hole nut (depending on features)

The 2 sides of the 2-hole nut are different. Screw the 2-hole nut onto the spindle as follows:

See illustration C on page 2.

- X) For thin grinding discs:

The edge of the 2-hole nut (15) faces upwards so that the thin grinding disc can be attached securely.

Y) For thick grinding discs:

The edge of the 2-hole nut (15) faces downwards so that the 2-hole nut can be attached securely to the spindle.
- Locking the spindle. Turn the 2-hole nut (15) clockwise using the 2-hole spanner (16) to secure.

Releasing the 2-hole nut:

• Lock the spindle (see chapter 7.1). Turn the 2-hole nut (15) anticlockwise using the 2-hole spanner (16) to unscrew.

8.Use

8.1 Adjusting the speed (depending on features)

Set the recommended speed at the thumbwheel (8). (small number = low speed; large number = high speed)

Cutting disc, roughing disc, cup wheel and diamond cutting disc: high speed

Brush: medium speed

Sanding plate: low to medium speed

Note: We recommend using our angle polisher for polishing work.

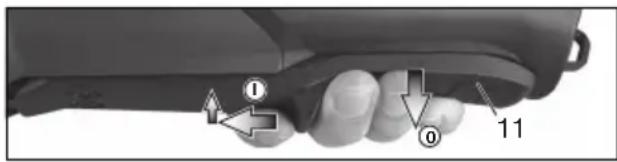

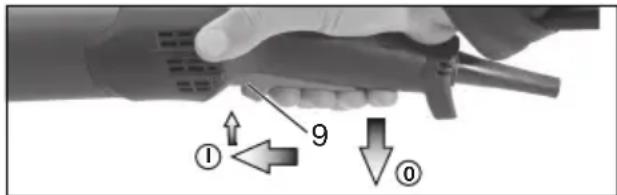

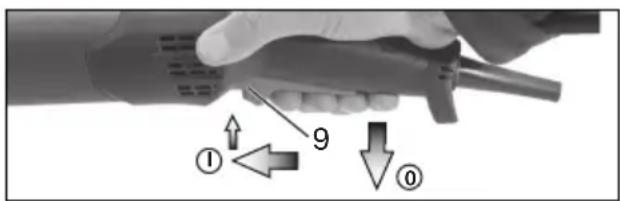

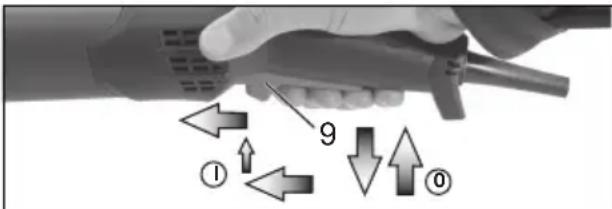

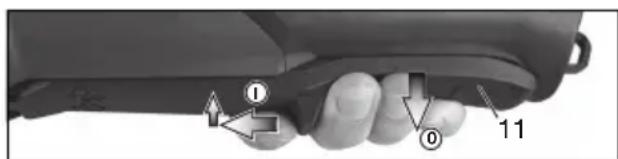

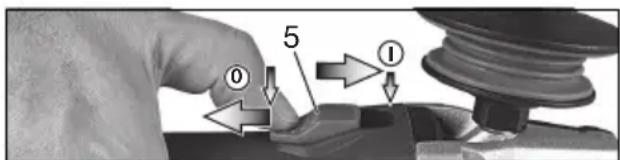

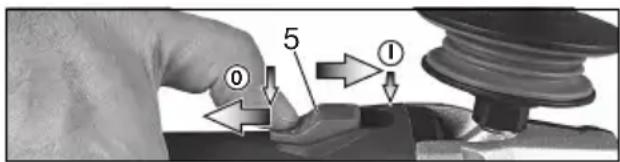

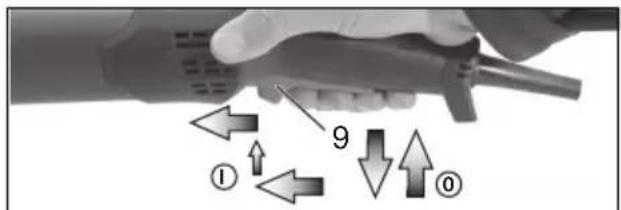

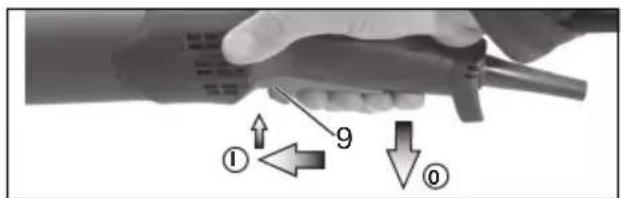

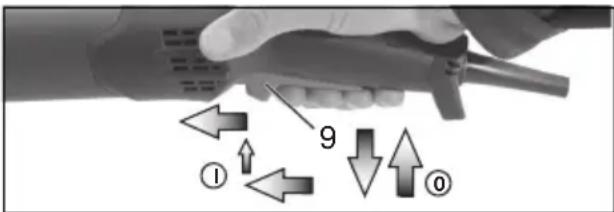

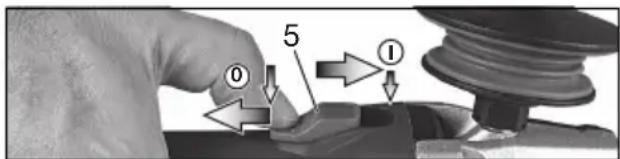

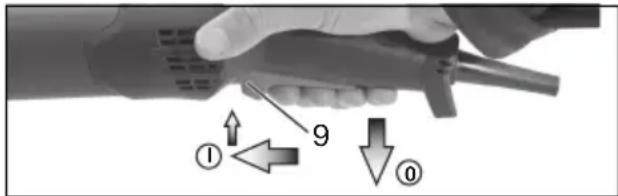

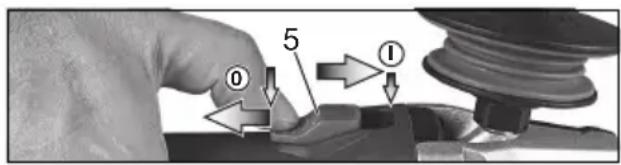

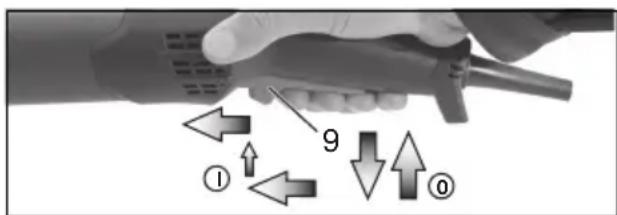

8.2 Switching On and Off

Always guide the machine with both hands.

Switch on first, then guide the accessory towards the workpiece.

Avoid inadvertent starts: always switch the tool off when the plug is removed from the socket or if there has been a power cut.

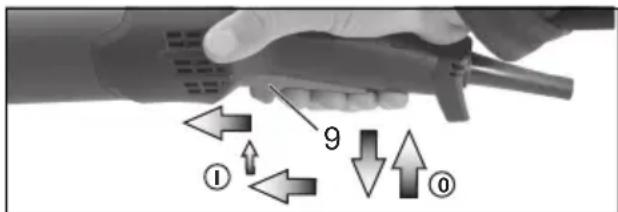

A., WBA., WEA., WEVA., WEBA., W...RT, WEVB.... In continuous operation, the

machine continues running if it is forced out of your hands. Therefore, always hold the machine with both hands using the handles provided, stand securely and concentrate.

Avoid the machine swirling up or taking in dust and chips. After switching off the machine,

only place it down when the motor has come to a standstill.

Machines with slide switch:

Switching on: Push the slide switch (5) forward. For continuous activation, now tilt downwards until it engages.

Switching off: Press the rear end of the slide switch (5) and release it.

Machines with paddle switch (with dead man function):

Switching on: Slide paddle switch (11) in the direction of the arrow and then press the paddle switch (11).

Switching off: Release the paddle switch (11).

Machines with the designation W...RT: Torque activation (with dead man's lever)

Switching on: Slide the trigger switch (9) forwards and then push the trigger switch (9) upwards.

Switching off: Release the trigger switch (9).

Machines with the designation W...RT: Continuous operation (depending on features)

Switching on: Switch the machine on as described above. Now slide the trigger switch (9) forwards again and release in the front position to lock the trigger switch (9) (continuous operation).

Switching off: Push the trigger switch (9) upwards and release.

8.3 Working Directions

Grinding and sanding operations:

Press down the machine evenly on the surface and move back and forth so that the surface of the workpiece does not become too hot.

Rough grinding: position the machine at an angle of 30^ - 40^ for the best working results.

Cutting-off operations:

Always work against the run of the disc (see illustration). Otherwise there is the danger of the machine kicking back from the cut out of control. Guide the machine evenly at a speed

suitable for the material being processed. Do not tilt, apply excessive force or sway from side to side.

Wire brushing:

Press down the machine evenly.

8.4 Lanyard connection (depending on equipment)

Safety warnings specific for use at height. Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in serious injury.

• Only for use by trained persons. The users must be trained with regard to tool securing and the use of tools at heights.
• Always keep the tool tethered when working "at height". Only use appropriate metabo brand lanyard (maximum length is 2m (6.5 ft) with sufficient damping capacity). The maximum permissible fall height for lanyard (tether strap) must not exceed 2m (6.5 ft). Use only with lanyards appropriate for this tool type and rated for

at least the mass of the tool including all used accessories.
- Read and follow the operating instructions of the tool securing lanyard!
- Inspect tool (especially the eyelet) and lanyard before each use for damage and proper function (including fabric and stitching). Do not use if damaged or not functioning properly.
- Do not anchor the tool lanyard to anything on your body. Anchor to a solid mounting option that can withstand the forces of a dropped tool.
- Crush, cut or entanglement hazard. Do not use near moving parts, mechanisms or running machinery.
- Do not change the attachment point for the lanyard on the tool and also do not use it for other purposes than those described in this manual.
- Only attach tool to a lanyard with a locking carabiner. Do not attach by looping or knotting the lanyard. Do not use rope or cord. Only use carabiners with two-way locking system. Do not use single action spring clip carabiners.
- Attach the lanyard in a way that the tool will move away from the operator if it falls. Dropped tools will swing on the lanyard, which could cause injury or loss of balance.
- Do not attach more than one tool to each lanyard.
- Only use specifically intended attachment points (eyelet (10)) to attach the lanyard at the tool. NEVER modify tools to create attachment points.
- Do not attach lanyards to tool in a way that keeps guards, switches or lock-offs from operating properly.
- Keep lanyard away from the accessory.
- Protect the tool security lanyard from flying sparks and chips.
- Protect the tool securing lanyard from sharp edges, blades, chips, etc. Do not step on the tool or the tool securing lanyard.
- Do not use lanyards or attachment devices to get additional leverage from the tool.
- Make sure that there is sufficient space in the area where the tool might hit the floor. No persons must be endangered in that area.
- Replace the rope after a fall and check the tool for damage. After each fall, have the machine checked for damage by a trained specialist and repaired if necessary.
- Do not try to catch the falling machine. This might result in injuries.

8.5 Rotate gear housing

See illustration E on page 3.

• Disconnect from the power supply.
• Unscrew the fastening screw (a) of the lever (17). Remove the screw, lever (with its sheet metal part) and put aside.
• Unscrew the 4 gear housing screws (b).
  CAUTION! Do not remove the gear housing!
• Turn the gear housing to the desired position without removing it.
• Screw in the 4 gear housing screws (b) in the available threads! Tightening torque = 3.0Nm + / - 0.3Nm
• Slide the spring that pushes the lever in position to the side and re-insert the lever (17) (with its sheet metal part), and fix with the fastening screw (a).

ENGLISHen

Tightening torque = 5.0Nm + / - 0.5Nm . Check the lever for correct function: it has to be under spring tension.

9. Cleaning

It is possible that particles deposit inside the power tool during operation. This impairs the cooling of the power tool. Conductive build-up can impair the protective insulation of the power tool and cause electrical hazards.

The power tool should be cleaned regularly, often and thoroughly through all front and rear air vents using a vacuum cleaner or by blowing in dry air. Prior to this operation, separate the power tool from the power source and wear protective glasses and dust mask.

10. Troubleshooting

Machines with VTC, TC and VC electronics:

The electronic signal display (7) lights up and the load speed decreases (not W...RT). There is too much load on the

machine! Run the machine in idling until the electronics signal indicator switches off.

The machine does not start. The electronic signal display (7) (depends on model) flashes. The restart protection is

active. If the mains plug is inserted with the machine switched on, or if the power supply is restored following an interruption, the machine does not start up. Switch the machine off and on again.

11. Accessories

Use only genuine Metabo accessories. See page 5.

Use only accessories which fulfil the requirements and specifications listed in these operating instructions.

A Cutting guard clip / guard for cut-off grinding

Designed for work with cutting disc and diamond cutting discs. Once the cutting guard clip is fitted, the safety guard becomes a cutting guard.

B Extraction guard for cut-off grinding

Designed for cutting through stone slabs with diamond cutting discs. With nozzle for extracting stone dust using a suitable extraction unit.

C Extraction guard for surface grinding

Intended for grinding of concrete, screed, wood and plastics with diamond cup wheels and/or fibre discs and suitable sanding plates. With nozzle for extracting stone, wood and plastic dust using a suitable extraction unit. Not suitable for extracting sparks or for grinding of metals.

D Dust filter

The fine mesh filter prevents coarse particles from entering the motor housing. Remove regularly and clean.

E Hand protection

Intended for work with backing pads, sanding plates, wire brushes and support plates, sanding pads, wire brushes and diamond Drill Bits for tiles.

Install hand guard under the additional side-mounted handle.

F Multiple position bar for side handle

Permits numerous handle positions.

G Bar side handle

For a complete range of accessories, see www.metabo.com or the catalogue.

12. Repairs

Repairs to electrical tools must be carried out by qualified electricians ONLY!

If the connection lead is damaged, it must be replaced by a special connection lead.

Contact your local Metabo representative if you have Metabo power tools requiring repairs. For addresses see www.metabo.com.

You can download a list of spare parts from www.metabo.com.

13. Environmental Protection

The generated grinding dust may contain harmful substances. Dispose appropriately.

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Directive 2012/

19/EU on waste electrical and electronic equipment and its implementation in national law, used electrical tools must be collected separately and handed in for environmentally compatible recycling.

14. Technical Specifications

Explanatory notes on the specifications on page 4. Changes due to technological progress reserved. = max.diameter of the accessory

t_,1 = . permitted thickness of the clamping shank on accessory when using 2-hole nut (15)

t_,2 = . permitted thickness of clamping shank on accessory when using "Quick" clamping nut (1)

t_max,3 = roughing disc/cutting disc: max. permitted thickness of accessory M = s p i n I = length of the grinding spindle

n^* = -load speed (maximum speed)

P1 =ratedinputpower

P2 = pow e r o u t p u t

m = weight without mains cable

Measured values determined in conformity with EN 60745.

Machine in protection class II

AC Power

• Machines with the designation WE... : Energy-rich, high-frequency interference can cause fluctuations in speed. The fluctuations disappear, however, as soon as the interference fades away.

The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).

Emission values

These values make it possible to assess the emissions from the power tool and to compare different power tools. Depending on the operating conditions, the condition of the power tool or the accessories, the actual load may be higher or lower. For assessment purposes, please allow for breaks and periods when the load is lower. Based on the adjusted estimates, arrange protective measures for the user e.g. organisational measures.

Vibration total value (vector sum of three directions) determined in accordance with EN 60745:

a_h,SG = Vibration emission value (surface grinding)

a_h,DS =Vibration emission value (sanding with sanding plate)

a_h, P = Vibration emission value (polishing)

K_h,SG/DS/P = Uncertainty(vibration)

Typical A-effective perceived sound levels:

L_pA =Sound-pressure level

LA = Acousti c power level

K_DA, K_WA = Uncertainty

During operation the noise level can exceed 80 dB(A).

Wear ear protectors!

FRANÇAISfr

Notice originale

Voir page 2, figure B.

P2 = Potenciade saida

PORTUGUESpt

Se side 3, illustration E.

a_h,DS = vibrationsemission (Slibning med sliderbagskive)

a_h,P = vibrationsemission (Polering)

K_h,SG/DS/P = usikkerhed (vibration)

B) He nCnoJb3yIte npHaJneJHocTH, KOtOpblE He 6bln IpeDyCMOTpeHbI He peHOMeHDoBaHbI npOn3BOdnteJIem CneuHaJbHO dJaDaHHoro

3JIeKTPoHnHCTpyMeHTa. OJHo IINb HaJeXHoe KpeIJIeHHe npHaJaJIeXHocTn Ha 3JIeKTPoHnHCTpyMeHTe He rapaHTnpyET HaJeXHoi 3KcNllyaTaUIn HnCTpyMeHTa.

r) DonycTmMa YacToTa BpaSeHn pa6oero HNCTpyMeHTa He DoJnxHa npeBbIwaTb MaHCmMaJIbHyU YacToTy BpaSeHn, yHa3aHHyU Ha 3JeKTPoHNCTpyMeHTe.

PnHaIeKHOCTN,CKOpOCTbBpaUeHINKOTOpbIX npeBbIaetDOnyCTHMoe3HaueHHe,MOrYT CLOMaTbCaNOTLeTeT BCTOPOHy.

HApyHHbI dHaMeTp nToJIuHa pa6oero HHCTpyMeHTa DOJIHHbI COOTBETCTBOBaTb pa3MepHbIM daHHbIM 3JeHTponHCTpyMeHTa.

HeB03MOxHNO 06ecnueHTb 3KpaHnpOBaHne I KOHTpoJIb pa6OuNX INHCTpyMeHTOB C HeBepHO paCCHTaHHbIMN npaMeTpamN.

e)Pa6oue HNCTpyMeHbICpe3b6OBOB BCTaBHOn DOJHHbIB TOUHOCTN NOxODHTb K WnHPOBaJIbHOMy WnHdJIIO 3JeKTPoHNCTpyMeHTa.Y pa6oHx HNCTpyMeHTOB,3aKpenJIeHHbIX C NOMOuBIO FnaHcE,B,KpeENHHe OTBepCTne DOJHKHO B TOUHOCTN NOxDxODHTb NO φOpMe FnaHa.

Pa6oHHe HnCTpyMeHTbI, pa3MepbI KOToPbIX He COOTBeTCTByIOT 3aXHMOMy npncNOC6JIeHNIO, BpaAioTcHepaBHomepHO, OueHb CnIbHO

PYCCHNru

Bn6pnpuyOT mOryT npNBecTN K nOtepe KOHTpoJHaN d 3JIeKTPoHnCTpyMeHToM.

H) He nCNoIb3yIte noBpeHdEHHbIe pa6OuHe HHCTpymeHTbl. Ipepe KaHdbIM HcNoJIb3OBAHNem OcMaTpINBaIte pa6OuHe HHCTpymeHTbl: a6pa3HBHbIe KpyrN He DOJIHXbI HMeTb cKoIOB N TpeUHN, UInΦOBaIBHbIe TaPeHN - TpeUHN, N3HOca Nn CnJIbHOro HcTnpAHn, B KApDOUeTHax He DOJIHXo 6bITb BBInaBUnx Nn OBLOMBUNXc PNOBOLOUHbIX npAJeB. B Cnyae naDeHn 3LeENTPOHHCTpymeTa Nn pa6Ouyo HHCTpymeHa pOBepbTe erO pa6OTocNOC6HOctb Nn HCNoJIb3yIte TOJbKO hCnPaBHyI pa6OuH NcHCTpymeHT. IocNe npOBepKn YcTahOBKn pa6Ouyo HHCTpymeHa pOcLJeNTe, YTObHI Hn Bbl, HN CTOraUne PRAOM JIoDN He HaxODNJNCb B 30He BpauaIOUeOcra Pa6Ouyero HHCTpymeHTa, N Ha OOny MmHyTu 3AnyCTNTe HHCTpymeHT C MaKcMmaIbHOh YactOTOB BpaueHn. IOBpeJdeHHbIe pa6Ouye HHCTpymeHTbl OblyHO IOMaOTcB XoJe TaKo IIpoBepKn.
3)ИсплььзунTe cpeДТВа ИнДИВДУаЛьНО 3aцNTы.ВЗвсIMOCTHОТ ВИд БыINOLHЯМоР pa6OTыИСпОь3унTe МACH ДЯ NOЛHО 3aцNTы Лиca, cpeDCTBA ДЯ 3aцNTы Гla3 Ил 3aцNTье Oчн.ДЯ 3aцNTы OT MeLHIX YacTиC a6pa3NHBORO HHCTpymeHTa MATEPnAla HAnEBAHTe pecnnpatop, 3aцNTьe HayshnH, 3aцNTьe NapayTHn IIN CneuAlbHbI ФapTyK.3aцNiauTe rla3a OT OTJeTaIOx NoCTOPOHNX ppeMeTOB pRn BbyINOLHeHIn pa3LIuHbIX pa6OT. PecnnpatOpbl N 3aцNTьe MACKdoJIKNHbI OTΦИbTpOBbIBaTb ПbIb, BO3HNkaOyU BO BpEmpa6OTbl.Д尼TElbHoe BO3dEiCTBVe rPOMKOrO ShyMa MoKeT npINBeCTN K notepe clyxa.
n) CneiTe 3a Tem, YTo6bI dpyrHe IIOH haxoDnIncB Ha 6e3OpachOM pacCTOHHN OT BaWero pa6oery MeCTa. KaJdbI ueNoBeK, BXoAun B pa6ouyo 3Ony, O6a3aH HaeBaTb CpeCDtBa HNDNBnuAlbHON 3aUnTbl. OTJeTaHOUne OCKOHN 3aTOOBH NJI O6lOMKn pa6oHx INCTpyMeHTOB MOYr HAHECTN TpaBMy DaKe 3a npDeJaAMn pa6oey 30HbI.
K)ПиВыИОЛнHeHH pa6OT B6ln3n ChpblToI 3JIeHTponpoBODH nII n CTeBOrO Ka6eIa Camoro 3JIeHTponHCTpyMeHTa DePKeHtE HHCTpyMeHT ToIbKO 3a N3OLINPOBaHHbIe NOBepxHOCTN. KOHTaKT C TOKONPOBDAUSeI JInHne MoKET npINBeCTN K IOnaue HAnpJKeHnHa MeTaJIInueCKHe YAcTn INHCTpyMeHTa N BbI3BaTb NopaKeHne 3JIeHTpnueCKM TOKOM.
n) DepeHnte ceTeBOH Ka6eBbdaHn OT BpaaUoUxxCra pa6OuNX HNCTpyMeHTOB. B Clyueae NOTepn KOHTPOJHaI INHCTpyMeHTOM OH MOKeT Nepepe3aTb IIN 3aTAYb CeTeBOH Ka6eB, pRi 3TOM BaUN pyKN MOrYT nonAcTb B 3OHy BpaUeHn pa6Ouero HNCTpyMeHTa.
M) HnKoIa He KlaIaIte 3JIeKtpOHNcTpymeHT Do NOJHOOCTaHOBKn pa6Oyero IHcTpymeHTa. Bpaauounscpa6oun IHcTpymeHT MoKeT KOCHyTbCn IOBepXHOCTn, B

pe3yIbTaTe Yero BO3MOxHa NOTepra KOHTpOJa HAd 3JIeKTPoINHCTpyMeHToM.

H) He BnIouaTe 3JeHTpOHnHCTpyMeHT BO BpeM erO nepeHoCN. Bo3MOxHO nonaDaHne BaWei OJekDbl BO BpaUaIOuNc pa6oHy INCTpyMeHT, B pe3yJIbTaTe YeTo Bbl MoKeTe POnLyuHTb TpaBMy.
o) PeryIpaH OuNuae Te BeHTnlaCNoHHbIe ⅢeHN 3JIeKTPoHnCTpyMeHTa. BeHTnlaTOp DBNrTaJIe 3aTARnBaET NblB KOpNyc, a6OJIbWoE CKONJIeHHe MeTaJIInueCKOINblIN COnpJKeHO C ONaCHOCTbIO BO3dEInCTBnA 3JIeKTPnueCKORo TOHa.
n) He nCnoJb3yIte 3JIeKTpOHcTpymeHT B6JIn3N JERKOBOcPJIaMeHryUOxxCa MaTePnaIOB. NCKpbI MOrT Bbl3BaTb BOCPJIaMeHHeHne 3Tnx MaTePnaIOB.
p) He nCnoJb3yIte pa6OuHe HnHCTpyMeHTbl, KOToPbIe Tpe6yIOT HCNoJIb30BaHHa OXlaHaIOUeHnDHOCTN. HcNoJIb3OBaHne BOdBi INIINHO XOJaHdaIOUeHnDIOCTM MoKeT PnIBeCTN K IopaKeHHIO 3JeKTPnueeCKHM TOKOM.

4.2 OToJaHa n COOTBeTCTByIOuIe yHa3aHnA no TexHNKe 6e3oNaCHOCTn

OTdaa npedctabIeT c60B BHe3aHHyo peakuB pe3yIbTaTe 3aueJIeHnI nn 3aKlnHBaHnBpaauOJeRO pa6Oye O HcTpymEHTA, HApnpMep, a6pa3NBHO rKpyra, IINΦOBaIbHO TaPeJHK, KAPDOUeTK N T. D. 3aueJIeHne nn 3aKlnHBaHnBe BeET K BHe3aHNO OCTaHOBKe BpaauOJeRO pa6Oye O HcTpymEHTA. N3-3a npOTnbONIOJHO HAnpaBLeHn BpaSeHnPa6OeO INHCTpymEHTa B MeCTe 6LOKINPOBKN pOnCXODNT HeKOHTPOIpuyEmoe DBNKeHne 3JIeKTPOINHCTpymEHTa.

EcIn, HAnpHmep, a6pa3nBHyI Kpyr cenIaTeTcR nIN 3aeJaET B 3aROTOBKe, KpOMKa Kpyra 3acTpeBaet, IN B pe3yIbTaTe 3Toro Kpyr MoKeT o6Lomntbcra IN N Bbl3BaTb OTdauy. BcJeIcTBVe 3Toro a6pa3nBHyI Kpyr DnHexTcR Ha onepaTopa INN B PnOTHBONIOJHOM HApRaBLeHN, B 3aBNCIMOCTH OT HApRaBLeHNA BpaUeHNA Kpyra B MeCTe 3aKInHbAHH. Prn 3TOM a6pa3nBHyI Kpyr MOKeT pa3Lomntbcra.

OTdauaYBnareTcCneCTBnEMHe npabNbHOHn HeymenO 3KcNpyaTaunn 3JeKTPoHnHCTpyMeHTa. Ee moHHo H36eKaTb npu co6IIODeHNn OINcaHHbx HnKe MeP npedocToPOXHOCTn.

a) Hpenko depknte 3JeKtpOnHcTpyment B pykax n 3aHmnte TaHyIO No3nIIO, YTO6bl Bbl MORnn npOTNbOdeiCTBOBaTb CnIe OTdaH. PnHaJIuN BCerDa NcNoJb3yIte DOONHtEnbHyO pyKoRTy, YTO6bl MaHCmMaJIbHO KOHTPOJInpOBaTb CNly OTdaH. IN PeAKTHBbIIM MOMENT pRn 3aNycHe. Pn CO6JIHODeHm MEp IpeDOCTOpOXHOCTN Bbl CMOXHeTe ynpabJIaTb OTdauEIN PeaHTNBbIMN CnJIaMn.
6) HnHOrda He DepeKHe pyKy B6Jln3n BpaaUoXxCpa6OuNx HHCTpyMeHTOB. PpN OTDaue BO3MOKeH KOHTaKT pa6OeRo INHCTpyMeHTa C pyKoI.

B) He CTOnTe Ha NtN BO3MOxHoi OTdauH 3JIeKTPoHHCTpymeHTa. HanpaBLeHne DnJKeHnIg 3JIeKTPoHHCTpymeHTa npi OTdaYe IPOTNBOJIOJHO DnJKeHnO a6pa3NBHO Kpyra B MeCTe 3aKInHbAHnIg.
r) Oc06eHNO octopOHHo pa6oTaIe B o6laCTn yrIOB, OCTpbIX KpOMOK n T. n. He donyckaIte OTChAHBaHHa Hnn 3aHnHHBaHHa PA6OuHX HHCTpyMeHTOB B 3arOTOBHe. BpaUaIoUncra pa6oHn IHCTpyMeHT cKIOHeN K 3aKJIHHBaHHo pRn pa6oTe B o6laCTn yrIOB, OCTpbIX KpOMOK nIIN pRn OTChAHHaHH. 3TO BBi3bIBAeT NOTePko KOHTPOJI NII OTDaCy.
d) He nCnoJb3yIte cenHoi nn 3y6aTbi HnJIbHbI dNCH. Ndo6HbIe pa6OHy IHHCTpyMeHTbI YaCTO Bbl3bIAOT OTaCy nn IOTepIO KOHTpOHaD 3JeKTPoHNCTpyMeHTOM.

4.3 Oco6bIe yHa3aHnI NO TexHnKe 6e3OpacHOCTn npN IInΦOBAHn N a6pa3HBHOJ pe3He:

a) NcnoJb3yIte ToIbKO NOxOJaIIN dJIBAWero 3JeHTpOHnHCTpyMeHtA 6pa3NBHbIHnHCTpyMeHr INpeHa3HaueHHbI dJI Hero3aunTHbI KOHX. A6pa3NBHbIE INHCTpyMeHtBI, He npedHa3HaueHHbIe dJI DaHHORO3JeKTPoOHnHCTpyMeHtA, He 3KpaHnpYIOTCB DocTaTOHOr CTeNEHI IN He YBJIOTC8 Be3OpAnCHbIMN.
6) Bbinyhblie a6pa3NBblte KpyrdoJHhbI 6bItb pa3MeueHbTaHIM o6pa3OM, yTO6bl Hx pa6oay noBepxHocTb HaxOuHlacb HnHe KpOMKn 3auntHO KOHyxa. HenpaBnIbHo pa3MeueHHbI a6pa3NBbl Kpyr, BbICTyauOuNn 3a KpOMky 3aunTHoro KOHyxa, He MoKet 6bItb 3kpaHnpOBaH DoJXHbIM o6pa3OM.
B) 3aunTHbI KOxH DoJIHeN 6bITb HaJeHHO 3aKpeJIeH Ha 3JeKTPoHnHCTpyMeHTe N BcJIax MaHCmMaHbOH 6e3OnacHOCTn OTpeRyI npOBaH TaHIM O6pa3OM, YTO6bl OTKpbIToO OCTaBaIacb IINb CaMaJ MaIIaY ChTb a6pa3NBHOrO HnCTpyMeHTa. 3aunTHbI KOxH ClyKHT DnA 3aUnTbI OepaTopaOT OCKoIKOB N ClyuHaHORO COpnHKoCHOBeHHa C a6pa3HBbIM HnCTpyMeHTom, a TaKHe OT nCKp, OT KOTOpbIX MoKeT BOCnIaMeHHTbcra OdeKDa.
r) A6pa3NBbIe HNCTpyMeHbI DOJIHHbI
HCNoJb3OBaTbC8 CTpOro NO Ha3NaYeHNIO.
HanpIMep: HNkorDa He npoBOAnTe
WlnFOBaHne 6oHOBo NObepxHOCTbIO
OTpe3HOrO Kpyra. OTpE3HbIe KpyrN
PpeHa3NaueHbI DnA CHrTna MaTePnAJa KpOMKoH
Kpyra. BOKOBoe CINLOBoe BO3dEiCTBNe Ha
OTpe3HOJ Kpyr MoKeT pa3pyuHTb erO.
Д)Всердансплььтугелсправны Здимов phаону erо pa3мер и Форma ДОЛЖны COOTBETCTBOВаТь Bbl6paHOMY a6pa3NBHOMY круг. Пожхаяшпе phанцы праздавлгот сбов onopy дя abpa3HBHORO Круги Tem CambIM ChИжадOT ONaCHOCТь erо pa3LOMA.Фlaнцы дя OTpe3HBIX Кру罗МORуT OTличatabсг OT phaнцев дя ДPyгИx abpa3NBHbIX Кру罗.
e) He nCnoJb3yIte H3HoWeHHbIe a6pa3NBHbIe KpyrN OT 3JIeKTPoHnCTpyMeHTOB 6OJIbUero

pa3mepa.6bpa3nBhIe KpyrI dIa 3JIeKTPoINHCTpyMeHTOB 60JIbIeRo pa3Mepa He paccuHaHa NObblEHHyU YAcTOTy BpaJeHna 3JIeKTPoINHCTpyMeHTOB MeHbIeRo pa3Mepa I MOrTy pa3JOMITbcra.

4.4 DoonHnTeBhIe OcO6bIe yKa3aHnI no TexHNHe 6e3OpacHOCTn npa6pa3HBHO pe3Ke:

a) N36eraTe 3aKlnHHBaHnO tpe3HOro Kpyra nn CnHkOM 60nbIoro DaBJeHn npNnHa. He BbINOJHnTe CnHkOM rny6OHe pa3pe3bl. Perepy3ka OTpe3HOrO Kpyra npNbOHT K erO nepeHaPRAKeHNIO npeKocam nn 3aKlnHHBaHnIO, YTO yBeJIuHBAeT BepoTHOCTb OTdaU Hn POLOMKn a6pa3NBHO MaTepnaJa.
6) He cToIe B 30He nepeB bpaauoummcr OTpe3HbIM Kpyrom n 3a Hm. EcIn Bbl HaunheTe DBnraTb OTpe3HO Knpyr C 3arOTOBHO ON Ce68,TO B Cnyae OTdaun 3JIeKTPOnHCTpymeHT C BpaauoUMCk Kpyrom 6yJeT OTbpoWeH npRMO Ha Bac.
B) B clyuae 3aHnma OTpe3Horo Kpyra Hn npn nepepbBe B pa6ote OTHIOUHTe HNCTpymeHT nnoepHNte ero B pyne do noHOn octaHOBN bpaauoJeroCkpyra. HnKOrda He nbTaIaTeCb N3BLey DnHcyuNCr OTpe3HOH Kpyr n3 npONla, TaK HaK 3TO MOHeT Bbl3BaTb OTdauy. OnpeDeJIte n ycTaPAnTE npuHy 3aKlnHHaHn.
r) He BkIIOuAte 3JIeKTHPOINHCTpymeHT, ecn OH HaxoNTcB 3aROTOBKe. Chauana daIte OTpe3HOMy Kpyry Ha6paTb NOHyU qAcTOTy BpaueHH, TOLbKO NocLe 3TOrO OCTOpOHNO npodolJaHte pe3ky. B npOTHBOM clyuae Kpyr MOKeT 3aeCTb, OTCKOHTb IN3 3aROTOBKn INN Bbl3BaTb OTdauy.
A)ДЯ CHINHENNA PNCa OTdauN B pe3yIbTaTe 3aKInHHBaHHa OTpe3HOrO Kpyra npn 06pa6oTHe NHT H 3aROTOBOK 6oJbWoro pa3Mepa NOBeHTE NOH Nx ONopy. 3aROTOBka 6oJbWoro pa3Mepa MoryT nporHytbcr NOd DeiCTBHeM CO6CTBHeHORo BEca. NOd 3aROTOBHy CLEdyET NOdBecTHn ONOpblc DByX CTOpOH, a IMeHHo BV6JIu3n pe3a N KpOMKn.
e)Будьт oc06eHNO octopoHHbI npn Bblpe3aHn HnB NmEIOuNXc CTehax nI IN dpyrnx He npocMaTpnaEBmx 3OHAx. Iorpykaembl OTe3HOJ Kpyr MOKeT Bbl3BaTb OTdauy npn pa3pe3aHn r30- N BOOpPOBOOB 3JIeKTPnuEcNx PpOBoOB nIINhBix OBeKTOB.

4.5 Oco6bIe yHa3aHnI NO TEXHKe 6e3OpacHOCTn npu IInΦOBaHHn HauKaHou 6yMaRo:

a) He nCnoJb3yIte wlnfoBaJIbHbIe InCTbl CnshOM 6OJbWOro pa3Mepa, co6JIIOJaIte yKa3aHHbIe npOn3BODHTeJIem pa3Mepbl.

IINΦOBaJIbHbIe JInCTbI, BbICTyNaIOUcne 3a KpaI INΦOBaJIbHbIX TapeJIOK, MOrYT CTaTB npuHON TpaBM, pa3OpBaTbcR, a TaKHe npNBecTu K 3aKlnHBaHHIO NnK OTdAue.

4.6 ToIbHO IaIy WEVA 15-125 Quick, WEVA 15-150 Quick: ocO6bIe yka3aHnno

PYCCHNru

TexHHKe 6e30nacHOCTn npH NOJInpOBaHHN:

PpocleIte, YTO6bI He CBncaJIH qactN
NoInpoBaIbHOro KOIIaHa, OcO6eHHO erO
UHyprN dIy KpeIeHHy. Y6epHTe BCTOPOHy
HIn o6peKbTe UHyprN. CBncaIOuIne H
BpaIauOuIeSCr npn pa6Ote KOHcbl UHypkOB MOryt
HaMOTaTbcra Ha NaIbCuI NIN 3aROTOBky.

4.7 Oc06bIe yka3aHnI NO TexHnHe 6e3onacHOCTn npn o6pa6oTke hapdoUeTHaMn:

a)ПOMHHTe O TOM,чTOи3 Kapdoошten BbInadaOT KycOuKN npOBOLOKn Данe рп nO6bIyHOn 3xCnIyatauHN. He neperpyJaTe npOBOLOKY cINxHOM BBICOHN DAblEnHem npHHMa. OTLeTaIOUne KycOuKN npOBOLOKN MOrT JERKO pPoHnKHyTb ChBO3b TOHkyo OdeJdy N/IIIN KOHy.
6) EcIn peHOMeHDoBaHO npImeHHe 3aunTHoro KOHyxa, He donyckaIte COnpNKoCHOBeHHKOHyxa H KapdoUeTHN.

DnameTpapeJIbYaTbIX NuaIeUHbIX UeTOK MOKeT yBeJIuNBA TbCB NOB BO3JeIcTBnEM DaBLeHnI npKIMa I cHTpO6EHNbIX CnI.

4.8 DoonHHTeIbHbIe yHa3aHnI NO TexHnKe Ge3OnaCHOCTN:

PekomeHdyeTcNcNoB3OBAbCTaCnHOApHyU yctahOBky dny ydaJIeHnIbII. IpeD

HNCTPymENTOM BcERda NODKlOuaTe aBTOMaT 3aUHTbI OT TOKa yTeuKn (Y3O) C MaHC. TOKOM OTHIOUeHn 30 MA. B cIyuee OTKIOUeHn yIIOBOI WIIINΦMaUNHbI ABTOMaT 3aUHTbI OT TOKa yTeuKn HNCTpymENT CJIeDyET PNOBepNTb I OChNTb. CM. rIaby 9. OUnCTka.

PnmuHenne NOBpeKdEHHbIX, DeΦOpMnpoBaHHbIX NIN Bn6pnpuyOuix INHCTpyMeHTOB 3anpeueHO.

He donyckaIte NOBpeJdeHn ra30- nIn BOIOnpoBOIDOB, IINH N 3JIeKTpOHTaHnI HecyuixxCTeH.

Ipeed npoBeHnem KaKnx-1n60 HacTpoeK, nepeoChaueHnry nI npa6OT no TexO6cnyJHHBaHnIO n3BLeKaIte CTeByU BnIKy N3 pO3ETKn.

PpeoxpanTeBna MyfTa Metabo S-automatic. Pn Cpa6aTbBaHn PpeoxpanTeBHO MyfTbI He3ameJInTeBHO BbIKIOuayte INHCTpyMeNT!

IobpeKdennHn nnnoTpeckKaBwaacr DOnoJIHTeJbHaR pyKOaTKaNoJeKHT3aMeHe.He IcNoJIb3yIte 3JeKTPoINHCTpyMeHt C DeΦeKTHOJ DOnoJIHTeJbHOH pyKOaTKoH.

IobpeKdEHHbI INNOTpeCKaBUncR 3aUHTbI INKHX NOJLeHNT 3aMeHe. He nCNoJIb3yIte INHCTpyMeHT C DeΦeKTHbIM 3aUHTbIM KOHXOM.

3aKpeNnIe He6oJIbUWe 3aROTOBKn, HApPIMep, 3aKHMaTe INX B TNCkA.

CHINHEHNE nbIeBOH Harpy3KN:

PPEyPENHEHNE 1bIb,
O6pa3oBaBwaAraC B pe3yIbTaTe 7nHΦOBKn
DaChno 6yMaRo, paCnINIBaHN, 7nHΦOBKn,
JIeHNn I dpyrNx BnIOB pa6OT, cOdepKHT
YeCKHe BeUeCTBa, Bbl3bIBaIOuNe paK,
XdEHbIe DeΦeKTbI INn dpyrHe NOBpeKDeHNr
OdykTNBHOcTcEMbl. PpIMepbTaKnx
YeCKNX BeUeCTB:

CBNHueB KpaChe C COdepeKaHneM CBNHca,
-MHepaIbHaN IbIb CO CTpOnTeIbHOrO KInpNnua, cEmeHTa N Dpyrnx BeuectB KInpNnHOr KJaADKn, a TaKKe
-MbIiBjK IN XpOM N3 XIMNueCKN O6pa6oTaHHoJ DpeBeCnHbl.

CTeNeH pNCKa 3aBNCHT OT TORO, KaK YaCTO BbI BbINOJIHReTe 3TOT BnD pa6OT. YTO6bl UMeHbIHTb BO3dEChTBnE XIMNueCkNX BeIeCTB: pa60TaIe B NOMEuEHnX C DoCTaTOUHO BEHTIaIcneN I yTBepKDeHHbIM JInuHbIM 3aunTHbIM ChapJKeHNHeM, HAnpImep, peCnnpaTOP, pa3pa6oTaHHbI CneuaJIbHO dJa φINbTpauNi MNKPOckONueCkNX YaCTNu.

3TO TaKHe KacaetcNbIINOT Dpyrnx MaTePnaIOB, HApnIMep, HeKOtOpbIX BnO8 DepeBa (DpeBeCnaY nbIb dy6a nn 6yKa), MeTaNla, ac6ecTa. Dpyrne n3BeCThIe 3a6oJIeBAHnra — 3TO, HApnpMep, aJIleprnueChne peaku, 3a6oJIeBAHnra DbIXaTeNbHbIX nyTei. He donyckaIte nonadHnra nbIIN BHyTpB opraHn3Ma.

Co6IIOdaaTe dIpeKTHBbl, OTHOCaHnecc K BaWM yCIOBnM, H NaIOHOJIbHbIe IpeDnIscAHN, BKNIOUaY o6paBaTbIbAembI MaTePnaI, NepCOHaI, BApNaHTbI pImMeHEnH N MeCTO nPoBeDeHn pa60T (HaNPmEp, PNOJKeHnO6 OxpAne Tpyd a nnO6 yTNIIN3aun).

Obecneyte ydaJIeHne o6pa3yUOxxCraCTnC, He donyckaIte o6pa3oBaHnO TIOJKeHnB OkpykaIoUeMpocTpaHCTBe.

IcnoIb3yIte IoIxOJaIe yCTpoIcTBO ydaJIeHnIbIIN.

Дяумehbшени NBileBoHarpy3Kn:

• He HappaBnIe Te BbI6pacbIBaemble n3 HNCTpyMeHTa YactNuCbI N Otpa6oTaHHbI BO3dyX Ha c6b, HaxOJaUnxCpRdOM JIODeHnHa CKONJIeHn Ibln;
• INCNOJIb3yIe BBITAAHHOE yCTpOJCTBO H/HIN BO3DyXOOHCTHTeJIb;
• xopoio npoBepTpa6ooye MeTo n COepeKHTe eO B uCTOTE C NOMOuIO PbIeCocA. POnMeTaHne HIN pOyBkA TOJbKO POHNMaET PbIb B BO3dyx.
  -06pa6aTbIbAitTe nbIeCOCOM nHn CTnpaHTe 3aunTHyIO OdeKdy. He npOdyBaIte OdeKdy BO3DyXOM, He BbIbBaIte N He CMeTaIte C Hee PbIb.

5.0630p

CM.c.2.

1Зжимная raйka Quick*
2Unnndelb
3 PndepKnBaIOuIeN FJIaHeU aBTo6aHaHcnpa
4Khonka ctonopa mHHdela
5 PepeKJIIOUaTeIb Ira BHIIOUeHIN/ByIKIOUeHIN*
6 PyKoTHa
7 3JIeKTPoHHbI CNrHaIbHbI INHdNKaTOp
8 YcTaHOBOUHoe KOleCNKO dIpeRyIINPOBHN 危CTObl BpaueHnA
9 HaKIMHOH npeKIOUaTeIb
10 PpoyuHa KpeHHeHHa (Jn3aunTbI OT NaeHHa C BbICOTbl)
11 JIeNecTKOBbI nepeKJIIOUaTeIb
12 DOnOHHTeJIbHa pyKoTka /DOnOHHTeJIbHa pyKoTka c rAweHnEM Bn6paun
13 3aunTHbI KOxHyX
14 NopdepKnBaOuCmΦnaHeC
15 RaHaCDbymrTOPceBbIMNOTBepCTnMn
16 BByXHTNTOBbI KJIIOH
17 Pbyar dIy KpeIeHn 3aunTHoro KOxya

*B3aBNCHMOCTNOTKOMPJIeKTAuIN/HEBXOJNTB KOMPJIeKT NOCTABKN

6. BbOaB 3KcPnyatauHIO

IpeD BBODOM B 3KcNlyaTaunIO npOBepbTe, COBnaDAHOT JIn yKa3aHHbIE Ha 3aBOdCKoT Ta6nUKe 3NaueHn HAnpJxHeHn N YaactOTbI CetncnapaMeTpamn 3JIeKTPocETn.
IpeeHnHCTpyMeHTOM BcerdaNoHJIouaTe aBTOMAT 3aunTbI OT TOKa yTeuKN (Y3O) c MaHC.TOKOMOTKJIIOUeHn30MA.

6.1 YctaHObKa dOOnJIHnTeJIbHoI pyKoRTKn

Pa6otaTe ToIbKO C yCTaHOBJIeHHoJ DOnOJIHNTeJIbHOpyKoTkoJ (12)! PpOuHo npBnHTte DoONHNTeJIbHyIO pyKoTky cJeBOH INc CpabOc TOpOH IHCTpyMeHTa.

6.2 YctaHObKa 3auNTHOro HOHyyxa

H3 coo6paKeHn 6e3OpacHOCTn HCIOJIb3yIte TOJIbKO TaKOH 3aUHTbI KOKHyX, KOTOpBII ppeDyCMOTpeH DIA COOTBeTCTByIOUeO aOpa3NBHO INHCTpyMeHTa! CM. TaKHe rIaby 11. PpHaJdNeHHOCTH!

3aunTHbIKoKHyxIJIaIINΦOBaHn

PpeHa3HaueH nIpa6oTc a6pa3nBhbIMN KpyramN, lamEJIbHbIMN IINΦOBaJIbHbIMN TapeIknAm, aIma3HbIMN OTpe3HbIMN KpyramN.

CM.pncyHOKDHa c.3.

• HaKmTe pbyar (17) n ydepHnBaIte ero B 3TOM noLOXeHN. YcTaHOBtE 3aUHTbI KOxv (13) B n3O6paKeHHoe NOLOXeHne.
  -OTnyctnte pbiur n nobepnnte 3aunthbik KOxuy, noka pbiur He 3aΦHKcnpyeTc.
• HaKMTe pbIar n NOBepHnTe 3aunTHbI KOxUx TaHIM o6pa3OM, YTO6bl K Bam 6blna o6paueHa 3aKpbITaY qACTb.
• PpOBepbTe npOuHOCbI NOcaKn: pbUar DOJIKeH 6bITb 3aΦNcHPOBaH, a 3aUHTbI KOKyX He DOJIKeH DvIRaTbCra.

HcnoJb3yIe ToJIbKO Te pa6Oue HNCTpyMeHTbl, KOtOpBle BbICTyNaIOT H3-NOd 3aUHTHO KOKyXa He 6oJee, Yem Ha 3,4 MM.

(ChTne B o6paTHoH nocJeDoBaTeIbHoCTn.)

7. YctaHOBHa a6pa3HBHOro Kpyra

Ipeed IIO6oNEpeHaJcKo: H3BLeKeHTe ceTeByIO BnIKy n3 po3eTKn. HcTpymeHT dOJIkeH HaxODNTbcR B BbIKIOUeHHOM COCTOAHN, a WnHNDeJIb DOJIkeH 6bITb HeNoDBNkHBIM.
Дя pa6obT c OTpe3HbIMN KpyramN B ueJX 6e30nacHOCTN HcNoIb3yIte CneuaJIbHbIe 3auntHbIe KOxynI dIy OTpe3HOrO Kpyra (CM. rIaby 11. PpHaJeJxHoCTn).

7.1Фнcaишнндя

• Haxmnte KhoNky cToOpa uHHdeJe (4) n npOBopaunBaTe uHHDeJIb (2) pyKoJ do OuyTMoH oHKcaUNn KHOHN.

7.2 YctaHObKa a6pa3nBHorO kpyra

HnctpymEnTbI C IeNecTKOBbIM nepeKIOUOaTeJeM (c yHNKcne 6e3oNaChOCTN):

BkIoueHne: nepeBnHbTe IeNecTKOBbl nepeKIOUaTeIb (11) B HappaBLeHn CTpeIKN, NocLe Yero HaKMITE IeNecTKOBbl nepeKIOUaTeIb (11).

BbIKIOUeHHe: OTNcHTeJIeNECTKOBBI nepeKIOuATEIb (11).

CTaHdapTHoe wlnfoBaHne n wlnfoBaHne HauHaHOn 6ymarO:

PnKMaTe HNCTpyMeHCTyMEpeHHbIM yCNIHem N nepeMeaTe ero no NOBepxHOCTn B3aN IN BnepeD, YTO6bI NOBepxHOCTb 3aROTOBKN He neperpeBaJacb.

YepnoBoe wlnfoBaHne: nIyNoIyueHnXopoWero pe3yNbTaTapa6oTaIteCycTaHOBOuHbIM yrIOM 30^ - 40^

A6pa3NBHOe OTpe3aHHe:

Pn a6pa3NBOM OTpe3aHnB CcERda pa6oTaIe BO BCTpeyHOM HappaBHeHH (CM. pncyHok). NHaYe INHCTpyMeHT MOKeT HeOHNDaHHO BbICKoHTb n3 npOnnla.Pa6oTaIe C

yMepeHHoIpoaYe, COOTBeTCTByIOUeI o6paBaIBaEMomy MaTePnAly. He donyckaIte nepeKocA, He HaXIMaITe I He paKaunBaIte INHCTpyMeHT.

06pa6oTKa hapdoeTHamn:

ymepenHn npnKmAnTe nHCTpyMeNT.

8.4 CoeHHHTeIbHbI 3JIeMeHT K cTpaxOBOUHOMy peMHIO dIa HHCTpyMeHTa (B 3aBHCIMOCTH OT OCHaueHn)

CneuajbHbIe yKa3aHnNo TeXHKe 6e3onacHocTH npn pa6Ote Ha BbICOTe.

BhImaTeIbHo npOHTte BCE yKa3aHnno TeXnKe 6e3OpacHOCTn n IpOChnHcTpyKcHn.

HeBbIOnHeHHe HnKePnBeDeHHbIX yKa3aHn NoTexHKe 6e3OpNaCHOCTn INHCTpyKcIM MOKeT npBecTn K cepBe3HbIM TpaBMam.

ToIbKO dIy IcNoJIb3OBAHnI OByeHHbIM nepcoHaJOM. IOnb3OBaTeJI NdoJIKHBIpOHTN OByeHHe BOTHOWeHnI CTpaxOBKn HnCTpyMeHTa I NCNoJIb3OBAHnI HnCTpyMeHTOB Ha BBICOTE.
- CneInte 3a Tem, YTO6bI BO BpEmr BbINOJIHeHnpa6OT Ha BbICOTE INHCTpyMeHT BceTa 6bl3aKpeIJIeN C NOMOUIB CTpaxOBUHO R pEMH. HcNoJIb3yIte ToIbKO NOxOJaIeCTpaxOBUHbIE PemH dJI NHCtpyMeHTa MapKnMetabo (MaKcIMaJIbHa JdIIHa 2 M (6,5 FyTa) cDOCTaTOUHO AmOpTn3aCueH). 3anpeuaETcNpeBBIaTb MaKcIMaJIbHO DONyCTMHyIO BbICOTyNaDeHn CTpaxOBUHO R pEMH dJIINHCTpyMeHTa (PpNB3HO r pEMH) B 2 M(6,5 FyTa). HcNoJIb3yIte ToIbKO TaHKeCTpyMeHTa, KOTOpBIE NOXODJr DJIr COOTBeTCTByIOSeIrTOIaHNCTpyMeHTa n paCCHTaHbI KaK MInHMym HaMACCy 3TOrO INHCTpyMeHTa, BKIOUaR BCEYCTAHOBLeHHbIE DOIOJIHITeJIbHbIE npHaDJIeKHOCTN.
-Прочиайтейнсчтукцию NO 3KcNlyaTaциNTpaxOBOUHOro peMHЯ ДянСHTpyMeHTa Nco6ЛЮдайтс codephkaunieceB HeYka3aHn.
BcAKn pa3 nepei npImeHnem npOBepaHTe HNCTpyMeHT (BOCO6EHHOCTn poyuHy KpeJIeHna) n CTPaxoBOUHbI peMeHb Ha npEaMeT NOBpeKDeHn I NCpapABHOCTb (BKLIOyA MaTePnaIu IWBbl). He 3KcNlyaTnpuyTe HNCTpyMeHT n CTPaxoBOUHbI peMeHb, eCIN OHN NOBpeXdHbI NII fYHKUHOHpyIOT HeHaJLKeKaUIM O6pa3OM.

PYCCHNru

-3anpeuaeTcKpeNTbCTpaxOBOHbIpeMeHb DnIHCTpyMeHTaKTeNy.3akpenIyTe CTPaXOBOHbIMpeMeHbDnIHCTpyMeHTa K HaJeHHoONope,KOTopar cNoco6Ha BbIDepKaTbCNlyNaDaIOUeRO INHCTpyMeHTa.
- OnachocTb 3aueemleHn, nope3a nn 3anyTbBaHn. 3anpeuaeTc nCNoJb3OBA Tb CTpaxOBouhB peMeHb IINCTpyMeHTa B6JIn3n NOdBnKhbIX qacteN, MexAHn3MOB nn pa6oTaUoIero o6OpyDoBaHn.
-3anpeuaeTcHmehrBoCoeINHeHne dIaCTpaxOBOUHO pEmHa HnHCTpyMeHTe, a TaKHeNCNoJIb3OBaTb erO IyIaPyIIX ceJeN, HeONiCaHHbIX B HaCToAueHnHCTpyKcNl N03KcIIyataCNI.
- 3aKpeHnIe HNCTpyMeHT K CTPaxOBOUHOMy peMHIO TOJIbKO C NOMOuH KOpa6HnHa. 3aPepaTeCRA 3aKpeHnIbTHNCTpyMeHT K CTPaxOBOUHOMy peMHIO, HcNoJb3yR NeTIN ININ y3JIb. 3aPepaTeCRA NCNoJb3OBaTB DnA 3aKpeHnIeHNr TPOCb ININ BepeBKN. HcNoJb3yIe ToJIbKO Kapa6HbIC DByXTaKTbIMN MyΦTaMn. 3aPepaTeCRA NCNoJb3OBaTB MOHTaHHbIE Kapa6HbI 6e3 fHKcaTopa.
3akpenIe ctpaxOBOHypeMeHb TaK,HTo6bIB Cnyuea naDeHHN IHCTpyMeHt yCTpeMnICB CTOPHYOT ONepaTopa. YnaBUnHe IHCTpyMeHTbl KaayIOcHa ctpaxOBOyHom peMHe,HTO MOKeT npINBeCTN K TpaBMam NIn NTope paBHOBecn OnepaTOPOM.
- 3anpeuaeTc3aKpeNlraTbHa cTpaxOBOHOM pemHe 60JIbe OJHOrO INHCTpyMeHTa.
-ДлгзakpenlenHnIHcTpymeHTaHa CTpaxOBOyHom pemHe nCNoIb3yIe TOIbKO CneuAIBHO npEdHa3HaueHHbIe TOUKN KpenlenHn (npoyunHy kpenlenHn (10)). HATEFOPNUECHN 3anpeuaetcMOnHnΦuropoBaTb INHcTpymeHT dIЯ obecneueHn TOUKN KpenlenHn.
-3aKpEnIyIe cTpaxOBOHybI peMeHb Ha HnHCTpyMeHTe TaKIM O6pa3OM, YTO6bl 3TO He BInraHO Ha pa60Ty 3aUHTbIX npncNOC6JIeHN, NepeKluOHaTeJe nnY yCTpoiCTB 6JOKnPOBKn.
-ДеркитecTpaxOBOHyIpeMeHbNoaJIbSeOT pa6oerynHCTpyMeHTa.
- PpedoxpaHnTe ctpaxoBOHybI peMeHb InHCTpyMeHTa OT NcKp N CTpyHKn.
- PpeOxpaHnTe cTpaXOBoHbI peMeH dIa HNCTpyMeHTa OT OCTpbIX KpOMOK,Je3Bn, CTpyKn n T. n. He hAcTynaIte Ha IHCTpyMeHT nJIn cTpaXOBoHbI peMeH.
3anpeuaeTcNcNoB3OBAbCTpaxoBOHbIe pemnI INHCTpyMeHTa IIN KpeNeKHbIe npncnoc6JIeHnI dIyBeJIInueHnEΦΦeKTa pbUHa rNHCTpyMeHTa.
-Obecneyte DoctaToHoe MeCTo B pa6oey 3OHe. B pa6oey 3OHe He doJIHKHO 6bITb yrpo3 JIOJAM.
- Pocne naeHnna 3aMeHnTe Tpoc n npOBepbTe HNCTpyMeHT Ha npEeMet NOBpeKdEHH. Pocne KaJIOrO NaeHnna HNCTpyMeHT DOJIKeH 6bITb OBCJeDOBaH OByeHHbIM CNEuaJIInCTOM Ha npEeMet NOBpeKdEHH n npn Heo6xOuMoCTn OTpeMOHTnpOBaH.
-He cIeJyET nbItaTbCn NOxBaTntb NaDaIOuNIM HNCTpyMeNT.3TO MOKeT npNbEcTn K TpaBmAM.

HCTpyMeHTbI C3JIeHTpoHHKoVTC,TC,VC:

3NeKtpoHHbI CNrHaJIbHbI INHINHaTOp (7) 3aropaetc, n uactota BpaueHnna NOd Harpy3ko yMeHbwaetc (He W...RT).

CnHkOM BbICOKa Harpy3Ka Ha IHCTpyMeHT! DaTe nopa6oTaTb IHCTpyMeHTy Ha XOJIOCTOM XOy, NOKa 3JIeKTPoHHbI CNHaJIbHbI INHdNKaTOP He IORachET.

3JektpoHCTpymeHT he pa60taet. 3JektpoHHbI CNrHaJIbHbI INdHKaTOp (7)B 3aBnCmOCTN OT KOMNLeHTaun Mnraet.Cpa60tana 3auNTa OT NOBTOPO HOro 3anycka.Ecnn npn BnJIIOUeHHOM INCTpyMeHTe CETEBAR BnJIKA BCTABJIeTCB PO3ETKY,INI NOCJe C608 BOCCTAHOBJIeHa NOdaa 3JektpoNTaHIn, INHCTpyMeHT He 3anyckaeTc.BbIKJIQUHTe INCHOBA BHIOHTe INHCTpyMeHT.

11.Принодлжности

IcnoJb3yInTe TOLbKO opnHaJIbHbIE npHaJdEeKHOCTN Metabo.

Cm.c.5.

IcnoJb3yInTe TOLbKO Te npHaJaJIeKHOCTN, KOToPbIe OTBeuAOT Tpe6ObaHnM nnapaMeTpam, nepeHCJIeHHbIM B DaHHOM pyKOBOdCTBE NO 3KcNJIyaTaun.

A 3aJHMM 3aUHTHOKoJyXaJLJ OTe3HOrO Kpyra / 3aUHTbIJKoJyX JJIa6pa3NBHOJ pe3KN

PpeHa3NaueH dJa pa6Obl C OTpe3HbIMN Kpyramn, aIma3HbIMN OTpe3HbIMN Kpyramn. Pnp YcTaHOBJIeHHOM 3aJHMe 3aUHTHOro KOxHyxa dJa OTpe3HOrO Kpyra INCTpyMeHT MOxHO NcNoJb3OBaTb dJa abpa3NBHO pe3Kn.

B 3aunTHbI KOHy dIra a6pa3NBHO pe3H

PpeHa3HaeH dIy pe3Kn KameHHbIX nIIT aIma3HbIMN OTpe3HbIMN Kpyramn. C naTpby6kom dIy ydaJIeHnKamEHHo NblIN C NOMOsbIO COOTBeTCTByUoJero nbIeYdaJIaIOJero annapata.

C 3aunTHbI KOxHc BBITAAHHKoI JnloCHoro uHFOBaHn

IpeDHa3NaueH dIa IINFOBaHn6BeToHa,CTJHH, DpeBecnblI NIOJIIMePOB aIma3HbIMN qaSeHbIMN Kpyramn nn FIOBpOBIMN Kpyramn n IOxOJUIMN IINFOBAJIbHbIMN TapeJIHAMN. C NaTpy6KOM dIy BbITRAKKn KaMeHHoN, DpeBecHOI N IOJIIMePHOIBILN C NOMOuBIO COOTBeTCTByIOUeRO nbILEydaIauIooJeO aIInpaTa. He NOxODNT dIa BBITAAKKn NCKP nn dIa WInFOBaHnMaTaIIa.

D PnOToBOnbIeBoN ΦnJIbTp

MeKouecTbI ΦnIbTp npedeTbPaaaeT nonadHne KpyNbIX YacTHu B Kopnyc dBVaTeJIa. PeryIaPHO cHMaIte N ouNsaIte ΦnIbTp.

E 3aunTHna cko6a

PpeHa3NaheHaIpa6oTc onopHOn TapeKoH, ⅢnΦOBaIbHO TaPeIko, KApDoUeTKamN aIMa3HbIMN KOJIbUeBbIMN CBepIaMn IJIaNTKn.

3aunTHa cKo6a Iy yCTaHOBKn nOd 6OKOByIO DOnOHHTeNbHyIO pyKOHTKy.

FMHOrOno3nUHOHHa CHO6a JIa IDonOHHTeBHOpyKoA rKn

06ecneuBaet pa3nHbIe nOLOKeHn pyKoTKn.

G CbemHaJ dONoHHTeJIbHaJ pyKoATha Co Cho60i

IolHbI accopTImeHT npHaJdJeKHOCTe CM. Ha caIte www.metabo.com IIN B KaTaNore.

12. PeMoHT

HpeMOHTy 3JIeKTPoHNCTpyMeHTa DONYCKAOTC TOLbKO KBAJIINΦIuPObaHHbIE CNEUAnlntbl-3JIeKTPnH!

Pn noBpeJdeHn CoeHHntbHbI npOBOD nOJIeKHT 3aMeHe CneuaJIbHbIM npOBODom.

P2 =BbIXOHaMouHOCt b

m = Macca 6e3 ceTeBOro Ka6eJra

Pe3yIbTaTbI n3MepeHn noJyHeBb COOTBeTCTBn co CTaHdapToM EN 60745.

HCTpyMeHT Klacca 3aunTbI II \~ nepemehhbl TK

* INHCTpyMeHTbICMapKnpoBKOWe... : MOUHbIE BbICOKOaCTOTHbIE NOMEXM OryT Bbl3BaTb K0le6aHHaCTOTbI BpaueHn. PpN 3aTyXaHH NOMEX KOle6aHHaN ppeKpaauoTcra.

Ha yka3aHHbIe TexHnueckne xapaKTepcntKNpacnpocTpaHrOITc DOnyCh, npEpyCMOTpeHHbIE DeNCTByIOUIMN CTaNapTaMn.

3HaueHnnaMnCCnnuMa 3TN3HaueHnnaIO3BOJIAOTO

cpaBHnBaTb 3MnCCnIO Wyma pa3nHybIX 3JeKtpoHnCTpyMeHToB. B 3aBnCmOcTH OT

PYCCKHru

ycIOBn 3KcNlyaTuHn, COCTOHN HJIeKTPoHnHCTpyMeHTa Hnnpa6OuHX nHCTpyMeHTOB fAHTUeCKa Harpy3Ha MoKeT 6bITb BblSe HnHe. IJr OueHKn pIpMepHO rPOBn3MnCCn yHTbBAiTpe NpepeBbIB pa6Ote Nfa3b1 pa6OTbC NOHHKeHHo (WymBOH) Harpy3kO. OnpedeJInte NpeueHb OpraHn3aunOHbIX Mep No 3auntTe POJIb3OBATeJI C yUeTOM Tex ININ INhBX 3HaueHn 3MnCCn Wyma.

CymMapHoe 3NaueHne Bn6paunu (BeKTopHa CymMa Tpex HAnpaBleHn) paCCHTbIbAeTcB COOTBETCTBn CO CTaHApTOM EN 60745:

ah,SG =3HaueHne Bn6paunn (UINΦOBaHne NOBepxHOCTN)

ah,DS 3HaueHne Bn6paun (WlnfoBaHne WInfoBaIbHO TapeJIkoI)

ah,P =3HaueHHe Bn6paunn (npn noJnpoBaHH)

Kh,SG/DS/P = KO3ΦΦHcHEnT nOprpeHnOCTN (Bn6paun)

YpOBeHbIyMa IIO TnIyA:

LDA =ypoBHeb3ByKOBOrDaBnEHH

LWA =yPOBHeb 3BYKOBO MOUHOCTH

KpA, KwA = Ko3ΦΦnUeHT nOprEwHocTn

Bo Bpemra pabotbI ypoBeHb Wyma MoKet npebbiwAtb 80 d5(A).

HaedeBaIe 3aunTHbIe HayuHnKn!

CtpaHa n3rOToBLeHn: TepMaHnIa

Поживдпель: "Metabowerke GmbH",

Metaboallee 1, D-72622 Nuertingen, RepmaHn

HmnpTeB Poccn:

OOO"Meta6oEbpaa3n

Pocn,127273,MockBa

yI. Bepe3oBaA aIIe, 5 a, cTp 7, oΦnc 106

TeI.: [phone]

Data npOn3BODCTBa yKa3aHa Ha

HOpMaIOHOHTo Ta6JIuHKe HhCTpyMeHTa BΦopMaTe MM/rrr

CpOK cIyK6bI n3dJIeNIA COCTaBnEET 7 let. He peKOMeHdVETcK 3KcNlVaTauH N IO NCTeHHN 5

JET XpaHeHnC DaTbI n3rOToBJIeHn 6e3

PpeBapntelbHn npOBepKn

EAC

HΦopMaζηДIa nokynatela:

CepTnФнкat COOTBeTcTBnN № EA3C RU C-DE.ΓБ09.B.00161/20, cpoK DeiCTBnC 19.03.2020 no 18.03.2025 r., bIyIaH opraHOM nO cepTnФнkaun npOdykun NObseCTBO C orpaHneHHoN OTBeTCTBeHHocTbIO "He3aBncmam 3KcpeTpHa; MecTo haxOJdEHNr (aDPEC npUdNueckoro liuca) n aDPEC MeCTa OcyuSceTBJIeHn DaTeJIbHOCTn: 115280, Pocchra, ropord MockBa, yInua JLeHHckA CNo6Oda, dom 19, 3TaJx 2, KomHaTbI 21w8, 21w9, 21w10, 21w11; TelefoH: [phone]; Adpec 3JIeKTPOHNO NOtbl: [e-mail]; ATTecta aKKpeNDtauN NpOCC RU.0001.11ΓБ09 ot 09.09.2014 r.

ДeКлараця O COOTBETCTBnR (RoHS): № EA3C N RUД-DE.ΓБ09.B.00361/20, cpoK DeIcTbNc C 06.03.2020 no 26.02.2025 r.,Зaperистрпраhaba opraHOM no cepTnФИнкци npOdyкци OБцeCTBO C ORpaHnueHHoI OTBETCTBeHHOCtBu

"He3aBnCmMa 3KcNepTn3a"; MecTo HaxOJdeHna (adpec npndueckoro nua) u adpec Mecta ocUeCTBLeHnA DeTeIbHocTn: 115280, Poccn, ropod MockBa, yInuca Jelenhckan Clo6oDa, dom 19, 3taX 2, KomHaTbI 21w8, 21w9, 21w10, 21w11; Telepon:[phone]; Adpec 3JIeKTPoHHo NouTbI: [e-mail]; ATTecTa T aKKpeiHTaun NpOCC RU.0001.11ΓБ09 oT 09.09.2014r.

7.2 zhuwulwulmwnwulwugmuf

Oqnnqnpdtf uwhg ophghwL Metabo qupwqgbp: Slu 5:

Oqunqpdpf huju wju nngnlgni fucwuhugbph lu 1huihcbpgh uwwuwwuwhnn uupuwqbp:

A qunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqunqun

Luwunukud, luynnn uulununuGph, uufuuunuHluynn uunuGph htn oqwnqnudhufup: HluuWuHg
huugm unu quucunu6u quunu6p qunm d, luynn
luunuuhu quucunu6u uunu6h

B qunuufiy quunyufi ounfuc hnuiulquph huiuplmpuiuf uueunuuffilph duunuufiul

Lwunwnuwr wwnwnnug uunnnnghgpmf umt
whptnubq hupm: n6h qgnfumt hnch g hmu npif nmgit hn mmp:

2u.3bftthy

C Ounfuc huiuhmuqh uqumuqufu qunuufu hupp uhlptlukiph hngdufu hunup

Lwunlukudplannupuwnpwhunp uynhlpwuhg
Gnlpppuwwuwjhuwwuah qiwuwpwphh hnuuwwuuuuvu uapp hnuluwuunuulugpnd hnhkum
huiup: nghlgufuuph quunh uunhlpwuhc gnpplph
hnulagunwugan chnch huunwuuuunuubu uwhus wupnf
llwutn huidw: Lwunlukudz lqjdtpp LLwutn. qud
swngtp hhtt m huidw:

DΦnunumunufihquh

Uupuudunuhq qunhp nulhsh unhu, np hncn uufhlilppgppuuhugfcupdphyk: Nuppplpupup huhi duufpti:

E 2lafu uucunuufumpntf

mnnn mnt nnnnnn nn nnnnnnnnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nnnnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

QtaftbI qmuunqgHs annu mfpuggtI qnnnih npugng Hs pumhmmh:

F Ipuugnghy enfiulp muppl np hplpun oqnuqnpolnl plpupulmu

mlll mlln pnnghq oannqnp8L mmppt np[hp]n]:

Glpugnighy pnfiuulh tplupulunu

Ipaugngh qqupuqulph mupnnuulhu dpuqph
dwfinpwufm hnupw ughlf www.metabo.com qu
oqunlbf qmmnLngh:

12. Ltpuflnpnqmu

IbIbnpunqw6 qnp8f6tph 1pwnpnqnup npnnk
[puuqng]L uW6 hnunummmuunuW 1gwmunm

nphunfnm nnufunqunh npgh:

bpl hnuuulif hugudu upp uuuuuh, uui uikunf l, hnuphgl hmnnl uugudu npn:

6.1 KocbIMwa TyTkbluTbOpHaTy

OpaTbIJFaH KocBIMUa TyTKblWneH (12) FaHa XyMbic icTeH3! KocBIMUa TyTKblWtBi

acnantbIH coH HeMeCe OH XaFbHa 6epik 6ypan 6ekitih3.

6.2 KopfahbIw KaIInaKTbI opHaTy

Kayinci3dk TypfbicihHaTek Tnicti a6pa3nBTiKypanFa apHaJFaH KopFaHbIi KaJNaKTblJaAnaHbIHbIc! CoHdai-ak «Kepek-JapaKTap»11.-6eimdi kapaHbI3!

Akapnayra apHanran Kopfahbiw KaJnaK

Akapnaftbiu DeHreKeTepMeH, NaMeIbdi Tipeyiu axapnafti Ta6aKwanapMeH, anMaCTbI KeckiU deHreKeTepMeH Kymbic ICTeyre apHaNFaH.

3-6eTTeri D cypeTIN kapaHbI3.

• NiIntipekti (17) 6acbIn TpybHb3. KopFaHbIkaJnakTbI (13) Kepcetijiren Kynde opHaTbHb3.
• NiHtipeKti Kj6epin, on TipeJreHwe KopfahbIa KaIINaKTbI 6ypaHbI3.
• NiHtipeKti 6acbIn, KopFaHbIi KaJInaKTbl OHbIH Xa6bIK 6eNiri naJdanaHcybifa Kapan TypaTbHdai etin 6ypaHbI3.
• Bepik opHaTbIJFaHbIH TeKcepH3: niHTipeK 6ekitin Tpybi XHe KOpFaHbI W KaJINaK aHaHaMaybl Tnic.

KopfahbikannakTaH KEM
dereHe3,4 MM WamacbHa
WbIFbIN TpyaTBIn aImaBlc
caMabIkypaIapDbI
naIdaIaNbIHbI3.

(IIbIfapyopekeTTiHkepi petTinirimHeOpbIHdaJaBbl.)

7. Aхарларыш дэнгrelектiophату

KaTata6bikay 60nbHwa 6apbIK
KmbicTapdbH anDbIHda: XeJIiHK aHaHbI
TKaHn CybipHb3. Acnan Kocbin TypbI
e UHHdeN Ko3FaMaT TypbI Tnic.

KeckiDnHreNeKTepeMeH Kymbic ICTey yuih Kayinc3dk TpyfbicbiHaH Kecki DnHreNeKke

apHaIFaH KopFaHbI KajNaKtbl («KepeKxapaKaTap» aTb1 11.-6eJIMdi KaPaHbI3) naJaHaHbIHbI3.

7.1 WnnHdJeIbI 6ekityr

• UnnHdIb 6ekITkiwiHt Tymeci (4) 6acbln, UnnHdIbdi (2) 6ekITkiu Tymeci wepty DbIbIcBImeTipeJIrReHwe KOJMeH 6ypaHbI3.

7.2 AxapnaftbIw dHreNekeTio opHaNaCTbIpy

WA..., WBA..., WE...A...

2-6eTTeri A cypeTih kapaHbI3.

ATo6aIaHcnpDIn Tipeiyu fnaHeci (3) UHHdeJIbRe 6epik 6ekitJireh. ByJ 6aca

6ypbIbTbIK axkapJaFbIITapFa kapaFaHda KocbIMwa anMaJIb-caImaJIb TIpeyiIi nAHeu KaXeT eMec eKeHdirin 6InDipei.

ABTo6aHaHcnp TipeiyuΦnaHeciHH (3), axapnafbiu DeHreKeTIn XeHe Quick Kbcna

raikacbHbH (1) 6eTTepi Ta3a 6onybTnic. KaKet 6oIca, onapDbTa3aJaan WbIfbHbI3.

-AxapnaftiDHeReNkTi aBTO6aHaHcnpdi Tipeiyu oPHaNaCeIe (3) opHaNaCTbIPbHbI3. AxapnaftiDeHreNeK aBTO6aHaHcnpdi Tipeiyu oPHaNeUImeH bipKeNki KaHacyblTnic.

WPB..., WEVB 1...

2-6etteri B cypeTih kapaHb3.

-Tipeyiw pfnaheci (14) uinnHdeneOpHaTbIHb3. PhaHeu wnnHdene aHaJImaFaH xaFdaJa dypbc opHaTbIHaF den ecenTeJIe.i
-AxapnfaBbIeHreJekTI tipeiyu fnaHeKe (14) opHaNactbIpbHbI3. AxapnfaBbIeHreJek Tipeiyu fnaHeunen 6ipKeNki KaHacyblTnic.

7.3 Quick Kbcna raKacbH 6eKiTy/6ocaty (ka6dbkTaIyra 6aJnHaBicTbl)

Quick kbcna raKacbH (1) 6ekity:

Quick Kbcna raikacbH (1) TeK «Metabo Quick Jyueci» 6ap acnantapFa opHaTbHb3. ByJ

acnantapdbI《M-Quick》ka36acbI 6ap Kbl3bl TycTI WnnHdJIb 6ekitkiWHiT yImeci (4) apKblTaHyFa 6oanaB

Erep Kbicy dnaana3OHbIHdafbI aImaIbI- canMaNBI KypaIbIH KaJIbIHdbfBI 7,1 MM
WamacbIHAn apTbIK 6oNa, Quick Kbicna raKacbIH naJaHaHyFa TbIbIM caJIbIHadbl! Byn XaFdaia eki caHbIayIbI raKaHbI (15) eKI caHbIayIbI kInTneH (16) 6ipre naJaHaHaBbI3.

• ⅢnHdEnbdi6ekTiHi3 (7.16eImiH kapaHbi3).
• Quick KBicna raikacbiH (1) 2 wibfbihkbi Jep WnHHdeIbdiH 2 OnbifbHa KipetIHdei WnHHdeIbIe (2) opHaTbIHbI3. 2-6eTTerI cypETTI KapaHbI3.
• Quick Kbcna raikacbiH cafat TiniH 6afbltmeH KOJMeH 6ypan TapTbIHbI3.
  -AxapnaFbiIeHreNeKti caFaT tiNiiH 6aFbITbIMeH KyUTeN 6ypay apKbInbI Quick Kbicna raKacbl TApTbHb3.

Quick Kbcna raikacbH (1) 6ocaty:

Quick Kbcna raikacbi (1) opHaTbIbn TyphaHda fHa, WnIHdeNbdi Kb3bl TcyTi M- Quick bekitkiu tyMecimeh (4) ToKtatyfa pyKcat etiJe!

• Acnan eupinreHHe H KeiH INepun 6oBbHsa K03fana bepedi.
  -AxapnafbiIeHReJek ToJIbIK ToKtAmac 6ypbIH Kbl3bl TycTI M-Quick uHHdeJIb 6ekTIkiWHiT yImecIH (4) 6acblI3. Quick Kbcna raikacbl (1) e3 6etIHwe IaMamEn 6ip Jkapblm aHaJIbIMfa 6ocaiDa, OHbl KocbIMwa KyyH HeMece apHaBlk Kypan KOndaH6a 6ypan 7bIFapyfa 6onaBl.

7.4 Eki caHbIJaIraKaHbI 6eKiTy/6ocatY (ka6DbIKTaJyFa 6aJNaHbICTbl)

Eki caHbIayIbI raKaHbIH 2 XaFbI 6ip-6ipiHe H3reweJenei. Eki caHbIayIbI raKaHbI WnHHdJIbe TEmeHderIeN 6ypan opHaTbHbI3:

2-6eTTeri C cypeTIH kapaHbI3.

-X)Kya axapnafbiH deHreIeKtep yuH: Eki cahblaybI raiKaHbIH (15) 6yblTbIFbl aXkapnafbiH deHreIeKti MbIKtan KbcY uHJ KOFapbl Kapan Typ.
Y) KaIbIH axapnaftbIw DeHreNEkTeP ywiH: Eki caHbIayIbI raKaHbIH (15) 6yblTbIFbl eKi caHbIayIbI raKaHbI wnnHdIbIe bepik 6ekity ywiH TeMeH Kapan Typ.

-ⅢnHdIbI 6eKITiH3. EKI caHbIayIbI raKaHbI (15) eKI caHbIayIbI KINTTIH (16) KeMErIMeH caFAT TINIHH 6aftbIme H6ypan TapTbIH3.

Eki cahblaybI raKaHbI 6ocaty:

• ⅢnHdJIbI6eKITiHi3 (7.1 6eJIIMIH KapaHbI3). EKi caHbIayIbI raKaHbI (15) eKi caHbIayIbI KJIITTIH (16) KEMERImeH cFaT TiINIiH 6aFbITbHa KapcbI 6ypan WbIFapBbI3.

8. Пайдалану

8.1 AaHany xinirin peTey (xa6dbkTaIyra 6aunhaBicTbI)

PetteriW DeHreIeKeTe (8) YcbHbIHaF aHany XnIniriH petTeh3. (Kiwi caH = TeMeH aHany XnIniri; YnKeH caH = Kofapbl aHany XnIniri)

A6pa3nBti Kecki, axapnaftwi DeHreNEk, axapnafti 6bactneK, anMaCTbl KeckiW DeHreNEK: Xorapbl aHany xiniri

KbIwaK: optaWa aHany Xniniri Tipeiyw axapnafbwi Tabakwa: TeMeH-optTaW aHany Xniniri

Hcykay: Kblntbipaty KymblcTapby ywiH 6i3iH 6ypbltBik XblntbipaTkblTbi NaJaNaHyFa KeHeC 6epem3.

8.2 Kocy/ewipy

AcnantbI apdaaBIM eKi KOJMeH yCTan TypblHbI3.
AImaIbI-caMaJIbI KypaJIbI daIbIHdaMaFa TeK KocyJIbI KyIHHe anapbIHbI3.
KeHET icke KocbinybHa kon 6epMeHiz: Jxenirik awa po3eTKaDaH cyblpInFaH HeMece ToKneH XabkTay y3iJre H 6onca, apdaiBIM acnantbI eWipiHiz.
A...，WBA...，WEA...，WEVA...，WEBA...， W...RT: y3diKci3 xymbcic pexnmiHde acnan KOndaTycipinreH xaFdaIda da apbl Kapai xymbcic icTeiDi. CoNdbkTaH epaanbIMacnantbI ek konmeh apHaib TyTkbiTapbIHah YcTaHb3, TypaKTbl KaNbINTa TypbIHb3 xeHe bap Ha3apbIHb3DbI opbIHdanaTbIH xymbcika aydpbIHb3.
Acnanka WAn MeH KOHaHbIH KybHdAyBH Hemece TapTbIyBH 60IdbipMaHb3. Acnantbl eWiprehHeKeIH K03FaNTkbIbTolbIKTaI TOKaTaHaHa KaMaHbI3.

Ayibctbipbn-Kockbiwbl6ap acnanTap:

Kocy: aybictbipbIN-KOCKblHtbl (5) aJfA XblXblTbHbI3. Y3diKci3 KyMbIC peXmimi ywiH aybictbipbIN-KOCKblHTbl TipelreHwe TeMeH KaibpblH3.

Θwipy:aybictbipbn-KOCKblWtBih (5) apTKbl WtBih 6acbln Xi6epiH3.

KA3AKLJAkk

《БектимейтihaxbipaTkbIbI》6ap acnantap (Kayinci3 ToKtaty yHKcnaCbImeH):

Kocy: 6ekitimMeTIH axbipaTkbiuTBI (11) KepceTki 6afbltBImeH xblnxblTIN, 6ekitIMeTIH axbipaTkbiuTBI (11) 6acblh3.

Θwipy: 6ekitijmeiH aKbipaTkbiWtBi (11) xi6epiH3.

W...RT 6eJrici 6ap acnantap: Kbicka Mep3imre Kocy (Kayinci TOKTaTy cyHKunacbImeH)

Kocy: 6aTbipMa aybICTbIPbIN-KOCKblWtBl (9) aNFa KapaJ XblXkbITbIHbI3 Da, COnaH KeiH 6aTbIPMa aybICTbIPbIN-KOCKblWtBl (9) Xofapbl KapaJ bacblB13.

Θwipy: 6aTbIPMa aybICTbIPbIN-KOCKblIITbl (9) xi6epiH3.

W...RT 6enrici 6ap acnanTap: Y3dkci3 xymbc pexmi (ka6dbiktaIyra 6aaihaHbictbl)

Kocy: acnantbI KOFapbIda cunTtaJfHaDai KOcbHb3. EHdi 6atbIpMa aybICTbIPbn-KOCKblTb (9) TaFb 6ip peT anFa KblNkbITbIn XeHe aIdbHfbJaKa KyIHne Xi6epin, 6atbIpMa aybICTbPbIN-KOCKblTb (9) 6ekitiH3 (y3dikci3 Kymbicpexmi).

Θwipy: 6aTbIPMa aybICTbIPbIN-KOCKblWTbl (9) KOFapbl Kapai bacbl XiBepiH3.

8.3 Kymbic 6oBbIHwa HycKaynap

Akapnay khe ereyKym Kafa3bImeH axkapnay:
Acnantb opta KaWneH KbICbn, DaBHaMaHbIH
6eti KaTb KbI36aTbHdAn etin YCTHI 6et
6oBbHwa anFa-apTKa XblNkBiTBbIH3.
Cnbpa axapnay: KaKcbHtNXKere Kon KeTki3y
YwIH 30^ - 40^ opHaTy 6ypblbHda Kymbic icTeHi3.

A6pa3nBti kecy:

A6pa3nBti kecy ke3iHne apdaibim
kapama-kapcbi 6afttneH (cypETTI
kapaHbI3) Kymblc icTeH3. Kepi
XaFdaIa acnan KecikTeH KeHet
cekipin sbIFyIM MymKIn. OptaHa,

EHneIeTIH MaTePnAIfa JapamDbI 6epiicneH
XyMbIC ICTeH3. KucauTyFa, 6acyFa XHe
TeHCeNTyRe 60MaNdbI.

CbIM KblIwakTapMeH KyMbic icTey: Acnantbl optaawa Kywneh KblicbHb3.

8.4 KypaJI 6eKITKiI 6eNikKe KocblbIM (ka6dbIKTayf 6aJNaHbICTbl)

BniKTe naIdaIahyfa apHaIraH Kayinc3dk TexHnKacbIbIH HcCKaynapbl. Kayinc3dk TexHnKacblXHe naIdaIahy BoBHua bapblk Hyckaynapbl OkbIN sbIFbIHb3. Kayinc3dk TexHnKacbl XHe naIdaIahy BoBHwa HyckaynapblOpbIHdAmay aybp JkapaKaTTaHyfA eKeNyi MymkiH.

• Tek OkblbJfah nepcoHaJ TapanbHaH naIdaIaHyfa apHaJFaH. NaIdaIaHysbIap KypaIbH Kayinci3diRi XeHe KypaIdApDb6nIKTe naIdaIaHy XeHiHde 6iikTi 6onybl Tnic.
  KypaJI 6nIKTe KymbIc icTeReH Ke3e apaBIM KypaJI 6ekTIkiW 6enIIkNeH 6ekITInreHHe Ke3 XeTki3iH3. TeK Metabo YcbIHFaH apHaBI KypaJI 6ekTIkiW 6enIIkTePdi NaIaIaNbIHbI3 (XeTkiNtI amOpTN3aIqMEn 2 M (6,5 cyT). KypaJI 6ekTIkiW 6enIIk (YCTaBiW 6enIIK) ywiH MaKcImaJIbI pyKcat eIInrE H Tcy 6nIKTiri 2 M (6,5 cyT) IamaBHAnacaybi Tnic. TniCti KypaJI ywiH JapamDbI 6onbln KeNETIH KEmHDe naIdaIaNbIaNbIH 6apnbIK KepeK-JapaKTapDbI KOca KypaJIdbIH caIMaFBI ywiH K0bIaNHaFAN KaPaJI 6ekTIkiW 6enIIkTePdi NaIaNaIaNbIHbI3.
• Kypan 6ekitkiu 6eJnKiTH naJaHaHy XeHiHderi HcayNbIFbH OKbIN UbIFbHb3 XHe YCTaHbHb3!
• KypaJIbI (acipece 6ekITkiW Ke3di) JxHe KypaJI 6ekITkiW 6enlIKTI ep naJaIaNah6ac 6ypbIH OJapda 3aKbIMdApdbIH 6ap-KoFBH JxHe aKaycbI3 JxMbICbIH (acipece MaTePnAbI MeH TIRCTepIH) TekcepIN 7bIFbIHbI3. 3aKbIMdAnFaH HemeCe TniciHwe KbI3MeT aTKapMaIbTBH KypaJIbI JxHe KypaJI 6ekITkiW 6enlIKTI naJaIaNah6aHbI3.
• KypaJI 6eKITKIU 6eNdiKTI deHeHizre 6eKITneHiz.
  KypaJI 6eKITKIU 6eNdiKTI KyaIaNtBuH KypaIbIH KyuIN IuIaI aIaNtBuH 6epiK 6eKITy HYKTeciHe 6eKITiHiz3.
• Kbicblbn, Kecinin Hemece opanbln KaIy Kayni 6ap. KypaJI 6eKITKIu 6eNdiKTi XblJXbIMaJIb 6eJIweKTeP, MexAHIN3Mdep Hemece Ko3FaIbIn XaTKaH arperaTTapDbH XaHbIHda naJaHaHaHbI3.
  KypaJI 6eKITkiu 6eJIikTIH KypaJIaFbI KOcblbIMbIH e3repTneH3 JHe 6eJIkTI, COHaA-ak OcbI NaJaIaNHy XeHiNderi HycKayIbIKTa CnPaTTaJFaHHaH bAcKa MaKcaTpeH NaJaIaNbHaHbI3.
• KypaJIbI TEK Kapa6nHi 6ap KypaN 6eKITkiU
  6eNdiKke 6eKtiH3. KypaJIbI KypaN 6eKITkiU
  6eNdiKke iImek Hemece TyiH apKbIbI 6eKITneH3.
  6eKity apKaHdApBbI Hemece cbIMdApDbI
  naJdaHaHbAHy3. TeK eKI JkaKTbI KyblTay Kyneci
  6ap Kapa6nHdi naJaHaHaHbHbI3. KaPanaBIM
  Typde 6eKITJetIH ne3de Kapa6nHdi
  naJdaHaHbAHy3.
• KypaJI 6eKITKIu 6eNikTi, KypaJI KUJaFaH XaFdaIa I naIdaIaNHybIdaH anbIcTaIbIHdai etin 6eKITiH3. TycipInreH KypaIap KypaJI 6eKITKIu 6eNikTe TeHceIN, naIdaIaNHybIHbIH JapaKaTTaHbHa HemeCe TeNe-TeHdiKTe H aIbIpblNybiHa eKeJyI MymKiH.

• KypaJI 6eKITKIi 6eNIIkKe 6ipIeH KeI KypaIbI eW KaFdaIJa 6eKITneHi3.

• Kypan 6ekitkiu 6eIdiKti Kypanf a 6ekity yuH IN TEK apHaBb Xo6aIaNFaH 6ekity HkyTeIepiH (6ekiTkiu Ke3 (10)) naDanaHbHbI3. 6ekity HkyTecin Kpy yuH IN EUKAUAH KypanDbI e3repTneHi3.

• Kypan 6ekitkiw 6endiikti KypaIFA, KopFaHbIC Kypblfblnapbl, axblpaTkbiH HeMece KyIbINTap TnicHwe XyMbIC icTeMei KaJaTaBHaJ etin 6ekitneHi3.
  -Kypan6ekitkiw6enikti anmaIbI-caImaJIbI acnantah anwaK yCTaHb3.
  -Kypan 6ekitkiw 6eIikTI yuKbHdayaHaN XaHe KOHkaDaH KOpFaHb13.
• Kypan 6ekitkiu 6eJikTi eTkip XneKTepeH, YUHTapdaH, KOHKaJaHaH XHe T.6. HOpceIepDeH KopFaHbI3. Arperatka HeMece Kypan 6ekitkiu 6eJikKe 6acnaHbI3.
• Kypan 6eKtkiu 6eIiKti Hemece 6eKity KypblfblapbH KypanDbH niHTipek acepiH yJFaTy ywiH naJaJaHa6aHbI3.
• Knyay aHMaFbIHda JxetKlNkTb6ocOpbHHbH 60nybH KaMTaMaCbI3 etiH3. Kyay aHMaFbIHda aadamapFa Kayin THe6eyi Tnic.
• KyaFaHah KeiH apKaHdbI anMaCTbIPbIH3 XHe arperaTTa 3aKbIMapDbIH 6ap-KoFBIH TeKcePin WbIFbIH3. Acnan ep KyaFaHHaH KeiH, OHda 3aKbIMapDbIH 6ap-KoFBIH TxKipn6eJI TexHm MAMHa TeKcepTiH3 XHe KaKetIHwe XeHDeTIH3.
  KyaFaH arperaTbI yCTan anyFa apeKeTTeH6eHi3. Byn kapaKaT Turi3yi MymKiH.

8.5 PeDyKtop KopnycbH 6ypay

3-6eTteri E cypeTih kapaHbI3.

-KyatawacbHTapTBINWBIFapbiHb3.
- NiIntipeKtiH (17) 6eKITkiu 6ypaHdaCbH (a) 6ypan 5bIfapblHb3. 6ypaHda MeH NiHTipeKti (Ta6ak 6eNirimeH 6ipre) 5bIfapbln aJIbIHbI3 da, apbl KOblHbI3.
- PeDyKTop KOpNycbIHbH 4 6ypaHdacbH (b) 6ypanUbIfapbIHbI3. HA3AP AYdAPbIHbI3! PeDyKtop KOpNycbIH cybIPbIN ubIFapMaHbI3!
- PeDyKTop KOpnycbIH TaPty epeKeTIHci KaKeTTi KyIre 6ypaHbI3.
- PeDyKTop KOpNcBbHbH 4 6ypaHdacbH (b) 6ap npek OIma xinTepiHe 6ypan kipri3iHi3! TapTy MOMeHTi = 3,0 Hm +/- 0,3 Hm.
- NiHTipeKti 33 opHbHa 6acBn TpyaTbIH cepinneHi 6yInipre XblXbITbIN, NiHTipeKti (17) (Ta6ak 6eJIirImen 6ipre) KaNTa OPhaTbIHbI3 XeHe 6ekITkiu 6ypanDAmen (a) 6ypan 6ekiriH3. TapTy MOMENTI = 5,0 Hm +/- 0,5 Hm. NiHTipeKtiH dypbic KbIMET eTIN TpyFaHbIH TeKcepH3: on cepinne KepiNiciH, acTbIHda 6onybl Tnic.

9. Ta3aJay

Kymbc6apbcbihda 3Jektpnik Kpaandbih ihiHematepna6enwekterpi HnHaIybi MymkiH. Byn3nektpik Kpaandbih cytbblnybi HaawapnaTaBbl.

Tok etki3iwi weriHdi 3neKtpnIK KypanDbIH KopfainTBH OKwaynaFbIWBH 6y3bIN, TOK COFY KayniH TydbipyMymKiH.

3JNeKTpNik KypaJaTaBk KipDi 6apNbIK aIbHfBMeH apTkBi KeJeDety CaHbIaynapBApKbIbI KyneNi TypDe, XNI XeHe MyKnT CopBn Hemece KypFaK ayameH yPnE Ta3apTbIHbI. Byn ApkeTTiH

anbHda 3neKtpIik KypaIbI KyaT Ke3iHeh axbipatbIn, KopFaHbI W Ke3iJdpipik neh pecnnpaTopdbKnin anbHb3.

10. AkaynbikTapdbixkoIO

VTC, TC, VC 3JIeKToHnKacbI 6ap acnantap:

3NeKtpoHdbik CnHrHaIbIK HnDnKaTOp (7) KaHbIn, KYkTeMe acTbIHdaFbl aHany Xniniri TeMeHdei (W...RT yIrricihde

emec).Acnanka TycKeH KyKTeMe TbIM Kofapbl! AcnantbI 3neKTpoHdbIK CnHAnDbIK INHnKaTOp cHReHwe 6oc Kypic KyiHHe KymbIC icTeTIH3.

Acnan Jxmbic icTemei Typ.3JeKtpoHdbik cnHaIbIK HnDkATOp (7)

（xa6dbikTaIyra6aIIaHbICTbl)

Kobinbiktaa. KaTt icke KocblnydaH KopfaHbIC icke Kocblndbl. AcnantbIH Kocynbl KyiHde KeiNlIK awa po3eTKaFa caNbIHFAH HeMece 3NeKtp KyaTbImeH Xa6DbkTay Y3IInReHHEN KeiH KaNNbHa KeJrRe HkaFdaJa, acnan icke Kocblmaa. AcnantbI eWipin KaTt Kocblh3.

11.KepeK-kaPaKTap

Tek KaHa TYnHycKa Metabo KepeK-JapaKaTapbIH KOJaHaHbIbI3.

5-6etri kapaHb3.

Tek KaHa OcbI NaIdaHny 60BbIHwa HcCKayIbIKTa KeTIPinReH TaIaNTap MeH CnNaTTapFa cai KeNetIH KepeK-JkapAkapDbI naDanaHbIHbI3.

A Keckiw DeHreIeKke apHaJIraH KOpRAHbIWI KaJINaKTbIH KbICBIIbI /a6pa3NBtKeCcyre apHaJIraH KOpRAHbIWI KaJINaK

KeckiW DeHreIeKTePMeH, anMaCTbI KeckiW DeHreIeKTePMeH Kymbic icTeyre apHaNfA. KeckiW DeHreIeKke apHaIFaH KopFaHbI W KaIIaKTbIH KbickBbIbOpHaTbIJFaH KaFdaJa, acnAaTbI a6pa3nBti Kecy ywiH naIdaIaHyfa 6oIaBl.

B A6pa3nBTi Kecyre apHaJFaH aya TapTaTbIH KOpFaHbIi KaJNaK

AnmacbI Keckiw DeHreKeTepMeH TAC TaKtanaPbI Kecyre apHaNfA. Tnici copfbiu KpyblFbIHbIH KEMERImeH Tac WaHBn Ketipyre apHaJIFaH KeJIte Ky6bIpbl 6ap.

C BeTepdi axapnayfa apHaJIraH aya TaPtaTbIH KOpFaHbIi KaIINaK

BetoH, xancapcb3 eEHe, aFaW KHe CnHTeTKaJIbIK MaTePnaIapDbI aJIMac Ta6ak7aIbI axapNaIbI W DeHreKeTepMeH HemeC TaIbIKbI axapNaIbI W DeHreKeTepMeH XHe apHaIbI axapNaIbI W Ta6ak7aIapMeH axapNayfa apHaJIfAH. TniCTi copFbIW KpyblfnbIHkEMerImeH tac, aFaW XHe PIACTNK WAnbIH Ketipyre apHaIFAH KeIte Ky6bIpblap. YWKBInDbI copy Hemece MetaIapDbI axapNay yuH JkapMaIdbI.

D WaHnHaN KopFaTbIH cy3rI

IaftbH yanbl cy3ri Ko3FaJTKblu KOpnycbHbH iWHe ipi 6enweKTeprH kipyHe kon6epMei. Kynei TypDe IwIfapbIn Ta3anaHbI3.

E K O J K O P F a H b i c b i

Tipeiyiw TepenkeMeH, Tipeiyiw axapnafbiu Ta6aKwAmEH, CBIM KblwaKaTapMeH XoHe

KA3AKJWAKk

KepaMKaFa apHaJIFaH aJIMactbI 6ypfblay KopoHkaJapbImeH kymbic icTeyre apHaJFaH.

Kon KopfahbcbH 6yipniK KocbIMwa TyTkbiWtbiH actbHa opHaTbHbI3.

F KocbIMwa TyTkbiwka apHaJIraH KeN NO3nUraJIbI KaNCbIpMa

Opypi TyKbiu no3nua napbHa MymkiHdk bepei.

G KancbipMaHbIH KocbIMwA TyTkblWBi KepeK-xapaTapDbIH TOJIbIK Ti3IMH www.metabo.com caIbHa Hemece KaTajorteh KapaHbI3.

12. XeHney

3NeKtpnik KypaJaXoHDey KymbICTapbIH TK KaHa 3NeKtpSi MaMaH eTKi3yTnic!

XaJFaBbI W Ka6eJb 3aKbIMdAnFaH XaFdaJa, OHbI TEK apHaNbI XaJFaBbI W Ka6eJbMeH aybICTbpy KepeK.

MetaboФил�ына Кэндуdi кжет eтetiH Metabo3ЛeКТрпik Куразларымен 6icareбapьИь. Mekeнжайары www.metabo.com caNTbIHda 6epinren.

Kocanki 6eJnweKeTepdiH tiImdepiH www.metabo.com caHTbIHda KyKTen anyFa 6oNaIbl.

13. Kopwafrn opTaHbI KoprFy

AkapnaydaH naJa 6oNaTbIH WaHa 3nHdbi 3aTTeKTepe 6Olybl MyMKH, COHDbIKTaH OHbl TnicHwe Kdere Xapaty Kepek.

PainanaHbInFaH acnAnTapdbI, opaybiWtapdbI
XHe KepeK-kaPaKaTapDbI KOpwaFaH opTa yWiH
Kayinci3 Typde KeDere Kapaty XHe KaTaNehDey
BoBHwA YNTTBk epExeNepDi YCTaHBiB3.

Tek KaHa EO enDiepiHde: 3JneKtpnik KypaIdbI TpyMbICTbIK KOKbICKa TactMaHbI3! 3JneKtpnik XHe 3JneKtpoHdbIK ecki

Kpyblfbnap XeHe YTTbIK 3aHfa TypneHdipy
XeHnderi 2012/19/EU eyponanbIK dIpeKTHBaCbHa
ceske, naDanaHblnFaH 3neKtpNIk Kypannap
6eneK xHnAbln, KopwafAn opta ywiH kayinci
KaHTa eHdeyre xibepinyi Tnic.

14. TexHnKaJIbIK depeKTeP

4-6etTeri MəJImeTtepre TyciHikTeMepep.

TexnkaJIbIK dAmyFa kapaa e3repyi MymKInH.

= aIMaJIbI-CAImaJIbIKypaJIbIH MaKC. dIaMeTpi

$$ t _ {\max , 1} $$

=ekicahbinaaybiraikka(15) naJaHbIHaNKe3deKbcIy Dnana3OHbIHdaFbI aJMaNbIc-aJMaJIbI KypaIbIH MaKC. pyKcat etiIreH KaNbIHbIFbl

$$ t _ {\max , 2} $$

=QuickKbIcna raikacbl(1) NaIdaHbINFaH Ke3Je KbICy Dnana3OHbIHdAfbl aAMaNbl-calMaNbl KypaIbIH MaKc. pyKcaT eITReH KaIbIHdbfbl

t_max,3 = cnbipaa akapnafbIu DeHreNeK/Keckiu DeHreNEk: aImaJIbI-caImaJIbIKypaJIdbIH MaKC. pyKcat eTInReH KaJIbIHdbIFbl

M=wnHdJIbdiH npek OIMacbl

= aXkapnaFbIw IINHdIeJIbDIn Y3blHdbIfbl

n* = 6oc kypic KyiHderi aHaNy Kniiniri (MaKc. aHaNy Kniiniri)

n_V^ = 60c kypic kyinHderi aHaNy kiniiri (peTTeJenIH)

P1 = HOMHaaIbI TyTbIHbIaTbIH KyaT

P2 = WblbC kyaT

m = xenjinik ka6ebci3 canMaFbl

OJIwey MAnepi EN 60745 cTaHdapTbHa caI ecenTeNeDi.

LpA =ДыбьICTbIK KbICbIM DeHreNi

LWA =Bb6bICtBk KyaT DeHreNi

KpA, KwA =ДэлсizДИК

Kymbc6apbicbiHaa ybyIeHreii 80 dA)
WamacbiHaH acybl MmkiH.

KopraHbIw Kynakkan TaftbHbI3!

Catbin anyubira apHaJraH aknapaT:

CeykeckiceptnkaTb:NeE0RUC-

DE.ΓБ09.B.00161/20,ΚολdaMbIy mEp3iMi

19.03.2020Ж.баган 18.03.2025Ж.дени,

«He3aBnCmMaJ 3KcNepTn3a»XayanKepeWiniri
IeKTeyJIi cepiKTecTiri eHIMdi ceTpNpKaTTay
XeHINderi opAHbI bepren; OphAnacKaH xepi
(3aHbI TyfAHy MeKeHkaHbI) XeHcKe
OpHBiHbIMeKeHkaHbI:115280,Pecei,Meckey
kana,bI,JeHHcka CNo6Oda KeWeci,19-yi,2-
ka6at,21w8,21w9,21w10,21w116eMnepei;
Telefohbl:[phone];3NeKtpoHdbIK
NoTuTa MeKeHkaHbI:[e-mail];AkkpeDnTTey
aTTecTaBl No POCC RU.0001.11Γb09,
09.09.2014 K.

Caikecik TypalbI DeKnapaun (RoHS): No E3O N RU D-DE.ΓB09.B.00361/20, KOnDaHbIy Mep3iMi 06.03.2020 Jx. 6actan 26.02.2025 Jx. Dein H, He3abnIma Yckneptna3a XayanKepeJiliri Wekteyni cepikTeCTiri eHimDi cepTnФkaTTay XehiHderi opraHbI tipKeRr; Ophanaackan Xepi (3aHbI TYlFaHbIH MeKeHkaBbl) XHe Kbl3MeT OPhbIHbIMeKeHkaBbl: 115280, Pecen, Mockey KaIacbl, IeHHckar Cno6oJa KeWeci, 19-yu, 2-Ka6at, 21w8, 21w9, 21w10, 21w11 6eMenepi; Telefohbl: [phone]; ΕneKTpoHdbIK NowTa MeKeHkaBbl: [e-mail]; AkKePeDnTTey aTtEcTaBl NpPOCC RU.0001.11ΓB09, 09.09.2014 Jx.

Hdipywi:epmaHHa

Zhdpuysi: Metabowerke GmbH, Metaboallee 1, D-72622 Nuertingen, TepmaHia

Pecenre mnpotayubl:

KUKK «Meta6o EBya3nra»

Pecen, 127273, Møckeney

Bepe3oBa aannn Keweci, No 5 a, 7-KypbIbIc, 106KeHce

ten.: [phone]

EHdiipijireh kblbkypaIdbIH aKnapaTbIK TaKaTawacbiHda aa/xxkXnWiIMInHe KepcetijreH

ΘHIMHiJXapamDbIbIK Mep3iMi 7 XblnIbI KypaIbI.

Hndipiriren KynHeH Kein 5 XbI NaKtayda TpyFaH KaFdaNda, anDbIH ana TeKcePmecTeH naJaNaHy YcbHbIMaMdbI

Пайдалиануь бочи hyckамын hyкypасы

1. Šañkeштигу Туypалу DeКларача

Typy JkaHa cepnIbIK HOMepn apKblny
6eJIINHeHReH 6yn KblMaNoOuy MaUHa
TeMeHKyIePRe JooN 6epepHn 6n3 e3y6v3dYH JKeJ
JooNKepeuINr6n3 MeHen XapBIAaN6bI3: *1),
DInpeKTUBaBH 6apDbIK XoBoOnOpyHa *2) JkaHa
HopMaIapbHa *3).TexHnKaIbIK DoKymeHTTepre *4)
-4-6ETtEH Kaparbla.

Kbimmaoo yuyn Koprooy kanot

A6pa3nBdyy DnCKTep,JaMeJny JxblImaIoouy Ta6akTap KaHa aJMa3daH KacaIraH Kecyyu DnCKTep MeHe H nIteere apHaIraH.

3-6eT, D cypeTyH kappaHbI3.

-PbUarDbl (17) 6acBn, Kapman TpyHy3. KoproOuy kanOTty (13) KepcETyIReH a6aJda opHOTyHy3.
- Pbyardbkoe 6epn, an ToKTo n KaIrbla Koproooy kankakTbI bypaHbl3.
- PbyarDbl TapTbIn, Koprooy KaKKaTbI Xa6bIK aMaraBkoJIOHyyUHy Kapan TpyrJaN KbIbIN 6byyHy3.
- Beke m OtyprA hDbIbH TEKwepnH3: pbIur OIOKKa Knpn, KoproOuy KaNKaTerepeH6eWn KepeK.

Koprooy KaonTToH KEMnHe 3,4 MM YbIbIn TyprAn Ns WaMaHaDapbIH raHa KOJDoHyy Kepek.

(You can see the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of the map of

Teckepn npetTe aTkapyy KepeK.)

7.Жылmaооу диСКТи OPHOTуy

Kaipa Ka6dyu nIHTepnHn anDbIHda: ky6aTTOO uHpyu np03eTKaJdAn akbipa

3apbl. CtaHokTy eUpyn, UnnHdEJIN TOKToTyy Kepek.

Kooncy3dykTy kAmcbI3DOO MaKcaTbIHda, keCyyy J33KTINH KaIkaHBiH KOJIOHYy

cyHywTaTAt (Akeccyapnap 6enymn 11. kapaHbI3).

7.1 Wnnnden6eertee

• UnnHdEnn 6eTTee (4) 6aKbUbH 6acbln, UnnHdEnn H 6eTTeeu 6ackbUbI 6eTtEnreHy ce3nImeHHue (2) KOI MeHe aJNaHTbIHbI3.

7.2 KbImanooy ducktn opHOTyy

WA..., WBA..., WE...A...

2-6eT, A cypeTyH kappaHbI3.

ATo6aHaHcnpDnH TnpOeuy FNaHeu (3) 1nnHdJIre KaTyy 6ekntnIe. BaUka byp

XbIMMaIoooy MaunHaJapdAn aBbIpMaHaHbIn, KOwyma Tnpeeuy fnaHeu Taan KaJIbIH6aNT.

ABTO6aIahCnPdINH TnpEeyФJaHeuHH (3), a6pa3nBdyy DnCKTINH KaHa «Quick»

KbIyBtMa raiKaBihIn (1) TaHbU 6eTepn Ta3a 60nyu Kepe.Kepe yUypda aJapDbI Ta3aJoo 3apbl.

• A6pa3nBnyy Tepektn aBTO6aJhaHCnpINH Tnpeeuy (3) pnaheunhe opHOtHy3.

A6pa3nBdyy Tepepk aTbObaIaHcnpINH TnpEey φlaHeunHe tern0tpyu kepek.

WPB..., WEVB 1...

2-6eT, B cypetyh kappaHbI3.

-Tupeey (14) pJnaHeuTn uHHJeJIre opHOtHy3. 3repde pJnaHeu uHHJeIe aJnaH6aca, an Tyypa opHOtYJraH 6oNt.
- KbIImaIoOuy DnCKTu Tnpeey (14) fnaHeueKe opHOtHy3. KblImaIoOuy Terepek Tnpeey fnaHeueKe Tern3 OtpuWy KepeK.

7.3 Quick KblnhybITMa raiKacbIH 6eKnTyy/ 6oWoTyy (KomnIeKtauHcBHa Japawa)

Quick kbinyTma raikacbH (1) 6ekntyy:

Quick kblnhytma raikacbH (1) "Metabo Quick" cnCTemacbl Mehen xa6dbIrlrah WaImaHapra raha opHOty?y3. MbIHdai WaImaHapdbI "M-Quick" deren Jxazyyuc 6ap WnnHdeJINH TOKTOKyuHydaBl (4) Kbl3bl 6ackbIbI 6oOHcu o?On aHbIKTOOR 60JOT
3rep KblnbyTyy aMmBarbHdaIbI Nw WaiMaHbI 7,1 MM DeH KaJIbH BoJco, Quick KbInyBITMa raKacBH KOJIOHyra BoJboiT!MbIHdau yUypda 3KN BeTNTMe Ke3EHeKrtyy KbInyBITMa raKaHbI (15) 3KN Ke3eHeKke CaJIbHMa aUkbIu MeHeH (16) KOJIOHyHy3

• ⅢnHdIeI6eTeTEny3 (7.16eJmyN kapaHbI3).
• Quick KblnhyItMa raikacbH (1) WnnHdIeIre (2) 2 Myy3ye WnHdIeINH 2 OOKyacbHa KnpReHdei KblbnOpHOTy?y3. CypETTY kapaHbI3, 2-6EITte.
• Quick KBINyBtMa raiKacbH caaT Xe6ecn 6oHua KOJ MeHeH 6ekntuHn3.
• KbIMJMOOuy TerepeKTH Kyu MeHeh caaT JxBeCn 60Hua aaiNaHTyy apkblIyy Quick kbInyItMa raikacbin 6ekntnH3.

Quick kblnhybImraikacbH (1) 6oowotyy:

Quick kblnhybma raikacbi (1) opHOTyIraHa raHa wnnHdeM-Quick wnnHdeB ToKToTkyuHyH (4) kb3bl6ackbIbIHbIH JapdaMbI MeHeH TOKToTyYra ypykcat bepnnet!

• Θчургндан Кииншаиман Инерцябончakblmbldaьбepet.
• A6pa3nBdyu DiickTINH TONYK TOKTOOcyHa YeHH M-Quick WnnHDeJb TKOTKyyHdaRbl (4) Kbl3bl 6ackbUbH 6acbl?bl. Quick KbInMbTaRkAcbl (1) 6onKoJ MeHen KapbIM aNnaHbIwka abTomaTTbIK Typde 60W?doIT, OWOHyKTah aHb KoWymca KyU Je WaImAH KOJDOHBOCTOH 3Je 6ypan YbIrApBIn anCa 6oJot.

7.4 3Kn 6eKNTMe K03eHKeTyy RaKaHbI 6eKNTyy/6oWOTyy (KOMNJIeKTAauncBHa Jkapawa)

3Kn 6eKntMe Ke3eHKeTyy RaikKaHbIn 2 6EtN 6npn-6npnHeh aibpMaHaHaT.3Kn 6eKntMe Ke3eHKeTyy raikKaHbI UHHdJeR TeMeHkyDei KbInBn 6ypaHbI3:

2-6et, C cypetyh kappaHb13.

-X)Kyka KblImanooy TerepekTep yUH: 3KN beKNTme Ke3EHeKTYY rAaKaHbIH TOMNOrY (15) eIe Kaapan TypraHdIbIKTaH, Kyka KblImanooy TepekeTn BeKem opHOTyyra BoJOT.
Y) KaIbIH KblImanoOuy TerepeKTeP yUH: 3KN 6eKITME Ke3EHeKrYY raiKaHbIH TOMNORY (15) TeMeH Kapan TypraHdbkTaH, raiKaHbI WnHHdJIre 6ekem opHOTyyra 6oJOT.
- WnHdEJn6eTToHy3. 3Kn 6eKntMe Ke3eHKeTyy raiKaHbI (15) caaT ke6ecn 6oHua (16) 3Kn Ke3eHekKe caJIbIHMa aUkbIy MeHeH 6eKNTnHn3.

3kn6eKNTMe Ke3eHKeKTVy raiKaHBi 6oWoTyy:

• ⅢnHdEeHn 6eTeTHeY3 (7.1 6eJMyN KapaHbI3). 3Kn 6ekntme Ke3eHKeK TYr Raikahbl (15) caat

KekecnHe KapbI (16) 3KN Ke3eHKe KaBihMa aukbI MeHen 6ypan YeuHn3.

8. KOndoHyy

8.1 AynaHyy bIIJaAMdbIbIH xHnee (ka6DbIbIbIbHa kapawa)

TyypaJoooy DeHreJeKeTe (8) cyHywTaJraH bIaAMdbIKbI KOHOy3. (KuHHe caH = TeMeH bIaAMdbIK, YOH caH = XorOpy bIaAMdbIK)

Kecyyy Xblmamoo MaunHacbi-, cbipbima Xblmamooy Terepek, yuTpyHderY Xblmamooy Terepek, aJMa3Dyy Kecyyy Xblmamoo Terepen: Koropy anaHyy cahbl IeTKa: optoO aanahyy cahbl

Tabak typyHdery kblImaJIOOuy TerepeK:TeMeH XaHa opto aJNaHy caHbI

KepcTeMe: CaIkaIaIoo yUHy N 6n3dIN KOMnaHnRAHbIH 6bypTuyy caIkaIaIarbIyBIn KOJIOHyHy cyHyuTaIbI3.

8.2 Kyurv3yy/Thuyy

MaunHaBAp daBIM 3KN KOJOn KapMOO kepek.
Aderenhe IaMHaNbI KyIgY3yn, aHdaH coH daepdama MaTePnAnra anBIn KeIyIyKepeK.
Kokyctah Kypry3yn anyydaH caKaTHyy yuyn: BnIka po3eTKada cyppyn KeTKeHDe Jx eJNeKtp Ky6aTBHa 6y3yyy opH anraHda MaunHaBb eypyn KOoy Kepek.
A...WBA...WEA...WEVA...WEBA... W...RT:waImaH TbIbIMCbI3 NiTTee pexmHne KOJIOH YbIbIN KeTce Da NiTToecyH ynaHTa 6epet. OsoHcyKaTH, MaunHaHbI ap daBIM 3K IN KOJ MeHeH TyTKacBHaH KapMaN, TypkTyu a6aAnra JxETKnpIn, anDaH coH KymuSha Ka Hyn bypyyKepeK.
HaJKe cypyHdy waimaHra copyynn KnpuHHe konbep6eHn3.MaunHaHbI euyprEHNKINHH KbIMbIaTkbIY TOKTOHO raha uHypdy cyypU KepeK.

CbIbIpMa KOTOpryTyy MaunHa:

Kyu3yy: CbIbIPMa KOToPryTy (5) andbira XblDbipbHbI3. TbiHbIMcbI3 NlTeTYY yUyH aI OOKKa KnpMeHHue TeMeH KbIwAaTbIw Kepek.

Ouyy: CbIbIpMa KOtOpryTuH apTKbl yuyH (5) 6acbln, KoE bepuHn3.

XeIeKcTpyHdery euypyn-KyIry3rIyTyy

(caKtbIK KHONKaCbI MeHeH):

KbIPrbl34Aky

Kyu3yy:KeJeKHe TpyHDeRy euyPyn- Kyu3ryTu (11) Ke6eHH 6aBtBu 6oHua XblDbIPbIN, aHdAn KInn HKeJeKHe TpyHDeRy euyPyn-Kyu3ryTu (11) 6acbl?bl3.

Ouyy: JeIeKHe TpyHdery euypyn-KyIry3rIyTY (11) KoE 6epn?n3.

W...RT deren 6eJrncn 6ap shaImaHdap:

Kbicka MoeHETKe Knyr3yy (aBTOTOKTOTyy cyHKnrcbl MeHeH):

Knyry3yy: KOTopryu 6aCKbIyBH (9) aIbIra XblIbIbpBIn, KOTopryTu eHne kapaI (9) 6acblbI3.

Oурyy:KoTopryu (9)6aKbUbIn KoE bepnHn3.

W...RT derehen 6eJrncn 6ap waMaHdap:

TbHbIMcbI3 NWToe pexnMn (KOMnneKtaunra kapaasa)

Kyu3yy:waMaHaBblJxorOpya CypETTEnrHDeN Kyu3y?y3.BaCbIy TpyHDeRy euyPyn- Kyu3ry3yTu (9) 6np no3nura anDbira Xbldbipbn, euypyn-Kyur3ryTu (9) owoJ a6anda 6ekntyy yUHN, BaCkUHTbI KOe 6epn?n3 (TbIHbIMCbI3 nWtEe peXIMn).

Ouypyy: baskbIy TpyHdery euypyn-KyHy3ry4ty (9) eJdeHv Ke3dEi 6acbln, kaipa KoE 6epn?u3.

8.3 HUHcyKaMaJapbl

CTaHdapTTbIK XbIIMaJoo XaHa HaxJaK KaTa3bl MeHeH XbIIMaJoo;

CTaHOKTy opTo Kyy MeHen 6acbIn, daarpaJIma MaTePnAnDbIH yCTyHKy 6enIy 8eIbCbIN KeTneWu IyH anDbira, apTKa XblnbipbHb3.

OdypakaJXbIMMaJoo:KaKbIHaTbIJaanyyYyH 30^ -40?C6ypMeHenNHTeeKepek.

XbIImmaNooy TerepeK MeHeH Kecyy:

XbIImaNooy Tepek MeHeH Kecn
XaTKaHa ap DaBIM DnCKTHN
aHaNbIbHa KaPbI (cypETy
KapaHb3) NHTe KepeK BoJbOco,
MaunHaBn KecnTReH KepDeH

Ke3eMeJcY3 Tuyn KeTyy KOpKyHyy Japaanat.
IwTeHnn XaTkah MaTepnAnra bInaBikTanraH,
optOo Kyu MeHen NwTee KepeK. OTe KbInwaIyyra,
aWbIKya KUy KeNTnpyyre XaHa MaWUnHaHbI
yaukooro koi 6ep6ehn3.

3bIMdyu 贝Tka nap MeHeH NUTe:

MaunhaOpTOO KUMeHb3.

8.4 AcnantbIH KOONcyK KpyHa 6aHnHbIwyy (ka6dyyra Ke3 kapaHdbI)

BnIKTKTe KOJIOHyy yUyHa aTaibin KooNcy3dyk 3peXeJIepn 60OHua KepcTMeIep. KooNcy3dyK kHa HHTeYY 6OHOHa 6apdbHK HyckaMaIapDbI OKyI YbIbIHbI3. KooNcy3dyK kHa HHTeYY 6OIOHya HyckaMaIap aTKapbl6aca Oop JapaKaT aNbIHbIbMyMKyH.

AincteuekenepcoHaJIdbIn KOJIOHOyyCy yUH raHa. KoIIOHOyyuNap acnantbI KOJIOHOyy 6oIOHya JcHa aHBIn KooNCy3dyk 3peXeJIepHH XaKsbI 6bIyyCy KepeK.
- BnIKTKTe KOnIOHyya, acan daibima KOONcy3dyK Kyp Mehen 6eKtUNIIN TyprAnbH Ke3EmJDeHy3. Metabo MapkacbHa Tyypa KeJrRe H raHa KOONcy3dyK KpyH KOJIOHy3 (MaKcImaJIyy y3yHnyk 2 M (6,5 cyT) XETKNIKTYy amOpTN3aunrcbI Mehen). AcnantbIH KOONcy3dyK Kpy YuyH MaKcImaJIyy ypyKcat 6epnIreH KyNoo 6nIKTKKn 2 M DeH (6,5 cyT) aUNoocy Kepek. AcnantbIH KOHKpeTTYY TpyHe KaHa KOK DeReHne KOnDOHO Tpyu 6apdbik AkCECCyapnapbIH KOsKOHO caImarBaHa Tyypa KeJrReH, akCECCyapnapbIH KOsKOHO raHa KOONcy3dyK KypnapDbI KOJIOHy3.
- AcnantbIn KOONcyk Kypyn KOJIOHyy 60IOHka KepcTeMneIepdy OKy, TaaHbIbIn YbIbIH3!
- Ap 6np KOJIOnOHy aIbIHda c3cY3 Tpyde acnantbl (aIpbikya 6eKtKnU npoyuHn) KaHa KOONcy3dyk KypyH 3bIHar yUpa6aBbH JaHa KbIHTbIKCbI3 NITeOeCYH KbIJaT TEKWePmN3 (Ke3demeHN TnRnM MeHeN KoIo). 3repde acnan Xe aHbIH KOONcy3dyk Kypy KePCeTyJrEHNen XaKaMbI NITe6ece Xe 6y3yJca, anapdbI KOJDoHOHy3.
- AcnantbIH Kooncy3dyk KypyH DeHere 6eKITneHn3. AcnantbIH Kooncy3dyk KypyH aHbIH KyIoo KyyHe TpyuTyK 6epe anraHdai Jepre 6ekem 6eKITnHn3.
- Kapakat anyy, kecyy jke oponyn kanyy Kopkyhuy. Kooncy3dyk Kypdy kbimbIaJx KaTKaH 6eNYKTepyHyH MexaHn3MdeepHH JKe NHTen KaTKaH MaunHaJapdbIH XaHbIHda KOJdoH6oHy3.
-Kooncy3dyK kpyH 6aJnlaBbH 6aIka acnAnKa aJMaWtBip6aHb3 KaHa KepcTMeDe KepcTeYJyn TypraHdah 6aIka MaKcaTTa KOJDoH6oHy3.
- AcnantbI kappaBnDInH kappaDAmbl MeHeH kanaHa rHa KOONcy3dyK KpyHa 6eKnTnHn3. AcnantbI KOONcy3dyK KpyHa NImek JKe TYyMdyH kapdAmbl MeHeH 6eKnTneHn3. BekNTyy yUyn HkntepnJx He UhpIaRbI KOlDoH6oHy3. Kkn KaKTyy XabIyy CnCTEmacbl 6ap Kapa6uHnI rHa KOlDoHy3. YanTbIPbIbn KaNyuy JeHnI KoprOJIroH kappa6uHnDEpN IOnDoH6oHy3.
- Acnan Kynarana onepatopdoh apbl kbln Typranai Kblin KOONcy3dyk KypyH opHOTyHy3. Kyan Ketken acnanTap KOONcy3dyk KypyHda apbl-6epn KbimbIaan KaIbIuI onepatopro 3bIHN KeTnpuNx Je TeH caImKaTyyNyKTyH KOronyuHa anbln KeIuMMyMKvH.
-Kooncy3nyk Kypra 6bpdeH aushbK acnantbI 3u Kaayan 6ekntneHn3.
-KoOncy3nyk KpyH acnpanka 6eKntyy yuyH, aTaBbH apHaJIraH 6eKNTyy yeKNTTePHN KOJDoHyHy3 (6eKNTyy npoyuHHn (10)).6eKNTyy

YekntnH ybirapyy yuyn 34 KauAH acnanTbI e3reptnHy3.

-Koprooy ty3yIyWTeP, euyprYTeP xe 6eKNTKnUTeP nIeTbeN Kana TyprAnDaKbInBIO KOONcy3dyK KpyH acnAna 6eKNTneHN3.
- AcnanTbH KOONcy3dyk Kypyh 6aIka KOJnyuy acnantapdaH aIbIC KapMaHbI3.
-Kooncy3dyk KpyH OT JkaHa JkaJIbIHdaH caKTaHbI3.
-Kooncy3dyk Kpyh yuyy HepceJepdeH, ne3BnEnepeH k.6. caKaTahbI3. MaunHaHbI Je KoONcy3dyK KpyH 6acbln aIbHaB13.
-Kooncy3nyK KypnapbH JKe 60n6oCo 6eKnTknU Ty3yIyWTepy aHbIH TyTKacBHBIn TaacnPH KOropyNaTyy YvH KOJIOH6OHy3.
- NtTe6e KaIraH yUpyda OoON aMakTbI 60w KaIbIpbIHb3. ABapn8 6oIroH aMakTa 3u KIM KopKyHyTuyydpaWbKepeK.
- KyIarAHdAn KINH TPOCTy aImaHTbIPbIH3 KaHa MaunHaHbI Xa6bIPKaarH XepJIePre TeKUepnH3. Ap 6np KyIarAHdAn KINH MaunHaDa KBaJInΦnKaUraNlyy aINCTeH Xa6bIPKooJOpDyH 6ap 3KeHNrH IN TEKUepyHy XaHa 3apblI 6oJco anbl KaNbIBHa KeNTnPyyHy CyparblJa.
- Kylan 6apa KaTkaH MaunHaHbI KapMan Kanyyra apaKeT KbJb6aHbI3. Byn Hecpe XapakatapdbI aJIbI KeJINuM MyMKyH.

8.5 PeDyKTOpdyN TykycHyn aHaHyyCy

3-6eT, E cypeTyH kappaHbI3.

-Po3eTKaDaH BUNIKAHbI CypyHy3.
- Pычагдын 6екитуу 6у paMaCBH (a yibirapbIn canbi?b3 (17).БypamaHbI anbIn caJIbIn, pbUardbI yBirapbIn (JeJIbIpeK 3JIeMeHTN MeHeH koIIO), YETKe aIbIn KOIO?y3.
- PeDyKTOpDyH TynkycHyH 4 bypamacbIH (b)
6ypan yIrapb?bI3. KOHYN BUPYHy3!
PeDyKTOpDyH TynkycHy eueNeH3!
- PeDyKTOpdyH TylkycuH YeUneCTeH, KepeKtyy abaIra bypa?bI3.
- PeIyKTopDyH TynKyCyHyN 4 bypamacbH (b) caIbHa 6ypan Knpn3n?n3! TapTbIn 6ypoo yUpy = 3,0 Nm +/- 0,3 Nm.
- PbyarDbI KepeKtyy a6aJda kaPmaT typrAh npyKHaHb I KblDbIpBn, 6eKnTyy 6ypMaCbI (a) MeHen TapTTbIpBn, KaipadAn (17) opHOTy?y3 (KeJIbPeK 3JeMeHTn MeHen KoWo). TapTBIn 6ypoo yUpy = 5,0 Nm +/- 0,5 Nm. PbyarDbH nHTeeCyH TeKWeepn?n3: an npyKHaHbIH KUY aNDbHda 6onyu7 3apBn.

9. Ta3anoo

IwTeTIN JkaTkHaDa MaunHaHbIH uHHDe KowToOuy YAH OTpyn KaNbIbbl MyMKyH. ByJ 3NeKtp WaimaHbH My3daTyHy HaapLaTaT. Tok eTKeppyyu YAH 3NeKtp WaimaHbHbH KoproOuy I3OJaIcBbH 6y3yn, 3NeKtp COKkyH aIyy KOpKyHyH JapaTbIbbl MyMKyH.

Bnp biktay 6aKaBIT apanbIbIHda anDbIHKbI XaHa apTKbl a6a anNaHTyyu Ke3eHKeTep apKblnyy
Yahbl Ta3aJAN JKe KypraK aba MeHeN yInETyn Typyy Kepek. An yUyn 3neKTp wAmMaHbIN 3neKtp
6yIaBHaH axbpaTbIN, KoproOuy Ke3 aInHeK XaHa pecnnapot KInyy 3apbl.

10. MyuIyTuKTepy Ondoo

3NeKtpnHCTpyMeHTTpeMOHTTOO

aTainlaBilraH TeInee yctakaHaJapbHda Jypr3vnyu kepek!

TyTaWtBipyyu 3bIM NHTeH YbIrBn KaIraHa, aTaBbH 3bIM MeHEn aImaWtBipyy KepeK.

Metabo #nnpMaCbHbIH 3JIeKTp Jka6DbIKTapbIH peMOHTTOO yUyH Metabo eKyIuYnyrHyKe KaPbIbHbI3. IapeKTepeN www.metabo.com caTbHaH Ta6acbI3dap.

KamDbikTapdbIH Tn3MecnH www.metabo.com caHTbHaH KyKTen anacbi3ap.

ah,DS =nnpnDoe yibrblbihbH enyEmy (Tabak TpyHdery KblMaNoOuy Terepek MeHeH KblMaNoO)

ah,P =TNTnpeeHvMaahncn (6eTTNkblImaNoO)

Kh,SG/DS/P =Ka?bIbIbITbIK KOaΦΦnUHeHTN (TNTnpee)

bl3bIyyyHHy DeHr3Jn:

LpA =akycTnKaIbIK6acblM

LWA =akyctKanbIK Ky6aTtyNyK

K_pA, K_WA = A_HbIJKcbl3dblk

IwTee y6aBbIHda b3bI cyyHyH DeHr3oJn 80 dE(A) YeHH JxorOpynaT.

Koprooy kyalak 6ekntknyTeprn kondohryna!

EAC

Alyyyu yyH MaalbImaT:

IaKeTnK cepTnФKaTbI: No EA3C RU C-DE.Γ609.B.00161/20, KapakTyuKy MeeHety: 19.03.2020 - 18.03.2025-., "Ke3 KapaHdbicb3 εKcneptn3a" KooNkepUInnIu NueKTeJIreH KOOMy

PpOdyKzHbI cepTnФkaZnaJNoOpraHbI

Tapaabihanh bepnIreH;KaunraaKan xepn

（OpndkanbIK TapaNTbIH daepn）KaHa NwKepeNk

Jyprznyyyu daek: 115280, Pocn, MockBa

shaapbI,JIeHHckaCNo6oDaKeuecy,19-yu,2-

ka6at, 21w8, 21w9, 21w10, 21w11 6eImepepy;

Tepeohy: [phone]; ΘeKtpoHnyK

NoTacbHbI NapErn:[e-mail];09.09.2014-

J. No POCC RU.0001.11F609 aKKpeiTaunraJIOO aTTecTaTbl.

WaiKeTnK DeKnapaucnbRoHS):NgEA3CN

RUД-DE.ΓБ09.B.00361/20,жарaktyунк

MeeHETy: 06.03.2020 - 26.02.2025-Ж, "Ke3

KapaHdbicb3 3Kcneptn3a" KooNKepeuINr

YeKTeIgReH KOOMy npOdykUryHbI

cepTnФнkaцялLOO OprAhbI TapabHah KaTTaIIraH;

Kairaikkan Jepn (IopniKaIbIK TapaNTbIH

daperu) kana Hnukepnk Kypry3ynyu dapek:

115280, Pocn, MockBa 7aapbl, JeHHcka

Cno6oDa KeuecCy, 19-yn, 2-ka6aT, 21w8, 21w9,

21w10, 21w11 6eJmEJepy; Tepeohy: +7 (495)

NONEPEKHEHRA-3aBxHnHaJaTaTe 3axncHi OkyIapn.

NONEPEDHEHHI！IiD qacpo6OTn 3aBKnTpMaTe eJeKtpoiHcTpymeHT oboma pykam.

BnKOpncToByIe enactuHbKnAaH, RaHIO BOHN BxOJaTb Do KOMnLeKTy a6pa3nBnHex IHcTpymeHTiB I Bnpo6HnK HanoJrae Ha ix BNKOpncTaHHi.

DToPmMyTecb peKOMeHdaui Bnpo6HnKa IHCTpyMeHTy Ta npHaJa! 3axuatae DnCKn BiD NOTpanJHHMaCTnla Ta ydapib!

36epiraTe uIiCyBaIbHi DNCKn Ta NOBODbTEc3 HmN BiIDNoBIDHO DO BkA3IBOK BnPo6HnKa.

Hikoln He BnKOpncToBy Te BiDiPi3Hi DNCKN DIA
06DnPrhnx pO6iT! Tpe6a yHNKaTu 6iHOro TnCKy Ha
BiDiPI3Hn DNCK.

3aROTOBka NOBHHHa HaDiHNO npIraTH Do NOBepxHi Ta 6yTu 3aKpInHeHa BiD 3iCKOB3yBaHHa, HAnpIKlaD, 3a DONOMOroTo 3aTnCkHNx pNcCTpoIB. DJIe BJIHKnx 3aROTOBOK Tpe6a nepeD6aHTn DOCTaTHIO ONOpY.

PnBHKOpNCaHHi iHCTpyMeHTaJIbHNx HacaDOK 3 pI3b6oBOIO BCTaBKOIO KHeueb IUnNHeJleJ He NOBInHeh TOpKaTnCnepΦopOBaHOi OCHOBn a6pa3nBHorO iHCTpyMeHTy. NpeKoHaItec, Io pI3b6a iHCTpyMeHTaJIbHOI HacaDN Mae DoCTaTHO DOBXINHy dJa KpinLeHn DaOnuHd NpNNHeJ. Pi3b6a iHCTpyMeHTaJIbHOI HacaDN NOBHHa CnIBNaTaTI 3 pI3b6oU ShnHdJe. DaHi Udo DOBKnHn Ta pI3b6n uNHNDeJ nB. Ha cTOp. 4 Ta B po3di1 14. TexhiHni xapaKTePncTNI.

PeKOMeHdyEcBnKOpNCtOByBaTHn CtaioHapHy BNTJxHcy UCTaHOBky.3aBXKnPiN iNkLIOUaHTe npncTpiJ 3axnCHoro BiKIOUeHHa (P3B) 3 MaKcImMaJIbHmC TpyMOM BNTOKy 30 MA. NicIa BiKIOUeHHa KTOBOI WJlΦMaunHn PnCtPOeM 3axnCHoro BiKIOUeHHa Tpe6a NepeBipHTu Ta NOuNCTHTMaunHy.DINb.Po3dIn9.YuueHHa.

He BnKOpNCTOByTe NOwKOJKeHi, EKcEHTpNHi Ta Bi6pyuOi IHCTpymeHTaJIbHi HacaKn.

YHnKaIte NOsKoJKeHHra3OBHX Ta BOOpOBIaHnx Tpy6, eJeKtpnHoi InpoBOKn Ta HecyuX CTiH (CTaTnKa).

Ipeed npoBeeHnM pO6iT 3 HalaTuBaHHn, nepeoChaueHHa 60 o6cLyroByBaHHn BNTrHiTB BnIKy 3 pO3eTKn.

3anobixHa MyfTa Metabo S-automatic. B pa3i cnpaocboByBaHHra 3anobixHHOI MyfTn BiDpa3y BIMKHiTb MaunHy!

NoWKoJKeHy a6o noTpickaHy dOdaTKOBy pyKoTky cIiD 3amInHt. He ekCnIyaTyuTe MaunHy 3 NOWKoJKeHoO pyKoTko.

PoiKoJKeHn a6o noTpPickaHn 3axnCHn KOxHy cIiD 3amInHTn. He ekCnPyaTyIe MaunHy 3 PoiKoJKeHm 3axnCHm KOxYXOM.

3aKpinIIOte mJI 3aROBn. BnKOpNCTOByTe, HapnKnla, neuata.

3HHHeHHBnNBy nIy:

NONEPEDHEHH-NN,0yTBOPBBCB HbacnIOK WlifyBaHH HaJdaHNM nanePOM,pO3nnIOBaHH,WlifyBaHH,CbepdIHnTa iHux pO6iT,MCTNTb XIMiHi peOBOHN,IO CnpuHnHOb paK,BpOJeHi DeFeKTn a6o iHsi yWkoDKeHHpePPOdyKTNB CNCTeMn.PnIKaIaN TaHX xIMiHxpeOBOHN: -CBNHecb y fap6i 3 BMICTOM CBNHIO

-MiHepaIbHn nn 3 6yDIBeJIbHOI ceIIN, cEmeHTy Ta IHnxpeOBN HcERJHOI KlaKn, a TAKOH -MNI'k Ta xpom 3 xIMiHuO o6pOBeHOI DepeBHN. Ctyinb pn3NHy 3aJeKNTb BId TORO, Ra cacto BN BnKOHyTe ueBnPDo6it. Uo6 3MeHUnTN BnINB XIMiHuX peOBN: npauOnTe B nPmUeHHx 3 DOCTaTHBOHO BEHTNJLciEHO Ta 3 3aTBepdKeHNM OOCNUCTHM 3axNCNHm CnpAxDKEHHM, Rk-OT pecnipatop, p03pOBeHn CneuaJIbHO dJa fIbTpaui MiRPOCKONIHNX qACTHOK.

LcTaKoCTocyETbcNnIy BiD iHnIX MaTepiAIB, HAnpNKlaD DeaKHX BnID IB DepeBa (DepeBHHN nnI dy6a abO 6yKa), MetaIy, a36ecTy. IHIi BiDiomi 3axBOPIOBaHHra-ue, HApNKlaD, aIepriHi peakii, 3axBOPIOBaHHra dNXaJIbHNx IJIAxIB. YnHaKeTne NotpanIIaHHn Nnly BCEpeDInHy Tila.

IOTpmyTecb Bka3iBOK CTOCOBHO BaJOro MaTepiany, nepcoHaNy, cfepn Ta Micu BRKOpNCtAHnA, a TAKOx DePKaBHnx npaBnI (HapnKlaI, noloxenHn Ipo OxopoHy npaci, yTNIlaaio ToIo).

3a6e3neuYte BLOBIOBaHHaNly B Micui YTbOpEHn, He dOnyckaiTe NOro BiHlaDeHHa NaOBepxHax.

IJIa CneiaJIbHnx Po6it BnKOpNCToByTe BiIOBIDHe npnilaDJa. Lc Do3BOJNTb 3MeHUnTH KIIbKiCTb NIIy, IIO HeKOHTpOJIboBaHO NOTpanJIOTb y DOBkInla.

BnKOpNCToByIe BiIDNoBIiHi 3acO6n yIOBJIIOBAHHaNNy.

J3MeHHeHHBnIByNly:

• He HapabIaIte NOTIK NOBITp, 10 BNXOJNTb 3 IHCTpyMeHTa, Ha Ce6e, IIODei, RKi 3HaxOJaTbcra NObJN3y, Ta Ha CkyUneHHa NIIy;

• BHKOPNCTOByTe BNTJXHHN npncTpiTa/a6o OuHcyBauchOBiTp;

-do6pe npoBITpOHTe po6Oe MicTe Ta 3a6e3neuYte NCTOTy 3a DOnOMOrOIO NIIococa. PIMiTahHr Ta BNDyBaHHr NiIIMae NnI y NOBITpR.

-3axnchno OJr Tpe6a nnloocntu a6o npaTu. He moKHa noIro npOyBaTu, Bn6NBaTu a60 qNCTHTU 1

5.Orna

ДиВ.стор. 2.

1 Wbvnko3aTnckHa raKa Quick*
2UHnHdJIb
3 OnopHnI ΦlaHeCb aBTo6aHaHCnpa
4 KhoIka fikcaui nnHdela
5Перемпakу
6 PykoTka
7 EJektpoHHn CnHaJIbHn iHdNKaTOp
8 KoiiluaTkoДЯВСТаHOBlaHнькocTiОБерTiB*
9 HaTnckHn nepemnkau

10 ByuKo DnKpInJeHHa (Jna 3axNCTy BiD naHnH3 BnCOTn)*

11 Klabiwa-BMNkau
12 DoataKOBa pyKoTka /doataKOBa BioPONOrnHaiaOy a pyKoTka
13 3axnchn koxyx
14 OnopnI IaHeCb
15 Raikka 3 dBOMa OTBOPAMN*
16 Kliou niДЯвOTBOpN*
17 Baikilb kipinlenn 3axncchoro koxya

*3aJIeKHO BiID KOMnJIeKTAuCi / He BXoIHTb y KOMnJIeKT NOCTaHaHH

6. BBeDeHnB eKcnLyataciIO

Ipeed noaTkom po60n nepeKoHaTeC8, 10 Bka3aHi Ha TexHcHt Tabnuci npnaLy

Ha npyra Ta yactota B MepeXi cniBnaIaIOb 3 daHIMBaWOI eNkTpOmepeXi.

3aBKnPiKIIIOuAte npncTpi 3axnCHoro BIDKIOUeHn (N3B) 3 MaKcImaJIbHM

CTPUMOM BHTOKHy 30 mA.

6.1 BctaHOBJIeHHIdoaTHBOIpyKoTHi

PnBnKoHaHHI 6yDb-RAHx PoiT 3aBKnMae 6yTN BCTaHOBLeHaDoTaTHOBA pyKOaTKa (12)!

OdaTKoBA pyKoATha KpInnTbc3 IIBoro a60 npaBOrO 60ky MaunHn.

6.2 BctaHOBJIeHH3axnCHoro KOHyxa

3 npnHn 6e3neKn BnKOpncTOByTe 3axnCHn KOxHy, npn3HaueHn dJa

BIDNOBIdHnx a6pa3nBHNx IHcTpymeHTIB! NVB. TaKoX po3di 11. PpnilaIaI

3axnchH KOxDna WlifyBaHH

PnH3NaeHn Ipno6ToN 3 O6DnHmN DnCKaMn, lamEbnHMn WlifyBaIbHmN Kpyramn, aIma3HmN BiDiPI3HmN DnCKaMn.

INB. cTOp. 3, Man. D.

• HaTnCHiB BaXijb (17) iYTpmyIte Ioro. BCTaHOBiTb 3axnChn KOKyX (13) Na Bka3aHe Micce.
  -BiDnycTiB BaHJIb Ta NOBepTaIe KOHX,DOHN BaHJIb He 3aΦiKcyeTbcra.
• Hatnchitb Baikijb i nobephitb Koxyx 3aKpntoCTopoHOIO Do KopncTyBaaya.
• Ipepebipte HaDiHicThb NoCaIb: BaXJIb NOBHeH 3aΦiKcCyBaTnC, 3axnCHn KOxYx He NOBHeH o6eptatnc.

BnKOpncToByTe IHCTpyMeHTaJIbHi HacaIKN, Iki 3axnCHN KOxYX nepeKpNbAc He MeHsE, HIX Ha 3,4 MM.

7. BcTaHOBJIeHnI shiΦyBaJbHOrO dNcKa

Ipe6ydb-RAKIMnpo6oTaMn3 nepeoChaueHHaBKnBNTraTe BnIKy 3 po3eKn.MaunHa nobHHa 6yTN BmKHeHa, nnHdJIb NOBHeH 3ynHHTncr.
Ipnpo6oTi 3 BiDiPI3HIMM DNCKAMN 3 MeTOIO 6e3neKn KOpNCTyNTecr 3axNCHM KOxYOM Iy BIDpi3aHHa 6pa3NBHMn DNCKAMN (INB. po3di11. PpnilaAra).

7.1ΦiKcaJia wHnHdeJra

• HatncHtB KhoNky fikcaqii uHHdJeIa (4) Ta nobepHiTb uHHdJIb (2) pyko,doKn KhoNka He 3aphiKcyTeBCr.

7.2 BctaHOBJIeHHIJIyBaJIbHOrO nIcHa

WA., WBA., WE..A:

INB.CTOp.2,MaJ.A.

OnopnHnΦlaHeCb aBTo6aJaHcnpa (3)MiHo npKpInIeHn do nnHdJe. AHaIorIHyo do

iHINK KyTOBnX IJIΦMaunH TyT HemaE NOTppe6n y 3HIMHomO onOpHOMy PhaHci.

KoHTaKTHi NOBepxHi ONOpHOrO fHaHcA aBTo6aHaHCnpa (3),IiIphiBaJIbHOrO dNcKa

(1) Ta WBNIO3aTNCKHOI raHNI NOBHHI 6yTN YNCTMNI. OYNCNTte 3a Heo6xIDHOCTi.

• PoklaDiTb 11i1yBaIbHn IINCK Ha ONOpHN HlaHeCb aBTObaIahCnpa (3). L1i1yBaIbHn IINCK NOBHeH pIBHomipHO npInraTn Do OlaHc.

WPB..., WEVB 1...

ДИВ.стор. 2, мал. B.

• BctaHOBIb onOpHn FJIaHeCb (14) Ha UHHneJIb. FJIaHECb BCTaHOBJIeHn IpaBnIbHO, JHKIO BIn He OBePtaETbcrHa UHHNeI.
• POKlaDiTb IliIpyBaIbHn DNCK Ha ONOpHn ΦIaHeu (14). IliIpyBaIbHn DNCK NOBHeH pIBHomipHO npIraTu Do φIaHua.

7.3 3aTARHeHHBIDKpyyBaHHaWbNdkHO3aTNCKHOIraHn（3aJIeXHO BIDKOMnJIeKHTaii)

3aTARHeHHaBnKo3aTnCKHOIraKN (1):

山BnKo3aTNCHaraKa(1)BCTaHOBIOCTbCRA TIlbKn Ha MaunHn 3 CNTeMoI Metabo

Quick. TaKi MaunHm MaOt b YepBOHy KHOHky fikcaui WnHdela (4) 3 HAnncom M-Quick

IHKIO IHCTpyMeHTaIbHa HacaIka B Mici3aTnCKy MaE TOBUnHy 6JIbWe 7,1 MM

3aTnCKHy raHcy Quick BnKOpncTOByBaTu He

MOHHa! B cIbOMy BNpaIky KOpNcTyIeTcraIHO 3 DBOMa OTBopAMn (15) Ta BiIIOBIDHM KIIIOHe M IId DBA OTBOpN (16).

-3aφikcyIte wnnHdIb (nVB. po3di 7.1).
- BcTaHOBIb WbNdkO3aTnCKHy raIky (1) Ha WnHdJIb (2) TaK, 0o6 0bNbBa BnCTyIIN IOnaII IN B Na3N. MJI. MaJI. Ha CTOp. 2.
-3aTnHtB WbNko3aTncKHy raHy pykAmn 3a roHHNKOBOc TpIKo.
-ПOTуЖнМ NOВОРТOM WJIФУBAЛьНО ДИСКА 3a ROДИHHNKOBOIO CTPIIΚΟΥ 3aTЯгпΙБ ШВИДКОЗаТИССКΗ ГайΚY.

BidkpuyBaHHaWbNko3aTnckHOraHn(1):

TilbKn BCTaHOBHeHa WBNDKo3aTNCKHa rAka (1)D03BOJAE KICyBaTu WNNHDeIb

UepBOHOKHNKOIO M-Quick (4)!

• PicIaBIDKlnOeHHMaunHnDnCK OBePtaCTbCra 3a iHepuieio.
• Koln ⅢiФуBaIbHnДИСК MaJHe 3yNINHBcR, HaTnCHiTb YepBOHy KHOHKy φIKCaqii ⅦnHdJIeM-M-Quick (4). ⅢBnDko3aTnCKHa raKa (1) BiKpyUyeTBcR caMOCTiHo np6Ii3HO Ha nIBo6eTpN, nicr yoro MoKe 6byr BiKpyeHa 6e3doaTkoBnx 3ycInb Ta 6e3 IHCTpyMeHTiB.

7.4 3aTgHeHHb/BeIckpyuByBaHHraKn 3 DBOMa OTBopamn (3aJIeHHO BiD KOMnIeHTauii)

TaNka 3 DBOMA OTBOPAMM MaE DBi pi3Hi CTOpOHN. HaKpyTiB raIKy 3 DBOMA OTBOPAMn Ha WnHdJIb, RIK NOKa3aHO Ha MaIIOHKy:

ДИВ.стор. 2, мал. C.

-X)ДЯTOHнxшлфуBaIbHnXДИСКИB:

Буртк raин 3 dBOMa OTbOpAMn (15) NOBepHyTn DOROpN, lo 3a6e3neUye HaDiHn 3aTtCK ToHKx DNCKIB.

Y)ДЯTOBCTHXIiΦyBaIbHnX DnCKIB:
Bnctynraikn3DbomatoTBopamn(15) NOBepHyTNI DOHN3y, 0o 3a6e3neue HaJIHe PO3TaWbAHHRAIKNHa WnHHDeJI.
- 3aφikcyiTe uHHnHdJIb. 3aTgHiTb raKy 3 DbOMa OTBopAMn (15) BiIDNoBiDHM KIIOyem (16) 3a FOINHHKOBOIO CTpiIKIO.

BidkpyuBaHHraHKN3DbOMaOTbopamn:

-3aφiKcynTe wHnHdJIb (INB. PO3IJI 7.1). BiKpyTITb raIKy 3 DBOMa OTBopAMN (15) BiNobiIDHM KIOUChm (16) npOTn rOAnHHNKOBoi CTPIKN.

8. EKcnpnyataciia

8.1 BcTaHOBHeHHa KJIbHOCTi o6eptIB (3aJExHb BiKOMnIeHTaui)

BctaHOBiTb notpi6Hy kiIbKICTb o6eptIB 3a DonomorOIO KOJIiUaTKa (8). (HeBeJIneKe YnCNo = Hn3bKa yactota o6eTpAHn; BeJIne Ke YnCNo = BnCOka Yactota o6eTpAHn)

Kpyr nIy a6pa3nBHO B iDpi3aHnn, 06dnpHnx pO6iT, uIiFyBaJIbHi yauKn, aIMa3Hi B iDpi3Hi Kpyr: BnCOKa Yactota O6eptaHH

Uitka:cepeHnHaactotaObeptaHH

UliyBaIbHa TaipIka: BiD Hn3bKoiI Do cepedhboi YacTOTN OeptaHn

Bka3iBka: nla noIpyBaJIbHnx po6IT MPeKOMeHnyEMO HaSy KytOBy noIpyBaJIbHy MaunHy.

8.2 yBIMKHeHHBIMKHeHH

IHCTpymEnT 3aBxN Tpe6a TpImaTN O6Oma pyKaMn.

IiBbTe Do 3aROTOBKn TlbKn yBIMKHeHn IHCTpyMeHT.

He donyckaIte Heymnchoro 3anychky: 3aBKn BmNkaIte IHcTpMeH, RkIo BnJaBnTgHyTa 3 pOeTKn a60 RaKuO CTaBCr 36iB Yi eJeKtPoEhepri.

A., WBA., WEA., WEVA., WEBA., W...RT: y peKnimi 6e3nepepBHOi po60Tn

IHCTpyMeH INpOIOBHyE IpaIIOBaTn, HABITb JKUO BIN BnPBBeTbc3 pyK. Tomy 3aBKnM iuHO TPImaTe IHCTpyMeH DbOMa pyKaMn 3a pyKoRTHy, 3aIMtB CTiKe NOLKeHHr i NOBHiCTTO CKOHcHTpyNTecHa BNKOHyBaHIn po60Ti.

He donyckaIte 3aBnxpeHHra6o BCMOKTyBaHHIhCTpyMeHToM nIy i TnpCn.

He KlaidiB BmKHeHn eKeTpoIHcTpymeHT do NOBHOI 3yINHKn DnRgamma.

IhctpymEnTu 3 nepemHaayem:

YbIMKHeHHa: nepecyHbTe nepemHKauch (5) ynepeid. Ira po6oTu 6e3nepepBHomy peKnmi nepecyHbTe nepemHKauch Ha3aD do fikcaii.

BmKHeHHaTnCHiTbHa3aHi KHeu nepemKaay (5) i BiPyctItb.

IhctpymEn3 KnaBleIO-BMnHaayem (3yHHciEO abTomatNHO3yHHH)

YBIMKHeHHa:nepeCyHbTe KlaBiUy-BMnKau (11) yHaNPmKy CTpiKN i HaTNCHiTb KlaBiUy-BMnKau (11).

BIMKHeHHa: BiDnyCTiTb KJIaBiIuY-BIMnKaU (11).

Maunn 3 maphybaHHm W...RT: Hopotkouachn pekm po60tn (3 yHKieo abTomatnuho 3ynnnn)

YBIMKHeHHa:HaTnCKHn nepemHKauch (9) nepecyHbTe BnepediHaTNCHiTB nepemHKauch (9)yropy.

BIMKHeHHa: BiDnyCtItb HaTnCKHn nepemHKay (9).

YKPAIHCbKAuk

Maunn3 maphybaHHm W...RT:

Be3nepepBHH pexHm po60n (3aJIeHHo BID KOMnIeHTaui)

YbIMKHeHHa: yBIMKHiTb iHCTpyMeHT, kOncaHO Bnue. HATNcKnH nepemHKaH (9) ue pa3 nepeCyHbTe BnepeDi BiDnyctiTy pepehBOMy noLOKeHHI dJIa IKcaQII HAtNcKHO nepemHKaHa (9) (6e3nepePBHN peJHM po6OTn).

BIMKHeHHaHTncHITb nepeMnKau (9) yropy i BiIpyCTIb Ioro.

8.3 Po60qi Bha3iBHN

CTaHdapTHe wIiΦyBaHHia I wIiΦyBaHHa HauHaHm panepom:

PnTnckyIte iHCTpymeHT 3 NOMIPHM 3ycuIJIaM I nepemiiuyTe Ioro no nobepxHi Ha3aI bpePe, Uo6 nobepxHa 3arOTOBKn He neperpiBaIacr.

O6dnpHi p060Tu:ДЯ OTPMaHHa Do6pOro pe3yIbTaTy npauHTe 3 KytOM Haxnly 30^ - 40^

Bidi3aHHa6pa3HBHmM dNcKaM:

Pn BiDiPi3aHHi a6pa3NbHIMM NIDCKAMN 3aBxDN IpaIOte B 3yCTpiHOMy HApRMI (INB.

MaHIOHOK).IHaKWe IHCtpymENT MOKe HecNoiBaHO BnCKOHTN 3 npOnnly.

PpauoHTe 3 nomipHOIO nOdaueIO, BiINOBiDHO oOobpoBIOBaHOro MaTepiAly. He IOnyckaIte nepeKocy, He HaTnCKaIte i He po3roNdyIte IHCTpyMeNT.

06po6Ha dpoTAHmN 3iTkamn:

NOMIPHO npHTnCKyIte iHCTpyMeNT.

8.4 3'εДнаннгзi shypom dЯ yTpmaHHH IHCTpyMeHTy (3aJIeHHo BiD cnopraKeHH)

Bka3iBn 3 Texhki 6e3neKn CneiaJbHo dIy BHKOpNCtAHHa BNCOTi. O3haHOMTeC3 ycima npabNlAmTa Bka3iBkAmn 3 Texhki 6e3neKn. HeoTpmaHHn npaBn Ta Bka3iBOK 3 Texhki 6e3neKn MOKe npu3BeCTn DO OTpMaHHn TAnKnx TiJeCHNX yUKOdKeHb.

Tilbkn DnBnKOpNCTaHHHaBueHnmpcoHajom.KopncTybai NOBHHI npoHTNaBuaHHIooO6e3neuHoro BNKOpNCTaHHInCTpyMeHTIB Taix BNKOpNCTaHH Ha BucOTi.
Cniikkynte 3a Tm, uo6 niuac pobotn Ha Bucoti ihctpymeHT 3abxdi 6by 3aenlneHn do shypa dlya ytpmaHHI hctpymeHTy. BnkopncTOByte Iiwe npdaTHi shypn dlya ytpmaHHI hctpymeHTy Mapn Metabo (MaKcmaJIbHa DOBXHa 2 MM (6,5 cyTIB) 3 DoCTaTHBOIO amOptn3aueio). MaKcmaJIbHa BNCota naIHnra Dlya shHypa dlya ytpmaHHI hctpymeHTy (ytpmyouHn shyp) He nobHHa nepeBnuSyBaTH 2 MM (6,5 cyTIB). BnkopncTOByte Iiue shHypn dlya ytpmaHHI hctpymeHTy, nepeD6aehi dlya BiNDOBiHDHO TnY ihctpymeHTy, ta Jki

po3paxoBaHi Ha Bary iHCTpyMeHTy pa3OM 3
IdoaTHKOBIMN DeTaJIaMn, IIO
BVKOpNCTOByOTbcR.
-ПрочитайтTeТаВИКОнуITEHCTpyKUIO3 BИКОпСТаHHЯДошHyраДЯУТРIMаHHЯIHCtpymeHTy!
- IpeBipraIte iHcTpymeHT (ocO6lnBO ByuKo dny KpInIeHHa) Ta uHyp dlya yTpMaHHa HcTpymeHTy nepeiKOxHM BnKOpNCtAHHm Ha NOxKOdKeHHa Ta 6e3DoarHHe yHKcIOHyBaHHa (BKnIOUcaOuHa MaTePiaJ Ta WbN). He BnKOpNCTOByte iHcTpymeHTTa uHyp dlya yTpMaHHa HcTpymeHTy, RaQo BOHn NOxKOdKeHi a6o npaQIOJB He haleXHM YINOM.
- He 3aKpinIIOHe 5Hyp dIy yTpImaHH IHCpymeHTy Ha CBOEmy TyIy6i. 3aKpinIIOHe T Whyp dIy yTpImaHH IHCTpymeHTy Ha MiChOMy npEmdTe, RKn 3daTHN BHTpImaTH NaDaIOuH INcTpyMeHT.
- He6e3neKa OTpImaHHa 3aueMJIeHb, nopi3iB a60 3aIyTuBaHHa. He BnKOpNCToByIte uHypr dIy TpImaHHIHCTpyMeHTy N6JIu3y DeTalei a60 mExaHi3MiB, IIO OBeptaOTbcra a60 nopJd 3 npaUOChmMaunHaMn.
- He 3miHIOHe cNoIyueHHa Hypa dIyYTpMaHHa IHCTpymeHTy 3 IHCTpymeHTOM Ta He BHKOpNCTOByTe NOrO dIra IiHex cIine HiK Ti, tO OINcAHi B IHCTpyKciT 3 BHKOpNCtAHH.
- 3akpinnoTe iHctpymeHT Ha shhpyi dny UtpmaHHI HcTpMeHTy BnKJIIOUHO 3a DonomoroIO KapabHa. He 3akpinIOte IHCTpymeHT Ha uHypi dny UtpmaHHI IHCTpymeHTy 3a donomoroIO neTJI a6o Byzla. He BnKOpNCTOByTE dNk PkinJeHHa KaHaTu a6o Shypn. BnKOpNCTOByTe BnKJIIOuHO KapabHn 3 NODBIHOIO CNTeMOIO 3aKnPBahn. He KOpNCTyIeCEa 3BnuAaHm KapabHOM, 10 3auePNIIOETBCr.
- 3akpiHIOHe UHyp dIyUTpHMaHHIHCtpMeHTy TaK, uo6 y pa3i naIHnB BIn pyXaBCy y 6iK BiD KOpNCtYBaHa. IHCTpMeHTN, UO BnAIN Ta RoJdaIObCn Ha UHpy IINy UTpMAnHHI HCTpMeHTy MoKyTb CnpuHHTn TpaBMn a60 BTPaTy pIBHObarN KOpNCtYBaueM.
- He 3akpinHouTe Ha OndHomy shHypi dnytpnMaHHIhCTpyMeHTy 6ilbwe oDHorO IHCTpyMeHTy.
Kopnctyntecr nnepepe6aueHm nla zboToykamn KpinlenHHB (ByuHa dna KpinlenHHA) (10), 3aKpinnTu Hyp dny TpmaHHIHcTpymeHT do IHcTpymeHTy. HE 3miHIOte IHcTpymeHT cTBopeHH ToKN KpinlenHHA.
-He 3aKpinIIOHTe IHyp dIyTpIMMaHHI HCTpyMeHTy Ha IHCTpyMeHTi TaKIM YHOM, IIO BIn 6yde nepeWkoJKaTH NaJIeXHOMy FyHKIOHYBaHHO 3axNCHX npNCTpoIB, BmNKaYIB a6o 6loKipaTopiB.
- TpmaTe WhypdIy yTpmaHH iHCTpyMeHTy noaIi Bi npauooyoro iHCTpyMeHTy.
- 3axnauTe uHyp dIy yTpmaHHn IHCTpyMeHTy BiD icKOp Ta cTpyKKn, IIO MOKytb po3JIiTaNcB.
- 3axnauTe uHyp dIy yTpMaHH iHCTpyMeHTy BiD roctpnx KpaIOK, Ie3, cTpyKKn i T.i. He CTabaIte HOrAMn Ha iHCTpyMeHT a60 Ha uHyp dIy yTpMaHH iHCTpyMeHTy.

-He BnKOpncToBnyTe WHyp dIy yTpImaHHIhCTpyMeHTy a6o npncTpoI dIy KpiIeHHI nnBnueHH eFeKtY BaKeJIa IHCTpyMeHTy.
- O6ropoDiTb y 30Hi MOKlnBoro NaDiHHa DiJIaHHy DOCTaTHboI nIOUoi. Y 30Hi MOKlnBoro NaDiHHa He NOBHHI TpaBMByBaTnCra IIOu.
-Пися naДiHЯ сIд 3amHITn KaHAT Ta nepeBipHTn IHCTpMEnT Ha NOwKOdJKeHHa.ПicЯ KOxHOrO naDInHЯ KBaJIiΦIKOBaHN CneuiaJIcT Mae nepeBipHTn IHCTpMEnT Ha HArBHICTb NOwKOdJKeHb Ta 3a NOTpe6n BiIpemOHrYBaTH noRo.
Hikoln He HamaraTecb BniMaTH iHCTpymENT, 10 naae. Bn moKeTe oTpMaTH TpaBMN.

8.5 NOBOPOT KOpNycy peDyKTopa

ДиВ.стор. 3, мал. E.

-BnTgHtB MepeKHeBy BnIky.
BnKpyiTb KpiinIbHn rBnHT (a) BaXeJIa (17). 3HIMITb rBnHT, BaXiJIb (pa3OM 3JInCTOBm eJeMeHToM) i BiKnlaIbY6IK.
-BnKpyTItb 4 rBnHTn KoprnycpeDyKTopa (b). YBArA! He 3HimaTe Koprnyc peDyKTopa!
- POBepHiTb Kopnyc peDyKTopa B Notpi6He NOJIOKeHH, He 3HIMaOuN Horo.
-BkpyiTb 4 rBnHTn KOpnycpeDyKTopa (b) B HnABHy pi3b6y! MomeHT 3aTyrBaHHra = 3,0 Hm +/ -0,3 Hm.
- 3MictiB y6ik npyHny, rka yTpmye BaHilb B NOTpi6Homy NOLOXKeHHi, i 3HOBy BCTaHOBIb BaHilb (17) (pa3OM 3 JnCTOBm eJeMeHTOM) Ta 3aTyrHITb KpINHbHM TBnHTom (a). Momeht 3aTaryBaHHra = 5,0 Hm +/- 0,5 Hm. IpepeBipTe npaue3daTHicTB BaKeJIa: BiH MaE 6yTN niD HaTAROM npyKHHI.

9. OuHueHHa

Pnpo6oTi MoKJIbIe ChyUeHHaCTOK
Obo6pIIOBaHOro MaTePiAly ycepeNHi
eKeTPOiHCTpyMeHTy. Ce noripWye OxolodKeHHa
eKeTPOiHCTpyMeHTy.CTpymOpOBiHi ChyUeHHa
MOKyTb NoripWHTH 3axHCHy i3OJIauIO
eKeTPOiHCTpyMeHTy, IO BnKlnKae pN3NK
ypaKeHHa eKeTPruHm CTpyMOM.

Yepe3 HeBENKi piBHi npomixkN yacy peTeIbHo OunuYnTe nepeDi Hi 3aHHi BeHTnlauiHi uINHH eEeKTPoIHCTpymEnTy a60 npOdyBaIte ix cyxIM NOBITPAM. Peepd cHm BiD'EDHaIte eEeKTPoIHCTpymENT BiD dKepeLa KHNBeHnHa I HAdiNbTe 3axNCHI OKyIapri i pecnPipaTOp.

10. YcyHeHHa HeCnpaBHOCTe

IHCtpymeHTn3 eJeHtpoHiKIO VTC-, TC-, VC:

TOpHTb eJEnKTHPOHHn CnHrHaJIbHn iHNKaTOP (7),i3MeHswyETbcra YacToTa 06epTaHHnPiD HabaHTaHexHHm He dI MaOdeJe W...RT).3aHaADTO BnCOKe HabaHTaHexHHa IHCTpymeHT!XaIHCTpymeHT IOnpaucE Ha XoIOCTOMy XODI, NOKI eJEnKTHPOHHn CNHrHaJIbHn IHNkATOP He 3rache.

IhctpymEnr He npauoc.EleektpoHHn CnHaBnH iHnKaTOp (7) (3aJeXHO BID KOMNLeKtaui) 6nMaC. CnpauOBAv

3axnCT BiD NOBTOPHORO 3anycky. RaHIO npnyBMKHeHomy IHCTpymeHTi BnIka Ka6eIIO KINBLeHHRA BCTaBnEbCBApo3eTKy, a60 NiCJI 36OIO BiHDOBHeNO NDoaHy eJeKTPOKHNBeHHIAh, IHCTpymeHT He 3anycKaTbCBAmKHITb i 3HOBy yBMKHITb IHCTpymeHT.

11. Ппладя

BnKOpncToByTe TiIbKn opnirHaJIbHe npnlaJa Metabo.

ДиВ.СТОР.5.

BnKOpNCTOByTe TIlbKn Te npIaIaIra, IKe BiINOBiDaE BnMOrAm i napametpam ciieIHcTpkyu3 ekCnLyataui.

A 3aTnCK 3axnCHOrO KOHcyaIJI BIDpi3aHH/3axnCHnKOHcyIJI a6pa3NBHOBIdpi3aHH

PnH3NaHeHH nIy po60Tu 3 BiDpi3HmN Kpyramn, aIma3HmM BiDpi3HmN Kpyramn. 3i BCTaHOBJIeHMM 3aTNCOM 3axNCHORO KOxyxA Iy BIDpi3AHH INCTpyMeHT MOXHa BHKOPNCTOByBaTH Iy a6pa3HBHO RbDpi3aHH.

B 3axnchH KoxyX dIa6pa3HBHO BIdpi3aHH

Pn3Haehnn dIpa3aHHKaM'HNX nIIT aMa3HmN BiDpi3HmN DNCKamN. 3 naTppy6KOM dIy BndaJIeHH KaM'HOrO nIly 3a DOnOMoIO BIDNOBIDHO BNTJHXHO npNCtPOIO.

C 3axnchHNOHYX 3 BNTaHHOIO nIpaCHO OJIyBaHH

Pn3NaeHn dIyIiOyBaHn6ToHy,CTKn
PiJor,DepeBHH i NOImepiB aIMa3HmN
aIKOBIMn Kpyramn abo 6pOBmN Kpyramn i
BiIOBIDHMn IJIyBaIbHmN TaipKamn.3
NaTpykOM DnBnryBaHHKaM'HOro,
DepeBHoro i NOImepHOMy nIy 3a DonomoroIO
BiIOBIDHO BnTJXHO npCtpoIO.He nIXoNDtb
dIy BnTAYBaHH icKOp Ta IiOyBaHH MeTany.

DПило3axnchNФiЛьтр

Dpi6HOpnctn fIbTp 3anobirae notpanlanHHIO BELIKX YactoB KOpnyc DBNyHa. PerylaepHO 3HimaTe N OUnuynTe fIbTp.

E3axnctpyK

Pn3NaeHn Dnpo6t 3 onOpHO TapIKoIO,
WlifyBaIbHOIO TapIKoIO, dPoTAHMn 1iTKaMn
aIMa3HMn KInbueBMN CBepdAmn InNTKn.
3axnCHn eJeMeHT yCTaHOBIOEbCra nD 6uHy
doaTHOBy pyKoTky.

F BaratoonO3nuiHa cHOba B JKOCTI daTHOBoi pyKoTHi

BcTaHOBnIOeTbcraBpi3HnxnoJIOKeHHx.

G OdaTHOba pyHOaTHa-CHO6a

Повни acopтимentnpILAДЯ ДИВ.на calTi www.metabo.com aboВ kaTANO3i.

12. PemoHT

PemOHTeJEKTPoIHCTpymeHTy NOBHeH 3dIChIOBaTHcTlBKn KBaJIΦIKOBAHmN

faxibzmy-elenktpnkaMn!

YKPAIHCbKAuk

Pn nookoeHHi 3'edhyBaIbHoro Ka6eHIO cIId 3amIHNT HOrO CneuaJIbHIM Ka6eIeM.

Для ремонту eелктоичспуmetу Metabo 3Вертайтесь B periohalbne npedctaBnucTBO Metabo. Адесс дИв. Ha calti www.metabo.com.

CnNcK 3aNaChnx YacTINH MOJHa 3aBaHTaJHNTi Ha caTi www.metabo.com.

13. 3axnct IOBknIIa

Пил, lo yTbOpoEtbc npn loiIpyBaHHi, moKe MicHTn wkiIaNbi peoOBHH, TOMy Ioro cIid yTuNi3yBaTHn HaleKHM YINHom.

DotpmytecaHaiohaBnX npaBn 6e3neHoi yTnI3aui i nepepo6Kn BnKOpncTaHnx IHcTpMeHTIB,naKyBaIbHnx MaTepiJIiB i npila.

TilbKn dIa KpaIH EC: He yTuNl3yUte eneKTPoIHCTpyMeHTn pa3OM 3 no6yTOBmBiDxOamN! 3riIDHO 3 dupeKTnBOHO EC 2012/

19/EC npo eJeKtpnHi Ta eJeKtpoHHi npncTpoi Ta BiIOBIDHMN HauioHaJIbHMN HopMaMn BiIpaBObaHi eJeKtpoiHCTpyMeHTn iIJaRaOTb po3dIbHi yTNlI3aqi 3 MeTOO IX NODaJIbWoI ekoloriuHo 6e3neuHoi nepep06Kn.

14. Texhiu hi xapaKtepcntnkn

IorcheHHaDaHx,HaBeDeHx Ha cTOp.4. 3aIIwaemo 3a co6oIO npabo HaTexHiHi 3MiHN.

0 = MaKc. iAmetp iHCTpyMeHTaIbHOi HacaIKN

t_,1 = MaKc. ДОпуСТИМа TOBинHa iHCTpyMeHTaIbHoI Hacadn B OБlaacti 3aTnCKyПри ВИКОрисТанHi RaйкN 3 ДВOMa OTBopamN (15)

t_max,2 = MaKc.ДОпуСТИМaTOBинHa iHCTpyMeHTaJIbHOI HacadnВ O6laCTi 3aTnCKy npN BnKOpNCtAHHi WBnIDKO3aTnCKHOI raHKn Quick (1)

t_max,3 = 06Дирни/ВiДpi3Hn ДИСК: MaKc. ДОпуСТИМа TOBиHA iHCTpyMeHTaJIbHoI HacdKN

M = pi3b6a wnnHdJIa

1 =doBxHaIiΦyBaJIbHOrO IINHDeJIa

n* = yactota o6epTaHnHa XoIOCTOMy xOdi (MaKcImmaIbHa)

n_V^ = yactota o6epTaHnHa XoIocToMy xodi (peyIbObaHa)

P1 = HOMHaIbHa cNoXnBaHa nOtYKHiCTb

P2 = BiDaaBHa nOToHHicTb

m = Bara 6e3 Ka6eIIO

Pe3yIbTaTn BmMipHOBaHb OTpMaHi 3riIDHO 3i CTaHdapTom EN 60745.

IHCtpymeHT Klnacy 3axncty II

\~ nepemHHn ctpym

* IHCTpyMeHTn 3 No3HaQKOIO WE... : NotyKHi BNCOKOaCTOTHI nepeWKoDN MOKyb BVKNiHaTNI KOJIiBaHHaCTOTNI O6epTaHH. Ppi 3aracAHII nepeWKoD KOJIiBaHH NpINHJrOtbcra.

Ha Bka3aHITexHiXiapAKeptnKIN
noHpiIOIbCnDOnyckN,pepe6aueHi DIOUHMN
CTaHdApTaMn.

3haeHH emicii ymy

LJI 3NaueHnI Do3BOJIoTb OciHOBaTI i NopiBHOBAITe EMiciO WMy pi3Hnx eJeKtpoiHCTpyMeHTiB.3aJeHHo BiD yMOB EKcNlyatau, CTaHy eJeKtpoiHCTpyMeHTa a60 pOboUHX IHCTpyMeHTiB fAHTnHe HaBaHTaKeHHa MoKe 6yTu Bnue a60 HnXue.ДЯ OuzHKn 3pa3KOBOrO pIBHa EMicII BpaxOByIte NepePBn B pO60Ti Ta pa3n P60Tu 3I 3HNKeHM (WymOBm) HabaHTaKeHHa.M.Bn3Haute nepelik OprAhIsauiHnx 3axOdi UoDo 3axNCTy KOpNCtYBaHa 3ypaxyBaHHaM Tnx a60 IHxN 3NaueHb EMicii WMy.

CymapHe 3HaueHHe Bia6pauii (BeHTopHa Cyma Tpbox HnprMIB) po3paxOByeTbce y BiIDNOBIDHOCTi 3i cTaHdapTom EN 60745:

ah,SG 3HaueHHB i6paui (WnifyBaHHN NOBepxOHb)

ah,DS =3HaueHnB i6paui (wliyBaHHaJIiYBaIbHOIO TapINKO)

ah,P =3HaueHnB Bi6paui (noIpyBaHHa)

Kh,SG/DS/P = KOeΦiζiEHT NOxN6Kn (Bipapci) PiBeHb 3ByKOBOrO TnCKy 3a TINOM A:

LpA =piBHeH3ByKOBOrTOncHy

LWA =piBeHb3ByKOBoiNtYHKHOCTI

K_pA, K_WA = Hoe i i H T nox

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Lioie aljaiall 1abla 1y Ail yll sall 1 (s)
Jugbi bghia aiiinall sall uai i Jauy iuii y
12i e o wll sly d. gaiy lgl jaiy
10g jaii all jge ai jay i gai ll aal gai
aaiy S ao

1. 8jglal aaiiial l 1y ygll jls 6 hla (3) 4y g o eliy g elysll jls baiy jld jlgll 6 dr baaull cdd

aiaiill 100 g i j 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100g 100

aall 2 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

a Jiai 111111111111111111111111111111111111111

4.2

aaiiiaaii aie ie iiaii iiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaia

a aal al aal jlll lll llae 12

a.bai 1

J 12222222222222222222222222222222222222222222222222222222222222222 4 4- (4* 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g

L

auiia auiia iiauii Metabo 02g jll g jll caiy all
aiu yjdl g a g aall jall jall jall jall jall jall jall

WEVA 15-150 Quick WEVA 15-125 Quick

Jc y 100000000000000000000000000000000000000000000000000000000000000000000000000000

aXuI 15u!g a gall u y a lal lalai y

aalai aLwlll 3

Jn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

jbln no dll jieill cayla i ic s 1e - jia

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Jaiualll 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

a#iXwCJU 4

4.1

1

s 1500000000000000000000000000000000000000000000000000000000000000000000000000

:JdAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAee:WEVA 15-150 Quick

:dllll lalldly jaoa aai 4.7

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

:cbllgcll alal aalul

4.3

gll ll gil y gill slal ool al glall plai hao pial ( 1 jie iell plai joiy . oiai jai plai jay aai ai jie gai ay gai gai gai gai gai gai gai gai gai

jglggl jgl ggbll ggbll 1 (g 2

aaba a lao g oal aai yll sall lal y 10
laaiai alrdoe y gl boll aagg cawl.
no jao jol all kdl d. .jagbalt aotn
.

J 1

.6

a 30

J 1

6.1

1111111111111111111111111111

1 1

6.2

D. 3 2 a = 1

(13)gl glblill g.1g204 17)gl jll bial- .gall gai gali
la gaaiae gjdl jy y aiaa e alb c y y y jll jy
alilal abaii all y y gl llai i y y jll bilai -
clly y aySo gEjI jll Cnni Bnni nnnn nn nnnn

a 3.4

（）

1

.7

aall jy bll lall y bll aall 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1

7.1

（2）4

G

7.2

:WE...A...WBA...WA...

A. = , =

Ls. pall (3) jil 1j gao pa aai jy jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

G P

jglg 62 jall p all aai wlll jn j n sii j j 1 (1) gull glal gals (3) jilts

1 11 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

(3) jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

:WPB..., WEVB 1...

B. , 与 的夹角相等

14 14

j 1y .gaiial g aiill y jaiil u
. 1y i
i jy .gaiial g aiill y aiill y jaiil u
. 1y
alnio g ciill jiall lgl .jaiall g aiill g ciill p

glall gl lgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll jgllll

aie 5

1. 1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17

aar

W...RT aal yaaal cll (Dead Man's Switch

(9)Jyill cLio biaol plo (9) Jyill cLio y:Jaiill

.(9)

:W...RT iokally joull clis

(jgjill) jannal

15j j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15j 15

J 8.3

12,13,14

J 15

alol a jol jaoa o a a jilie Jgall:

40-30

111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 1

）yulbaijgal

7.3(2016-2017)

:(1)

g jall clll 1 (1) g aill baii al gaiu y
jai lll oia ie ai iay. "gaii Metabo p
"M-Quick" 4

Xa,baoall aebio 7.1 jao kaw jsi Jiayol oJcLiy iJgolal paxil y!jw bao ai gao plzul

.(16)

(7.1 Jall 2)Jl jll 20 (1) gll algol 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

）

（1）gall al sola la lyla baa 2gac jj aiai jrgd 2gac

）M-Quick

Jg j 1 Jg j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

(jgill) jiai yalgalai

7.4

gac glc jiaiaai al gali b y p .jutis iiaiaai gali gil

C. 2 × 3 = 6

：

15

:

$$ \because \frac {1}{2} a + b = 3 $$

$$ \text {c u n t a l} \quad \text {b i d i v i a l} \quad \text {c o n n e c t i o n} = \quad L _ {\mathrm {p A}} $$

$$ \therefore \text {s i n g l e} \text {s i n g l e} = L _ {W A} $$

$$ \text {i n} \lambda = K _ {W A} \cdot K _ {P A} $$

(1) 80 giiaai

！

$$ \left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right\rangle_ {0} ^ {1} = 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, $$

www.metabo.com.

x0.12

j 21 y 21y 21y 21y 21y 21y 21y 21y

Jaaia 1

J 1

J 10000000000000000000000000000000000000000000000

EeXbY1sLcS. 2Ll! s! Caiy S Metabo

. www.metabo.com gall

. www.metabo.com g

a.13

Aaiuiai iiai jaii:uiiai gicililil Jaiill

aill 1

aannnnn nnnnnn nn annnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

Jaae 111111111111111111111111111

2012/19/EU 1

g j 1000000000000000000000000000000000000000000

( x - 2x) t - xy^2 = ( x - 2x) f^ t

aill

aai 14

gally liaiy lai.4 aiaa gao jil

aannnnn aannnnn

jbi aovvall sall 4 cavall al = tmax.1

(15)

a^2b^2( a^2b^2) = ^2a^22b^2 · ^2b^22b^2

(1)

：bbai jj/1j 1jij j = tmax.3

aannnssll 1 gannnn

M

[1 + \left( {x - }\right) + f - = h\left( x\right) ]

（）

（）

n_y

P_1
