Product type	Electric grill / Plancha
Brand	SilverCrest
Model	SPG 2000 B2
Power consumption	2000 W
Mains voltage	220-240 V ~, 50-60 Hz
Cooking surface	Plate with non-stick coating
Cooking zones	Two zones: grooved side (meat, poultry) and smooth side (fish, vegetables, eggs)
Thermostat	Removable, with temperature regulator (levels 0-5) and red control light
Drip tray	Removable, dishwasher safe
Handles	Side handles for safe transport
Plate material	Steel with non-stick coating
Cleaning	Wipe plate with damp cloth; tray dishwasher safe; do not immerse thermostat
Safety	Manual shut-off via thermostat; do not use near water; hot surface indicated
Usage	Indoor only, domestic use
Included accessories	Plancha, thermostat with cord, drip tray, instruction manual
Warranty	3 years
IAN reference	386427_2110
Coating maintenance	Use non-metallic utensils to preserve non-stick coating
Initial heating period	About 10 minutes at level 5
Customer service	France: 0800 919270, Belgium: 0800 12089

Frequently Asked Questions - SPG 2000 B2 SILVERCREST

How to turn on the grill?

Plug in the mains plug, then turn the temperature regulator on the thermostat to a setting other than 0. The red control light comes on to indicate heating. To turn off, set the regulator to 0 and unplug.

What foods to cook on each zone?

The grooved side is ideal for meat and poultry, as it marks the food and allows fat-free cooking. The smooth side is suitable for fish, vegetables, eggs, and bacon for a crispy crust.

How to adjust the temperature?

Use the temperature regulator on the thermostat: level 1 for low temperature, levels 2-3 for moderate, levels 4-5 for high. The light turns off when the temperature is reached and turns back on to maintain heat.

Can I use metal utensils?

No, to preserve the non-stick coating, use only wooden, silicone, or plastic utensils. Metal knives, forks, or spatulas may scratch the surface.

What to do if the control light does not turn on?

First check that the plug is properly connected and that the thermostat is correctly inserted into the connection socket. If the problem persists, the appliance may be defective; contact customer service.

How to clean the cooking plate?

Allow the appliance to cool down, then wipe the plate with a damp cloth. For stubborn dirt, use a non-abrasive sponge with a little dish soap, then rinse with clear water. Dry thoroughly before reuse.

Is the drip tray dishwasher safe?

Yes, the drip tray can be washed in the dishwasher. Place it in the top basket to avoid deformation due to heat.

Can I immerse the thermostat in water?

No, never immerse the thermostat in water or any other liquid. Clean it only with a damp cloth. This could cause an electrocution risk.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the receipt as proof. For any claims, contact customer service with the IAN reference 386427_2110.

What to do if the appliance does not heat up?

First check that the thermostat is fully inserted into the connection socket. If so, try another mains socket. If nothing works, the appliance may be defective; contact customer service.

USER MANUAL SPG 2000 B2 SILVERCREST

Operating instructions

FR BE

PLANCHA TEPPANYAKI

Mode d'emploi

CZ

TEPPAN YAKI GRIL

Návod k obsluze

SK

GRIL TEPPAN YAKI

Návod na obsluhu

DK

TEPPANYAKI GRILL

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Introduction. 2
Intended use 2
Package contents 2
Appliance description. 2
Technical specifications. 2
Safety information. 3
Assembly and setting up 6
Before first use 6
Thermostat settings 6
Operation 7
Cleaning and maintenance 7
Storage 8
Troubleshooting 9
Disposal. 10
Kompernass Handels GmbH warranty 10
Service 11
Importer 11

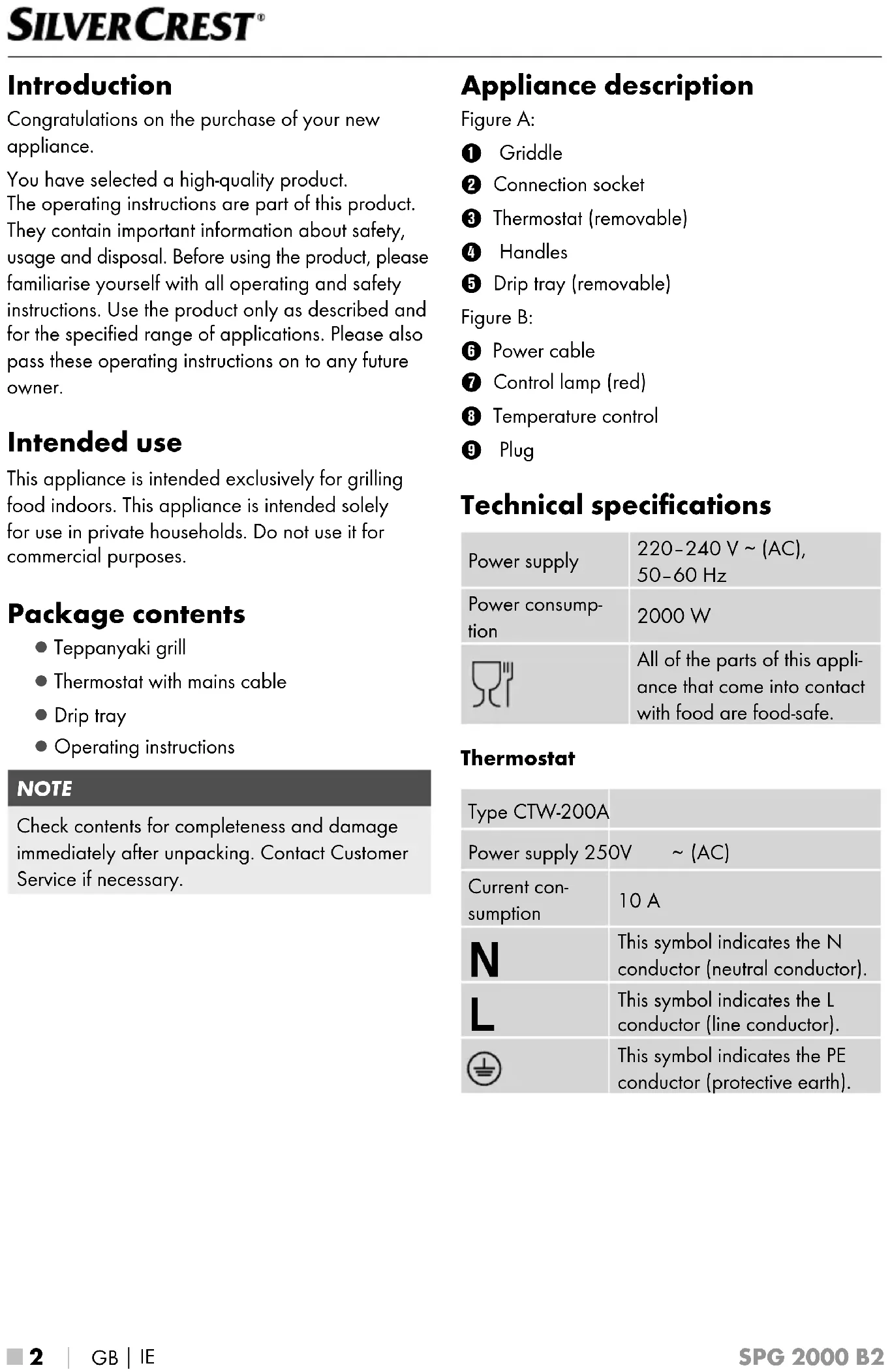

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applications. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended exclusively for grilling food indoors. This appliance is intended solely for use in private households. Do not use it for commercial purposes.

Package contents

• Teppanyaki grill
• Thermostat with mains cable
• Drip tray
• Operating instructions

NOTE

Check contents for completeness and damage immediately after unpacking. Contact Customer Service if necessary.

Appliance description

Figure A:

Griddle
Connection socket
3 Thermostat (removable)
4 Handles
Drip tray (removable)

Figure B:

6 Power cable
Control lamp (red)
8 Temperature control
Plug

Technical specifications

Power supply	220-240 V ~ (AC), 50-60 Hz
Power consump- tion	2000 W
	All of the parts of this appli- ance that come into contact with food are food-safe.

Thermostat

Type CTW-200A
Power supply 250V ~ (AC)
Current consumption	10 A
N	This symbol indicates the N conductor (neutral conductor).
L	This symbol indicates the L conductor (line conductor).
	This symbol indicates the PE conductor (protective earth).

Safety information

• To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.
• Protect the power cable from contact with hot appliance parts. Never use the appliance near naked flames, a hotplate or a heated oven.
• Do not expose the appliance to rain and never use it in a humid or wet environment. Ensure that the power cable never gets wet/moist during operation.
• Check the appliance for visible external damage before use. Do not use an appliance that has been damaged or dropped.
• The power cable must be checked for signs of damage at regular intervals. If the power cable is damaged, the appliance may no longer be used.
  The appliance must be connected to a mains socket with a protective earth.
• Do not allow the appliance to come into contact with moisture such as rain or water.
  Never touch the appliance with wet hands.

Never immerse the appliance or the thermostat in water or any other liquids! There is a risk of fatal electric shock if residual liquids come into contact with live components during operation.

Always disconnect the plug from the mains power socket after use, before cleaning, during assembly or before moving the appliance. Pull the plug itself, not the mains cable.

WARNING! RISK OF INJURY!

This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliance and have understood the potential risks.
Do not allow children to play with the appliance.
- Cleaning and user maintenance must not be performed by children unless they are older than 8 years of age and are supervised.
Children younger than eight years of age must be kept away from the appliance and the power cable.
- Never leave children unattended with the packaging material. Keep children away from the packaging and the appliance. There is a risk of suffocation!
After use, allow the appliance to cool down completely before cleaning it! Risk of burns!
If possible, set up the appliance close to a power socket. Make sure that the mains plug can be reached quickly in case of danger and that the mains cable does not constitute a tripping hazard.
- Never set up the appliance close to or underneath flammable objects, especially not under curtains or suspended cupboards.
- Provide a stable location for the appliance.

Caution! Hot surface!

• Never leave the appliance unattended while it is being used.
• Stop using the appliance if it is damaged.

CAUTION! PROPERTY DAMAGE!

• Do not use an external timer switch or a separate remote control system to operate the appliance.
• Never leave the appliance unattended during operation.
• Ensure that the appliance, the power cable and the plug do not come into contact with heat sources such as hotplates or naked flames.
• Do not use charcoal or similar fuels to operate the appliance!
• To protect the non-stick coating on the griddle, do not use metallic tools such as knives, forks, etc. If the non-stick coating is damaged, stop using the appliance.
• Operate the appliance only with the original accessories supplied.
• Never use the appliance unless it is completely assembled! The resulting high temperatures mean that liquids can burn and drip onto the table/the supporting surface if the appliance has not been completely assembled!
• Use the appliance only with the supplied thermostat.
• Never operate the appliance without the drip tray. Otherwise, fat and other hot liquids will drip down from the appliance onto the surface under the appliance!
• Only use the appliance on a heat-resistant surface.
• Do not place any pots, pans or other cookware on the griddle.
• Do not use aluminium foil to cook the food and do not line the griddle with aluminium foil.

Assembly and setting up

WARNING! RISK OF FIRE!

• Never place the appliance beneath wall cabinets or adjacent to curtains, wall units or other flammable objects.
• Set up the appliance at least 70~cm from any flammable materials (e.g. curtains).
  Always place the appliance on a heat-resistant surface.

1) Remove all of the parts from the box and remove the packaging material and any protective film.
2) Clean all components as described in the section "Cleaning and maintenance". Ensure that all parts are completely dry.
3) Place the appliance on a clean and level heat-resistant surface.
4) Insert the plug 9 of the thermostat 3 into the connection socket 2. Make sure that the thermostat 3 is pushed in as far as the stop in the connection socket 2. Otherwise the appliance cannot heat up!

Before first use

1) Insert the plug into a mains power socket and set the temperature control 8 to level 5. The appliance heats up.
2) Wait for 10 minutes.
3) Then pull out the plug and allow the appliance to cool down.

NOTE

The first time the appliance heats up, a small amount of smoke and odour may result from production-related residues. This is normal and is completely harmless. Ensure sufficient ventilation; for example, by opening a window.

4) Wipe the griddle ① with a damp cloth after it has cooled down.
5) Clean the drip tray 5 as described in the section "Cleaning and maintenance".
6) Make sure that all parts are completely dry before operating the appliance.

The appliance is now ready for use.

Thermostat settings

The temperature control 8 on the thermostat 3 can be used to set the temperature level.

Level 0 Grill switched off

Level 1 Grill switched on; low temperature

Level >1 - 3 Grill switched on; medium temperature

Level >3 - 5 Grill switched on; high temperature

Depending on the room temperature, heating up will start at different positions on the temperature control 8.

As soon as you set a temperature level, the control lamp ⑦ comes on. Once the set temperature has been reached, the control lamp ⑦ goes off.

However, the lamp may come on and go off again at any time. This means that the appliance is maintaining the temperature and has heated up again a little.

NOTE

• Select the correct temperature level by trial and error. The lower and medium temperature levels are better suited for vegetables, fruits and delicate foods. The higher temperature levels are better for meat.

Operation

WARNING! RISK OF INJURY!

The griddle 1 gets extremely hot during use! Touch only the temperature control 8 and the handles 4 at the sides!

The griddle 1 is divided into two sections: a grooved side and a smooth side.

The ridged side of the griddle is particularly suitable for red meat and poultry; this gives the grilled food the typical striped pattern and requires less fat for cooking.

The smooth side of the griddle 0, on the other hand, is suitable for frying when the food requires the greatest possible contact with the hot surface, e.g. to obtain a particularly crispy crust. This side is ideal for fish, vegetables, eggs, bacon.

1) Make sure that the drip tray 5 is positioned under the griddle 1.
2) Plug the mains plug into a mains socket and select a temperature level with the temperature control 8. The control lamp 7 comes on and the appliance heats up. As soon as the control lamp 7 goes off, the appliance has heated up. Place the food on the griddle 1 as required. Fat and liquids run into the drip tray 5 during cooking.
3) Check the grilling progress regularly and turn the food over. When you are satisfied with the results, take the food off the griddle 1.

ATTENTION! PROPERTY DAMAGE!

Do not use metal implements such as knives, forks, etc. If the non-stick coating is damaged, stop using the appliance.

4) If you do not want to grill any more food, turn the temperature control 3 to "0" and remove the plug from the mains socket. This is the only way to switch the appliance off completely.

Cleaning and maintenance

Before cleaning the appliance, disconnect the power plug from the mains power socket! There is a risk of electric shock!

Never immerse the thermostat 3 in water or other liquids!

WARNING! RISK OF INJURY!

Always allow the appliance to cool down before cleaning it. Otherwise there is a risk of burns!

ATTENTION! PROPERTY DAMAGE!

• Do not use abrasive or aggressive cleaning materials. These can damage the surface of the appliance!
• Do not use metal implements such as knives, forks, etc. If the non-stick coating is damaged, stop using the appliance.

It is best to clean the appliance as soon as it has cooled down. This makes food residues easier to remove.
Dismantle the appliance for cleaning:

• Pull the thermostat ③ out of the connection socket ②.
  Pull the drip tray 5 out of the appliance carefully.

Empty the drip tray 5. Then rinse it in warm water containing a mild detergent. Rinse the drip tray 5 afterwards with fresh water and dry it off.

NOTE

The drip tray 5 can also be washed in the dishwasher. We recommend

placing the drip tray 5 in the top

tray of the dishwasher. Ensure that the drip

fray 5 does not become jammed. It can deform at high temperatures.

After it has cooled down, wipe the griddle 1

with a damp cloth. For stubborn dirt, use a non-abrasive sponge with a little washing-up liquid and then wipe off afterwards with fresh water. The griddle 1 must be completely dry before it is used again.

Wipe the appliance and the thermostat 3 with

a damp cloth. If necessary, add a little mild detergent to the cloth and wipe off afterwards with fresh water. Dry everything properly.

Then reassemble the appliance.

Storage

Store the cleaned appliance in a clean,

dust-free and dry location.

Troubleshooting

Fault Cause	Solution
The appliance is not working.	The plug is not connected to the mains power.	Insert the plug into a mains power socket.
	The mains power socket is defective.	Use a different mains power socket.
	The thermostat ⓷ is not properly inserted.	Insert the thermostat ⓷ correctly into the connection socket ⓶.
	The appliance is defective. Contact Customer Service.
The control lamp ⓹ goes on and off again at frequent intervals.	The appliance is maintaining the temperature. To do this, the appliance has to heat up briefly every so often. When this occurs, the control lamp ⓺ lights up.	This is not a defect.
The control lamp ⓹ does not light up.	The appliance is defective. Contact Customer Service.
	The appliance has heated up. This is not a defect.

If the malfunction cannot be corrected using one of the suggestions above, or if you have found some other kind of malfunction, please contact Customer Service.

Disposal

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

KompernassHandelsGmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 386427_2110 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 386427_2110.

Service

GB Service Great Britain Tel.:[phone] E-Mail: [e-mail]
IE Service Ireland Tel.:[phone] E-Mail: [e-mail] IAN 386427_2110

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

Inhaltsverzeichnis

Einleitung. 14

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Sommaire

Chere cliente, cher client,

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding. 40

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! BRANDGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

POZOR! HMOTNÉ ŠKODY!

POZORI HMOTNÉ ŠKODYI

POZORI HMOTNÉ SKODYI

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMECKO

www.kompernass.com

Spistresci

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Uvod 76
Použivanie v sulade surcenym ucelom 76
Rozsa h dodavky. 76
Opis pristroja 76
Technické udaje 76
BezpečnostnéPokyny 77
Montáz a instalacia 80
Pred prvym pouzitim 80
Nastavenia termostatu 80
Obsluha. 81
Cistenie a udrzba 81
Uskladnenie 82
Odstrańovanie poruch. 83
Likvidacia 84
Záruka spolocnosti Kompernass Handels GmbH 84
Servis 85
Dovozca. 85

Uvod

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Indledning 100

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Kazalo

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMCIJA

www.kompernass.com

Pooblasceni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 386427_2110

Garancijski list

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
