USER MANUAL SEGS 2200 A1 SILVERCREST

6. Assembly as a freestanding device .................................................. 9

9.1 Connecting the device, switching it on and off........................................ 12

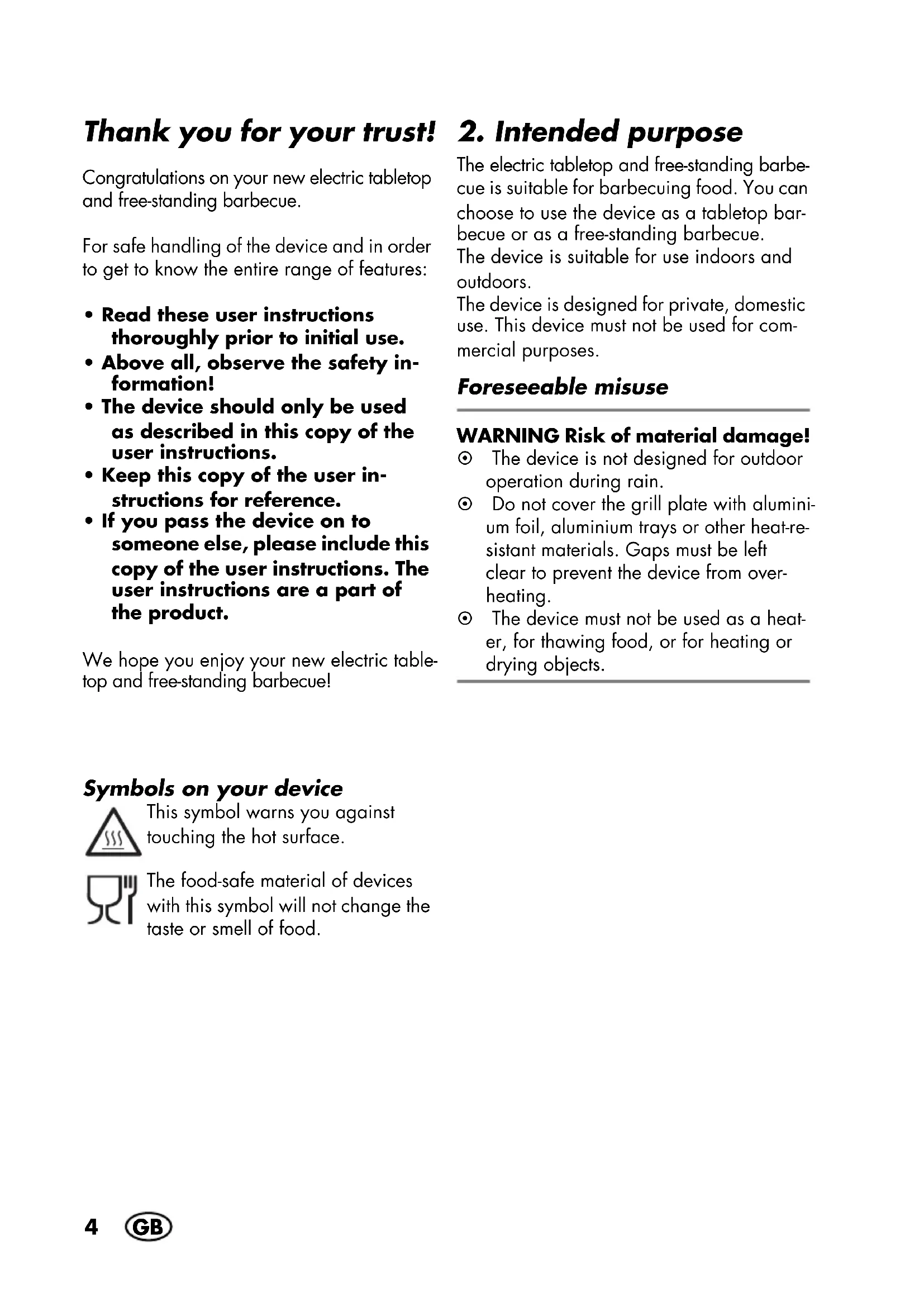

Thank you for your trust! Congratulations on your new electric tabletop and free-standing barbecue. For safe handling of the device and in order to get to know the entire range of features:

• Read these user instructions thoroughly prior to initial use.

• Above all, observe the safety in- formation!

• The device should only be used as described in this copy of the user instructions.

• Keep this copy of the user in- structions for reference.

• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a part of the product. We hope you enjoy your new electric table- top and free-standing barbecue! Symbols on your device This symbol warns you against touching the hot surface. The food-safe material of devices with this symbol will not change the taste or smell of food.

The electric tabletop and free-standing barbe- cue is suitable for barbecuing food. You can choose to use the device as a tabletop bar- becue or as a free-standing barbecue. The device is suitable for use indoors and outdoors. The device is designed for private, domestic use. This device must not be used for com- mercial purposes. Foreseeable misuse WARNING Risk of material damage! ~ The device is not designed for outdoor operation during rain. ~ Do not cover the grill plate with alumini- um foil, aluminium trays or other heat-re- sistant materials. Gaps must be left clear to prevent the device from over- heating. ~ The device must not be used as a heat- er, for thawing food, or for heating or drying objects. __332580_Elektrogrill mit Stand_B6.book Seite 4 Freitag, 10. Januar 2020 10:20 105

Warnings If necessary, the following warnings are used in this copy of the user instructions: DANGER! High risk: failure to ob- serve this warning may result in inju- ry to life and limb. WARNING! Moderate risk: failure to ob- serve this warning may result in injury or se- rious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or mate- rial damage. NOTE: circumstances and specifics that must be observed when handling the de- vice. Instructions for safe operation ~ This device can be used by children from the age of 8 and peo- ple with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting dangers. ~ Children must not play with the device. ~ Cleaning and user maintenance must not be performed by unsu- pervised children unless they are older than 8 years and super- vised. ~ Children under the age of 8 must be kept away from the device and the power cable.

During operation, the metal surfaces of the device may be- come hot. Do not touch the hot parts of the device such as the windscreen or grill plate. ~ The device is suitable for use outdoors. During operation out- doors... … the device must be connected to a wall socket with a protec- tive earth conductor. … the device must be powered via a wall socket with a residual current device (RCD) set to trip in response to a leakage cur- rent no greater than 30 mA in the electrical circuit. Ask your electrician for advice. The installation should only be carried out by a qualified electrician. … the power cable must regularly be inspected for signs of dam- age. If the power cable is damaged, the device must no longer be used. __332580_Elektrogrill mit Stand_B6.book Seite 5 Freitag, 10. Januar 2020 10:20 106

~ The device, the power cable and the mains plug must not be im- mersed in water or any other liquids. ~ This device is not intended to be operated using an external timer or a separate remote control system. ~ If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's custom- er service department or a similarly qualified specialist in order to avoid any hazards. ~ Charcoal and similar fuels must not be used in this device. ~ Never leave the device unattended during operation in order to be able to intervene in good time if malfunctions occur. ~ Unplug the mains plug immediately after each use to prevent ac- cidental switching on. ~ Clean the device prior to its first use (see “Cleaning and storing” on page 14). DANGER for children ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags. There is a risk of suffocation. ~ When using it as a free-standing barbe- cue: never allow children to run and play in the immediate vicinity, in order to prevent them from accidentally knock- ing over the device or burning them- selves. ~ When using it as a tabletop barbecue: ensure that children are not able to pull the device down from the work surface by the power cable. ~ Keep the device out of the reach of chil- dren. DANGER to and from pets and livestock ~ Electrical devices can represent a dan- ger to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times. DANGER! Risk of electric shock due to moisture ~ Protect the device from moisture, water drops and water splashes. ~ If liquid gets into the device, disconnect the mains plug immediately. Have the device checked before reusing. ~ Never touch the device with wet hands. ~ If the device falls into water, disconnect the mains plug immediately. Only then is it safe to remove the device. __332580_Elektrogrill mit Stand_B6.book Seite 6 Freitag, 10. Januar 2020 10:20 107

DANGER! Risk of electric shock ~ Only plug the mains plug into the wall socket after the device has been com- pletely assembled. ~ Only connect the mains plug to a prop- erly installed and easily accessible wall socket with earthing contact whose volt- age corresponds to the specifications on the rating plate. The wall socket must still be easily accessible after the device is plugged in. ~ When using an extension cable or a multiple socket, they must comply with the applicable safety regulations and be designed for the technical data of this device. ~ Ensure that the power cable cannot be damaged by sharp edges or hot spots. Do not wrap the power cable around the device. ~ The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug. ~ When using the device, ensure that the power cable cannot be trapped or crushed. ~ When removing the mains plug from the wall socket, always pull on the plug and never the cable. ~ Disconnect the mains plug from the wall socket … … if there is a fault, … when you leave the device unattend- ed, … immediately after each use, … before assembling/disassembling the device, … before you clean the device and … during thunderstorms. ~ In order to avoid any hazards, do not make modifications to the device. ~ Do not use the device if there is visible damage to the device or the power ca- ble. DANGER! Risk of fire ~ The device must only be set up on a sol- id, level, dry and non-flammable sur- face. This is intended to prevent it from tipping, slipping or setting fire to the un- derlying material and thus causing dam- age. ~ The device must not be operated close to flammable liquids or materials, or in a potentially explosive environment. Keep at a distance of at least 50 cm from walls and other objects. ~ In order to prevent overheating of the device or a potential fire, the device must not be covered. The grill plates must not under any circumstances be covered with aluminium foil, aluminium containers or heat-resistant materials. ~ The power cable must not touch the hot surfaces during operation. DANGER! Risk of injury through burning ~ The windscreen and the grill plate be- come very hot during operation. Only touch the control elements, the stand frame and the plastic surfaces during operation. ~ When using it as a free-standing barbe- cue: - Set the device up in such a way that no one will accidentally knock over the device or touch the hot surfaces. - Do not place heavy objects (more than 1.8 kg) on the side shelves. There is a risk of tipping! ~ The device remains very hot after it is switched off, and must not be touched.

Only transport the device when it has cooled down, and when doing so only use the recessed grips intended for this purpose. ~ Use oven gloves when you are cooking food at hot temperatures. Spitting fat could otherwise cause burns. __332580_Elektrogrill mit Stand_B6.book Seite 7 Freitag, 10. Januar 2020 10:20 108

Never use the device without the grill plate. Otherwise the red-hot heating ele- ments would be exposed which could re- sult in severe burns if touched. ~ If fat catches fire on the device, never try to extinguish it with water! There is a danger of explosive deflagra- tion or electric shock. Instead, cover the device with a fire blanket. ~ Wait for the device to cool down before cleaning. DANGER for birds ~ Birds breathe faster, distribute the air differently in their bodies and are signif- icantly smaller than humans. For this reason, it may be dangerous for birds to inhale even the smallest smoke quanti- ties, which develop while this device is in operation. When using this device, birds should be relocated into a differ- ent room. WARNING! Risk of material damage ~ Ensure that the temperature control is ful- ly switched to MIN (switched off) be- fore you plug it into a wall socket. ~ Only use the original accessories. ~ Do not use any astringent or abrasive cleaning agents.

The device is fitted with non-slip plastic feet. As furniture is coated with a wide array of varnishes and synthetics, and is also treat- ed with different care products, it cannot be fully ruled out that some of these materials contain components that could attack and soften the non-slip plastic feet. If necessary, place a non-slip mat under the device. ~ Only use barbecue utensils made from wood or heat-resistant plastic. Metal utensils could damage the coated sur- face of the grill plate. ~ Do not place any objects on the device. ~ Protect the device against the effects of weather such as rain, frost etc.

1 base unit8 incl. grease drip tray5 1 grill plate3 1windscreen1 2 side shelves11 1frame12 1 lower shelf14 4long rods16 4 short rods18 4 base caps15 8screws20 8 hexagon nuts19 1 copy of the user instructions

• Check to ensure that all parts are pres- ent and undamaged.

freestanding device If you want to use the device as a free-stand- ing barbecue, first assemble the frame. NOTE: you will need a screwdriver (Phillips or Flat-head). NOTE: the holes in the short rods18 are at different distances from the edge. The shorter distance is at the bottom. A long rod16 is inserted into this end in each case.

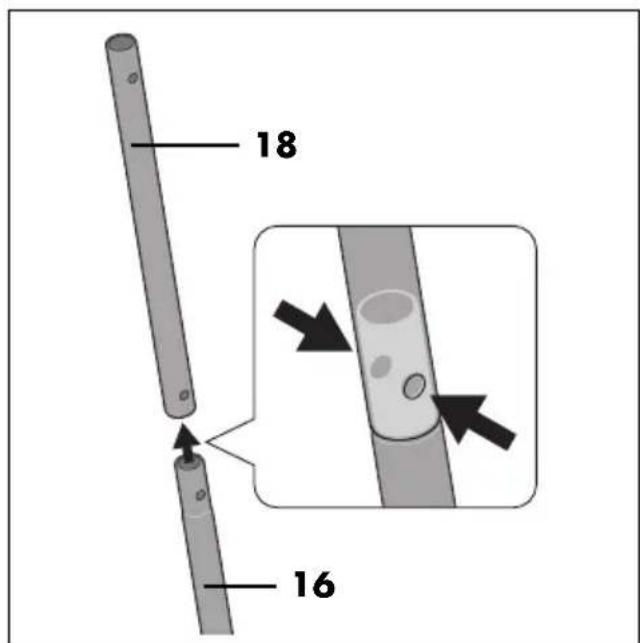

1. Insert a long rod16 into a short rod18

in each case. Make sure that the holes are exactly on top of each other.

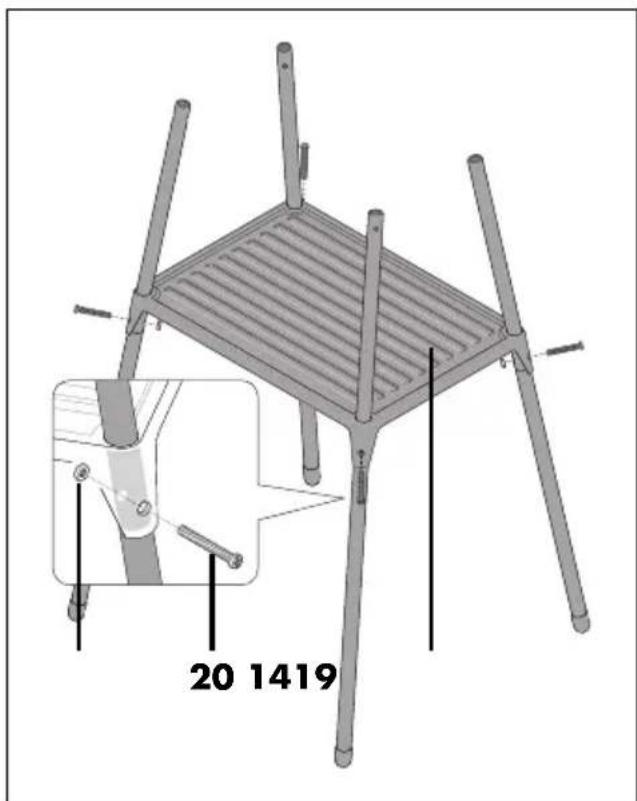

3. Slide the assembled legs through the

holes in the lower shelf14.

4. Position each leg so that the bores in the

leg are exactly behind the hole in the lower shelf14.

5. Push a screw20 through the hole and

bores from the outside.

6. Screw a hexagon nut19 onto each

screw20 from the inside.

7. Use a screwdriver to tighten the

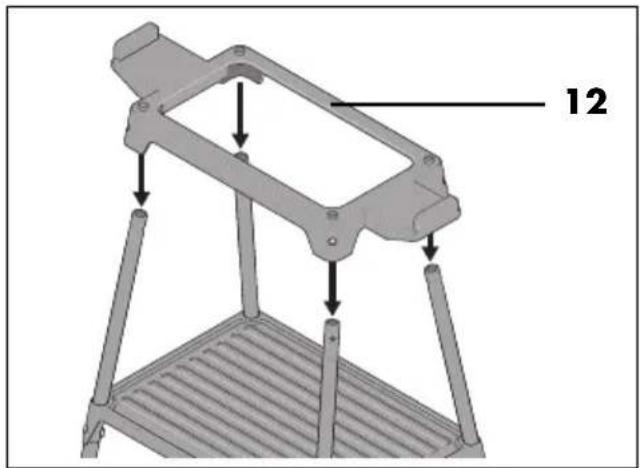

9. Fasten each corner with a screw20

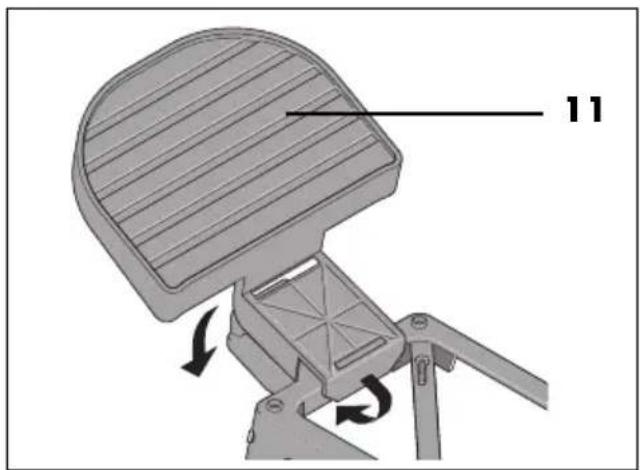

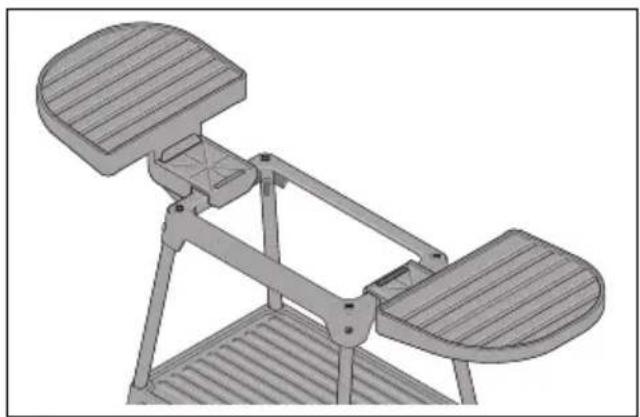

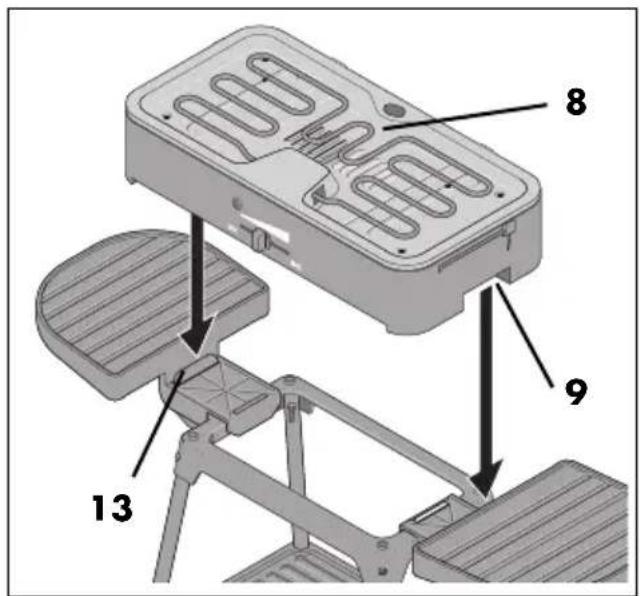

and a hexagon nut19. 10.Use a screwdriver to tighten the screws20. 11.Hook the side shelves11 onto the nar- row sides of the frame12. 12.Place the base unit8 onto the frame. The recessed grips9 are placed exactly on the ridges13. Optional: install the windscreen NOTE: you can use the device without the windscreen1. You can skip this step if you wish. 13.Attach the windscreen1 to the back of the base unit8. There are 2 holders on the back and 1 holder on each side (see arrows in the figure). The wind- screen must click into the holders.

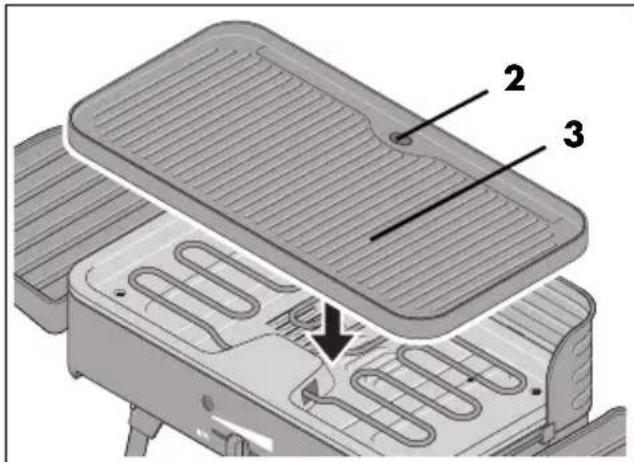

Preparing to barbecue 14.Finally place the grill plate3 onto the base unit8. The two grease drain holes2 and4 must be located one above the other. 15.Make sure that the grease drip tray5 is inserted. 16.Place the fully assembled device on a level, non-slip surface. Keep a distance of approx. 50 cm from other objects. Now your electric barbecue is ready for out- door use.

7. Using as a tabletop

device If you want to use the electric barbecue as a tabletop unit, you only need the following parts: - Base unit8 - Grill plate3 -Windscreen1 (optional)

1. Place the base unit8 on a stable, level

table that is resistant to grease and heat. Keep a distance of approx. 50 cm from other objects.

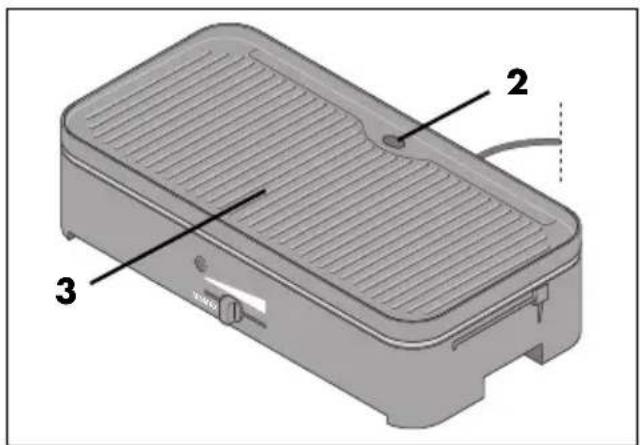

2. Finally place the grill plate3 onto the

base unit8. The two grease drain holes2 and4 must be located one above the other.

3. Optionally, you can mount the wind-

screen1 as described (see “Optional: install the windscreen” on page 10).

FIRE HAZARD! ~ Place the device on a dry, level, non-slip and heat-resistant surface. ~ The device must not be operated close to flammable liquids or materials, or in a potentially explosive environment. Keep at a distance of at least 50 cm from walls and other objects. NOTE: when in operation for the first time, some smoke and odour may be generated by the device. This is related to materials used on the heating elements during assem- bly, and is not a defect with the device. En- sure adequate ventilation.

• Clean the device prior to its first use (see “Cleaning and storing” on page 14)!

1. Slide the temperature control10 com-

pletely to MIN. This switches off the heating element7.

2. Insert the mains plug6 into an easily

accessible earthed wall socket whose voltage matches the voltage stated on the rating plate. The control light17 is lit.

3. Set the temperature control10 to

MAX. When the heating element7 is switched on or off by the thermostat, you will hear a click.

4. Leave the device switched on for around

pletely to MIN to switch the heating ele- ment7 off again.

6. Pull out the mains plug6 and allow the

7. Clean the device again (see “Cleaning

DANGER! Risk of injury through burning! ~ The windscreen1 and the grill plate3 become very hot during operation. Only touch the control elements, the stand frame and the plastic surfaces during operation. ~ Do not place heavy objects (more than

1.8 kg) on the side shelves11. There is

a risk of tipping! ~ Ensure that children do no play in the vi- cinity of the device, or knock over or pull down the device.

9.1 Connecting the device,

switching it on and off

1. Lightly oil the upper side of the grill

plate3. NOTE: use a kitchen towel with a little cook- ing oil drizzled onto it.

2. Slide the temperature control10 com-

pletely to MIN. This switches off the heating element7.

3. Insert the mains plug6 into an easily

accessible earthed wall socket whose voltage matches the voltage stated on the rating plate. The control light17 is lit.

4. Slide the temperature control10 to-

wards MAX until it is in the desired temperature range. When the heating element7 is switched on or off by the thermostat, you will hear a click.

5. Let the device preheat for about 10 min-

utes. The device is now ready for opera- tion.

7. Unplug the mains plug6 immediately

after use to prevent accidental switching on.

8. Allow the device to cool down before

temperature The optimum temperature depends above all on the food used. With the temperature control10 you can infinitely variably regu- late the temperature of the grill plate3:

• To increase the temperature, slide the temperature control10 towards MAX.

• To decrease the temperature, slide the temperature control10 towards MIN.

• To switch off the heating element7, push the temperature control10 all the way to MIN. A clicking sound is heard when the thermo- stat is switched on and off.

The grill plate3 is non-stick coated and nor- mally needs to be lightly oiled only before grilling begins.

• Use utensils made of wood or heat-re- sistant plastic in order not to damage the grill plate3.

• If the device is set up horizontally, grease and cooking juices can run off to the rear to the grease drain hole2. Grease and cooking juices are collected in the grease drip tray5 on the back.

• Food and utensils, for example, can be placed on the side shelves11.

• Heavier objects, such as oil bottles, larger quantities of food, etc. can be placed on the lower shelf14.

9.4 Emptying the grease

drip tray If larger quantities of grease and cooking juices are produced during grilling, the grease drip tray5 on the back of the device must be emptied. To do this, take a break from grilling so that no liquid drains out while the grease drip tray5 is removed.

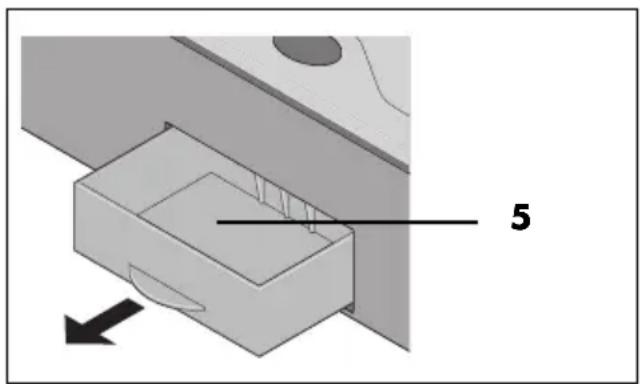

1. Carefully pull out the grease drip tray5

on the back and empty it.

2. Wipe the outside of the grease drip

tray5 with kitchen paper.

3. Slide the empty grease drip tray5 back

into the base unit8. NOTE: you can fill some water into the grease drip tray5 before grilling. This binds odours and facilitates cleaning.

9.5 Overheating protection

The device is fitted with overheating protec- tion. This will automatically switch the device off if a certain temperature is exceeded. When the device has cooled down, it can be switched on again. Note that the grill plate must not be covered with aluminium foil, aluminium trays or other heat-resistant materials. Gaps must be left clear.

10. Cleaning and storing

DANGER! Risk of electric shock! ~ Disconnect the mains plug6 from the mains socket before any cleaning. ~ Never immerse the device in water, and protect it from drips and splashes. DANGER! Risk of injury through burning! ~ Prior to cleaning, let the device cool down until there is no longer a risk of burning. WARNING! Risk of material dam- age

~ Never use any abrasive, corrosive or scouring cleaning agents. This could damage the device and the non-stick coating of the grill plate3. NOTE: do not wait too long after cooling before cleaning, otherwise food residues will dry hard and become difficult to re- move.

10.1 Removing grease and

• First remove grease and food residues using paper towels.

• If there is stubborn encrusted food on the grill plate3, soften it for approx. 20 - 30 minutes in warm water with a little mild detergent.

The following accessories can be cleaned in the dishwasher: - the grill plate3 - the grease drip tray5 - the side shelves11

• Light dirt can be removed with a damp cloth with a little detergent.

• Remove the windscreen1 from the de- vice if it is very dirty. You can then clean it by hand in warm dishwater.

• Carefully dry the windscreen1 after cleaning.

10.4 Cleaning the base unit

1. Clean the base unit8 and frame with a

damp cloth. You can also use a little de- tergent.

2. Wipe with clear water.

3. Do not use the device until it is com-

10.5 Storing the device

DANGER for children! ~ Store the device out of the reach of chil- dren.

1. Allow the base unit8 and all accesso-

ries to dry completely after cleaning.

2. Store the device in a frost-free, dry

This product is subject to the provisions of European Direc- tive 2012/19/EC. The sym- bol showing a wheelie bin crossed through indicates that the product requires sep- arate refuse collection in the European Un- ion. This applies to the product and all accessories marked with this symbol. Prod- ucts identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recy- cling electric and electronic appliances. This recycling symbol marks e.g. an object or parts of the material as valuable for recy- cling. Recycling helps to re- duce the consumption of raw materials and protect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country.

12. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! ~ Do not attempt to repair the device your- self under any circumstances. Fault Possible causes / Action No function

• Has the device been connected to the pow- er supply?

• Check the connection.

• Is the temperature con- trol10 completely set to MIN? Switch on the device by turning the temperature control past the clicking sound.

specifications Symbols used Subject to technical modifications.

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective de- vice and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. Model: SEGS 2200 A1 Mains voltage: 220-240 V

50 – 60 Hz Protection class: I Protection type: IPX4 (protection against water splashes) Power rating: 2200 W Geprüfte Sicherheit (certified safety). Devices must comply with the generally acknowledged rules of technology and the Ger- man Product Safety Act (Produkt- sicherheitsgesetz - ProdSG). (Not for UK.) With the CE marking, HOYERHandel GmbH declares the conformity with EU guide- lines. This symbol reminds you to dis- pose of the packaging in an envi- ronmentally friendly manner. Recyclable materials are marked with the recycling symbol (3 ar- rows). The material can be speci- fied by the recycling number in the centre (here: 21) and/or an abbreviation (here: PAP). The symbol identifies parts that can be cleaned in the dishwasher. __332580_Elektrogrill mit Stand_B6.book Seite 16 Freitag, 10. Januar 2020 10:20 1017

The warranty applies to material or factory defects. Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 332580_1907 and the purchase receipt as a purchase verification for all in- quiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or under- side of the device.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. At www.lidl-service.com you can download this and many other manuals, product vide- os and installation software. This QR code takes you directly to the Lidl Ser- vice website (www.lidl-service.com), where you can enter the article number (IAN) 332580_1907 to open your user instruc- tions. Service Centre Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] Service Malta Tel.: [phone] E-Mail: [e-mail] Service Cyprus Tel.: [phone] E-Mail: [e-mail] IAN: 332580_1907
